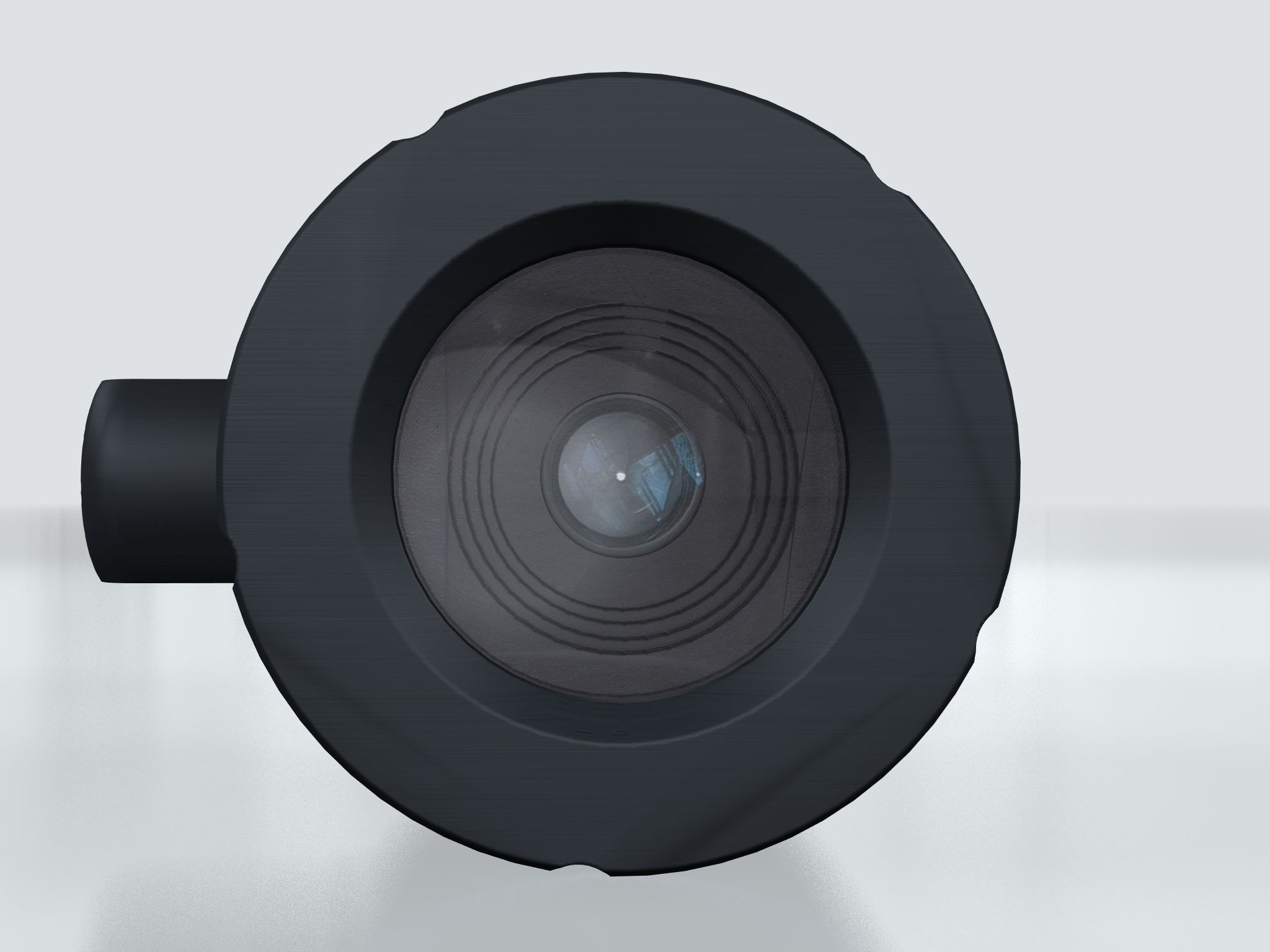

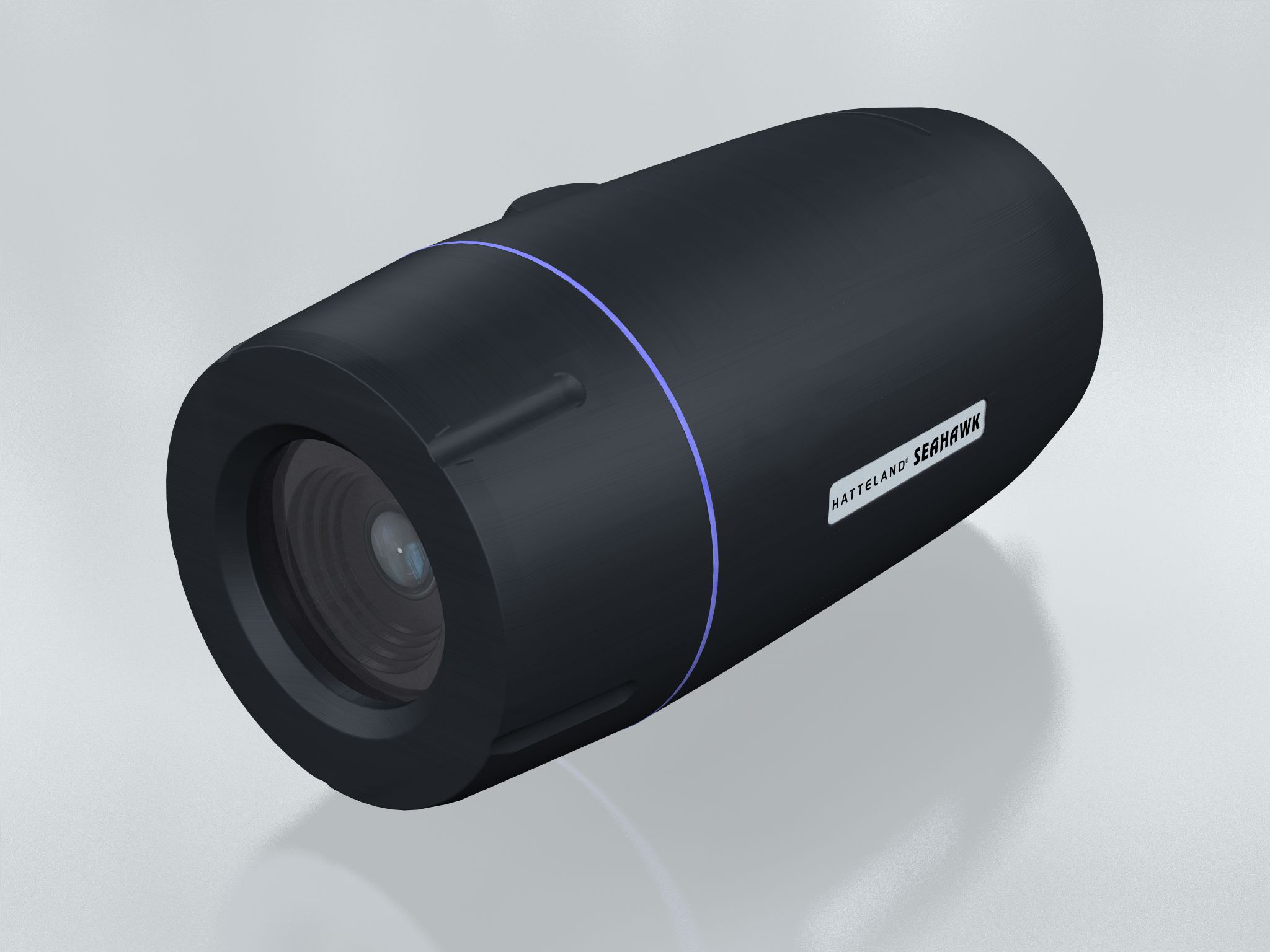

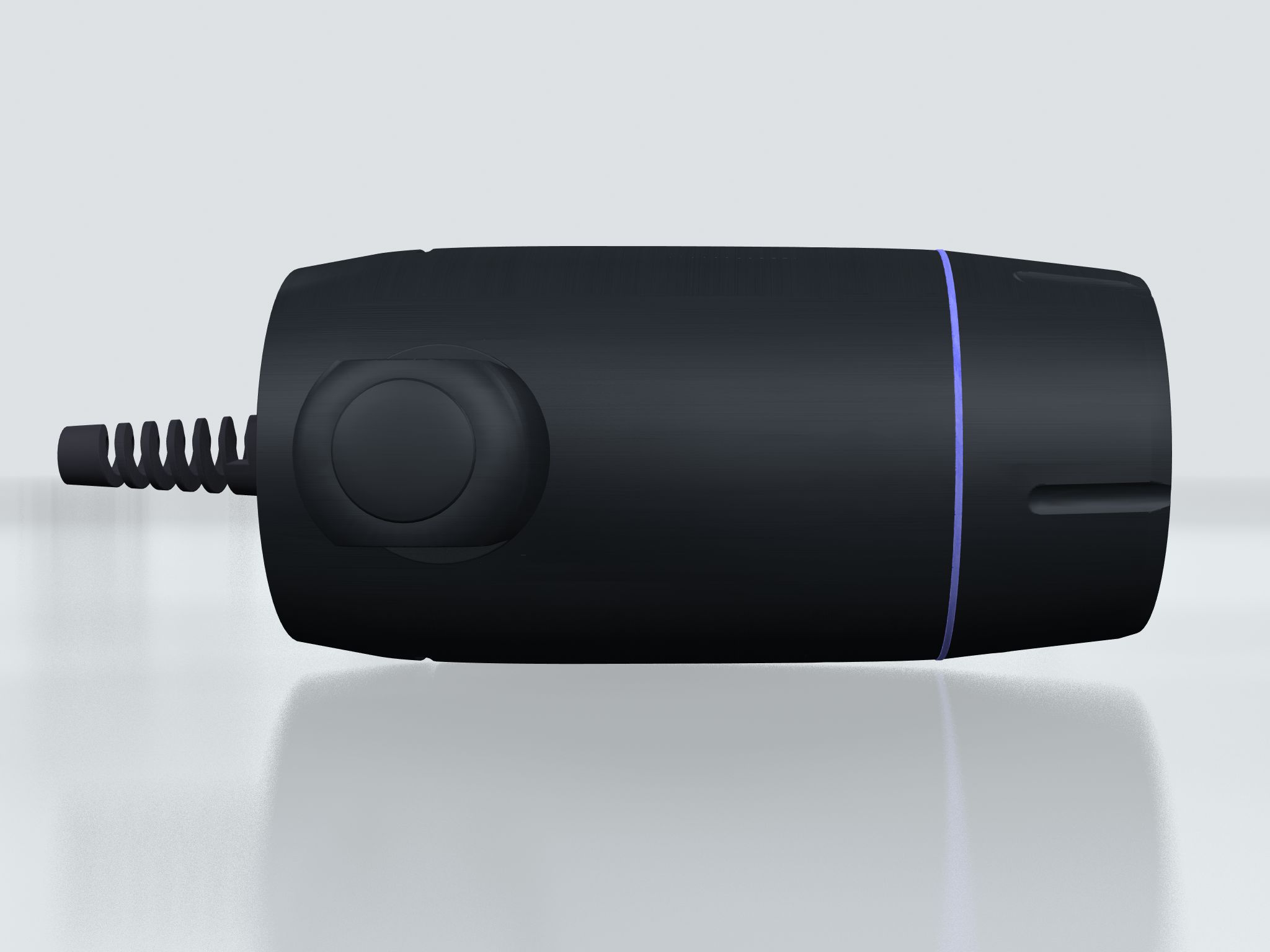

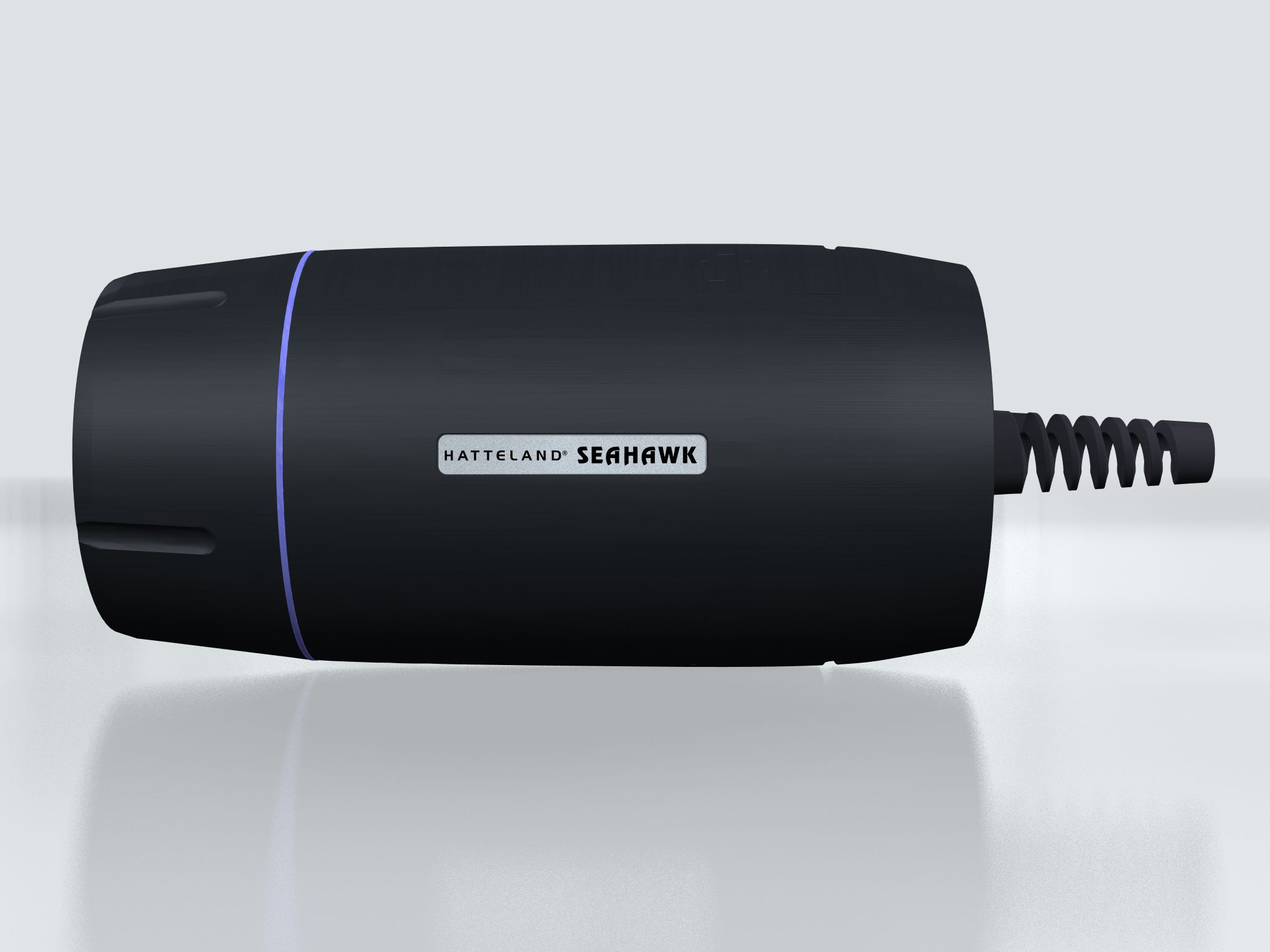

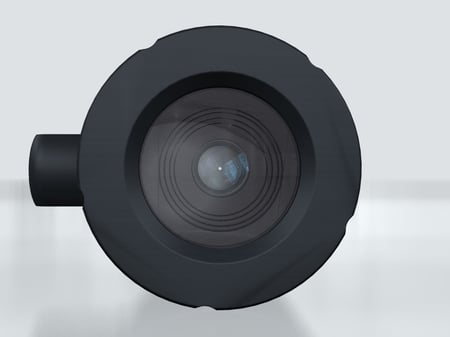

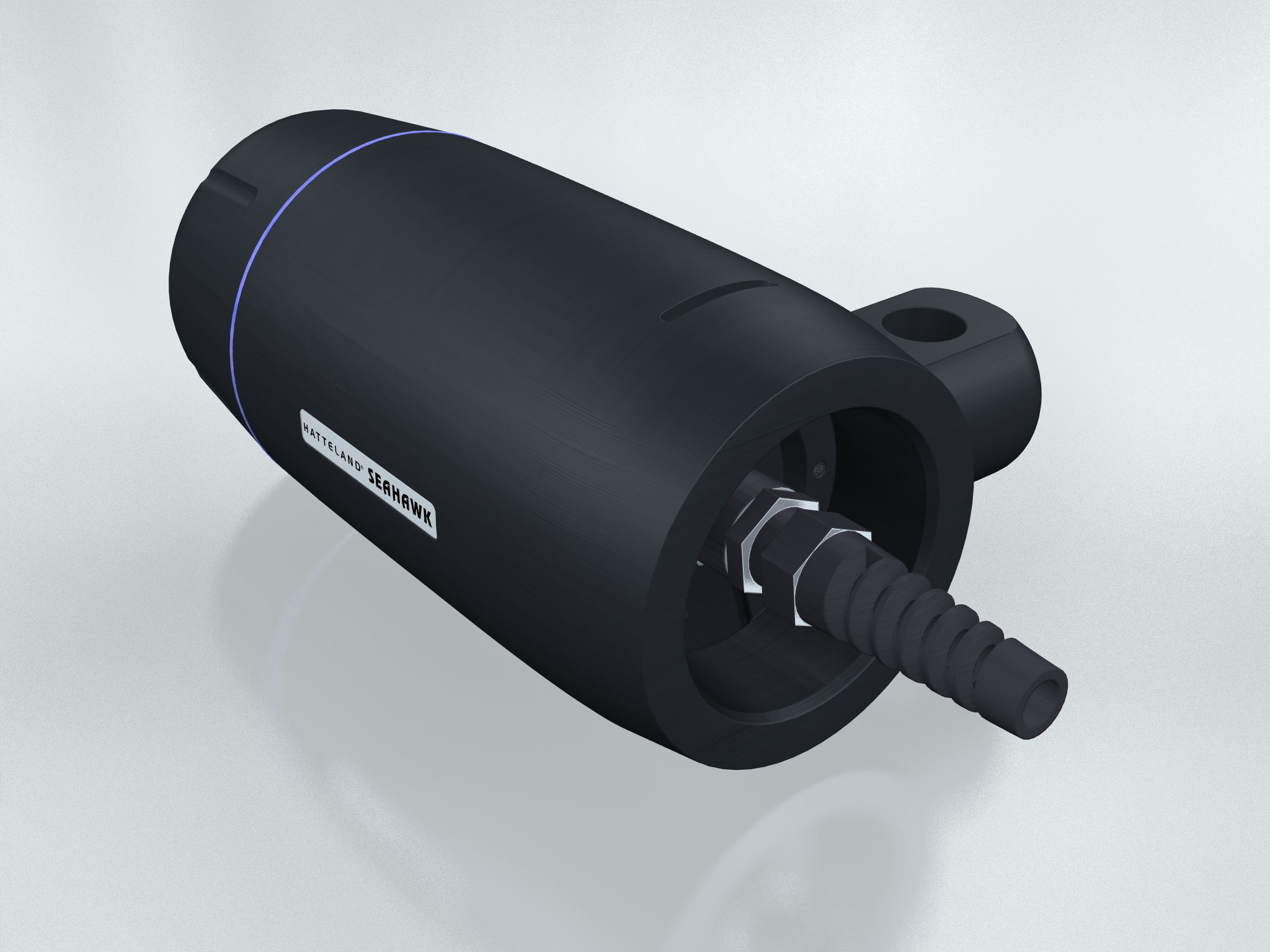

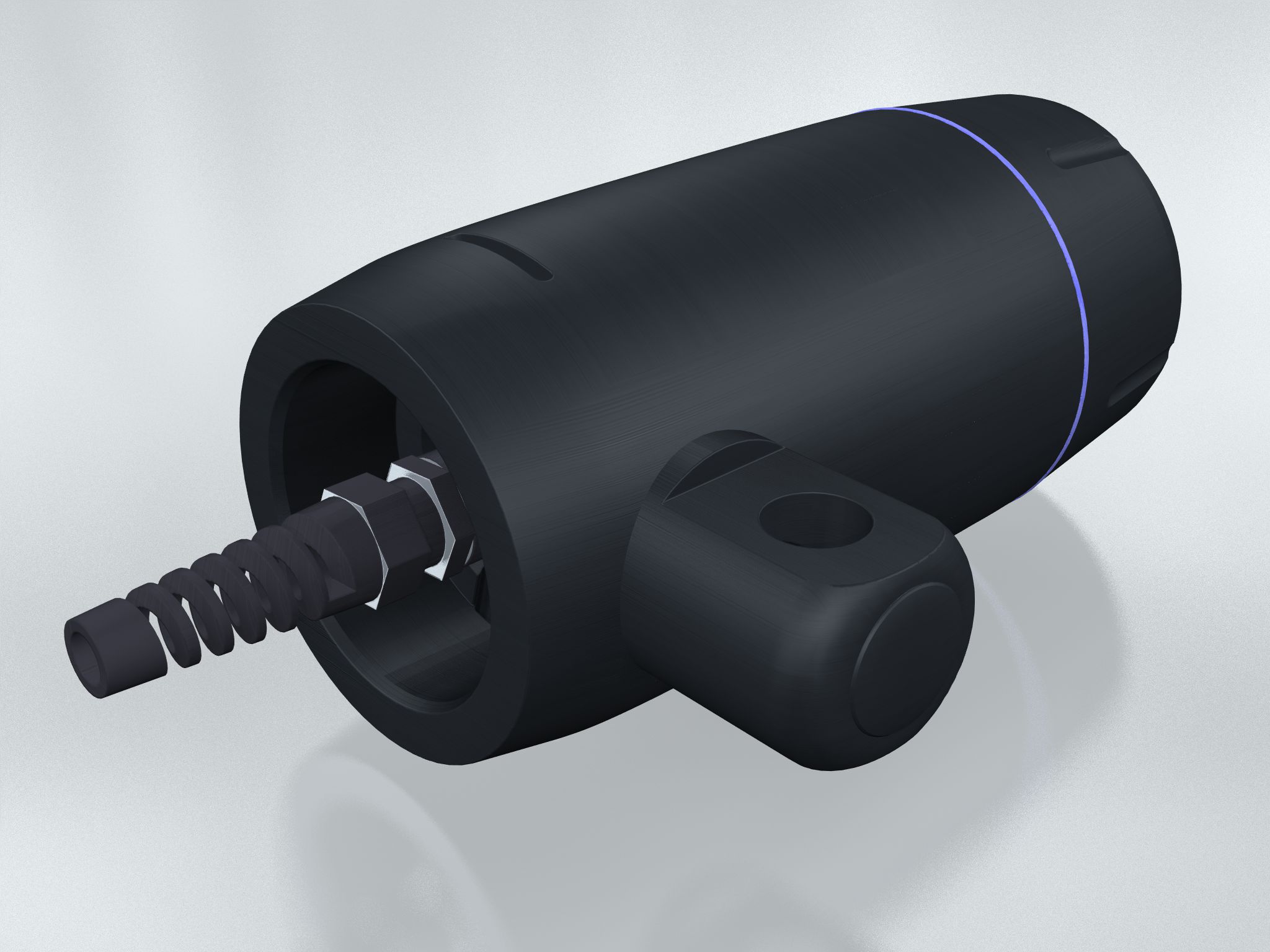

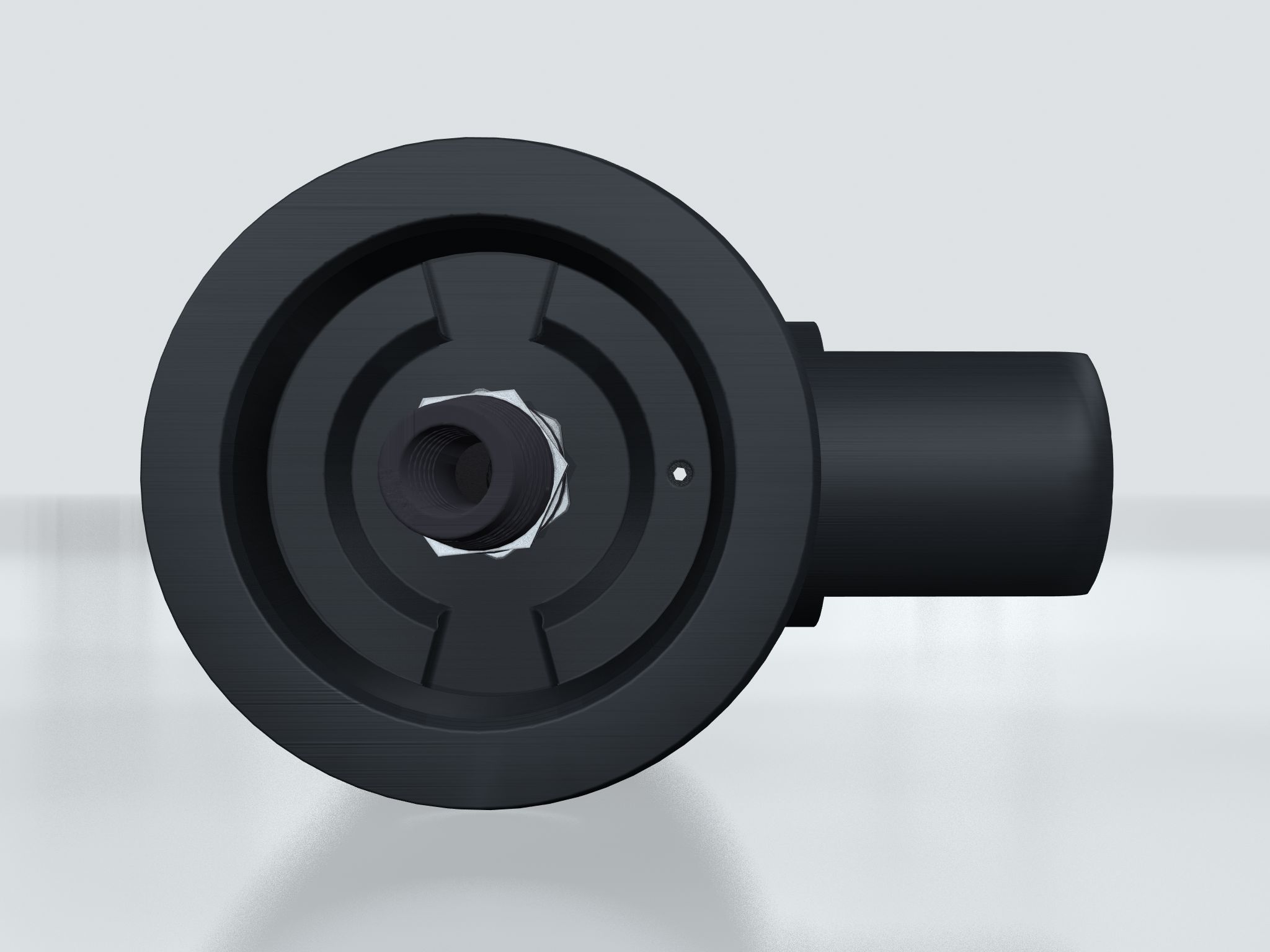

Camera - ZoomBullet - HATTELAND® SeaHawk - 20X Zoom - Black

HT ZB2X AA

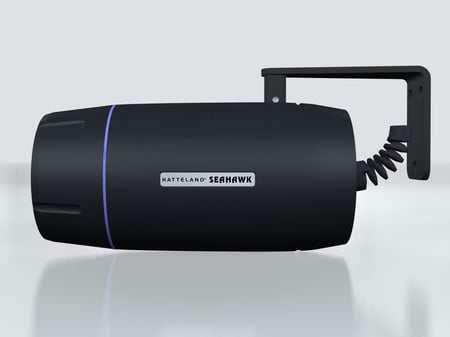

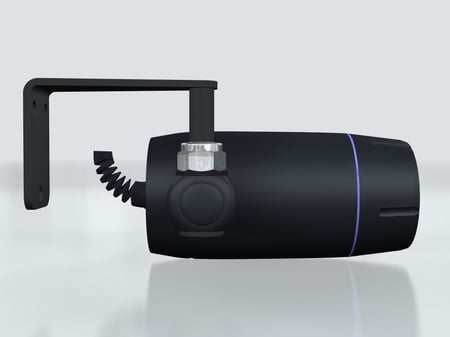

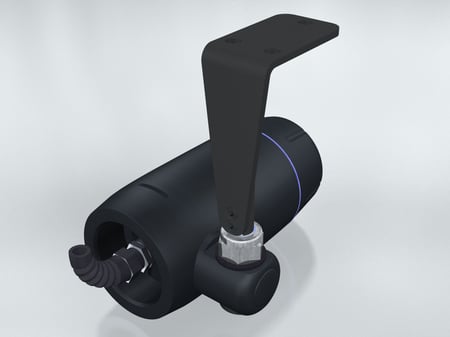

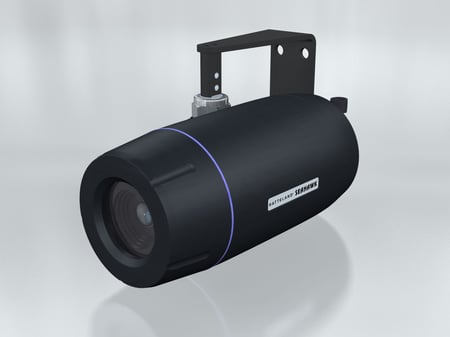

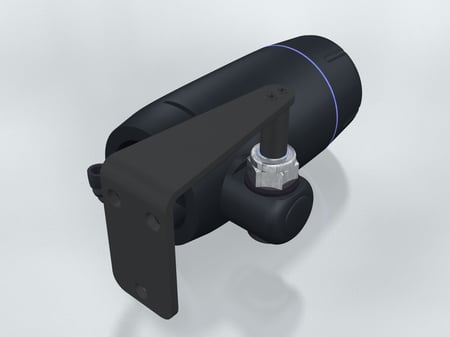

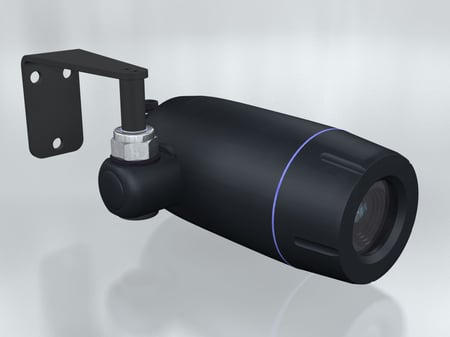

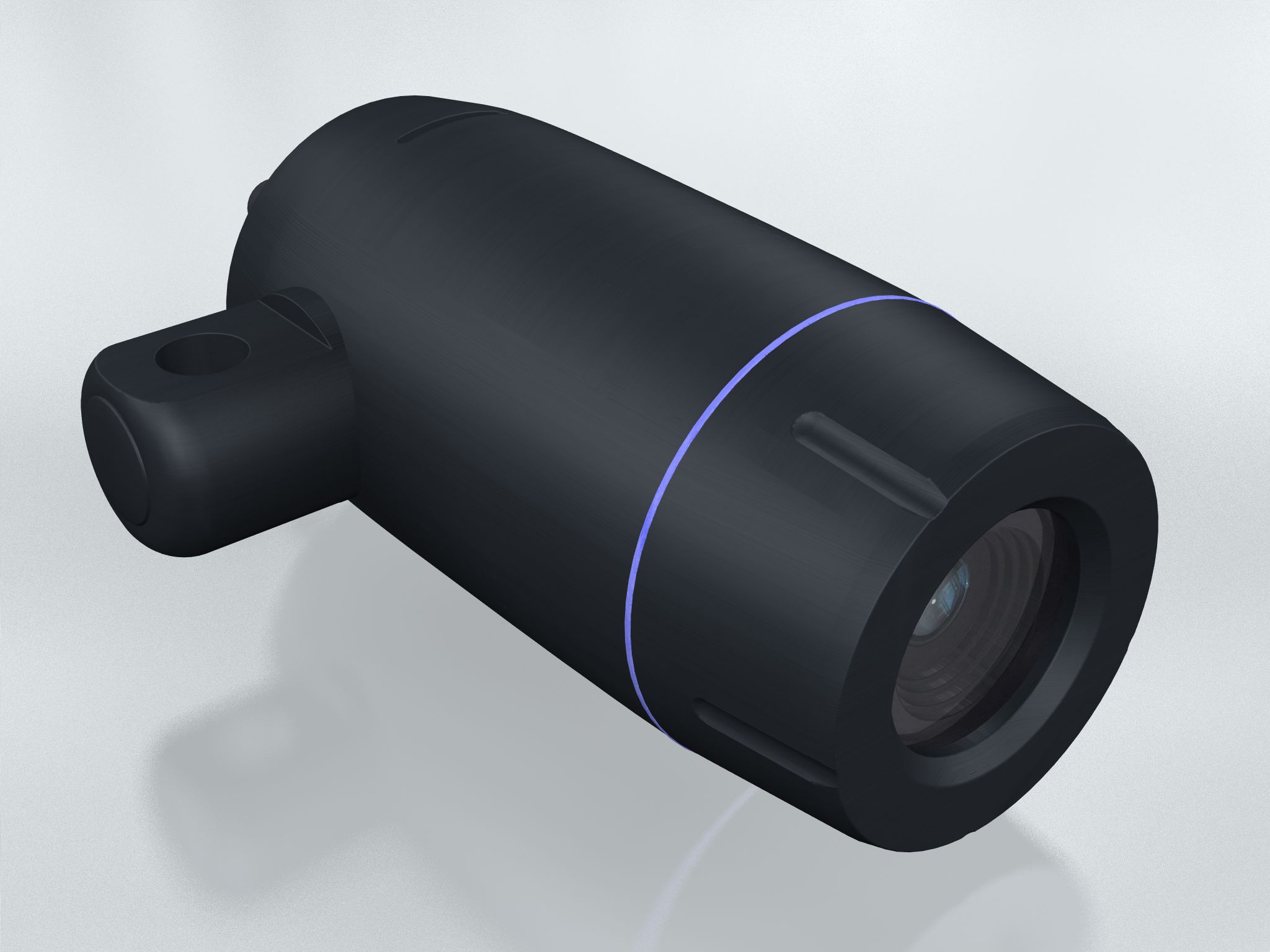

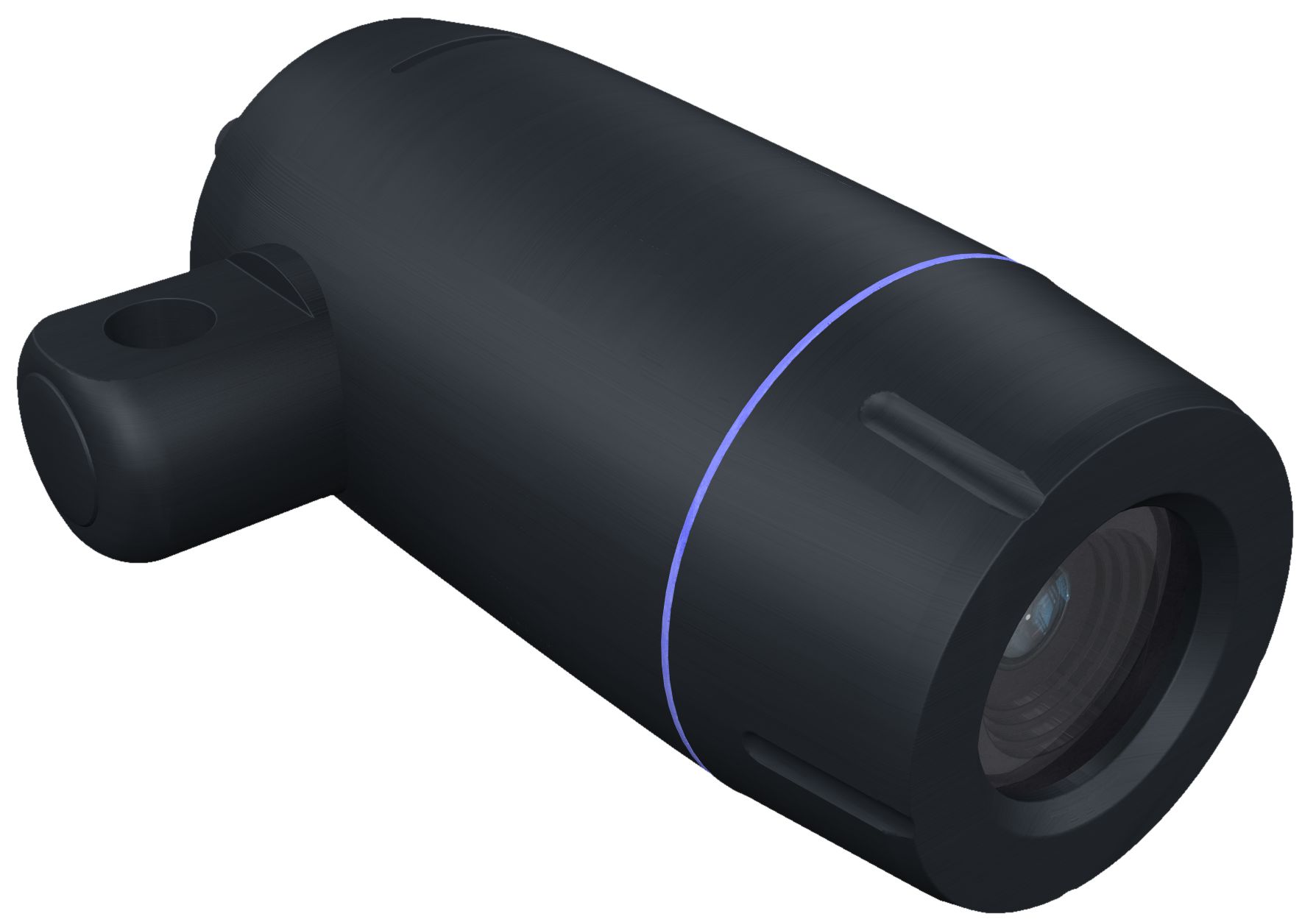

HATTELAND® SeaHawk IP Camera from Hatteland Technology is the perfect IP camera solution with full HD resolution at 30fps. The camera housing is constructed in sturdy POM material. 20x Zoom, PoE - Power over Ethernet, Stream compression H265/H264, Motion Detection, No sharp edges.

ZoomBullet

Send Request

Description

Specifications

Image Sensor and Lens Type:	1/2.8" Progressive Scan CMOS Auto DC Iris, Zoom, IR cut filter
Zoom and Focal Length:	20X (optical, motorized) f=4.8mm ~ 57.6mm
Maximum Aperature Ratio and Angle of View:	F2.2 (wide) ~ 2.3 (tele) Wide: H: 64.2°, V: 37.5° Tele: H: 5.9°, V: 3.3°
Electronic Shutter Speed:	1 ~ 1/30 sec (B/W), 1/24 ~ 1/1000 sec (color)
Flip Mode and Image Enhancement:	Horizontal, Vertical AGC, AWB, AE, TDN, DSS, BLC, WDR
Compression, Frame Rate and Bitrate:	H265 / H264 / MJPEG Max 30fps @ 1920 x 1080 Bitrate Primary: 32Kbps ~ 16Mbps. Secondary: 32Kbps ~ 4Mbps
Resolutions, Streaming and Burn-in OSD:	352 x 240 ~ 1920 x 1080 Streaming Primary: H265 / H264, Secondary: H265 / H264 / MJPEG Multi-lingual
Interface:	1 x Ethernet 10/100base-T (RJ-45)
Protocol and Security:	Protocols: IPv4/v6, TCP, UDP, IGMP (MULTICAST), ICMP, DHCP, HTTP, HTTPS, RTP, RTPS, FTP, SNMP, UPnP, WS-Discovery, Zero-configuration, NTP, DDNS Secuirty: Password protection, IP address filtering, HTTPS encryption
API:	ONVIF, PSIA, MPEG-TS
Event Sources and Event Actions:	Event Sources: Motion, Sensor Input, Client disconnection Event Actions: Notification (E-mail), FTP, Alarm control, Recording
Housing:	POM (Polyoksymetylen), RAL 5012 (ring)
Power Supply and Consumption:	PoE: 802.3af via RJ-45 12W (max)
Product Dimensions and Weight:	W:153.00 [6.02"] x H:105.00 [4.13"] x D:201.00 [7.91"] mm [inch] 2.0kg / 4.41lbs Pigtail Cable: 2.5 [8.20] m [ft], Cat5e STP, RJ-45 terminated
Product Carton Size and Weight:	TBD
Contents of Package:	TBD
Available Models:	• HT ZB2X AA-X1: SeaHawk ZoomBullet 20x POM Black • HT ZB2X WA-X1: SeaHawk ZoomBullet 20x ALU. White RAL9010

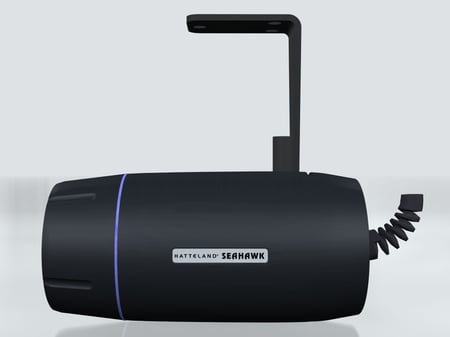

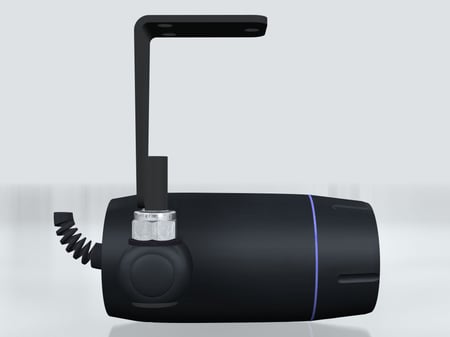

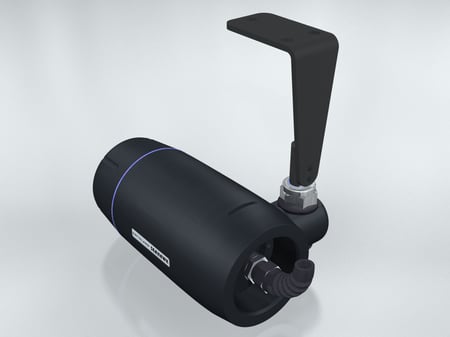

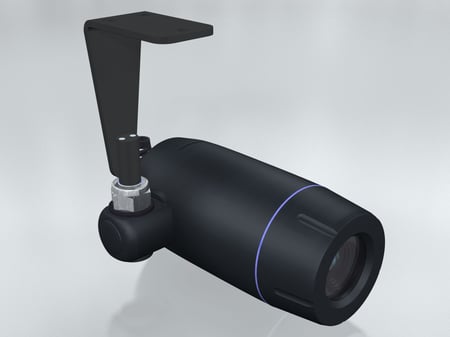

Accessories:	• HT MB11-AA: SeaHawk Bullet multi Bracket ALU. Black RAL9005* • HT MB12-AA: SeaHawk Bullet Ceiling/Wall Bracket White RAL9010 • HT WB11-AA: SeaHawk Bullet Wall Bracket ALU. Black RAL9005* • HT WB12-AA: SeaHawk Bullet Wall Bracket ALU. White RAL9010* • HT CB11-AA: SeaHawk Bullet Ceiling Bracket ALU. Black RAL9005* • HT CB12-AA: SeaHawk Bullet Ceiling Bracket ALU. White RAL9010*** • LD-001: IP67 coupler for patch cable, 2 x RJ-45 female-to-female * Included with purchase of HT ZB2X xA-X1 Included with purchase of HT ZB2X WA-X1 * Designed to meet IEC60945
Operating Temperature:	-40°C to +65°C
Storage Temperature:	TBD
Certification and IP-Rating:	Designed to meet IEC60945, IP66/IP67

Specifications last updated: April 8, 2025 @ 07:50

Type Approvals

Downloads

Accessories

News Stories:

14 May 2020
Product released to website
