HD 13T22 MMC

Overview

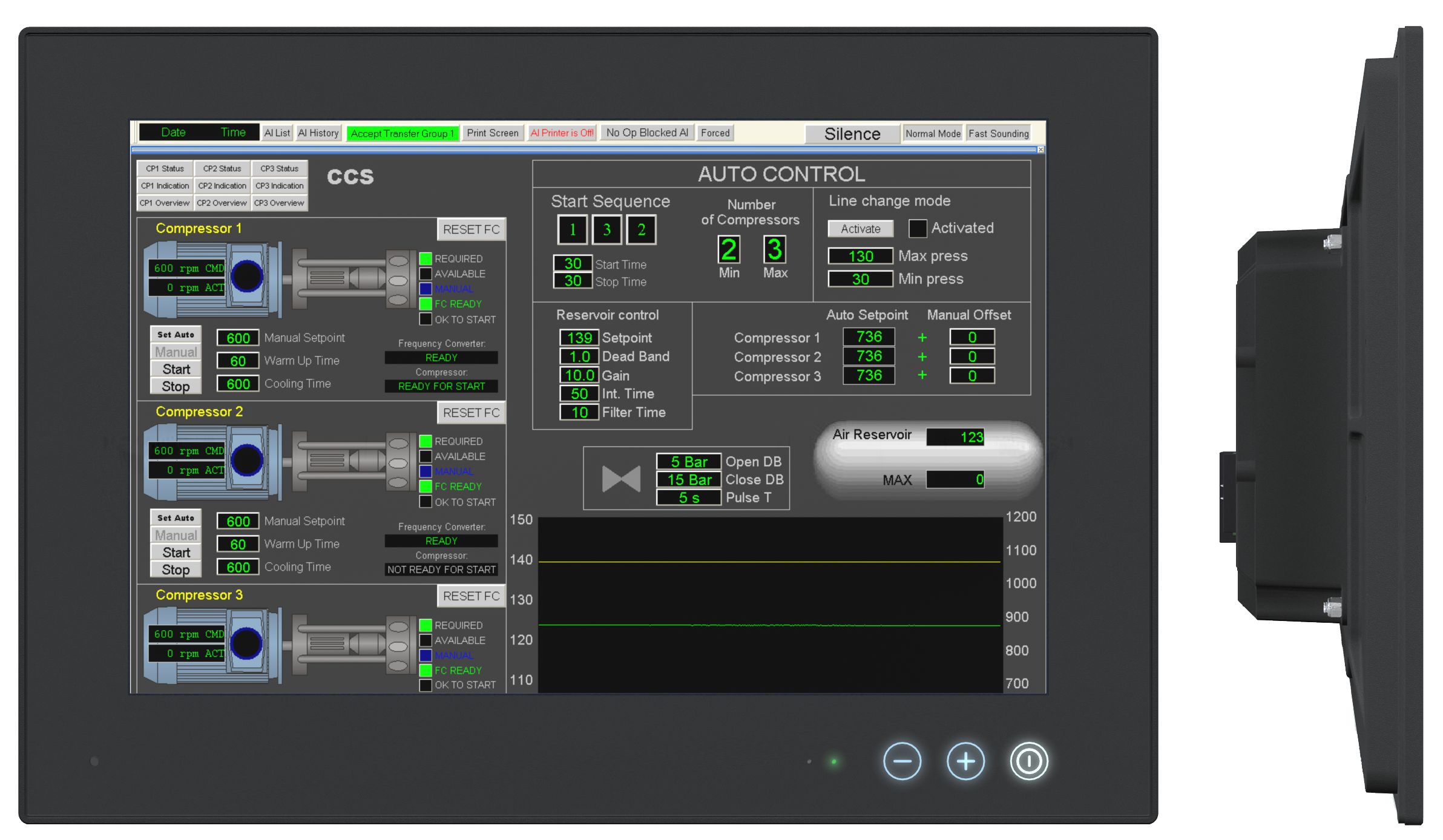

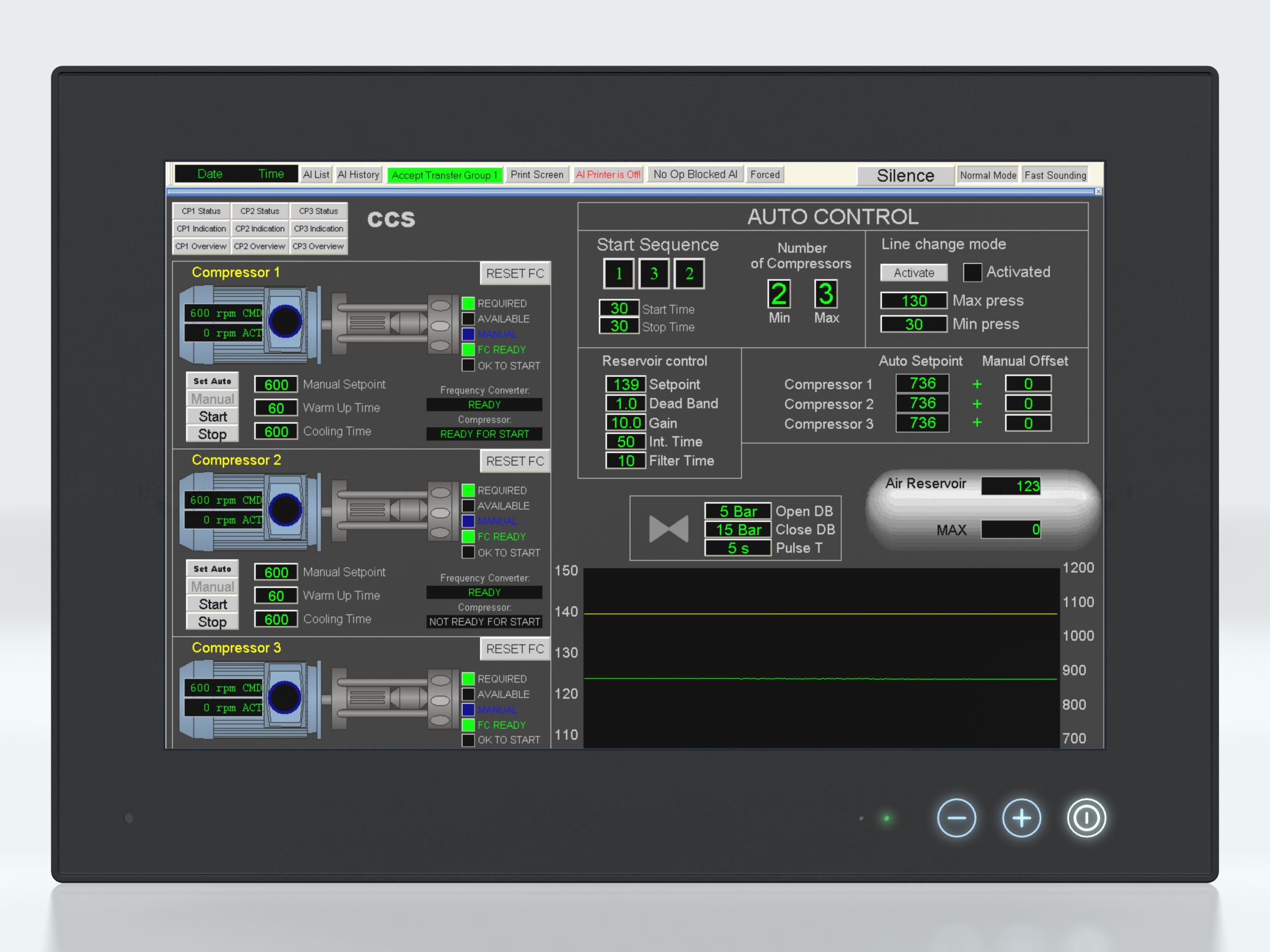

Panel Computer - Widescreen - LED - HATTELAND® Series X G2 - 13.3 inch

HD 13T22 MMC

Series X Panel Computers offer the ultimate in performance, convenience, state of the art design and enduring quality for system integrators and boat builders. Series X products offer a range of feature sets optimized for varying requirements and applications.

icon
Widescreen
icon
LED-backlit
Send Request
Description

Panel Computer - HATTELAND® Series X G2

The Series X Panel Computer range is a flexible all in one monitor & PC solution, designed and type approved for the professional marine segment, where reliability and long life time are key prerequisites for the industry. The product range combines state of the art monitor and computer technology with innovative features and options, making it all that the integrator needs for top class type-approved marine systems.

The high performance MMC Panel Computer models provide a wide choice of monitor size and format, along with various processor and storage options. The compact, all-in-one MMC solution is the ideal one for all ship navigation or automation installations. This range with all it's versatility and capability provides a robust and cost effective platform from which to run multiple applications and display and manage data.

This model is delivered with a factory mounted Projected Capacitive Touch Screen (Multitouch, USB interface) as standard. Brightness is dimmable from 0-100%.
Specifications
Typenumber (Long): HD 13T22 MMC-xxx-xxxx
TFT Technology: LED Backlight Technology, a-si TFT Active Matrix, Widescreen
Viewable Size and Active Area: 13.3 inch - 286.08 [11.26"] (H) x 181.80 [7.16"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1280 x 800 (WXGA) - 0.0745 (H) x 0.2235 (V) mm
Aspect Ratio and Response Time: 16:10 - 16ms (typ) (Tr/Tf)
Light Intensity and Contrast Ratio: 500 cd/m² (typ) - 800:1 (typ)
View Angle and Max Colors: 70 deg. (up/down), 60 deg. (left/right) - 16.7 million (24bit)
Optimal Resolution and Hz: 1280 x 800 @ 60 Hz (If resolution is above/below 1:1, desktop scrolling mode will be used)
Detectable Resolutions: From 640 x 480 to 1280 x 800
Power Specifications and Consumption: 12-24VDC (nominal)
17W (typ) - 20W (max)
Product Features: MULTITOUCH (Projected Capacitive Technology), Compact Design, Dimmable 0-100%, Buzzer, WakeOnLan, Fast Boot, AT mode, USB Boot, AG Coated Front Glass, USB/RJ45 Dust Covers, USB Cable Support Bracket, Console Mounting Bracket Kit (HD CMB SX2-C1)
Installed Operating System (OS): None or Standard OS/Customized image, review datasheet for list.
Storage Options: 1 x SSD mSATA, Multi Level, 32GB, 64GB, 128GB
CPU / Processor Options: 1 x Intel® Atom® N2600 Dual Core, 1.60GHz
Memory Options: 1 x 2GB (Single Channel w/o ECC, SO-DIMM)
System Chipset / Graphics Chipset: Intel® NM10, CG82NM10 PCH / Intel® GMA 3600
BIOS / Buzzer: AMI BIOS, supports ACPI / Buzzer according to EN60945
Power Manager and Monitoring: ACPI. WatchDog:: Yes (256 segments, 0, 1, 2...255 sec/min)

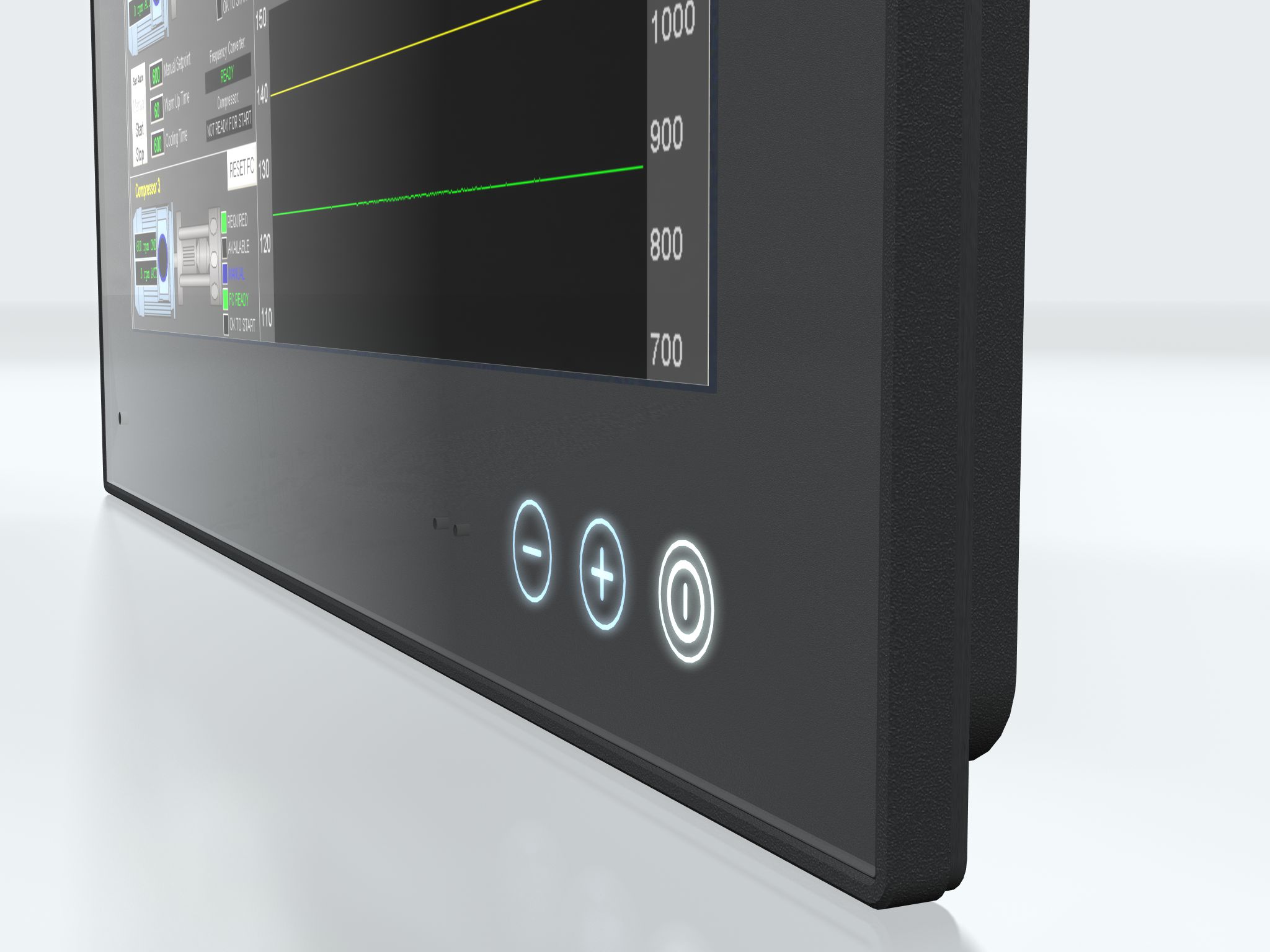

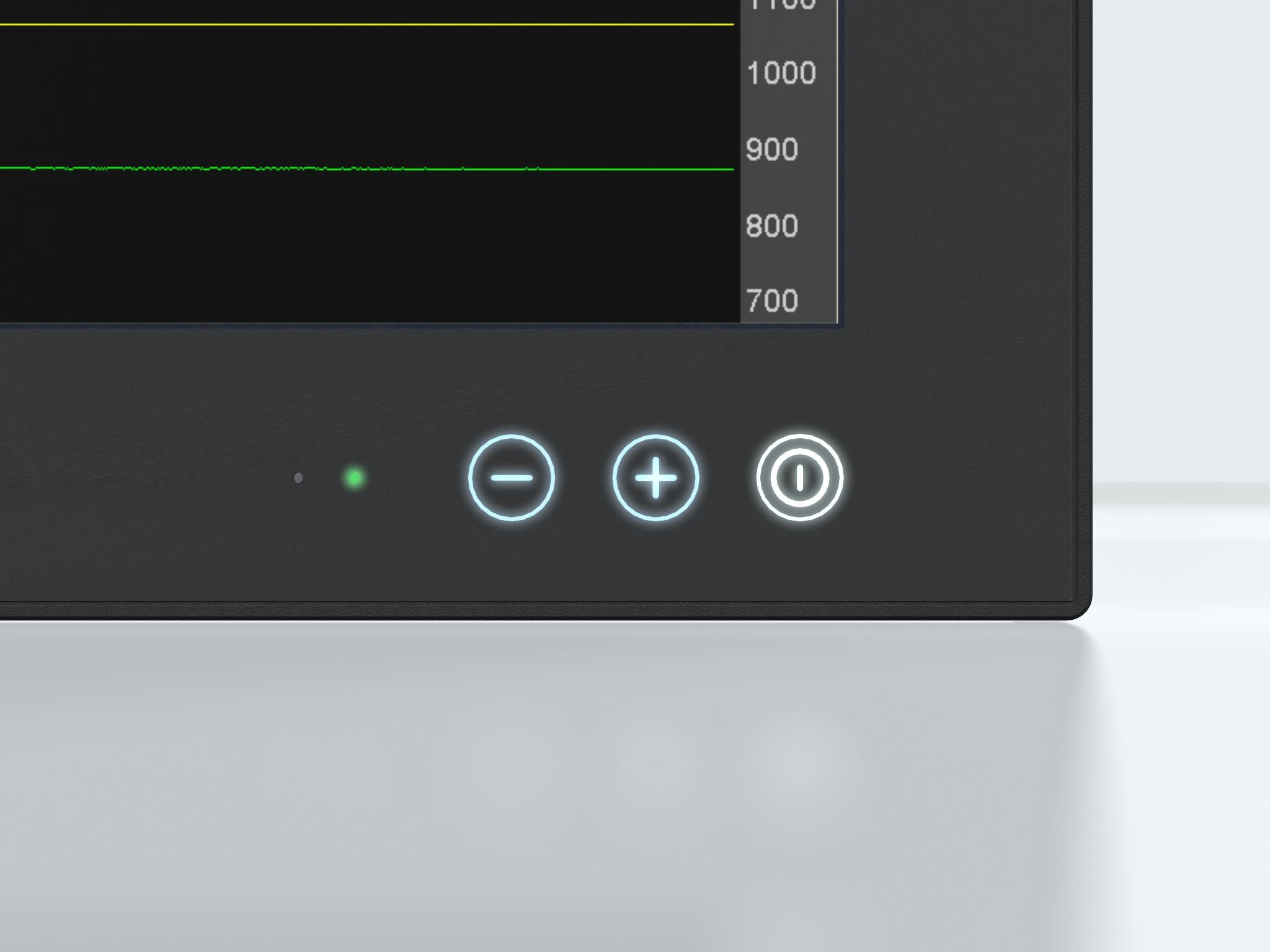

User Controls and Activity: Glass Display Control™ (GDC) IP66 with: 3 x Configurable buttons, Programmable Status RGB LED, Buzzer, (through glass), Light Sensor (behind glass)

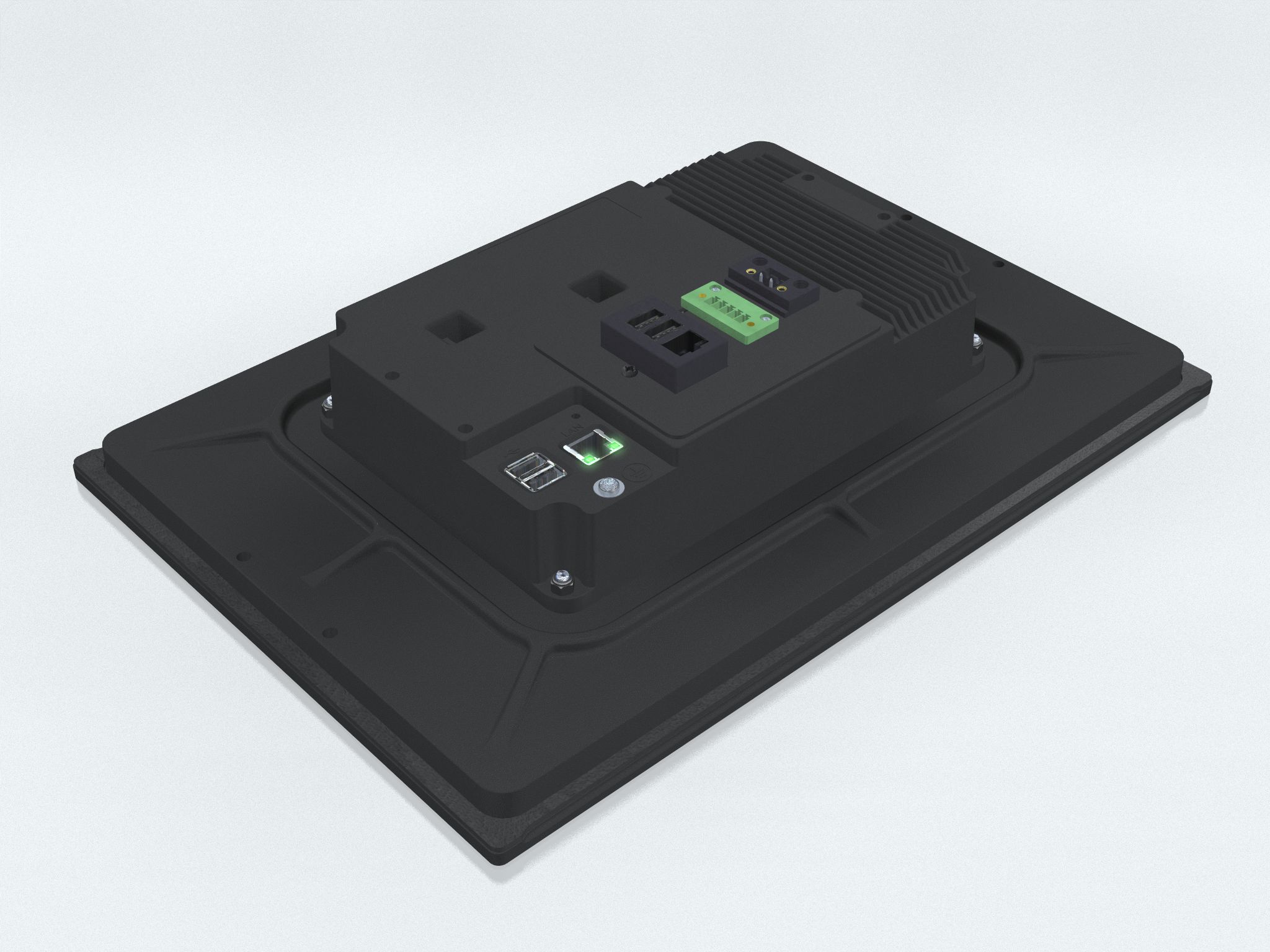

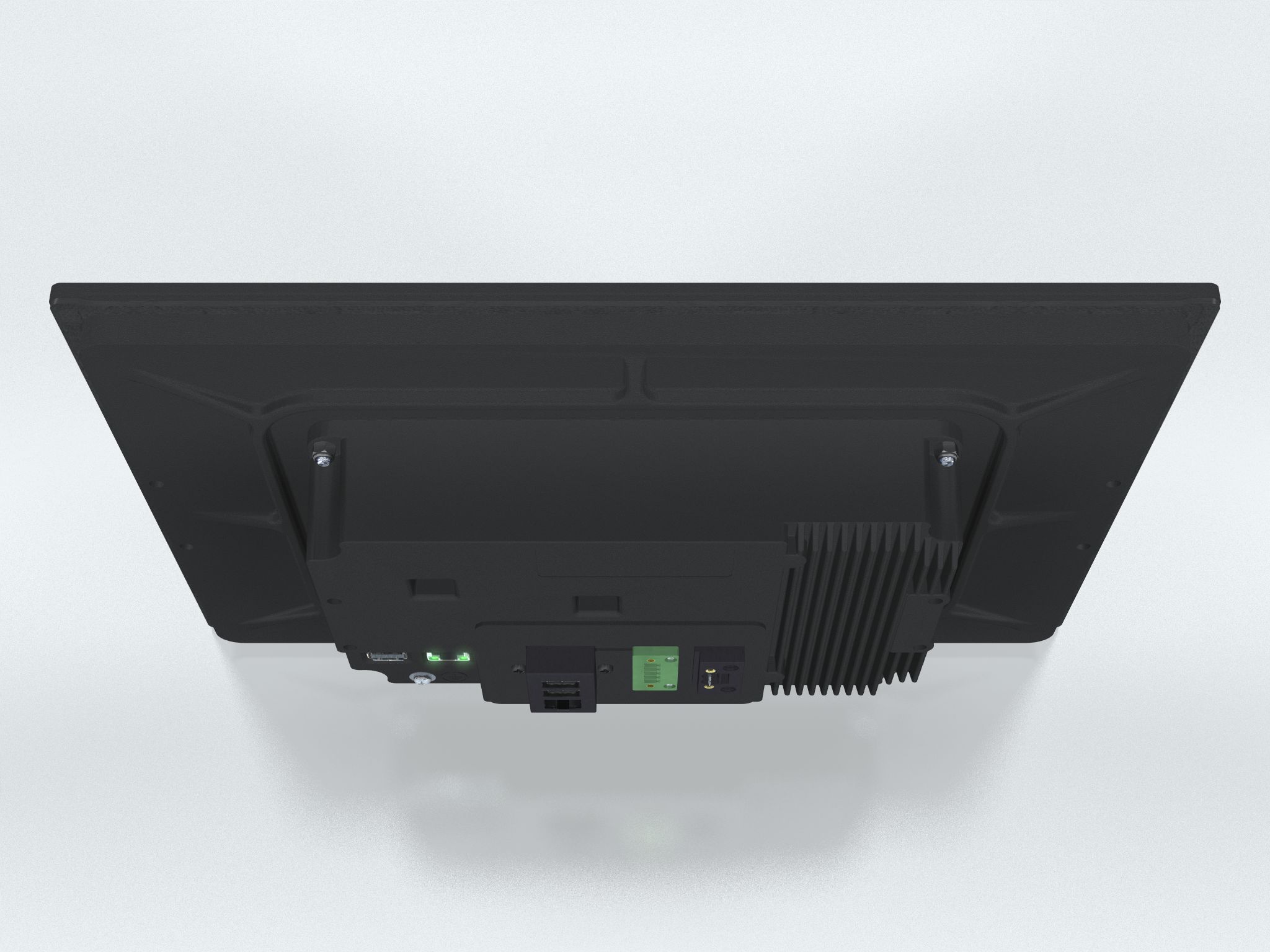

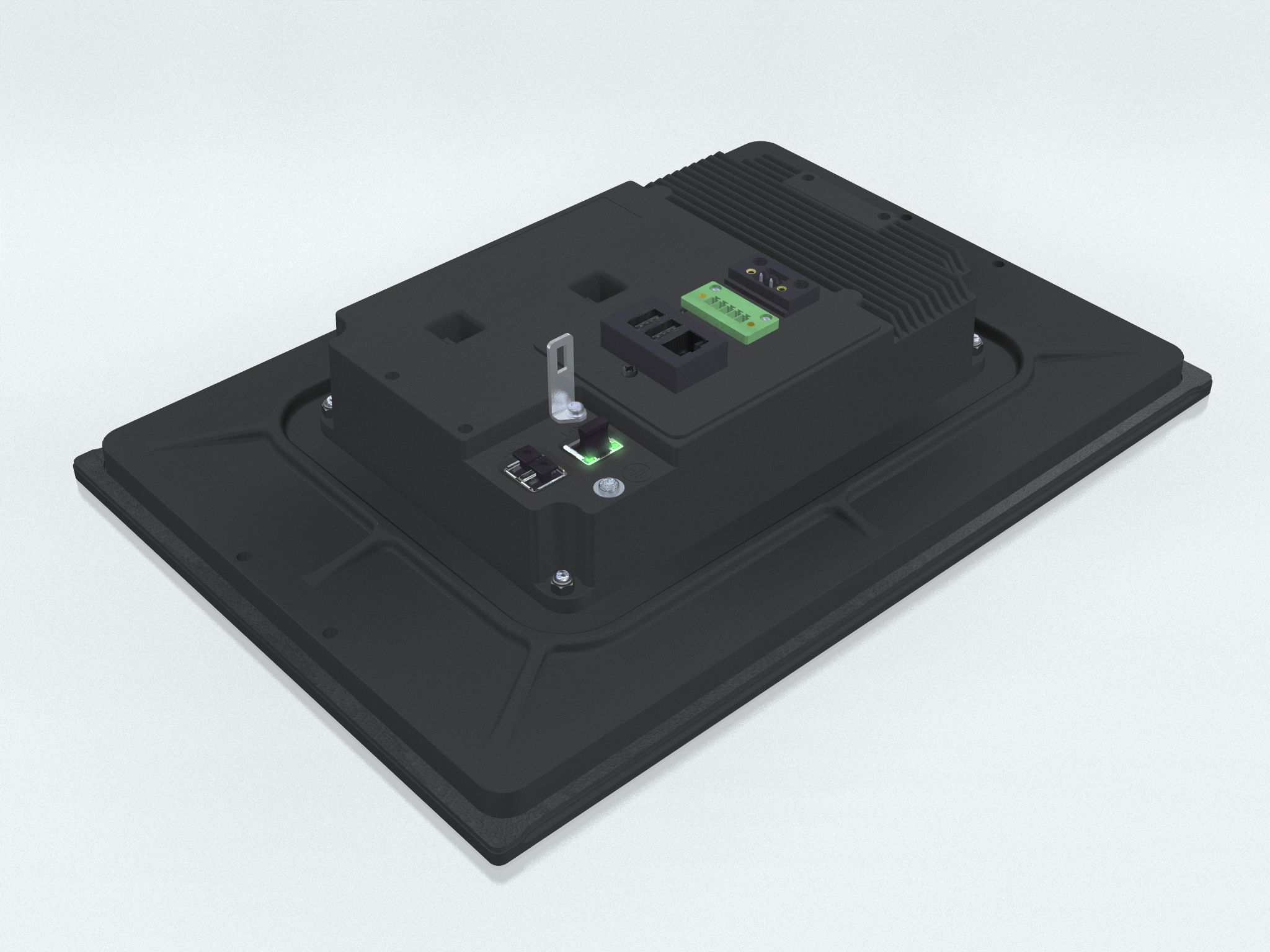

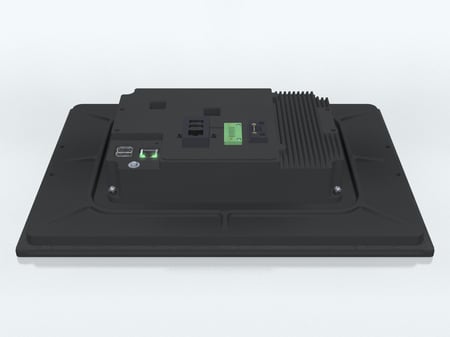

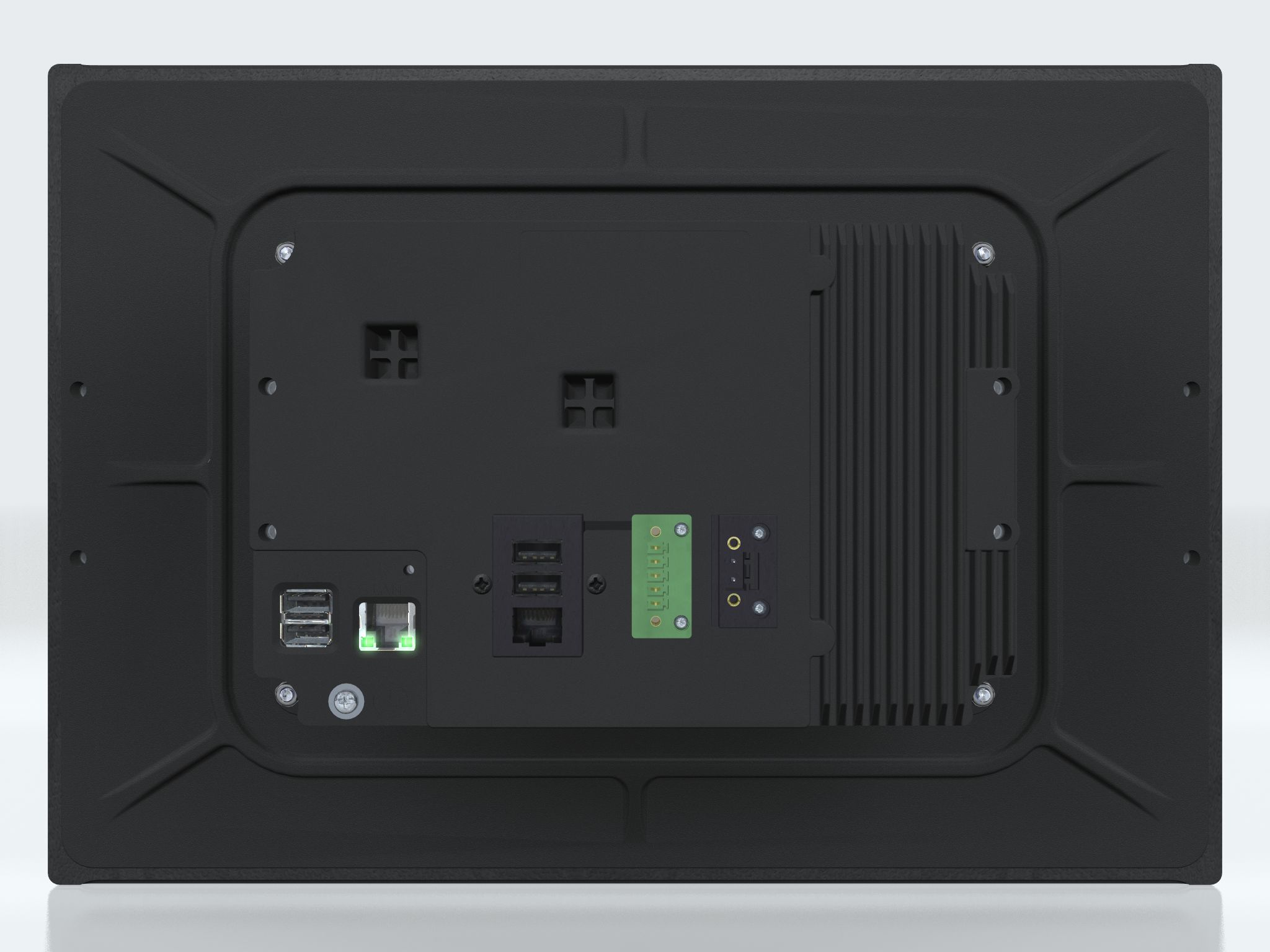

Connectors: • USB2.0 (<5m): 4 x Type A
• Ethernet GBLAN 10/100Mbps: 1 x RJ45
• Ethernet GBLAN 10/100/1000Mbps: 1 x RJ45
• SCOM/Remotel/Buzzer (isolated RS422/485): 1 x 5-pin T. Block 3.81
• Power 12-24VDC: 1 x 2-pin Terminal Block 5.08
Product Dimensions and Weight: W:355.00 [13.98"] x H:248.50 [9.78"] x D:66.31 [2.60"] mm [inch]
2.9kg / 6.3lbs
Product Carton Size and Weight: L:445.00 [17.52"] x W:195.00 [7.68"] x H:355.00 [13.98"] mm [inch]
3.8kg / 8.4lbs
Factory Options: • Optical Bonding Technology
• Variations of SSD Storage, Operating System
Accessories: Included with delivery:

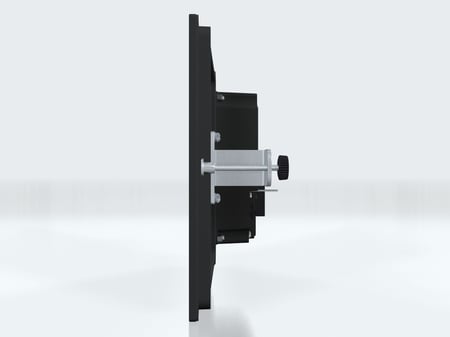

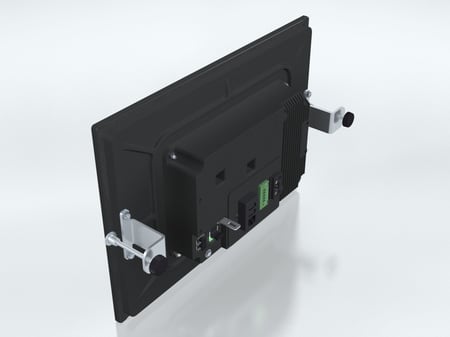

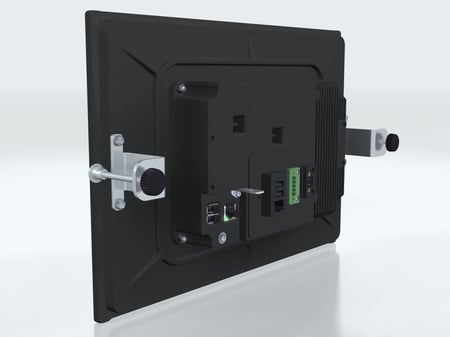

• HD CMB SX2-C1: 1 x Console Mount Kit. EN60945 Tested.
Capabilities / Prepared for: • 2 x CAN Isolated module (2x4pin Terminal Block 3.81, 2 channels)
• 2 x DO Isolated (Digital Output)
• 5 x DI Isolated (Digital Input + 1 x Keyswitch Config)
Operating Temperature: -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature: -20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating: Protection: IP66 front - IP22 rear (EN60529)
Compass Safe Distance: Standard: 25 [9.84"] - Steering: 15 [5.90"] cm [inch]
Type Approval, Testing and Certificates: IEC 60945 4th (EN 60945:2002), IACS E10, ClassNK - Nippon Kaiji Kyokai, EU RO MR - Mutual Recognition, CCS - China Classification Society, KR - Korean Register, LRS - Lloyd's Register of Shipping

Additional Testing:
- Vibration: 2-25Hz 1.6mm peak; 25-100Hz 4G*
- Temperature: 70C duration 16h *
- Shock: 5g 10ms&20g 11ms
*DNVGL-CG-0339 Edition November 2015. Tested
according to temperature class B and vibration class B

Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m
Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m
Specifications last updated: August 21, 2025 @ 10:14
