HD 13T30 MMC

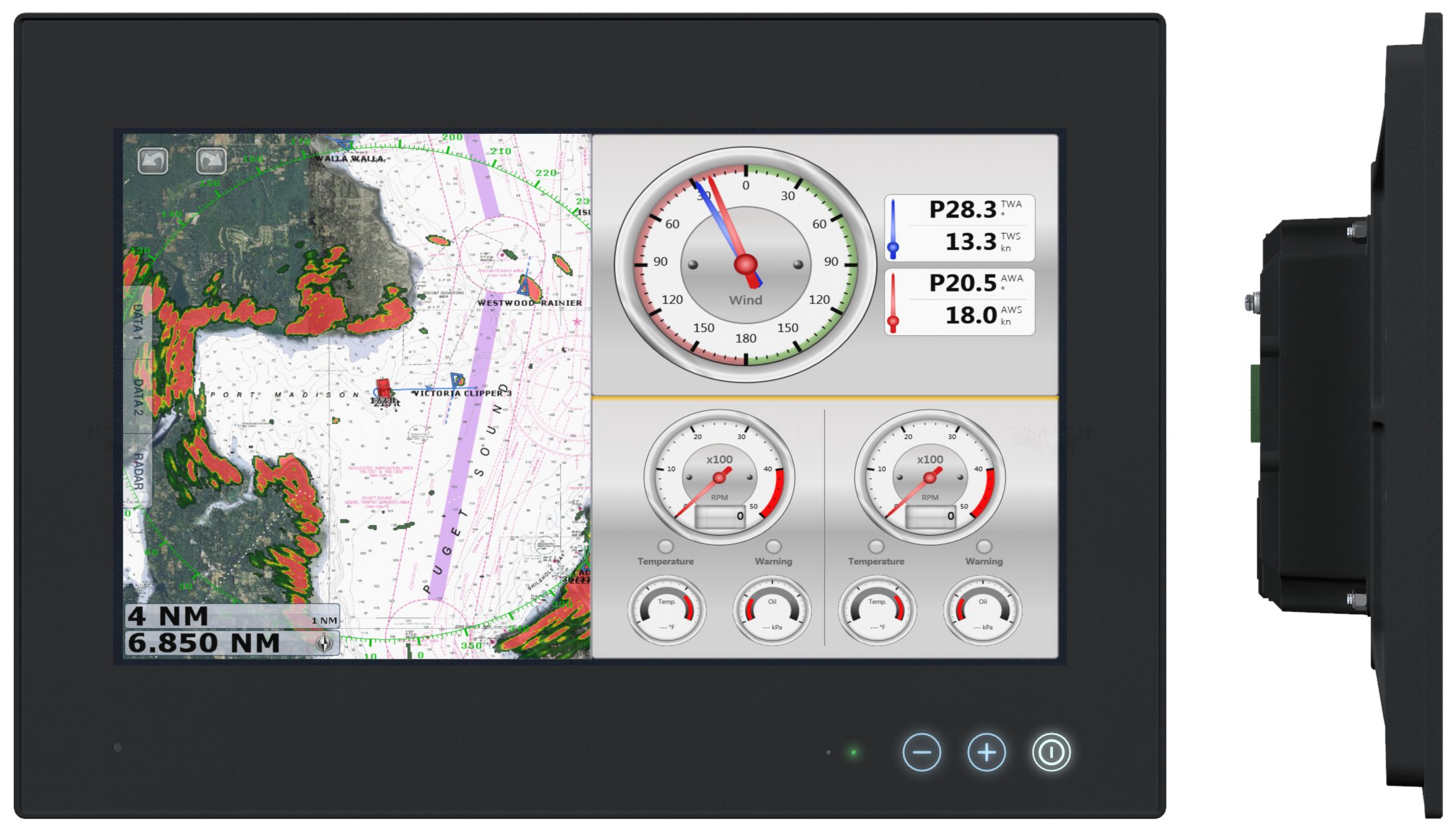

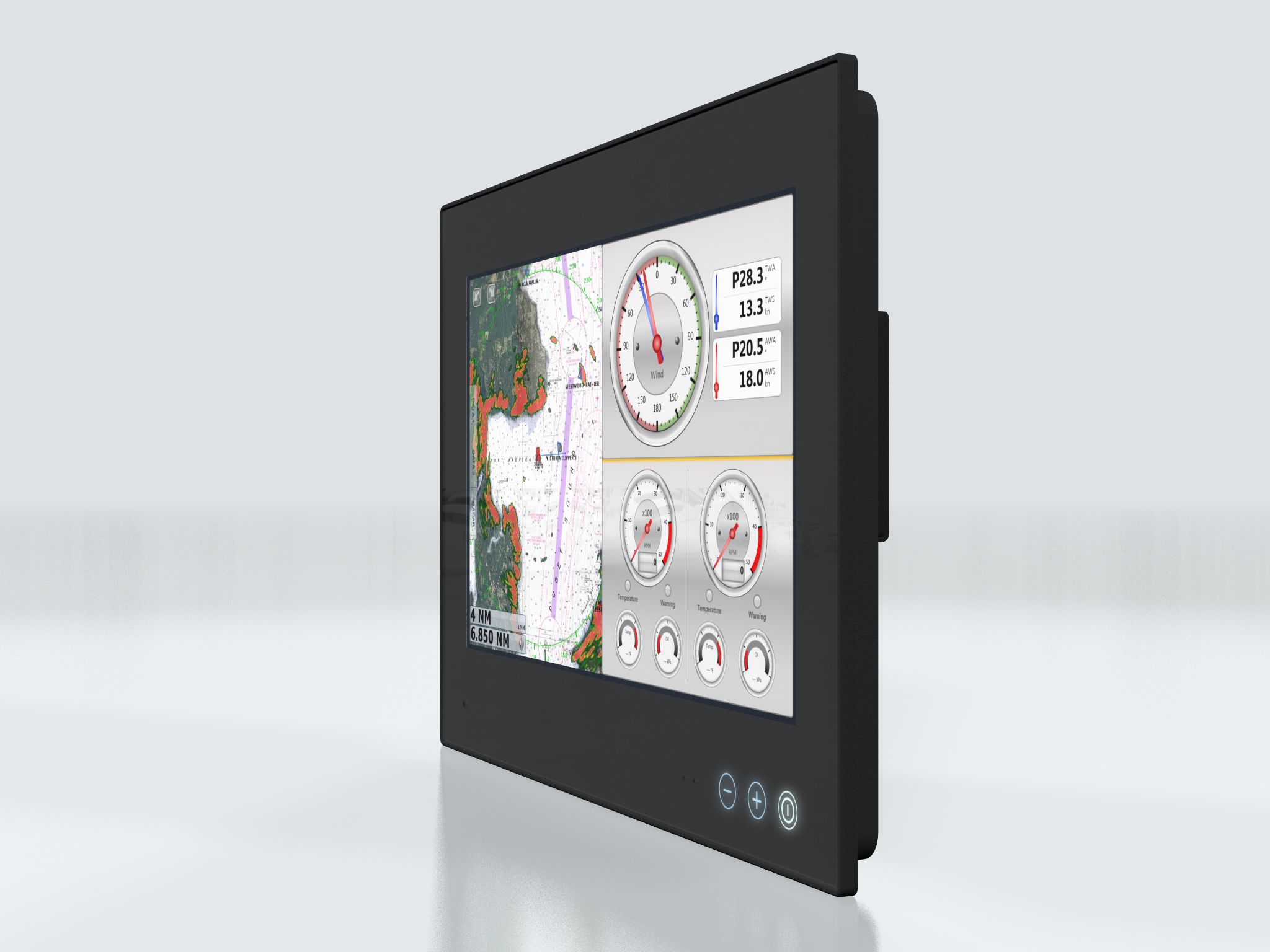

Panel Computer - Widescreen - LED - HATTELAND® Series X G2 - 13.3 inch
HD 13T30 MMC
Series X Small Panel Computers offer the ultimate in performance, convenience, state of the art design and enduring quality for system integrators and boat builders. The products offer a range of feature sets optimized for varying requirements and applications. Suitable for applications such as engine control systems, automation systems and more.
Widescreen
LED-backlit
TPM 2.0

Panel Computer - HATTELAND® Series X G2
Innovative Human Machine Interface (HMI) solutions open up new possibilities for the system integrator. A well implemented touch interface can be much simpler to use than a conventional mechanical button-based interface because it can show the user only those controls that are relevant to a particular operation, while all the controls in a conventional interface are always present.The GLASS DISPLAY CONTROL, or GDC, allows control of brightness and menu options through projected switches under the glass. Integrators can build software to work with our API to control menu, brightness and other features. This model is delivered with a factory mounted Projected Capacitive Touch Screen (Multitouch, USB interface), Solid State Fanless Construction - No Moving Parts, Embedded light sensor, Buzzer and Aluminum Chassis with Glass Front as standard. Brightness is dimmable from 0-100%.
Typenumber (Long): |
HD 13T30 MMC-2xx-xxxxAx |
TFT Technology: |
LED Backlight Technology, a-si TFT Active Matrix, Widescreen |
Viewable Size and Active Area: |
13.3 inch - 293.76 [11.57"] (H) x 165.24 [6.51"] (V) mm [inch] |
Native Resolution and Pixel Pitch: |
1920 x 1080 (FHD) - 0.1529 (H) x 0.1529 (V) mm |
Aspect Ratio and Response Time: |
16:9 - 25ms (typ) (Tr+Tf) |
Light Intensity and Contrast Ratio: |
600 cd/m² (typ) - 600:1 (typ) |
View Angle and Max Colors: |
85 deg. (up/down/left/right) - 16.7 million (24bit) |
Optimal Resolution and Hz: |
1920 x 1080 @ 60 Hz |
Detectable Resolutions: |
N/A |
Power Specifications and Consumption: |
12-24VDC Nominal 28W (typ) - 50W (max) |
Product Features: |
MULTITOUCH (Projected Capacitive Technology), Compact Design, Solid State Fanless Construction, No Moving Parts, API Support, Embedded light sensor, Buzzer, SCOM, AG Coated Front Glass, USB Dust Covers (USBC-24), RJ45 Dust Covers (PJC-45), USB Cable Support Bracket (HD KIT USB-A1), Console Mounting Bracket Kit, IP66 Mount Gasket (EPDM), for Flush/Console mount (P014441), model is 100% retrofit compatible with HD 13T21/22. |
Installed Operating System (OS): |
None or Standard OS/Customized image, review datasheet for list. |
Storage Options: |
1 x 32GB eMMC (Default), 128GB 1 x SSD M.2 SATA 240GB -> |
CPU / Processor Options: |
1 x Intel® Atom® x5-E3930 Processor, 2M Cache, 1.30GHz / 1.80GHz |
Memory Options: |
1 x 2GB (DDR3L SO-DIMM, Single Channel) or 1 x 4GB, 8GB (DDR3L SO-DIMM, Dual Channel) |
System Chipset / Graphics Chipset: |
Intel® SoC (System on a Chip) / Intel® HD Graphics 500 |
BIOS / Buzzer: |
AMI BIOS (supports ACPI)* / Buzzer according to EN60945 *Note: "Legacy Mode" option is not fully supported for System Chipset and Microsoft® Windows® 10. |
Power Manager and Monitoring: |
RTC (0.5s/day), Battery Alarm, TPM2.0, GPIO, WakeOnLan, Fast Boot, AT mode, USB Boot. WatchDog Timer: 256 segments, 0, 1, 2...255 sec/min) |
User Controls and Activity: |

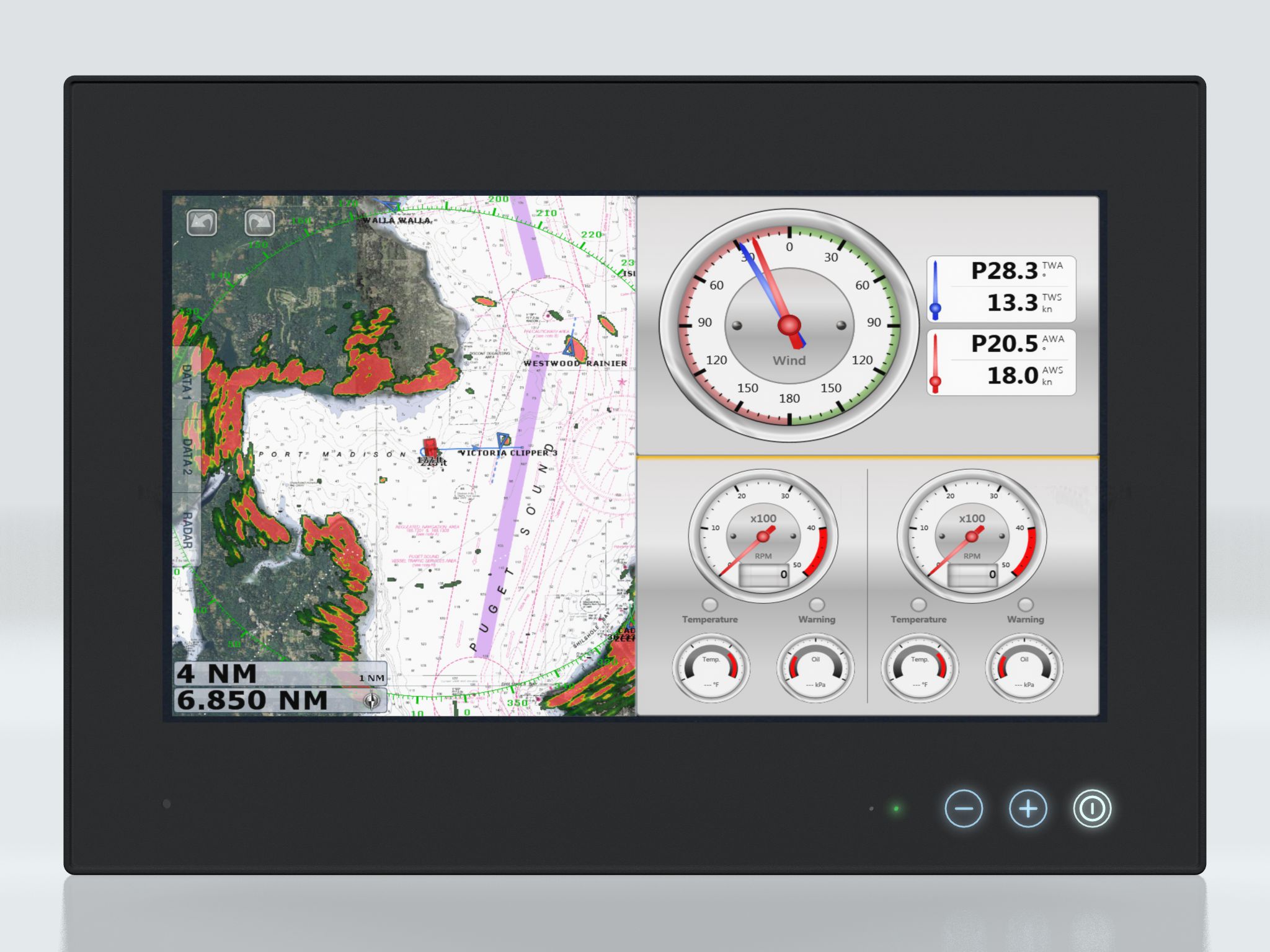

Glass Display Control™ (GDC) IP66 with 3 x Configurable buttons, Status RGB LED, Buzzer (through glass), Light Sensor (behind glass) |

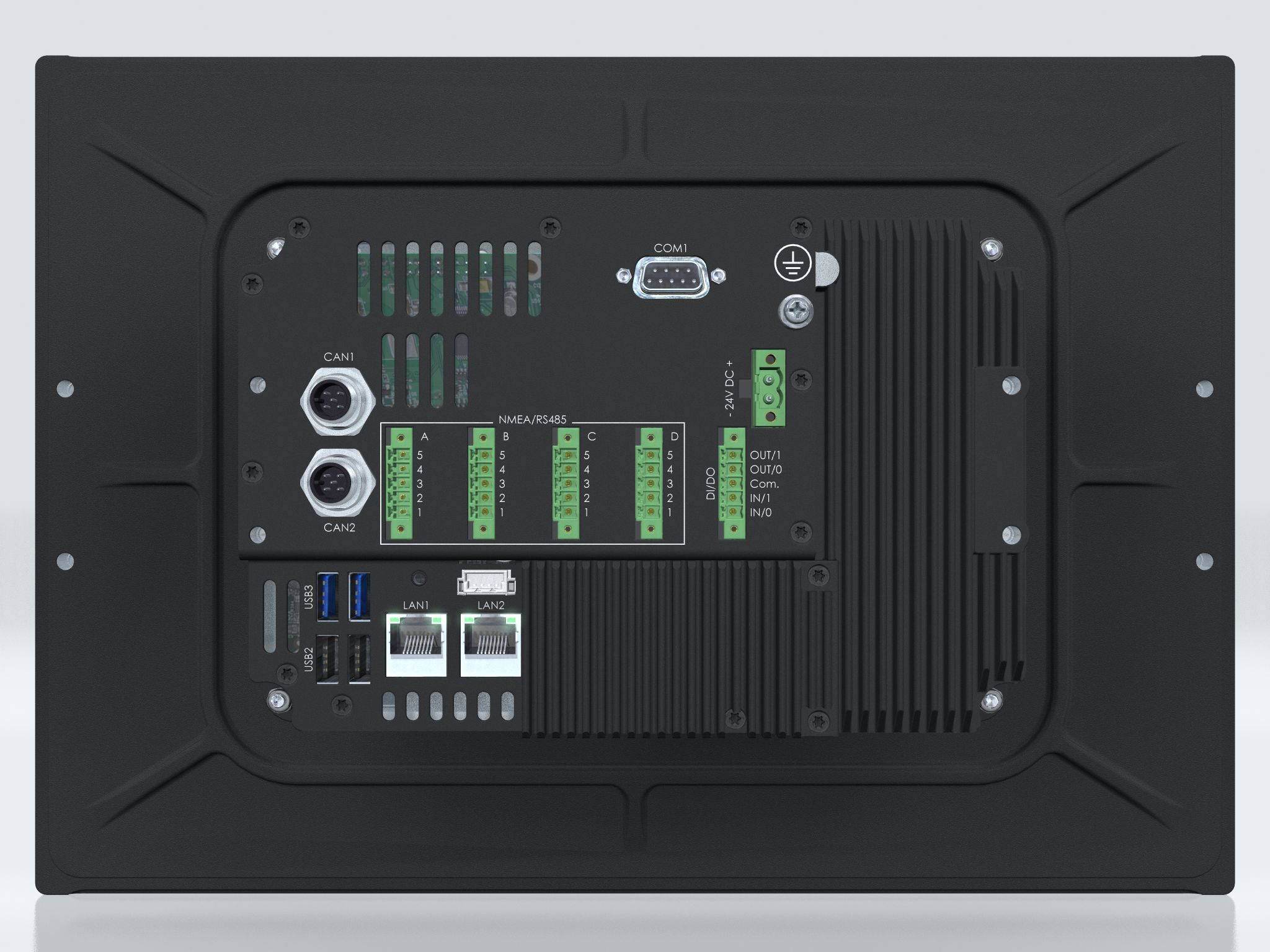

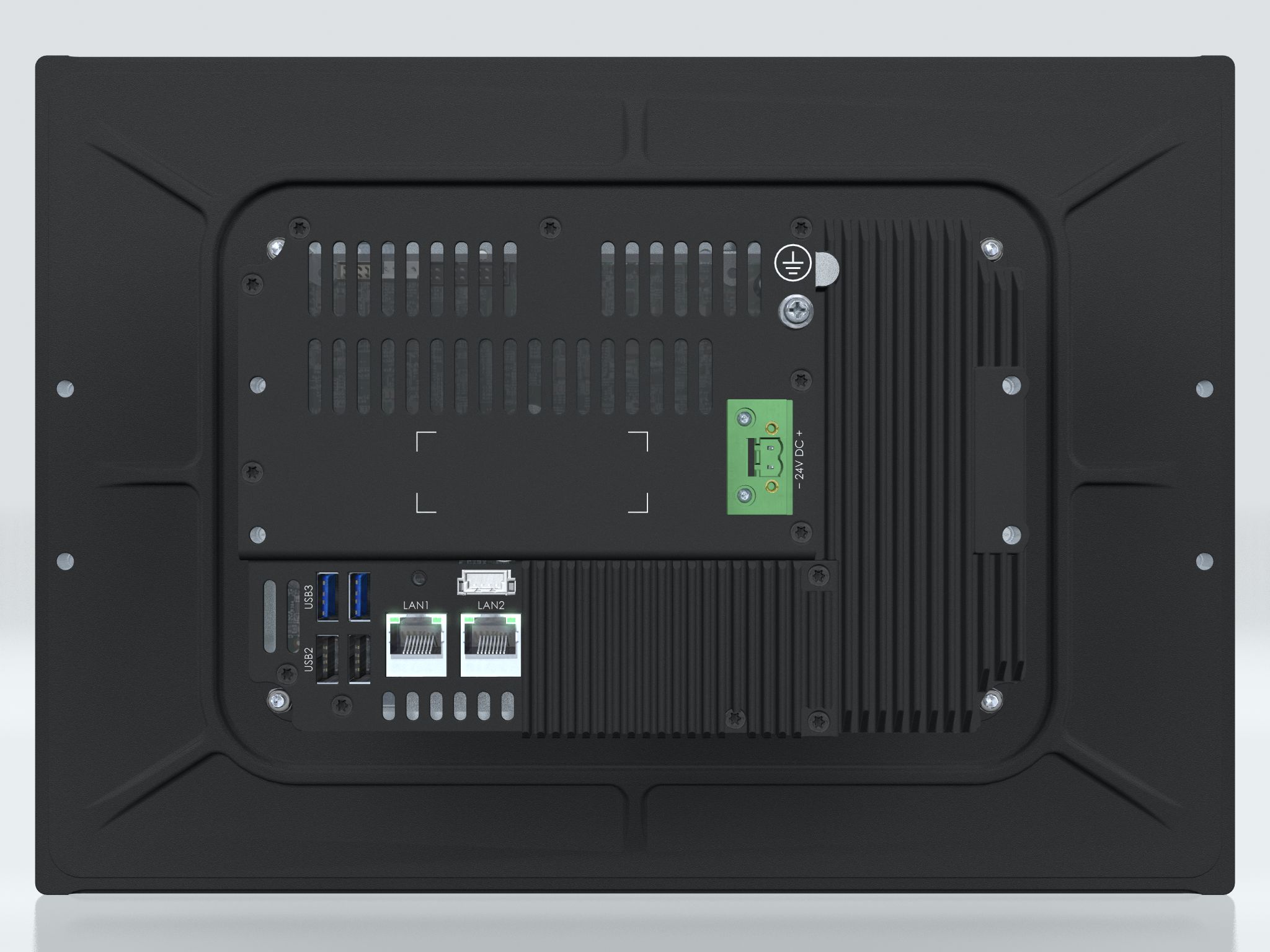

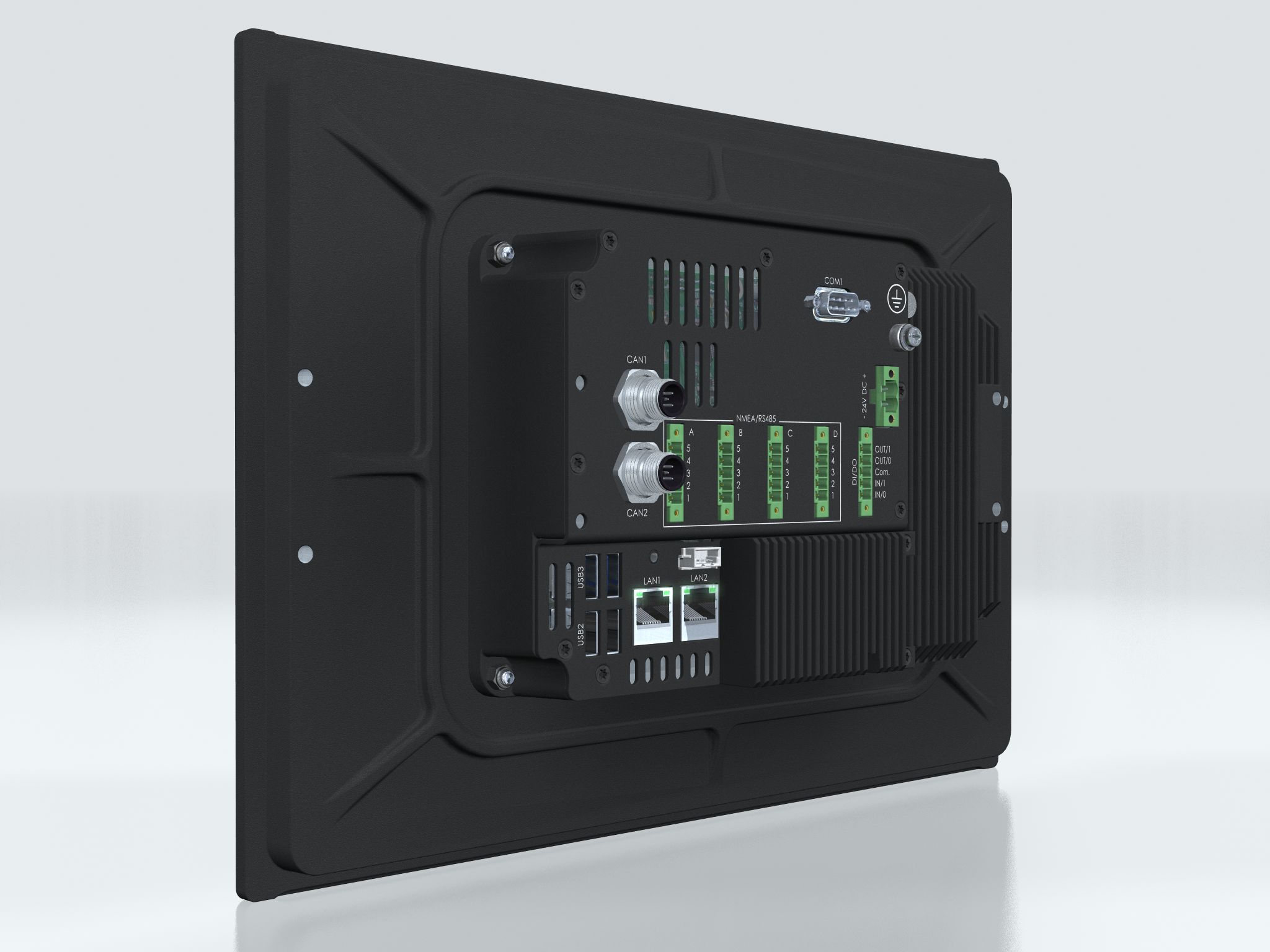

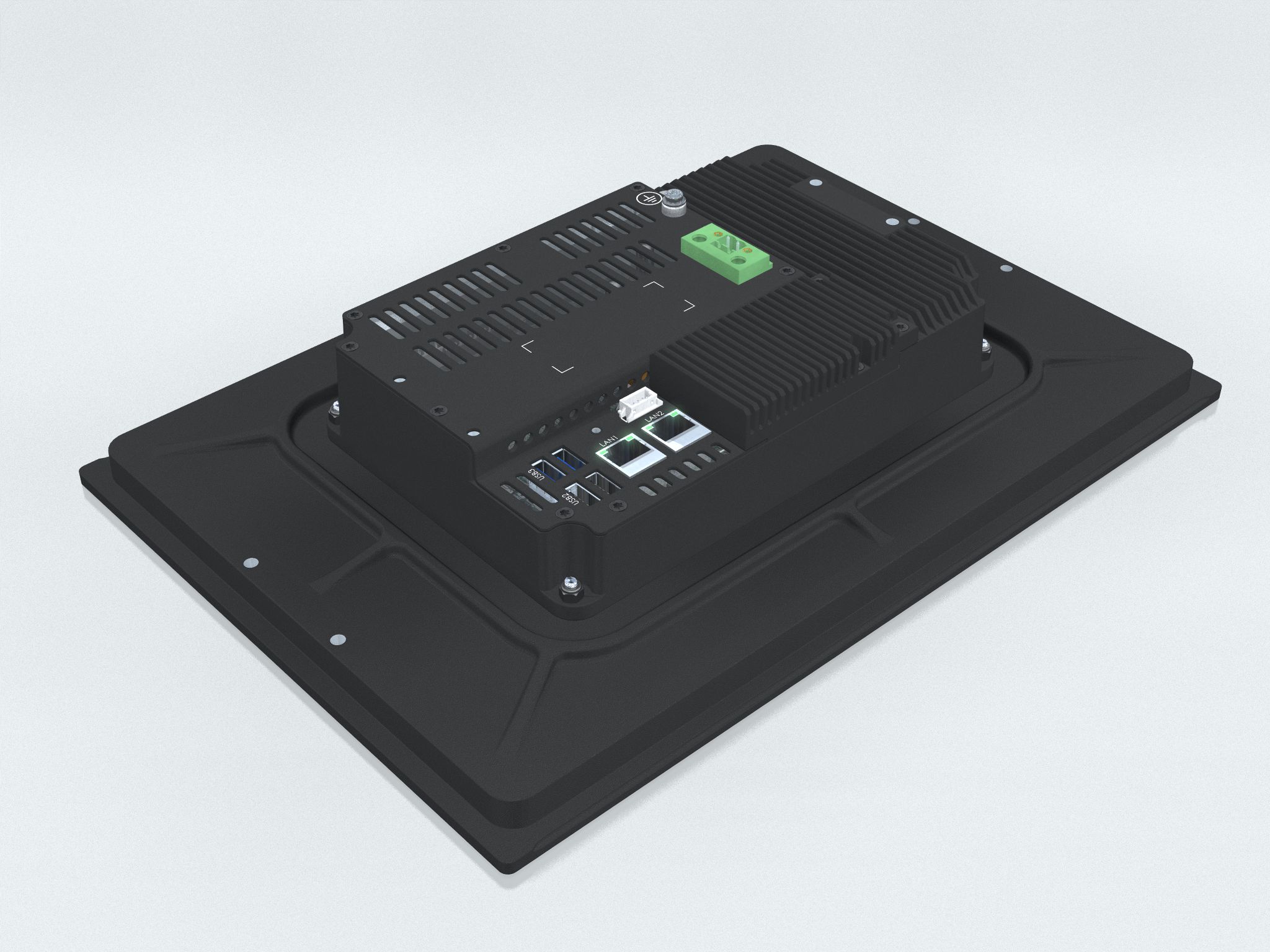

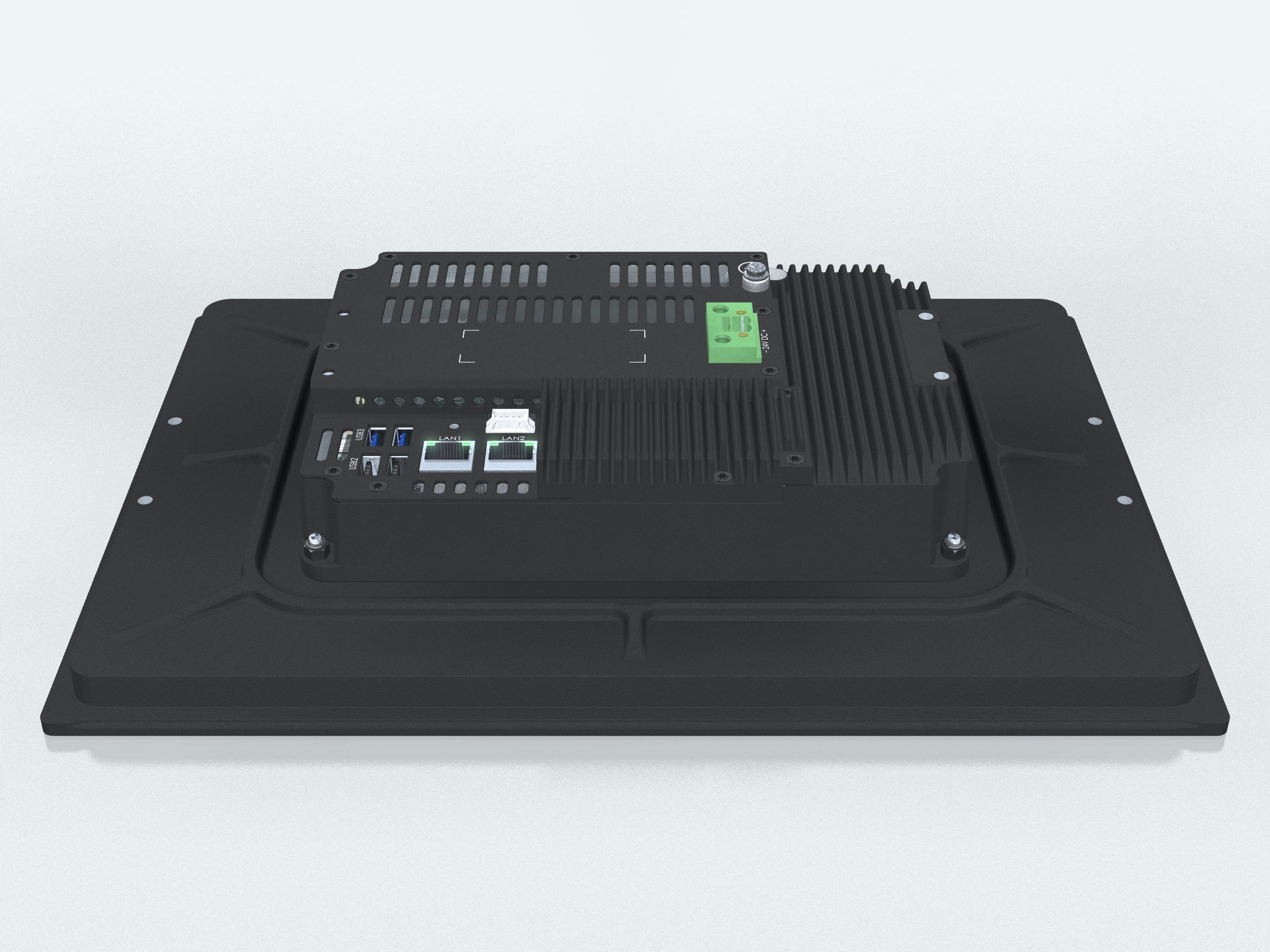

Connectors: |
• USB2.0 (<5m): 2 x Type A • USB3.0 (<3m): 2 x Type A • Ethernet GbLAN 10/100/1000Mbps: 2 x RJ45 • COM RS-232 (Internal): 1 x Internal Virtual COM (Software controlled) • Power: 1 x 2-pin Terminal Block 5.08 • External Fan: 1 x 4-pin, 292254-4 connector (for optional fan) |
Product Dimensions and Weight: |
W:355.00 [13.98"] x H:248.50 [9.78"] x D:69.00 [2.27"] mm [inch] 3.0kg / 6.6lbs |
Product Carton Size and Weight: |
L:445.00 [17.52"] x W:195.00 [7.68"] x H:355.00 [13.98"] mm [inch] 4.0kg / 8.8lbs |
Factory Options: |
• IP22 (EN60529) Model: HD 13T30 MMC 2xx-xxxPAx • Optical Bonding Technology • Variations of CPU, Storage, RAM/Memory and Operating System • ATEX C1D2 and UL certification |

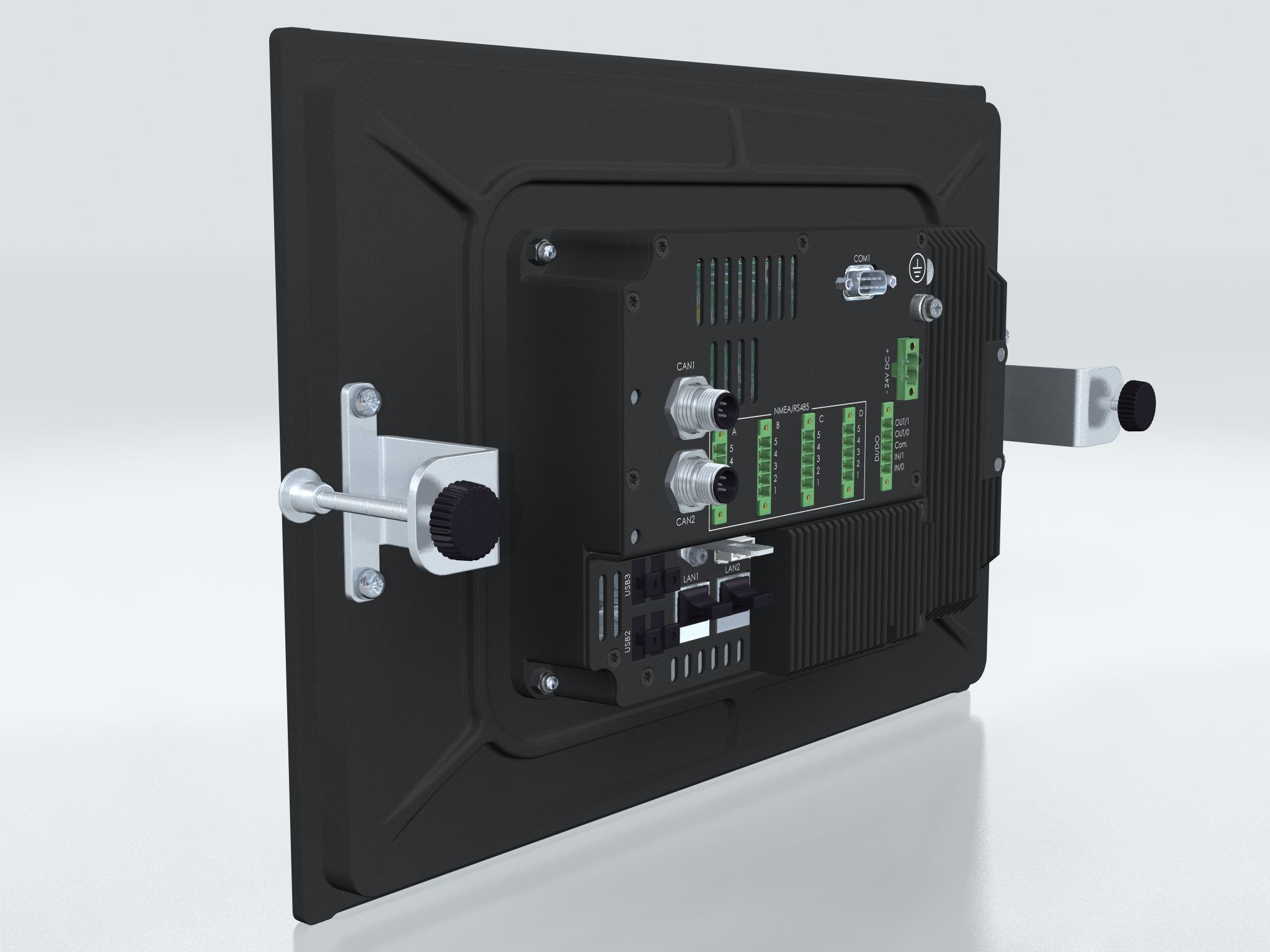

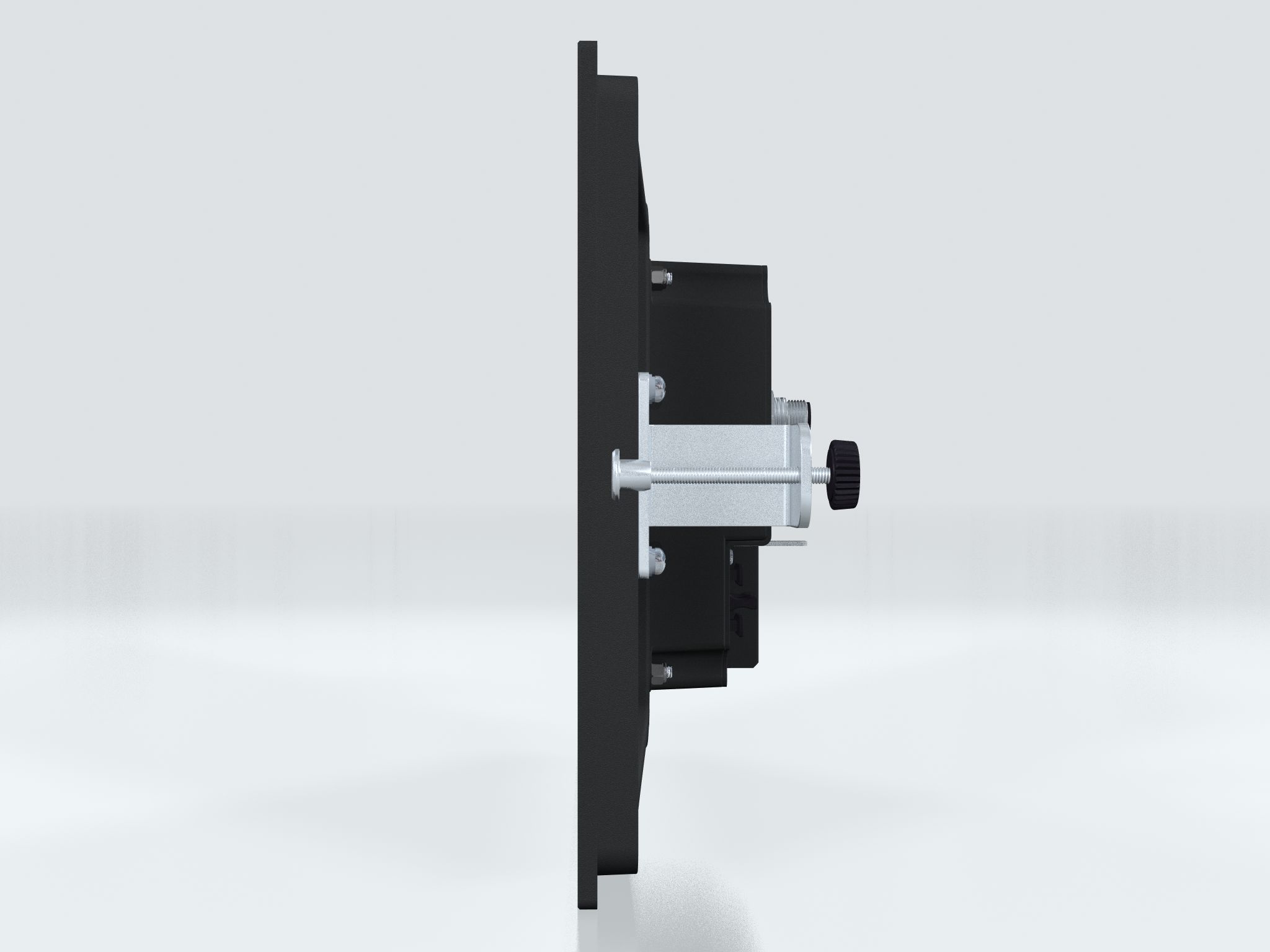

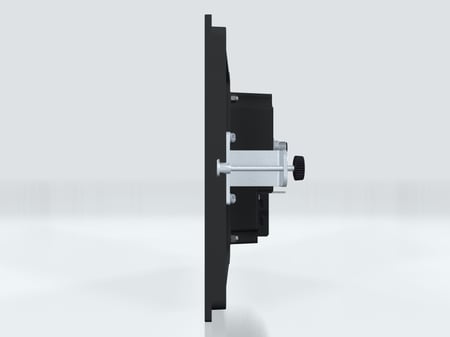

Accessories: |
• HD CMB SX2-C1: 1 x Console Mount Kit. EN60945 Tested* • HD TMB SX2-A3: 1 x Table/Ceiling Mount Bracket. Not EN60945 Tested • HD VED SX2-L1: 1xVESA Adapter(75/75,100/100). Not EN60945 Tested • HD 13COV STD-A1: 1 x UV Sun Cover • JH C01MF A-A: 1 x USB Cable 1m, TypeA-Chassis mount receptacle • HT 00262 OPT-A1: 4 x RS-422/RS-485 isolated, USB ext. module) • HT 00263 OPT-A1: 4 x RS-232 COM non-isolated, USB ext. module • HT 00264 OPT-A1: 1 x CAN isolated, 2 channel, USB ext. module • HT 00264 OPT-A2: 1 x CAN isolated, 2 channel, socketCAN USB ext. module • HT 00273 OPT-A1: 4 x Digital IN/OUT isolated, USB ext. module • HT 00274 OPT-A1: 2 x LAN 10/100Mbps, RJ45, USB ext. module • HD FAN SX2-A1: 1 x 40x40cm,-20 to 70°C,Max speed 7000rpm +/- 15% • P014441: 1 x IP66 Mount Gasket (EPDM), for Flush/Console mount* *included in delivery |
Capabilities / Prepared for: |
None |
Operating Temperature: |
-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95% -20.0°C / -4.0°F to 70.0°C / 158.0°F (HD FAN SX2-A1) |
Storage Temperature: |
-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95% |
IP Rating: |
Protection: IP66 front - IP20 rear (EN60529) |
Compass Safe Distance: |
Standard: 60.00 [23.62"] - Steering: 35.00 [13.78"] cm [inch] |
Type Approval, Testing and Certificates: |
IEC 60945 4th (EN 60945:2002), IACS E10, BV - Bureau Veritas, EU-RO-MR - Mutual Recognition, CCS - China Classification Society, ClassNK - Nippon Kaiji Kyokai, KR - Korean Register, LRS - Lloyd's Register of Shipping Vibration: On engine 4grms Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m |
Specifications last updated: July 1, 2025 @ 09:58 |
