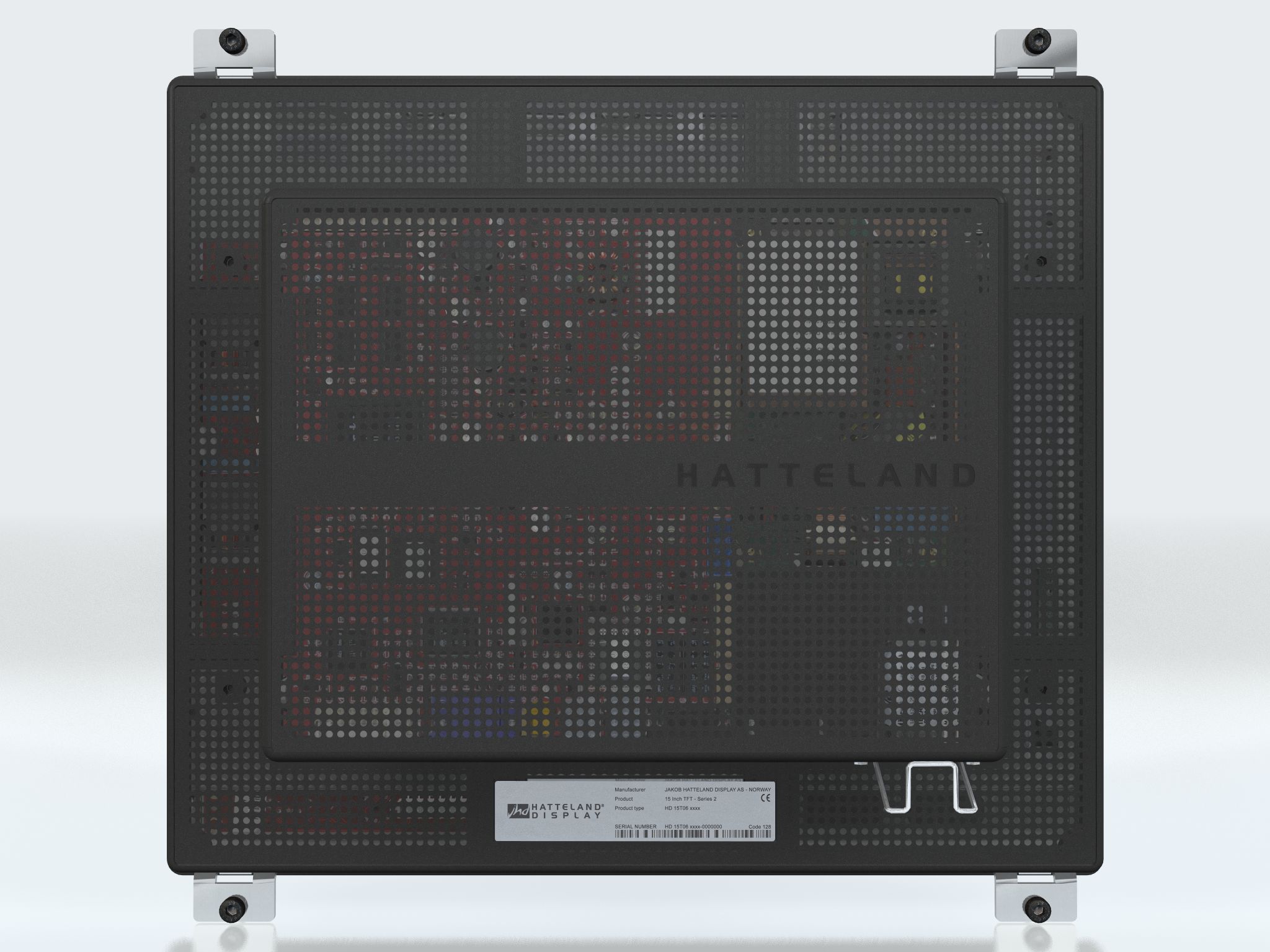

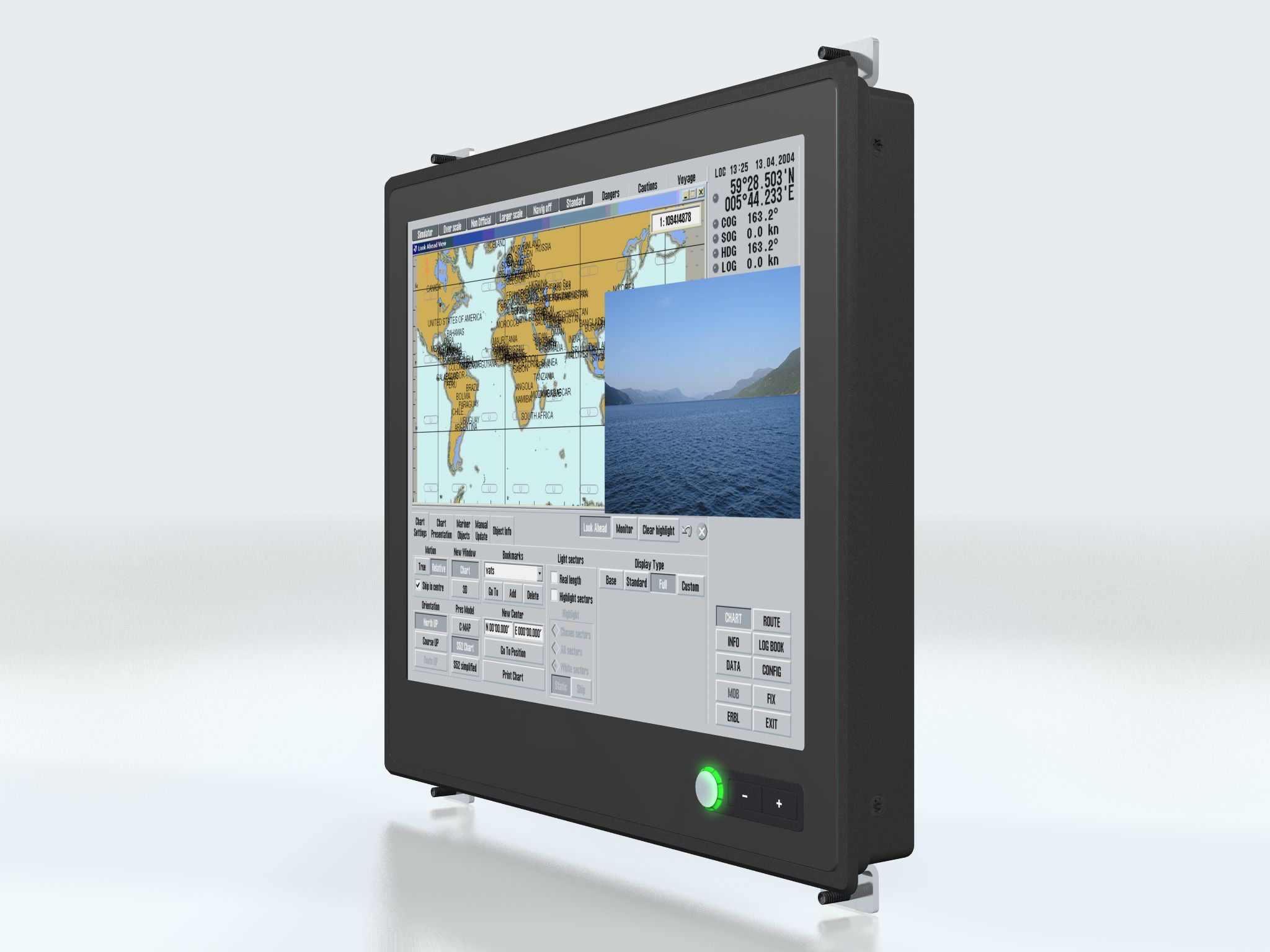

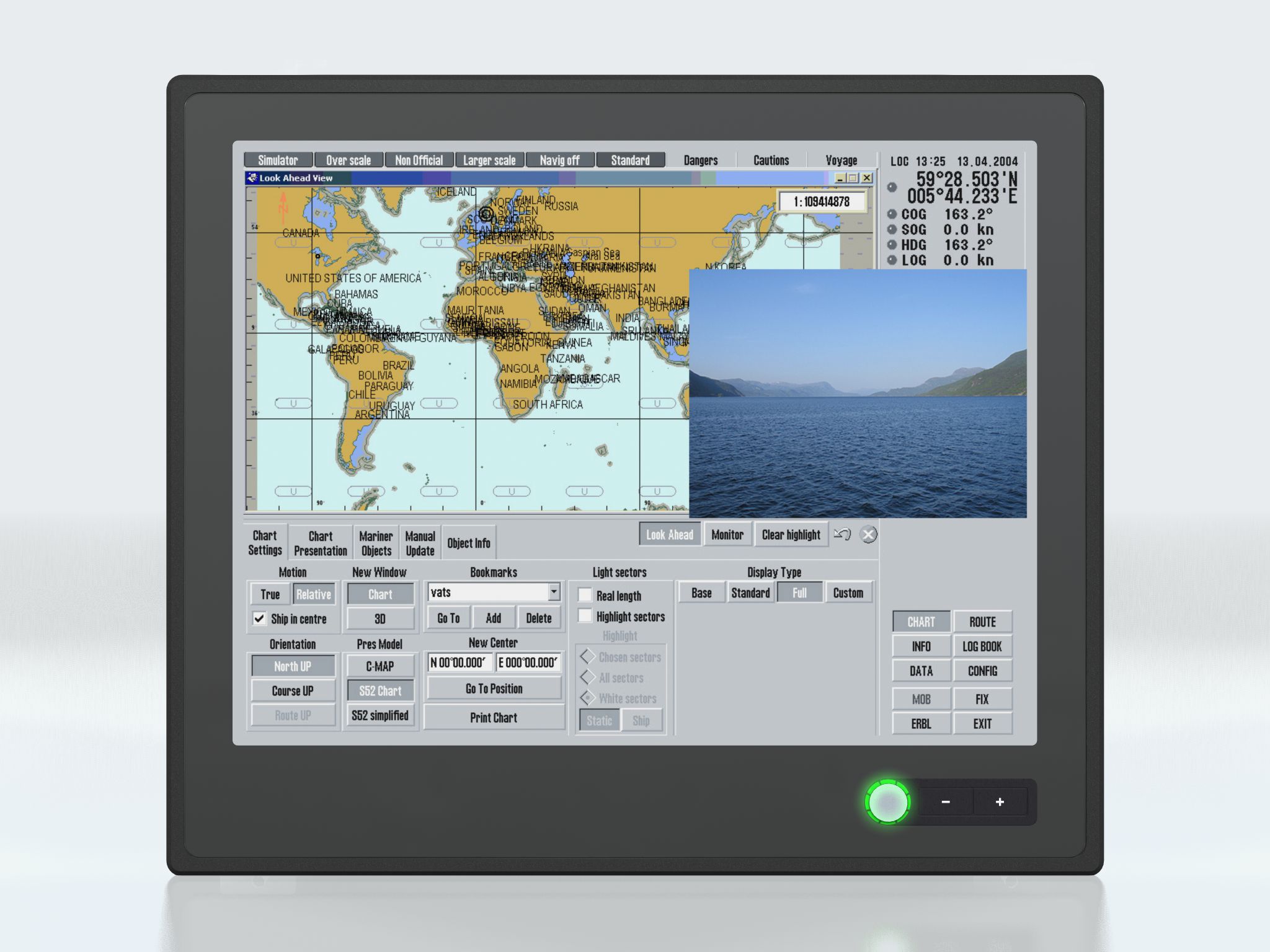

Panel Computer - CCFL - Flange Model - HATTELAND® Series 2 - 15.0 inch

HD 15T06 MMC-F

Modular backpack controller, slimmest design possible, easy operation with the tactile user controls. Touch screen optional.

CCFL-backlit

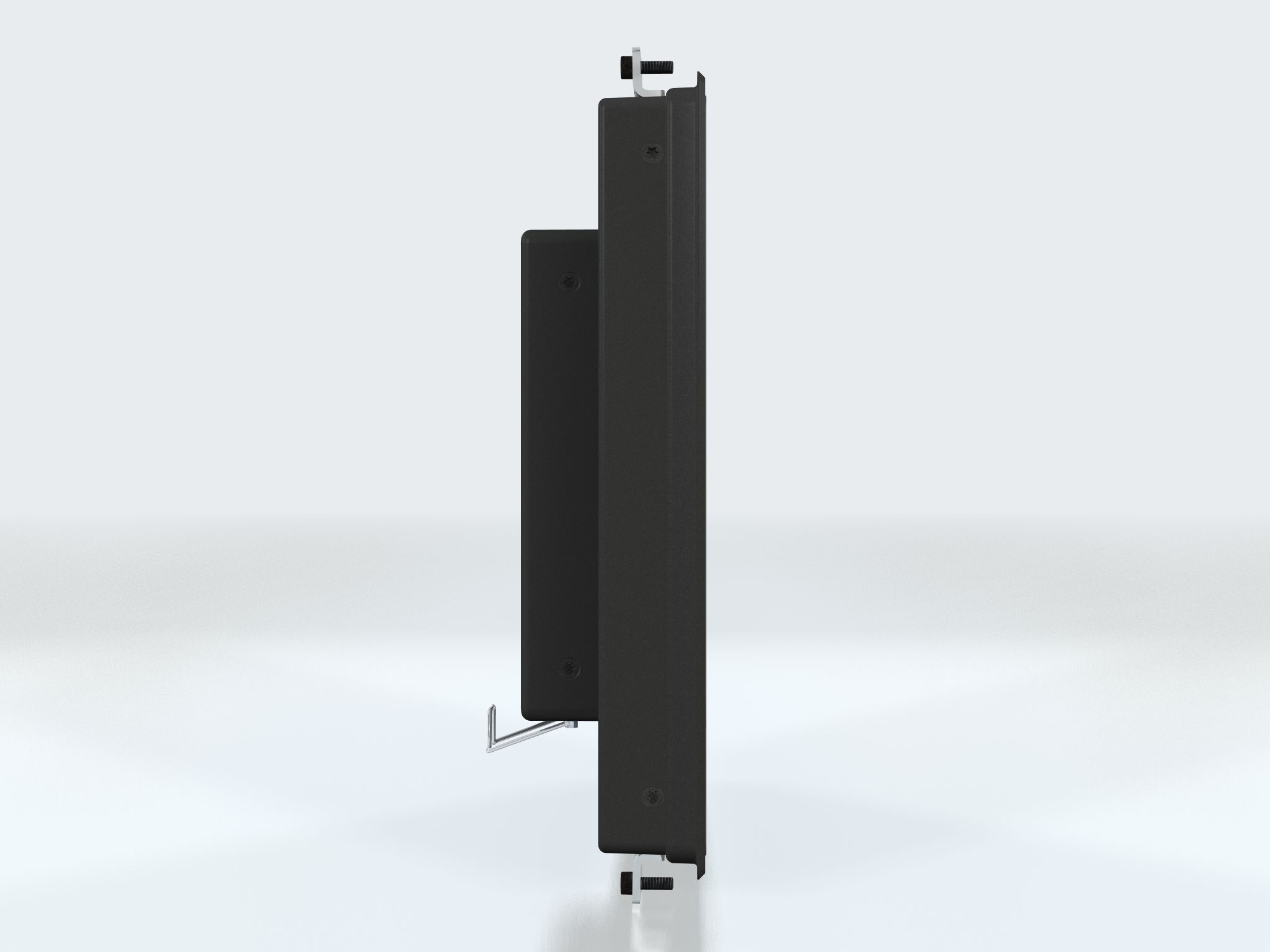

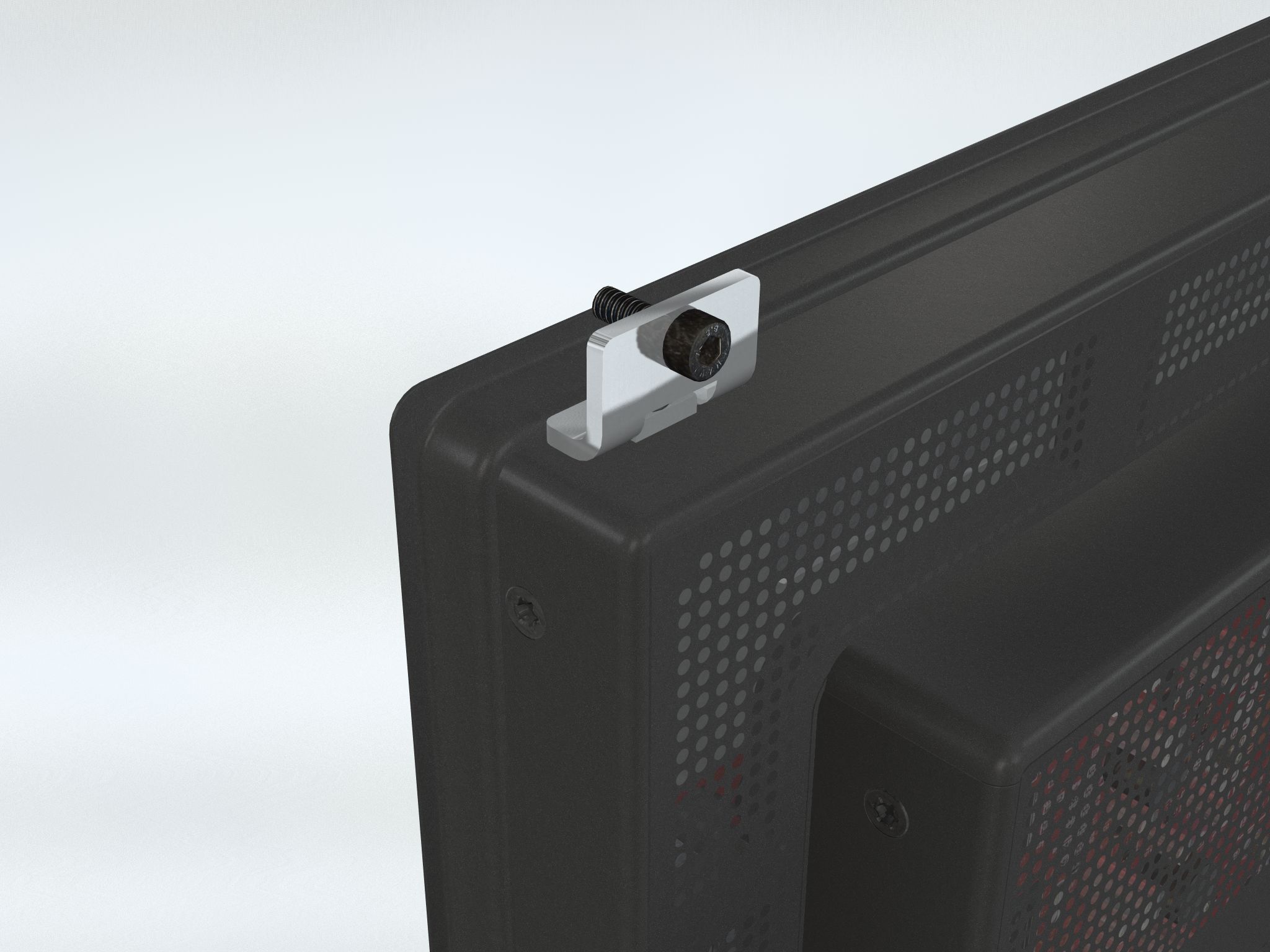

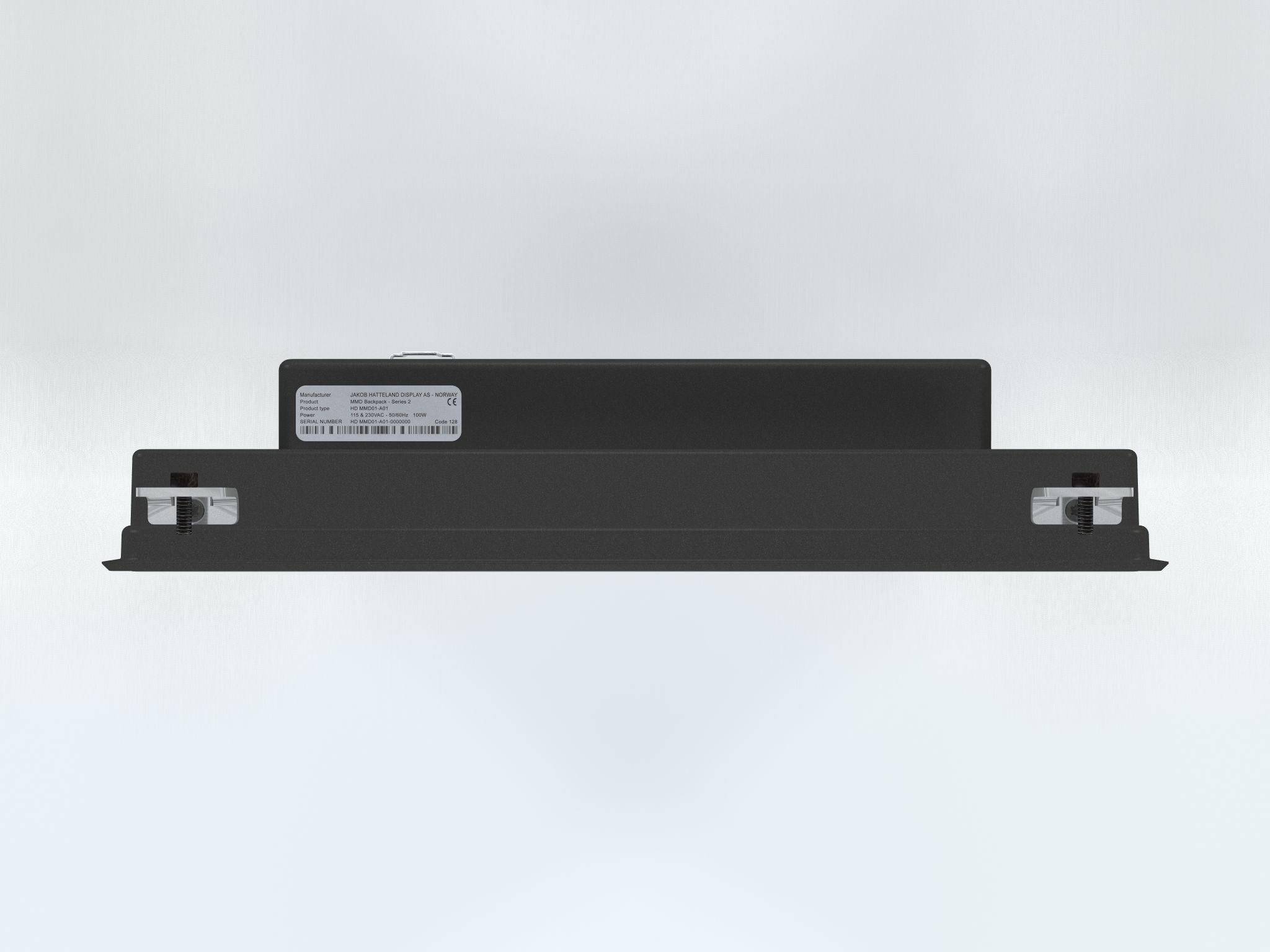

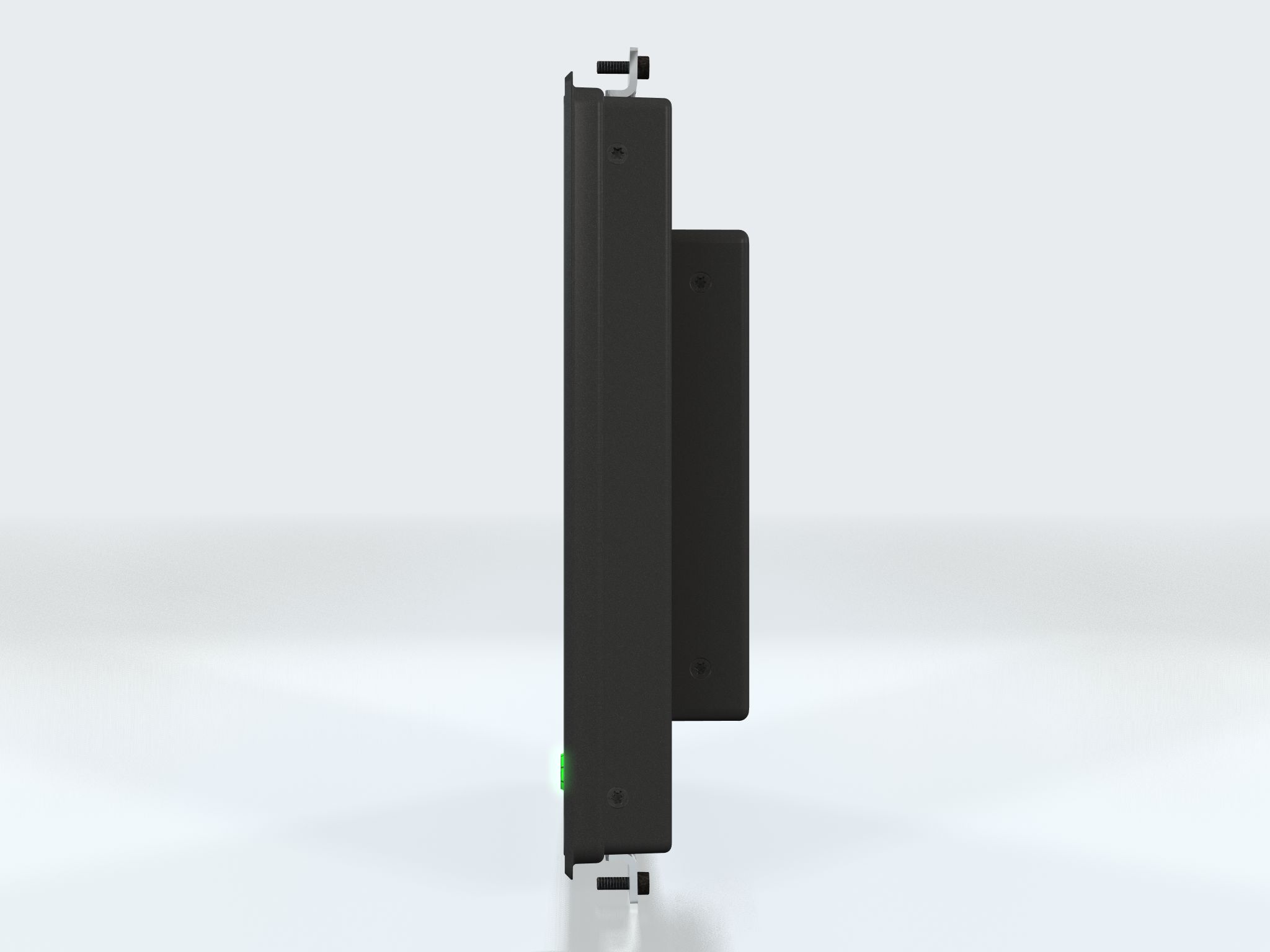

Flange Model

Send Request

Description

Specifications

Typenumber (Long):	HD 15T06 MMC-FOxx
TFT Technology:	Color Active Matrix TFT/LCD, a-Si Thin Film Transistor (TFT)
Viewable Size and Active Area:	15.0 inch - 304.10 [11.97"] (H) x 228.10 [8.98"] (V) mm [inch]
Native Resolution and Pixel Pitch:	1024 x 768 (XGA) - 0.297 (H) x 0.297 (V) mm
Aspect Ratio and Response Time:	4:3 - 30ms (typical)
Light Intensity and Contrast Ratio:	600 cd/m² (typ) - 350:1 (typ)
View Angle and Max Colors:	45° (up), 55° (down), 60° (left/right) (typ) - 16.7 million
Optimal Resolution and Hz:	1024 x 768 @ 60 Hz
Detectable Resolutions:	N/A
Power Specifications and Consumption:	115/230VAC - 50/60Hz or 24VDC 49W (max) (Brightness+CPU @ 100%)
Product Features:	Optical Bonding Technology, Modular Backpack technology (HT MMC compact computer), Tactile Navigation, Dimmable 0-100%, PIP (Picture In Picture), Hotkey Functionality, USB Loopthrough in front, Serial Control Interface, Slimmest Design Possible, IP22 or IP66 user controls
Installed Operating System (OS):	Microsoft® Windows® Embedded Enterprise (XP Professional ENG w/SP2c, 32bit)
Storage Options:	• 4GB 2.5" Flashdrive ATA-3 SSD • Compact Flash Type I & II Compatible bay (with eject button)
CPU / Processor Options:	Intel® Pentium® M 1.6GHz Low Voltage, 2MB L2 Cache, 400Mhz FSB or Intel® Pentium® M 745 "Dothan",1.8GHz,2MB L2 Cache,400MHz FSB or Intel® Celeron® M 600MHz, ULV, Zero-Cache, 400MHz FSB
Memory Options:	1 x DDR333Mhz SODIMM ECC 512MB or 1 x DDR333Mhz SODIMM ECC 1GB
System Chipset / Graphics Chipset:	Intel® 855GME / Intel® Extreme Graphics2 integrated VGA or Intel® 852GM / Intel® Extreme Graphics2 integrated VGA
BIOS / Buzzer:	Award 2Mbit Flash BIOS / No Buzzer
Power Manager and Monitoring:	ACPI - Temperature and voltages status Watchdog Timer: 256 levels
User Controls and Activity:	2 x Power On/Off (Push button), Brightness Control (rotary potmeter or 3 x buttons, model dependent), Mode Status LED-Ring Indicator
Connectors:	• Ethernet LAN 10/100Mbps: 1 x RJ45 • Ethernet GBLAN 10/100/1000Mbps: 1 x RJ45 • Keyboard and Mouse: 1 x PS/2 (purple) + 1 x PS/2 (green) • COM1 RS-232: 1 x DB9M non-isolated • USB1.1 (<10m): 1 x USB Type A (behind hatch on front) • USB2.0 (<5m): 3 x USB Type A • USB2.0 (<5m): 1 x USB Type A (behind hatch on Backpack) • VGA OUT: 1 x 15P HD D-SUB (female) • If AC Power IN: 1 x Std. IEC Inlet (female) • If DC Power IN: 1 x Screw Terminal • Compact Flash: 1 x CF-Slot with eject button (Type I & II compatible) • COM2 RS-232: Internal for Serial Control Interface (SCOM)
Product Dimensions and Weight:	W:359.20 [14.14"] x H:307.20 [12.09"] x D:84.50 [3.33"] mm [inch] 8.0kg / 17.6lbs
Product Carton Size and Weight:	L:500.00 [19.69"] x W:260.00 [10.24"] x H:550.00 [21.65"] mm [inch] 8.0kg / 17.6lbs
Factory Options:	• Resistive Touchscreen, 4-wire • IP22 or IP66 user controls
Accessories:	Desktop/Ceiling Mount Bracket, VESA bracket, Backpack mount bracket, Split Cable RS422/485
Capabilities / Prepared for:	N/A
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating:	Protection: IP66 or IP22 front - IP22 rear (EN60529)
Compass Safe Distance:	Standard: TBD - Steering: TBD cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IACS E10, DNV - Det Norske Veritas

Specifications last updated: August 21, 2025 @ 10:14
