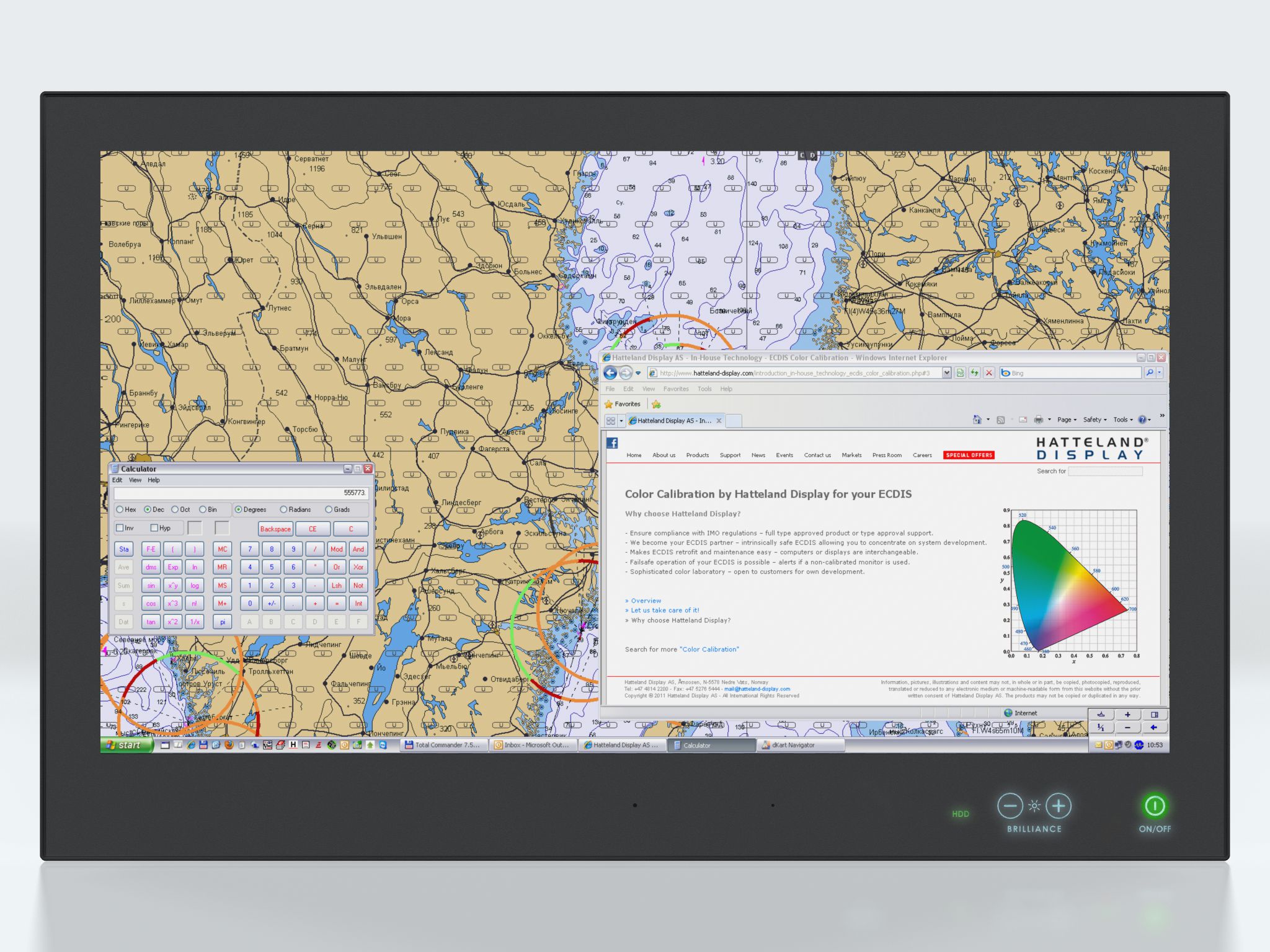

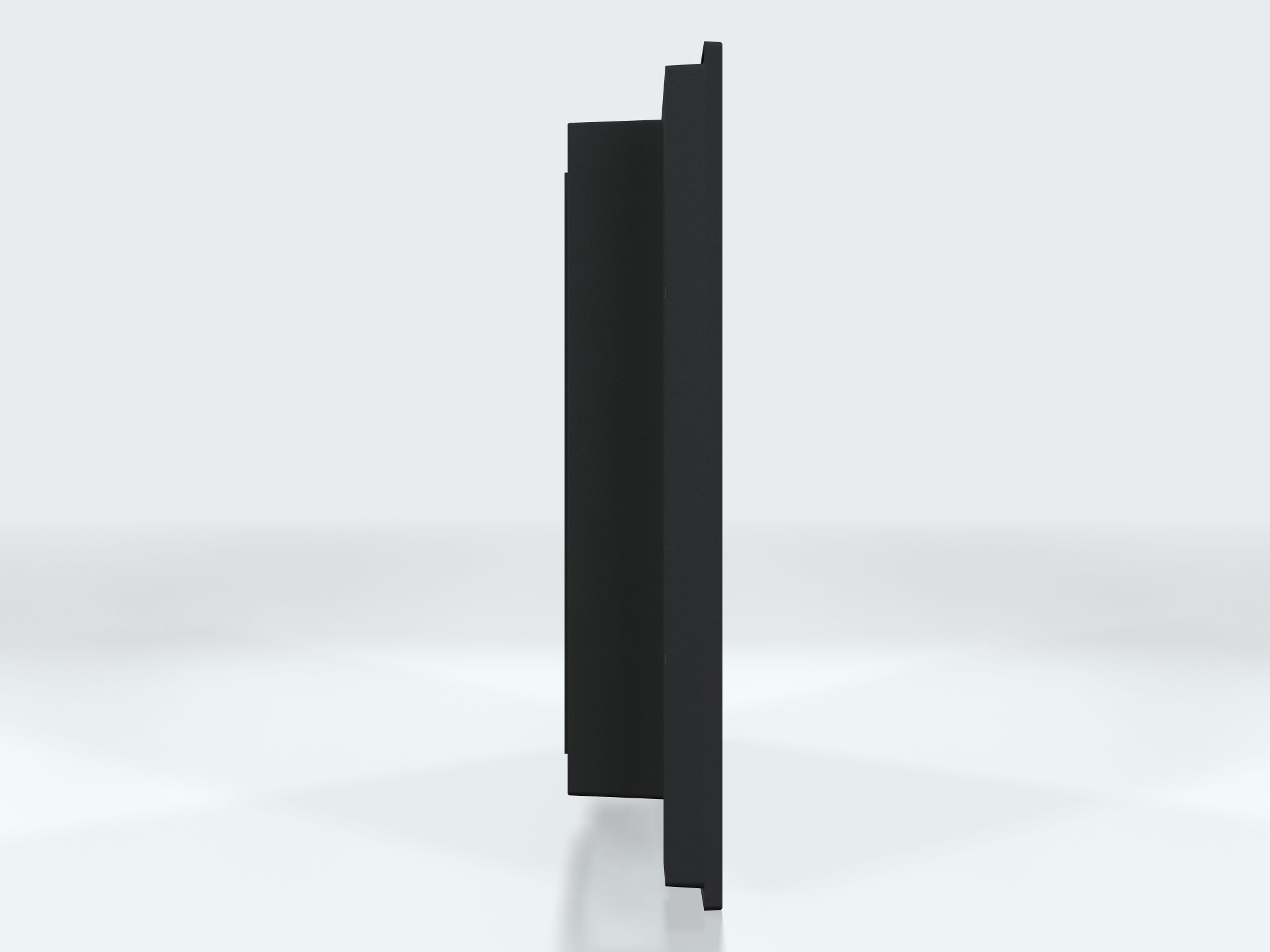

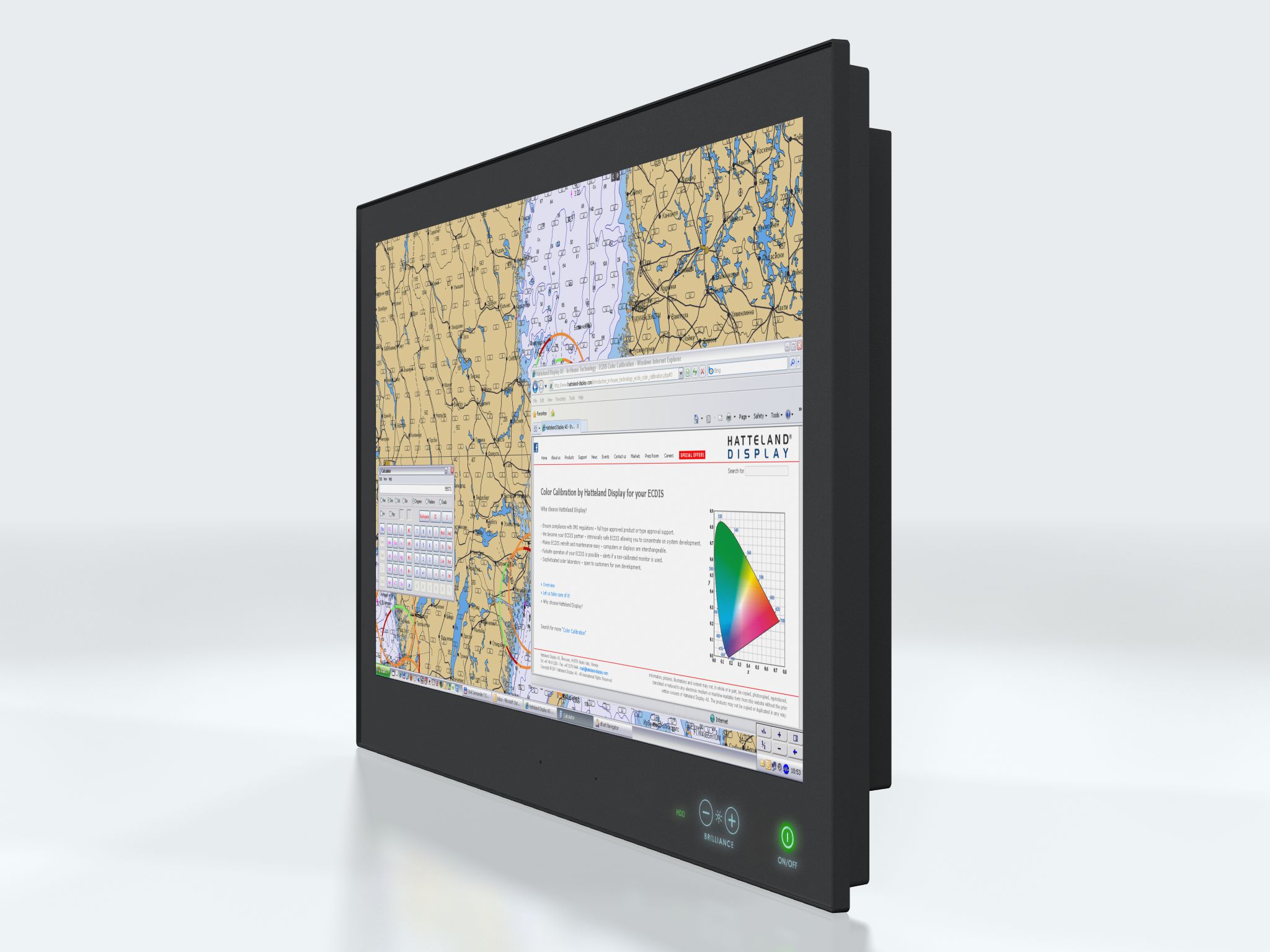

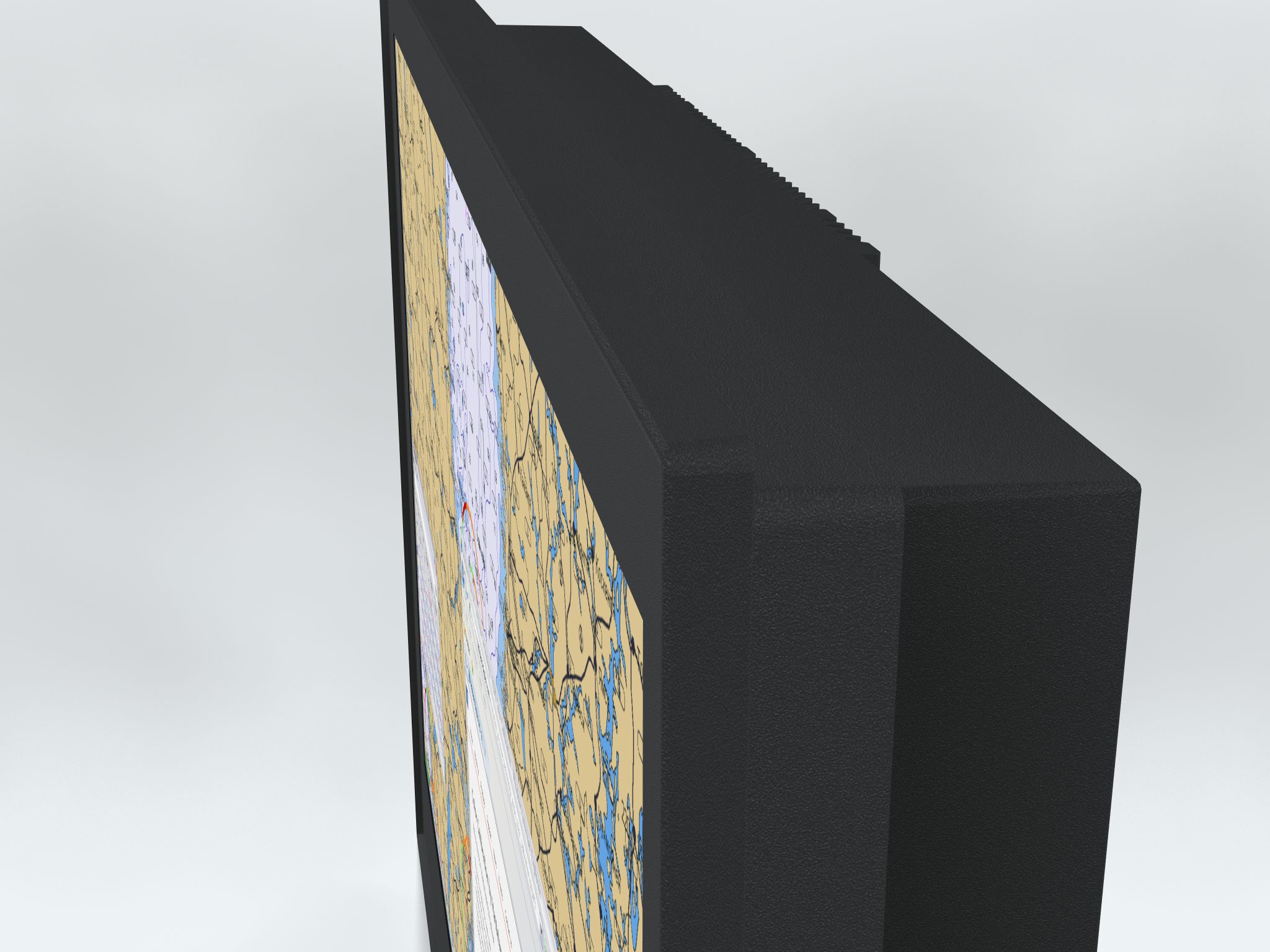

Panel Computer - HATTELAND® Series X G1

The Series X Panel Computer range is a flexible all in one monitor & PC solution, designed and type approved for the professional marine segment, where reliability and long life time are key prerequisites for the industry. The product range combines state of the art monitor and computer technology with innovative features and options, making it all that the integrator needs for top class type-approved marine systems.

The high performance MMC Panel Computer models provide a wide choice of monitor size and format, along with various processor and storage options. The compact, all-in-one MMC solution is the ideal one for all ship navigation or automation installations. This range with all it's versatility and capability provides a robust and cost effective platform from which to run multiple applications and display and manage data.

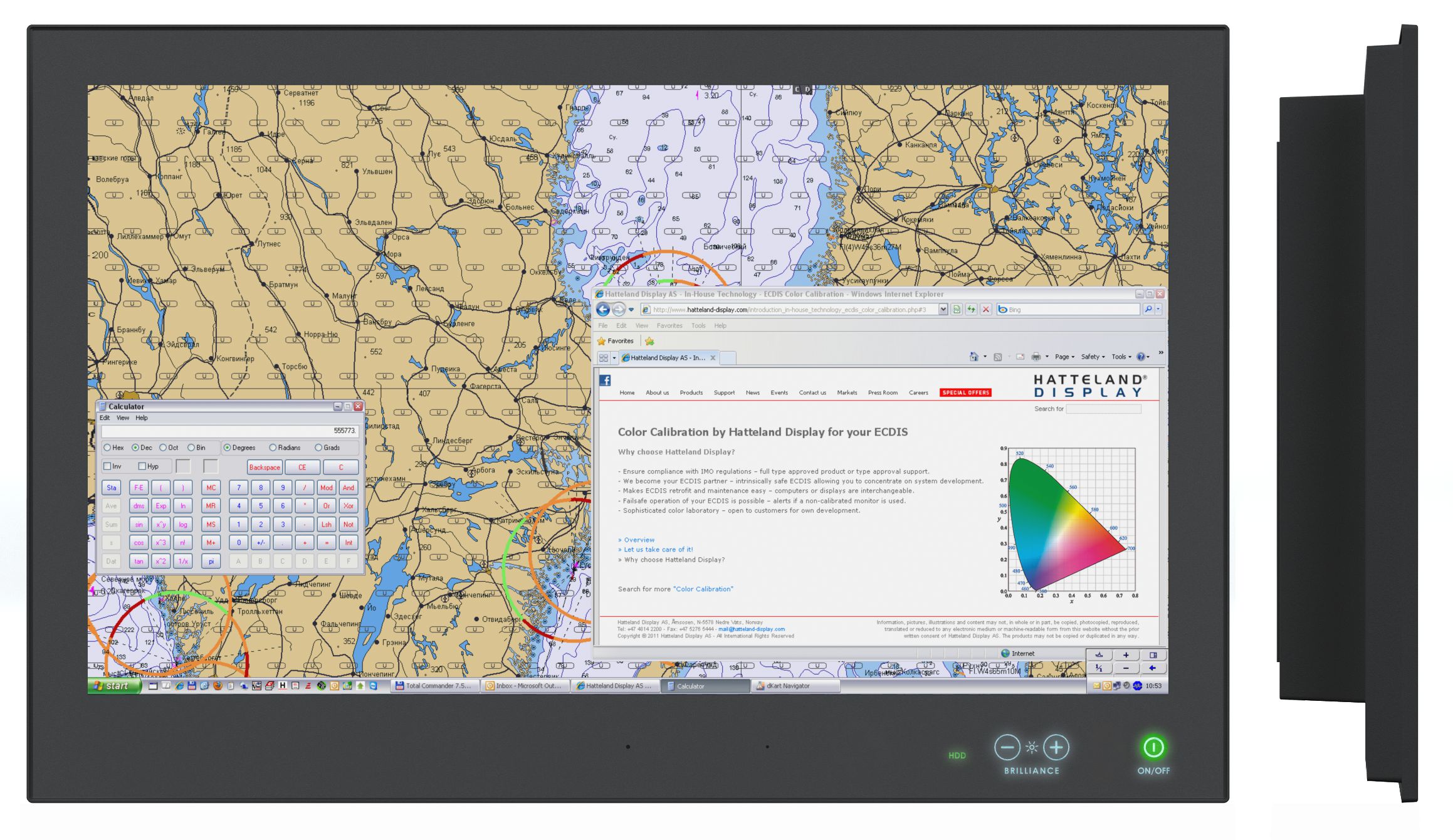

Series X Panel Computer feature Glass Display Control, LED Backlight Technology, full dimming and multipower all as standard. In addition there are options such as HDD or SSD storage mediums, Multiple interface configurations and several OS options. The product range can also accomodate and combine multi-touch screen, optical bonding, sunlight readability (High Bright) and ECDIS calibration. By factory standards the 24 inch unit is ECDIS Compliant.

Typenumber (Long):	HD 24T21 MxC-xxx-xxxx
TFT Technology:	Sunlight Readable - High Bright, LED Backlight Technology, Widescreen, RGB vertical stripe, MVA (Multi-domain Vertical Alignment) Technology, TFT Active-matrix
Viewable Size and Active Area:	24.0 inch - 531.36 [20.92"] (H) x 298.89 [11.77"] (V) mm [inch]
Native Resolution and Pixel Pitch:	1920 x 1080 (FHD) - 0.276 (H) x 0.276 (V) mm
Aspect Ratio and Response Time:	16:9 - 25ms (typ)
Light Intensity and Contrast Ratio:	1000 cd/m² (typ) - 3000:1 (typ)
View Angle and Max Colors:	89 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz:	1920 x 1080 @ 60 Hz (If resolution is above/below 1:1, desktop scrolling mode will be used)
Detectable Resolutions:	DVI: From 640 x 480 to 1920 x 1200 @ 60 Hz VGA: From 640 x 480 to 2048 x 1536 @ 75 Hz
Power Specifications and Consumption:	Multi-power 100-240V AC 50/60Hz + 24VDC 50W (typ)* - 156W (max) - *Max Backlight, Idle CPU, Windows® 7
Product Features:	Dimmable 0-100%, Buzzer, Multi-power AC & DC, GPIO, LAN Wakeup, USB Boot&Wakeup, includes an EPDM sealing gasket for IP66 console mount, Firmware Raid
Installed Operating System (OS):	None or Standard OS/Customized image, review datasheet for list.
Storage Options:	2 x 2.5" Removable Tray. Option: 1 or 2 can be installed of: 2.5" SSD SATA: (240GB (599TBW), 480GB (945TBW), 960GB (1750TBW)) 2.5" HDD SATA - 1TB
CPU / Processor Options:	1 x Intel® Core™ i7-620LE, 2.0GHz, 4MB Cache, FSB 1066MHz
Memory Options:	1 x 2GB, 4GB (Single Ch. 204pin DDR3 1066/800MHz SO-DIMM)
System Chipset / Graphics Chipset:	Intel® BD82QM57 Intel® Arrandale IGD supports DVMT 5.0, Supports Direct3D 10.1, OpenGL 2.1, OpenGL ES2.0 (Linux)
BIOS / Buzzer:	UEFI AMIBIOS / Buzzer: 3500Hz
Power Manager and Monitoring:	ACPI S3/S4 - Temperature and voltages status 256 Segments, 0, 1, 2...255 sec/min

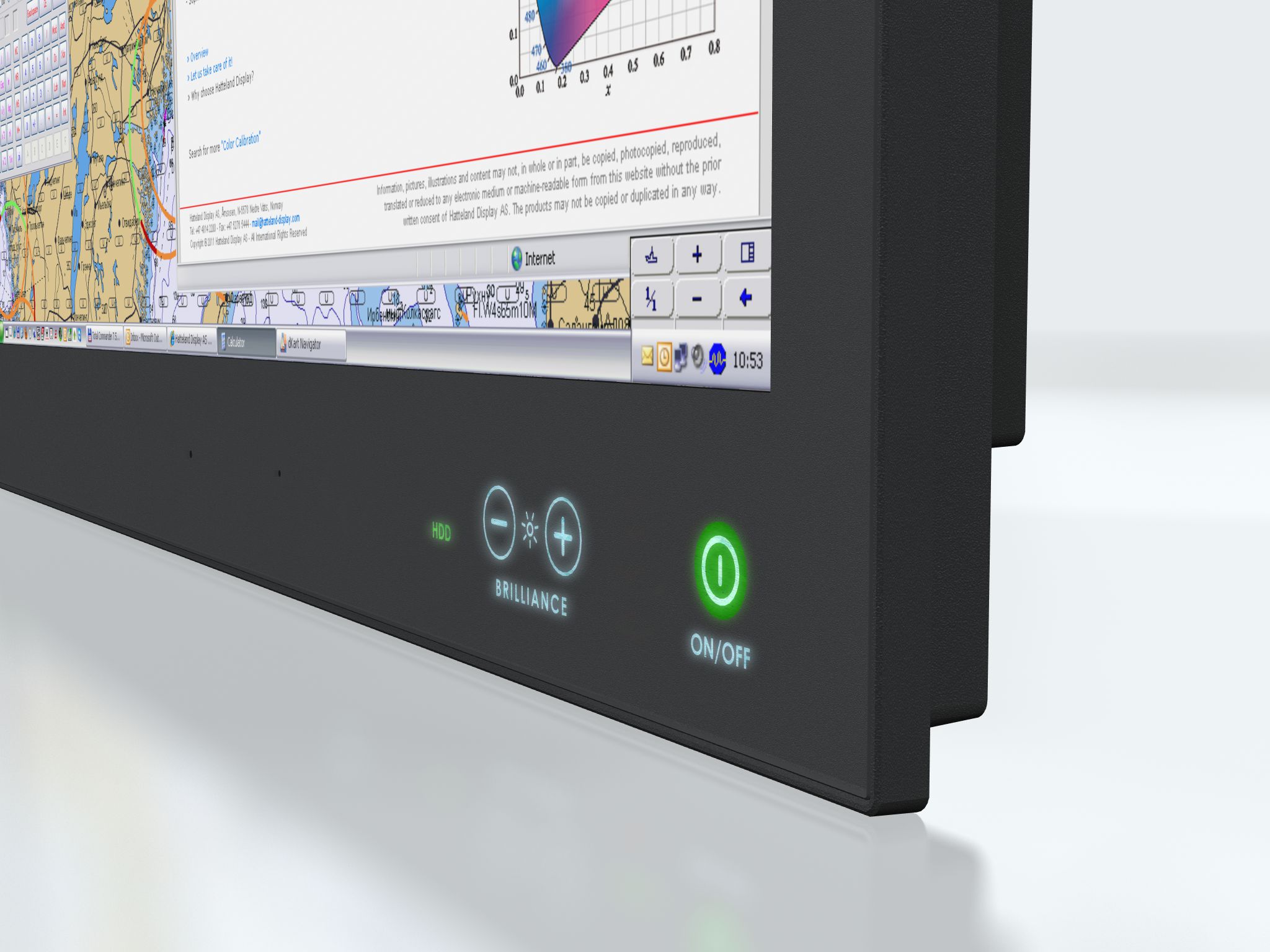

User Controls and Activity:	Glass Display Control™ (GDC) IP66 with: Power On/Off, Brightness Control (-/+), Power LED, HDD/SSD LED, Buzzer (through glass), Mode Status Indicator (ECDIS, Service), Light Sensor (behind glass)

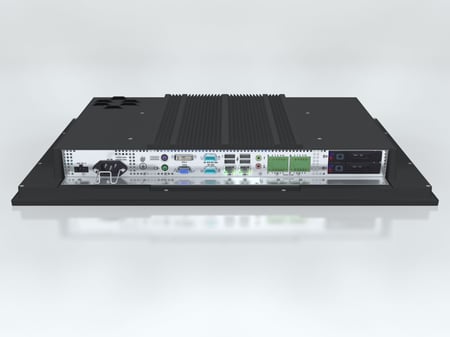

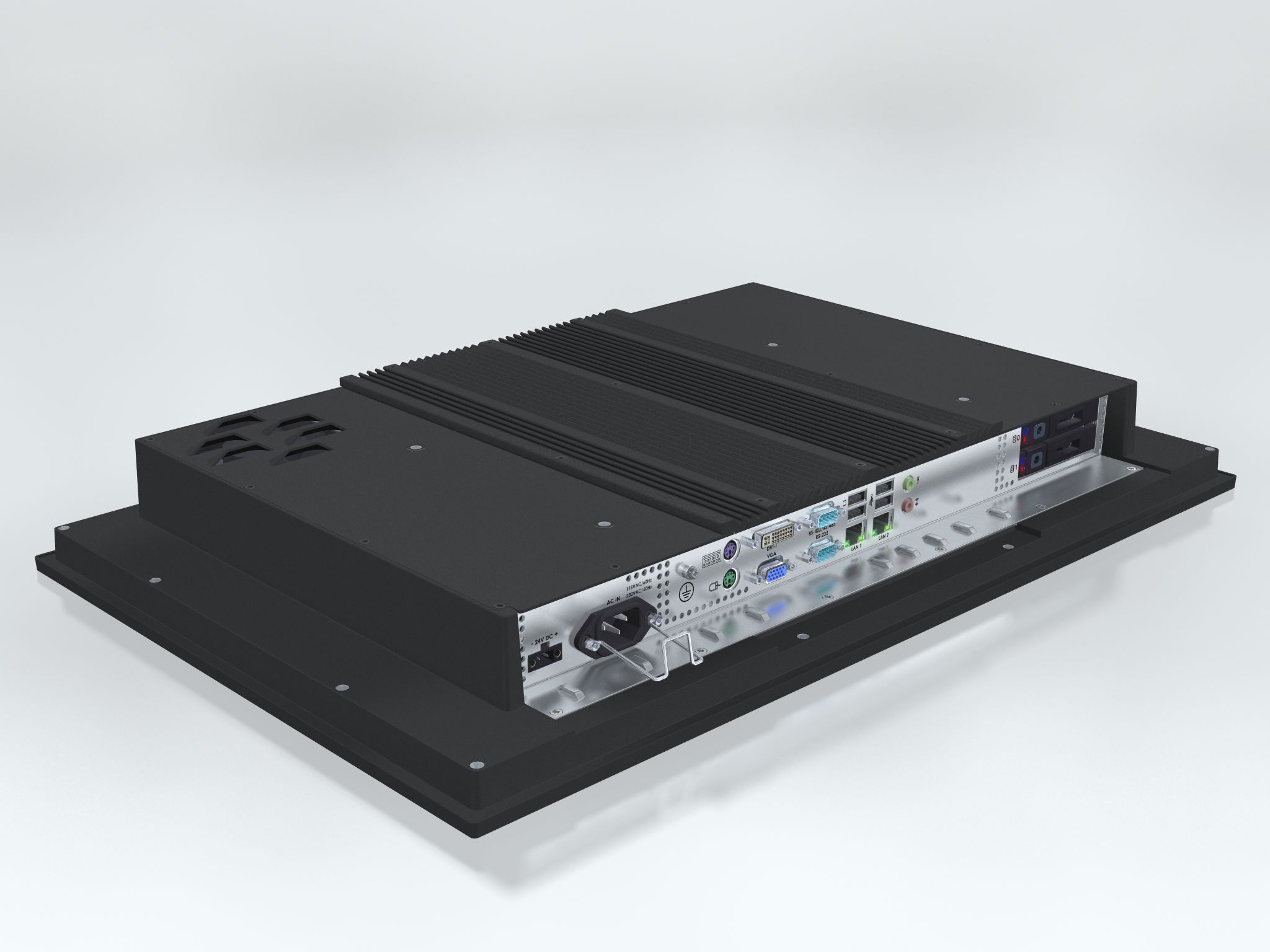

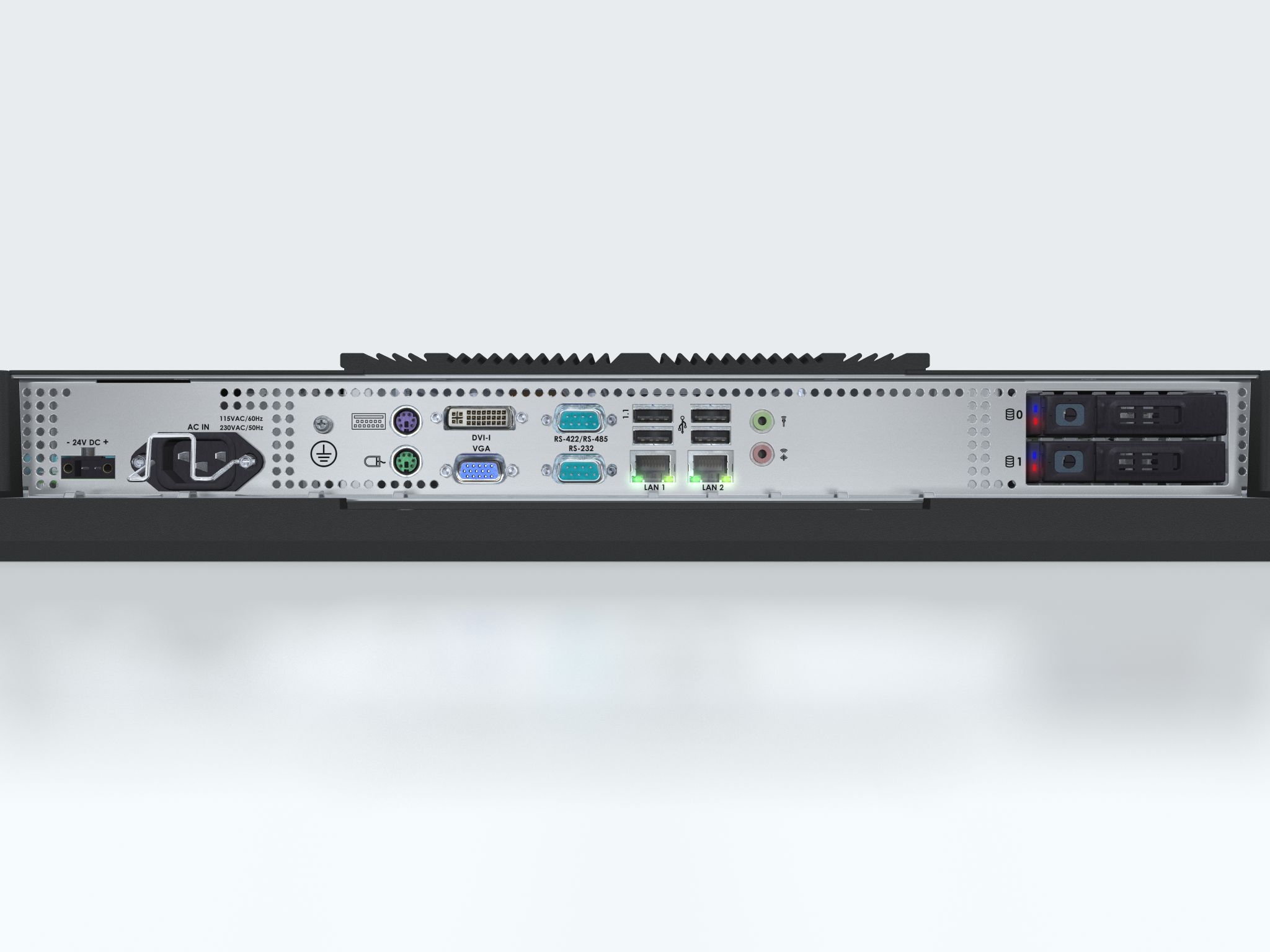

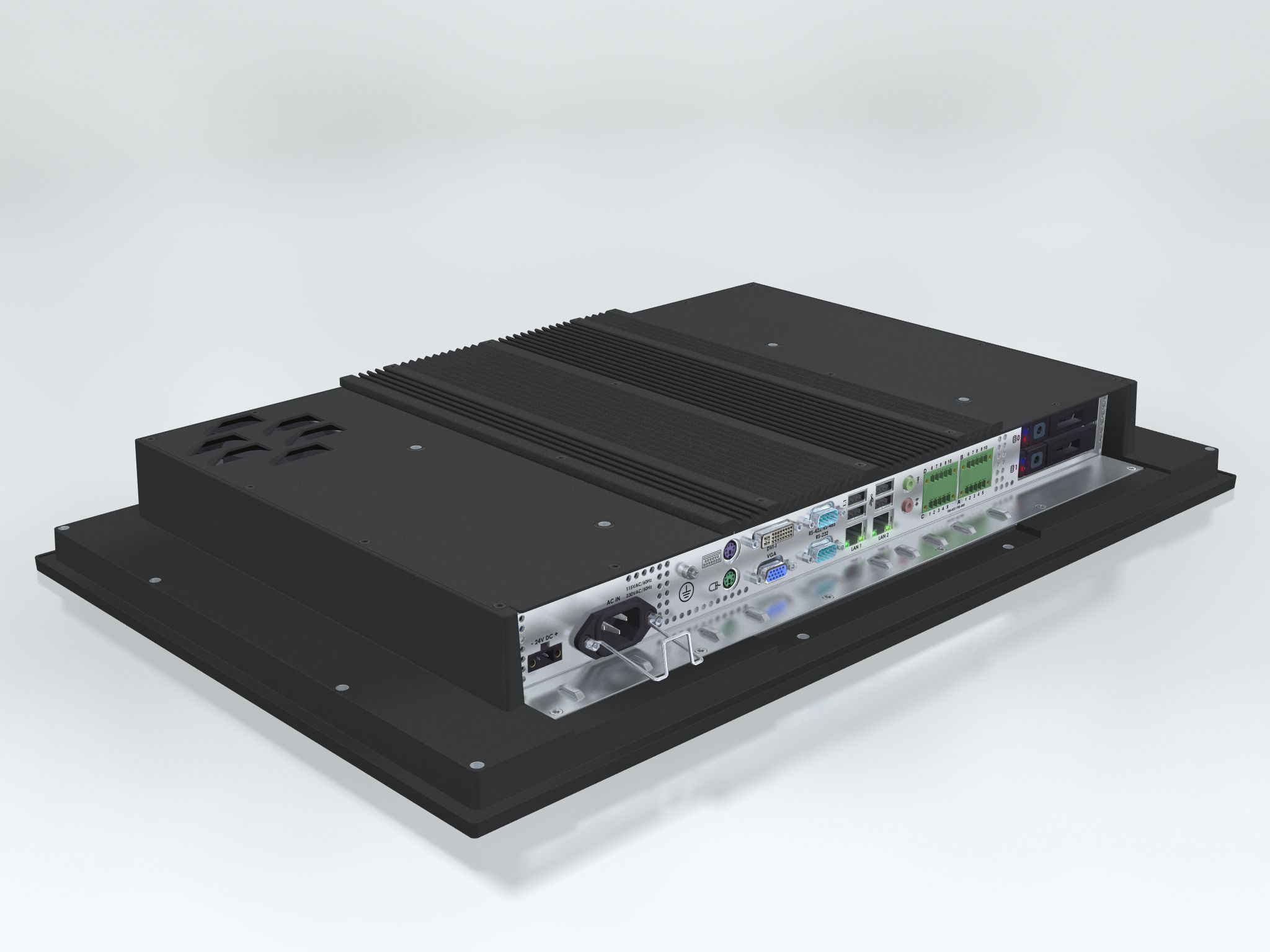

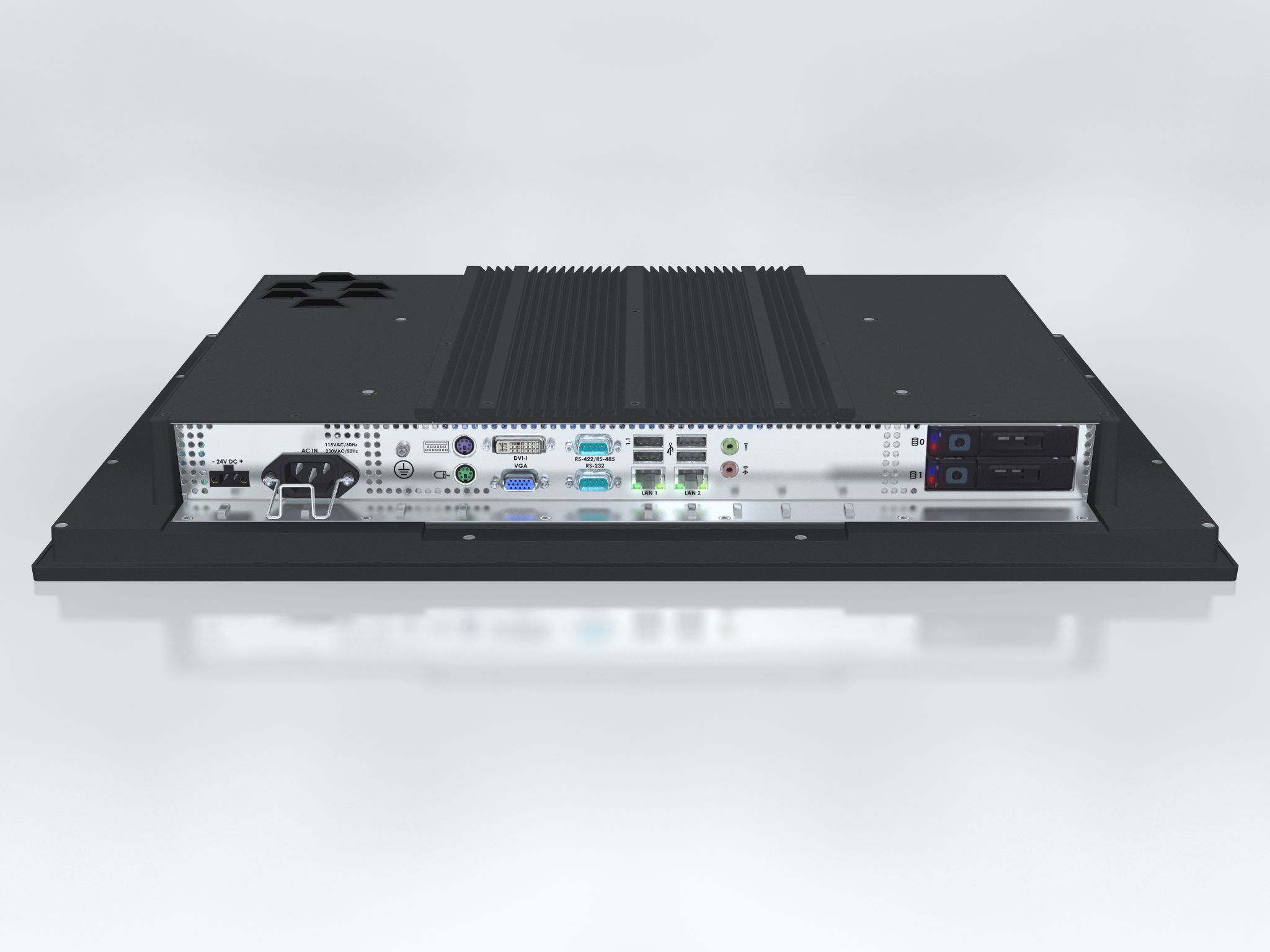

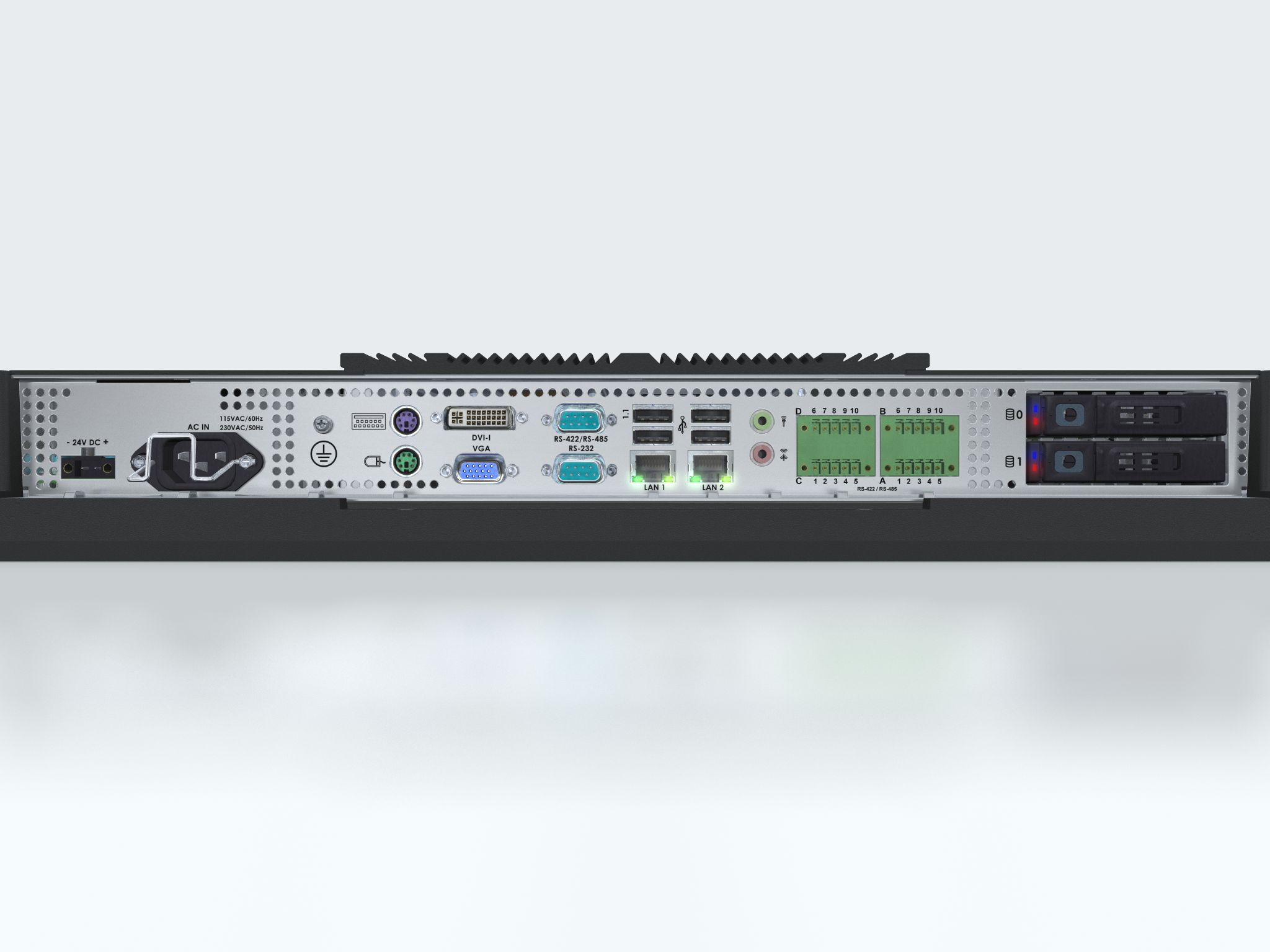

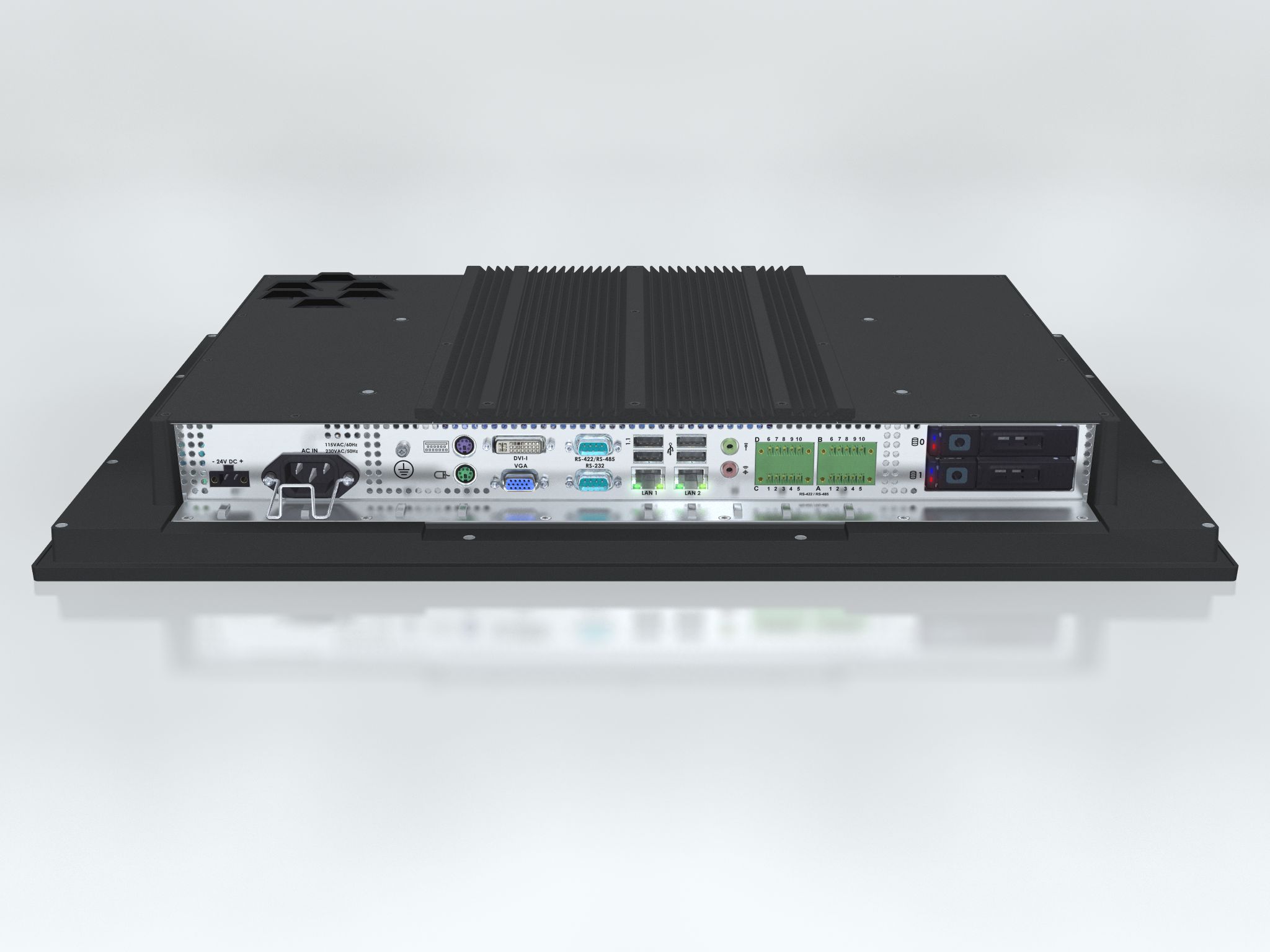

Connectors:	• Ethernet GBLAN 10/100/1000Mbps: 2 x RJ45 • Keyboard and Mouse: 1 x PS/2 (purple) + 1 x PS/2 (green) • COM RS-232: 1 x DB9M non-isolated • COM RS-422/485: 1 x DB9M non-isolated • VCOM RS-232: 1 x Internal Virtual COM (Software controlled) • USB1.1 (<10m): 1 x USB Type A • USB2.0 (<5m): 3 x USB Type A • DVI / VGA OUT: 1 x 29P DVI-I or as VGA with adapter • VGA OUT: 1 x 15P HD D-SUB • AC Power: 1 x Std. IEC inlet • DC Power: 1 x 2-pin Terminal Block 5.08 • Line Out+Mic In: 1 x 3.5mm mini jack + 1 x 3.5mm mini jack* *Realtek ALC892 Chipset

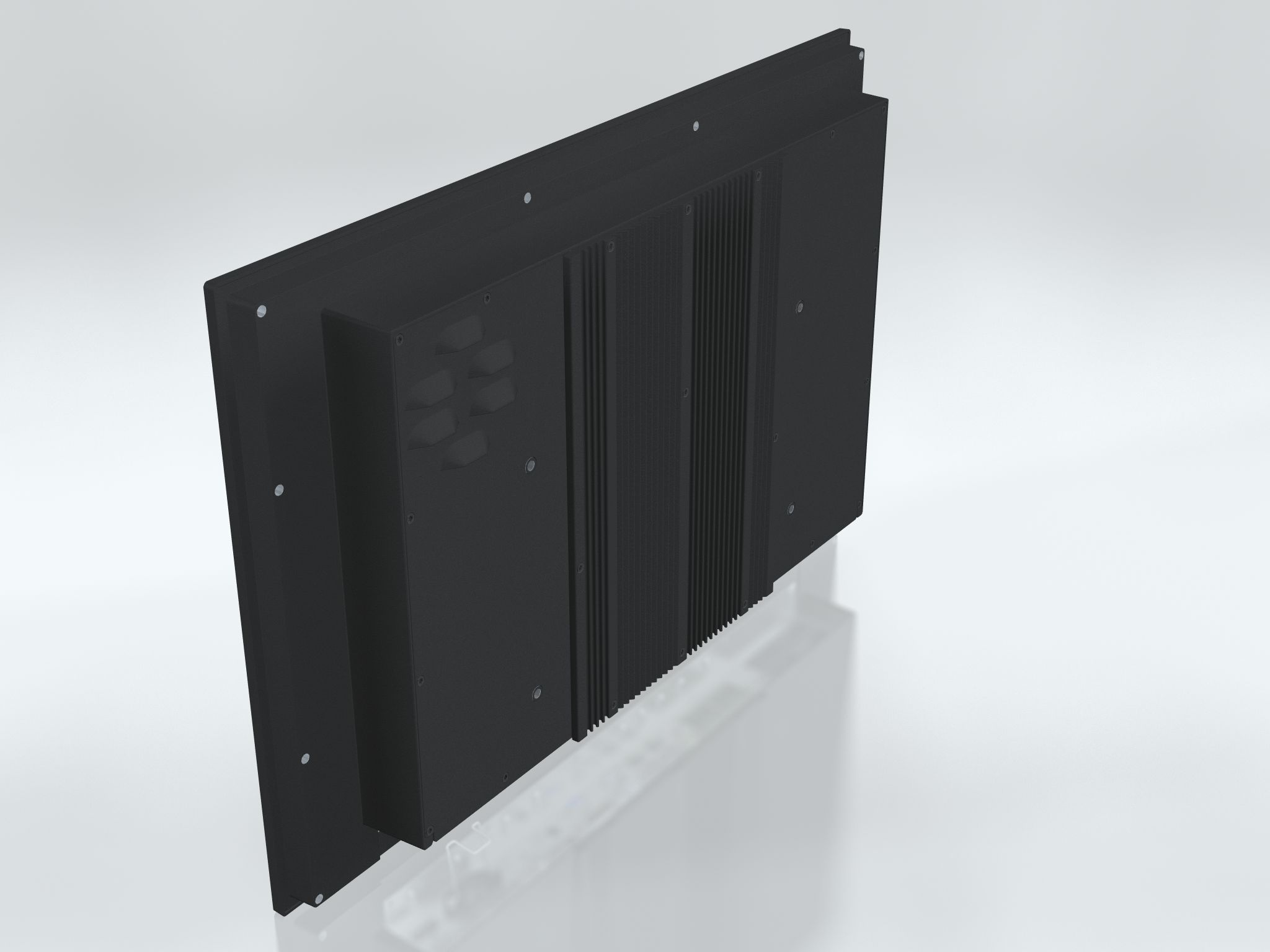

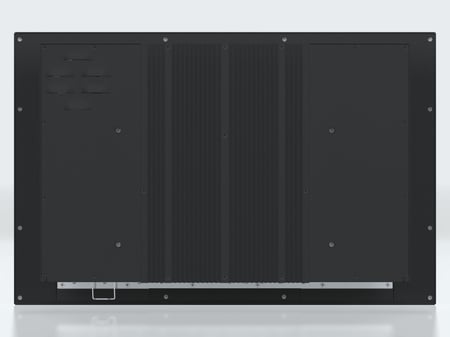

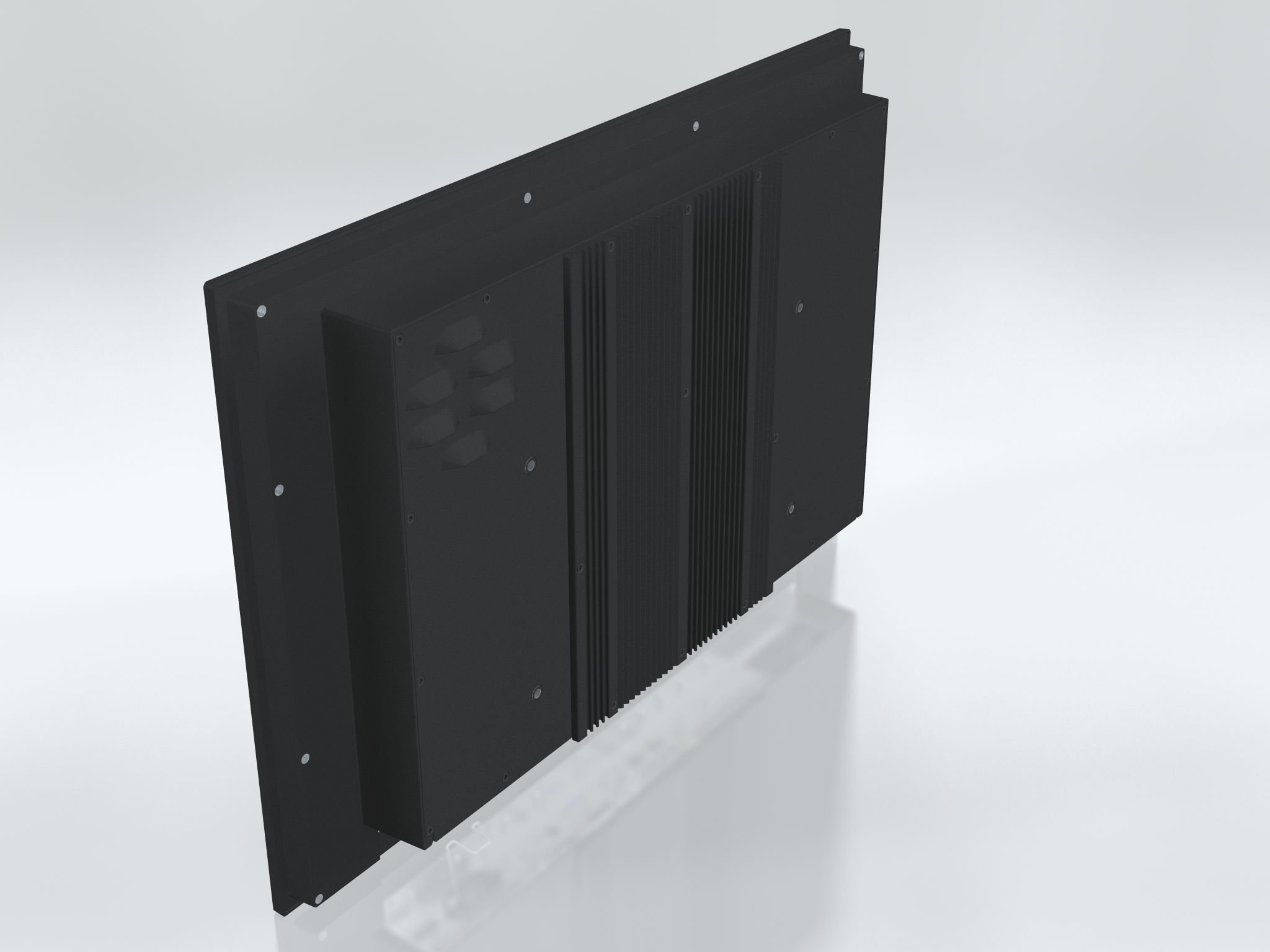

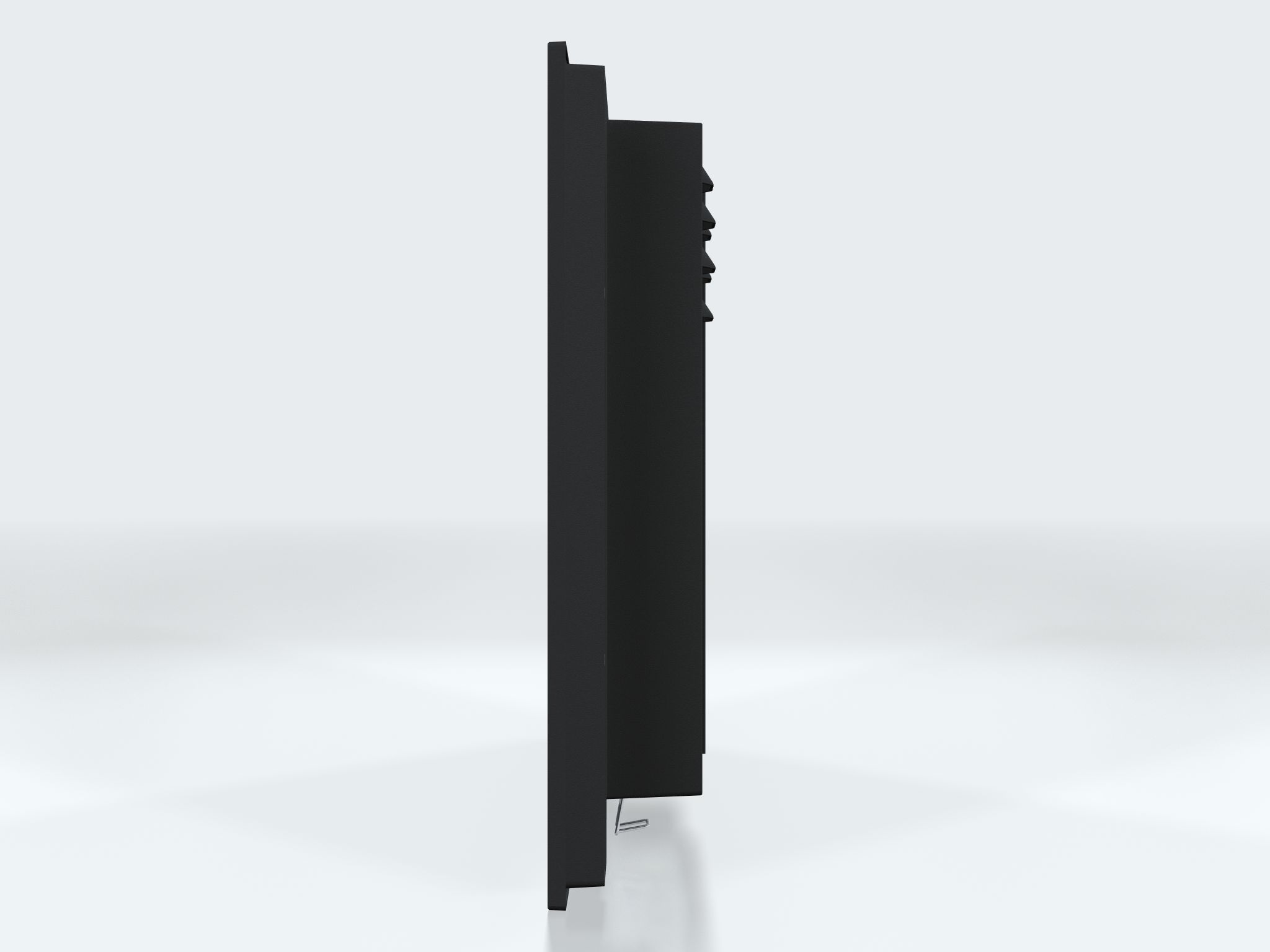

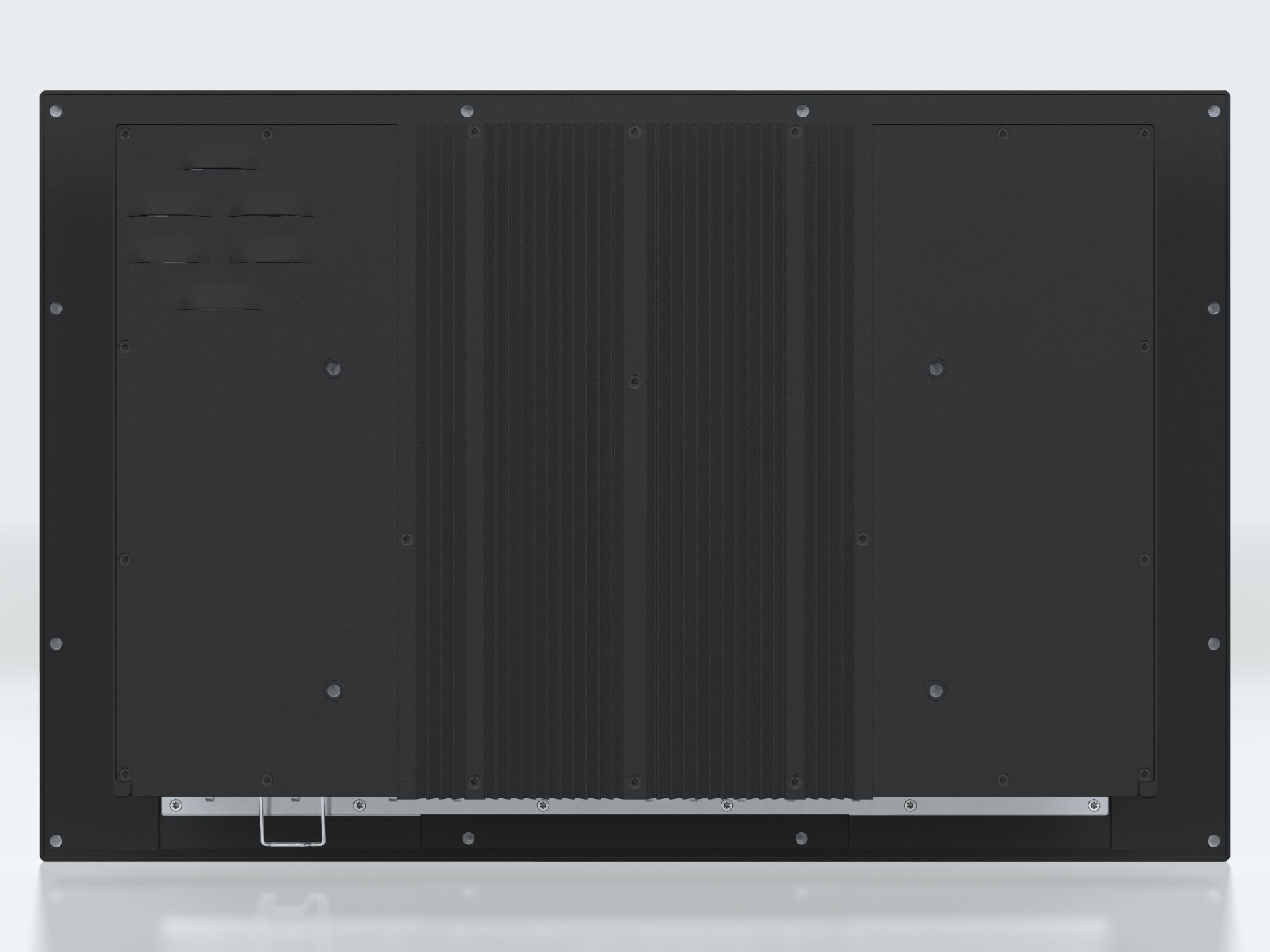

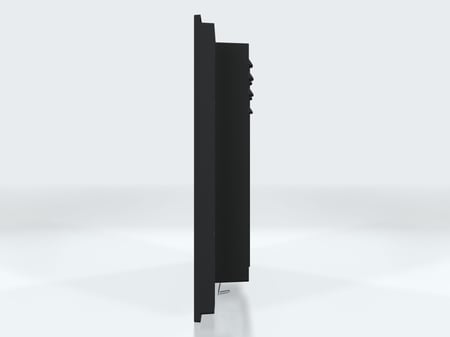

Product Dimensions and Weight:	W:593.00 [23.35"] x H:384.00 [15.12"] x D:76.40 [3.01"] mm [inch] 4xM6 VESA mounting 280x150mm, Max 12mm deep. 11.2kg / 24.6lbs
Product Carton Size and Weight:	L:700.00 [27.56"] x W:185.00 [7.28"] x H:585.00 [23.03"] mm [inch] 14.5kg / 31.9lbs
Factory Options:	• Optical Bonding Technology • Projected Capacitive Touch Screen (Multitouch, USB interface) • Color Calibrated Models (ECDIS) • Variations of SSD/HDD Storage, RAM Memory, Operating System • 1 x PCA200828-1 (4xCOM RS-422/485 isolated NMEA 2 channel)* • 1 x HTA2020002-AD1033 (1 or 2 x CAN isolated 2ch. or 4ch.)* • 1 x HTA2020002-SLCAN (1 or 2 x CAN isolated 2 or 4 ch., socketCAN)* • 1 x HT 00235 OPT-A1 (2W Amplified Audio out via DB9F) • 1 x PCA100297-1 (Isolated Digital IO module,4 x Output/4 x Input)* • 1 x PCA100298-1 (LAN 10/100Mbps, 2 ports RJ45)* • 1 x VSD100832-1 (LPT1 Parallel (Bi-Directional/EPP/ECP). DB25F *Only 1 module can be installed
Accessories:	• HD CMB SX1-B1: 1 x Console Mount Kit. EN60945 Tested • HD VED SX1-A1: 1 x VESA Bracket, not EN60945 Tested • HD TMB SX1-C1: 1 x Table Mount Bracket. EN60945 Tested* • HD 24COV SX1-A1: 1 x UV Sun Cover • P022211: 1 x IP66 Mount Gasket (EPDM), for Flush/Console mount • JH C01MF A-A: 1 x USB Cable 1m, Type A/Chassis mount receptacle • HT 00262 OPT-A1: 4 x RS-422/RS-485 isolated, USB ext. module • HT 00263 OPT-A1: 4 x RS-232 COM non-isolated, USB ext. module • HT 00264 OPT-A1: 1 x CAN isolated, 2 channel, USB ext. module • HT 00264 OPT-A2: 1 x CAN isolated, 2 channel, socketCAN USB ext. module • HT 00273 OPT-A1: 4 x Digital IN/OUT isolated, USB ext. module • HT 00274 OPT-A1: 2 x LAN 10/100Mbps, RJ45, USB ext. module • HD 000TR SX1-A1: 1 x Removable Front Tray 2.5" Empty • HD xxxyy SX1-z1: 1 x Removable Front Tray 2.5" w/Storage Device • HT 00300 MSOS: OS options -> www.hatteland-display.com/os *Can not be combined with HDD, use SSD only.
Capabilities / Prepared for:	See Factory Options
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating:	Protection: IP66 front - IP22 rear (EN60529)
Compass Safe Distance:	Standard: 115.00 [45.28"] - Steering: 70.00 [27.56"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IACS E10, IP66, ClassNK - Nippon Kaiji Kyokai, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, GL - Germanischer Lloyd, BV - Bureau Veritas, CCS - China Classification Society, LRS - Lloyd's Register, EU-RO-MR - Mutual Recognition, KR - Korean Register Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m

Specifications last updated: July 7, 2025 @ 07:45
