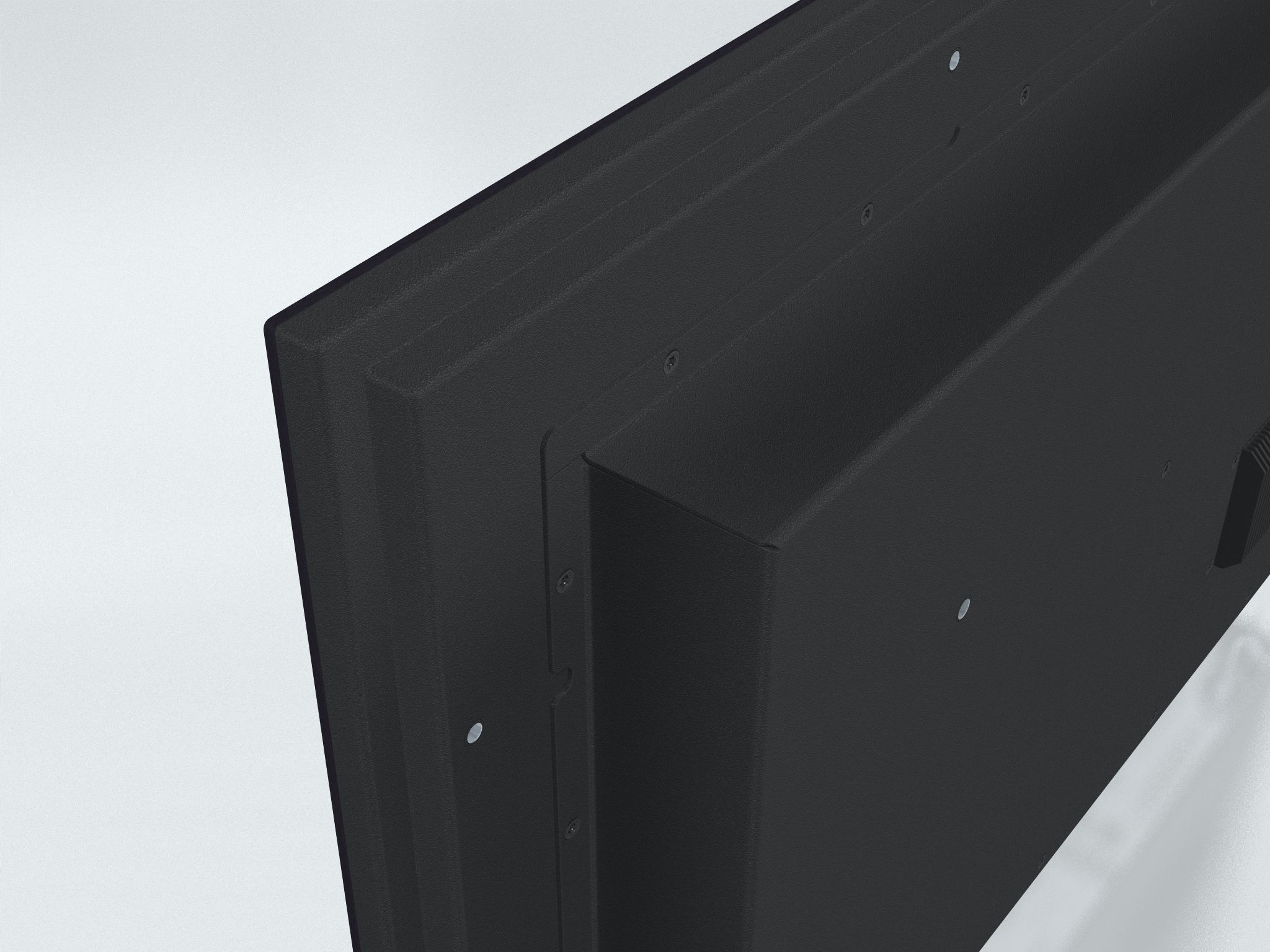

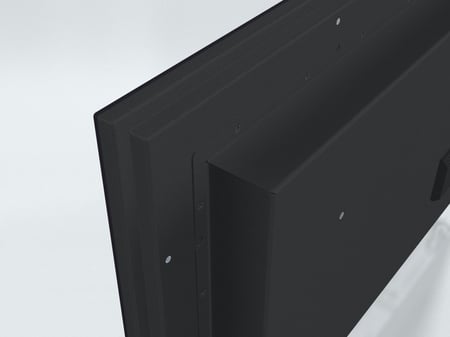

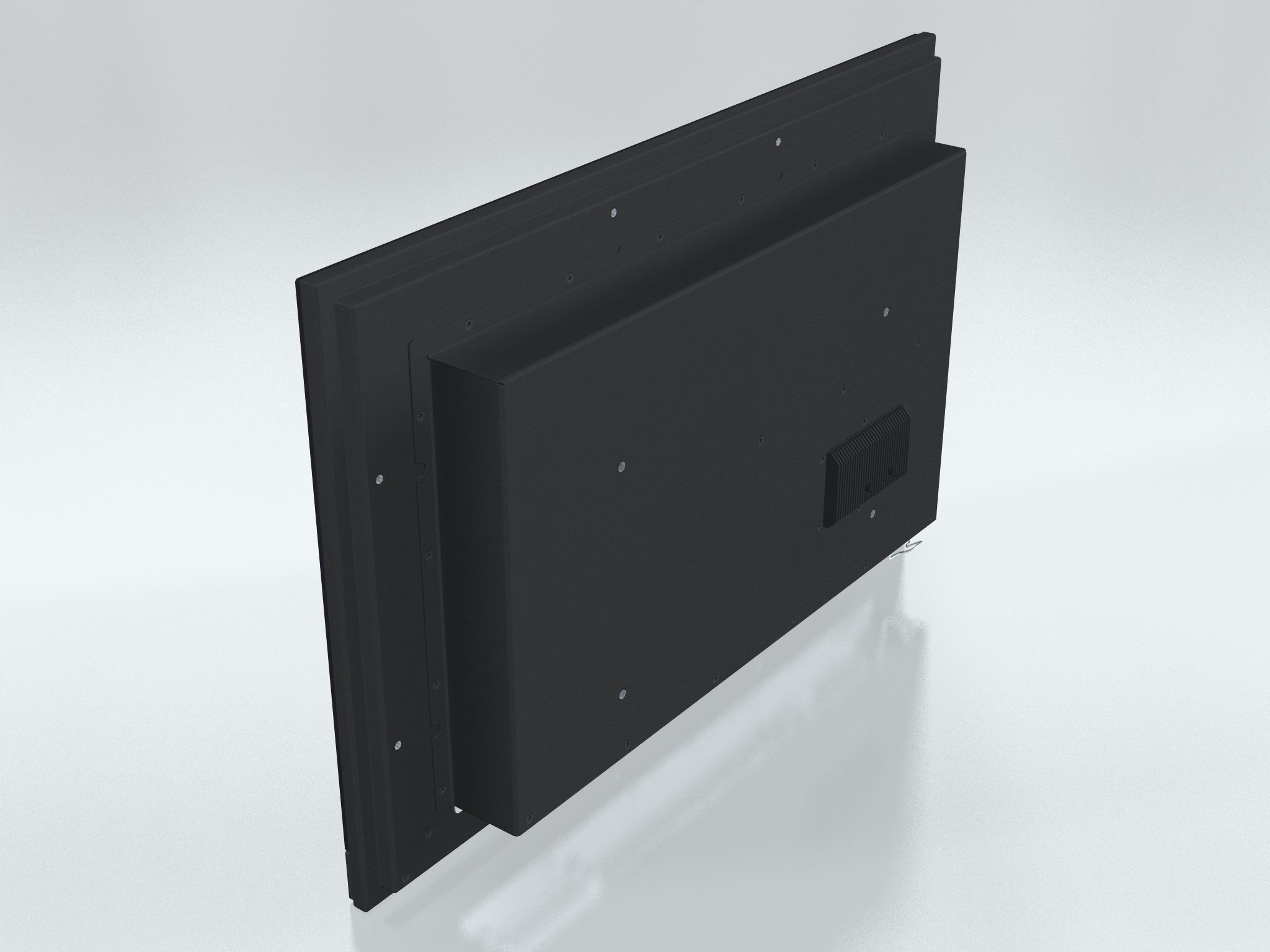

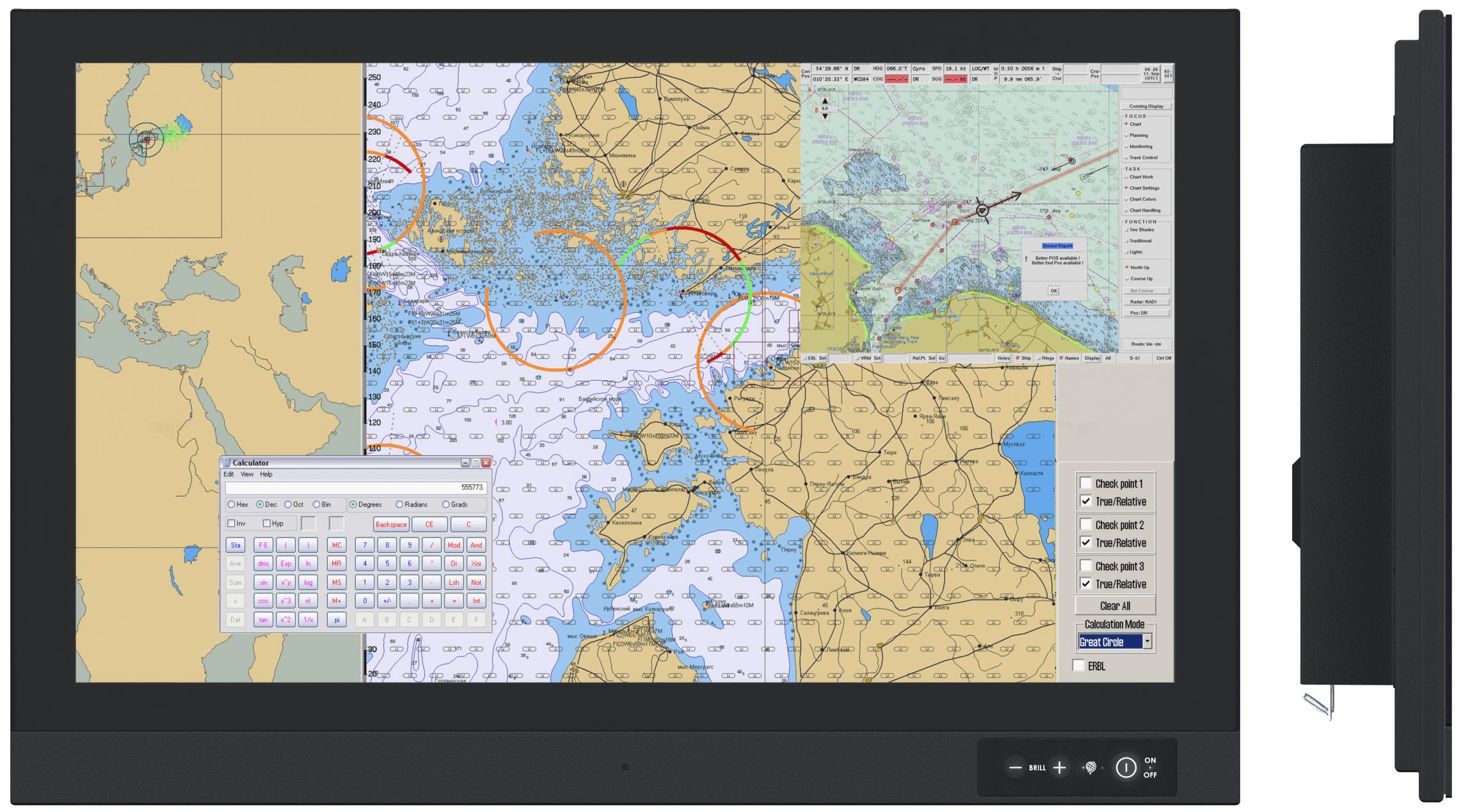

Panel Computer - Widescreen - LED - HATTELAND® Series E - 23.8 inch

HD 24T30 MMC

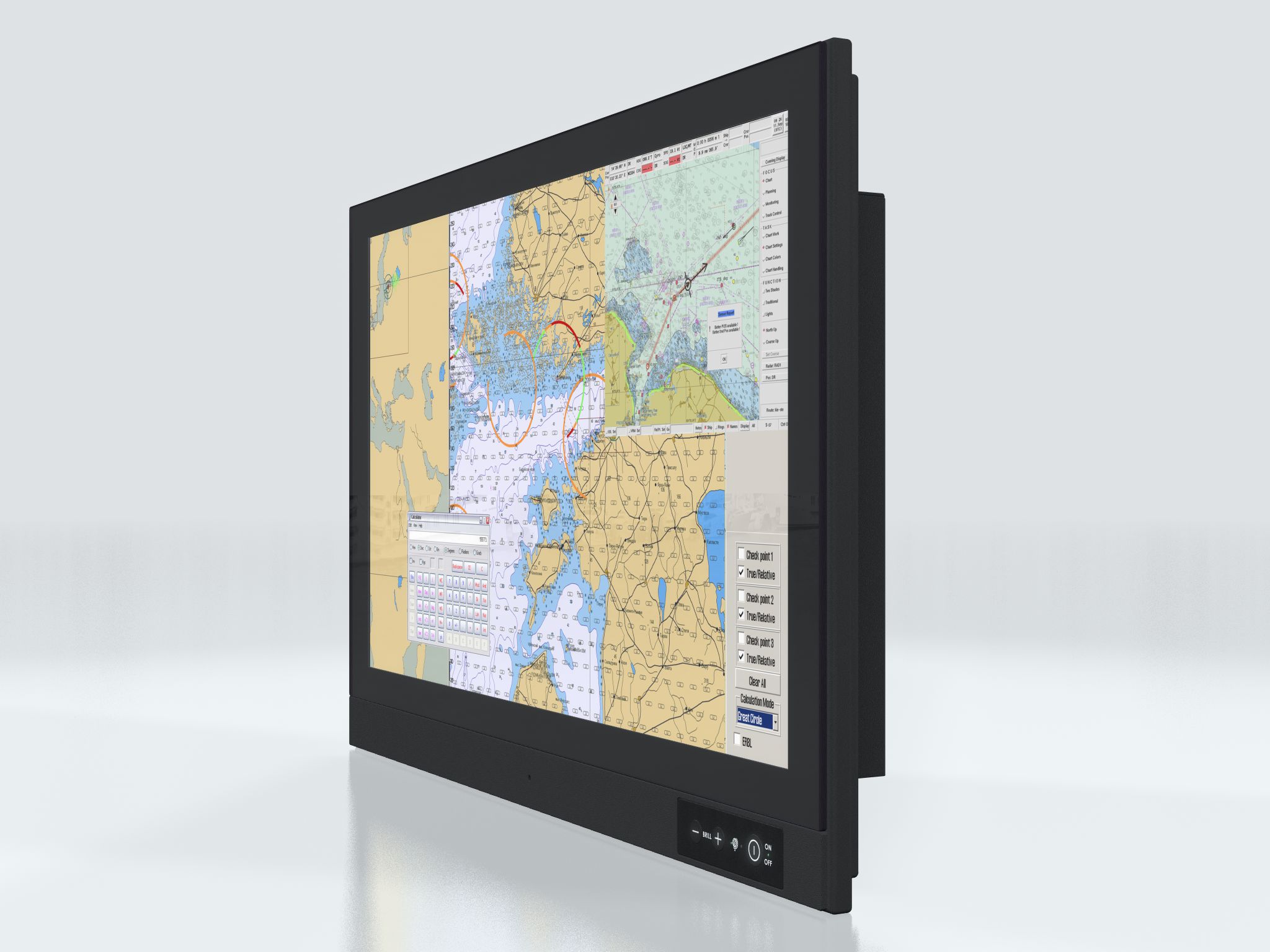

Series E is the new cost effective Panel Computers portfolio from Hatteland Technology. Designed for 10 years manufacturing, all Series E Panel Computers integrate Intel® Apollo Lake processor-based computers, high quality monitor technology, fan-less design and low power consumption to deliver a fast and reliable all-in-one solution for diverse maritime applications.

Widescreen

LED-backlit

TPM 2.0

Send Request

Description

Specifications

Typenumber (Long):	HD 24T30 MMC-xxx-xxxxxx
TFT Technology:	LED Backlight Technology, Widescreen, RGB vertical stripe, MVA (Multi-domain Vertical Alignment) Technology, TFT Active-matrix
Viewable Size and Active Area:	23.8 inch - 527.04 [20.75"] (H) x 296.46 [11.67"] (V) mm [inch]
Native Resolution and Pixel Pitch:	1920 x 1080 (FHD) - 0.274.5 (H) x 0.274.5 (V) mm
Aspect Ratio and Response Time:	16:9 - 14 ms (typ), G/G
Light Intensity and Contrast Ratio:	250 cd/m² (typ) - 1000:1 (typ)
View Angle and Max Colors:	89 deg. (up/down/left/right) - 16.7 millions (RGB 8-bit)
Optimal Resolution and Hz:	1920 x 1080 @ 60 Hz (If resolution is above/below 1:1, desktop scrolling mode will be used)
Detectable Resolutions:	640 x 480 to 4096 x 2304 @ 60Hz (DP++ Out Max Resolution)
Power Specifications and Consumption:	Multipower 100-240V AC - 50/60Hz+ 24VDC or Single AC Power Option 100-240V AC - 50/60Hz Operating AC/DC: 45.2W (typ) - 156W (max) Operating AC: 45.2W (typ) - 125W (max)
Product Features:	Low Power Consumption, Extended lifetime (+10 years), Fan-less Design, Dimmable 0-100%, Buzzer, Multi-power AC & DC or Single Power AC, Supports wide range of HD Expansion I/O Modules
Installed Operating System (OS):	None or Standard OS/Customized image, review datasheet for list.
Storage Options:	Internal Storage: 1 x 32GB eMMC (default) or additional internal 1 x M.2 SSD (240GB->)
CPU / Processor Options:	1 x Intel® Atom® x7-E3950 Processor, 2M Cache, 1.60GHz / 2.00GHz
Memory Options:	1 x 2GB Single Channel (default), DDR3L, 1600MHz, SO-DIMM or 2 x 2GB (Dual Channel, Total 4GB) or 2 x 4GB (Dual Channel, Total 8GB)
System Chipset / Graphics Chipset:	Intel® SoC (System on a Chip) / Intel® HD Graphics 505 (CPU dependent) Supports OpenGL 4.6 (Windows/Linux) and OpenGL ES 3.2 (Linux)
BIOS / Buzzer:	AMI BIOS, supports ACPI* / Buzzer: Yes / No Onboard PC-Beeper *Note: "Legacy Mode" option is not fully supported for System Chipset and Microsoft® Windows® 10.
Power Manager and Monitoring:	RTC (0.5s/day), Battery Alarm, WakeOnLan, Fast Boot, AT mode, USB Boot, TPM2.0. atchDog Timer: Yes (256 segments, 0, 1, 2...255 sec/min)

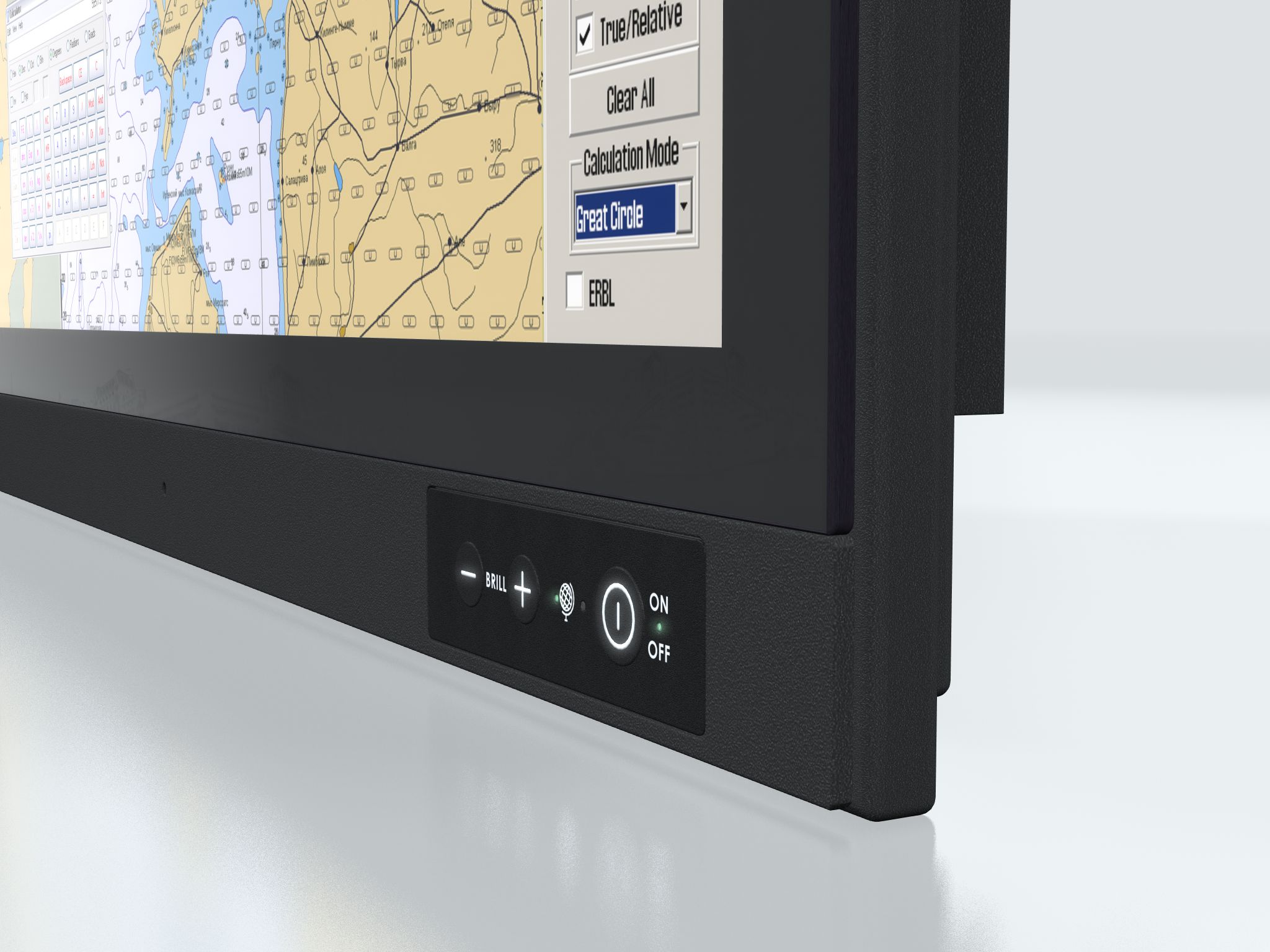

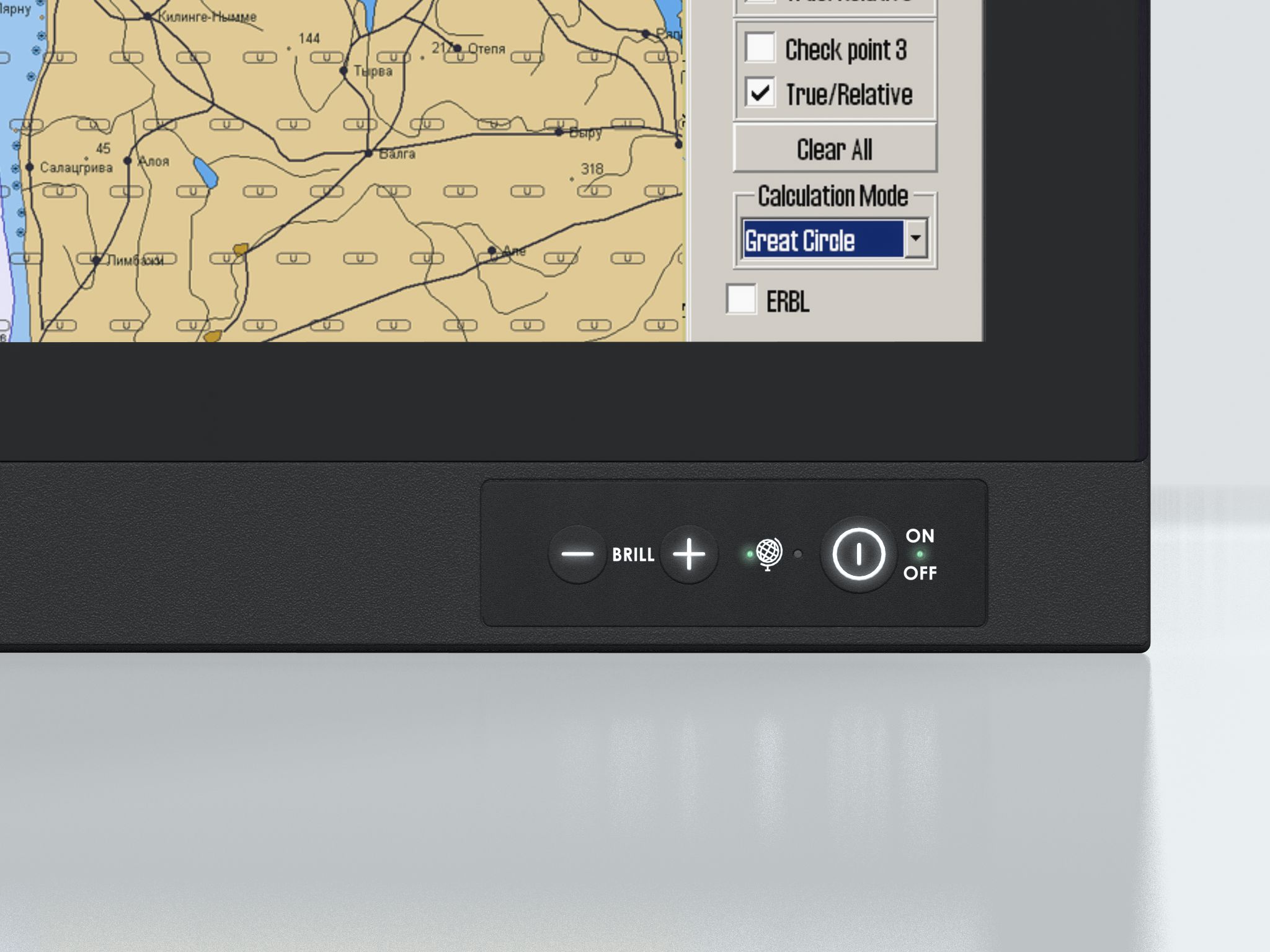

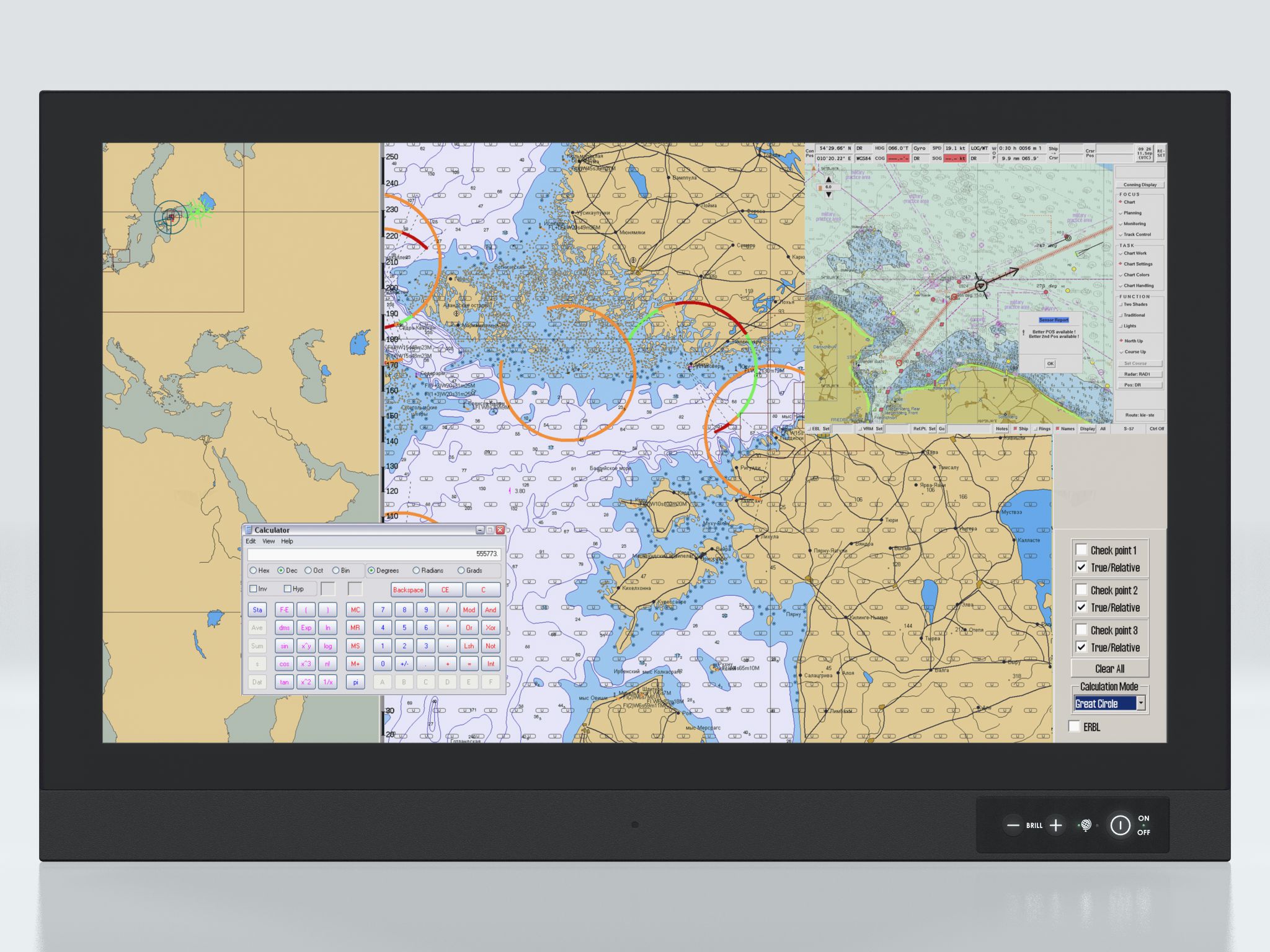

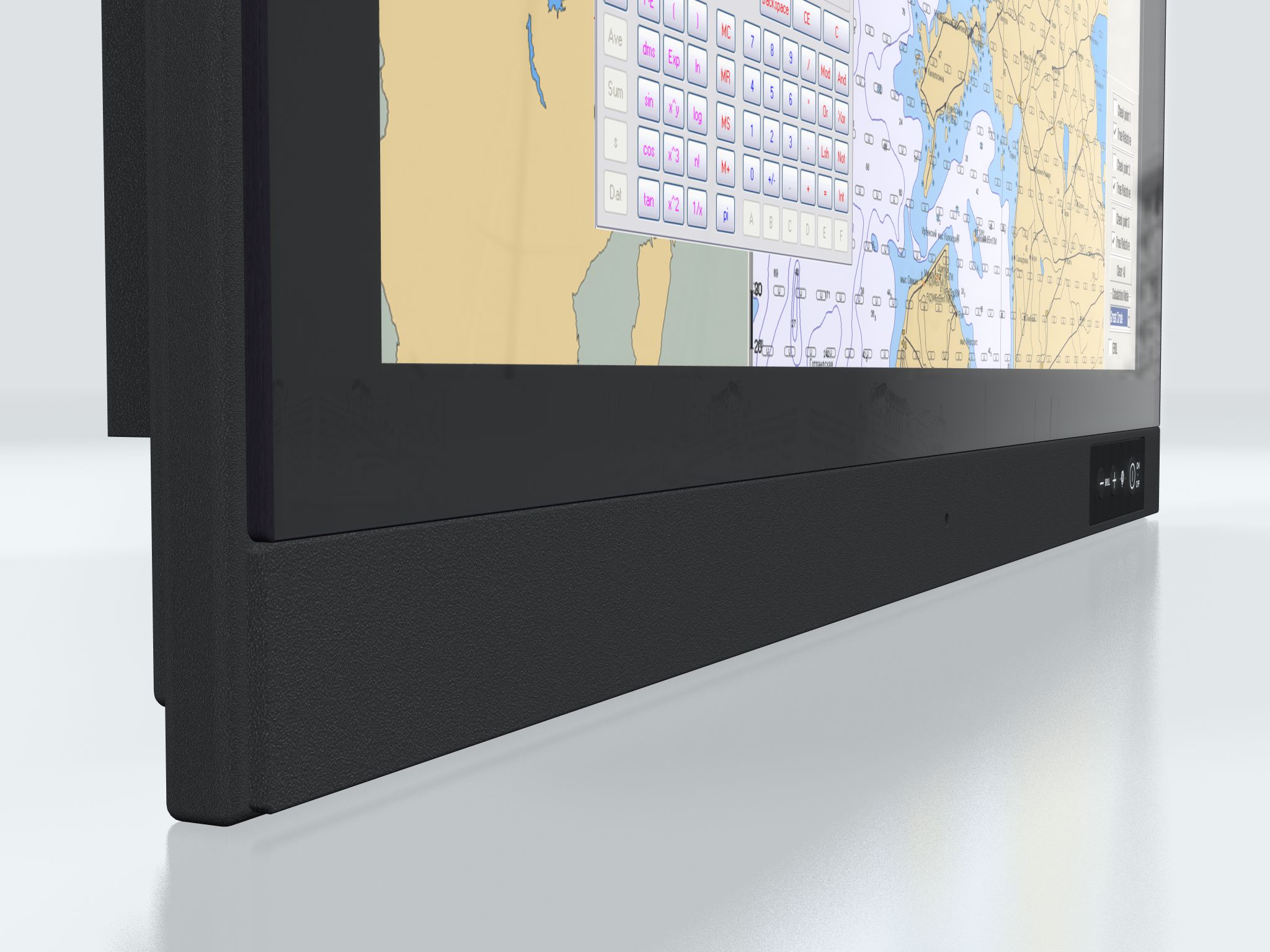

User Controls and Activity:	On Front Bezel (IP66): Power On/Off, Brightness Control (-/+), Power LED, ECDIS LED, Buzzer, Light Sensor

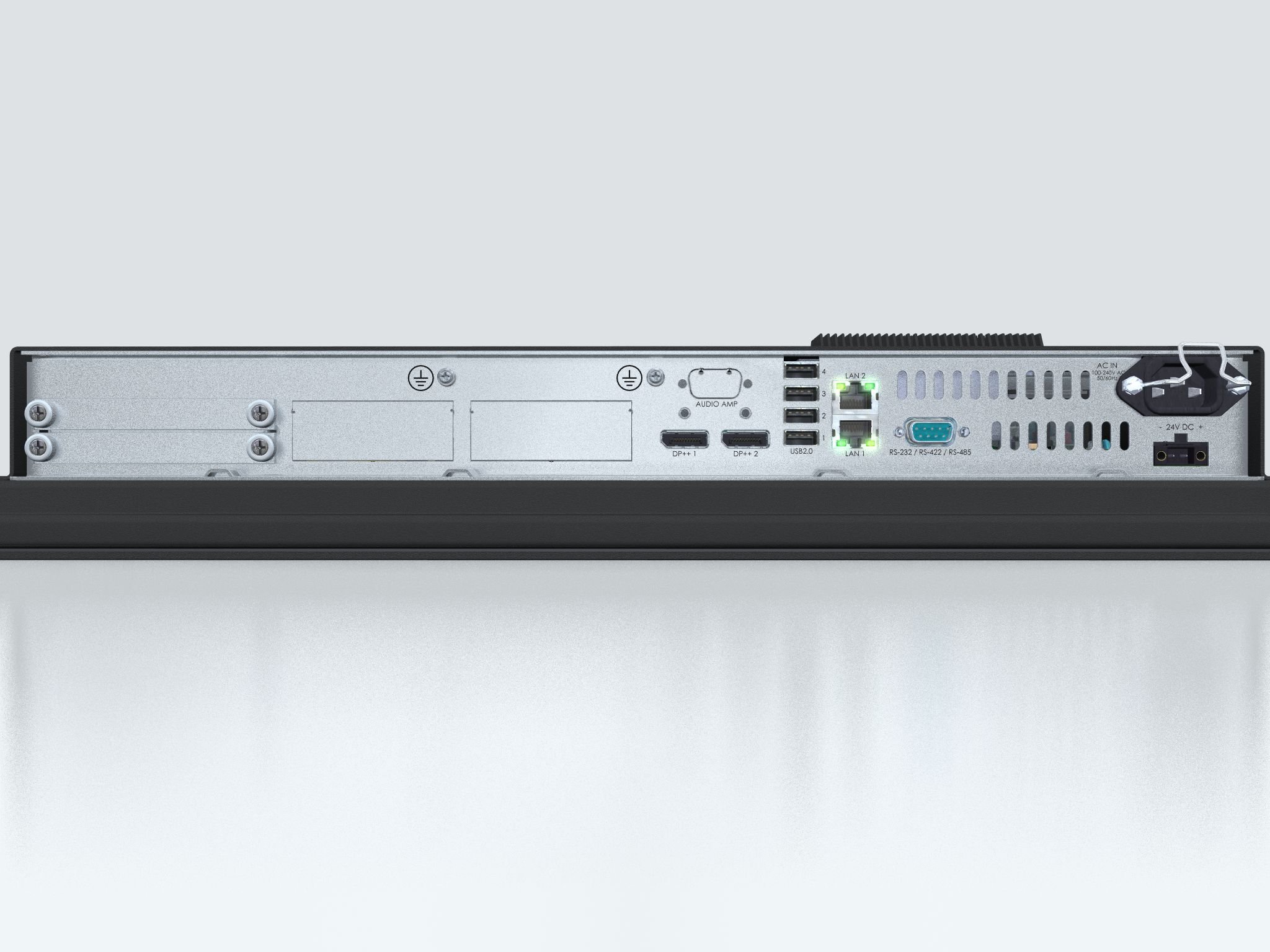

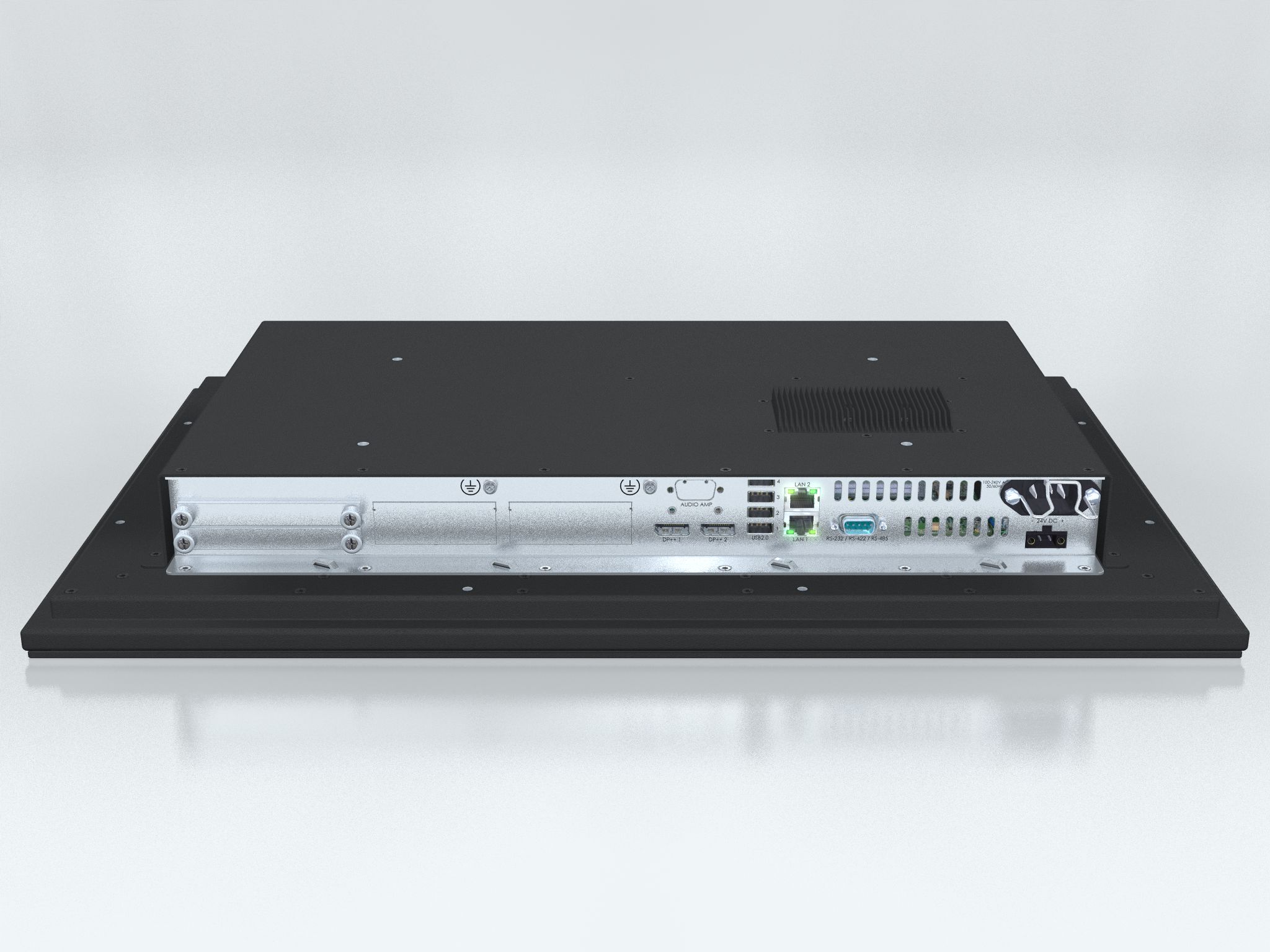

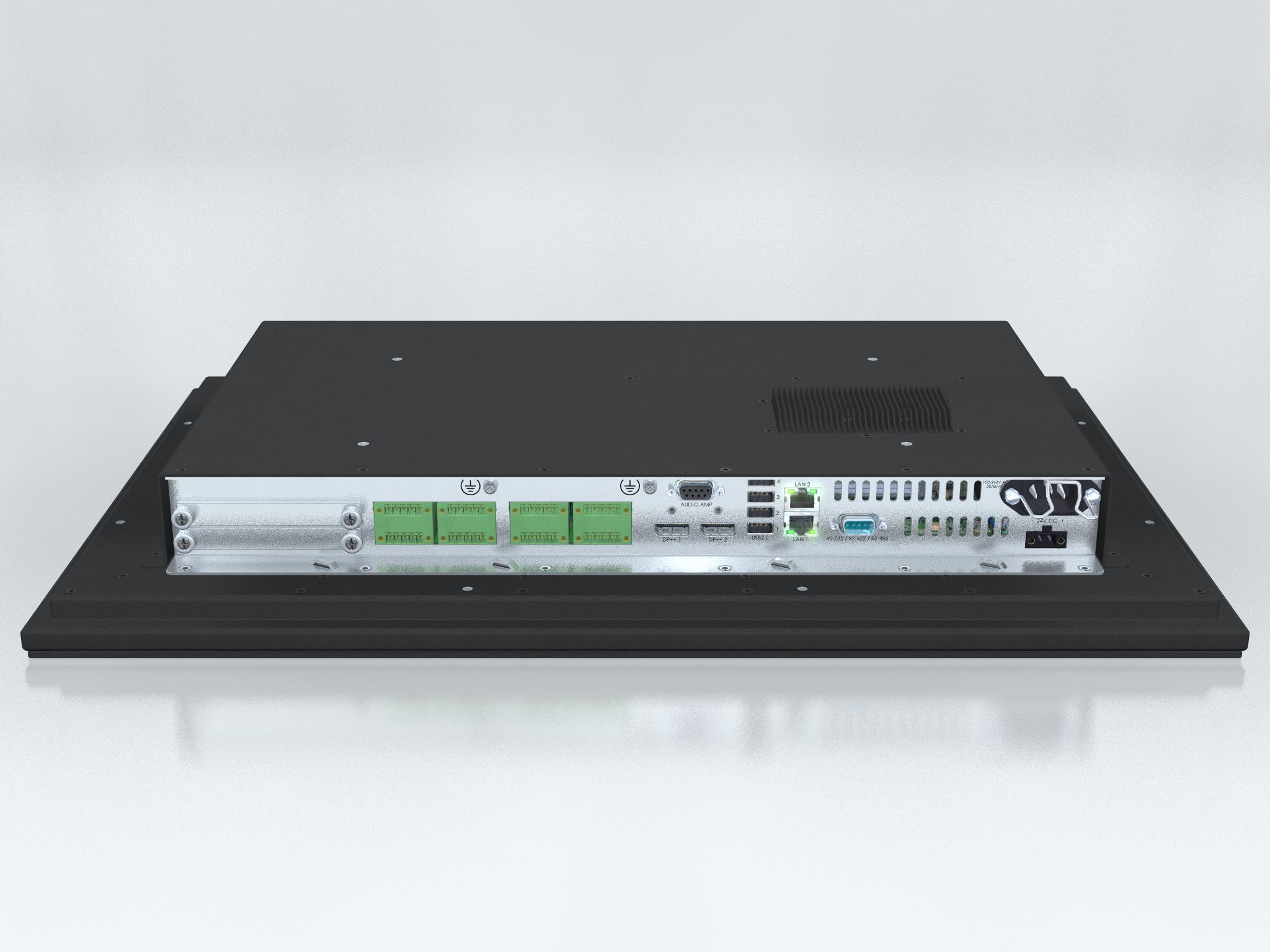

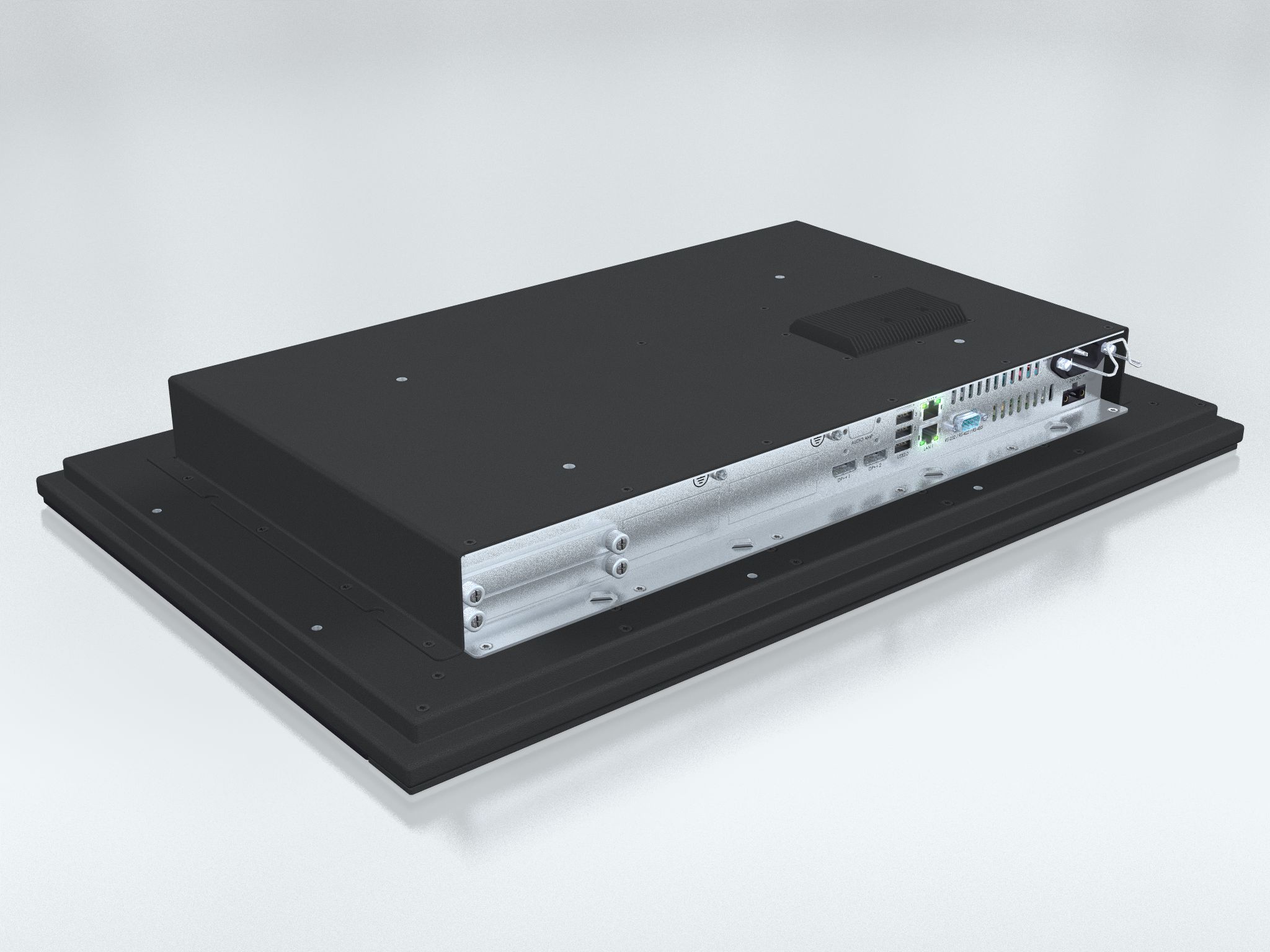

Connectors:	• DisplayPort (DP++) Out: 2 x 20p DisplayPort (female) • USB2.0: 4 x USB Type A • Ethernet GBLan: 2 x RJ-45 • COM RS-232&422/485: 1xDB9M non-isolated (Change RS mode in BIOS) • COM RS-232 (Internal): 1 x Internal Virtual COM (Software controlled) • AC Power IN: 1 x Std IEC inlet • If DC Power IN: 1 x 2-pin Terminal Block 5.08

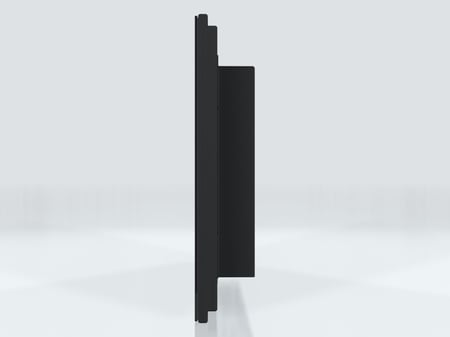

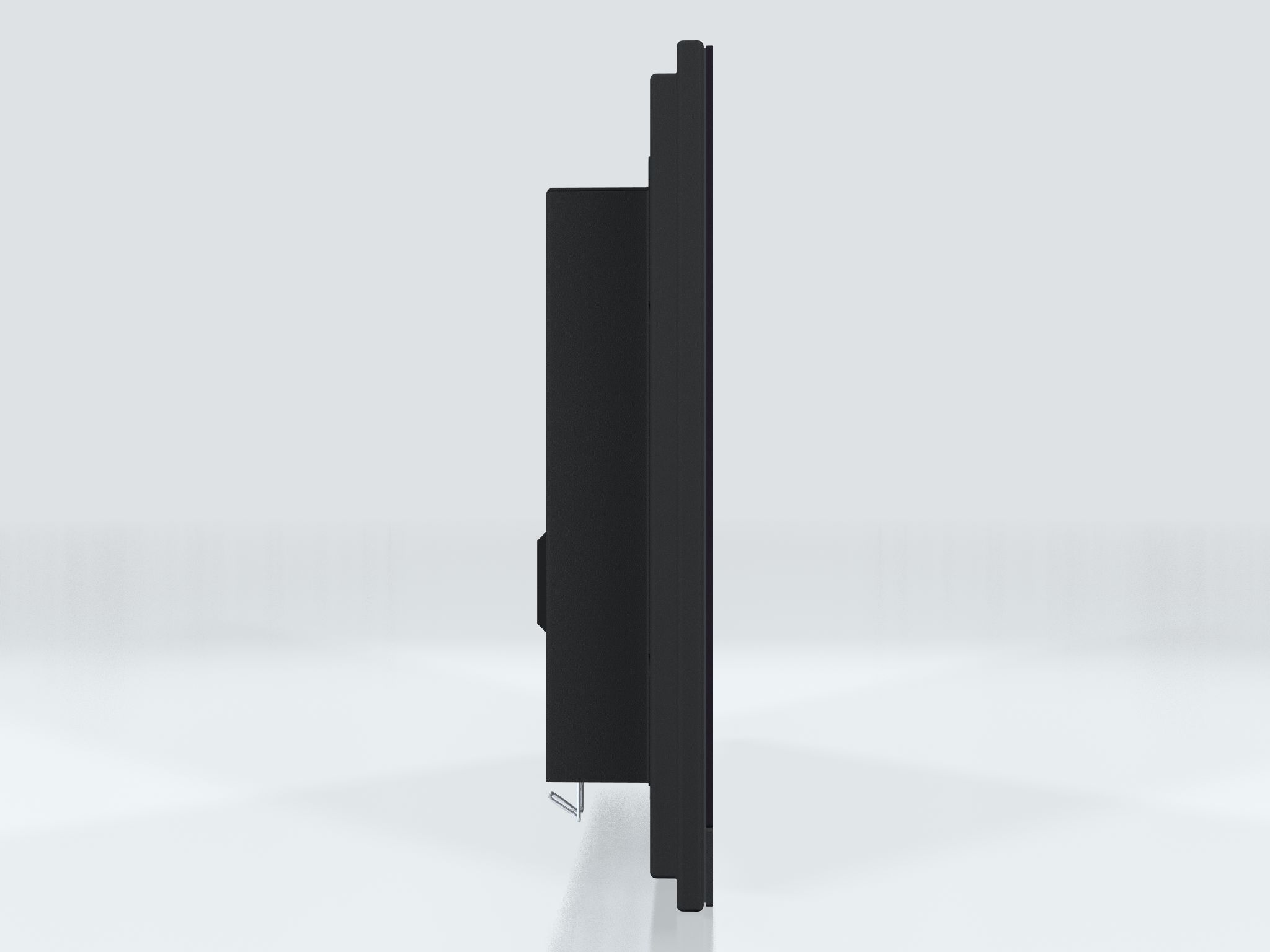

Product Dimensions and Weight:	W:593.00 [23.35"] x H:384.00 [15.12"] x D:78.50 [3.09"] mm [inch] Approx. 8.5kg / 18.74lbs
Product Carton Size and Weight:	L:700.00 [27.56"] x W:185.00 [7.28"] x H:585.00 [23.03"] mm [inch] 12.0kg / 26.4lbs
Factory Options:	• Projected Capacitive Touch Screen (Multitouch,USB,Pen/Glove support) • Optical Bonding Technology • Variations of Storage, RAM Memory and Operating Systems. • 1 x HT 00235 OPT-A1: 2W Amplified Audio out via DB9F - Model with 1 x Diskbay with support for 2 x 2.5" and max 2 Modules - Model with 3 x Modules, no Diskbay Modules available (depending on base model above): Review full configuration matrix in User Manual INB101505-1 1,2 or 3 x PCA200828-1: 4xCOM RS-422/485 isolated NMEA 4 channel or 1,2 or 3 x PCA100309-1: Dual Isolated RS-232, connector 2xDB9M or 1 x HTA2020002-AD1033: CAN isolated 2 channel or 2 x 4 channel or 1 x HTA2020002-SLCAN (1xCAN isolated, 2 ch., socketCAN) module or 1 x PCA100297-1: Isolated Digital IO module,4 x OUT/4 x IN or 1 or 2 x PCA100298-1: LAN 10/100Mbps, 2 ports RJ45 Frame Grabber options (1 x supported via M.2 (PCIe x1) slot): • HD550N1 SDI M2: 1 x SDI IN, 1920x1080@60/50fps • HD550N1 HDV M2: 1 x HDMI IN+1 x VGA IN, 1920x1200p@60/50fps
Accessories:	• HD CMB SE1-B1: 1 x Console Mount Kit. EN60945 Tested* • HD TMB SE1-B1: 1 x Table Mount Bracket. EN60945 Tested • HD VED SX1-A1: 1 x VESA Adapter, not EN60945 Tested • JH C01MF A-A: 1 x USB Cable 1m, TypeA-Chassis mount receptacle • HT 00262 OPT-A1: 4 x RS-422/RS-485 isolated, USB ext. module • HT 00263 OPT-A1: 4 x RS-232 COM non-isolated, USB ext. module • HT 00264 OPT-A1: 1 x CAN isolated, 2 channel, USB ext. module • HT 00264 OPT-A2: 1 x CAN isolated, 2 channel, socketCAN USB ext. module • HT 00273 OPT-A1: 4 x Digital IN/OUT isolated, USB ext. module • HT 00274 OPT-A1: 2 x LAN 10/100Mbps, RJ45, USB ext. module • HT 00300 MSOS: OS options -> http://www.hatteland-display.com/os • HD 000TR SX2-A2: 1 x Removable Tray 2.5" Empty • HD xxxyy SX1-z1: 1 x Removable Tray 2.5" w/Storage Device *Included in delivery
Capabilities / Prepared for:	See Factory Options
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating:	Protection: IP66 front - IP20 rear (EN60529).
Compass Safe Distance:	Standard: 80.00 [31.50"] - Steering: 60.00 [23.62"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IACS E10, BV - Bureau Veritas, U-RO-MR - Mutual Recognition, CCS - China Classification Society, ClassNK - Nippon Kaiji Kyokai, KR - Korean Register, ABS - American Bureau of Shipping, LRS - Lloyd's Register of Shipping Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m

Specifications last updated: July 1, 2025 @ 09:58
