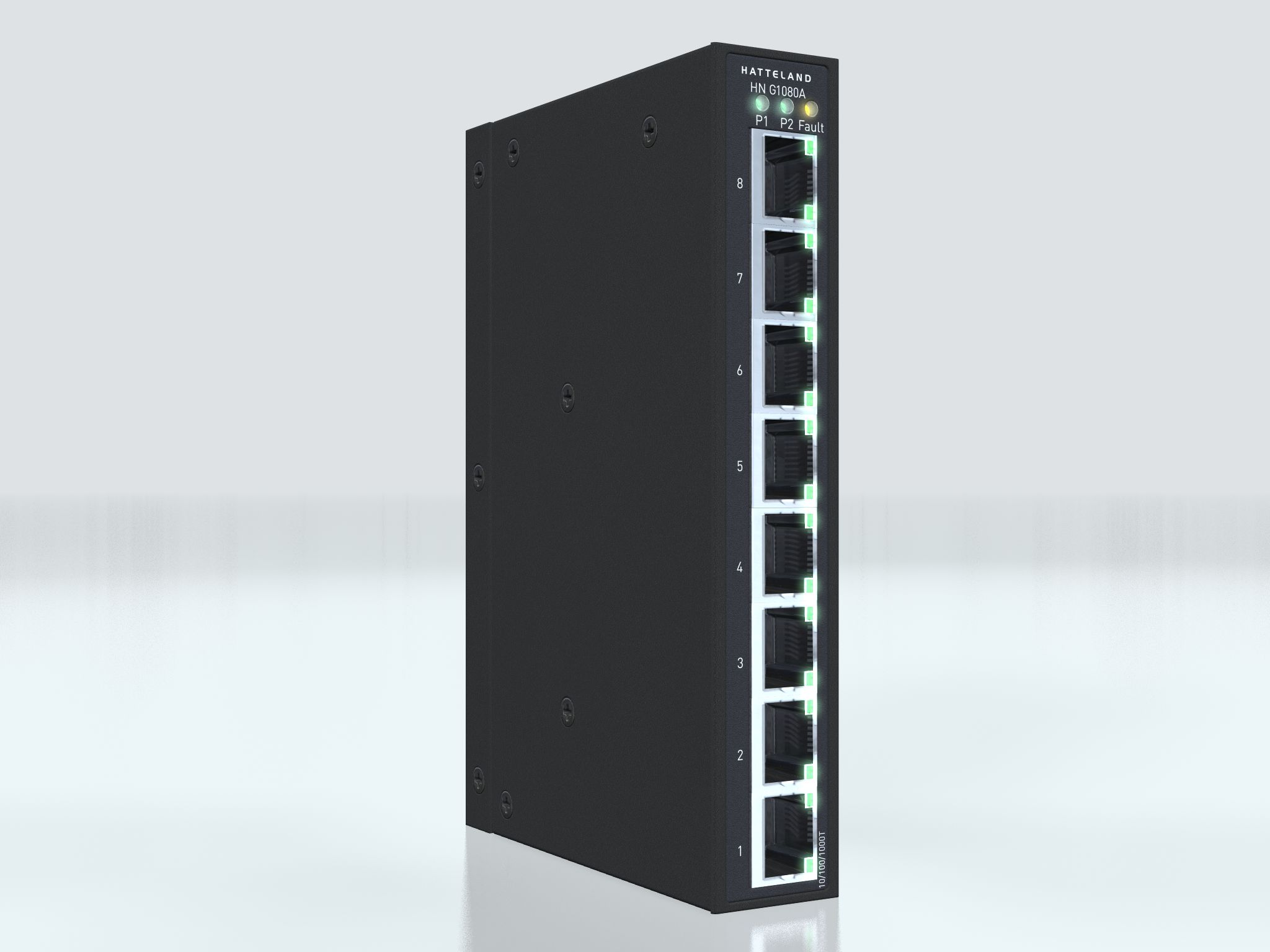

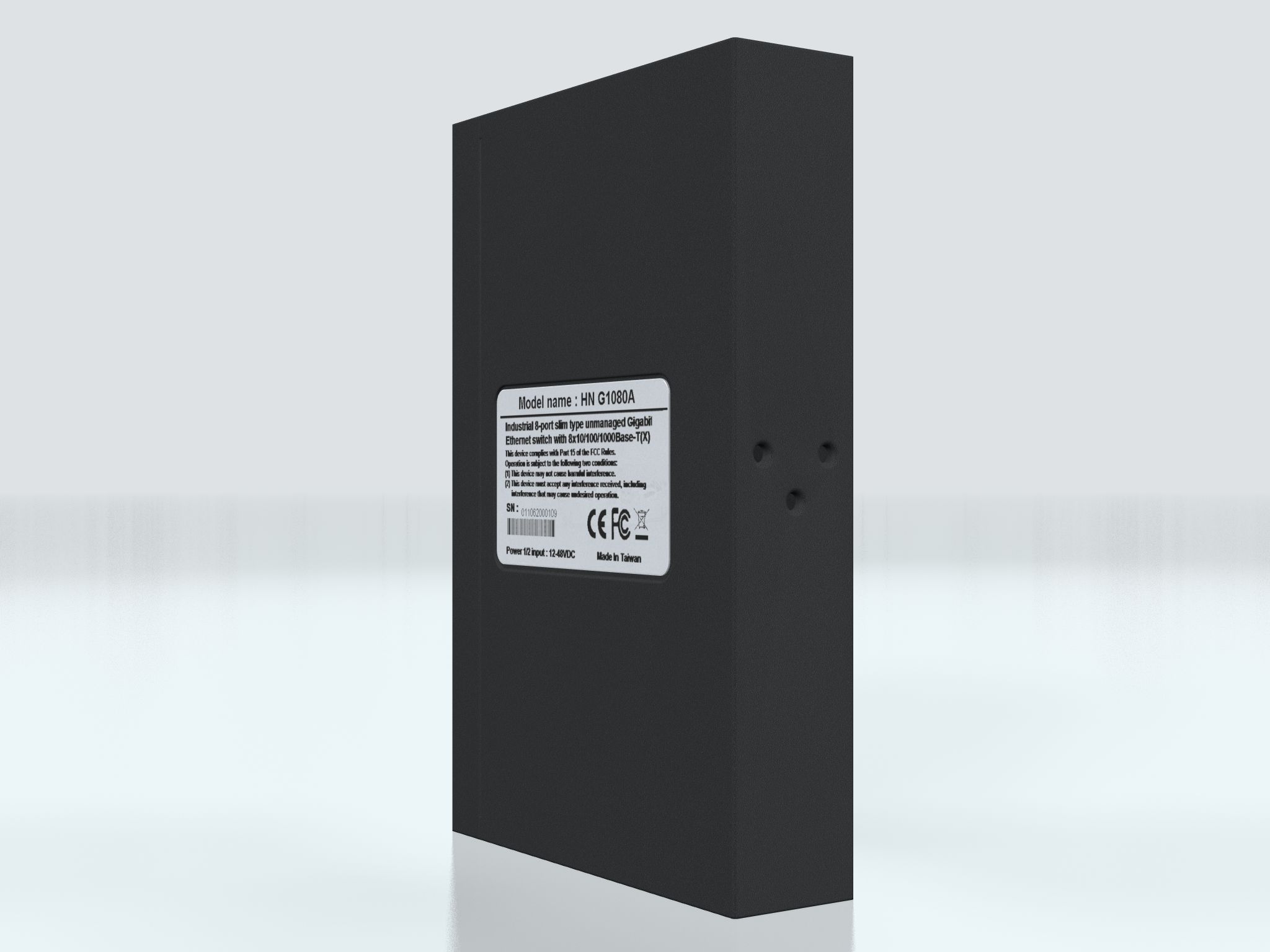

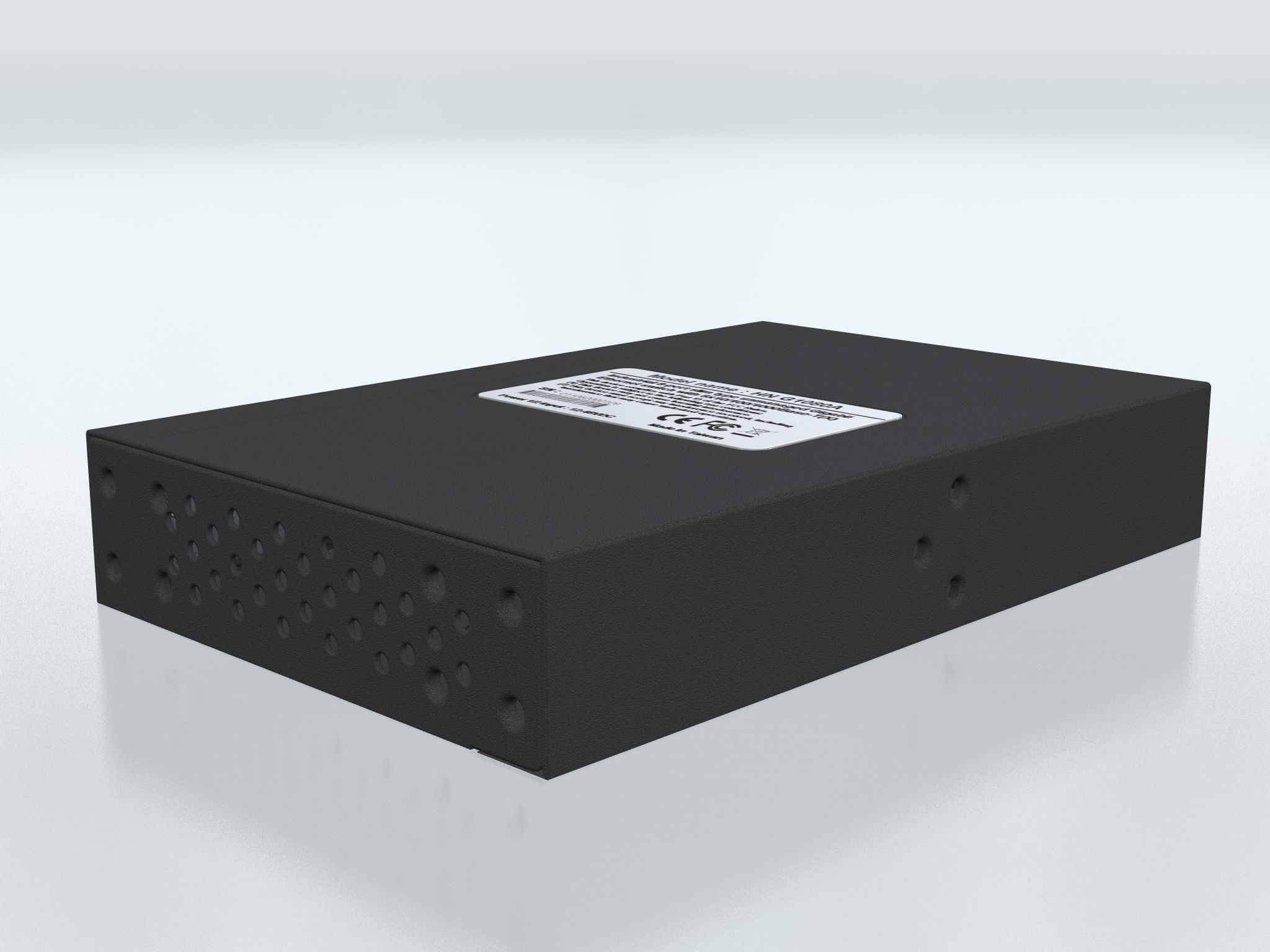

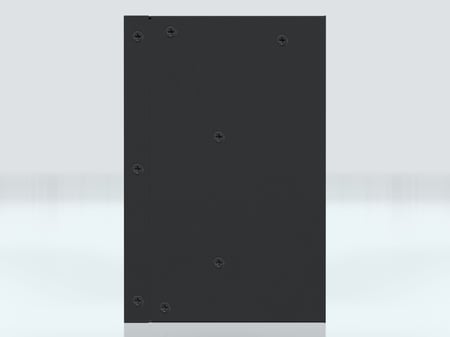

HN G1080A

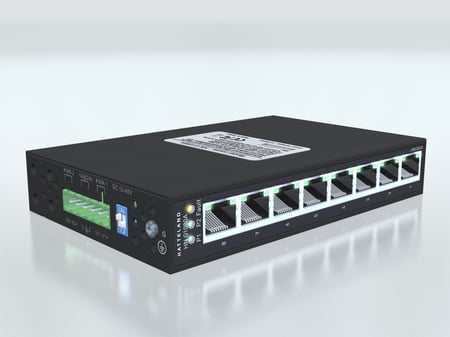

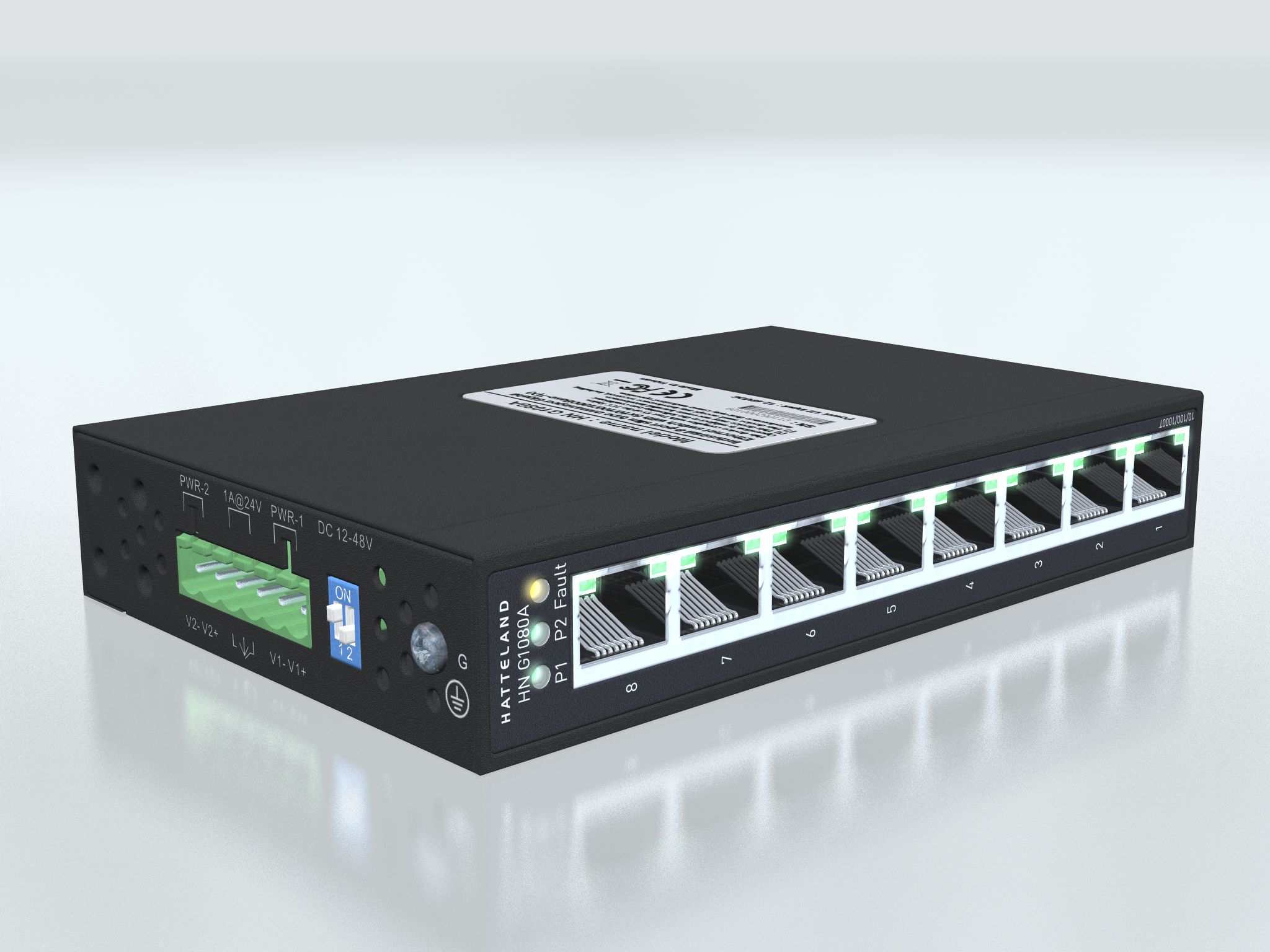

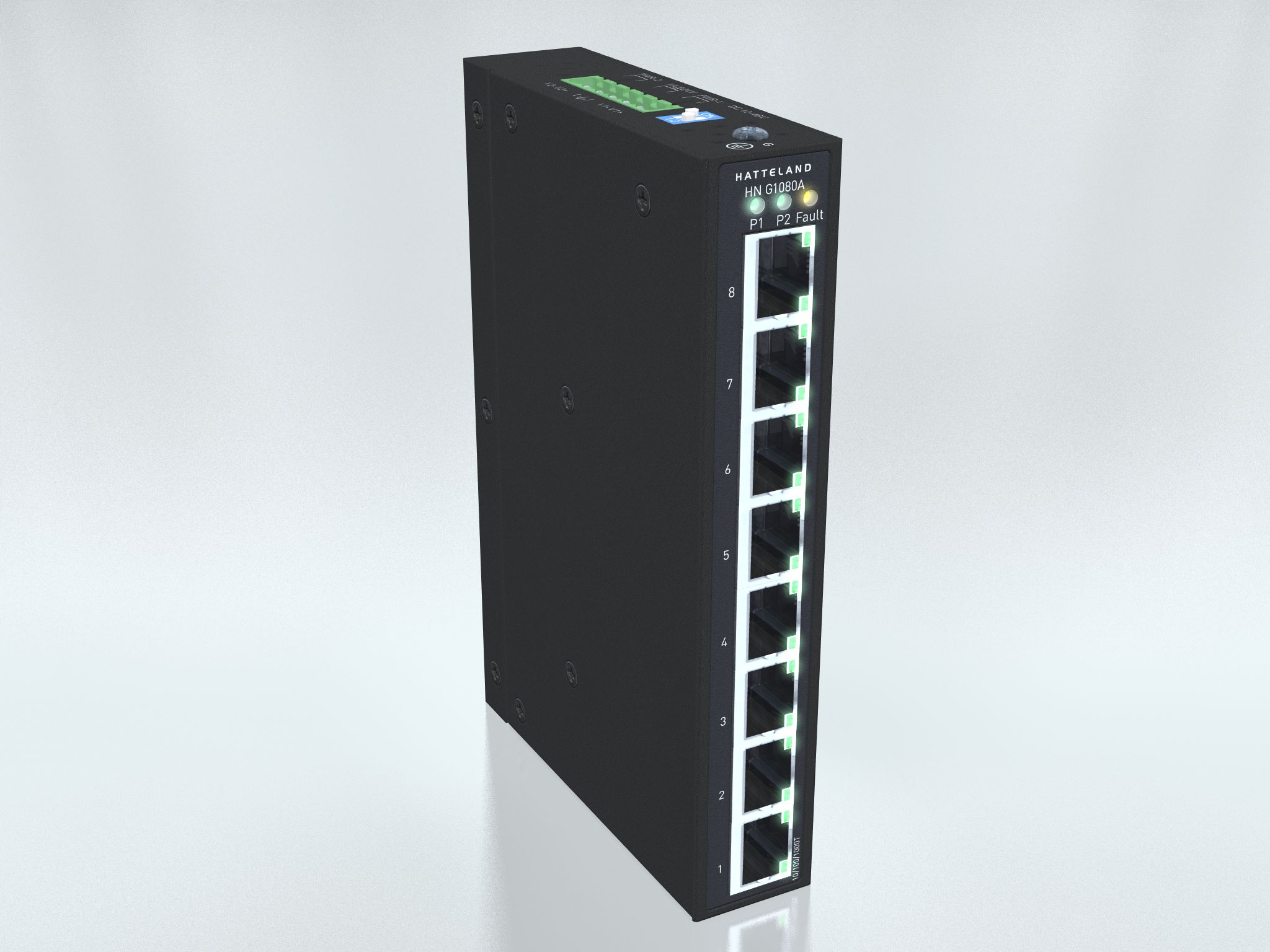

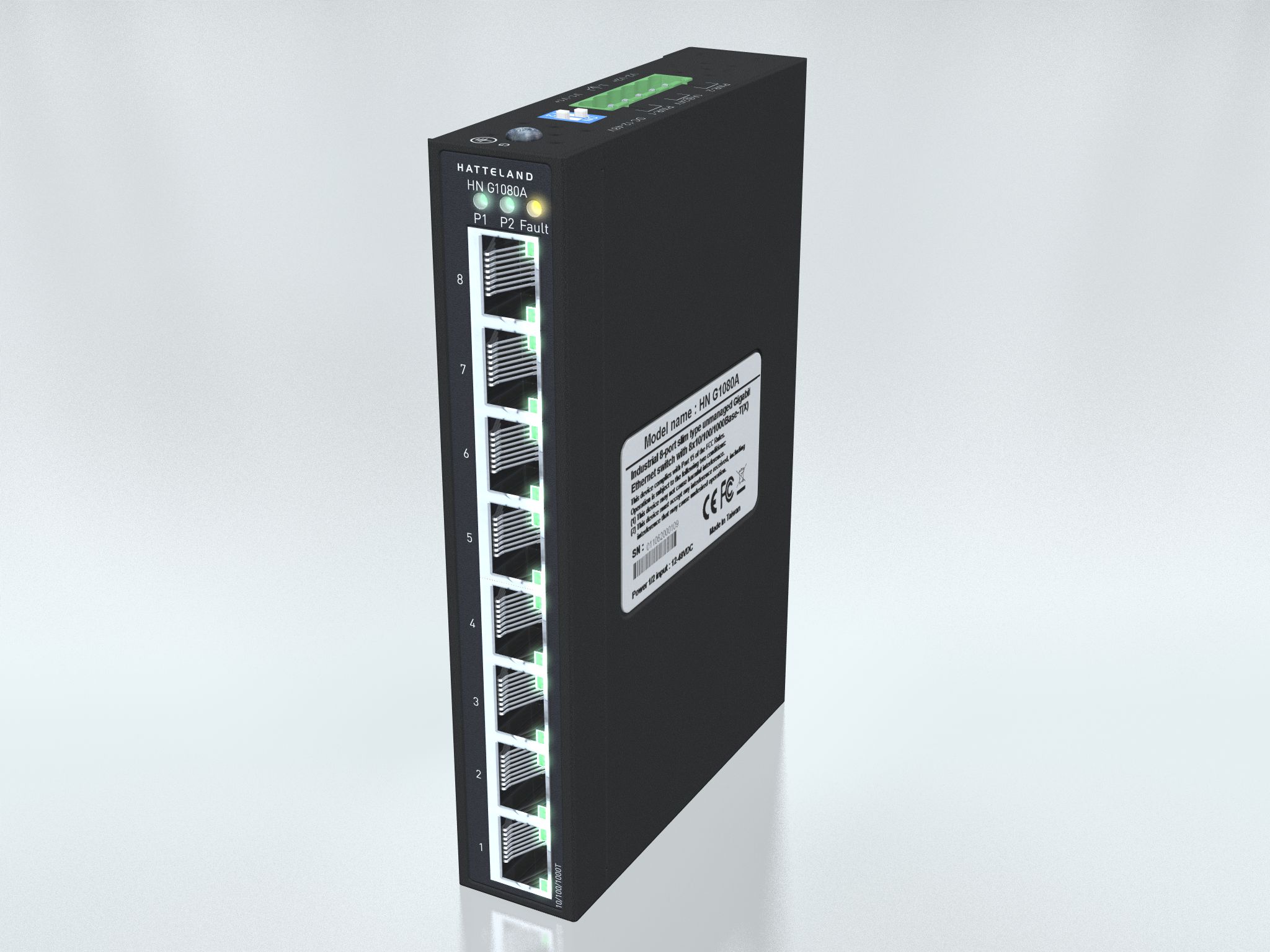

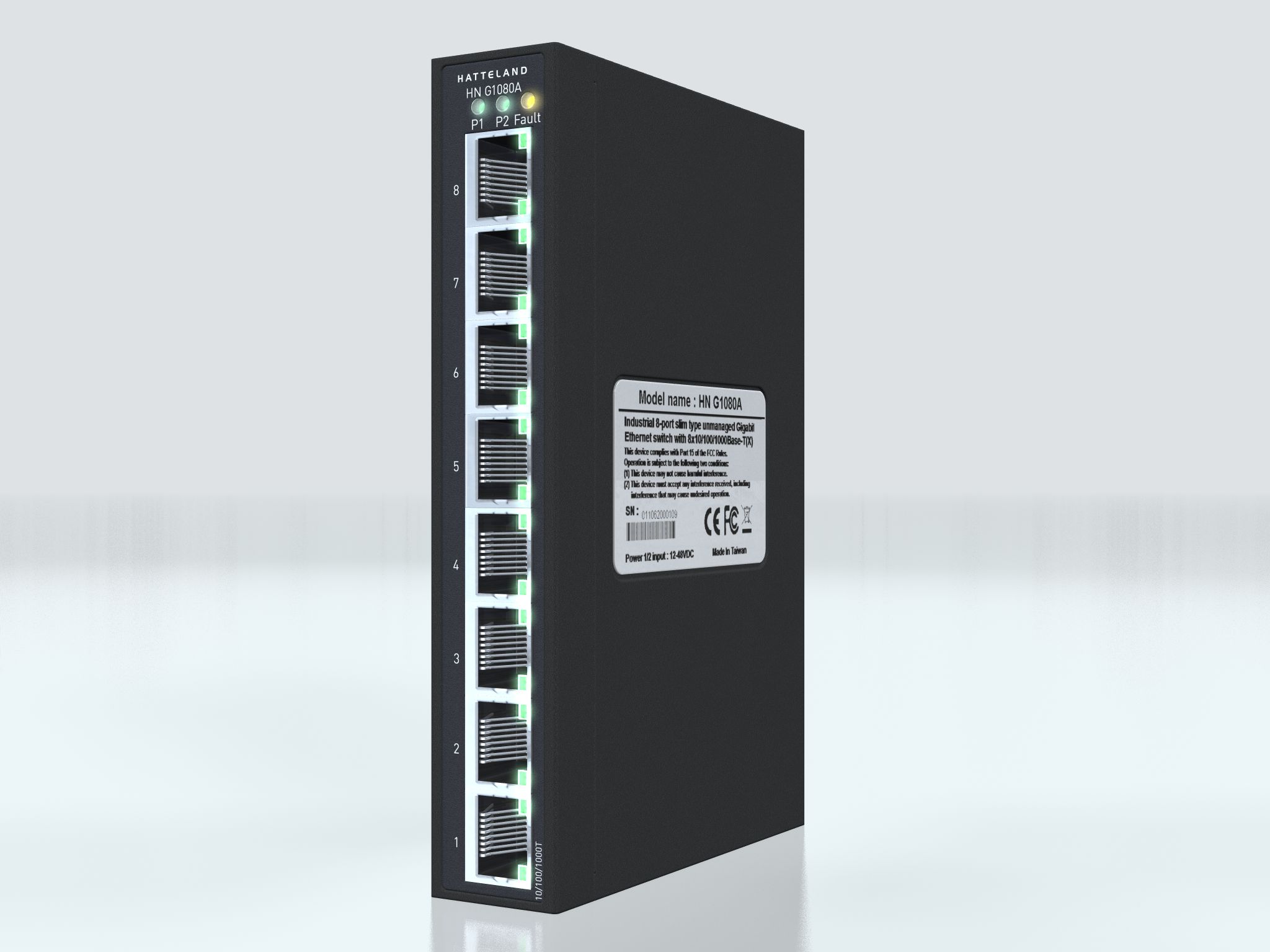

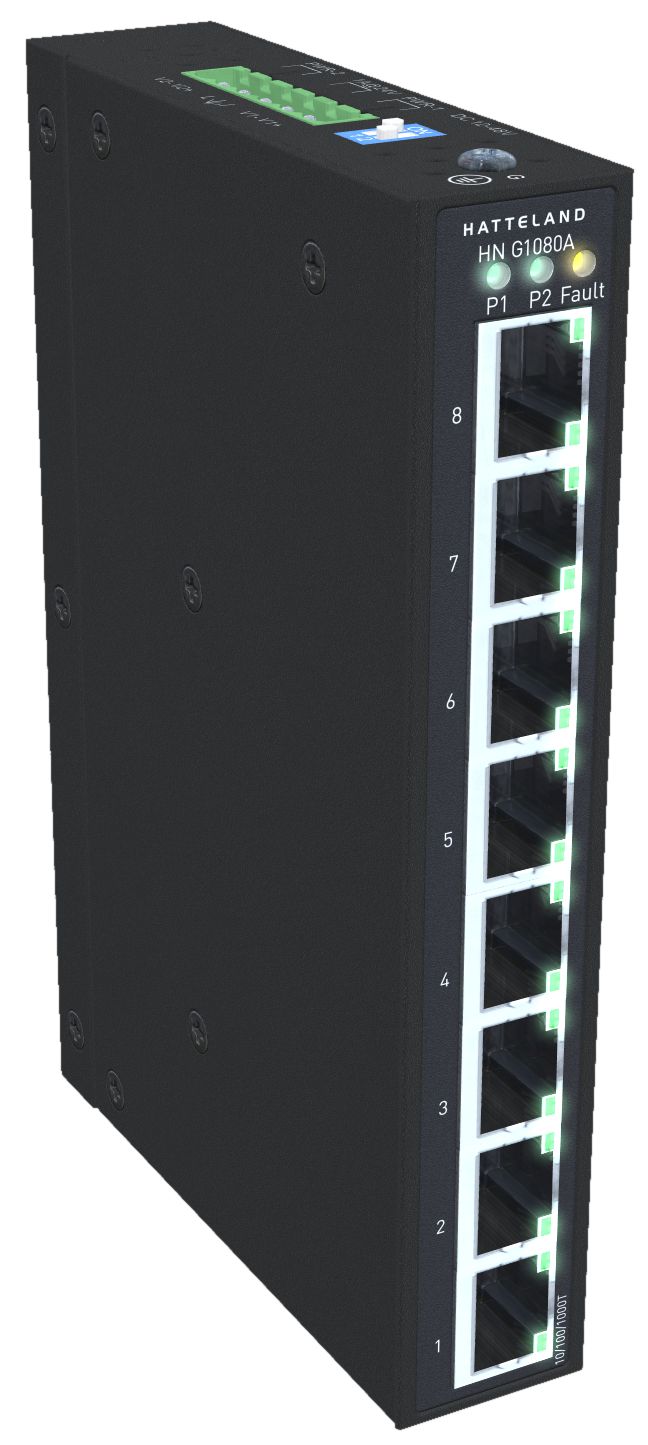

Network Switch - HATTELAND® - 8-port - Slim Type Unmanaged Gigabit

HN G1080A

The HATTELAND® industrial range of high quality reliable Network Switches can be used in connecting several Ethernet devices like Ethernet I/O, IP-Camera or other Ethernet switches. The HN G1080A is slim type unmanaged Gigabit Ethernet switch with 8 x 10/100/1000Base-T(X) ports.



Network Switch - HATTELAND®

The HN G1080A supports redundant power input, rigid IP-30 housing, plus DIP switches for enabling or disabling relay output alarm. In addition, the wide operating temperature range from -40°C to +70°C can satisfy most of operating environment.
Typenumber (Long): HN G1080A
Description: The HATTELAND® industrial range of high quality reliable Network Switches can be used in connecting several Ethernet devices like Ethernet I/O, IP-Camera or other Ethernet switches. The HN G1080A is slim type unmanaged Gigabit Ethernet switch with 8 x 10/100/1000Base-T(X) ports.
Technology: • Switching Bandwidth: 16Gbps
• MAC Table: 4096 MAC addresses
• Processing: Store-and-Forward
• Jumbo Frame: Up to 9k bytes
• Ethernet Standards:
- IEEE 802.3 for 10Base-T
- IEEE 802.3u for 100Base-TX
- IEEE 802.3x for Flow control
Physical Characteristics: • Enclosure: IP30
• Dimensions: W:26.10 [1.03"] x H:144.30 [5.68"] x D:94.90 [3.74"] mm [inch]
• Weight: 395g
Physical Ports and Controls: • DIP - Switch
• LED Indicators

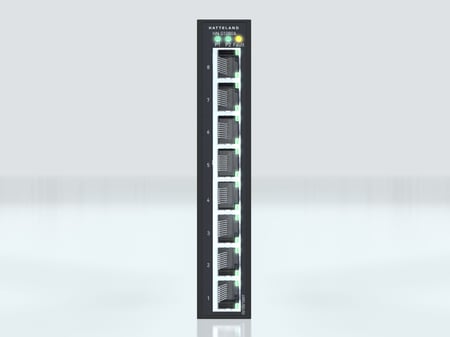

• 8 x 10/100/1000Base-T(X) Ports in RJ45 Auto MDI/MDIX
• Relay output to carry capacity of 1A at 24VDC

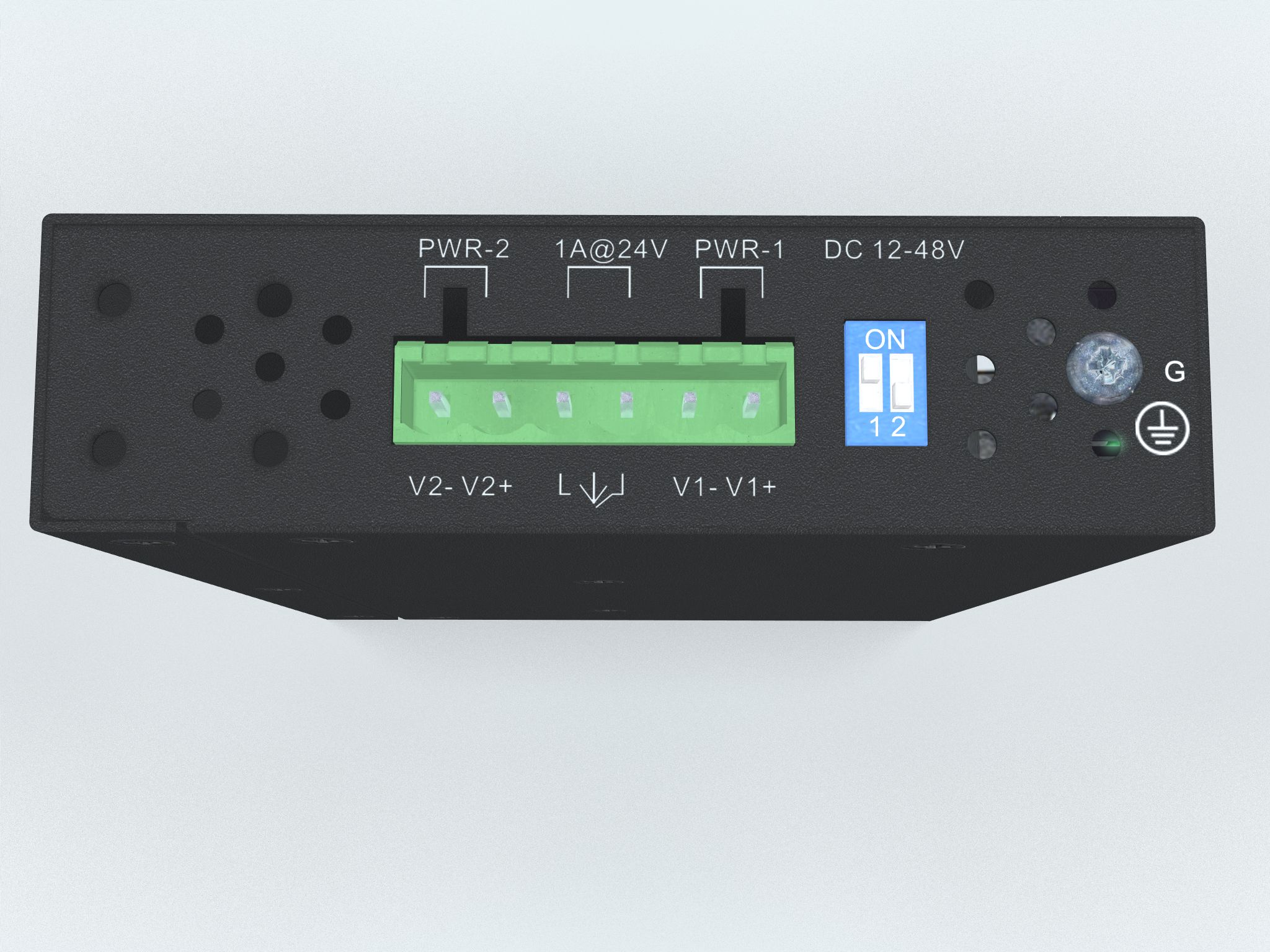

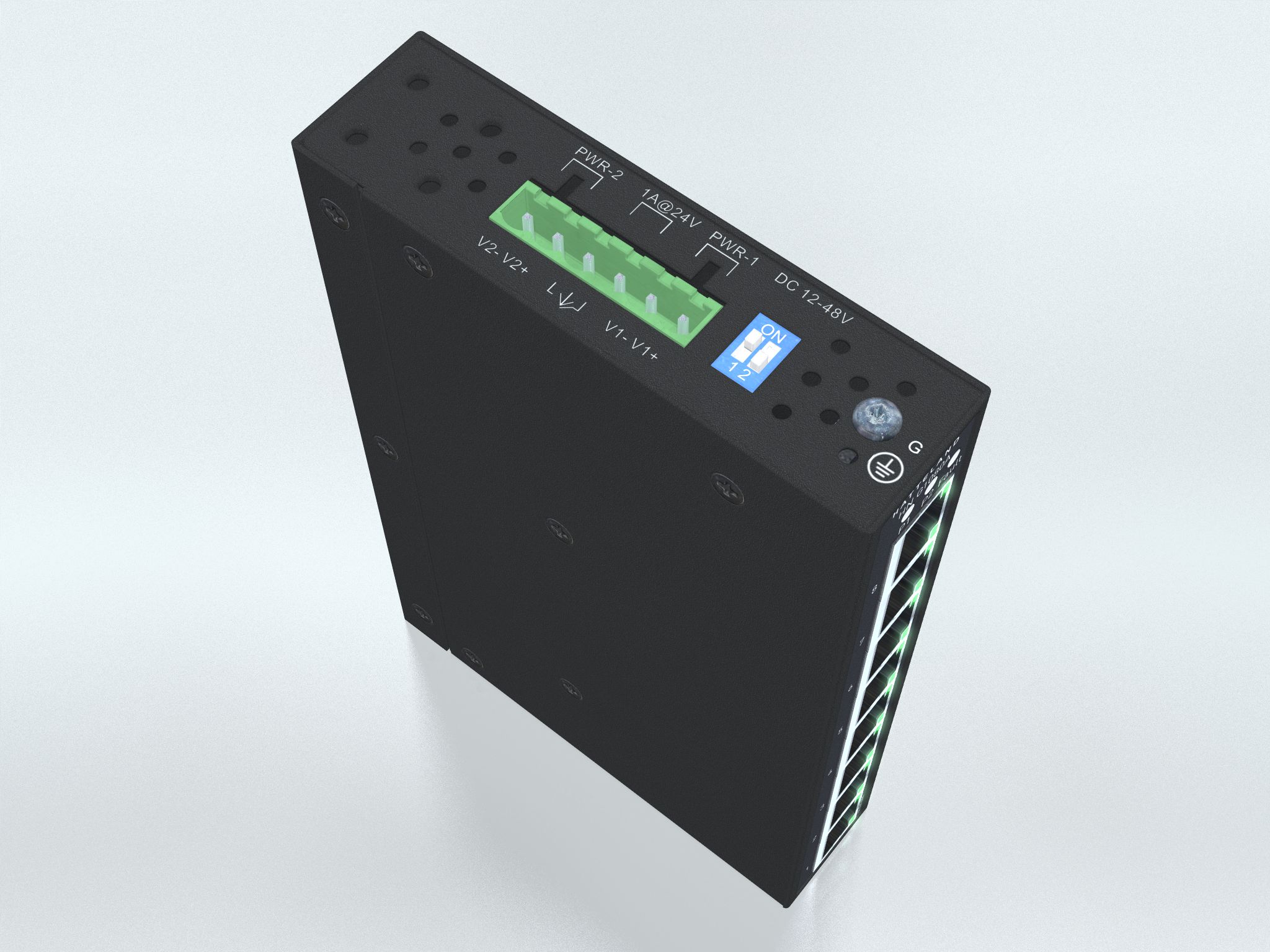

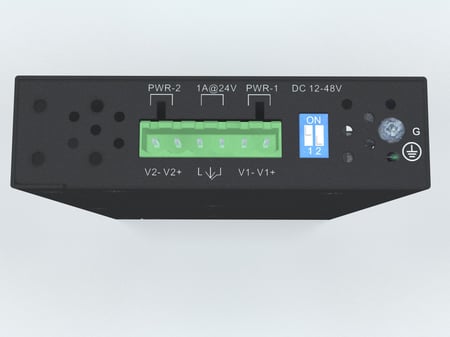

Power Specifications: • Redundant Input power: Dual DC inputs. 24 - 57VDC on 6-pin terminal block.
• Power consumption (Typ.): 5.5 Watts
• Overload current protection: Present
• Reverse polarity protection: Present
Additional Specifications: • MTBF 875918 hours
• Warranty 5 years
Available Accessories: • SDR-120-24: 1 x Power supply 24 VDC, 5A, 6-pin Terminal Block 5.08, Type Approved[2]: DNV
• SDR-120-48: 1 x Power supply 48 VDC, 2.5A, 6-pin Terminal Block 5.08, Type Approved[2]: DNV
• SDR-240-24: 1 x Power supply 24 VDC, 10A, 6-pin Terminal Block 5.08, [2]
• SDR-240-48: 1 x Power supply 48 VDC, 5A, 6-pin Terminal Block 5.08, [2]
• SDR-480-24: 1 x Power supply 24 VDC, 20A, 6-pin Terminal Block 5.08, Type Approved[2]: DNV
• SDR-480-48: 1 x Power supply 48 VDC, 10A, 6-pin Terminal Block 5.08, Type Approved[2]: DNV

[2] Note: CCS - China Classification Society: Network switches and related power supplies are not required to be Type Approved
Contents of Package: • 1 x HN G1080A
• 1 x Wall-mounted kit (for Slim Type). 2 x Wall-Mount Plate, 6 x screw
• 1 x 6-Pin Terminal block
• 8 x Dust Cover
• 1 x Quick Installation Guide
• 1 x DIN-Rail kit / Factory Mounted
Maritime - Environment Specification: • Storage Temperature: -40 to 85°C (-40 to 185°F)
• Operating Temperature: -15 to +55°C (5 to 131°F)
• Operating Humidity: 5% to 95% Non-condensing
• Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m
• Compass Safe Distance: Standard: 30cm - Steering: 15cm
Maritime - Regulatory Approvals: • EMC: CE EMC (EN55024,EN 55032)
• EMI: EN55032
• EMS: EN55024 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8 (PFMF), IEC/EN 61000-4-11 (DIP))
• Shock: IEC60068-2-27
• Vibration: IEC60068-2-6
• Safety: EN62368-1 compliant
Maritime - Type Approvals: These products have been tested / type approved by the following classification societies:
IEC 60945 4th (EN 60945:2002), IACS E10, DNV - Det Norske Veritas, KR - Korean Register, ClassNK - Nippon Kaiji Kyokai, BV - Bureau Veritas, CCS - China Classification Society, LRS - Lloyd's Register of Shipping
Industrial - Environment Specification: • Storage Temperature: -40 to 85°C (-40 to 185°F)
• Operating Temperature: -40 to +70°C (-40 to 158°F)
• Operating Humidity: 5% to 95% Non-condensing
Industrial - Regulatory Approvals: • EMC: CE EMC (EN55024,EN 55032), FCC Part 15 B
• EMI: EN55032, CISPR 32, EN61000-3-2, EN61000-3-3, FCC Part 15 B class A
• EMS: EN55024 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8 (PFMF), IEC/EN 61000-4-11 (DIP))
• Shock: IEC60068-2-27
• Free Fall: IEC60068-2-31
• Vibration: IEC60068-2-6
• Safety: EN62368-1 compliant
Specifications last updated: July 1, 2025 @ 09:59
