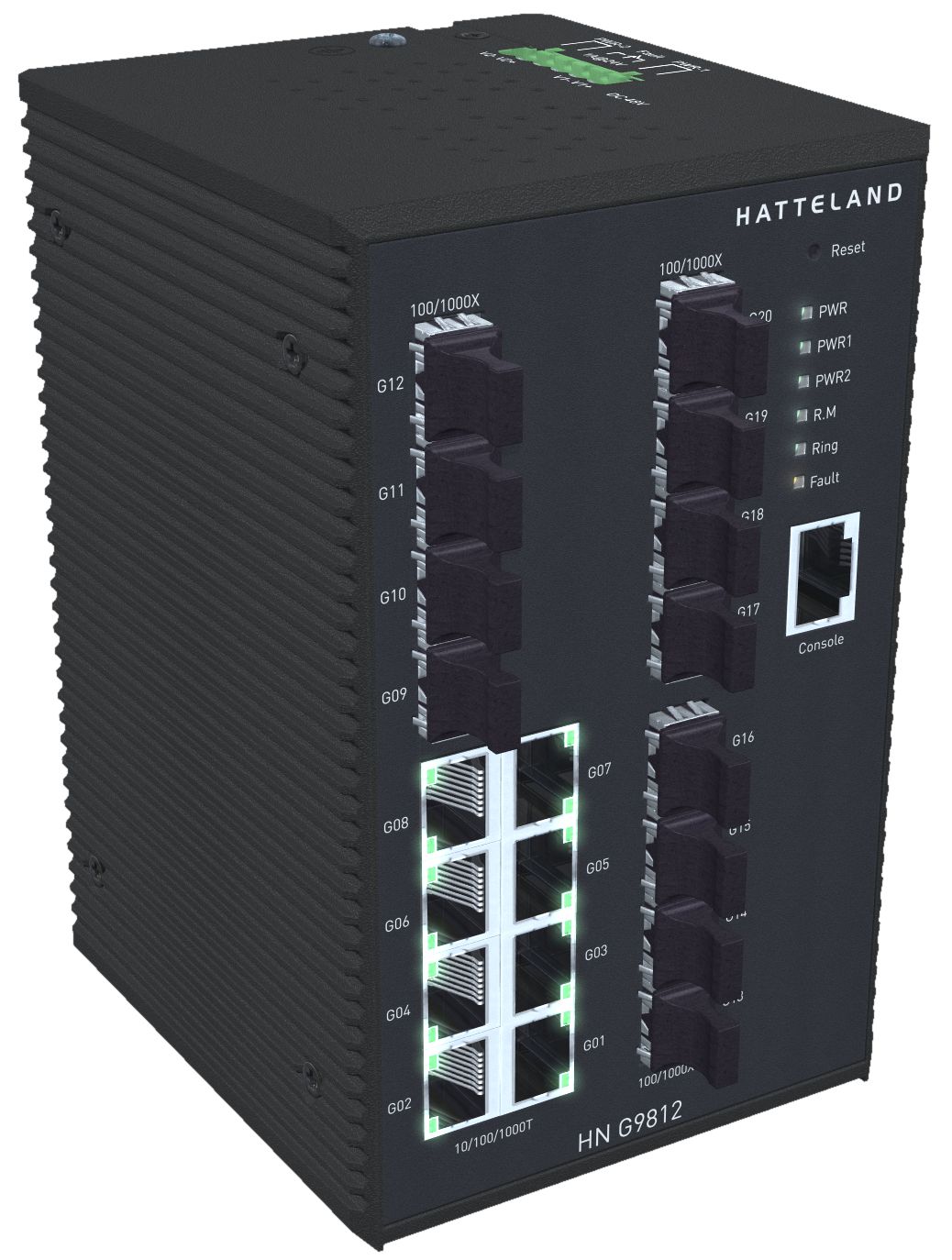

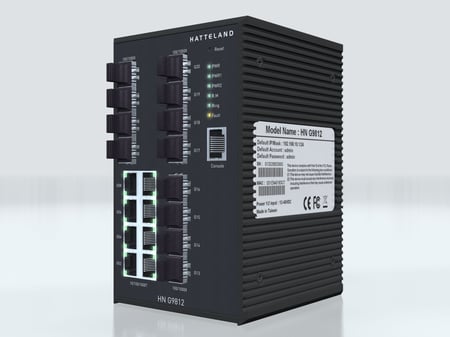

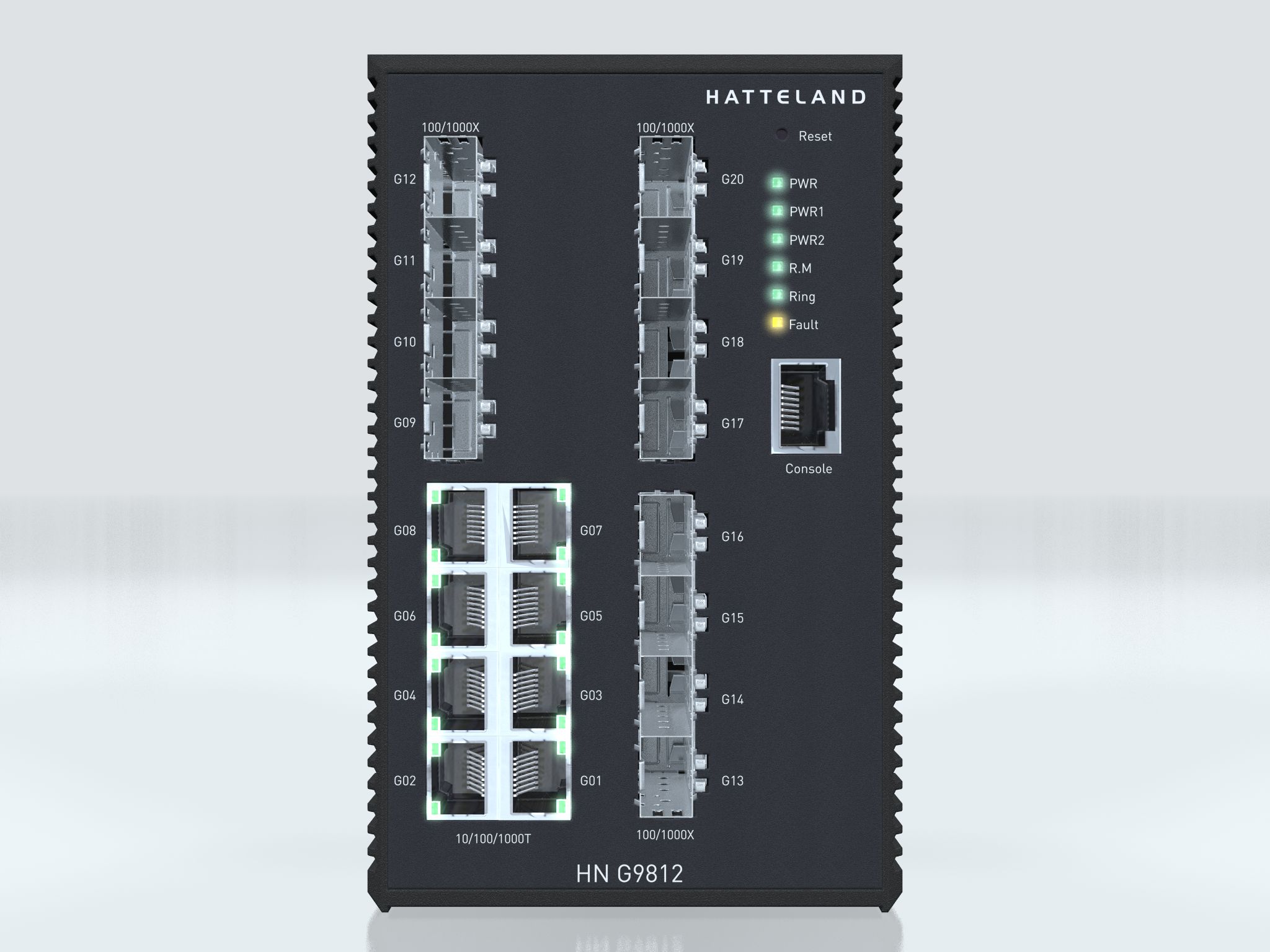

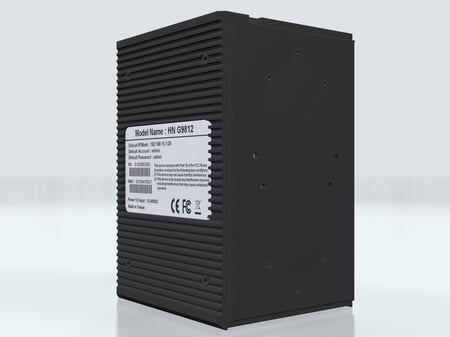

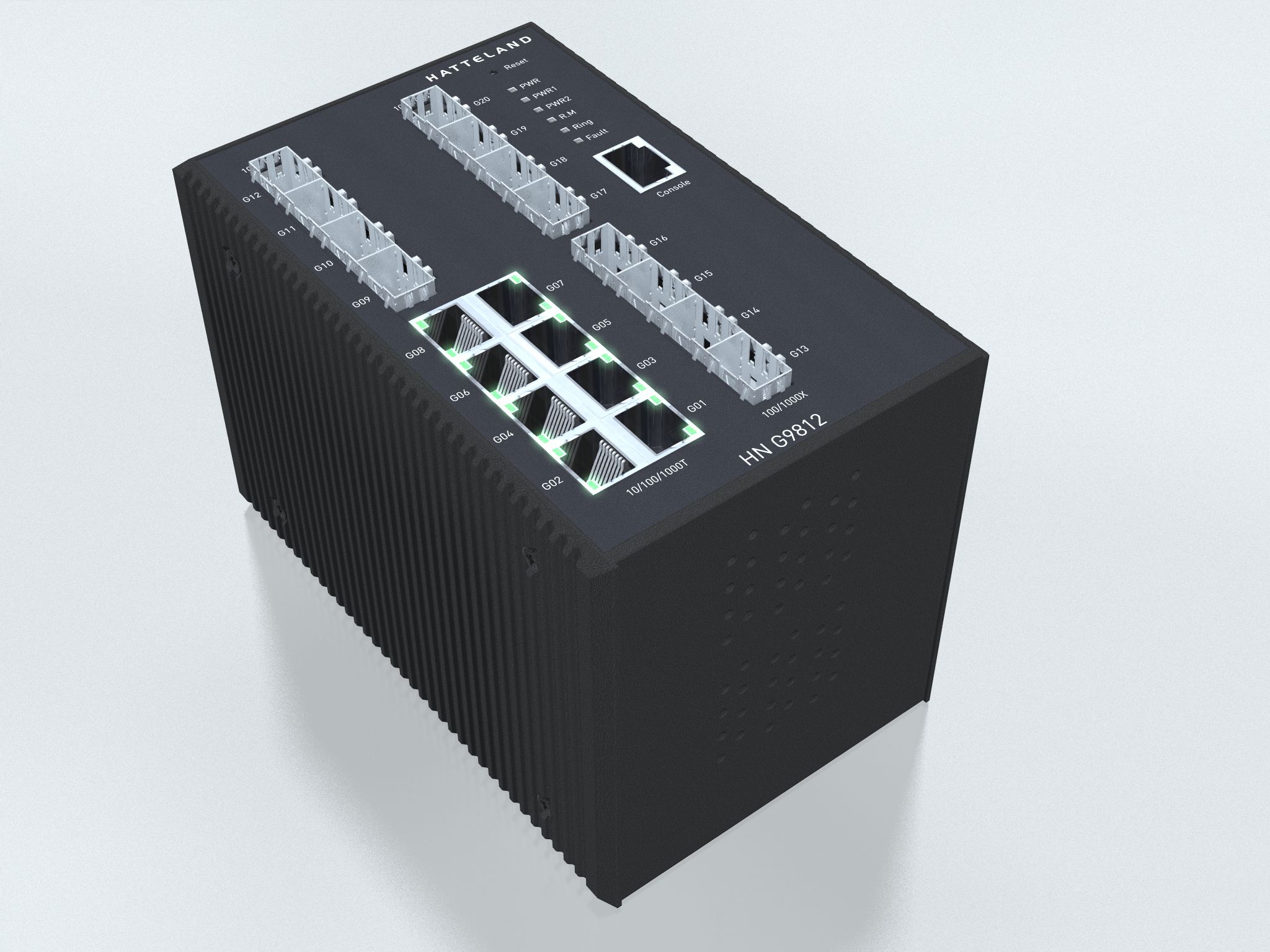

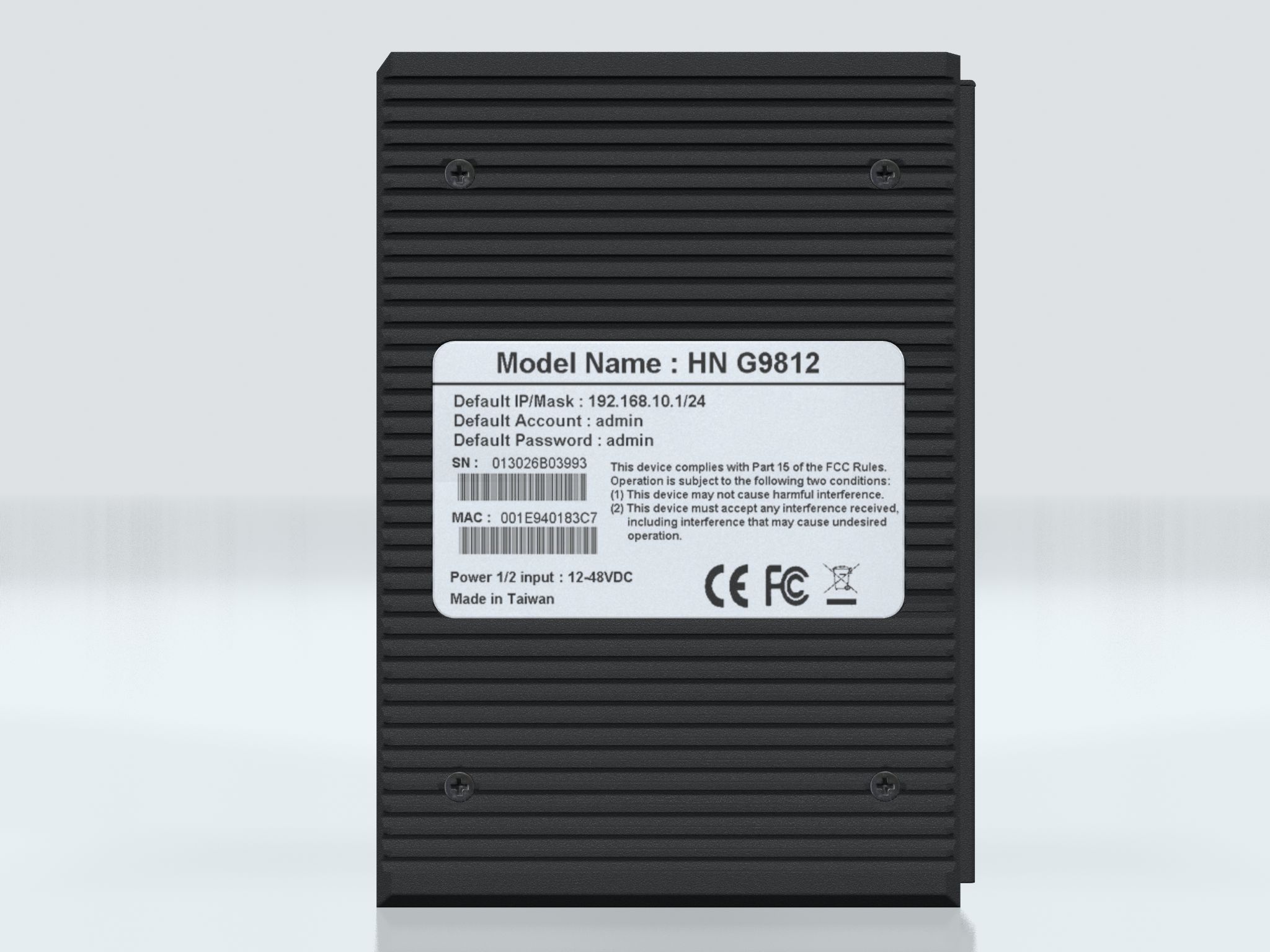

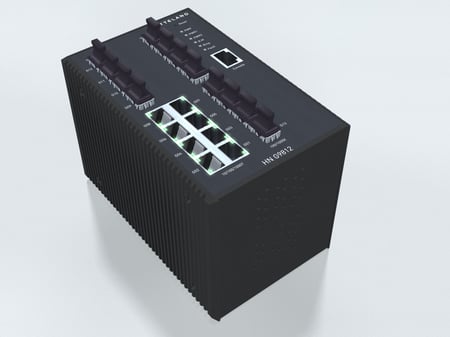

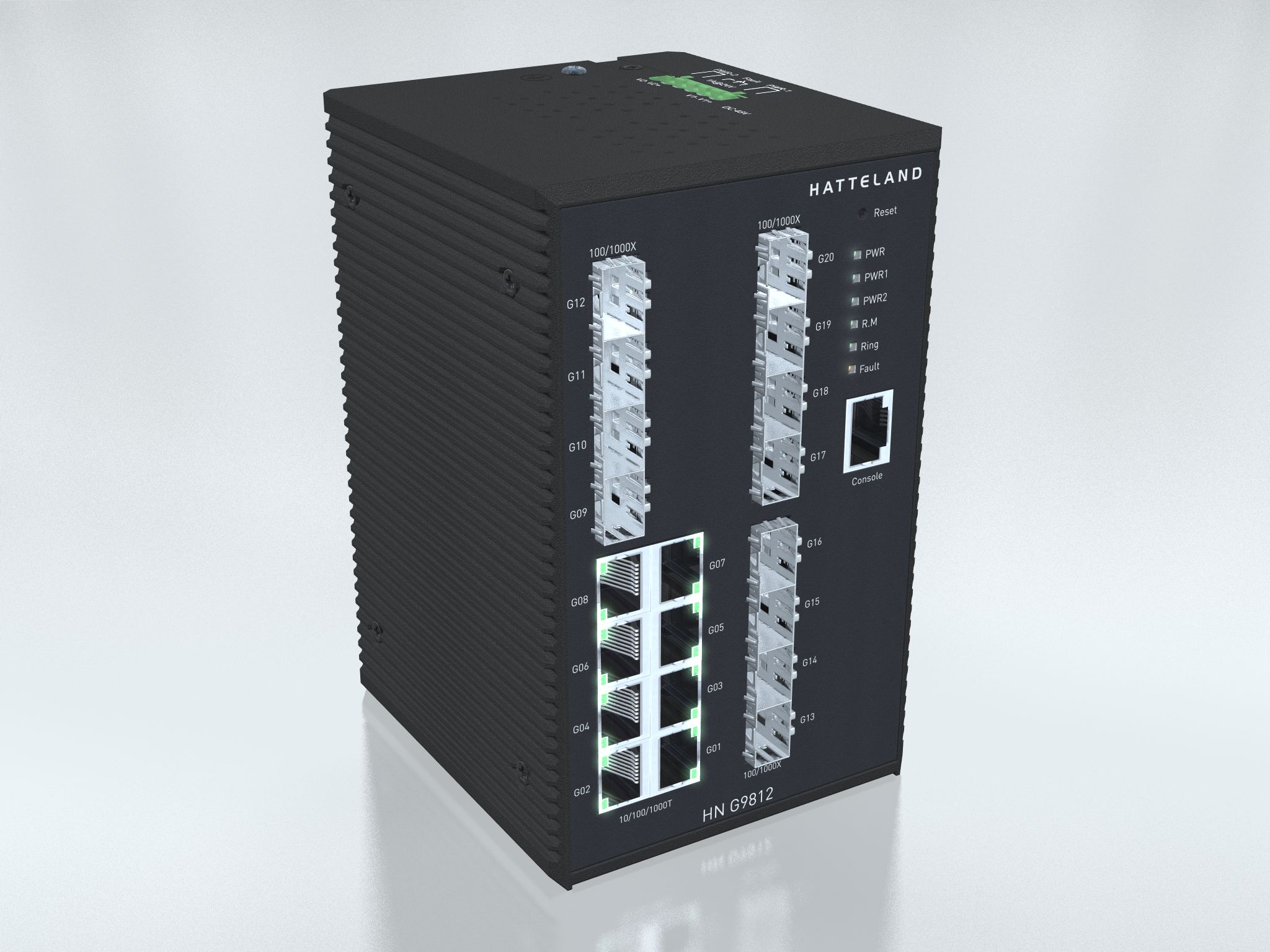

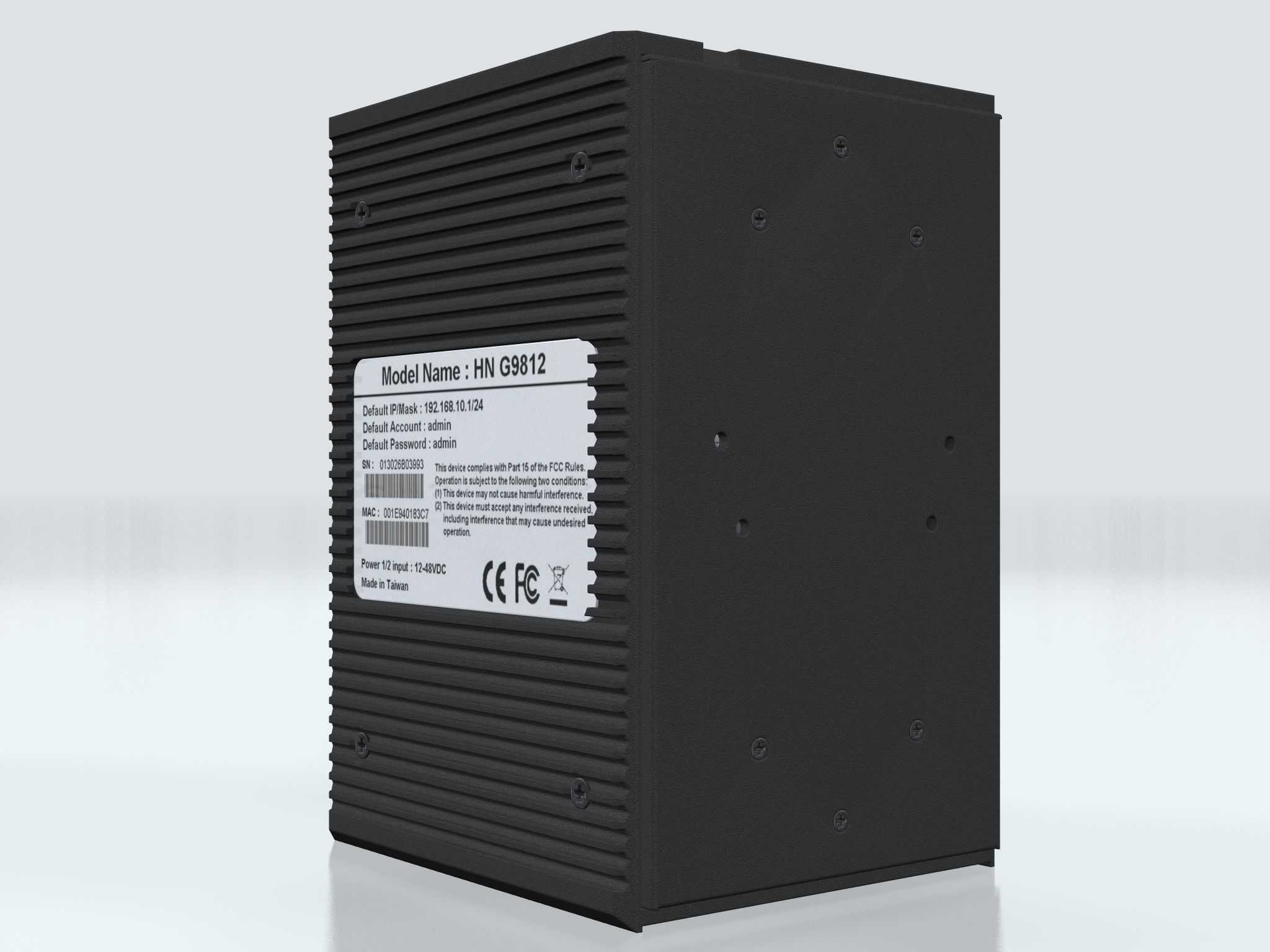

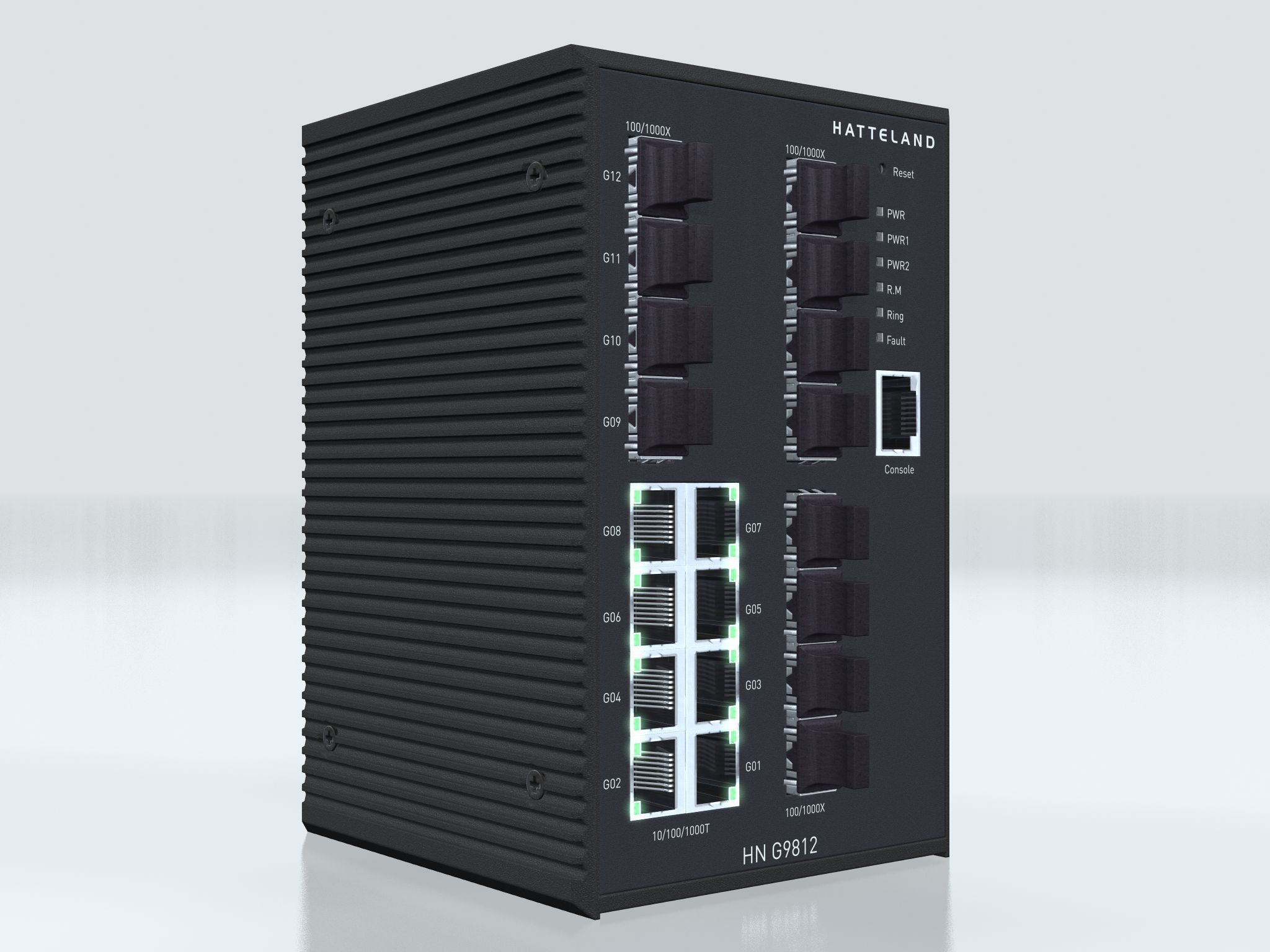

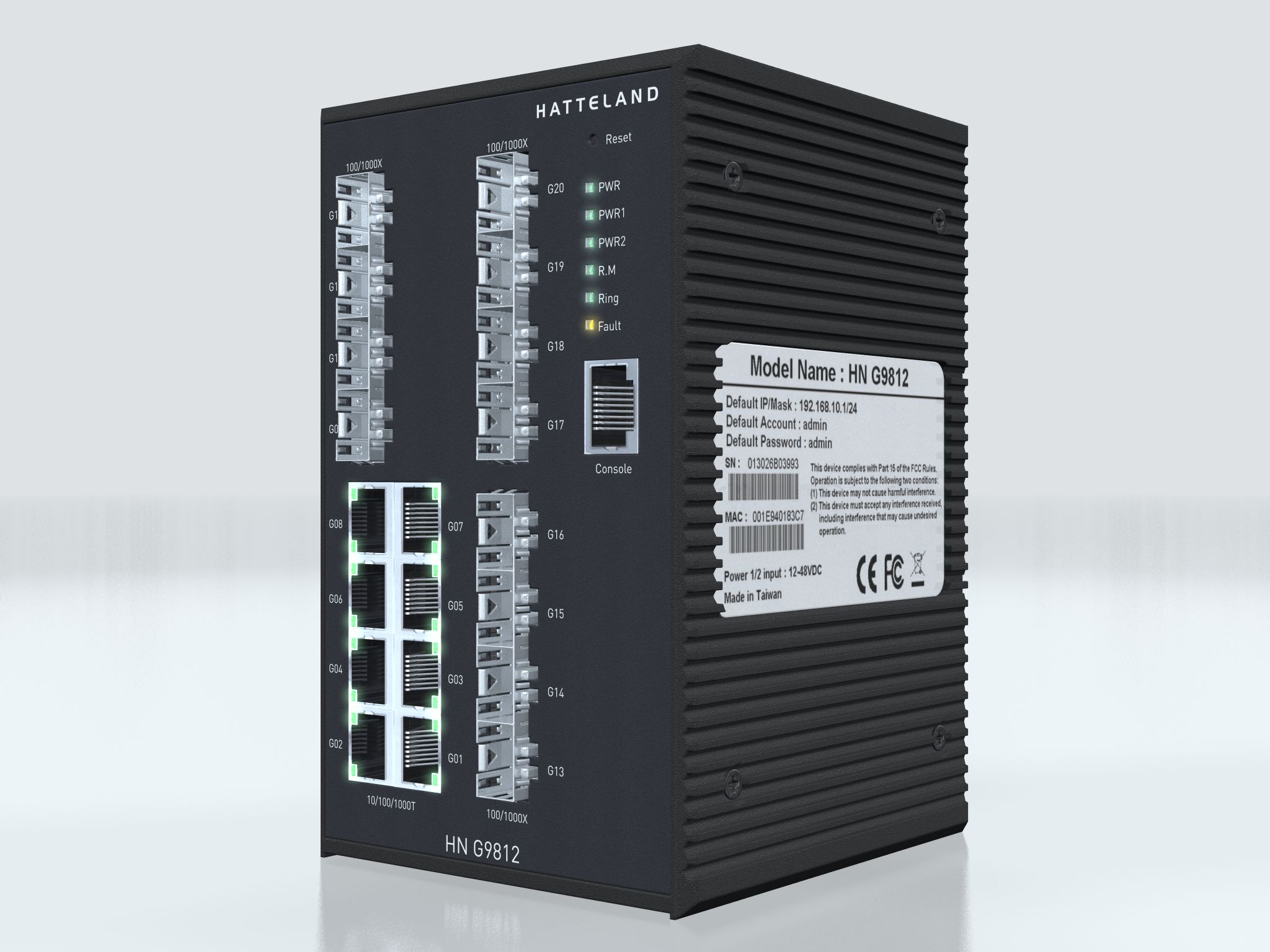

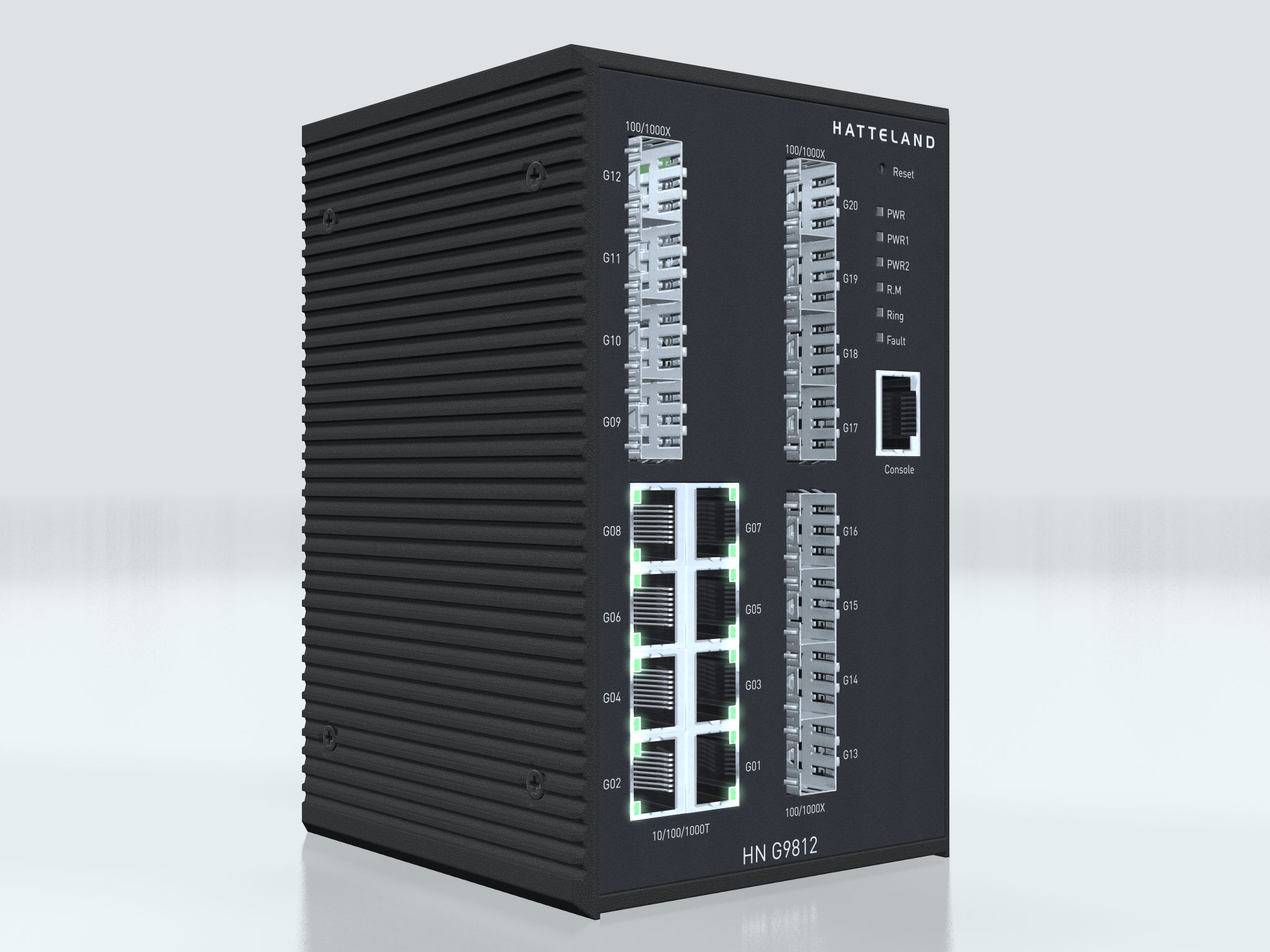

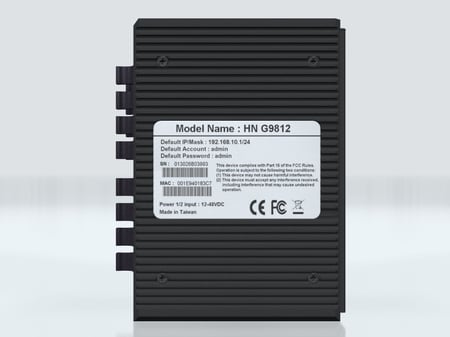

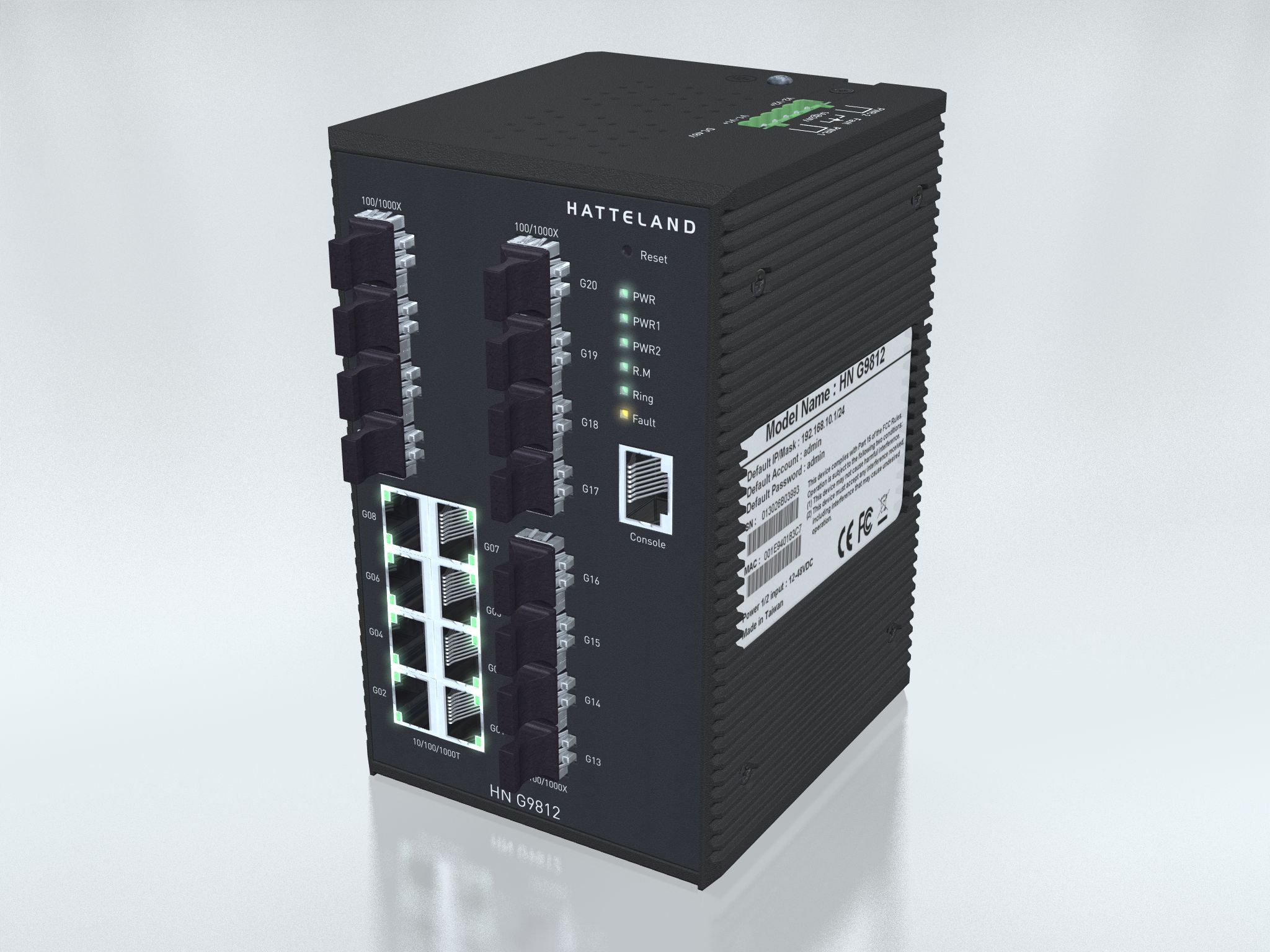

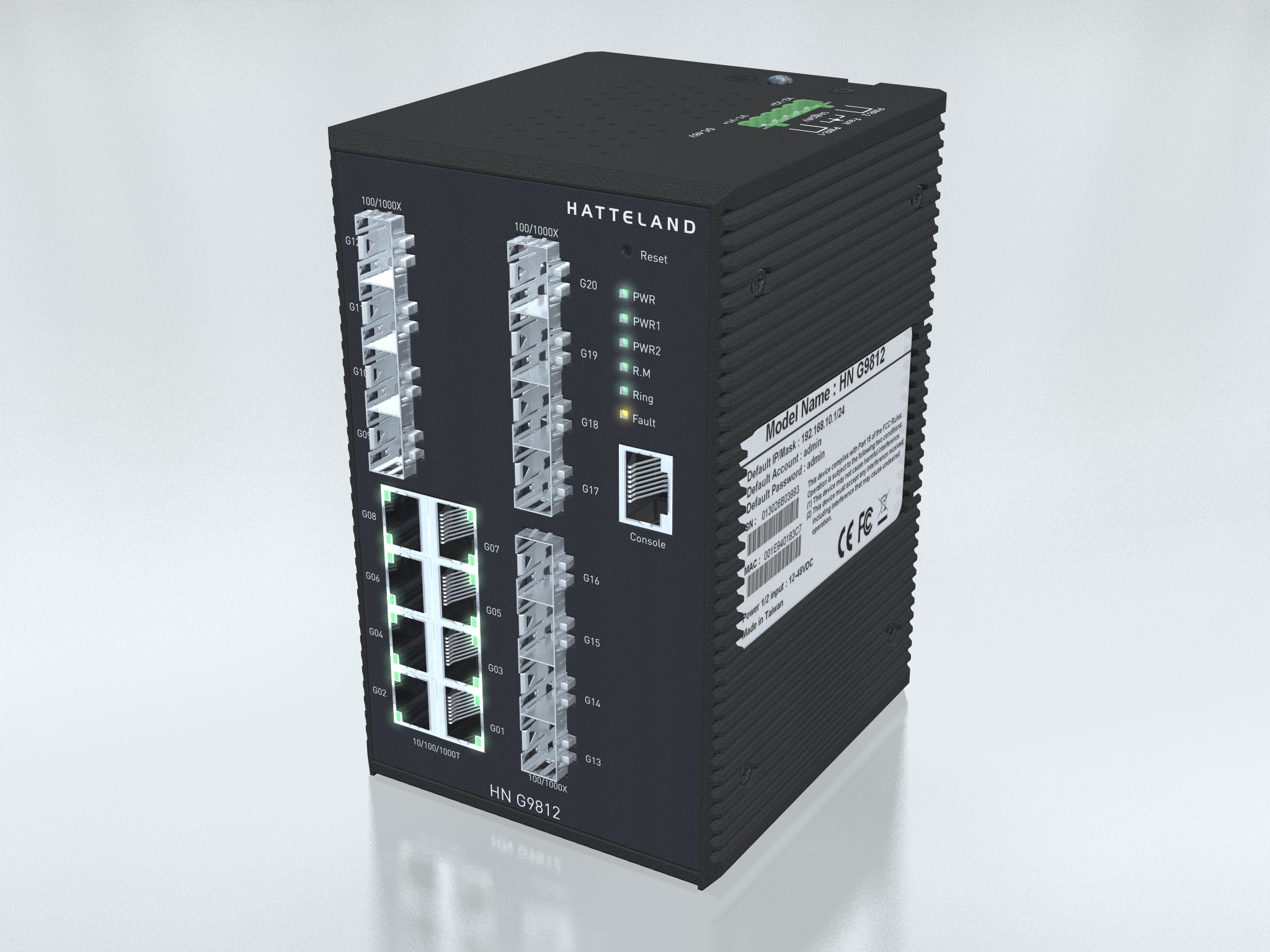

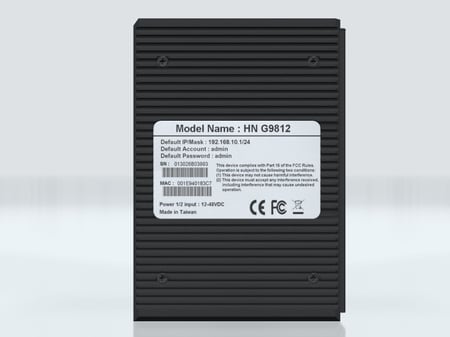

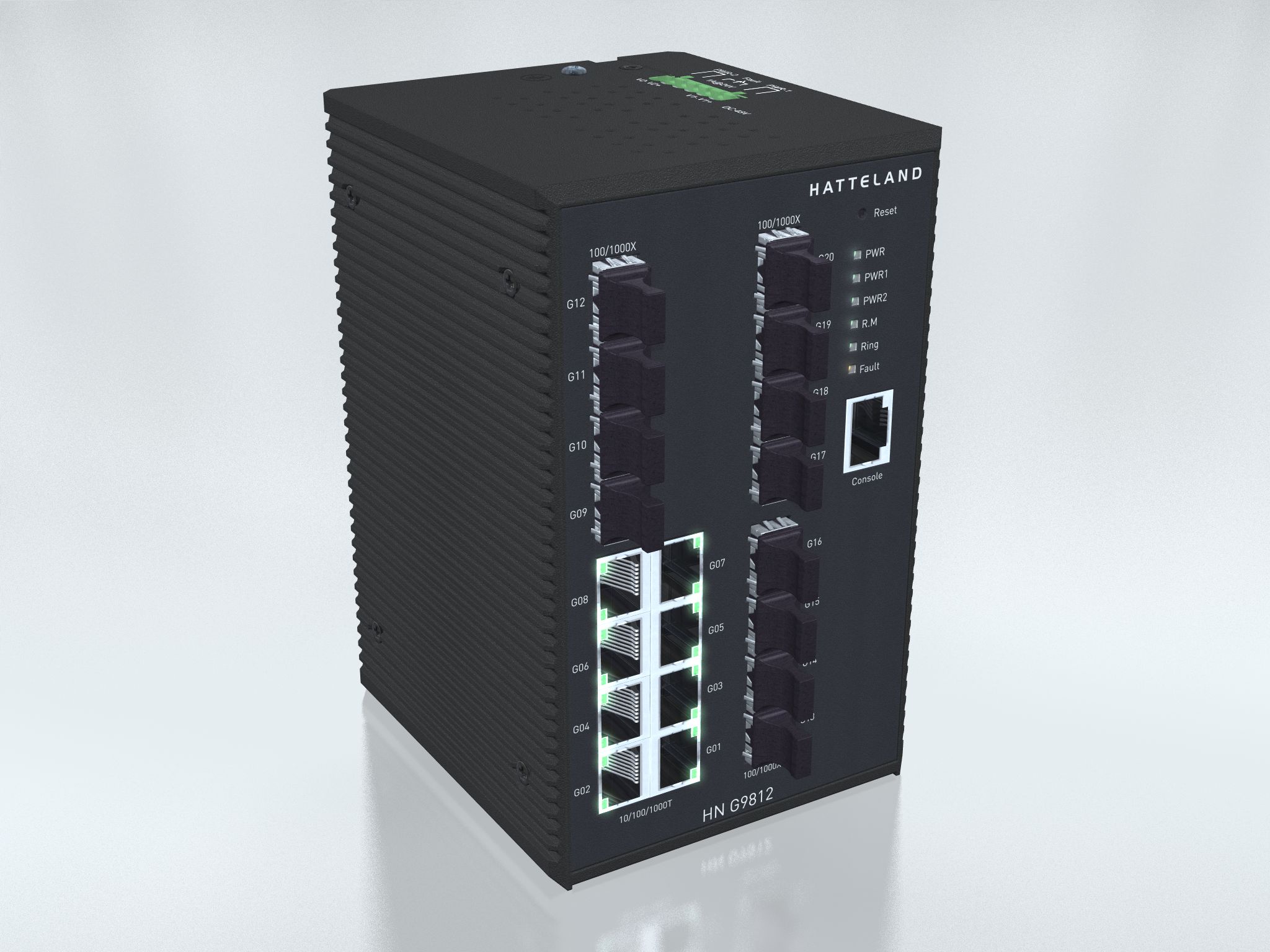

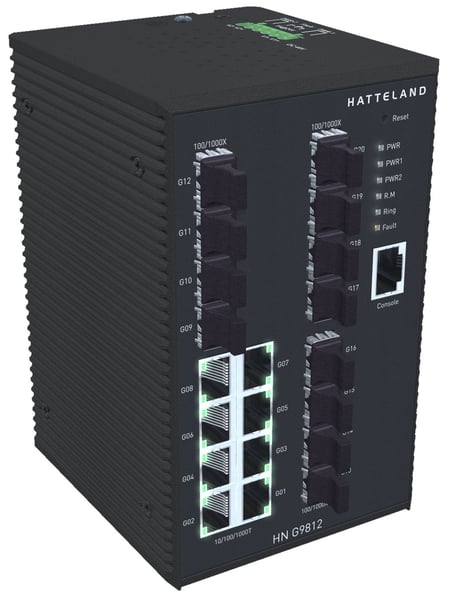

HN G9812


Network Switch - HATTELAND® - 20-port - Managed Gigabit

HN G9812

The HATTELAND® industrial range of high quality reliable Network Switches can be used in connecting several Ethernet devices like Ethernet I/O, IP-Camera or other Ethernet switches. The HN G9812 is managed redundant ring Ethernet switch with 8x10/100/1000Base-T(X) ports and 12x100/1000Base-X SFP ports.



Network Switch - HATTELAND®

With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 30ms) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. It supports wide operating temperatures from -40°C to 75°C.
The HN G9812 can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration.
Typenumber (Long): HN G9812
Description: The HATTELAND® industrial range of high quality reliable Network Switches can be used in connecting several Ethernet devices like Ethernet I/O, IP-Camera or other Ethernet switches. The HN G9812 is managed redundant ring Ethernet switch with 8x10/100/1000Base-T(X) ports and 12x100/1000Base-X SFP ports. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 30ms) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. It supports wide operating temperatures from -40°C to 75°C. The HN G9812 can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration.
Technology: • MAC Table: 8192 MAC addresses
• Priority Queues: 8
• Processing: Store-and-Forward
• Share Data Buffer: 4Mbit
• Jumbo frame: Up to 9.6k bytes

• Software Features:
- STP/RSTP/MSTP (IEEE 802.1D/w/s)
- Redundant Ring (O-Ring) recovery time > 20ms (Fast Ethernet), recovery time > 30 ms (1 Gigabit)
- TOS/DiffServ supported
- Quality of Service (802.1p) for real-time traffic
- VLAN (802.1Q) with VLAN tagging
- IGMP Snooping
- Application-based QoS management
- DOS/DDOS auto prevention
- Port configuration, status, statistics, monitoring, security
- DHCP Server/Client/Relay
- SMTP Client
- Modbus TCP
- NTP server

• Switch Properties:
- Switching latency: 7 us
- Switching bandwidth: 40Gbps
- Throughput (packet per second): 17.856Mpps@64Bytes packet
- Max. Number of Available VLANs: 4095
- VLAN ID Range: VID 0 to 4094
- IGMP multicast groups: 128 for each VLAN
- Port rate limiting: User Define

• Security Features:
- Device Binding security feature
- Enable/disable ports
- MAC based port security
- Port based network access control (802.1x)
- VLAN (802.1Q ) to segregate and secure network traffic
- Radius centralized password management
- SNMPv3 encrypted authentication and access security
- Https / SSH enhance network security
- Web and CLI authentication and authorization
- IP source guard

• Network Redundancy:
- O-Ring
- O-Chain
- MRP (Media Redundancy Protocol) [1]
- MSTP (RSTP/STP compatible) [4]

• RS-232 Serial Console Port:
- RS-232 in RJ45 connector with console cable
- Baud rate setting: 115200bps, 8, N, 1

• Ethernet Standards:
- IEEE 802.3 for 10Base-T
- IEEE 802.3u for 100Base-TX and 100Base-FX
- IEEE 802.3ab for 1000Base-T
- IEEE 802.z for 1000Base-X
- IEEE 802.3x for Flow control
- IEEE 802.3ad for LACP
- IEEE 802.1p for COS
- IEEE 802.1Q for VLAN Tagging
- IEEE 802.1w for RSTP
- IEEE 802.1s for MSTP
- IEEE 802.1x for Authentication
- IEEE 802.1AB for LLDP

[1] This function is available by request
[4] This function is available by request only
Physical Characteristics: • Enclosure: IP30
• Dimensions: W:108.30 [4.26"] x H:145.10 [5.71"] x D:108.30 [4.26"] mm [inch]
• Weight: 1210g
Physical Ports and Controls: • DIP - Switch
• LED Indicators
• 8 x 10/100/1000Base-T(X) Ports in RJ45 Auto MDI/MDIX
• 12 x 100/1000Base-X with SFP port
• Relay output to carry capacity of 1A at 24VDC

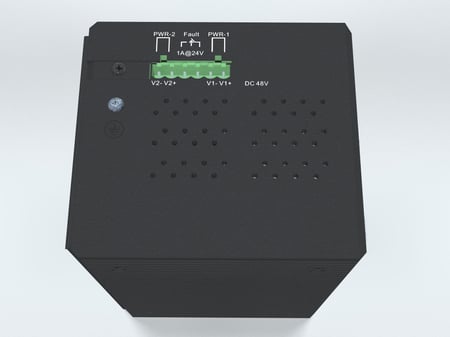

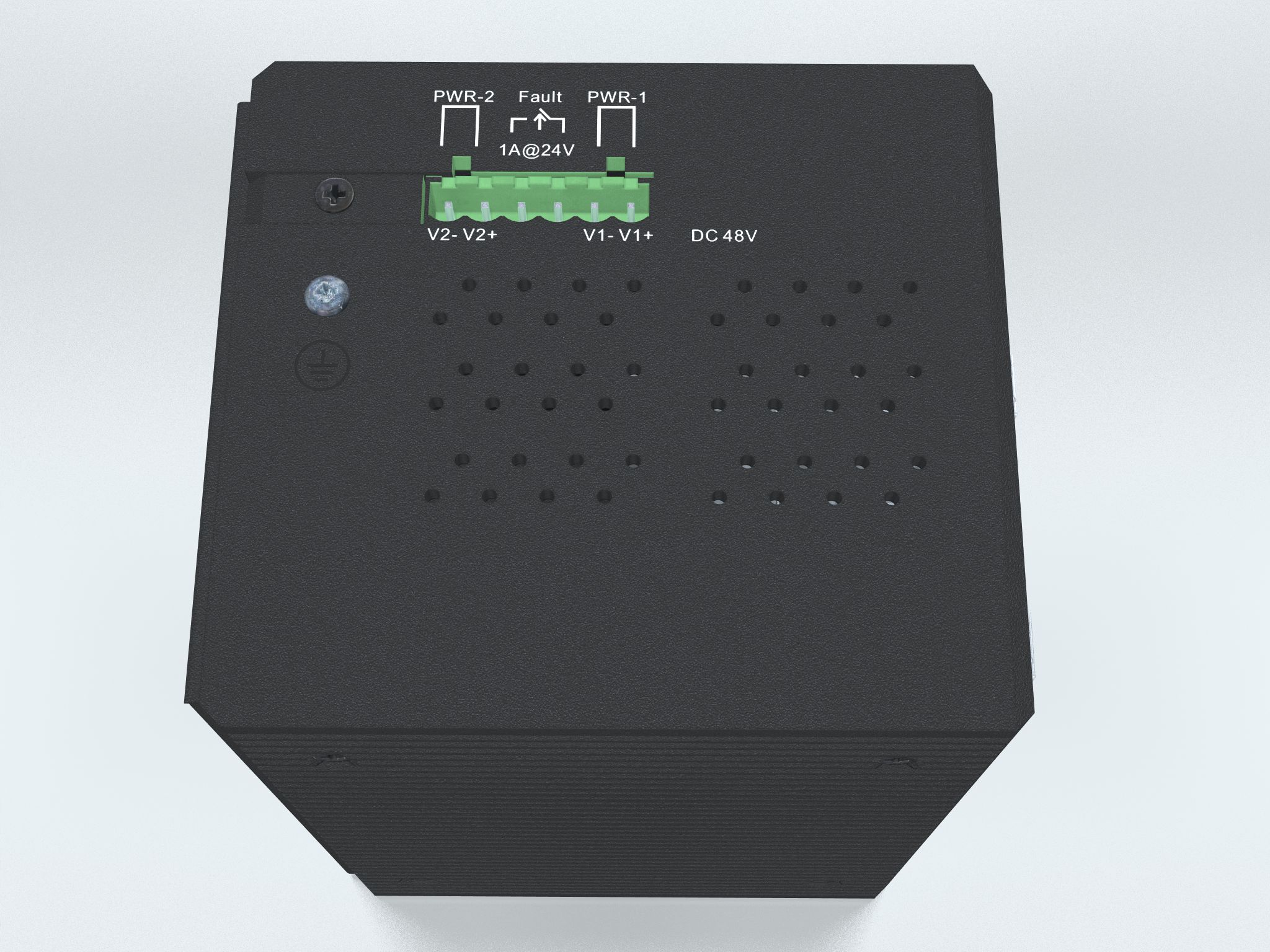

Power Specifications: • Redundant Input power: Dual DC inputs. 12 - 48VDC on 6-pin terminal block.
• Power consumption (Typ.): 10 Watts
• Overload current protection: Present
• Reverse polarity protection: Present
Additional Specifications: • MTBF 670184 hours
• Warranty 5 years
Available Accessories: • SDR-120-24: 1 x Power supply 24 VDC, 5A, 6-pin Terminal Block 5.08, Type Approved[2]: DNV
• SDR-120-48: 1 x Power supply 48 VDC, 2.5A, 6-pin Terminal Block 5.08, Type Approved[2]: DNV
• SDR-240-24: 1 x Power supply 24 VDC, 10A, 6-pin Terminal Block 5.08, [2]
• SDR-240-48: 1 x Power supply 48 VDC, 5A, 6-pin Terminal Block 5.08, [2]
• SDR-480-24: 1 x Power supply 24 VDC, 20A, 6-pin Terminal Block 5.08, Type Approved[2]: DNV
• SDR-480-48: 1 x Power supply 48 VDC, 10A, 6-pin Terminal Block 5.08, Type Approved[2]: DNV
• HN SFP1G-LX10: 1 x 1Gbps SFP optical transceiver, single-mode / 10km, 1310nm, -40 ~ +75°C
• HN SFP1G-SX: 1 x 1Gbps SFP optical transceiver, multi-mode / 550m, 850nm, -40 ~ +75°C
• HN SFP1G-RJ: 1 x 1Gbps SFP to 1000 Base-T transceiver, -40 ~ +75°C

[2] Note: CCS - China Classification Society: Network switches and related power supplies are not required to be Type Approved.
Contents of Package: • 1 x HN G9812
• 1 x Wall-Mount Kit. 2 x Wall-Mount Plate, 6 x screw
• 1 x 6-Pin Terminal block
• 1 x Console Cable
• 1 x Quick Installation Guide
• 1 x DIN-Rail kit / Factory Mounted
Maritime - Environment Specification: • Storage Temperature: -40 to 85°C (-40 to 185°F)
• Operating Temperature: -15 to +55°C (5 to 131°F)
• Operating Humidity: 5% to 95% Non-condensing
• Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m
• Compass Safe Distance: Standard: 30cm - Steering: 15cm
Maritime - Regulatory Approvals: • EMC: CE EMC (EN55024,EN 55032)
• EMI: EN55032
• EMS: EN55024 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8 (PFMF), IEC/EN 61000-4-11 (DIP))
• Shock: IEC60068-2-27
• Vibration: IEC60068-2-6
• Safety: EN62368-1 compliant
Maritime - Type Approvals: These products have been tested / type approved by the following classification societies:
IEC 60945 4th (EN 60945:2002), IACS E10, DNV - Det Norske Veritas, KR - Korean Register, ClassNK - Nippon Kaiji Kyokai, BV - Bureau Veritas, CCS - China Classification Society, LRS - Lloyd's Register of Shipping
Industrial - Environment Specification: • Storage Temperature: -40 to 85°C (-40 to 185°F)
• Operating Temperature: -40 to +75°C (-40 to 167°F)
• Operating Humidity: 5% to 95% Non-condensing
Industrial - Regulatory Approvals: • EMC: CE EMC (EN 55024, EN 55032), FCC Part 15 B, EN 50155(EN 50121-3-2), EN 50121-4, AS/NZS CISPR 22,EN 61000-6-2&EN 61000-6-4
• EMI: EN 550232, CISPR32,EN 61000-3-2, EN 61000-3-3,FCC Part 15B class A
• EMS: EN 55024 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge),IEC/EN 61000-4-6 (CS),IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11(DIP))
• Shock: IEC60068-2-27
• Free Fall: IEC60068-2-31
• Vibration: IEC60068-2-6
• Safety: EN62368-1 compliant
• Other: EN50155, IEC/EN 60945
Specifications last updated: July 1, 2025 @ 09:59
