 Marine & Offshore  / CRT Monitor  /   / JH 1501 3FG

JH 1501 3FG

Overview

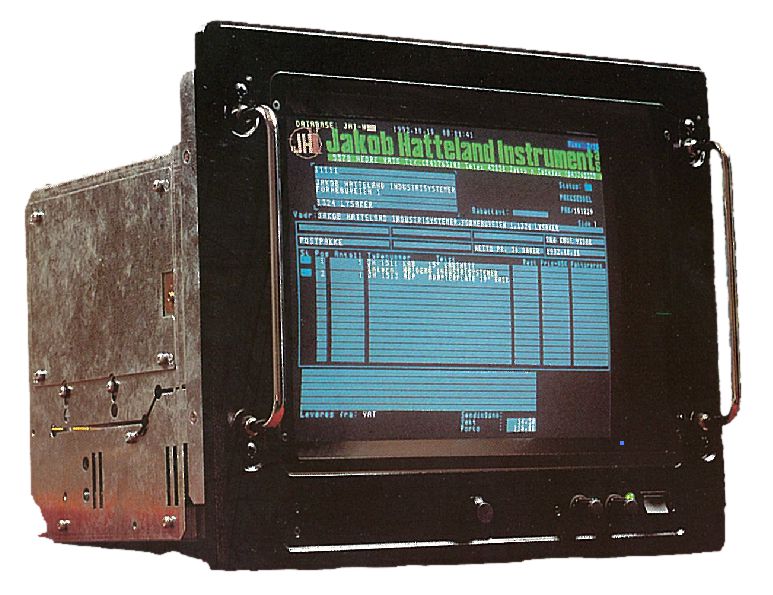

CRT Monitor - Industrial - 15.0 inch

JH 1501 3FG

JH 1501 3FG 15 industrimonitor basert på NEC Multisync 3FG.

Send Request
Description

CRT Monitor

• 15 flatskjerm
• Dot piteh 0,28 mm
• 900 avlenking
• VGA 640 x 480 - Mac Il 640 x 480, Super VGA 800 x 600 - 8514A/XGA 1024 x 768i
• Horisontal frekvens 31 ,5 til 38 kHz (automatisk), Vertikal frekvens 55 Hz til 90 Hz (automatisk), Non interlaced/interlaced
• Båndbredde 45 MHz
• Kontroller: på/av, lysstyrke, kontrast, avmagnetisering, sidejustering, horisontal sentrering, horisontal størrelse, vertikal sentrering, vertikal størrelse.
• Bilde: horisontal bredde 260 mm, vertikal bredde 195 mm
• Signal inn:
- analog 0.7 Vp-p/75 ohm positiv
- syne separat, syne TIL nivå
- horisontal syne, positiv/negativ
- vertikal syne, positiv/negativ
- composite syne, TIL +/-
• Signalkabel mini D-sub 15 pin
• Strømtilførsel 220 - 240 Volt 0.8 A
• Effektforbruk 180W
Specifications
Typenumber (Long): JH 1501 3FG
Picture Tube: 15" flat square CRT, 90° deflection, 0.28 mm mask pitch, based on NEC Multisync 3FG
Input Signal: Video: Analog 0.7 Vp-p 75 Ohms Positive.
Sync: Separate Sync TTL Level
Horizontal sync Positive/Negative
Vertical sync Positive/Negative
Composite sync TTL Level Positive/Negative
Composite Sync on green Video sync 0.3Vp-p Negative
(Video 0.7Vp-p Positive)
Display Colors Analog Input: Unlimited colors (Depending on the graphics board)
Synchronization Range: Horizontal: 31.51 kHz to 38 kHz (Automatically)
Vertical: 55 Hz to 90 Hz (Automatically)
Non interlaced/interlaced
Resolutions: VGA 640 x 480 - Mac II 640 x 480 - Super VGA 800 x 600 - 8514A/XGA 1024 x 768i
Maximum Video Bandwidth: 45 MHz
Active Display Area (factory setting): Horizontal: 260 mm (depending upon the signal timing)
Vertical: 195 mm (depending upon the signal timing)
Active Display Area (full scan): N/A
Power Supply: 220 - 240VAC, 0.8 A
Power Consumption: 180W
Input Signal Terminals: 1 x Mini D-SUB 15P connector (female)
User Controls and Adjustment Features: Outside control panel:
Power Switch
Brightness Control
Contrast Control
Degauss Switch (manual)
Horizontal Centre, Horizontal Size
Vertical Centre, Vertical Size
Environmental Considerations: Operating: Temperature -15° C to +55° C
Humidity 30 % to 93 % (non condensing)

Storage: Temperature -20° C to +60° C
Humidity 10 % to 90 % (non condensing)
Factory Options: • Cabinet bracket
• Adapter Plate 19" rack
• Front frame with filter
• RGB adapter, automatic brightness adjustment
• Customer specificed color and logo
Product Dimensions and Weight: 412 (W) x 345 (H) x 372 (D) mm (approx)
20 kg approx
Type Approval, Testing and Certificates: N/A
Specifications last updated: July 7, 2025 @ 11:10
Type Approvals
Downloads
Accessories

Latest Product Updates

End of Life Notifications (EOL):
9 Oct 1996
Product Obsolete

Obsolete
