CRT Monitor - Industrial - 15.0 inch

JH 1503 M3V

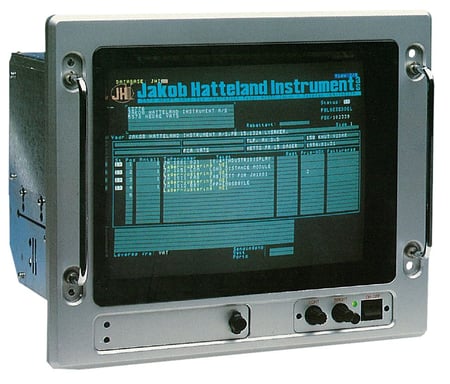

JH 1503 M3V 15 inch industrial monitor based on NEC MultiSync 3V

Send Request
Description

CRT Monitor

• 15 inch flat square
• Resolution 640x480ni - 1024x768ni
• Flickerfree 75Hz
• Video bandwidth 65MHz
• Powersaving (IPM)
• Electrical options:
- Automatically degaussing
- Automatically brightness adjusting
- RGB adapter
• Mechanical options:
- Cabinet
- Custom designed front
- Mounting adapter 19 inch rack
Specifications
Typenumber (Long): JH 1503 M3V
Picture Tube: 15", non-glare, flat square technology CRT, 1200 mm radius, 90 degree deflection, 0.28 mm trio dot pitch. Dot type black matrix. Medium-short persistenee phosphor, anti-static coating. Invar shadow mask, based on NEC Multisync 3V
Input Signal: Video: ANALOG 0.7 Vp-p 75 Ohms Positive.
Syne: Separate Sync TTL Level
Horizontal sync Positive/Negative
Vertieal sync Positive/Negative
Composite sync TTL Level Positive/Negative
Display Colors Analog Input: Unlimited colors (depends on video eard used)
Synchronization Range: Horizontal: 31.51 kHz to 50 kHz (Automatically)
Vertical: 55 Hz to 90 Hz (Automatically)
Resolutions: Horizontal: 1024 dots
Vertical: 788 Lines (non-interlaced)
Maximum Video Bandwidth: 65 MHz
Active Display Area (factory setting): Horizontal: 280 mm/10.2 Inches (Dependent upon signal timing used, and does not include border area)
Vertical: 195 mm/7.7 Inches
Active Display Area (full scan): Horizontal: 280 mm/11.0 Inches (Dependent upon signal timing used, and does not include border area)
Vertical: 210 mm/8.3 Inches
Power Supply: AC 220-240V, 50/60Hz, 0.9 A
Power Consumption: N/A
Input Signal Terminals: 1 x 15 pin mini D-Sub connector
User Controls and Adjustment Features: Side Pincushion Control
Vertical Size Control
Horizontal Size Control
Vertical Position Control
Horizontal Position Control
Power Switch/Degauss
Contrast Control
Brightness Control
Environmental Considerations: N/A
Factory Options: • Cabinet bracket
• RGB adapter (sync on green)
• Customer specificed color and logo
Product Dimensions and Weight: 412 (W) x 345 (H) x 372 (D) mm
20 kg approx
Type Approval, Testing and Certificates: N/A
Specifications last updated: July 7, 2025 @ 11:10
