JH 1504 MXV

Overview

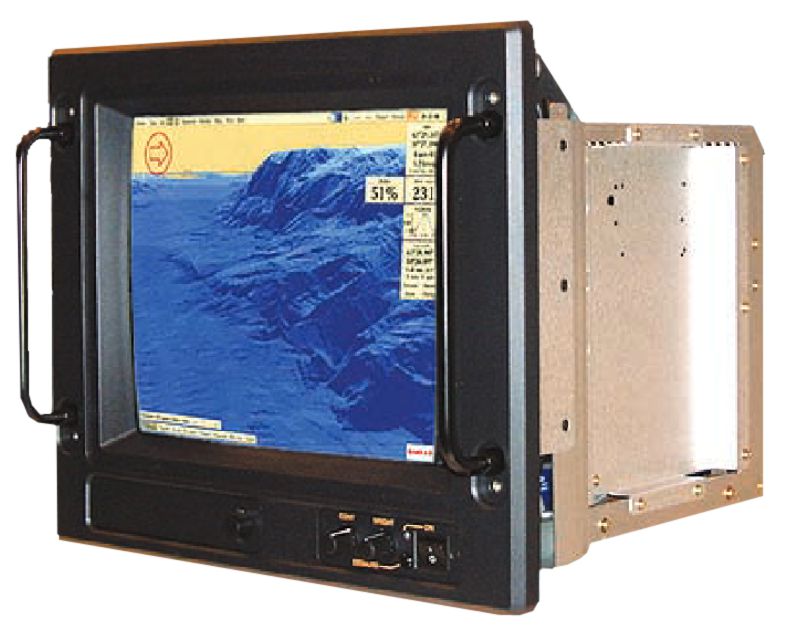

CRT Monitor - Industrial - 15.0 inch

JH 1504 MXV

The color monitor described in this Data Sheet is an industrialized version of a high quality (NEC) based monitor. The monitor allow you to display professional applications with clarity and enhanced color and image quality.

Send Request
Description

CRT Monitor

The monitor provides you withy automatic compatibility with multiple upgrading platforms and a vast array of graphics standards allowing resolution upgrades without upgrading the monitor. The monitor is approved by several classification societies.
Specifications
Typenumber (Long): JH 1504 MXV
Picture Tube: 15" non-glare, flat square technology CRT, 1200 mm radius 90 degree deflection, 0.28 mm trio dot pitch. Dot type black matrix. Medium-short persistence phosphor, opti Clear coating. Invar shadow mask.
Input Signal: Video: Analog 0.7 Vp-p / 75 Ohms Positive
Sync: Separate Sync TTL Level
Horizontal sync: Positive/Negative
Vertical sync: Positive/Negative
Composite sync TTL Level: Positive/Negative
Options: BNC adapter sync on green
Display Colors Analog Input: Unlimited colors (depends on video card used)
Synchronization Range: Horizontal: 31 kHz to 65 kHz (Automatically)
Vertical: 55 Hz to 100 Hz (Automatically)
Resolutions: Horizontal: 1280 dots
Vertical: 1024 lines (non-interlaced)
Maximum Video Bandwidth: 65 MHz
Active Display Area (factory setting): Horizontal: 260 mm/10.2 Inches (dependent upon signal timing used, and does not include border area)
Vertical: 195 mm/7.7 Inches
Active Display Area (full scan): Horizontal: 280 mm/11.0 Inches (dependent upon
signal timing used, and does not include border area)
Vertical: 210 mm/8.3 Inches
Power Supply: AC 220 - 240V, 50/60 Hz 0.9A
Option: AC 100 - 120V, 50/60 Hz
Power Consumption: 100W
Input Signal Terminals: 15 pin mini D-SUB connector
Options: BNC Adapter sync on green
User Controls and Adjustment Features: Power Switch/Degauss
Side Pincushion Control
Vertical Size Control
Horizontal Size Control
Vertical Position Control
Horizontal Position Control
Contrast Control
Brightness Control
Environmental Considerations: Operating: Temperature 0°C to +55°C, Humidity 30% to 80%
Storage: Temperature -20°C to +60°C, Humidity 10% to 90%
Factory Options: • Front
• Cabinet
• Brackets
• Touch Screen
• BNC Adapter sync on green
Product Dimensions and Weight: 412 (W) x 345 (H) x 371 (D)mm
25 kg
Type Approval, Testing and Certificates: Based on E-10, IEC945 and classification society approvement:
LLOYD's: Lloyds Register of Shipping, DNV: Det Norske Veritas, GL: Germanischer Lloyd, NIPPON: Nippon Kaiji Kyokai, CE Classified
Specifications last updated: July 7, 2025 @ 11:10
Type Approvals
Downloads
Accessories

Latest Product Updates

End of Life Notifications (EOL):
5 Apr 2001
Product Obsolete

Obsolete
