JH 15C06 CTX

Overview

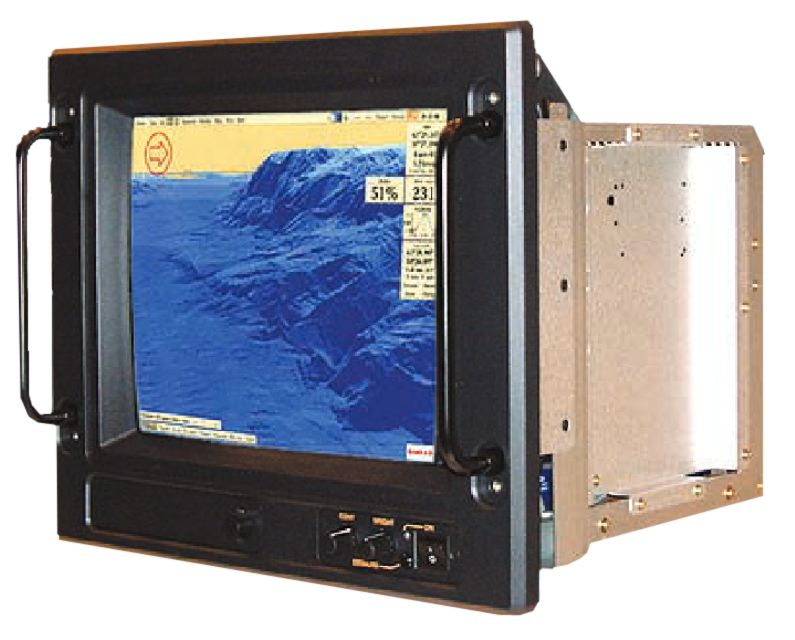

CRT Monitor - Industrial - 15.0 inch

JH 15C06 CTX

The color monitor described in this Data Sheet is an industrialized version of a high quality CTX based monitor. The monitor allows you to display professional applications with clarity and enhanced color and image quality.

Send Request
Description

CRT Monitor

The monitor provides you with automatic compatibility with multiple upgrading platforms and a vast array of graphics standards allowing resolution upgrades without upgrading the monitor. The monitor is tested according to the maritime standard EN60945 (IEC945).
Specifications
Typenumber (Long): JH 15C06 CTX
Picture Tube: 38 cm (15") flat square CRT 13.8 inch viewable image size, 1080 mm Radius, 90° deflection. 0.25 mm mask pitch, Medium-Short persistence phosphor, dark tint screen, CromaClear CRT, multi-layered, anti-static screen coating. Invar Shadow Mask and OptiClear screen surface.
Input Signal: Video: Analog 0.7 Vp-p 75 Ohms
Sync:
- Separate sync. TTL Level
- Horizontal sync. Positive/Negative
- Vertical sync. Positive/Negative
- Composite sync. TTL Level, Positive/Negative
- Sync. on green, 0.3 +/- 0.01 Vp-p negative
Display Colors Analog Input: Unlimited colors (Depending on the graphics board)
Synchronization Range: Horizontal: 31 kHz to 69 kHz (Automatically)
Vertical: 55 Hz to 120 Hz (Automatically)
Resolutions: (based on horizontal and vertical frequencies only)
640x480 - 60 to 120 Hz
800x600 - 55 to 108 Hz
832x624 - 55 to 103 Hz
1024x786 - 55 to 85 Hz *
1152x870 - 55 to 75 Hz
1280x1024 - 55 to 65 Hz
*JHD recommended resolution at 75 Hz for optimal performance
Maximum Video Bandwidth: D-SUB: 70 MHz, BNC (option)
Active Display Area (factory setting): Horizontal: 270 mm *
Vertical: 202 mm *
* depending upon the signal timing
Active Display Area (full scan): Horizontal: 280 mm *
Vertical: 210 mm *
* depending upon the signal timing
Power Supply: AC 220 - 240 V, 50/60 Hz - Standard
AC 100 - 120 V, 50/60 Hz - Option
Power Consumption: 90W
Input Signal Terminals: HD-SUB 15P male connector on cable
BNC connectors - Option
User Controls and Adjustment Features: On front bezel:
Power Switch
Brightness Control
Contrast Control
Degauss Switch (manual)

Behind hatch:
On Screen Manager controls
Power LED adjustment
Environmental Considerations: Operating: Temperature 0°C to +55°C, Humidity 30% to 80% (non condensing)
Storage: Temperature -20°C to +60°C, Humidity 10% to 90% (non condensing)
Factory Options: Front *
Cabinet *
Suspension Bracket *
Table Stand *
Touch Screen **
* Option: Standard or custom logo and color
** Option: Factory mounted
Product Dimensions and Weight: 412 (W) x 345 (H) x 391 (D) mm
18 kg
Type Approval, Testing and Certificates: Will be tested according to EN60945 3rd (IEC945 3rd) and type approved by the following classification societies: DNV - Det Norske Veritas, LLOYD'S - Lloyd Register of Shipping, NIPPON - Nippon Kaiji Kyokai, GL - Germanischer, Lloyd, CE Classified
Specifications last updated: July 7, 2025 @ 11:10
Type Approvals
Downloads
Accessories

Latest Product Updates

End of Life Notifications (EOL):
8 May 2003
CRT Model - JH 15C06 CTX End Of Life Notice

Obsolete
