 Marine & Offshore  / CRT Monitor  /   / JH 17C03 P75

JH 17C03 P75

Overview

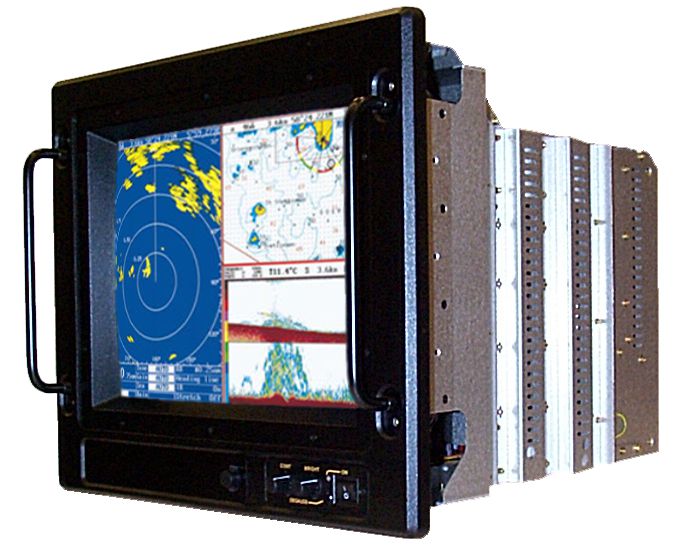

CRT Monitor - Industrial - 17.0 inch

JH 17C03 P75

The color monitor described in this Data Sheet is an industrialized version of a high quality (NEC MultiSync) based monitor. The monitor will allow you to display professional applications with clearity and enhanced color and image quality.

Send Request
Description

CRT Monitor

The monitor provides you with automatic compatibility with multiple upgrading platforms and a vast array of graphics standards, allowing resolution upgrades without upgrading the monitor. The monitor is approved by several classification societies.
Specifications
Typenumber (Long): JH 17C03 P75
Picture Tube: 43 cm (17") flat square CRT 39.6 cm (15.7 inch) viewable image size, 1210 mm Radius, 90° deflection. 0.25 mm mask pitch, Medium-Short persistence phosphor, semi tint screen, CromaClear CRT with multi-layered anti-static OptiClear coating.
Input Signal: Video: Analog 0.7 Vp-p 75 Ohm Positive
Sync: Separate sync. TTL Level
Horizontal sync. Positive/Negative
Vertical sync. Positive/Negative
Composite sync. TTL Level, Positive/Negative
Sync. on green video (Positive), 0.7 Vp-p and sync. (Negative) 0.3 Vp-p
Display Colors Analog Input: Unlimited colors
Synchronization Range: Horizontal: 31 kHz to 94 kHz (Automatically)
Vertical: 55 Hz to 160 Hz (Automatically)
Resolutions: Maximum: 1600 x 1200 (75 Hz non interlaced)
(based on horizontal and vertical frequencies only)

Recommended: 1280 x 1024 (85 Hz non interlaced)
(for optimal display performance)
Maximum Video Bandwidth: D-SUB: 85 MHz
BNC: 120 Mhz
Active Display Area (factory setting): Active Display Area (factory setting):
Horizontal: 306 mm *
Vertical: 237 mm *
* depending upon the signal timing
Active Display Area (full scan): Active Display Area (full scan):
Horizontal: 316 mm *
Vertical: 237 mm *
* depending upon the signal timing
Power Supply: Universal Power Supply:
AC 220 - 240 V, 50/60 Hz or
AC 100 - 120 V, 50/60 Hz
Power Consumption: 125 W
Input Signal Terminals: HD-SUB 15P connector (female)
D-SUB 15P connector (female)
BNC connectors (female)
User Controls and Adjustment Features: On front bezel:
Power Switch
Brightness Control
Contrast Control
Degauss Switch (manual)

Behind hatch:
On Screen Manager controls
D-SUB/BNC Switch
Power LED adjustment
Quick Auto Degauss adjustment (option)
Environmental Considerations: Operating: Temperature 0 deg. C to +55 deg. C, Humidity 30% to 80% (non condensing)
Storage: Temperature -20 deg. C to +60 deg. C, Humidity 10% to 90% (non condensing)
Factory Options: 19 inch Rack mounting adapter *
Front *
Cabinet *
Suspension Bracket *
Table Stand *
Quick Auto Degauss **
Touch Screen **

* Option: Standard or custom logo and color
** Option: Factory mounted
Product Dimensions and Weight: Rack version: 459 (W) x 397 (H) x 496 (D) mm, Weight: 29 kg
Cabinet: (option) 460 (W) x 398 (H) x 500 (D) mm, Weight (cabinet only): 16 kg
Type Approval, Testing and Certificates: Tested according to EN60945 3rd (IEC945 3rd) and type approved by the following classification societies: LLOYD'S - Lloyd Register of Shipping, DNV - Det Norske Veritas, GL - Germanischer Lloyd, NIPPON - Nippon Kaiji Kyokai, CE Classified
Specifications last updated: July 7, 2025 @ 11:10
Type Approvals
Downloads
Accessories

Latest Product Updates

End of Life Notifications (EOL):
31 Oct 2001
JH 15C05 E50-A1 and JH 17C03 P75-A1 now obsolete, repla...

Obsolete
