PRODUCT DETAILS

✕

✕
 Marine & Offshore  / CRT Monitor  /   / JH 2101 6FG

JH 2101 6FG

Overview

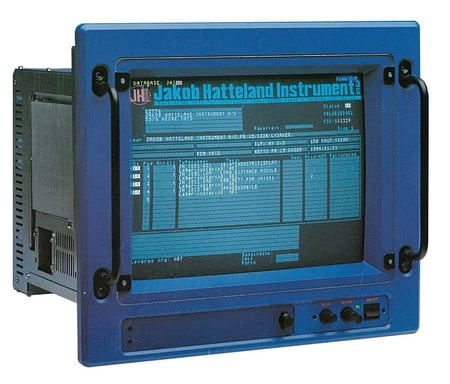

CRT Monitor - Industrial - 21.0 inch

JH 2101 6FG

JH 2101 6FG 21 inch industrial monitor based on NEC MultiSync 6FGP

Send Request
Description

CRT Monitor

• 21 inch flat square
• Resolution 640x480ni - 1280x1024ni
• Flickerfree 75Hz
• Video bandwidth 135MHz
• Microprocessorbased memory
• Powersaving (IPM)
• Electrical options:
- Automatically degaussing
- Automatically brightness adjusting
• Mechanical options:
- Cabinet
- Custom designed front
- Mounting adapter 20 module
Specifications
Typenumber (Long): JH 2101 6FG
Picture Tube: 21" flat Square CRT, 16 Visual inches diagonal 90 degree deflection, 0.28 mm dot pitch Dot type black matrix. Medium-short persistence phosphor, Dark bulb, High contrast, Anti-static coating, Invar shadow mask. Misconvergence: Less than 0.5mm around perimeter less than 0.3mm at center
Input Signal: Video: Analog 0.7 Vp-p 75 Ohms Positive.
Sync: Separate Sync TTL Level
Horizontal sync Positive/Negative
Vertical sync Positive/Negative
Composite sync TTL Level Positive/Negative
Composite Sync on green Video sync 0.3Vp-p Negative
(Video 0.7Vp-p Positive)
Display Colors Analog Input: Unlimited colors
Synchronization Range: Horizontal: 27kHz to 79kHz (Automatically)
Vertical: 55Hz to 90Hz (Automatically)
Resolutions: Horizontal: 1280 dots.
Vertical: 1024 lines (non-interlaced)
Maximum Video Bandwidth: D-SUB: 75MHz
BNC: 135MHz
Active Display Area (factory setting): Horizontal: 370 mm (Active display area is chevnged by signal timing)
Vertical: 278 mm
Active Display Area (full scan): Horizontal: 402 mm
Vertical: 301 mm
Power Supply: JC-2141VMB/R/B (EE) AC 220-240V,50/60Hz, 1.8A
Power Consumption: N/A
Input Signal Terminals: Mini D-SUB 15P Connector (FEMALE)
D-SUB 15P Connector (FEMALE)
BNC Connector (FEMALE)
User Controls and Adjustment Features: Power Switch
Brightness Control
Contrast Control
Color Switch
Sync Switch
H Size Increase, H Size Decrease
H Position Left, H Position Right
V Size Increase, V Size Decrease
V Position Up, V postition Down
Memory Recall Button
Mode Status LED
Degauss Switch
Environmental Considerations: N/A
Factory Options: • Cabinet
• Cabinet bracket
• Customer specificed color and logo
Product Dimensions and Weight: 533 mm (W) x 480 (H) x 556 (D) mm
48 kg
Type Approval, Testing and Certificates: N/A
Specifications last updated: July 7, 2025 @ 11:10
Type Approvals
Downloads
Accessories

Latest Product Updates

End of Life Notifications (EOL):
13 Apr 1997
Product Obsolete

Obsolete
