 Marine & Offshore  / CRT Monitor  /   / JH 2102 MXP

JH 2102 MXP

Overview

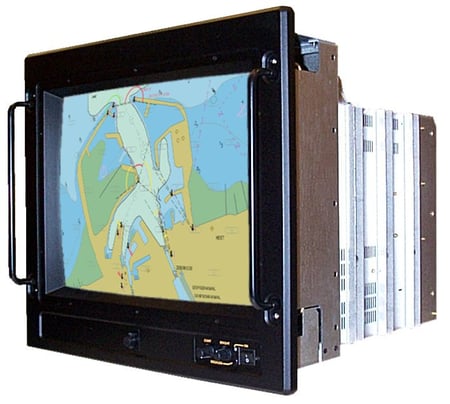

CRT Monitor - Industrial - 21.0 inch

JH 2102 MXP

The color monitor described in this Data Sheet is an industrialized version of a high quality (NEC) based monitor. The monitor allow you to display professional applications with clarity and enhanced color and image quality.

Send Request
Description

CRT Monitor

The monitor provides you withy automatc compatibility with multiple upgrading platforms and a vast array of graphics standards allowing resolution upgrades without upgrading the monitor. The monitor is approved by several classification societies.
Specifications
Typenumber (Long): JH 2102 MXP
Picture Tube: 21" flat square CRT, 19.8 Visual inches diagonal 90 degree deflection, 0.28 mm dot pitch. Dot type black matrix. Medium-short persistence phosphor, Dark bulb High contrast, Anti-static coating, Invar shadow mask. Inclination: Capable of 90° inclination in each of four planes with reference to the horizontal plane.
Input Signal: Video: Analog 0.7 Vp-p / 75 Ohms Positive
Sync: Separate Sync TTL Level
Horizontal sync: Positive/Negative
Vertical sync: Positive/Negative
Composite sync TTL Level Positive/Negative
Composite sync on Green Video 0.3 Vp-p Negative
(Video 0.7 Vp-p Positive)
Display Colors Analog Input: Unlimited colors
Synchronization Range: Horizontal: 31 kHz to 89 kHz (Automatically)
Vertical: 55 Hz to 160 Hz (Automatically)
Resolutions: Horizontal: 1600 dots
Vertical: 1200 lines (non-interlaced)
Maximum Video Bandwidth: D-SUB: 80 MHz, BNC: 190 MHz
Active Display Area (factory setting): Horizontal: 390 mm (Active display area is changed by signal timing)
Vertical: 293 mm
Active Display Area (full scan): Horizontal: 390 mm (Active display area is changed by signal timing)
Vertical: 293 mm
Power Supply: Universal Power Supply:
AC 220-240V, 50/60 Hz or
AC 100 - 120V, 50/60 Hz
Power Consumption: 197W
Input Signal Terminals: Mini D-SUB 15P Connector (FEMALE)
D-SUB 15P Connector (FEMALE)
BNC Connector (FEMALE)
User Controls and Adjustment Features: Power Switch
Brightness Control
Contrast Control
Color Switch
Sync Switch
H Size Increase, H Size Decrease
H Position Left, H Position Right
V Size Increase, V Size Decrease
V Position Up, V Position Down
Memory Recall Button
Mode Status LED
Degauss Switch
Environmental Considerations: Operating: Temperature 0°C to +55°C, Humidity 30% to 80%
Storage: Temperature -20°C to +60°C, Humidity 10% to 90%
Factory Options: • Front
• Cabinet
• Brackets
• Touch Screen
• Quick Auto Degauss
Product Dimensions and Weight: 533 mm (W) x 479.9 (H) x 569.95 (D) mm
42 kg
Type Approval, Testing and Certificates: Based on E-10, IEC945 and classification society approvement:
LLOYD's: Lloyds Register of Shipping, DNV: Det Norske Veritas, GL: Germanicher Lloyd, NIPPON: Nippon Kaiji Kyokai, CE Classified
Specifications last updated: July 7, 2025 @ 11:10
