JH 21C03 M47

Overview

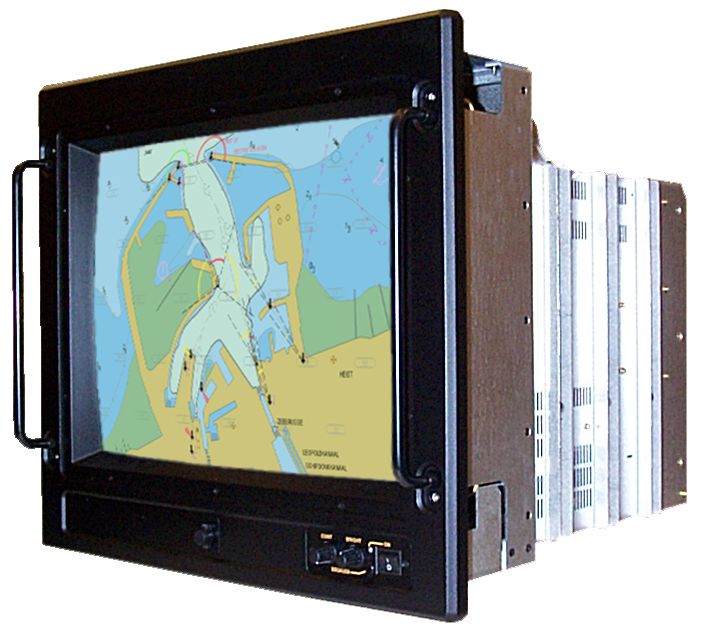

CRT Monitor - Industrial - 21.0 inch

JH 21C03 M47

The color monitor described in this Data Sheet is an industrialized version of a high quality (NEC) based monitor. The monitor allows you to display professional applications with clarity and enhanced color and image quality.

Send Request
Description

CRT Monitor

The monitor provides you with automatic compatibility with multiple upgrading platforms and a vast array of graphics standards allowing resolution upgrades without upgrading the monitor. The monitor is tested according to the maritime standard IEC60945 and is further approved by several classification societies.
Specifications
Typenumber (Long): JH 21C03 M47
Picture Tube: 51 cm (21") flat square CRT, 19,8" viewable image size, 1730 mm Radius, 90° deflection, 0.28 mm mask pitch, Medium-Short persistence phosphor, invar dot trio mask, semi tint screen, anti-static OptiClear coating.
Input Signal: Video: Analog 0.7 Vp-p / 75 Ohms Positive
Sync: Separate Sync TTL Level
Horizontal sync: Positive/Negative
Vertical sync: Positive/Negative
Composite sync TTL Level Positive/Negative
Sync. On Green video (Positive)
0.7 Vp-p and sync. (Negative) 0.3 Vp-p
Display Colors Analog Input: Unlimited colors (Depending on the graphics board)
Synchronization Range: Horizontal: 31 kHz to 96 kHz (Automatically)
Vertical: 55 Hz to 160 Hz (Automatically)
Resolutions: Maximum: 1600 x 1200 (75 Hz non interlaced)
(based on horizontal and vertical frequencies only)
Recommended: 1280 x 1024 (85 Hz non interlaced)
(for optimal display performance)
Maximum Video Bandwidth: D-SUB: 85 MHz, BNC: 190 MHz
Active Display Area (factory setting): Horizontal: 390 mm (depending upon the signal timing)
Vertical: 293 mm (depending upon the signal timing)
Active Display Area (full scan): Horizontal: 402 mm (depending upon the signal timing)
Vertical: 301 mm (depending upon the signal timing)
Power Supply: Universal Power Supply:
AC 100 - 120 V, 50/60 Hz or
AC 220 - 240 V, 50/60 Hz
Power Consumption: 120W
Input Signal Terminals: Mini D-SUB 15P connector (female)
5 x BNC connectors (female)
User Controls and Adjustment Features: Outside control panel:
Power Switch
Brightness Control
Contrast Control
Degauss Switch (manual)

Inside control panel:
On Screen Manager Controls
D-SUB/BNC Switch
Power Led Adjustment
Quick Auto Degauss Adjustment (option)
Environmental Considerations: Operating: Temperature 0°C to +55°C, Humidity 30 % to 93 % (non condensing)
Storage: Temperature -20°C to +60°C, Humidity 10 % to 90 % (non condensing)
Factory Options: Front*
Cabinet*
Suspension Bracket*
Table Stand*
Quick Auto Degauss**
Touch Screen**

* Option: Standard or custom logo and color
** Option: Factory mounted
Product Dimensions and Weight: Rack version: 459 (W) x 397 (H) x 496 (D) mm, Weight: 29 kg
Cabinet: (option) 460 (W) x 398 (H) x 500 (D) mm, Weight (cabinet only): 16 kg
Type Approval, Testing and Certificates: Based on IEC60945 3rd ed., E10, CE and classification society approvements: DNV - Det Norske Veritas, LLOYD's - Lloyd's Register of Shipping, NIPPON - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, ABS - American Bureau of Shipping
Specifications last updated: July 7, 2025 @ 11:10
