 Marine & Offshore  / CRT Monitor  /   / JH 21C05 MDK

JH 21C05 MDK

Overview

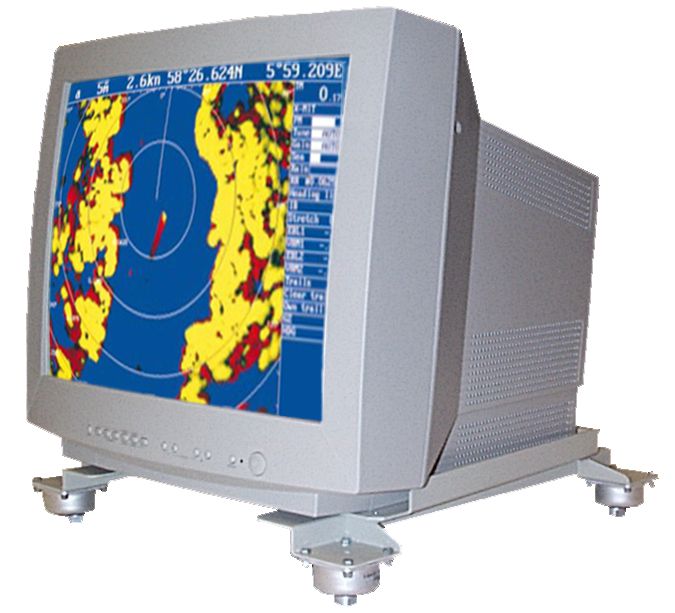

CRT Monitor - Desktop - 21.0 inch

JH 21C05 MDK

The color monitor described in this Data Sheet is an industrialized version of a high quality (NEC) based monitor. The monitor allows you to display professional applications with clarity and enhanced color and image quality.

icon
Desktop
Send Request
Description

CRT Monitor

The monitor provides you with automatic compatibility with multiple upgrading platforms and a vast array of graphics standards allowing resolution upgrades without upgrading the monitor. The monitor test is based on the maritime standard IEC60945. This is a technically lighter desktop monitor of the Hatteland monitor type JH 21C03 M47 version.
Specifications
Typenumber (Long): JH 21C05 MDK
Picture Tube: 51 cm (21") flat square CRT, 19.8" viewable image size, 1730 mm radius, 90° deflection, 0.28 mm dot pitch, medium short persistence phosphor, multi-layered, anti-static screen coating, semi-tint screen, Invar Shadow Mask and OptiClear surface.
Input Signal: Video: Analog 0.7 Vp-p 75 Ohm Positive
Sync: Separate sync. TTL Level
Horizontal sync. Positive/Negative
Vertical sync. Positive/Negative
Composite sync. TTL Level Positive/Negative
Composite Sync. on green video (Positive)
0.7 Vp-p and sync. (Negative) 0.3 Vp-p
Display Colors Analog Input: Unlimited colors (Depending on the graphics board)
Synchronization Range: Horizontal: 31 kHz to 96 kHz (Automatically)
Vertical: 55 Hz to 160 Hz (Automatically)
Resolutions: Maximum: 1600 x 1200 (75 Hz non interlaced)
(based on horizontal and vertical frequencies only)
Recommended: 1280 x 1024 (85 Hz non interlaced)
(for optimal display performance)
Maximum Video Bandwidth: D-SUB: 85 MHz
Active Display Area (factory setting): Horizontal: 390 mm (depending upon the signal timing)
Vertical: 293 mm (depending upon the signal timing)
Active Display Area (full scan): Horizontal: 402 mm (depending upon the signal timing)
Vertical: 301 mm (depending upon the signal timing)
Power Supply: Universal Power Supply:
AC 100 - 120 V, 50/60 Hz or
AC 220 - 240 V, 50/60 Hz
Power Consumption: 120W
Input Signal Terminals: Mini D-SUB 15P connector (female)
User Controls and Adjustment Features: Power Switch

On Screen Manager Controls:
Brightness Control
Contrast Control
Degauss Switch (manual)
Environmental Considerations: Operating: Temperature 0°C to +55°C, Humidity 30 % to 93 % (non condensing)
Storage: Temperature -20°C to +60°C, Humidity 10 % to 90 % (non condensing)
Factory Options: None
Product Dimensions and Weight: 520 (H) x 509 (W) x 529 (D) mm
Weight: 34 kg
Type Approval, Testing and Certificates: Based on IEC60945 3rd ed., CE and classification society aprovement:
GL - Germanischer Lloyd
Specifications last updated: July 7, 2025 @ 11:10
Type Approvals
Downloads
Accessories

Latest Product Updates

End of Life Notifications (EOL):
29 Oct 2002
Product Obsolete

Obsolete
loading
arrow-left
arrow-right

JH 21C05 MDK

CRT Monitor - Desktop - 21.0 inch

The color monitor described in this Data Sheet is an industrialized version of a high quality (NEC) based monitor. The monitor allows you to display professional applications with clarity and enhanced color and image quality.

icon
Desktop
Send Request

CRT Monitor - Desktop


The monitor provides you with automatic compatibility with multiple upgrading platforms and a vast array of graphics standards allowing resolution upgrades without upgrading the monitor. The monitor test is based on the maritime standard IEC60945. This is a technically lighter desktop monitor of the Hatteland monitor type JH 21C03 M47 version.
Typenumber (Long): JH 21C05 MDK
Picture Tube: 51 cm (21") flat square CRT, 19.8" viewable image size, 1730 mm radius, 90° deflection, 0.28 mm dot pitch, medium short persistence phosphor, multi-layered, anti-static screen coating, semi-tint screen, Invar Shadow Mask and OptiClear surface.
Input Signal: Video: Analog 0.7 Vp-p 75 Ohm Positive
Sync: Separate sync. TTL Level
Horizontal sync. Positive/Negative
Vertical sync. Positive/Negative
Composite sync. TTL Level Positive/Negative
Composite Sync. on green video (Positive)
0.7 Vp-p and sync. (Negative) 0.3 Vp-p
Display Colors Analog Input: Unlimited colors (Depending on the graphics board)
Synchronization Range: Horizontal: 31 kHz to 96 kHz (Automatically)
Vertical: 55 Hz to 160 Hz (Automatically)
Resolutions: Maximum: 1600 x 1200 (75 Hz non interlaced)
(based on horizontal and vertical frequencies only)
Recommended: 1280 x 1024 (85 Hz non interlaced)
(for optimal display performance)
Maximum Video Bandwidth: D-SUB: 85 MHz
Active Display Area (factory setting): Horizontal: 390 mm (depending upon the signal timing)
Vertical: 293 mm (depending upon the signal timing)
Active Display Area (full scan): Horizontal: 402 mm (depending upon the signal timing)
Vertical: 301 mm (depending upon the signal timing)
Power Supply: Universal Power Supply:
AC 100 - 120 V, 50/60 Hz or
AC 220 - 240 V, 50/60 Hz
Power Consumption: 120W
Input Signal Terminals: Mini D-SUB 15P connector (female)
User Controls and Adjustment Features: Power Switch

On Screen Manager Controls:
Brightness Control
Contrast Control
Degauss Switch (manual)
Environmental Considerations: Operating: Temperature 0°C to +55°C, Humidity 30 % to 93 % (non condensing)
Storage: Temperature -20°C to +60°C, Humidity 10 % to 90 % (non condensing)
Factory Options: None
Product Dimensions and Weight: 520 (H) x 509 (W) x 529 (D) mm
Weight: 34 kg
Type Approval, Testing and Certificates: Based on IEC60945 3rd ed., CE and classification society aprovement:
GL - Germanischer Lloyd
Specifications last updated: July 7, 2025 @ 11:10

Latest Product Updates

End of Life Notifications (EOL):
29 Oct 2002
Product Obsolete
