 Marine & Offshore  / CRT Monitor  /   / JH 21C06

JH 21C06

Overview

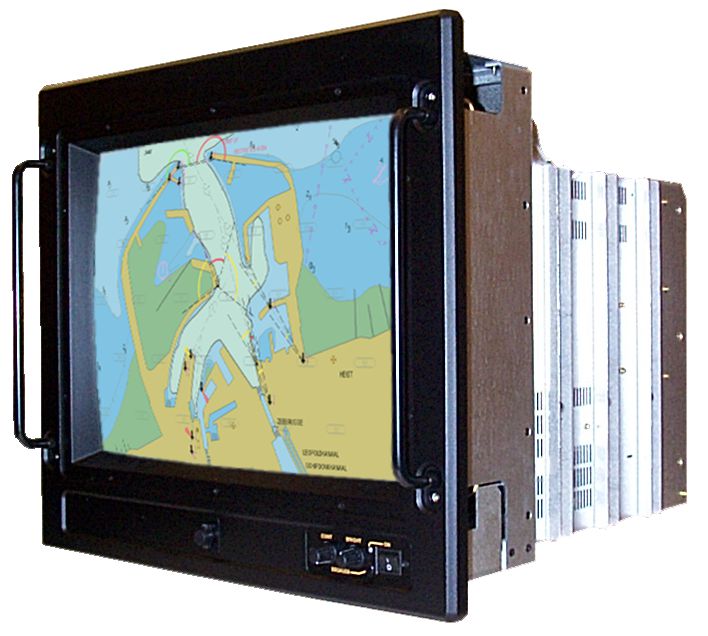

CRT Monitor - Industrial - 21.0 inch

JH 21C06

The color monitor described in this Data Sheet is an industrialized version of a high quality Hitachi based monitor. The monitor allows you to display professional applications with clarity and enhanced color and image quality.

Send Request
Description

CRT Monitor

The monitor provides you with automatic compatibility with multiple upgrading platforms and a vast array of graphics standards allowing resolution upgrades without upgrading the monitor. The monitor is tested according to the maritime standard EN60945 (IEC945).
Specifications
Typenumber (Long): JH 21C06
Picture Tube: CRT size: 21" / 533 mm
Viewable image size: 20" / 508 mm
Horizontal mask pitch: 406 x 305 mm
Deflection: 90 deg.

Light Intensity:
All white screen: >85 cd/m²
All black screen: <0,01 cd/m²

Tube: Flat square, black matrix, Advanced Elliptical Aperture electron gun with Multistep Dynamic Focussing (A-EA-MDF)
Input Signal: Video: Analogue 0.7V p-p 75 ohm
Sync: H/V separate TTL, H/V composite TTL, sync. on green, automatic sync. mode detection
Display Colors Analog Input: Unlimited colors (Depending on the graphics board)
Synchronization Range: Horizontal: 31 kHz to 115 kHz (Automatically)
Vertical: 50 Hz to 160 Hz (Automatically)
Resolutions: Maximum: 1600 x 1200 @ 75 Hz
Recommended: 1600 x 1200 @ 70 Hz / 1280 x 1024 @ 75 Hz
Maximum Video Bandwidth: 230 MHz
Active Display Area (factory setting): N/A
Active Display Area (full scan): N/A
Power Supply: Universal Power Supply:
AC 100 - 120 V, 50/60 Hz or
AC 220 - 240 V, 50/60 Hz (auto detect)
Power Consumption: 130 W (typical), 145W max
Input Signal Terminals: 2 x mini D-SUB 15P connector (female)
+ cable adapter 15p mini D-sub -> 5 x BNC
User Controls and Adjustment Features: On front bezel:
Power switch
Brightness control
Contrast control
Degauss switch (manual / auto)

Behind hatch:
Easy menu controls (on-screen display)
Input select
Power LED adjust
Quick auto degauss adjusting / setup

User Adjustments by OSM: Easy Menu (on screen display), contrast, brightness, color temperature / white balance selection (9300k / 6500k / 5000k / user), rotation, H-position / H-size, V-position / V-size, side pincushion, right pincushion, trapezoid, right trapezoid, H.moire on/off, H.moire adjustment

Presets: 27 (21 user-programmable, 6 factory settings)
Environmental Considerations: Operating: Temperature -15 deg. C to +55 deg. C, Humidity 30% to 93% (non condensing)
Storage: Temperature -20 deg. C to +60 deg. C, Humidity 10% to 90% (non condensing)
Factory Options: Front *
Cabinet *
Suspension Bracket *
Table Stand *
Touch Screen **
Quick auto degauss **

* Option: Standard or custom logo and color
** Option: Factory mounted
Product Dimensions and Weight: 533 (W) x 480 (H) 570 (D) mm
Weight: approx. 40kg
Type Approval, Testing and Certificates: The display is tested according to EN60945 3rd (IEC945 3rd) and type approved by the following classification societies: DNV - Det Norske Veritas, LRS - Lloyd's Register of Shipping, ClassNK - Nippon Kaiji Kyokai, ABS - American Bureau of Shipping, GL - Germanischer Lloyd

The display is tested according to EN61174 (IEC1174) and comply to ECDIS according to BSH test report.
Specifications last updated: July 7, 2025 @ 11:10
