 Marine & Offshore  / CRT Monitor  /   / JH 21C09 DSK

JH 21C09 DSK

Overview

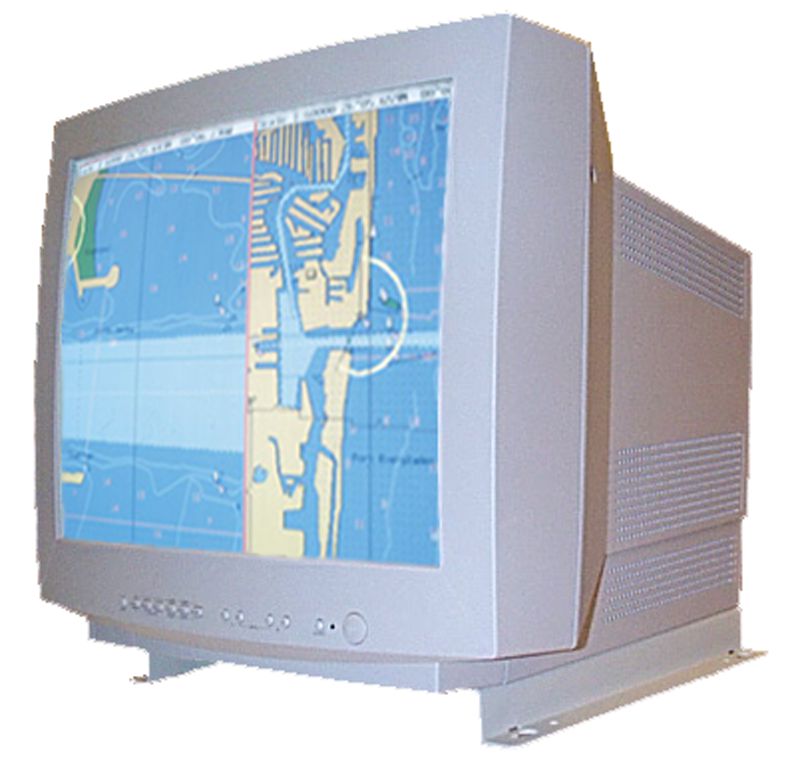

CRT Monitor - Desktop - 21.0 inch

JH 21C09 DSK

The color monitor described in this Data Sheet is an industrialized version of a high quality Hitachi based monitor. The monitor allows you to display professional applications with clarity and enhanced color and image quality.

icon
Desktop
Send Request
Description

CRT Monitor

The monitor provides you with automatic compatibility with multiple upgrading platforms and a vast array of graphics standards allowing resolution upgrades without upgrading the monitor. The monitor is tested according to the maritime standard IEC945-3. This is a technically lighter desktop monitor of the Hatteland monitor type JH 21C06 version.
Specifications
Typenumber (Long): JH 21C09 DSK
Picture Tube: CRT size: 21" / 533 mm
Viewable image size: 20" / 508 mm
Horizontal mask pitch: 406 x 305 mm
Deflection: 90 deg.

Tube: Flat square, black matrix, Advanced Elliptical Aperture electron gun with Multistep Dynamic Focussing (A-EA-MDF)

Light Intensity:
All white screen: > 85 cd/m²
All black screen: < 0,01 cd/m²
Input Signal: Video: Analogue 0.7V p-p 75 ohm
Sync: H/V separate TTL, H/V composite TTL, sync. on
green, automatic sync. mode detection
Display Colors Analog Input: Unlimited colors (Depending on the graphics board)
Synchronization Range: Horizontal: 31 kHz to 115 kHz (Automatically)
Vertical: 50 Hz to 160 Hz (Automatically)
Resolutions: Maximum: 1800 x 1350 @ 75 Hz
Recommended: 1280 x 1024 @ 85 Hz
Maximum Video Bandwidth: 230 MHz
Active Display Area (factory setting): N/A
Active Display Area (full scan): N/A
Power Supply: Universal Power Supply:
AC 100 - 120 V, 50/60 Hz or
AC 220 - 240 V, 50/60 Hz
Power Consumption: 130 W (typical), 145W max
Input Signal Terminals: 2 x mini D-SUB 15P connector (female)
User Controls and Adjustment Features: Power switch

On Screen Manager Controls:
Degauss switch (manual / auto)
Brightness control
Contrast control
Adjustment controls
Input Select

Presets:
27 (21 user-programmable, 6 factory settings)
Environmental Considerations: Operating: Temperature 0°C to +55°C, Humidity 30 % to 93 % (non condensing)
Storage: Temperature -20°C to +60°C, Humidity 10 % to 90 % (non condensing)
Factory Options: None
Product Dimensions and Weight: 488 (W) x 477 (H) x 470 mm
Weight: 28.5 kg
Type Approval, Testing and Certificates: N/A
Specifications last updated: July 7, 2025 @ 11:10
Type Approvals
Downloads
Accessories

Latest Product Updates

End of Life Notifications (EOL):
3 Mar 2003
Product Obsolete

Obsolete
loading
arrow-left
arrow-right

JH 21C09 DSK

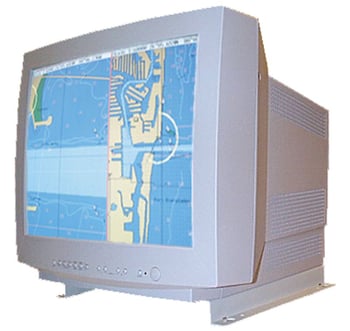

CRT Monitor - Desktop - 21.0 inch
