HT P3BB2 MSC

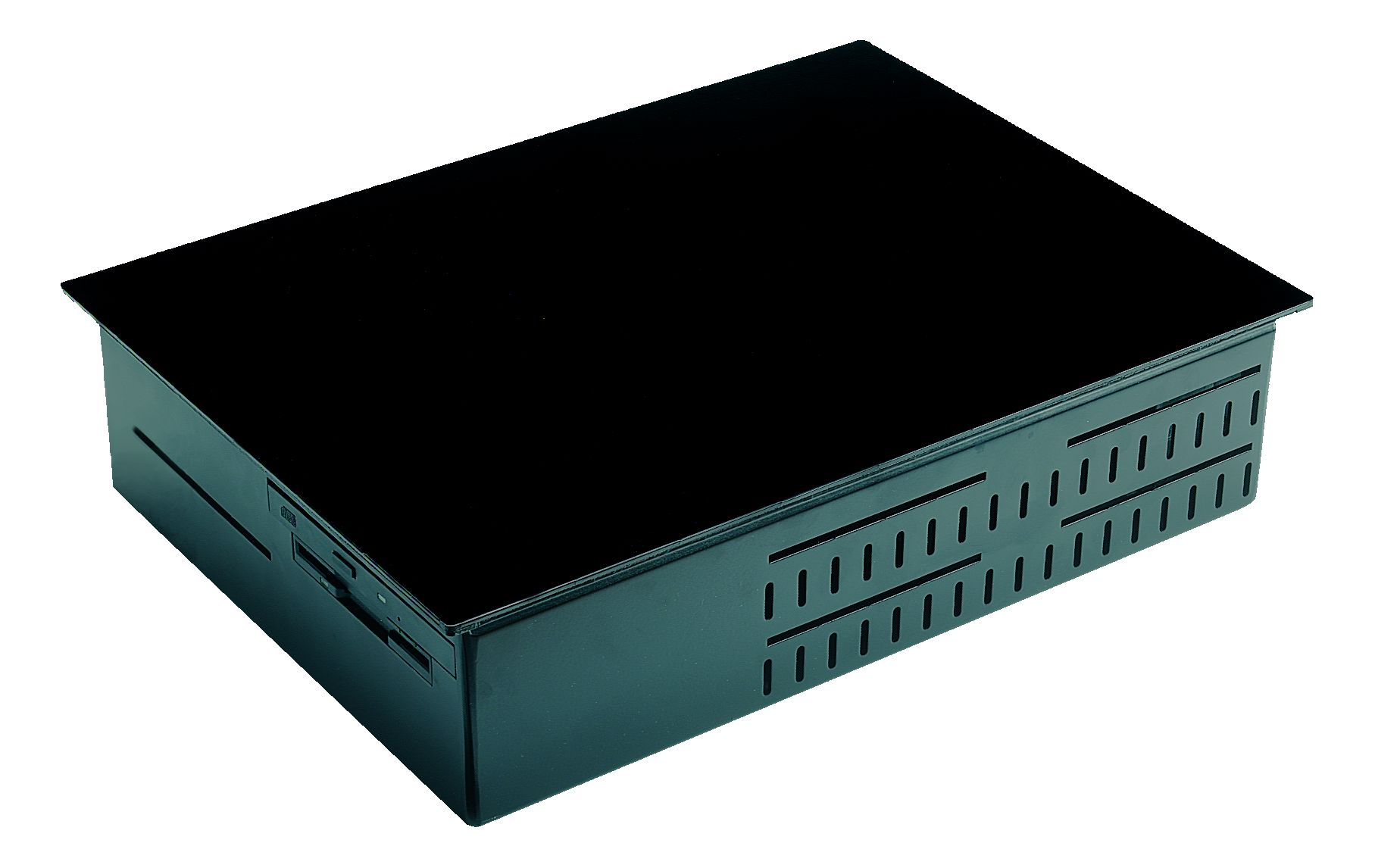

The BB2 MSC is a small industrial computer with expansion slots for customers that need PCI and ISA cards included in their systems. An ideal and robust unit for mobile, marine and automation systems. Can also run with passive CPU cooling (without fan) as an option. Useable for TFT, CRT and Plasma. This product can be manufactured after your specifications.

Send Request

Description

Specifications

Typenumber (Long):	HT P3BB2 MSC-Ax
Installed Operating System Options:	None, please specify when ordering Supports Win98 / NT4.0 / Win2000 / WinXP / Win CE.Net / Win XP Embedded / Redhat Linux 7.3
Storage Options:	1 x 30GB 2.5" HDD (Expandable) Ultra DMA 66 IDE, ATA 66 compliant. Secondary interface for 2.5" HDD support. Supports max 4 IDE devices.
Processor / CPU and FSB Speed Options:	Intel® Pentium® III or Intel® Celeron® 733MHZ (up to 1GHz) / Socket 370 / 133MHz FSB / 256KB Cache
Memory Options:	2 x 144 Pin SODIMM, 128MB (Sockets supports max 1GB SDRAM)
System+Graphics Chipset / Connectors:	Highly Integrated SIS 630 Chipset / 128-Bit 2D/3D accelerated graphic controller with up to 64MB video memory 1 x HD-15F
Max Resolution / Max Hz:	Max 1920 x 1200 with 16.7 millions colors
BIOS:	Phoenix BIOS On board with connector for external speaker option
PCI Slots / PCIe Slots:	2 x Half Size PCI 1 x Half Size ISA 1 x ¾ Size ISA 1 x PC/104 1 x PC/104+
Media Drive(s):	• CD-DRIVE: 1 x 24x SLIM • Floppy FDD: 2 x 3.5" 1.44 MB or 2.88 MB • Flash Disc: CompactFlash up to 196MB and DiskOnChip up to 288MB
LPT / Parallel Port:	1 x Bi-Directional Centronics with SPP/EPP/ECP mode, DB25F
Serial Port(s):	4 x RS-232C or 3 x RS-232C and 1 x RS-485 - NS16C550 Serial ports with 16 byte FIFO buffer, DB9M
Ethernet Port(s):	1 x 10/100 Base-T PCI Fast Ethernet with Wake-On-Lan, 1 x RJ-45
USB Port(s):	2 x USB on board with 1.5&12Mbps.
Keyboard and Mouse Ports:	1 x PS/2 Keyboard (Standard PS/2 mini DIN connector and pin header) 1 x PS/2 Mouse (Standard PS/2 pin header)
Audio Ports:	Sound Blaster PRO 16, Virtual AC-3 Surround Sound and SP/DIF compatible (Requires Extension Module)
Buzzer:	None
Power Manager and Monitoring:	APM Ver 1.2 and ACPI 1.0 Supervision of supply voltage and SW execution, Processor temperature and fan supervision
Power Specifications and Consumption:	Power Supply Options: • 115VAC/60Hz or 230VAC/50Hz: Model HT P3BB2 MSC A1 (100W) • 12VDC or 24VDC: Model HT P3BB2 MSC A2 Power Consumption - Operating: TBD (MAX)
Digital I/O Connectors:	IrDA: Ver 1.1 with 4Mbps
Key Features:	Aluminium Chassis, Compact form factor, AC or DC model
Product Dimensions and Weight:	W:288.00 [11.34"] x H:82.00 [3.23"] x D:220.00 [8.66"] mm [inch] 3.4kg / 7.7lbs (approx)
Product Carton Size and Weight:	N/A
User Controls / Activity:	Power Button, Reset Button, Power LED, Activity LED HDD trays
Factory Options:	N/A
Accessories:	None
Capabilities / Prepared for:	• CRT1, CRT2* (independent of CRT1), TV-Out* (S-Video and Composite in PAL/NTSC), PanelLink, DVI, DFP&LVDS* • Up to 5 USB ports* • DVD/MPEG2: Hardware accelerated DVD/MPEG2 decoding with direct TV-OUT* playback * Requires Extension Module *** Prepared for. Requires development of Extension Module
Operating Temperature:	-15.0°C / 5.0°F to +55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-30.0°C / -22.0°F to +60.0°C / +140.0°F, Humidity up to 95%
Compass Safe Distance:	N/A
Type Approval, Testing and Certificates:	EN60945 3rd (IEC945 3rd), EN50082-2, EN55022, And meets the hardware requirements in IEC61174 e.2.0 (ECDIS)

Specifications last updated: August 15, 2025 @ 13:51
