HT 404P4

Overview

Computer - 4U Size - Server - Rackmount - 4U

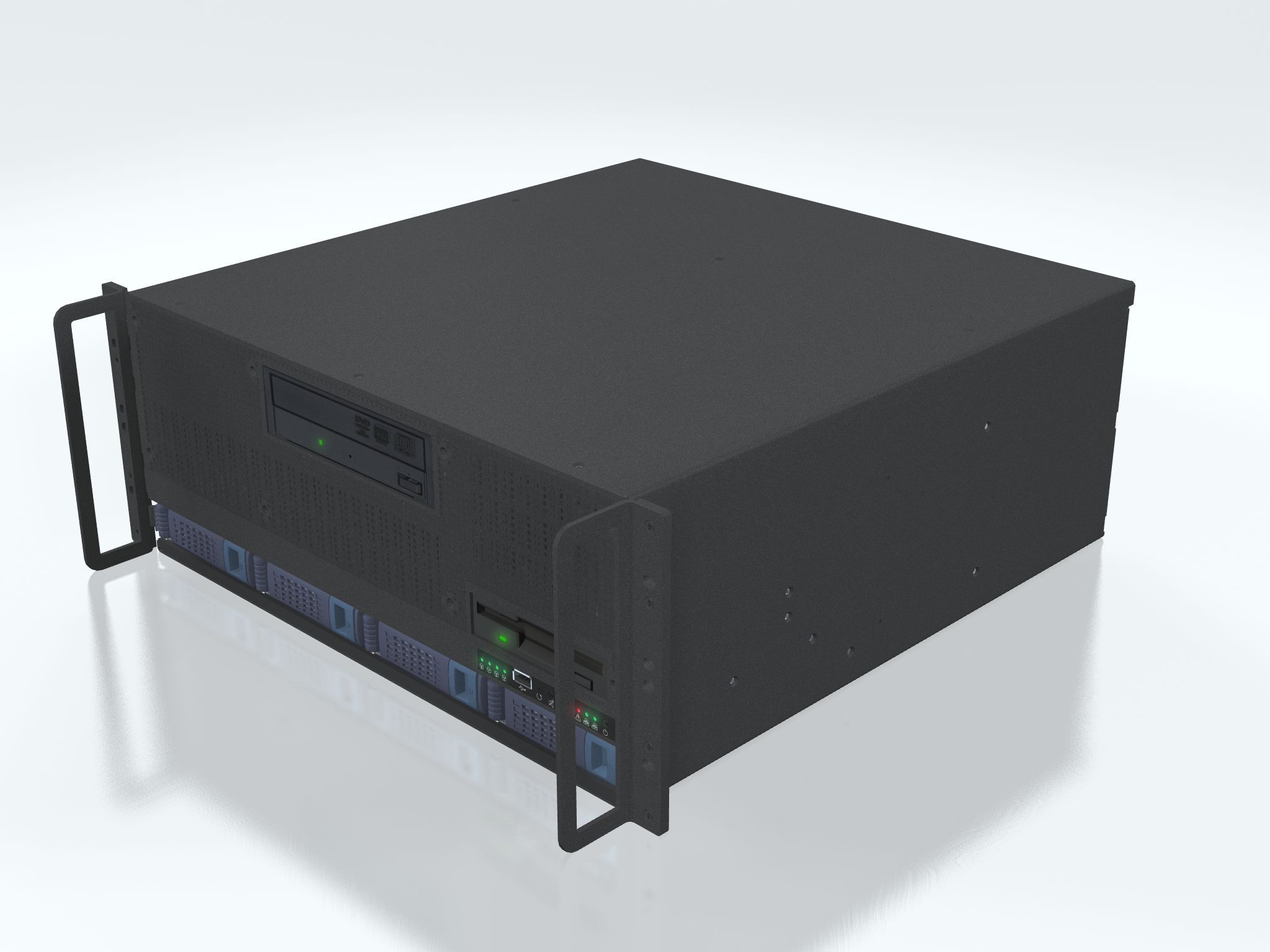

HT 404P4

Get first-class performance across a broad range of applications with HT 404P4 STD Maritime Rack Computer. Ideal for use in industrial and maritime environments where performance is important. Leading edge technology makes these computers the smart choice for all heavy applications. Max storage capacity is 1TB.

icon
4U Size
icon
Server
Send Request
Description

Computer - Rackmount

Brief Specifications:
• Intel® Pentium®4 3.4 GHz, 800MHz FSB (Socket 775)
• On-board Intel® GMA900 Graphics, RGB, Up to 2048 x 1536, 32-Bit @ 85Hz
• 1 x 512MB RAM, PC3200 - 400MHz DDR SDRAM
• 1 x 160GB Removeable HD, SATA, 3,5inch, 7200 RPM, 8 MB Cache
• 1 x DVD ± Dual/CD R/W Recorder
• 1 x 1,44MB Floppy Drive
• 2 x 10/100/1000Mbps Base-T Ethernet
• 3 x RS-232 Serial Ports
• 1 x Parallel port
• 4 x USB rear ports + 1 x USB front port. (2.0 & 1.1 support)
• 2 x PS/2 DIN connector keyboard and mouse.
• Power supply 115/230VAC - 400W Autorange
Specifications
Typenumber (Long): HT 404P4 STD-A1
Installed Operating System Options: None, please specify when ordering
Storage Options: 1 x 160GB Removeable HD, SATA, 3,5", 7200 RPM, 8 MB Cache
Up to 4 x 250GB Removeable 3,5" SATA, 7200 RPM, 8MB Cache HDD possible
Processor / CPU and FSB Speed Options: 1 x Intel® Pentium® 4 3.4GHz / Socket LGA775 / 800MHz FSB / 2MB L2 Cache
Memory Options: 1 x 512MB in 1 slot, PC3200 - 00 DDR SDRAM, NO ECC - Up to 2GB RAM possible, 2 x DDR Slots
System+Graphics Chipset / Connectors: Intel® 915G + ICH6 / On-board Intel® Graphics Media Accelerator (GMA) 900 - Up to 2048 x 1536, 32-Bit @ 85Hz
1 x DB15F
Max Resolution / Max Hz: 2048 x 1536 / 85Hz
BIOS: Phoenix Award BIOS™ 2MBit Flash, Supports ACPI
On-board speaker
PCI Slots / PCIe Slots: 4 x PCI2.2 Slots 32-bit, 3V and 5V Interface, Full Length Profile (5 possible if ComBracket is removed)
1 x (x16) PCI-Express slot
1 x (x1) PCI-Express slot
Media Drive(s): DVD/CD DRIVE: Read: 48x (CD) / 16x (DVD), Write: 48x (CD) / 16x (DVD R) / 6x (DVD-R DL) / 8x (DVD+R DL), Rewrite: 32x (CD) / 6x (DVD-RW) / 8x (DVD+RW)
FDD Interface: 1x 1.44 MB (Supports 2.88 MB)
LPT / Parallel Port: 1 x DB25F Bi-Directional Centronics with EPP/ECP mode
Serial Port(s): 3 x RS-232 (in rear), DB9M
Ethernet Port(s): 2 x 10/100/1000Mbps Marvell 88E8053 PCI Express Gigabit LAN - RJ-45
USB Port(s): 5 x USB 2.0 Type A (4 x in rear, 1 x in front)
Keyboard and Mouse Ports: 1 x PS/2 Keyboard
1 x PS/2 Mouse
Audio Ports: AC-97 ALC658, 7.1 Surround Support, HD Quality Audio with LINE IN, LINE OUT, MIC IN - 3 x JACKS
Buzzer: None
Power Manager and Monitoring: Watchdog Timer, Modem WakeUp, Boot ROM on LAN2, W83627HF for temperature/voltage status
Power Specifications and Consumption: 115VAC/60Hz or 230VAC/50Hz (400W Autorange) - STD IEC
Operating: TBD(TYP) - TBD (MAX)
Digital I/O Connectors: None
Key Features: 4U Rackmount Chassis, Black heavy-duty steel chassis with handles, Removable air filter, Dual lockable latch doors
Product Dimensions and Weight: W:482.00 [19.00"] x H:177.80 [7.00"] x D:506.50 [19.94"] mm [inch]
25 kg / 55lbs (approx)
Product Carton Size and Weight: N/A
User Controls / Activity: Power On/Off Push Button, Power LED, HDD LED
Factory Options: Dual Head Graphics Card, DVI-I, PCIe 16X, 128MB, Max 2048x1536 - 2 x 24P DVI-I
• Raid Controller - Modes 0,1,4,5,10 supported - Max 4 ports - 4 x SATA
• 8 Channel RS-232 Serial Card + 8 port RS422 connection box with 500v isolation - 8xDB25F+DB9M
• 2 Channel Serial Card (422/485) - 2 x DB9M
• 2 Channel Network Server Adapter NIC 10/100Mbps Card - 2 x RJ-45
• Bracket for additional comport (1 x RS232/422/485) (Will occupy 1 PCI slot space) - 1 x DB9M
Accessories: None
Capabilities / Prepared for: N/A
Operating Temperature: -15.0°C / 5.0°F to +55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature: -20.0°C / -4.0°F to +60.0°C / 140.0°F, Humidity up to 95%
Compass Safe Distance: Standard: 300.00 [118.11"] - Steering: 220.00 [86.61"] cm [inch]
Type Approval, Testing and Certificates: EN60945 4th (IEC945 4th), DNV - Det Norske Veritas, ABS - American Bureau of Shipping, IACS E-10, BV - Bureau Veritas, ClassNK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, LRS - Lloyd's Register of Shipping
Specifications last updated: July 9, 2025 @ 12:38
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

27 Apr 2007
HT 40xxx STD

End of Life Notifications (EOL):
2 Jun 2009
HT 205P4, HT 405P4 and HT 404P4

14 Nov 2008
Matrox® P650 Graphics Card

17 Oct 2005
Windows® 2000 retirement

Service Memo Notifications (SM):
15 Apr 2008
MICROSOFT® WINDOWS®XP PRO SP2 LICENSE ISSUE

News Stories:
13 Oct 2006
New product introduced: HT 404P4 STD
