PRODUCT DETAILS
Marine & Offshore
/ Computer
/ Rackmount
/ HT 405P4
Computer - 4U Size - Server - Rackmount - 4U
• Intel® Pentium®4 - 3.4GHz (Socket 775)
• Intel® Graphics Media Accelerator 900 (2048x1536 @ Max85Hz)
• 1 x 512MB RAM
• 1 x 80GB 2,5” HDD
• 1 x DVD-RW 48x (CD) / 16x (DVD R) / 6x (DVD-R DL) / 8x (DVD+R DL)
• 1 x 1,44MB 3,5” FDD
• 2 x 10/100/1000Mbps Gigabit LAN
• 3 x RS-232 Serial Ports
• 1 x Parallel port
• Standard PS/2 mini DIN connector and pin header for keyboard and mouse.
• Power supply 115/230V - 400W (Autorange)
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...
7 Aug 2023
Changes product marking - all products
27 Apr 2007
HT 40xxx STD
2 Jun 2009
HT 205P4, HT 405P4 and HT 404P4
14 Nov 2008
Matrox® P650 Graphics Card
17 Oct 2005
Windows® 2000 retirement
Computer - 4U Size - Server - Rackmount - 4U
Brief Specifications:
• Intel® Pentium®4 - 3.4GHz (Socket 775)
• Intel® Graphics Media Accelerator 900 (2048x1536 @ Max85Hz)
• 1 x 512MB RAM
• 1 x 80GB 2,5” HDD
• 1 x DVD-RW 48x (CD) / 16x (DVD R) / 6x (DVD-R DL) / 8x (DVD+R DL)
• 1 x 1,44MB 3,5” FDD
• 2 x 10/100/1000Mbps Gigabit LAN
• 3 x RS-232 Serial Ports
• 1 x Parallel port
• Standard PS/2 mini DIN connector and pin header for keyboard and mouse.
• Power supply 115/230V - 400W (Autorange)
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...
7 Aug 2023
Changes product marking - all products
27 Apr 2007
HT 40xxx STD
2 Jun 2009
HT 205P4, HT 405P4 and HT 404P4
14 Nov 2008
Matrox® P650 Graphics Card
17 Oct 2005
Windows® 2000 retirement
HT 405P4
Computer - 4U Size - Server - Rackmount - 4U
HT 405P4

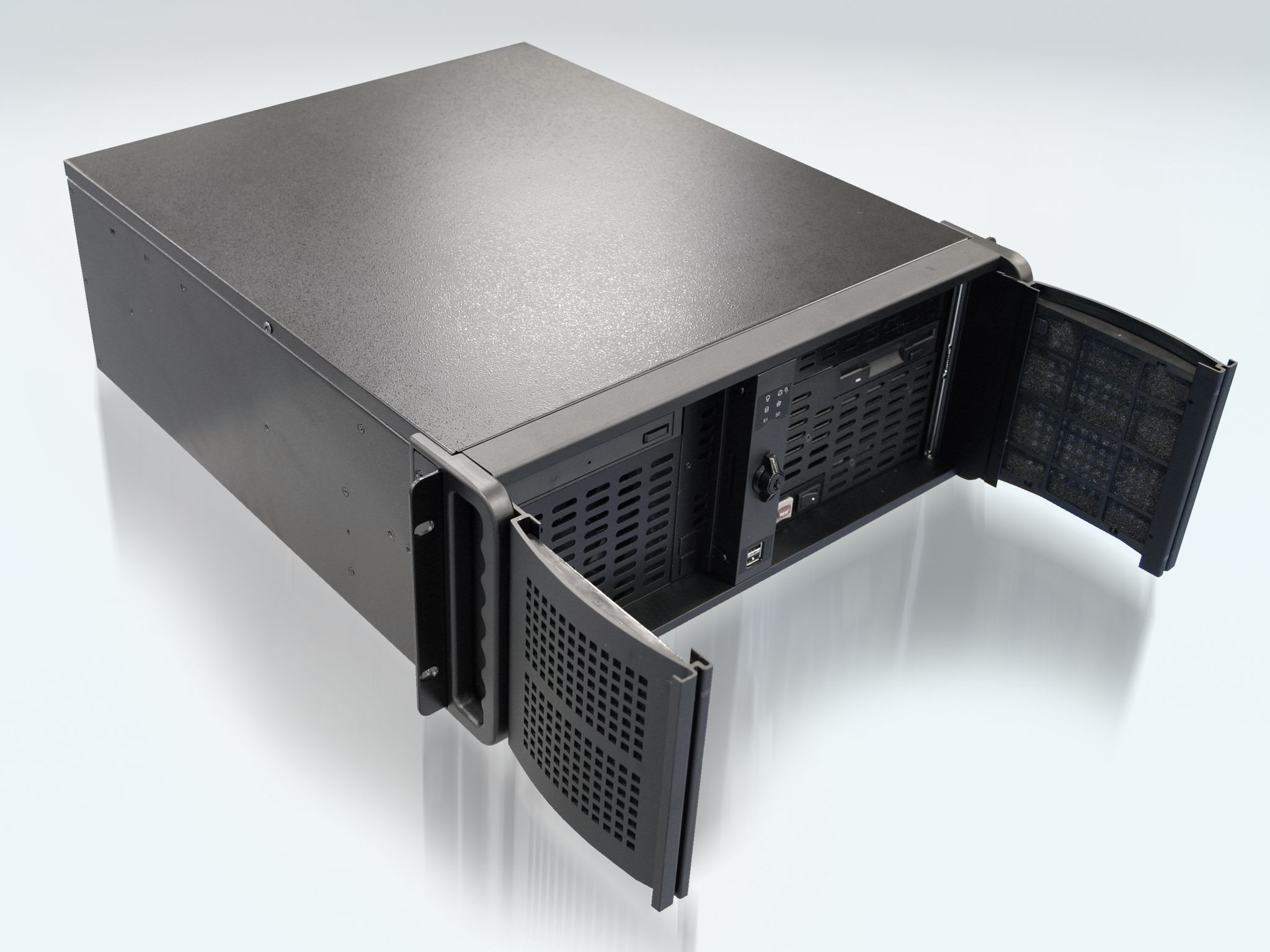

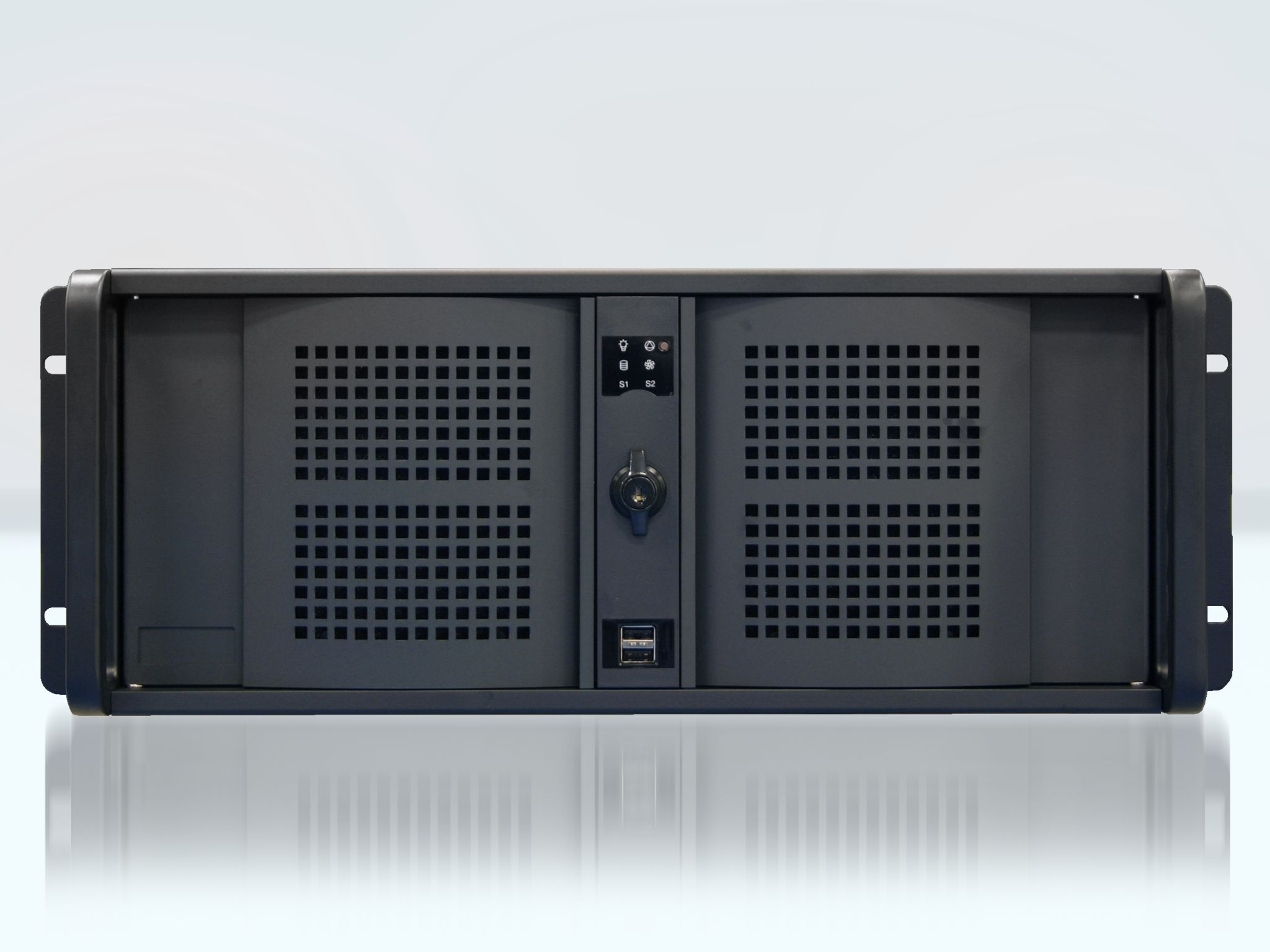

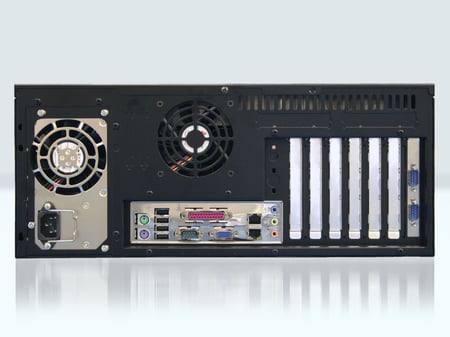

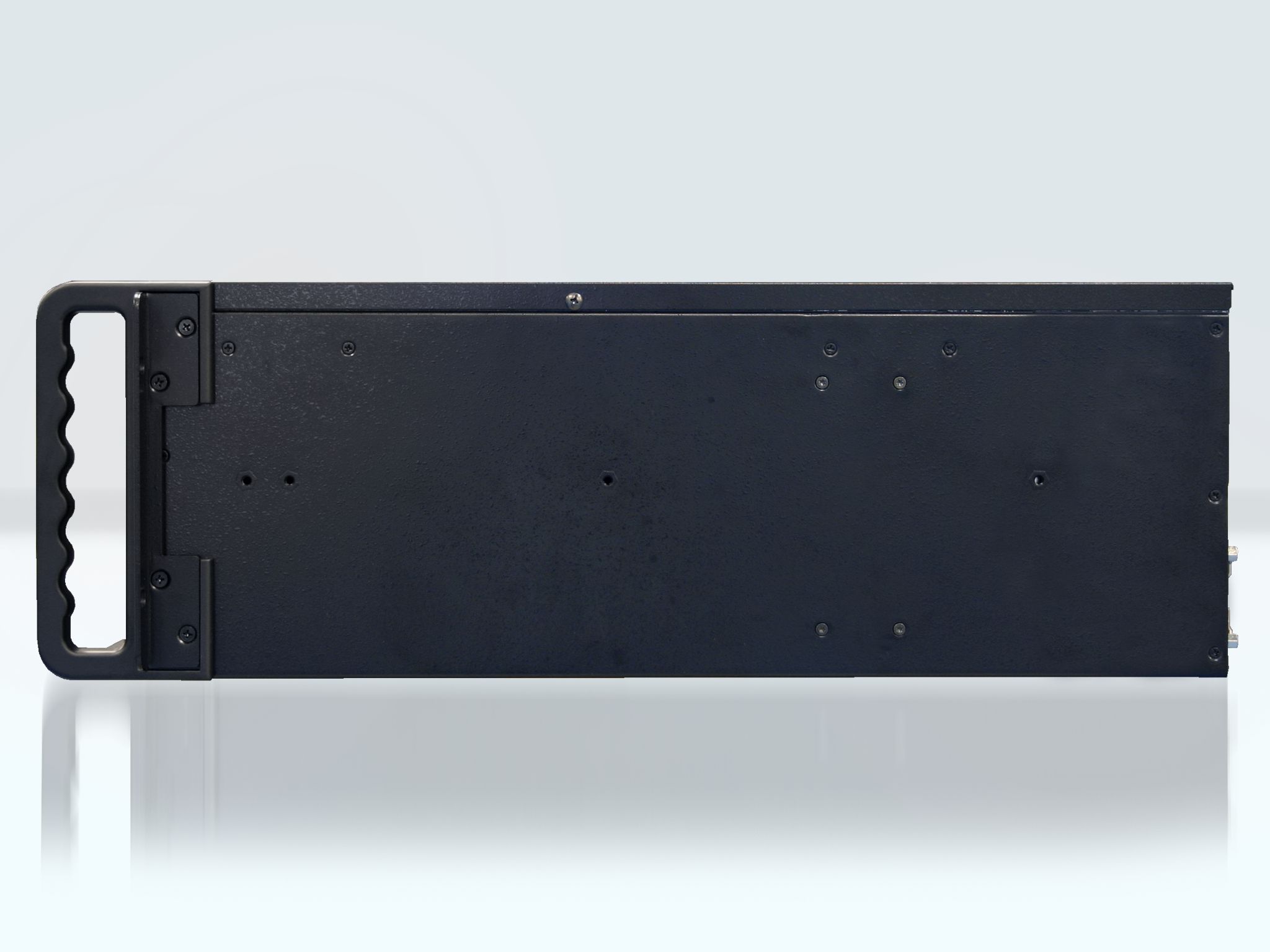

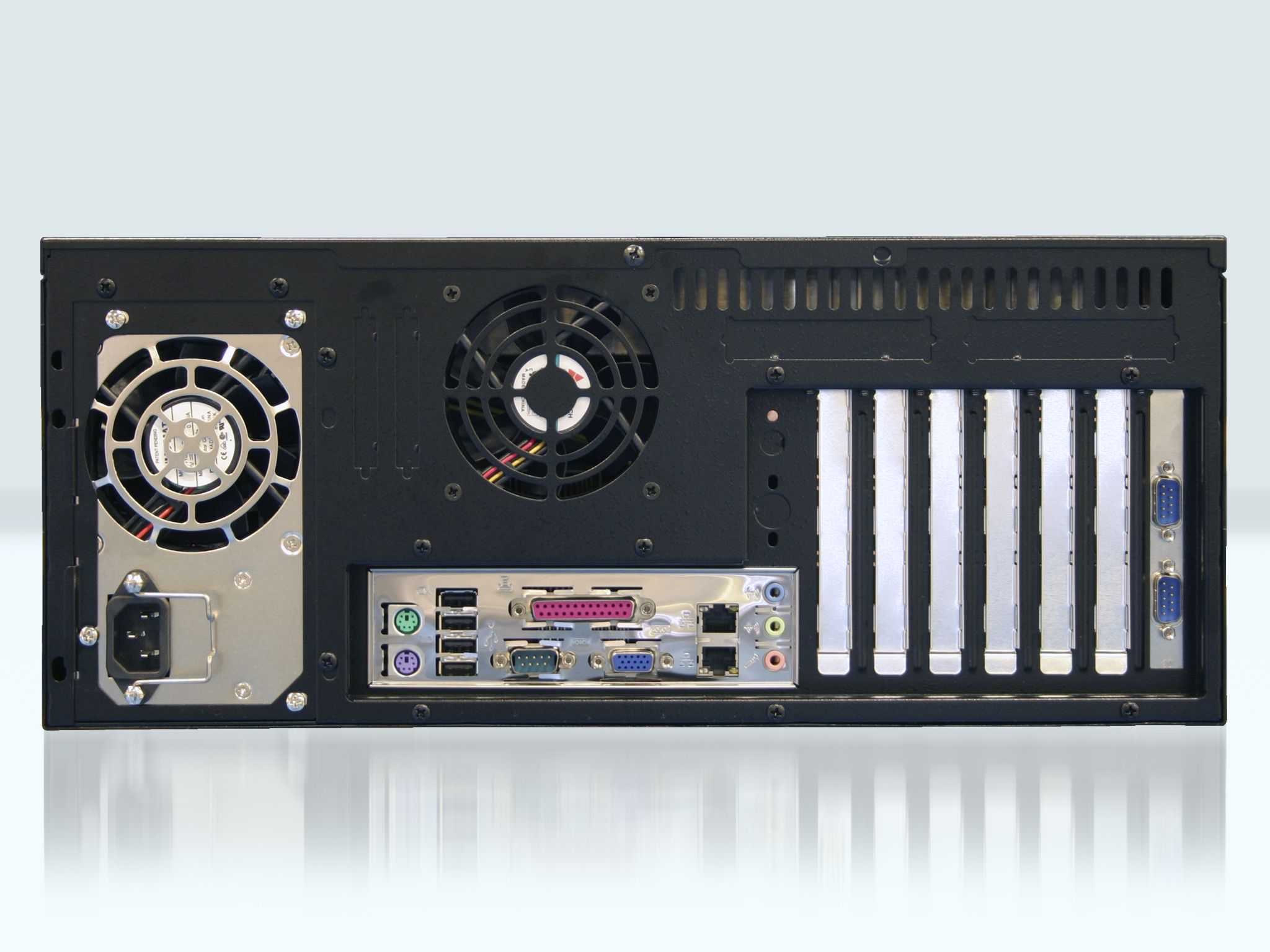

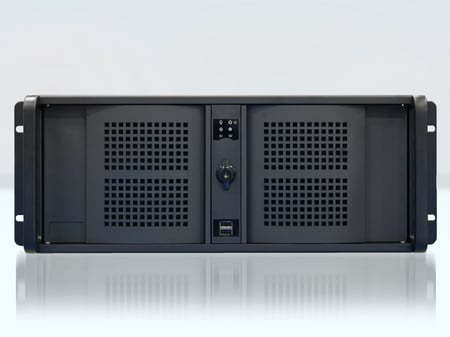

Get first-class performance across a broad range of applications with HT 405P4 STD Maritime Rack Computer. Ideal for use in industrial and maritime environments where performance is important. Leading edge technology makes these computers the smart choice for all heavy applications.
4U Size
Server

Computer - Rackmount
Brief Specifications:• Intel® Pentium®4 - 3.4GHz (Socket 775)
• Intel® Graphics Media Accelerator 900 (2048x1536 @ Max85Hz)
• 1 x 512MB RAM
• 1 x 80GB 2,5” HDD
• 1 x DVD-RW 48x (CD) / 16x (DVD R) / 6x (DVD-R DL) / 8x (DVD+R DL)
• 1 x 1,44MB 3,5” FDD
• 2 x 10/100/1000Mbps Gigabit LAN
• 3 x RS-232 Serial Ports
• 1 x Parallel port
• Standard PS/2 mini DIN connector and pin header for keyboard and mouse.
• Power supply 115/230V - 400W (Autorange)
Typenumber (Long): |
HT 405P4 STD-A1 |
Installed Operating System Options: |
None, please specify when ordering |
Storage Options: |
1 x 80GB 2.5" IDE HDD, 5400 RPM, 8MB Cache SATA150 Installed (Max 120GB possible) |
Processor / CPU and FSB Speed Options: |
1 x Intel® Pentium® 4 - 3.4GHz / Socket 775 / 800MHz FSB / 2MB L2 Cache |
Memory Options: |
2 x 184 Pin DIMM Sockets, 512MB Installed (1 slot used) (PC3200 DDR400) (Max 2GB possible) |
System+Graphics Chipset / Connectors: |
Intel® 915G Express Chipset with ICH6 / On-board Intel® Graphics Media Accelerator 900 - Up to 2048x1536 @ Max85Hz - 32-Bit colors 1 x DB15F |
Max Resolution / Max Hz: |
2048 x 1536 / 85Hz |
BIOS: |
Award BIOS™ |
PCI Slots / PCIe Slots: |
4 x PCI2.2 Slots 32-bit, 3V and 5V Interface, Full Length Profile 1 x PCI Express x16 1 x PCI Express x1 |
Media Drive(s): |
1 x DVD/CD-RW Dual Recorder/Player - 48x(CD) / 16x(DVD-R) / 6x(DVD-R DL) / 8x(DVD+R DL) FDD Controller: 1 x 1.44 MB 3.5" |
LPT / Parallel Port: |
1 x DB25F Bi-Directional Centronics with EPP/ECP mode |
Serial Port(s): |
3 x RS-232 16C550 Compatible, DB9M |
Ethernet Port(s): |
2 x 10/100/1000Mbps Gigabit LAN Marvell 88E8053 PCI Express Based - RJ-45 |
USB Port(s): |
6 x USB 2.0 Type A (4 in back, 2 in front) |
Keyboard and Mouse Ports: |
1 x PS/2 Keyboard 1 x PS/2 Mouse |
Audio Ports: |
ICH6 built-in audio + AC97 codec ALC658 6 channels with LINE IN, LINE OUT, MIC IN - 3 x JACKS |
Buzzer: |
None |
Power Manager and Monitoring: |
APM and ACPI, Built in W83627HF, monitors system/CPU temperature and voltage status |
Power Specifications and Consumption: |
115VAC/60Hz or 230VAC/50Hz (400W - Autorange) - STD IEC Operating: 100W (TYP) |
Digital I/O Connectors: |
None |
Key Features: |
4U Rackmount Chassis, Black heavy-duty steel chassis with handles, Removable air filter, Dual lockable latch doors |
Product Dimensions and Weight: |
W:427.00 [16.81"] x H:176.80 [6.96"] x D:480.00 [18.90"] mm [inch] Approx 12kg / 26.4lbs |
Product Carton Size and Weight: |
N/A |
User Controls / Activity: |
Power On/Off Push Button, Power LED, HDD LED |
Factory Options: |
• Dual Head Graphics Card, DVI-I, PCIe 16X, 128MB, Max 2048x1536 - 2 x 24P DVI-I • Memory upgradeable to max 2GB • 2.5" Harddisk upgradeable to max 120GB • Bracket for additional comport (1 x RS232/422/485) - 1 x DB9M • Rail Kit |
Accessories: |
None |
Capabilities / Prepared for: |
N/A |
Operating Temperature: |
-15.0°C / 5.0°F to +55.0°C / 131.0°F, Humidity up to 95% |
Storage Temperature: |
-20.0°C / -4.0°F to +60.0°C / 140.0°F, Humidity up to 95% |
Compass Safe Distance: |
Standard: 220.00 [86.91'] - Steering: 150.00 [59.06"] cm [inch] |
Type Approval, Testing and Certificates: |
EN60945 4th (IEC945 4th), DNV - Det Norske Veritas, ABS - American Bureau of Shipping, IACS E-10, BV - Bureau Veritas, ClassNK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, LRS - Lloyd's Register of Shipping |
Specifications last updated: July 4, 2025 @ 08:44 |
