PRODUCT DETAILS

✕

✕
 Marine & Offshore  / Monitor  / HATTELAND® Series 0  / JH 1004 VGA

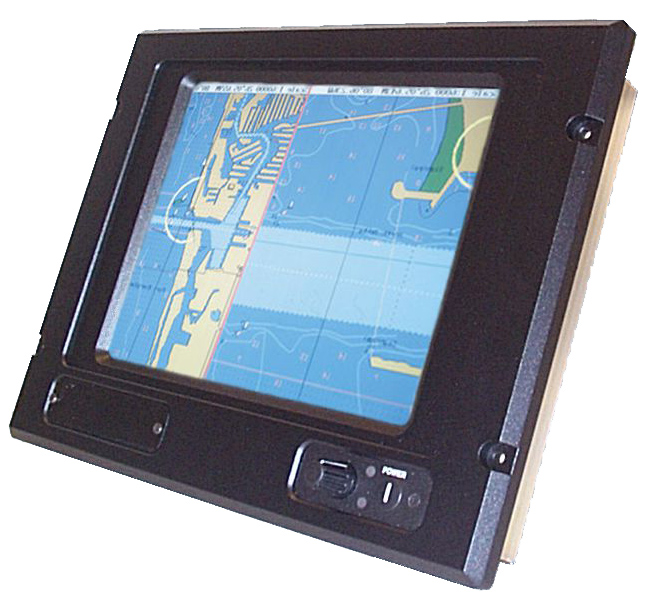

JH 1004 VGA

Overview

Monitor - CCFL - HATTELAND® Series 0 - 10.4 inch

JH 1004 VGA

The color display described in this Data Sheet are industrialized versions of high quality products. The display allow you to display professional applications with clarity and enhanced color and image quality.

icon
CCFL-backlit
Send Request
Description

Monitor - HATTELAND® Series 0

The combination of the VGA controller and the hight light intensity of the TFT display allow the product to be used in many environments. The combination and the high-color-saturation also makes it suitable for the multimedia use. Standard VGA signal are displayed without external adapters.
Specifications
Typenumber (Long): JH 1004 VGA
TFT Technology: Color active matrix TFT/LCD, RGB vertical strip, Sharp Thin Film Transistor. LCO with truecolor 640 x 3 x 480 (RGB stripe) OP
Viewable Size and Active Area: 10.4 inch - 211.2 [8.32"] (H) x 158.4 [6.24"] (V) mm [inch]
Native Resolution and Pixel Pitch: 640 x 480 (XGA) - 0.330 (H) x 0.330 (V) mm
Aspect Ratio and Response Time: 4:3 - N/A
Light Intensity and Contrast Ratio: 200 cd/m² (2 x Cold Cathode Fluorescent Tube) - N/A
View Angle and Max Colors: N/A - 262144 (dep. on graphical board used)
Optimal Resolution and Hz: 640 x 480 @ 60 Hz

Synchronization Range:
Horisontal: 31.47 kHz
Vertical: 60 Hz
Separate H- and V-Sync (TTL)
Composite-Sync
Composite-Sync on Green
Detectable Resolutions: 640 x 480
Composite Video Input(s): None
Supported Video Signals: None
Product Features: N/A
Power Specifications and Consumption: 10 - 36 VDC
17 W
User Controls and Activity: Outside front frame: Power Switch, Brightness, Mode Status LED
Inside front frame:
• Picture adjustment
• H-pos
• V-pos
• Char
• Phase
• Memory
• LED intensity
Connectors: VGA signal: 1 x HD-DSUB 15P Connector (Female)
Power: 2 x Screw 4M for cable eye
Touch screen: (option) 1 x D-SUB 9P Connector (Female)
Product Dimensions and Weight: 338.5(W) x 255.5(H) x 67.7(D) mm
4.1 kg
Product Carton Size and Weight: N/A
Factory Options: Front
Cabinet

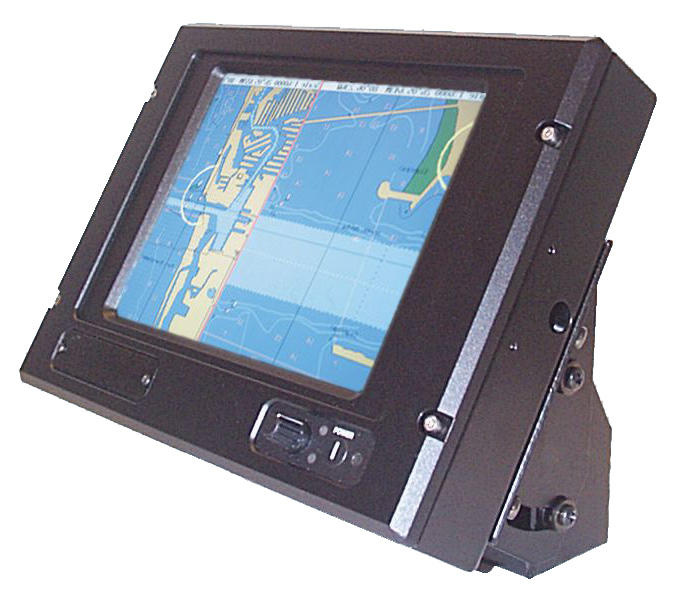

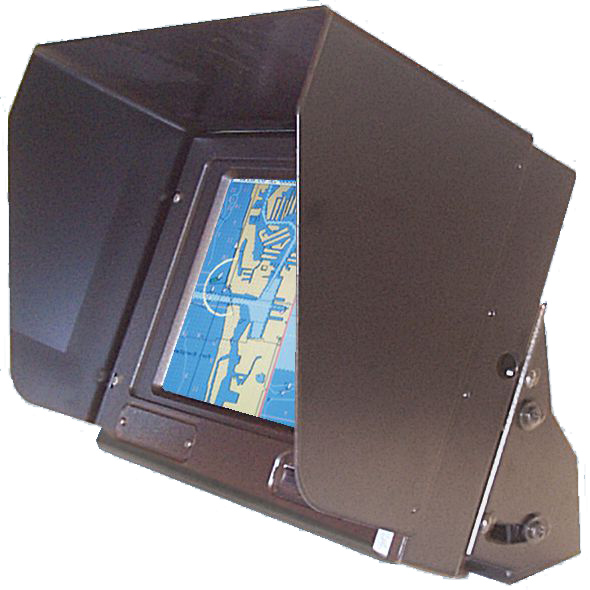

Bracket
Touch screen
Accessories: N/A
Capabilities - Prepared for: N/A
Operating Temperature: 0.0°C / 32.0°F to +50.0°C / 122.0°F
Humidity 10% to 90% (non condensing)
Storage Temperature: -25.0°C / -13.0°F to +60.0°C / 140.0°F
Humidity 10% to 90% (non condensing)
IP Rating: N/A
Compass Safe Distance: N/A
Type Approval, Testing and Certificates: CE Classified
Specifications last updated: August 18, 2025 @ 08:00
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

End of Life Notifications (EOL):
21 Jul 2000
Product Obsolete

Obsolete
