JH 10T05 VGA

Overview

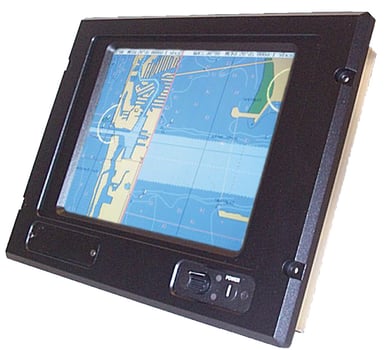

Monitor - CCFL - HATTELAND® Series 0 - 10.4 inch

JH 10T05 VGA

The color display described in this Data Sheet is an industrialized version of a high quality Sharp TFT based display. The display allows you to display professional applications with clearity and enhanced color and image quality.

icon
CCFL-backlit
Send Request

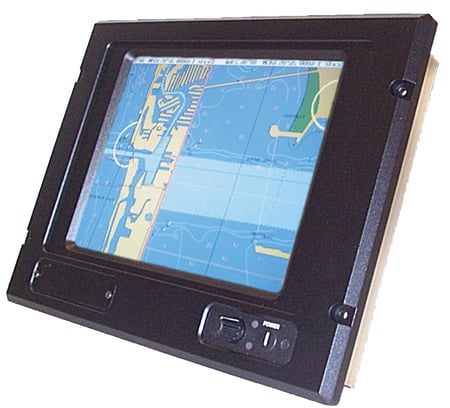

Description

Monitor - HATTELAND® Series 0

The combination of the VGA controller and the high light intensity of the TFT display allows the product to be used in many environments. The combination and the high-color-saturation also makes it suitable for the multimedia use. Standard VGA signal are displayed without external adapters. Brightness is adjustable from 0-100%.
Specifications
Typenumber (Long): JH 10T05 VGA
TFT Technology: Active Matrix, Thin Film Transistor (TFT), RGB vertical stripe
Viewable Size and Active Area: 10.4 inch - 211.2 [8.32"] (H) x 158.4 [6.24"] (V) mm [inch]
Native Resolution and Pixel Pitch: 640 x 480 (XGA) - 0.330 (H) x 0.330 (V) mm
Aspect Ratio and Response Time: 4:3 - 20 ms (typical), "black" to "white"
Light Intensity and Contrast Ratio: 350 cd/m² (typical) - 300:1 (typical)
View Angle and Max Colors: 70 deg. (left/right), 40 deg (up/down) - 262,144 colors (6-bit max)
Optimal Resolution and Hz: 640 x 480 @ 60 Hz

Sync Signal:
• Separate H- and V-Sync (TTL)
• Composite-Sync
• Composite-Sync on Green
• Video Signal: Analog RGB 0,7Vp-p, Input Impedance 75 Ohm

Synchronisation Range:
• Horizontal: 31,47 kHz
• Vertical: 60 Hz
Detectable Resolutions: 640 x 480
Composite Video Input(s): None
Supported Video Signals: None
Product Features: Dimmable 0-100%
Power Specifications and Consumption: 12-24 VDC: Model JH 10T05 VGA-A0/A1
Operating: 25 W (max)
User Controls and Activity: On front bezel:
• Power On/Off (push button)
• Brightness Control
• Mode Status LED

Behind hatch:
• On Screen Display control (OSD/OSM)

Rear side:
• Auto LED adjustment
Connectors: • RGB (PC) signal: 15pin mini D-SUB (female)
• DC Power signal: Screw terminal Model JH 10T05 VGA-A0/A1
• If Touchscreen: 1 x D-SUB 9P Connector (female)
Product Dimensions and Weight: 339(W) x 256(H) x 68(D) mm
3.7 kg (approx)
Product Carton Size and Weight: N/A
Factory Options: Touch screen
Higher IP-rating

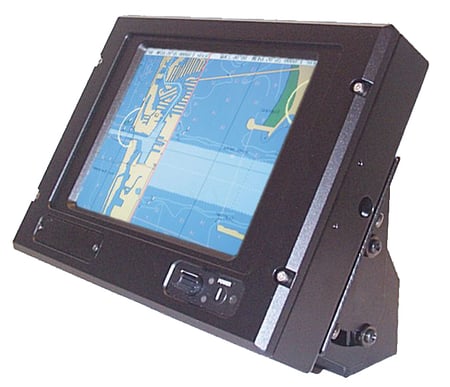

Accessories: • JH 10TBR STD = Bracket

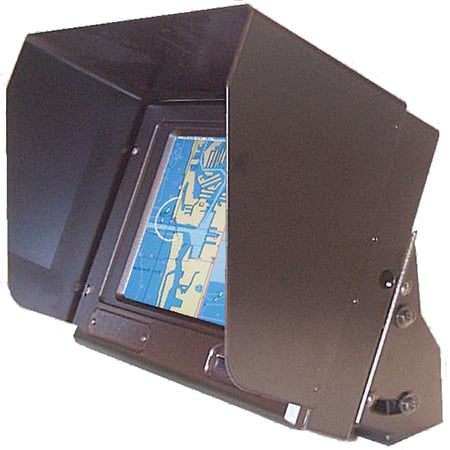

• JH 10TSV = Sun Visor
Capabilities - Prepared for: N/A
Operating Temperature: 0.0°C / 32.0°F to +50.0°C / 122.0°F
Humidity 10% to 90% (non condensing)
Storage Temperature: -25.0°C / -13.0°F to +60.0°C / 140.0°F
Humidity 10% to 90% (non condensing)
IP Rating: N/A
Compass Safe Distance: N/A
Type Approval, Testing and Certificates: N/A
Specifications last updated: August 18, 2025 @ 08:00
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

End of Life Notifications (EOL):
6 Nov 2003
JH 10T05 VGA

Obsolete
