JH 10T06 STD

Overview

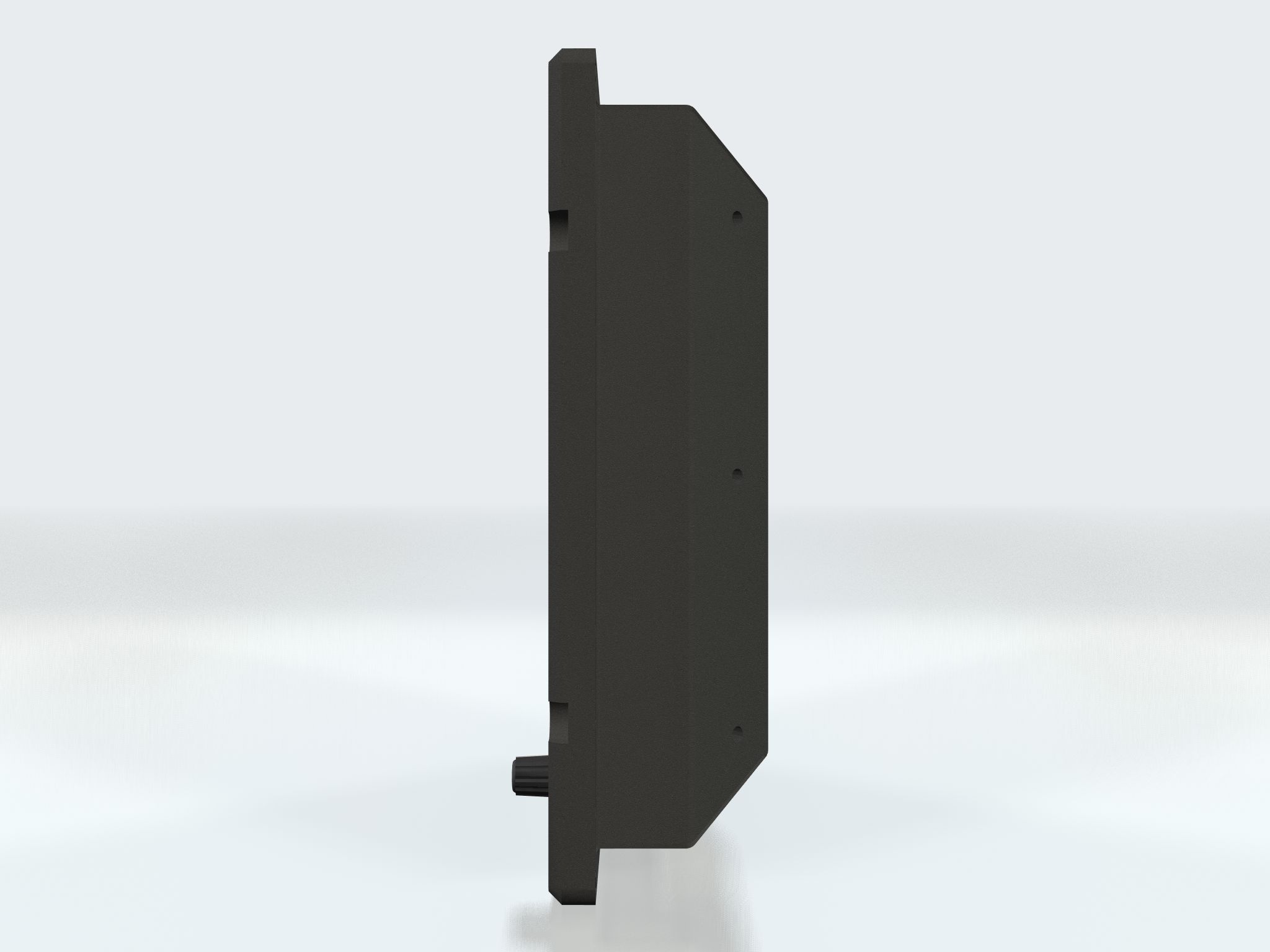

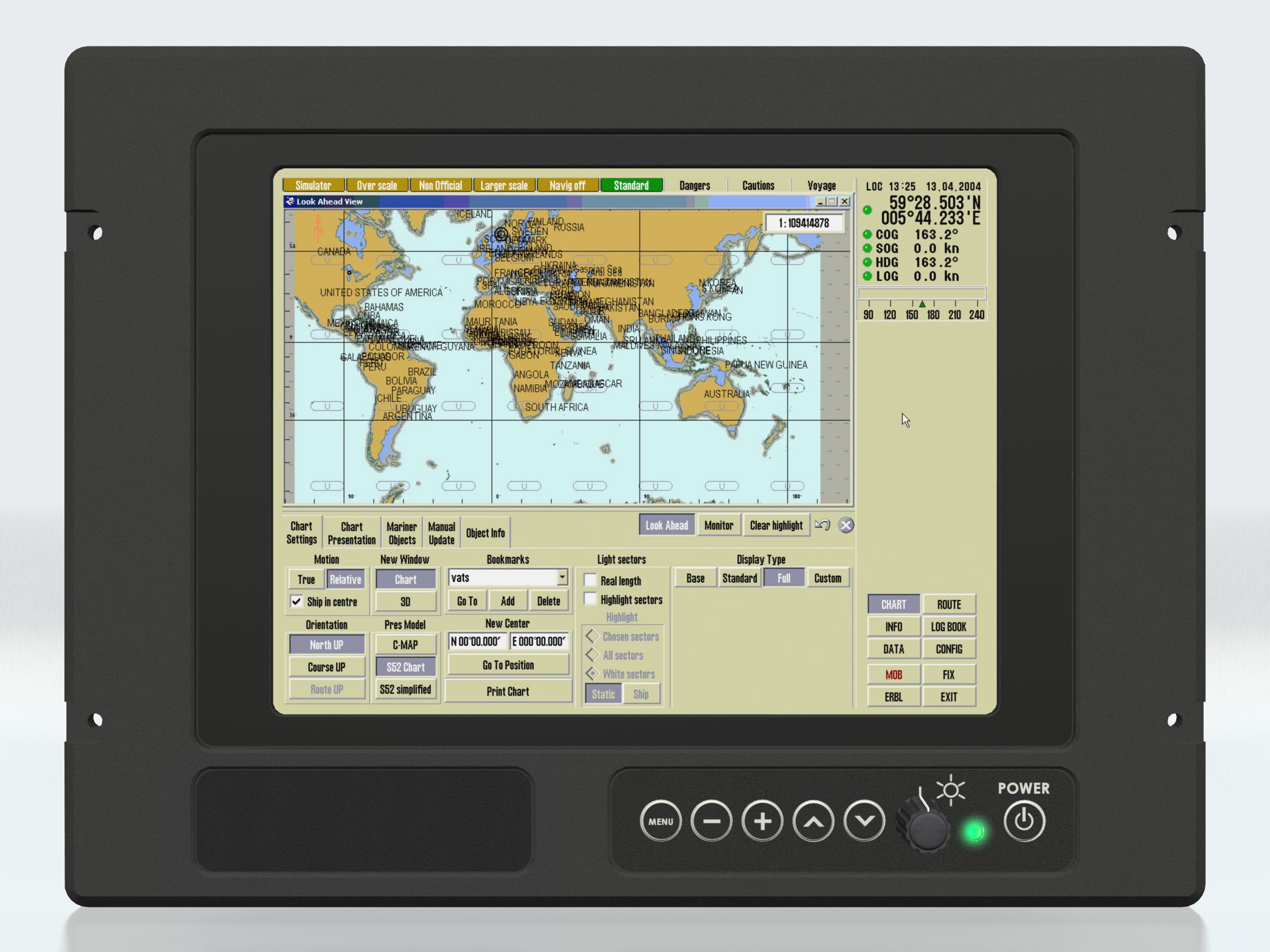

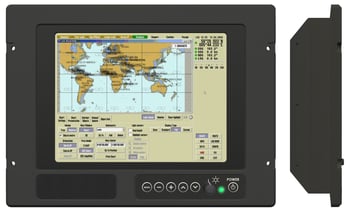

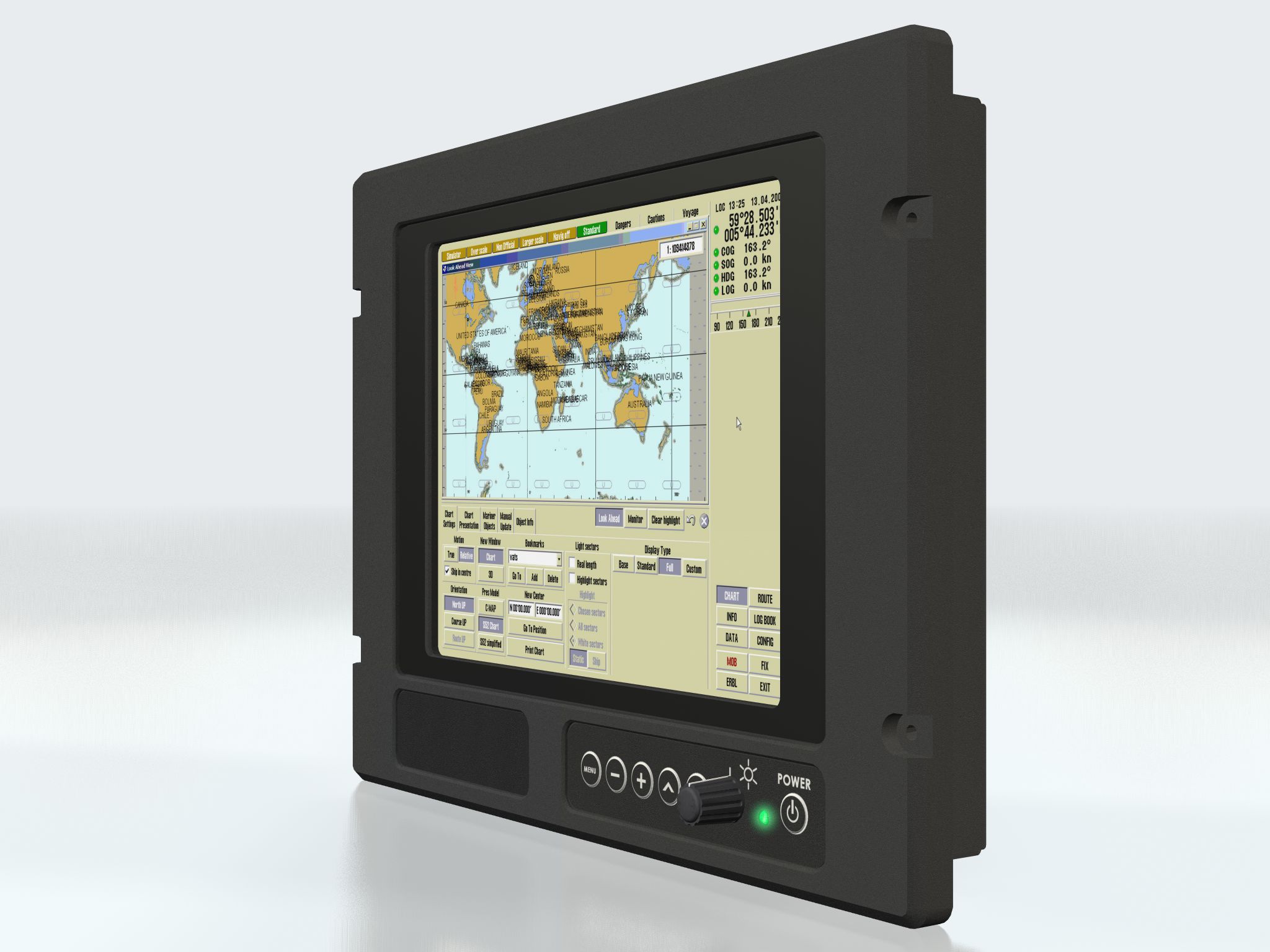

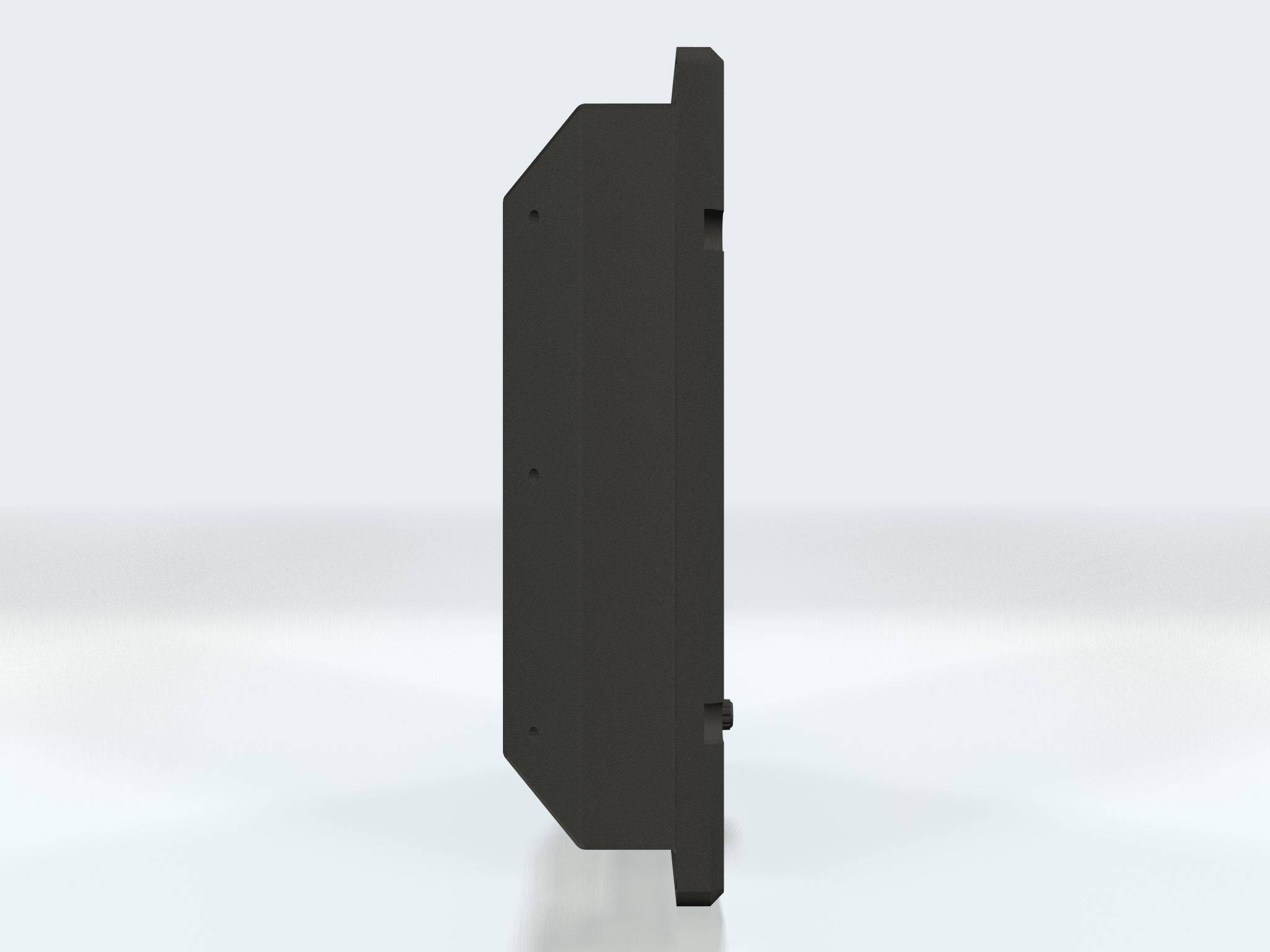

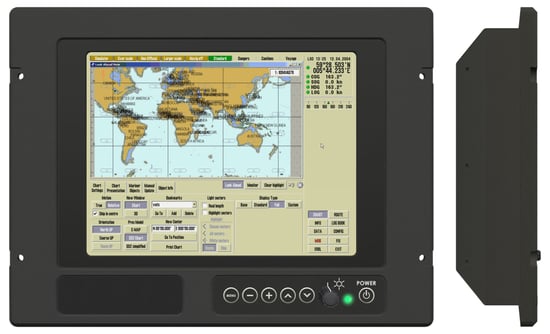

Monitor - CCFL - HATTELAND® Series 0 - 10.4 inch

JH 10T06 STD

The color display described in this Data Sheet is an industrialized version of a high quality Sharp TFT based display (this is a lighter model based on JH10T06 MMD). It allows you to display professional applications with clarity and enhanced color and image quality.

icon
CCFL-backlit
Send Request
Description

Monitor - HATTELAND® Series 0

The controller and the high light intensity in combination with the high contrast and wide backlight adjustment control, allow the product to be used in many environments. Brightness is adjustable from 0 to 100%.
Specifications
Typenumber (Long): JH 10T06 STD
TFT Technology: Active Matrix, Thin Film Transistor (TFT)
Viewable Size and Active Area: 10.4 inch - 211.2 [8.31"] (H) x 158.4 [6.24"] (V) mm [inch]
Native Resolution and Pixel Pitch: 640 x 480 (VGA) - 0.33 (H) x 0.33 (V) mm
Aspect Ratio and Response Time: 4:3 - 20 ms (typical), "black" to "white"
Light Intensity and Contrast Ratio: 350 cd/m² (typ) - 300:1 (typ)
View Angle and Max Colors: 70 deg. (left/right) - 40 deg. (up/down) - 262,144 colors (6-bit max)
Optimal Resolution and Hz: 640 x 480 @ 60 Hz

Sync Signal:
• Separate synchronisation only
• Auto detects VGA, non interlaced
• Video Signal: Analog RGB 0,7Vp-p, Input Impedance 75 Ohm

Synchronisation Range:
• Horizontal: 31,5 kHz to 48,3 kHz
• Vertical: 60 Hz
Detectable Resolutions: 640 x 350, 640 x 480
Composite Video Input(s): None
Supported Video Signals: None
Product Features: Dimmable 0-100%
Power Specifications and Consumption: Power Supply Options:
• 115&230VAC - 50 / 60Hz: Model JH 10T06 STD-A1
• 12-24 VDC: Model JH 10T06 STD-A2

Power Consumption:
• Operating: 60 W (max)

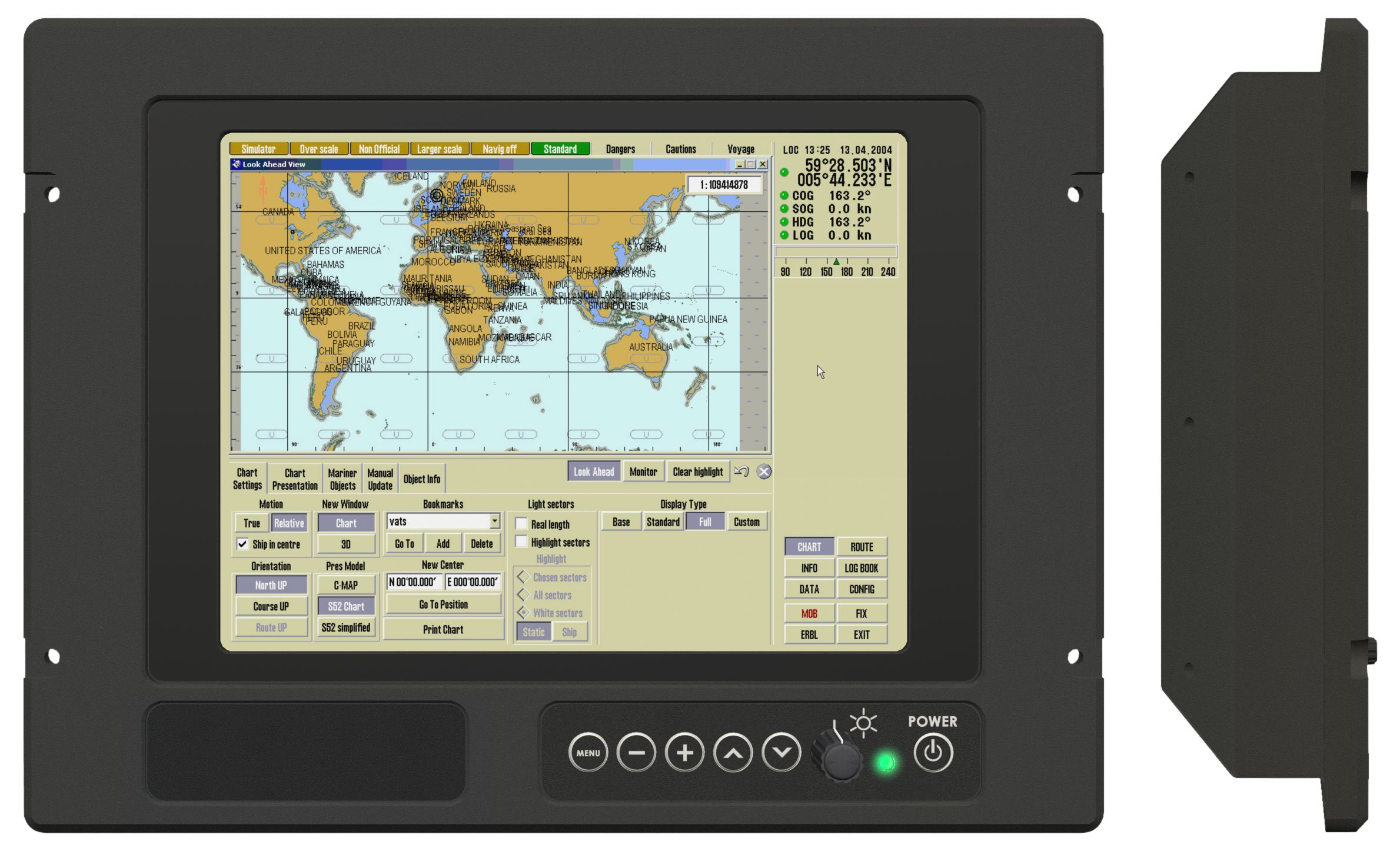

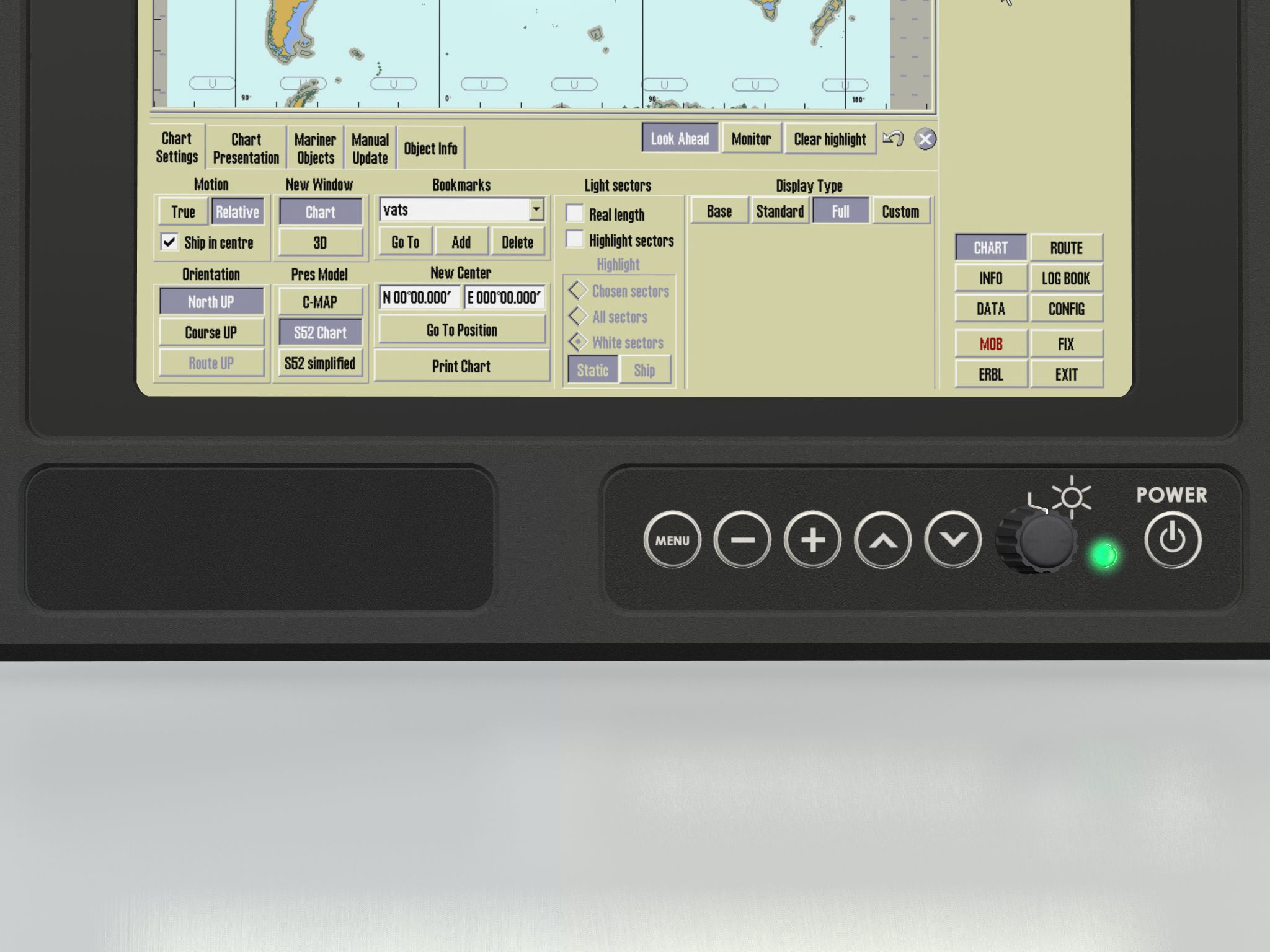

User Controls and Activity: On front bezel:
• Power On/Off (push button)
• Brightness Control
• Mode Status LED
• On Screen Display control (OSD/OSM)
Connectors: • RGB (PC) signal: 15pin mini D-SUB (female - Input)
• AC Power signal: Std IEC Inlet Model JH 10T06 STD-A1
• DC Power signal: Screw terminal Model JH 10T06 STD-A2
• If Touchscreen: 1 x D-SUB 9P Connector (female)
Product Dimensions and Weight: 339 (W) x 256 (H) x 54 (D) mm - 13.35" (W) x 10.08" (H) x 2.13" (D)
Weight: 3,5 kg (approx)
Product Carton Size and Weight: N/A
Factory Options: • AC or DC model
• Resistive Touch Screen
Accessories: • JH 10TBR = Bracket
• JH XXTRO STD = Bracket
• JH 10TSV = Sun Visor
Capabilities - Prepared for: N/A
Operating Temperature: -15.0°C / 5.0°F to +55.0°C / 131.0°F
Humidity 30% to 90% (non condensing)
Storage Temperature: -20.0°C / -4.0°F to +60.0°C / 140.0°F
Humidity 10% to 90% (non condensing)
IP Rating: EN60529 (IP66) (Applies for flush mounting)
Compass Safe Distance: Standard: 100.00 [39.37"] - Steering: 70.00 [27.56"] cm [inch]*
*Not tested, but expected to be the same as corresponding model JH 10T06 MMD
Type Approval, Testing and Certificates: EN60529 (IP66)
Specifications last updated: August 18, 2025 @ 08:00
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

End of Life Notifications (EOL):
2 May 2006
JH 10T06 STD & JH 15T05 STD models and variations merge...

Obsolete
