JH 12T03 S41

Overview

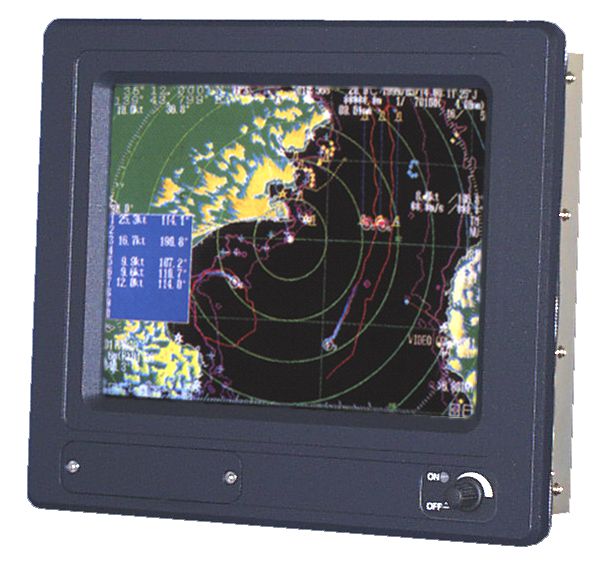

Monitor - CCFL - HATTELAND® Series 0 - 12.1 inch

JH 12T03 S41

The color display described in this Data Sheet is an industrialized version of a high quality Sharp TFT display. The display will allow you to display professional applications with clarity and enhanced color and image quality.

icon
CCFL-backlit
Send Request
Description

Monitor - HATTELAND® Series 0

The display provides you with high light intensity and in combination with the high contrast and wide back light adjustment control allow the product to be used in many environments. The front is water and dust-proof.
Specifications
Typenumber (Long): JH 12T03 S41
TFT Technology: Active matrix, Thin Film Transistor (TFT), RGB vertical stripe
Viewable Size and Active Area: 12.1 inch - 246.0 [9.69"] (H) x 184.5 [7.26"] (V) mm [inch]
Native Resolution and Pixel Pitch: 800 x 600 (SVGA) - 0.3075 (H) x 0.3075 (V) mm
Aspect Ratio and Response Time: 4:3 - N/A
Light Intensity and Contrast Ratio: 270 cd/m² (2 x Cold Cathode Fluorescent Tube) - 300:1 (typical)
View Angle and Max Colors: 70 deg. (left/right), 55 deg (up/down) - Maximum 262,144 colors
(depending on graphic board used)
Optimal Resolution and Hz: 800 x 600 @ 60 Hz

Sync signal:
Separate Sync, TTL/
Composite Sync, TTL/Sync. on green
0,3Vp-p Negative
Video Frequency: 21.1 to 78.8 MHz

Video Signal:
0,7 Vss RGB analog
Bandwidth 30 Mhz (-3dB)
Input impedance 75 ohm

Synchronisation Range:
Horizontal: 31,5 - 38,5 kHz
Vertical: 56- 70 Hz
Detectable Resolutions: 800 x 600
Composite Video Input(s): None
Supported Video Signals: None
Product Features: Water and dust-proof front.
Power Specifications and Consumption: DC 12 - 24 VDC
Operating: 35 W
User Controls and Activity: Outside front frame:
Power Switch
Brightness Control
Contrast Control
Mode Status LED

Inside front frame:
Picture Adjustment
LED Intensity
Connectors: • 1 x HD/DSUB 15P Connector (Female)
• Power: Std. ScrewTermination
Product Dimensions and Weight: 342(W) x 295(H) x 70(D) mm
4.8 kg
Product Carton Size and Weight: N/A
Factory Options: None
Accessories: None
Capabilities - Prepared for: N/A
Operating Temperature: 0.0°C / 32.0°F to +50.0°C / 122.0°F
Humidity 30% to 90% (non condensing)
Storage Temperature: -25.0°C / -13.0°F to +60.0°C / 140.0°F
Humidity 10% to 90% (non condensing)
IP Rating: N/A
Compass Safe Distance: N/A
Type Approval, Testing and Certificates: CE Classified
Specifications last updated: August 18, 2025 @ 08:00
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

End of Life Notifications (EOL):
13 Sep 2002
Product Obsolete

Obsolete
loading
arrow-left
arrow-right

JH 12T03 S41

Monitor - CCFL - HATTELAND® Series 0 - 12.1 inch

The color display described in this Data Sheet is an industrialized version of a high quality Sharp TFT display. The display will allow you to display professional applications with clarity and enhanced color and image quality.

icon
CCFL-backlit
Send Request

HATTELAND® Series 0

Monitor - CCFL


The display provides you with high light intensity and in combination with the high contrast and wide back light adjustment control allow the product to be used in many environments. The front is water and dust-proof.
Typenumber (Long): JH 12T03 S41
TFT Technology: Active matrix, Thin Film Transistor (TFT), RGB vertical stripe
Viewable Size and Active Area: 12.1 inch - 246.0 [9.69"] (H) x 184.5 [7.26"] (V) mm [inch]
Native Resolution and Pixel Pitch: 800 x 600 (SVGA) - 0.3075 (H) x 0.3075 (V) mm
Aspect Ratio and Response Time: 4:3 - N/A
Light Intensity and Contrast Ratio: 270 cd/m² (2 x Cold Cathode Fluorescent Tube) - 300:1 (typical)
View Angle and Max Colors: 70 deg. (left/right), 55 deg (up/down) - Maximum 262,144 colors
(depending on graphic board used)
Optimal Resolution and Hz: 800 x 600 @ 60 Hz

Sync signal:
Separate Sync, TTL/
Composite Sync, TTL/Sync. on green
0,3Vp-p Negative
Video Frequency: 21.1 to 78.8 MHz

Video Signal:
0,7 Vss RGB analog
Bandwidth 30 Mhz (-3dB)
Input impedance 75 ohm

Synchronisation Range:
Horizontal: 31,5 - 38,5 kHz
Vertical: 56- 70 Hz
Detectable Resolutions: 800 x 600
Composite Video Input(s): None
Supported Video Signals: None
Product Features: Water and dust-proof front.
Power Specifications and Consumption: DC 12 - 24 VDC
Operating: 35 W
User Controls and Activity: Outside front frame:
Power Switch
Brightness Control
Contrast Control
Mode Status LED

Inside front frame:
Picture Adjustment
LED Intensity
Connectors: • 1 x HD/DSUB 15P Connector (Female)
• Power: Std. ScrewTermination
Product Dimensions and Weight: 342(W) x 295(H) x 70(D) mm
4.8 kg
Product Carton Size and Weight: N/A
Factory Options: None
Accessories: None
Capabilities - Prepared for: N/A
Operating Temperature: 0.0°C / 32.0°F to +50.0°C / 122.0°F
Humidity 30% to 90% (non condensing)
Storage Temperature: -25.0°C / -13.0°F to +60.0°C / 140.0°F
Humidity 10% to 90% (non condensing)
IP Rating: N/A
Compass Safe Distance: N/A
Type Approval, Testing and Certificates: CE Classified
Specifications last updated: August 18, 2025 @ 08:00
