Overview

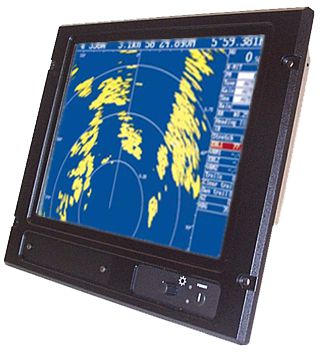

Monitor - CCFL - HATTELAND® Series 0 - 15.0 inch

JH 15T01

The color display described in this Data Sheet is an industrialized version of a high quality TFT based display with Hitachi SuperViewTM technology. The display allows you to display professional applications with clarity and enhanced color and image quality.

icon
CCFL-backlit
Send Request
Description

Monitor - HATTELAND® Series 0

The display provides you with automatic compability with multiple upgrading platforms and a vast array of graphics standards allowing resolution upgrades without upgrading the display. The controller and the high light intensity in combination with the high contrast and wide back light adjustment control allow the product to be used in many environments. Brightness is adjustable from 0 to 100%.
Specifications
Typenumber (Long): JH 15T01
TFT Technology: Active matrix thin film transistor (TFT), RGB vertical stripe clor filter arrangement
Viewable Size and Active Area: 15.0 inch - 304.1 [11.97"] (H) x 228.1 [8.98"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1024 x 768 (SXGA) - 0.297 (H) x 0.297 (V) mm
Aspect Ratio and Response Time: 4:3 - 25 ms (typical)
Light Intensity and Contrast Ratio: 250 cd/m² (typ), 4 CCFLS (Cold Cathode Fluorescent Lamps) - 300:1 (typ)
View Angle and Max Colors: +/- 160 Horizontal/Vertical - Over 16 million
Optimal Resolution and Hz: 1024 x 768 @ 60 Hz

Sync Signal:
Separate Sync., Composite Sync., Composite Sync. on green

Synchronisation Range:
Horizontal: 31 kHz to 62 kHz (Automatically)
Vertical: 50 Hz to 75 Hz (Automatically)
Recommended: 1024 x 768 @ 75 Hz

Video Signal:
Analog RGB positive bright 0.7 Vp-p
Input Impendance: 75 Ohm
Detectable Resolutions: 1024 x 768
Composite Video Input(s): None
Supported Video Signals: None
Product Features: Dimmable 0-100%
Power Specifications and Consumption: AC 100 - 120 V, 50/60 Hz
AC 220 - 240 V, 50/60 Hz
or DC 12 - 24 V
to comply with EN60945-3 use 24V DC

Power Consumption:
Operating: 45 W
Power Saving: 8 W
User Controls and Activity: On front bezel:
Power Switch
Brightness Control
Mode Status LED w/Auto Dimming

Behind hatch:
On Screen Manager
Connectors: • VGA Signal: 1 x HD/D-SUB 15P Connector (female)
• Power: Std. AC inlet / Screw for DC/DC
• Touch screen: (option) 1 x D-SUB 9P Conector (female)
Product Dimensions and Weight: Rack version:
412 (W) x 345 (H) x 58 (D) mm
Weight: 7.3 kg

Cabinet version:
413 (H) x 346 (W) x 95.1 (D) mm
Weight: 8,7 kg
Product Carton Size and Weight: N/A
Factory Options: • Touch Screen
Accessories: Front
Cabinet
Suspension Bracket
Capabilities - Prepared for: N/A
Operating Temperature: -15.0°C / 5.0°F to +55.0°C / 131.0°F
Humidity 30% to 90% (non condensing)
Storage Temperature: -20.0°C / -4.0°F to +60.0°C / 140.0°F
Humidity 10% to 90% (non condensing)
IP Rating: N/A
Compass Safe Distance: N/A
Type Approval, Testing and Certificates: Tested according to EN60945 3rd (IEC945 3rd) and type approved by the following classification societies:
DNV - Det Norske Veritas
ABS - American Bureau of Shipping
GL - Germanischer Lloyd
Specifications last updated: August 18, 2025 @ 08:00
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

End of Life Notifications (EOL):
23 Mar 2000
Product Obsolete

Obsolete
loading
arrow-left
arrow-right

JH 15T01

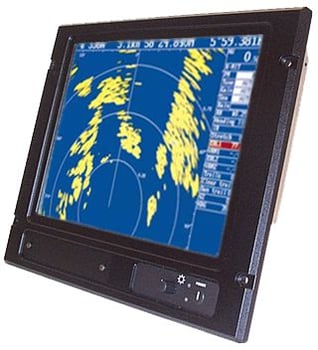

Monitor - CCFL - HATTELAND® Series 0 - 15.0 inch
