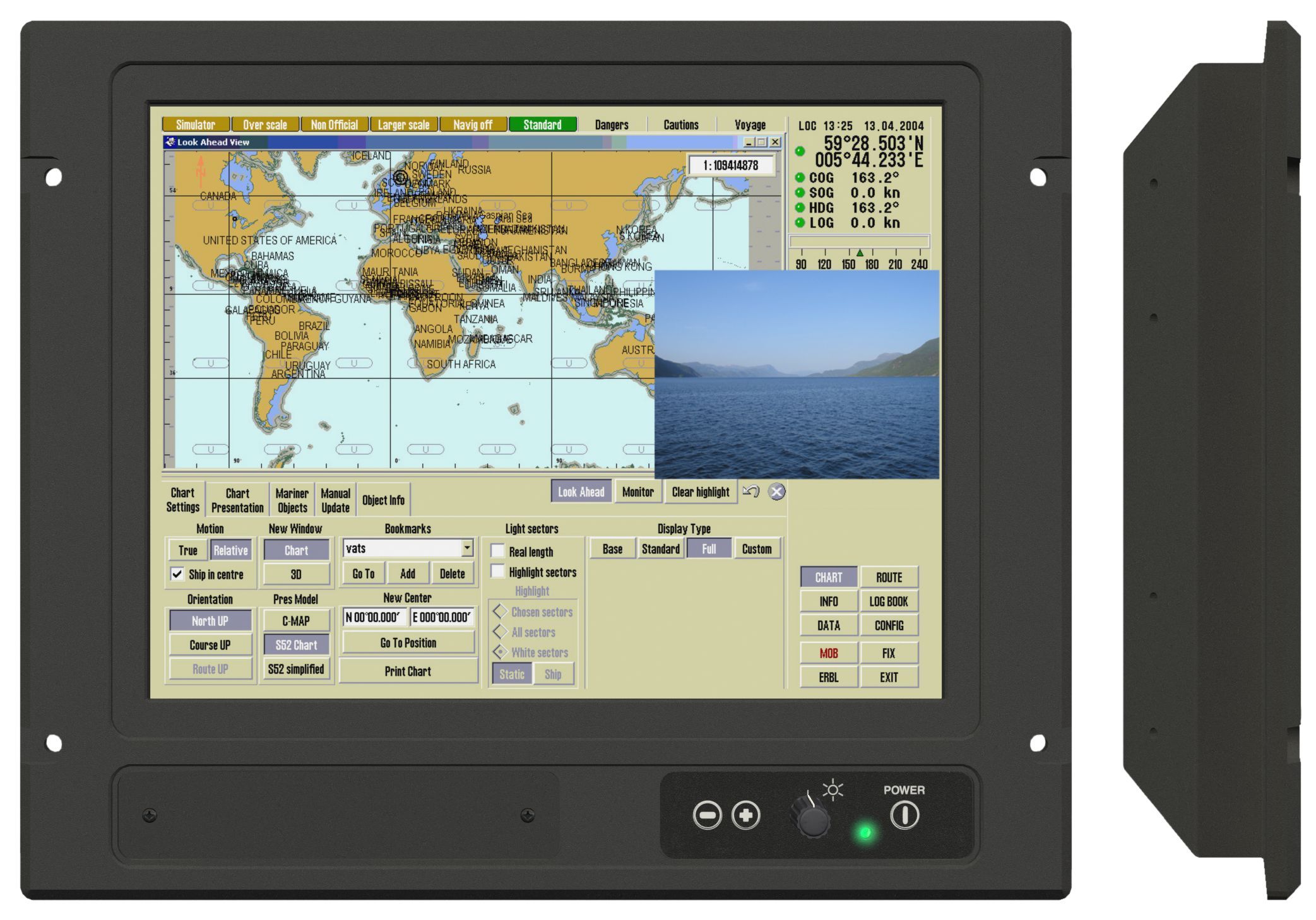

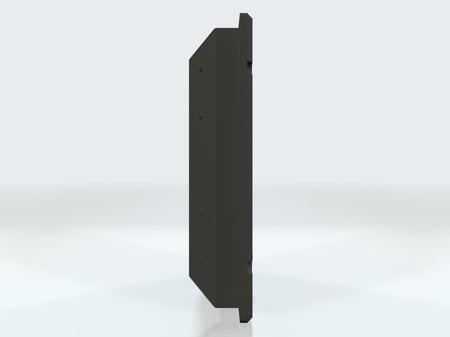

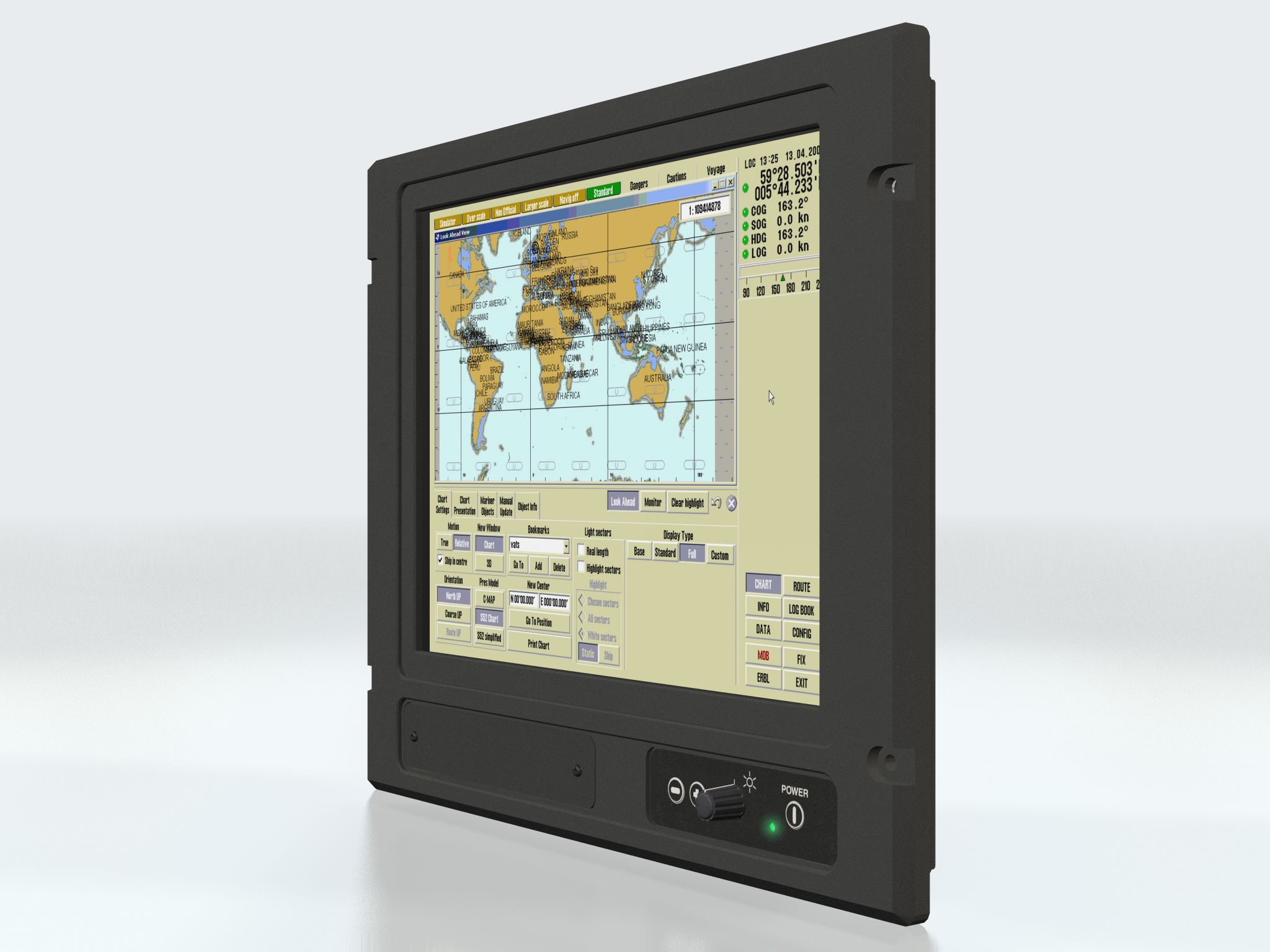

JH 15T05 STD

Overview

Monitor - CCFL - HATTELAND® Series 0 - 15.0 inch

JH 15T05 STD

The color display described in this Data Sheet is an industrialized version of a high quality SHARP TFT based display (this is a lighter model based on JH 15T05 MMD). It allows you to display professional applications with clarity and enhanced color and image quality.

icon
CCFL-backlit
Send Request
Description

Monitor - HATTELAND® Series 0

The controller and the high light intensity in combination with the high contrast and wide backlight adjustment control, allow the product to be used in many environments. Brightness is adjustable from 0 to 100%.
Specifications
Typenumber (Long): JH 15T05 STD
TFT Technology: Color Active Matrix LCD Module, a-Si Thin Film Transistor (TFT)
Viewable Size and Active Area: 15.0 inch - 304.1 [11.97"] (H) x 228.1 [8.98"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1024 x 768 (SXGA) - 0.297 (H) x 0.297 (V) mm
Aspect Ratio and Response Time: 4:3 - 25 ms (typical), "black" to "white"
Light Intensity and Contrast Ratio: 250 cd/m² (typ) - 400:1 (typ)
View Angle and Max Colors: 85 deg. (up/down/left/right) - 16.7 millions
Optimal Resolution and Hz: 1024 x 768 @ 60 Hz

Sync Signal:
• Separate synchronisation only
• Auto detects VGA -> XGA, non interlaced
• Video Signal: Analog RGB 0,7Vp-p, Input Impedance 75 Ohm

Synchronisation Range:
• Horizontal: 31,5 kHz to 48,3 kHz
• Vertical: 60 Hz
Detectable Resolutions: 640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768
Composite Video Input(s): None
Supported Video Signals: None
Product Features: Hotkey Functionality, Dimmable 0-100%
Power Specifications and Consumption: Power Supply Options:
• 115&230VAC - 50 / 60Hz: Model JH 15T05 STD-A1
• 12-24 VDC: Model JH 15T05 STD-A2

Power Consumption:
• Operating: 40 W (max)

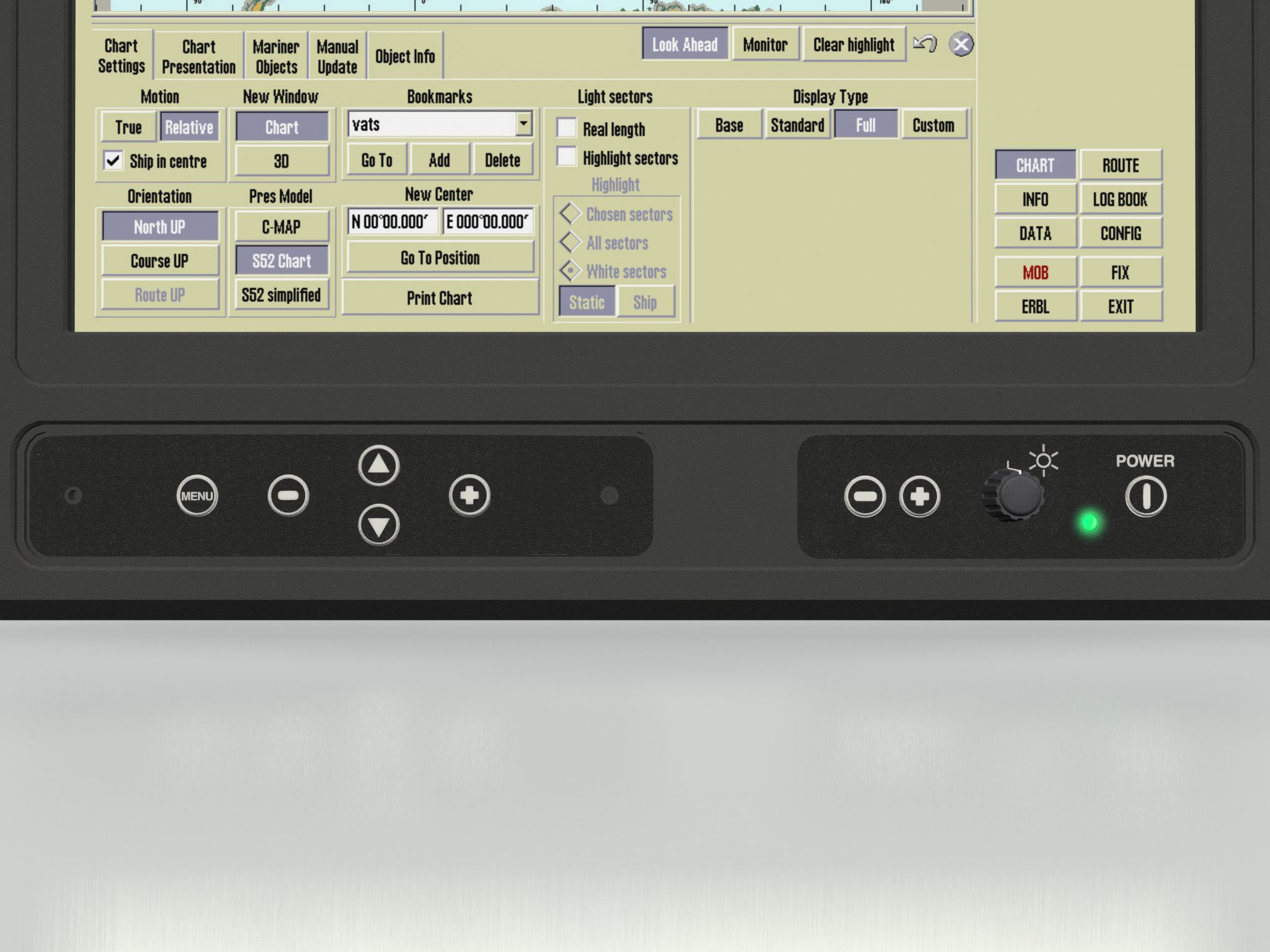

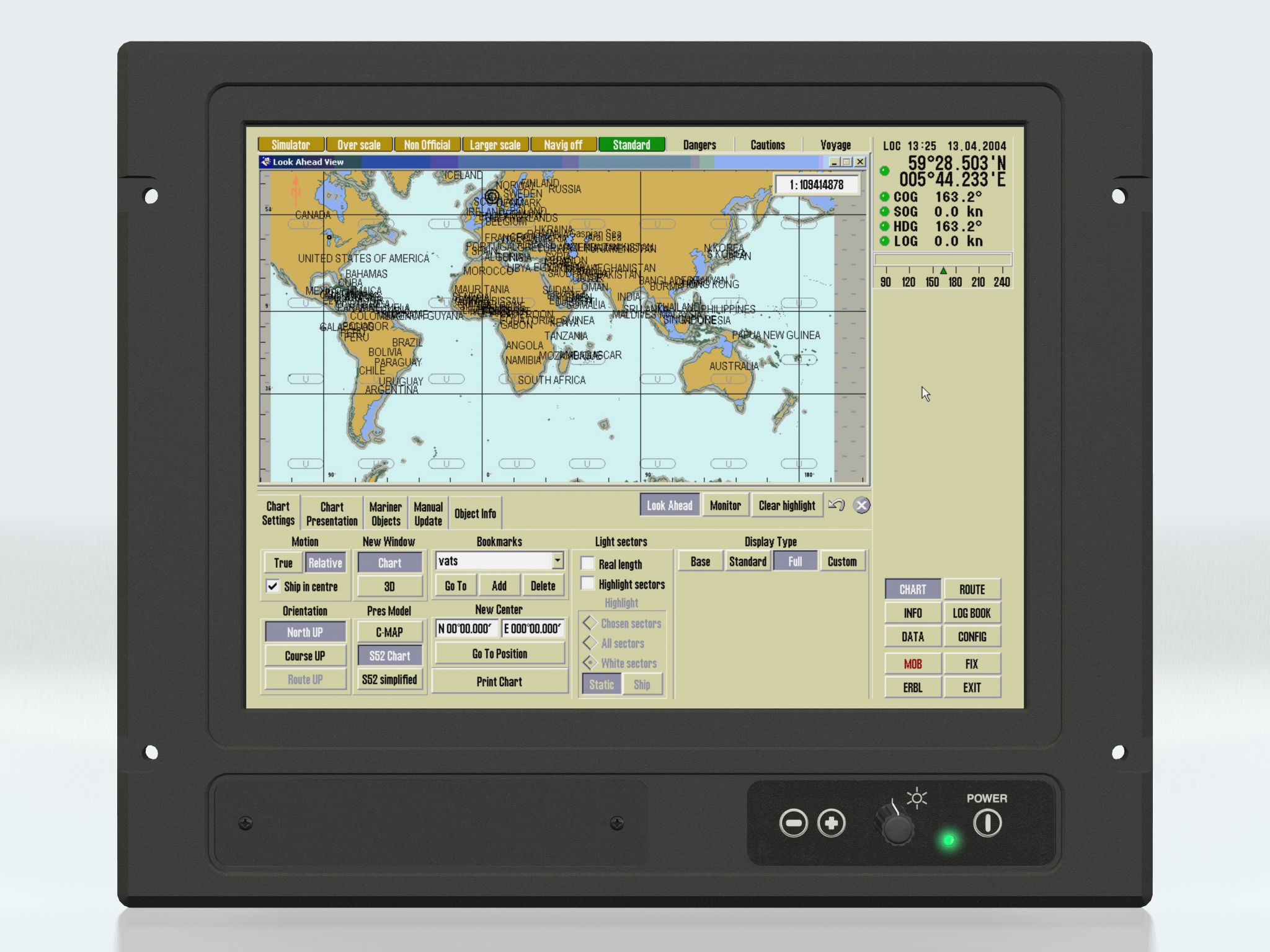

User Controls and Activity: On front bezel:
• Power On/Off (push button)
• Brightness Control
• 2 x hotkeys
• Mode Status LED

Behind hatch:
• On Screen Display control (OSD/OSM)
Connectors: • RGB (PC) signal: 15pin mini D-SUB (female - Input)
• AC Power signal: Std IEC Inlet Model JH 15T05 STD-A1
• DC Power signal: Screw terminal Model JH 15T05 STD-A2

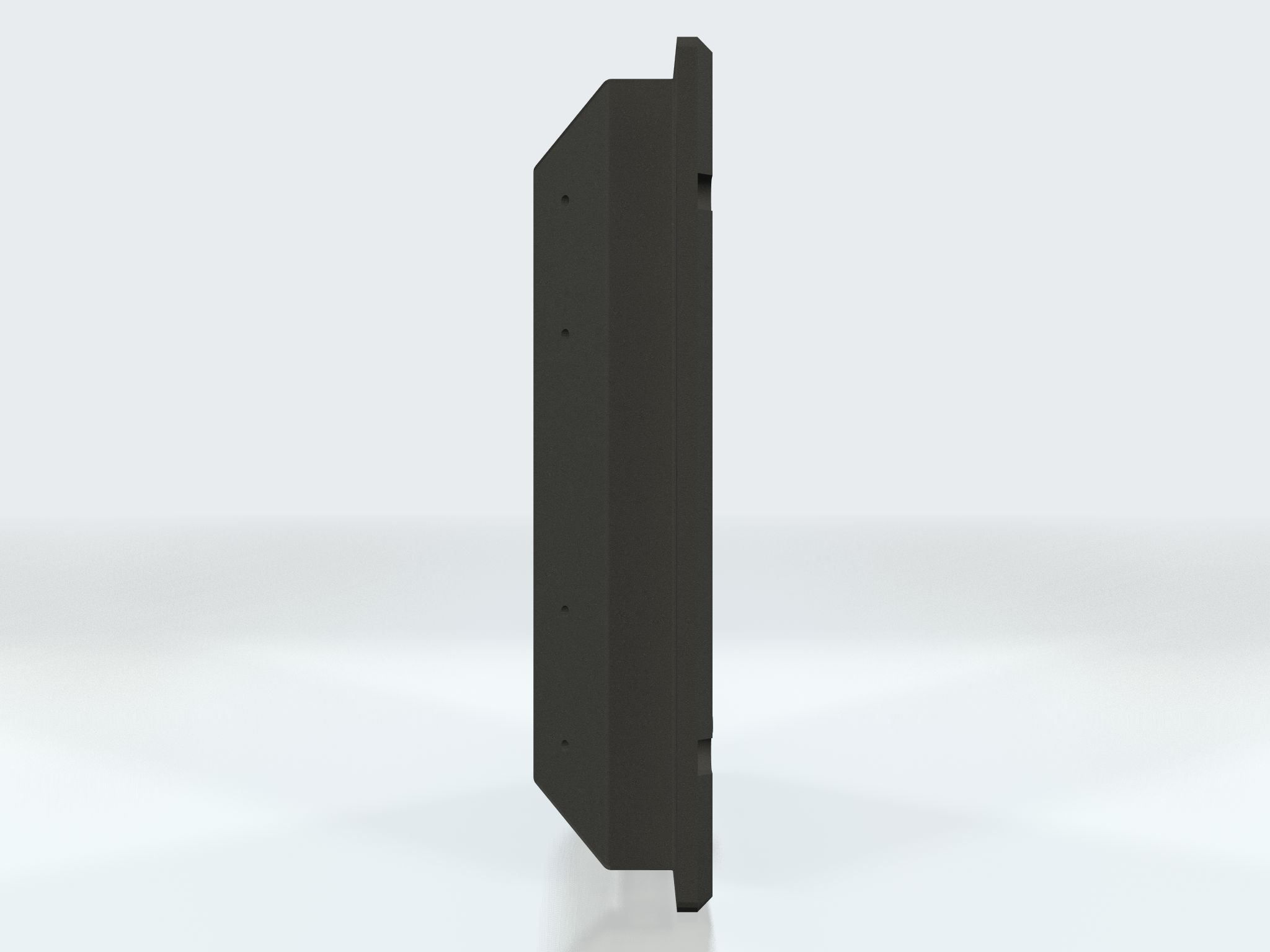

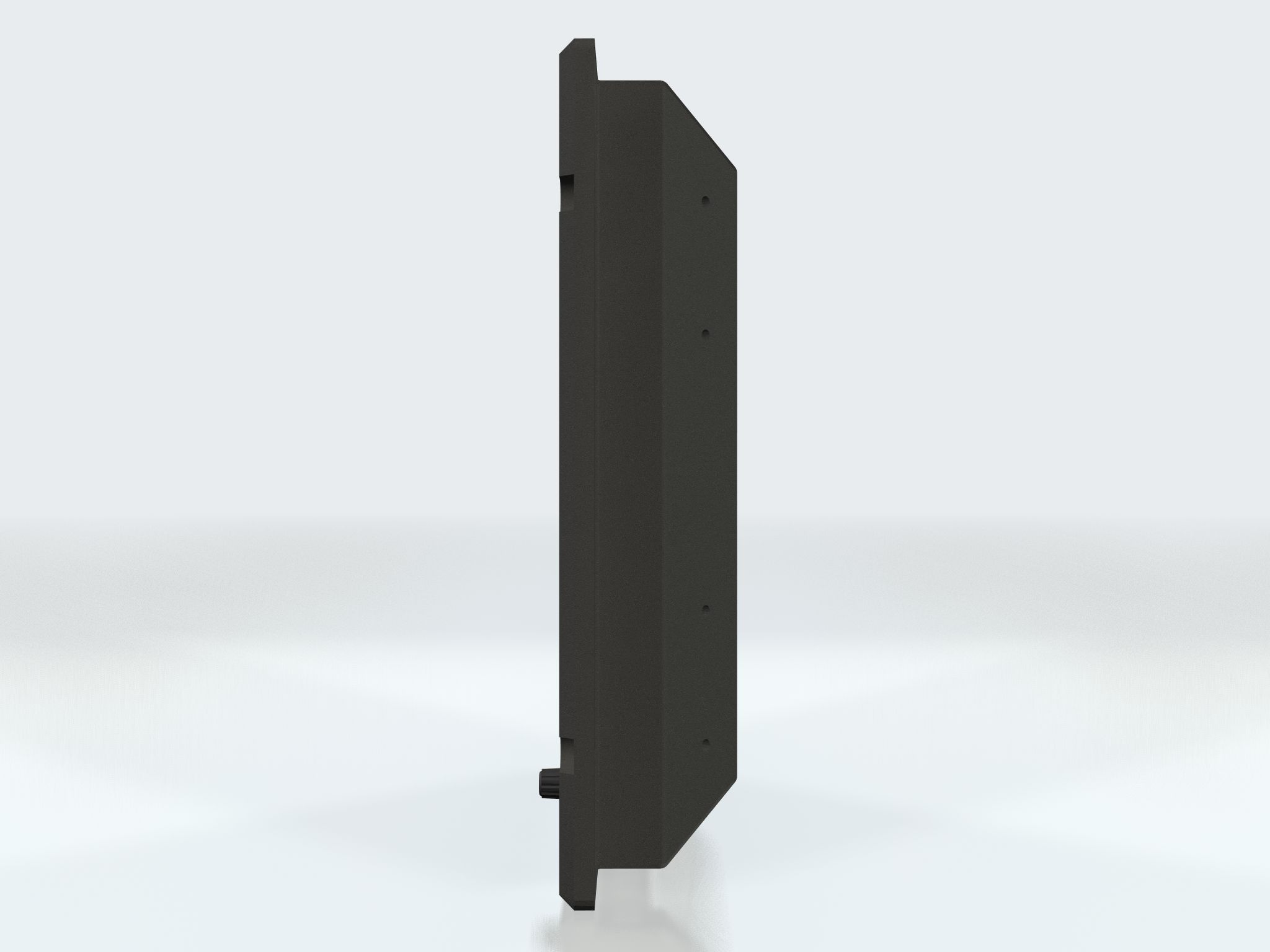

Product Dimensions and Weight: 412 (W) x 345 (H) x 73 (D) mm - 16.22" (W) x 13.58" (H) x 2.87" (D)
Weight: 7 kg (approx w/bracket)
Product Carton Size and Weight: N/A
Factory Options: • AC or DC model
Accessories: • JH 15TBR = Bracket
• JH 15TRO = Rotary Bracket
• JH 15TSV = Sun Visor
Capabilities - Prepared for: N/A
Operating Temperature: -15.0°C / 5.0°F to +55.0°C / 131.0°F
Humidity 20% to 85% (non condensing)
Storage Temperature: -20.0°C / -4.0°F to +60.0°C / 140.0°F
Humidity 5% to 85% (non condensing)
IP Rating: EN60529 (IP66) (Applies for flush mounting)
Compass Safe Distance: Standard: 130cm [51.58"] - Steering: 100.00 [39.37"] cm [inch]*
*Not tested, but expected to be the same as corresponding model JH 15T05 MMD
Type Approval, Testing and Certificates: EN60945 4th (IEC945 4th), ClassNK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, LRS - Lloyd's Register of Shipping, BV - Bureau Veritas, RS - Russian Maritime Register of Shipping
Specifications last updated: August 18, 2025 @ 08:00
