Overview

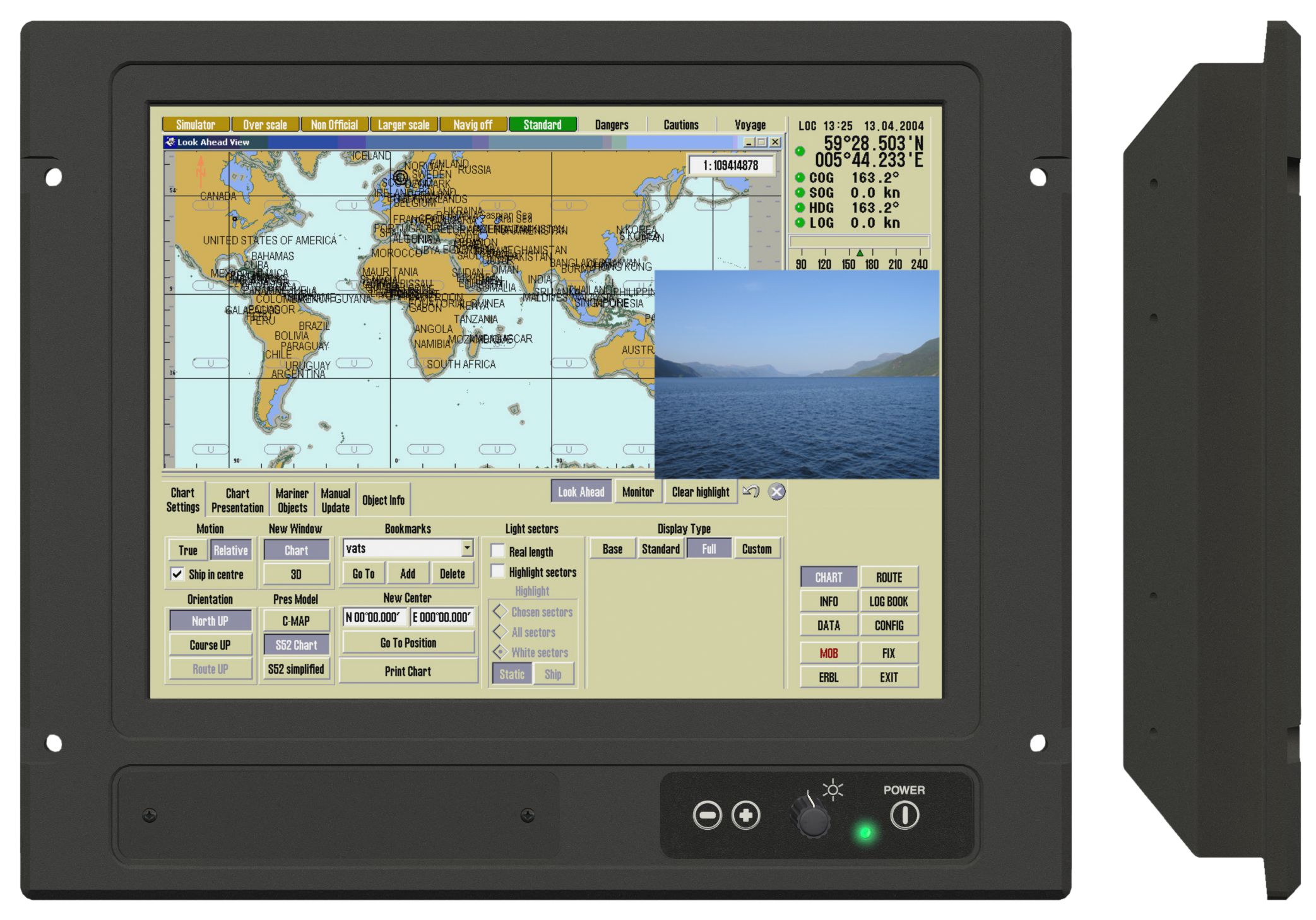

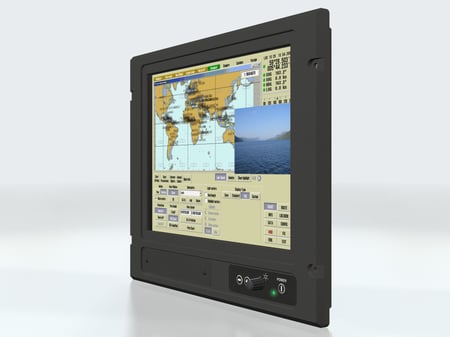

Monitor - CCFL - HATTELAND® Series 0 - 15.0 inch

JH 15T05 MMD

The color display described in this Data Sheet is an industrialized version of a high quality SHARP TFT based display. The MMD allows you to display professional applications with clarity and enhanced color and image quality.

icon
CCFL-backlit
Send Request
Description

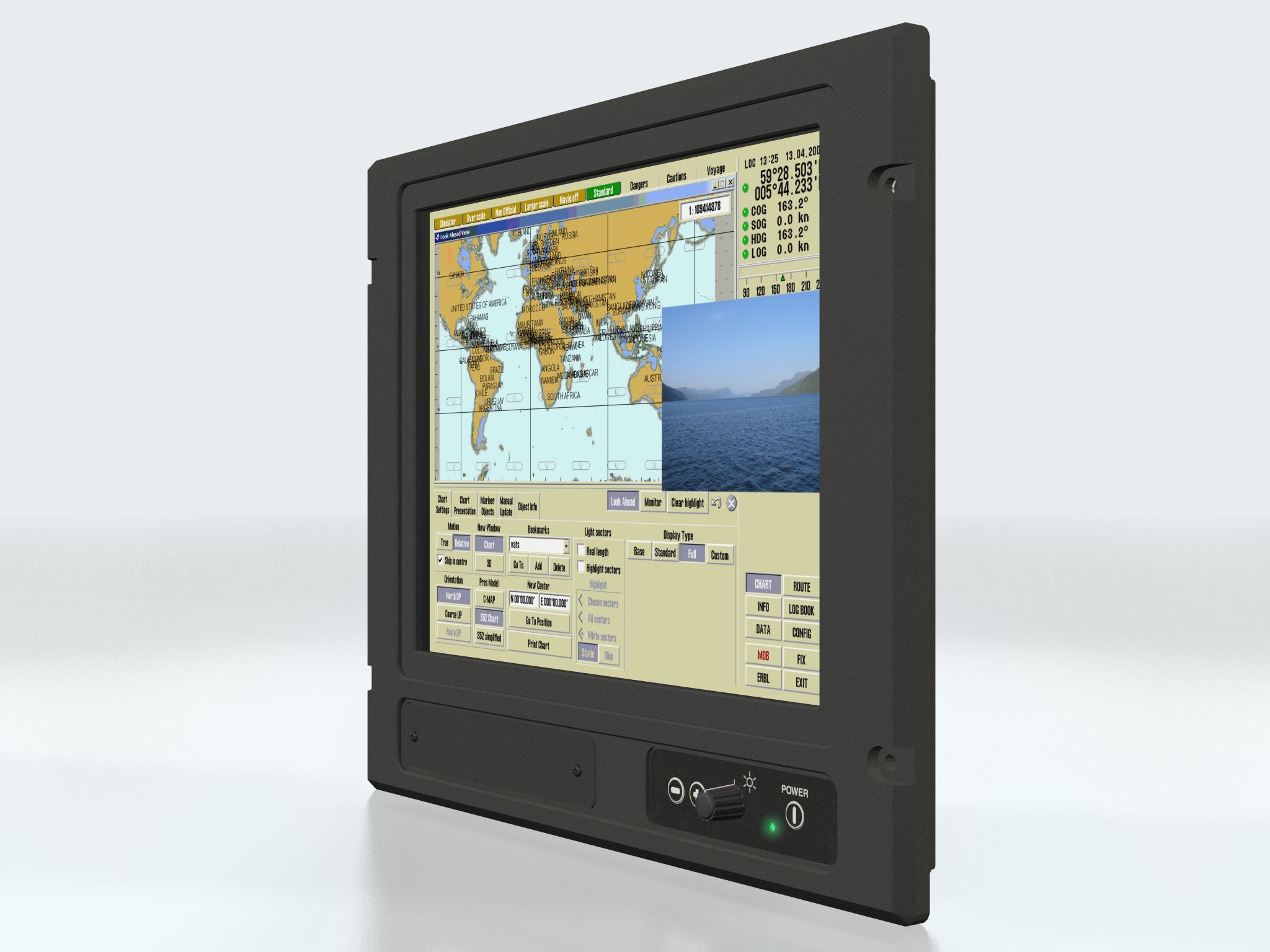

Monitor - HATTELAND® Series 0

The MMD have DVI-D Input, RGB Input, Video Input (Composite/SVHS) and PiP (Picture in Picture) functions.

The controller and the high light intensity in combination with the high contrast and wide backlight adjustment control, allow the product to be used in many environments. Brightness is adjustable from 0 to 100%.
Specifications
Typenumber (Long): JH 15T05 MMD
TFT Technology: Color Active Matrix LCD Module, a-Si Thin Film Transistor (TFT)
Viewable Size and Active Area: 15.0 inch - 304.1 [11.97"] (H) x 228.1 [8.98"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1024 x 768 (SXGA) - 0.297 (H) x 0.297 (V) mm
Aspect Ratio and Response Time: 4:3 - 25 ms (typical), black to white to black
Light Intensity and Contrast Ratio: 250 cd/m² (typ) - 400:1 (typ)
View Angle and Max Colors: 85 deg. (up/down/left/right) - 16.7 millions
Optimal Resolution and Hz: 1024 x 768 @ 60 Hz

Sync Signal:
• Digital separate synchronisation
• Composite synchronisation
• Synchronisation on green.
• Auto detects VGA -> SXGA, interlaced and non interlaced
• Video Signal: Analog RGB 0,7Vp-p, Input Impedance 75 Ohm

Synchronisation Range:
• Horizontal: 31,5 kHz to 91,1 kHz
• Vertical: 60 Hz to 85 Hz
Detectable Resolutions: 640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768
Composite Video Input(s): 1 x RCA Phono plug
1 x S-Video (SVHS) plug
Supported Video Signals: Video Signals:
• Interlaced NTSC and PAL/SECAM video
• Composite video
• S-Video
Product Features: PIP (Picture In Picture), Video Input (Composite/SVHS) inputs, Hotkey Functionality, Dimmable 0-100%

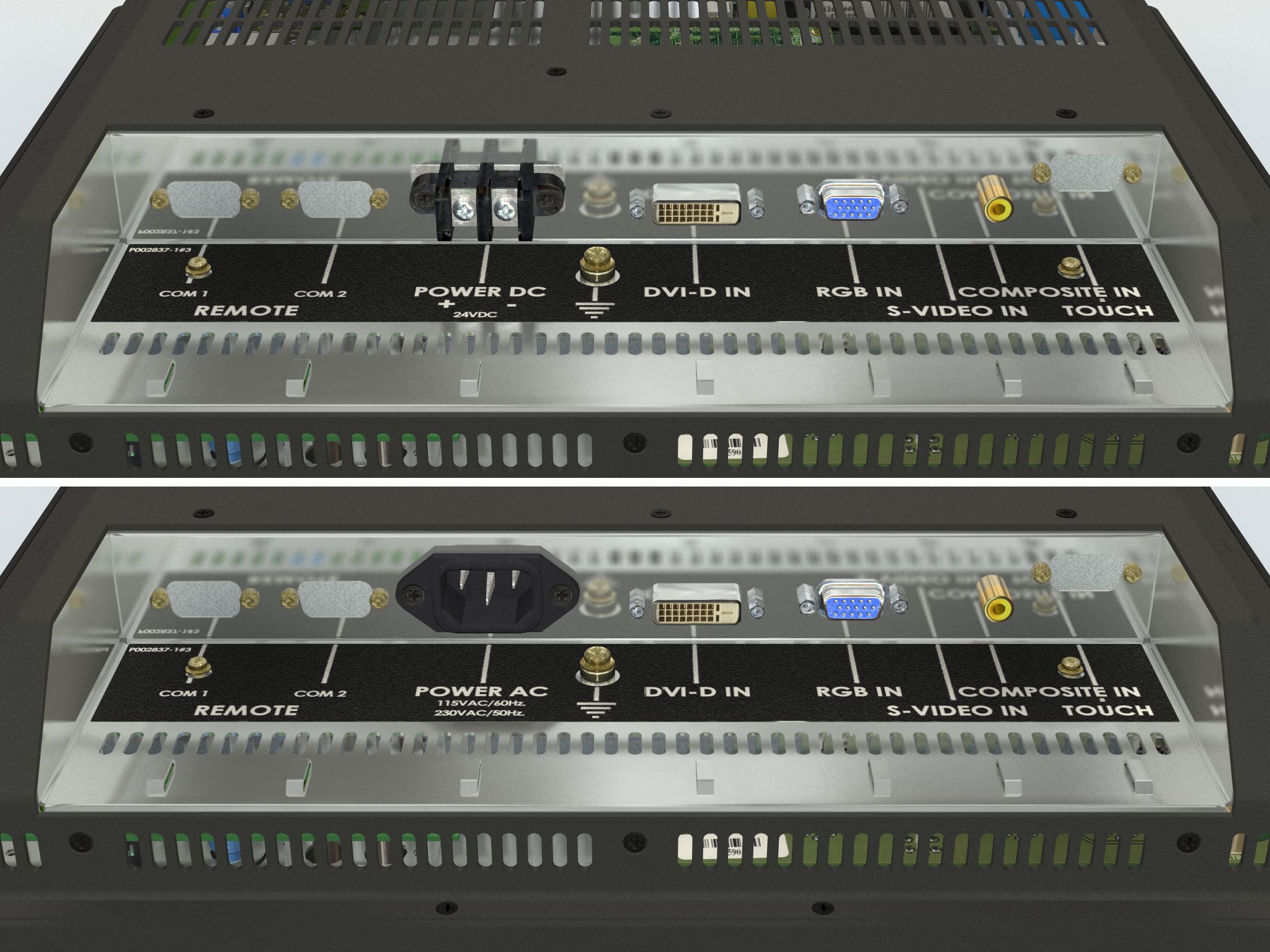

Power Specifications and Consumption: Power Supply Options:
• 115&230VAC - 50 / 60Hz: Model JH 15T05 MMD-A1
• 24 VDC: Model JH 15T05 MMD-A2

Power Consumption:
• Operating: 35,4 W (typ) - Measured at 230Vrms
• Operating: 31,3 W (typ) - Measured at 24VDC
• Operating: 40 W (max)

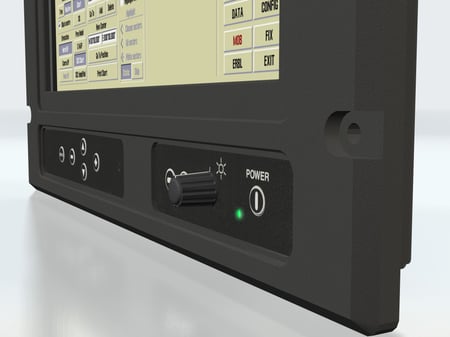

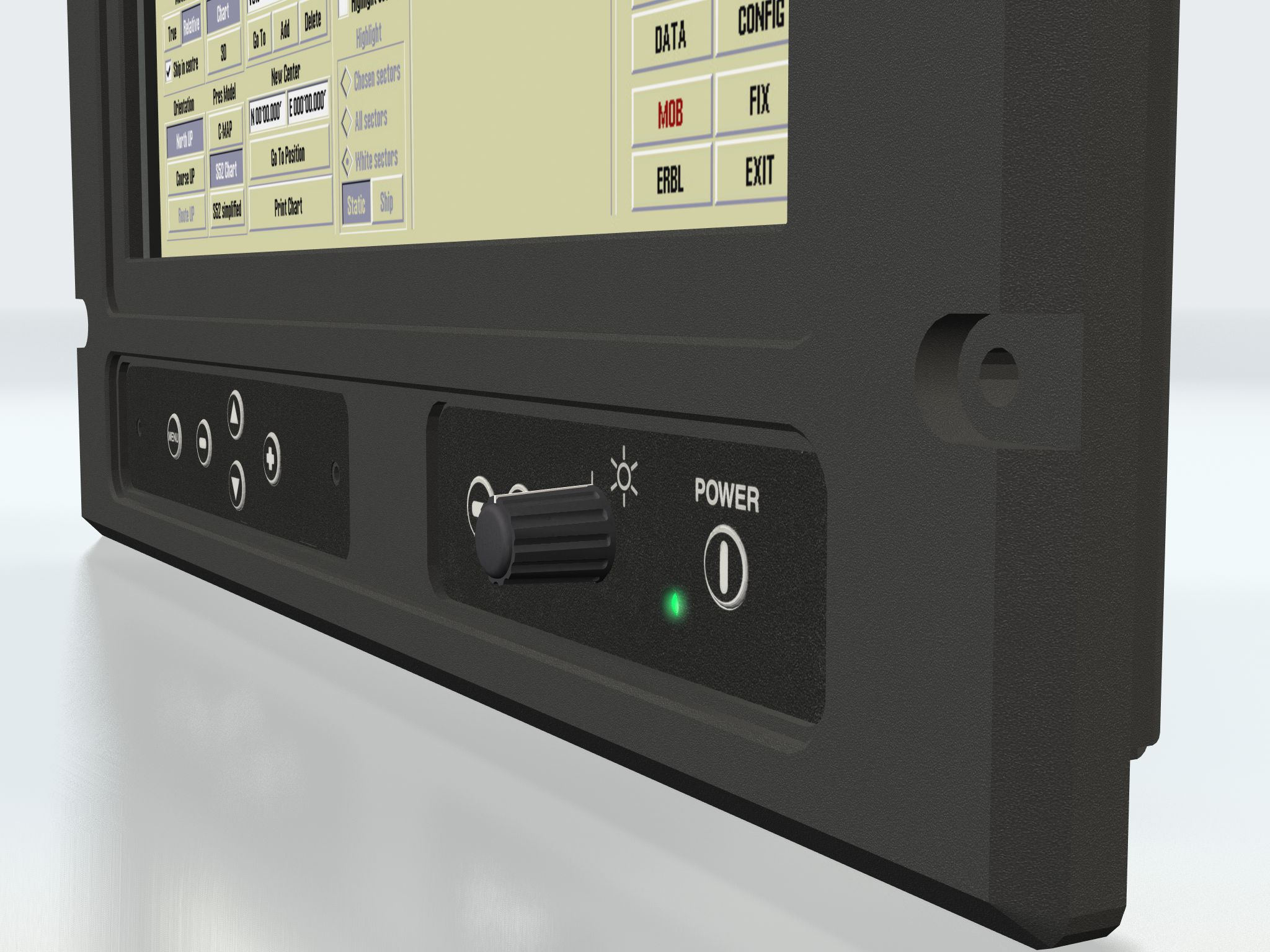

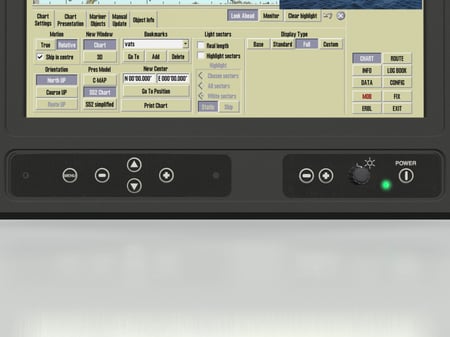

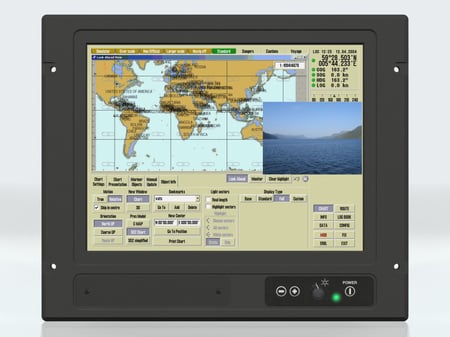

User Controls and Activity: On front bezel:
• Power On/Off (push button)
• Brightness Control
• 2 x hotkeys
• Mode Status LED

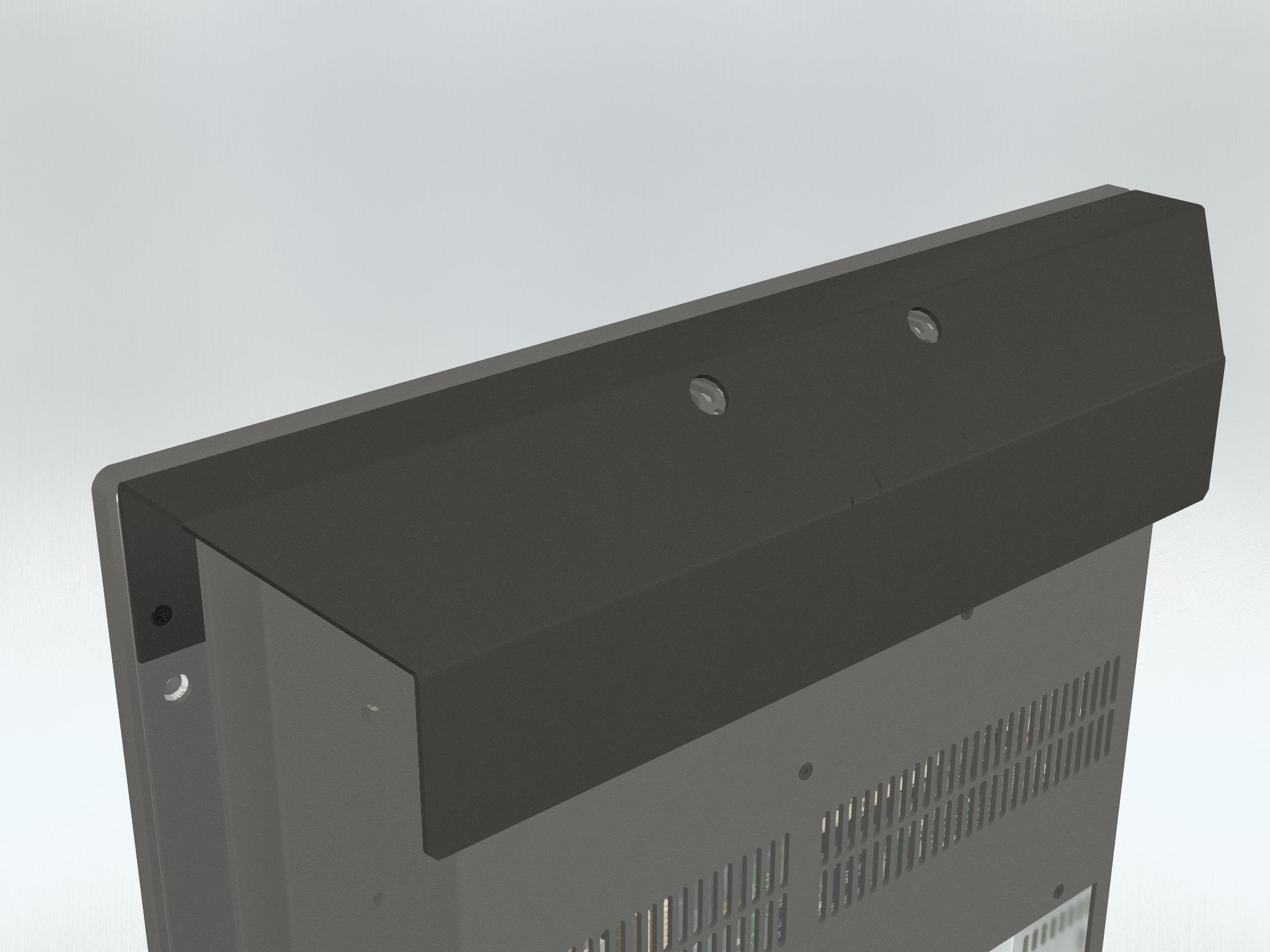

Behind hatch:
• On Screen Display control (OSD/OSM)

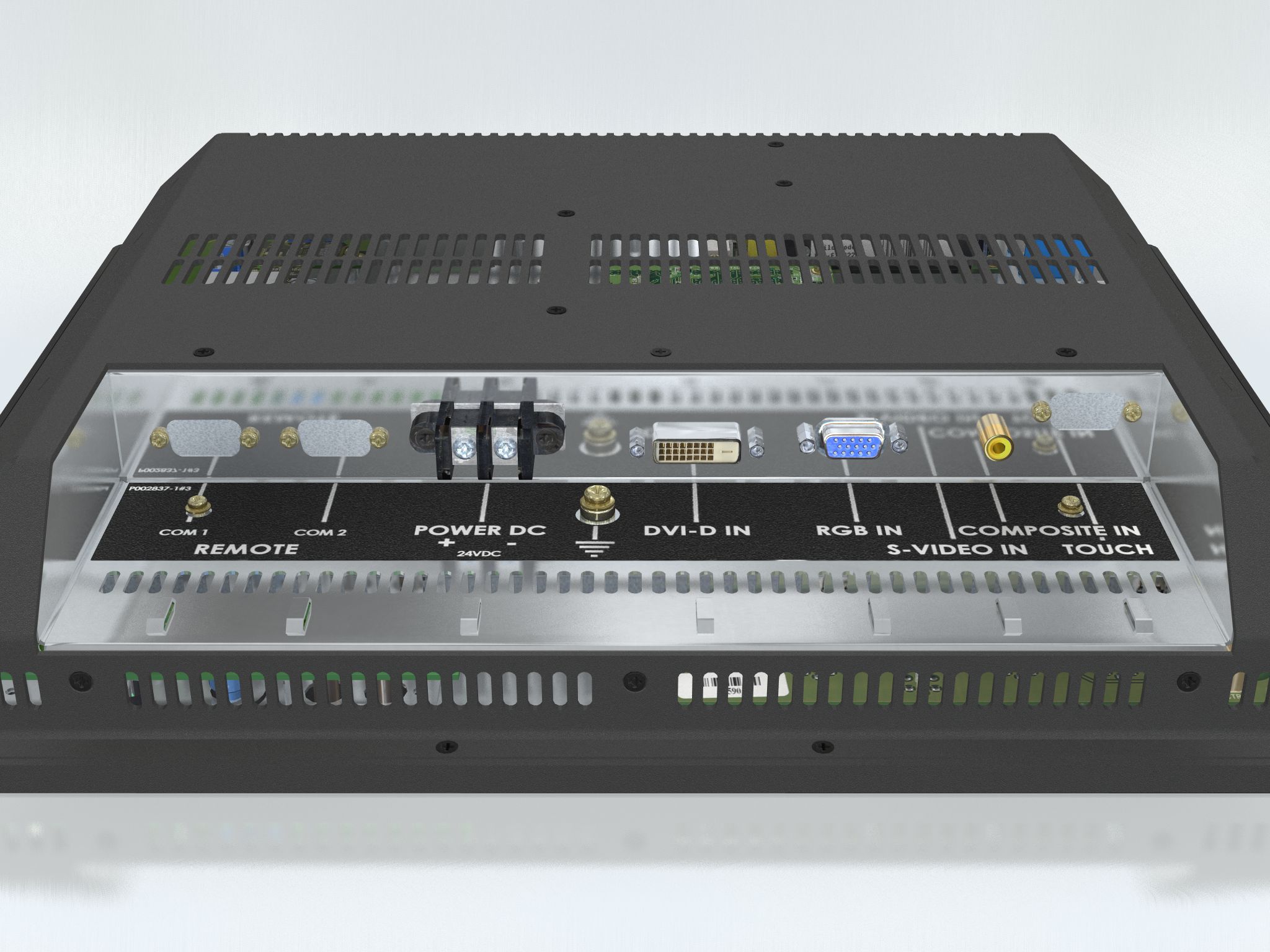

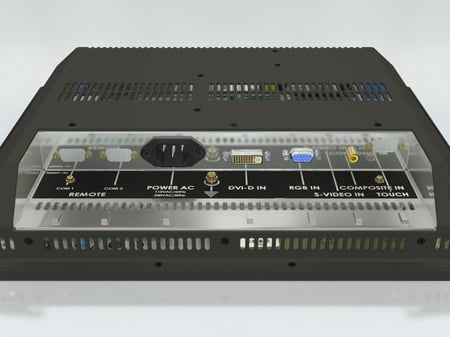

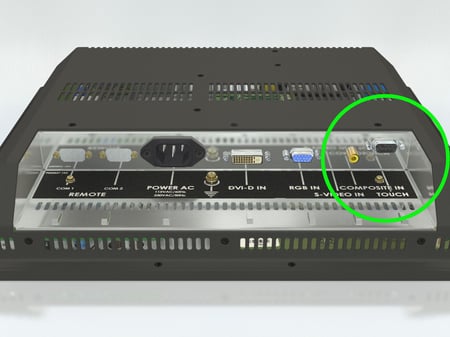

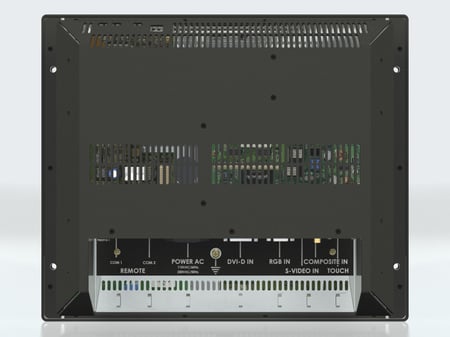

Connectors: • DVI-I (PC) signal: DVI-I Input 29pin Connector
• RGB (PC) signal: 15pin mini D-SUB (female - Input)
• Composite Video: RCA Phono plug
• S-Video signal: S-Video (SVHS) plug
• AC Power signal: Std IEC Inlet Model JH 17T02 MMD-A1
• DC Power signal: Screw terminal Model JH 17T02 MMD-A2
• If Touchscreen: 1 x D-SUB 9P Connector (female)

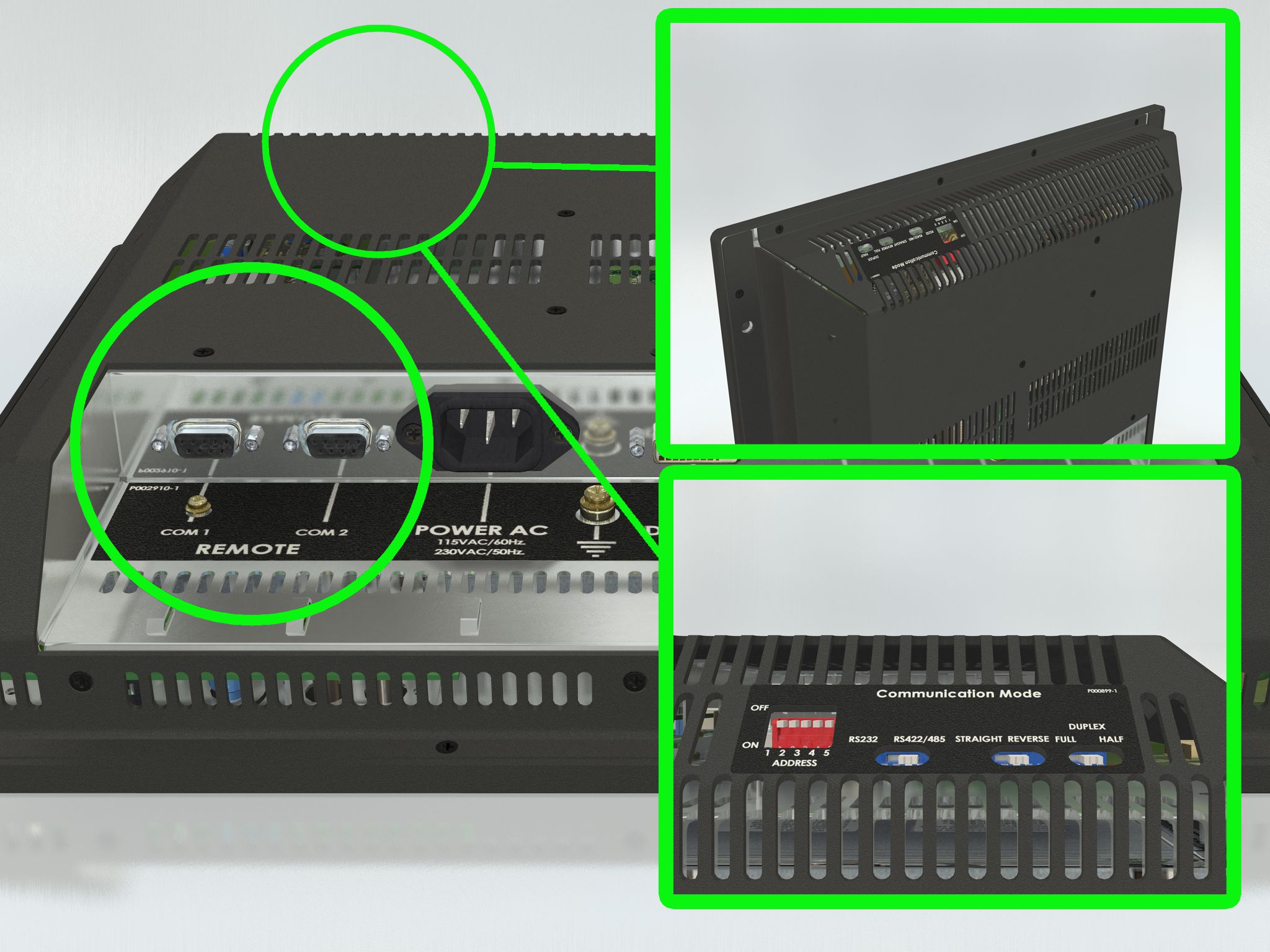

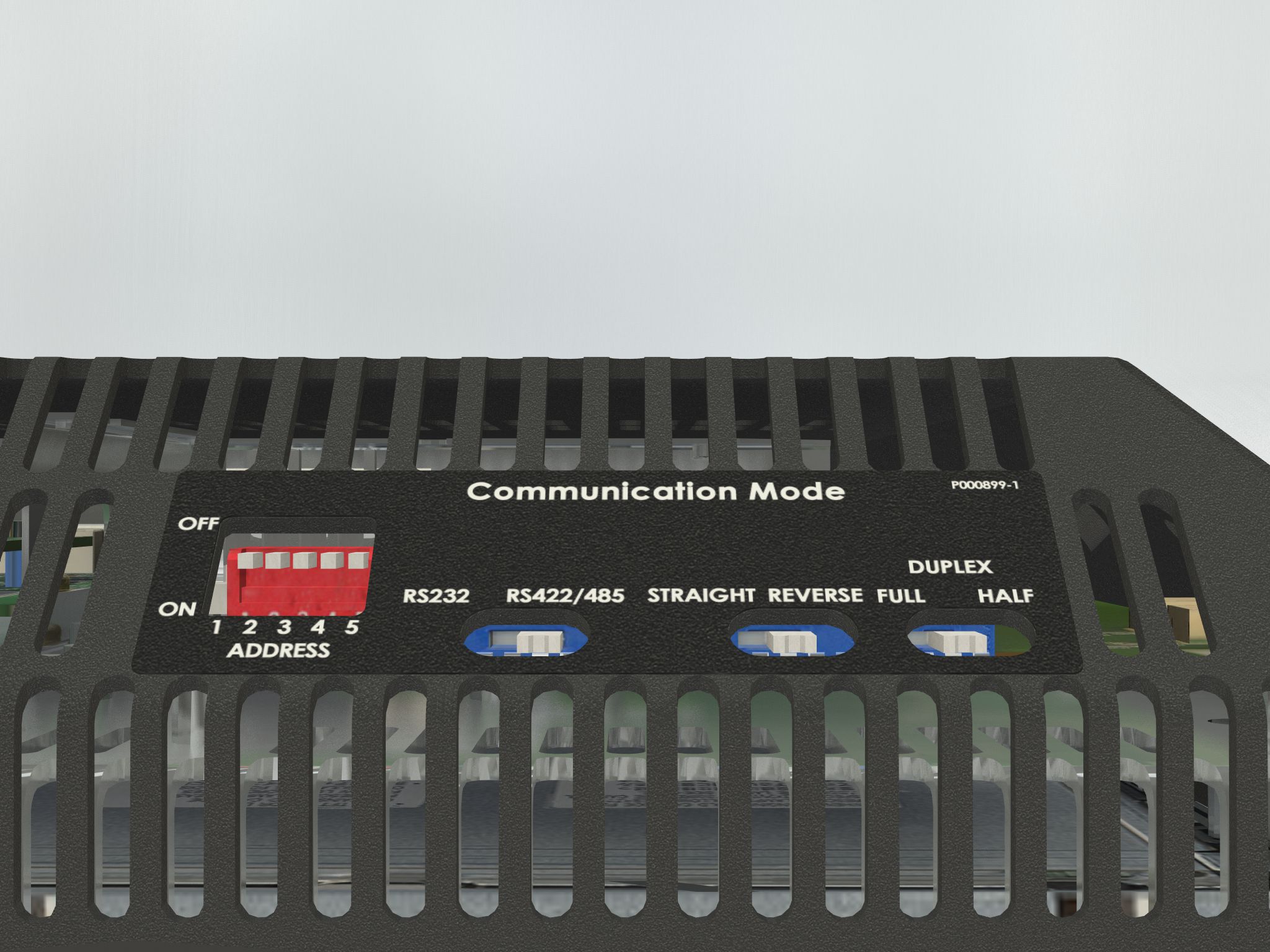

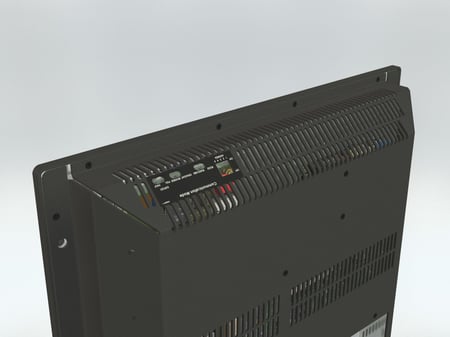

• If Remote Control: 2 x D-SUB 9P Connectors (female)

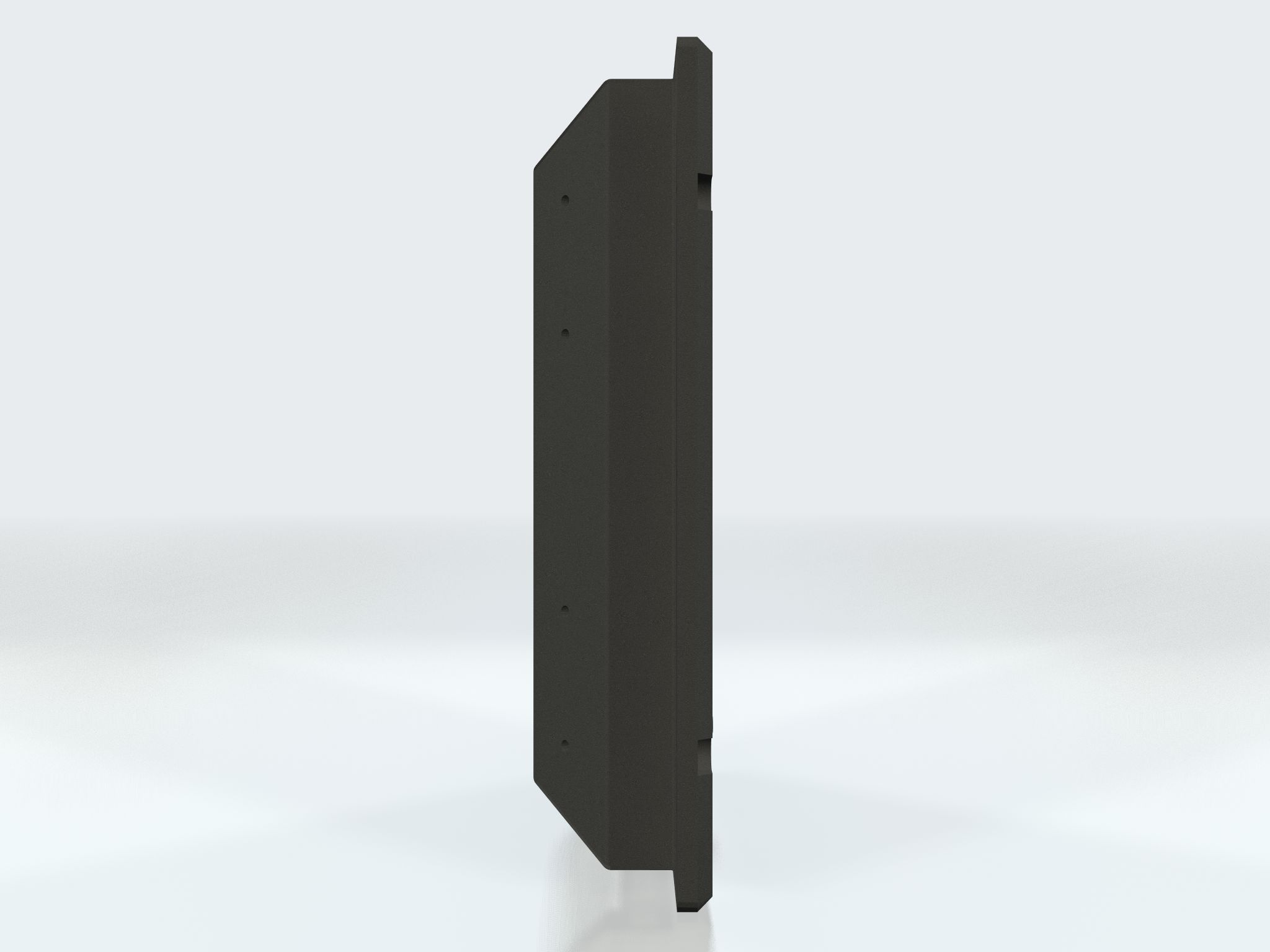

Product Dimensions and Weight: 412 (W) x 345 (H) x 73 (D) mm - 16.22" (W) x 13.58" (H) x 2.87" (D)
Weight: 7 kg (approx w/bracket)
Product Carton Size and Weight: N/A
Factory Options: • AC or DC model
• Resistive or Capacitive Touch Screen

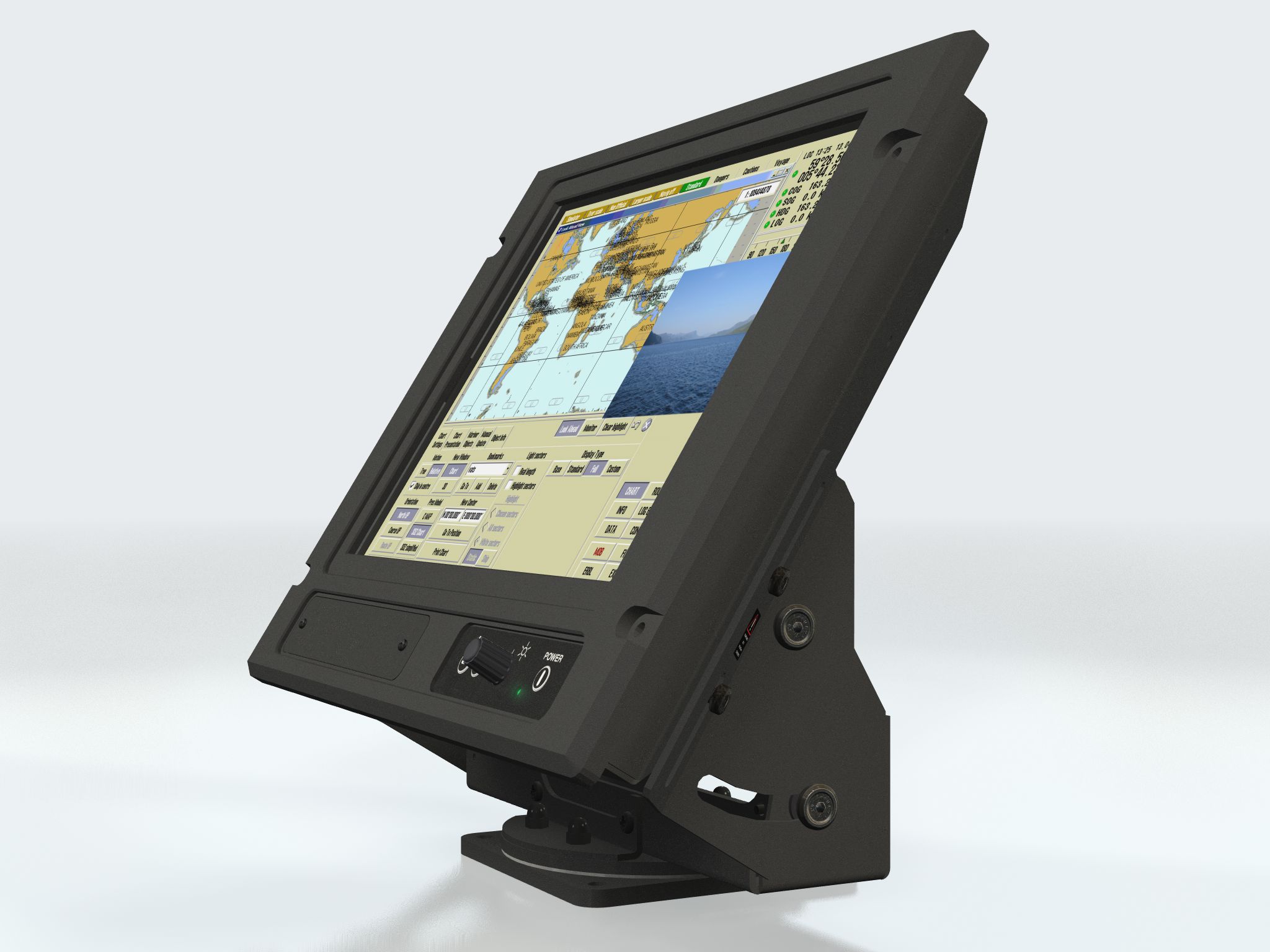

Accessories: • JH 15TBR = Bracket
• JH 15TRO = Rotary Bracket

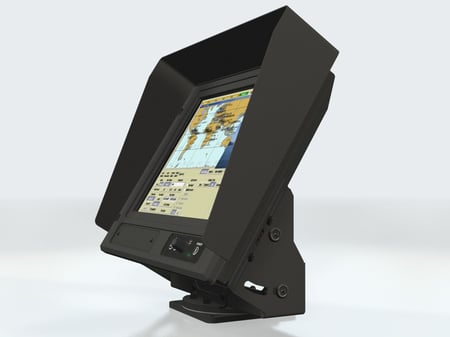

• JH 15TSV = Sun Visor
• JH XPR = External Power Relay
• JH SCOM = Remote Control
• JH 15TAP STD-A1 = 15"TFT Adapter Plate/Frame to 19" Rack
• JH 15TAP STD-B1 = 15"TFT Adapter Plate/Frame to 17"CRT
Capabilities - Prepared for: N/A
Operating Temperature: -15.0°C / 5.0°F to +55.0°C / 131.0°F. Humidity up to 95%.
Storage Temperature: -20.0°C / -4.0°F to +60.0°C / 140.0°F. Humidity up to 95%.
IP Rating: EN60529 (IP66) (Applies for flush mounting)
Compass Safe Distance: Standard: 125cm [49.21"] - Steering: 85.00 [33.46"] cm [inch]
Type Approval, Testing and Certificates: EN60945 4th (IEC945 4th), ClassNK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, LRS - Lloyd's Register of Shipping, BV - Bureau Veritas, RS - Russian Maritime Register of Shipping
