JH 15T15 MMD

Overview

Monitor - CCFL - HATTELAND® Series 1 G1 - 15.0 inch

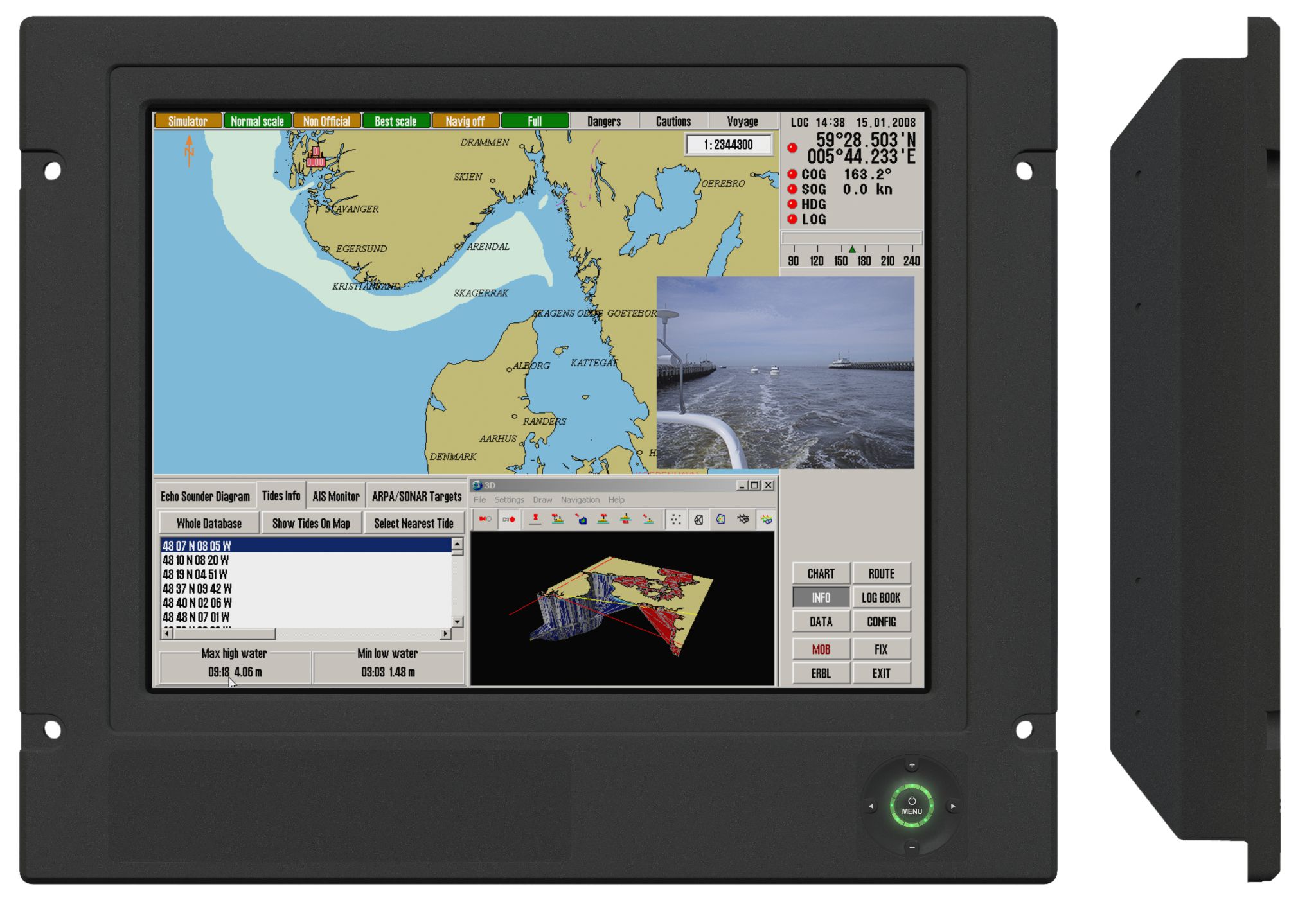

JH 15T15 MMD

The Series 1 Maritime Multi Display (MMD) uses fewer cable connections than the previous generation, which increases reliability whilst reducing component costs. All models can be delivered with either AC or DC input as standard and connections include DVI-I in, RGB out, RGB in, IEC inlet, IEC outlet and USB I/O.

icon
CCFL-backlit
Send Request
Description

Monitor - HATTELAND® Series 1 G1

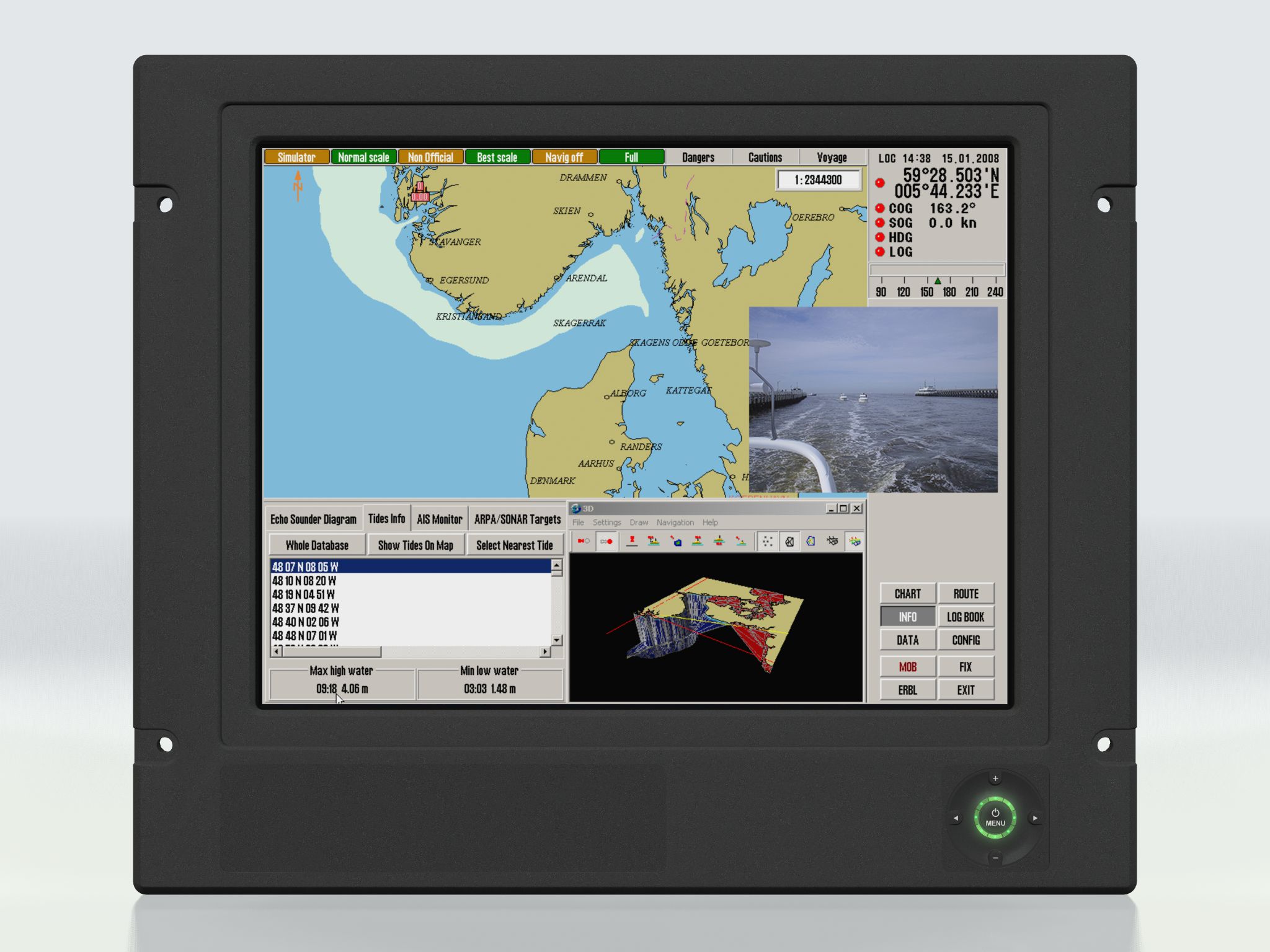

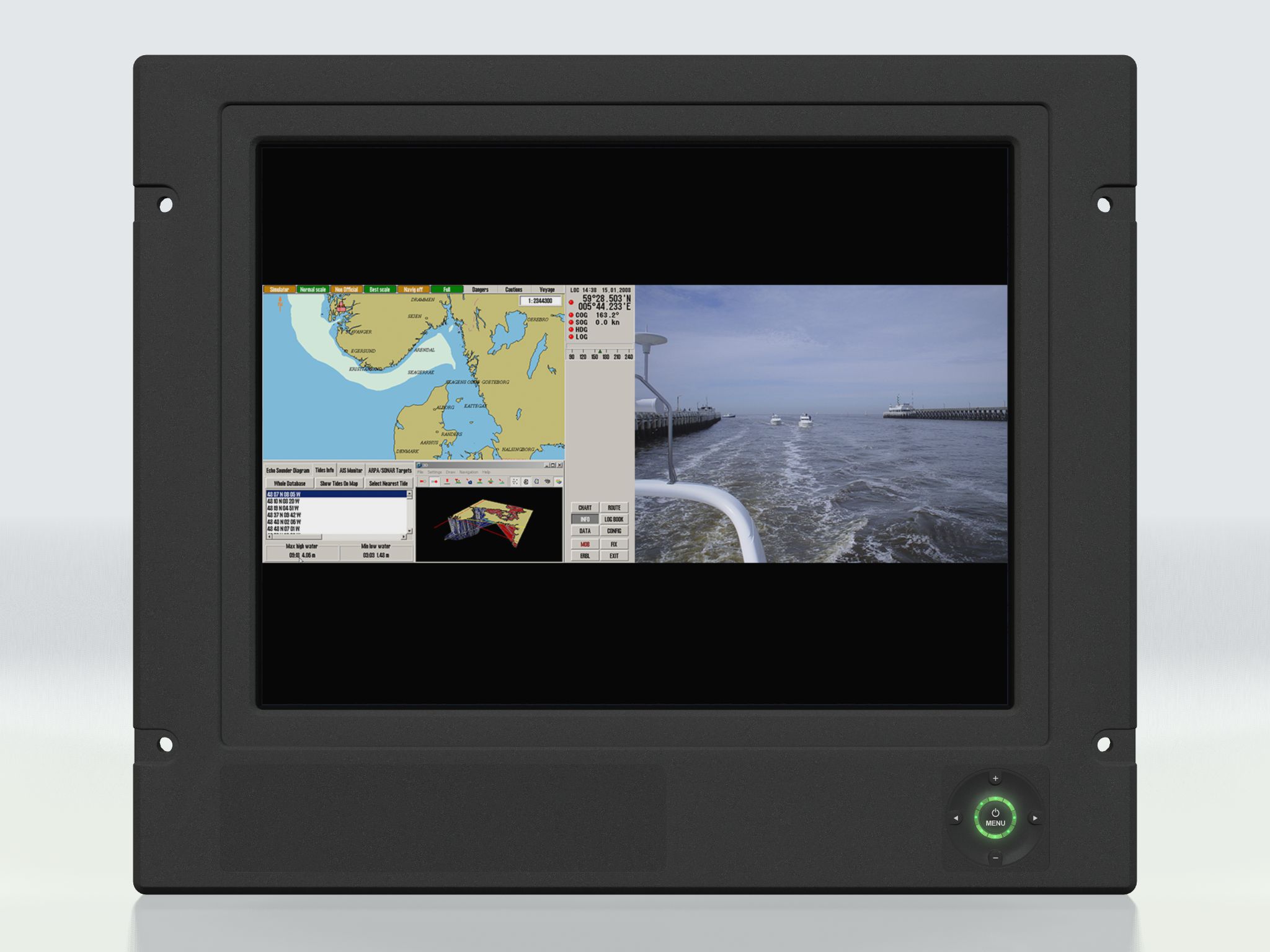

Signal input/output options can be increased upon request by using the HATTELAND® Multifunction Connector, which allows the connection of many common signal types through a single cable connection, for common signals such as; Composite Video Input, Touch Screen and Serial Communication. The models provide Picture-By-Picture (PBP) and Picture-In-Picture (PIP) functionality.

Further, all models and variations can be offered with Optical Technology bonding that mitigates screen misting.
Specifications
Typenumber (Long): JH 15T15 MMD
TFT Technology: High Quality SHARP TFT, Color Active Matrix LCD Module, a-Si Thin Film Transistor (TFT)
Viewable Size and Active Area: 15.0 inch - 304.10 [11.97"] (H) x 228.10 [8.98"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1024 x 768 (XGA) - 0.297 (H) x 0.297 (V) mm
Aspect Ratio and Response Time: 4:3 - 25 ms (typical), "black" to "white"
Light Intensity and Contrast Ratio: 250 cd/m² (typ) - 400:1 (typ)
View Angle and Max Colors: 85 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz: 1024 x 768 @ 60 Hz

Sync Signal:
• Digital separate synchronisation
• Composite synchronisation
• Synchronisation on green.
• Auto detects VGA -> WUXGA, interlaced and non interlaced
• Video Signal: Analog RGB 0,7Vp-p, Input Impedance 75 Ohm

Synchronisation Range:
• Horizontal: 15,0 kHz to 91,1 kHz
• Vertical: 60 Hz* to 85 Hz
Detectable Resolutions: 640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1200
Composite Video Input(s): With Multifunction Cable
Supported Video Signals: SVHS&COMPOSITE Compatible
Product Features: PBP (Picture By Picture), PIP (Picture In Picture), Multifunction Connector, Hotkey Functionality, Dimmable 0-100%
Power Specifications and Consumption: Power Supply Options:
• 115& 230VAC - 50 / 60Hz - JH 15T15 MMD-Axx-xxxx
• 24 VDC - JH 15T15 MMD-Dxx-xxxx

Power Consumption:
Operating: 100W (max)

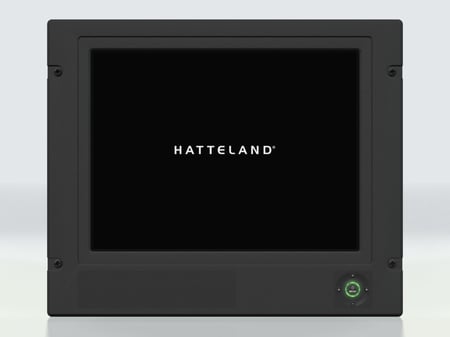

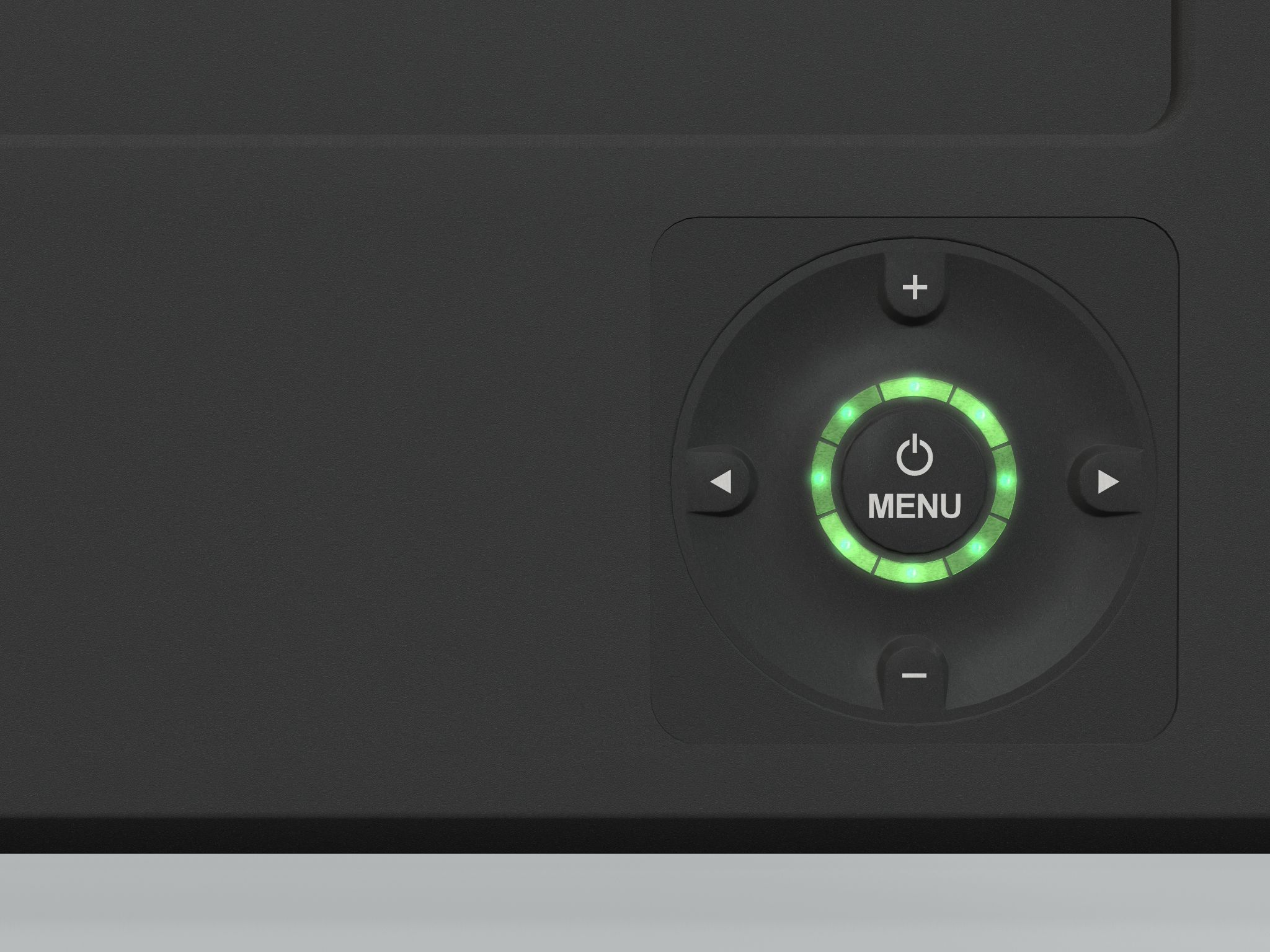

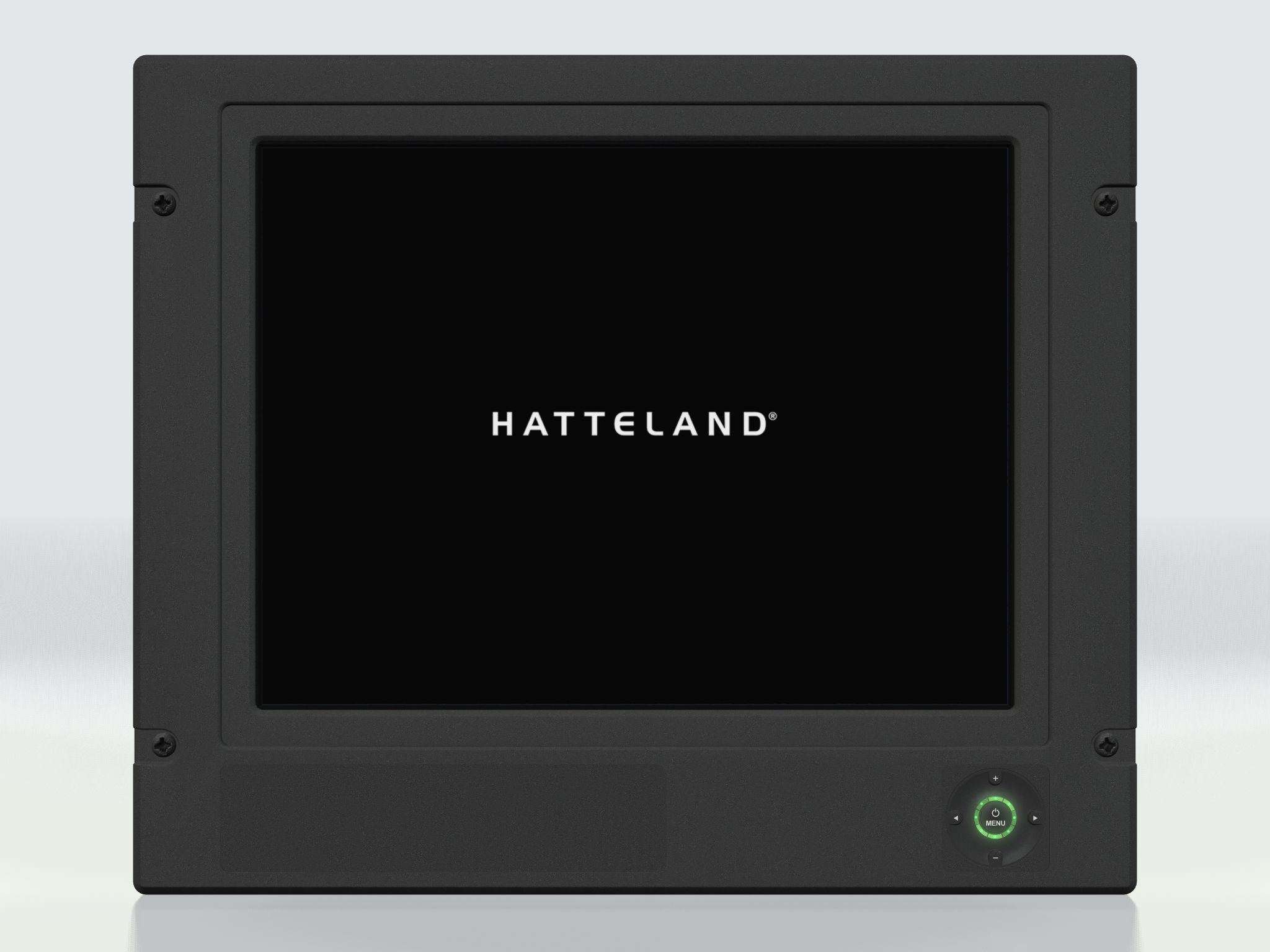

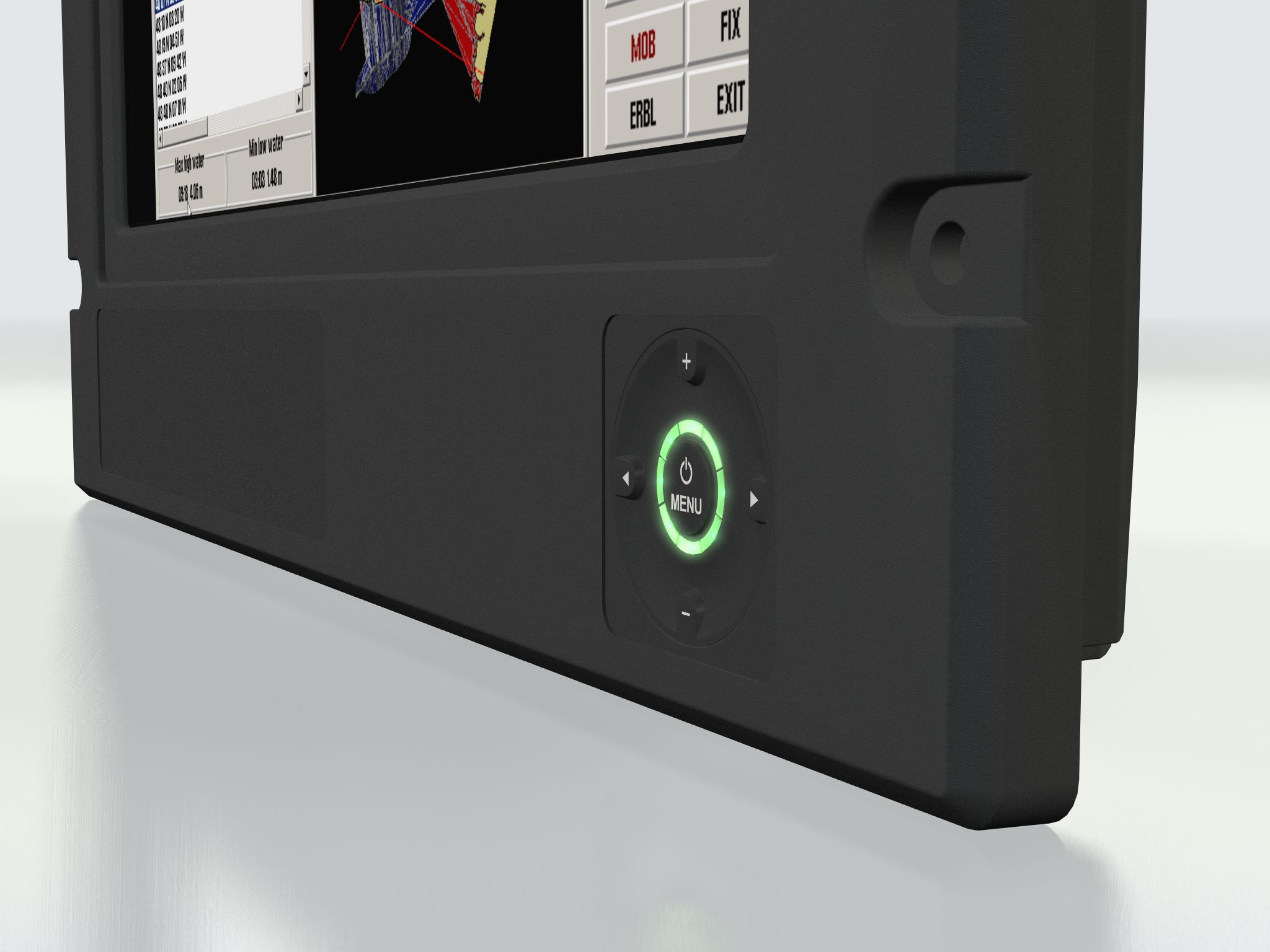

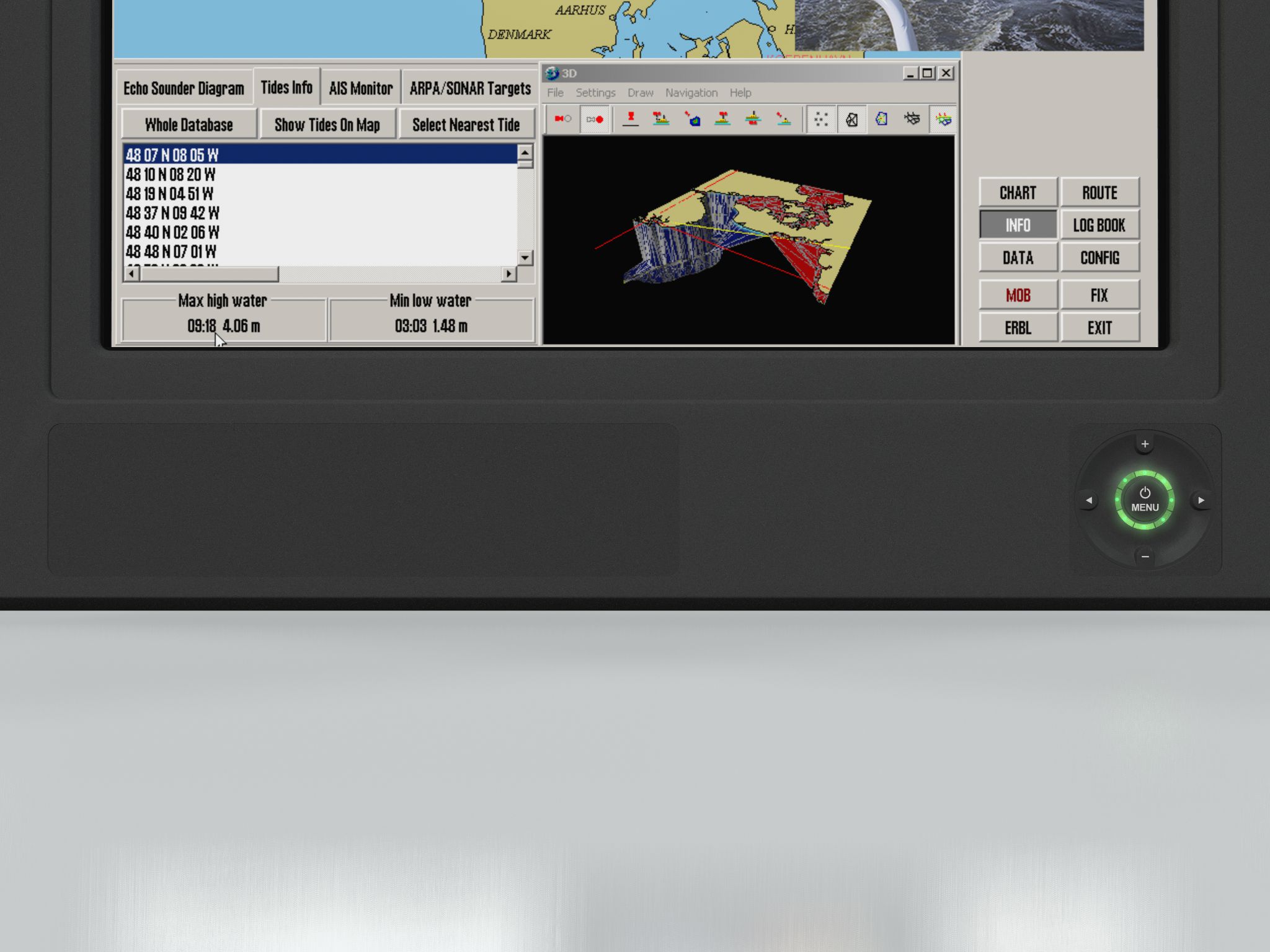

User Controls and Activity: On front bezel - Keypad control (IP66) xxx-xxAx models:
• Power On/Off and On Screen Display Menu (push button)
• Brightness Control (up/down - push buttons)
• Hotkeys (left/right - push buttons)
• Mode Status Red/Green Illuminated LED-Ring Indicator

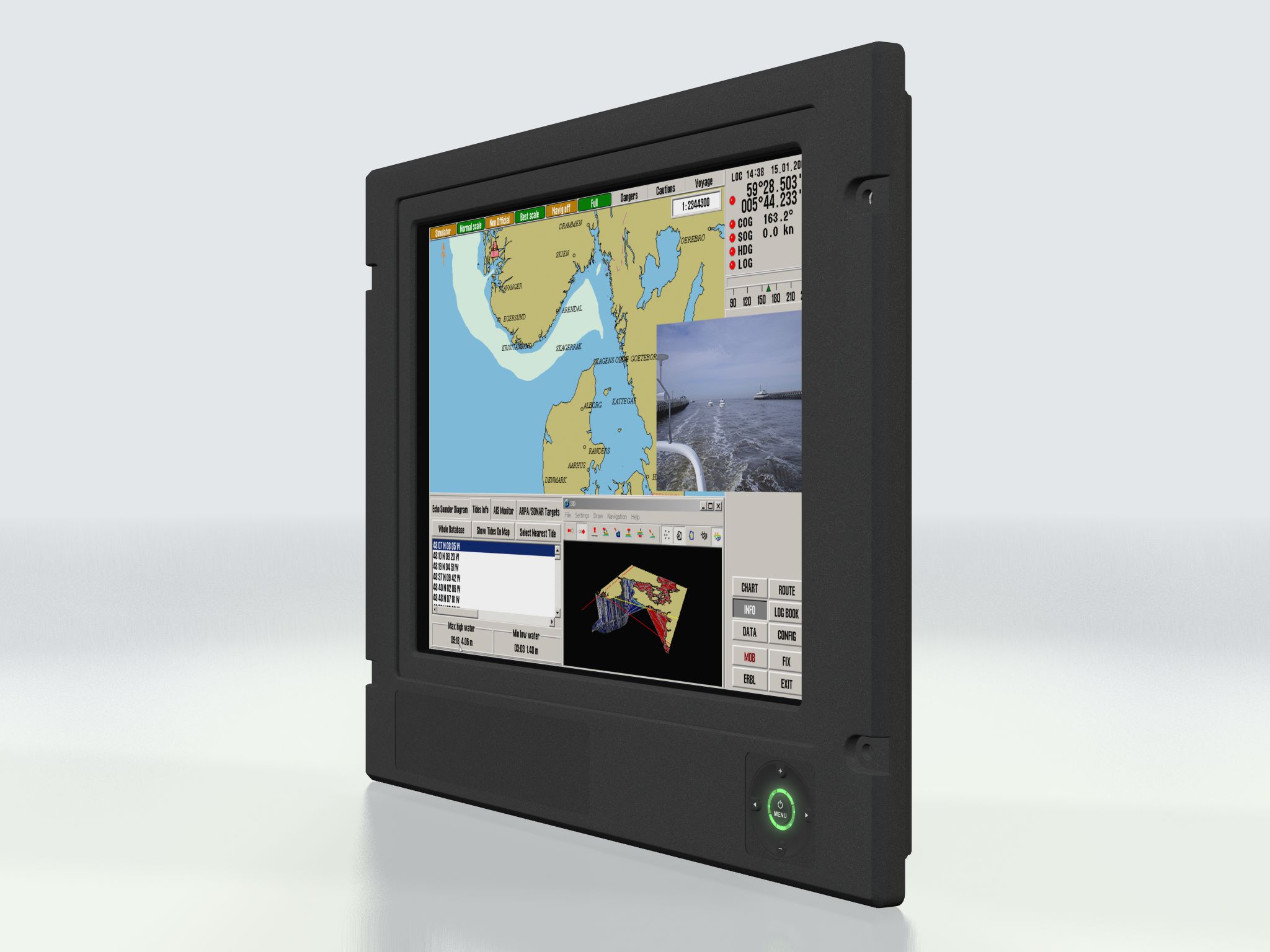

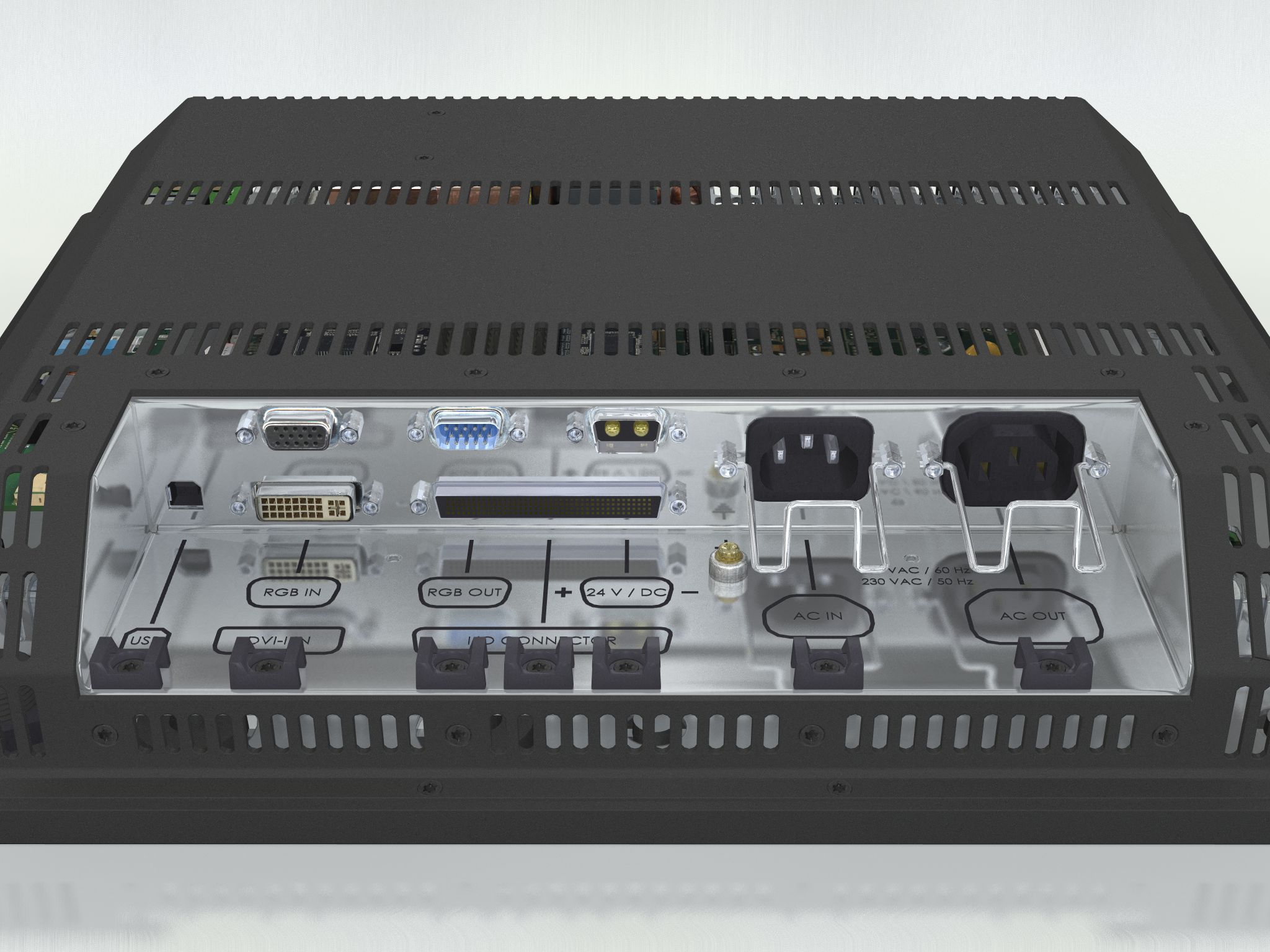

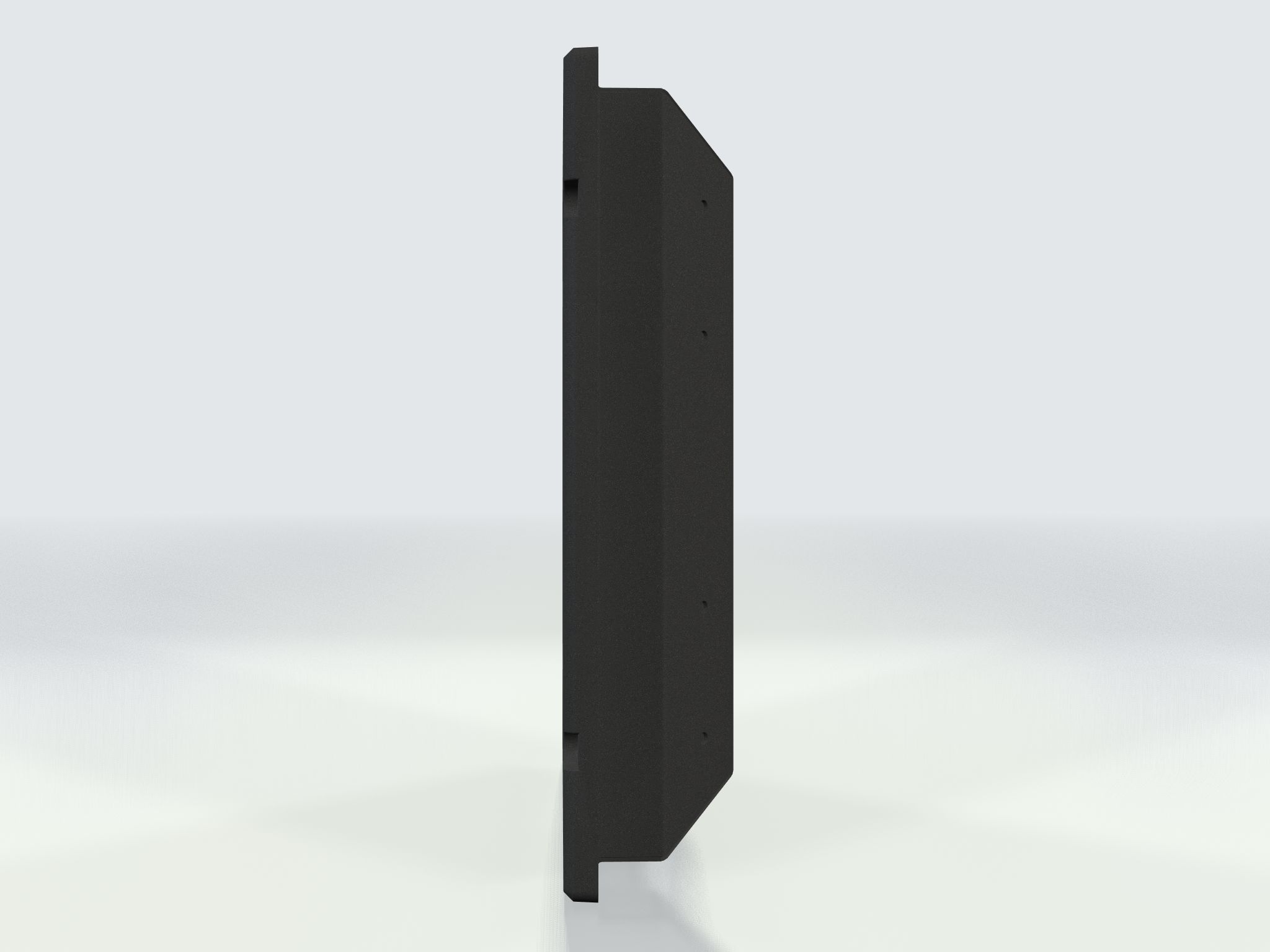

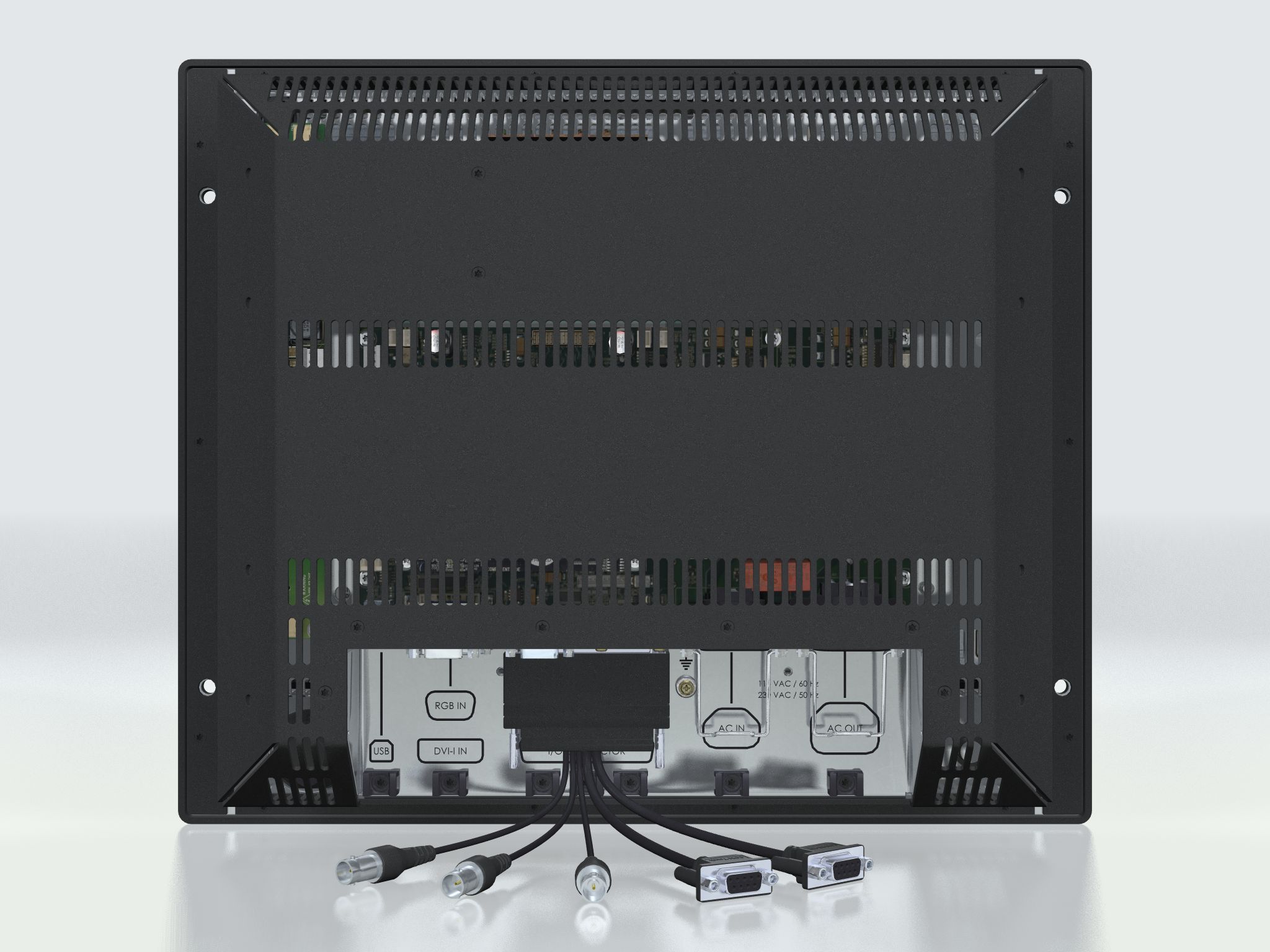

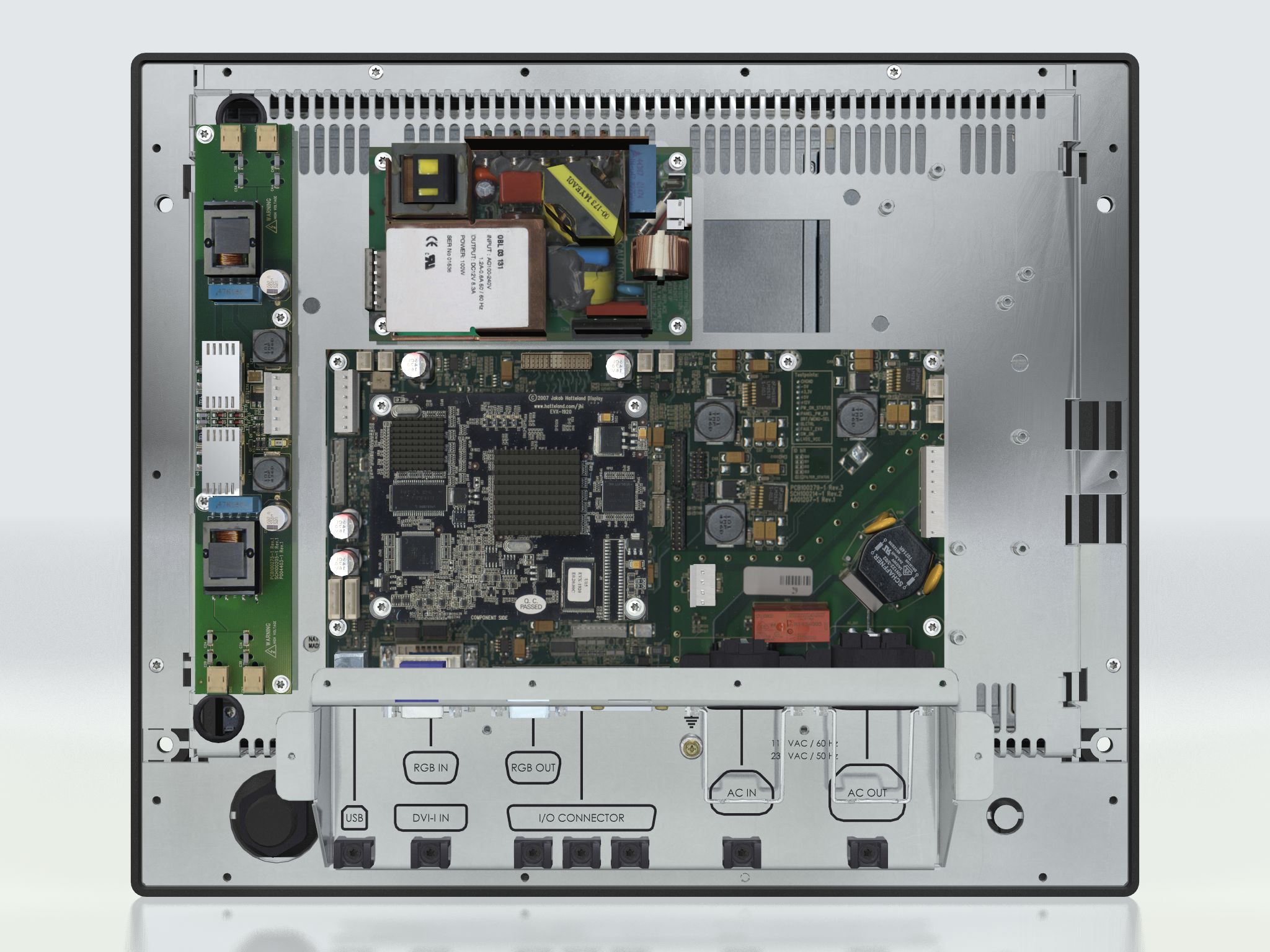

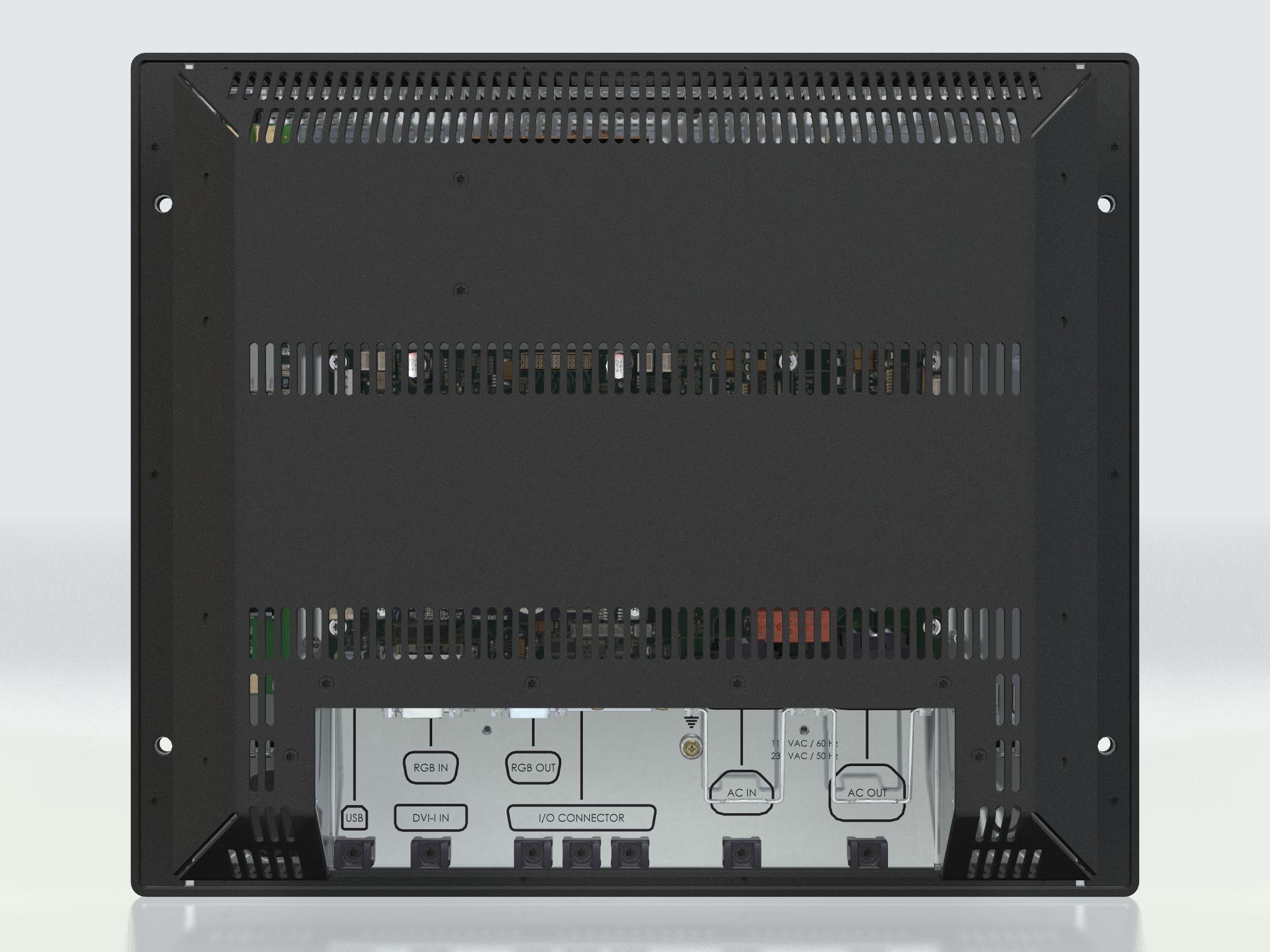

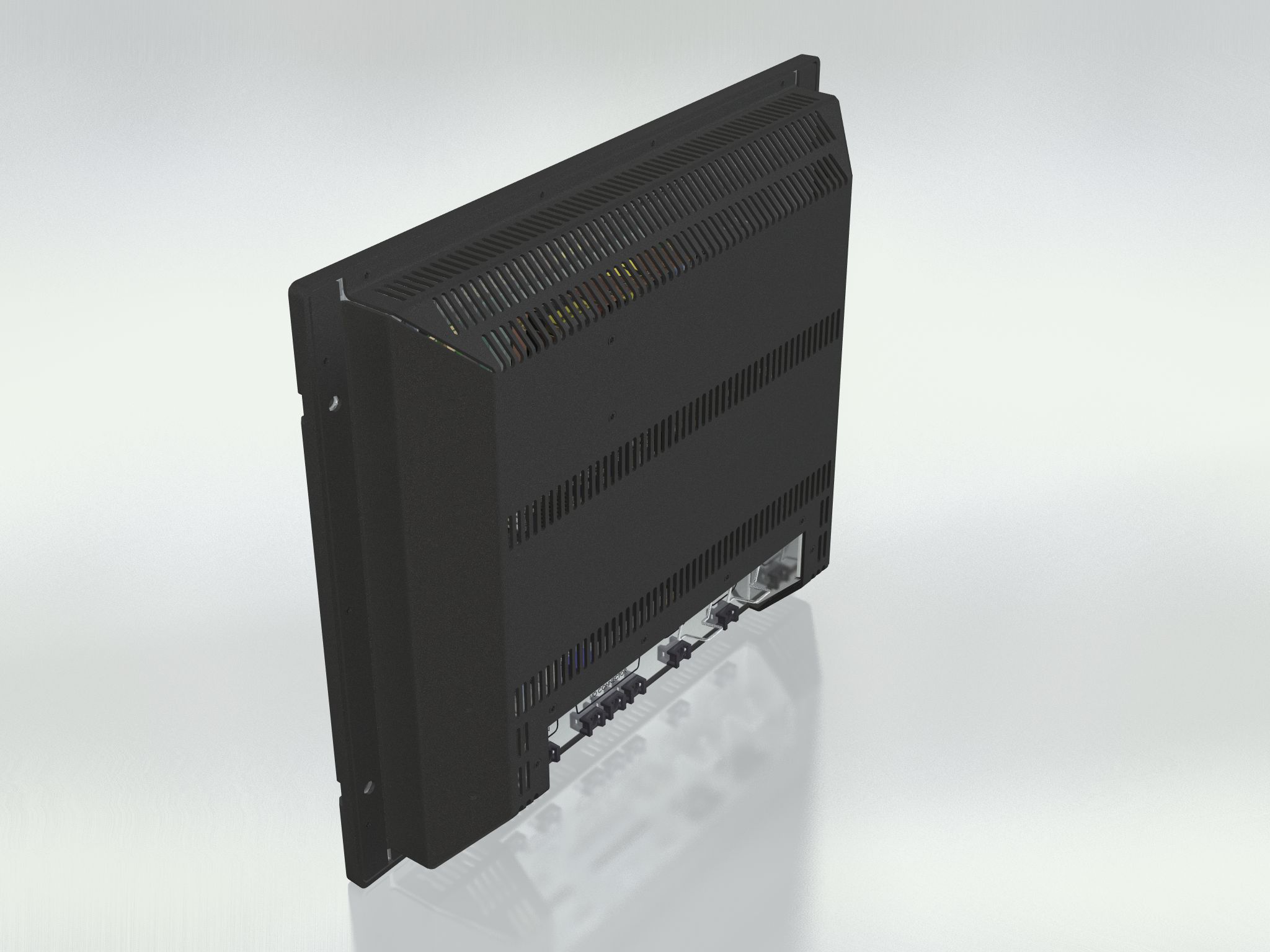

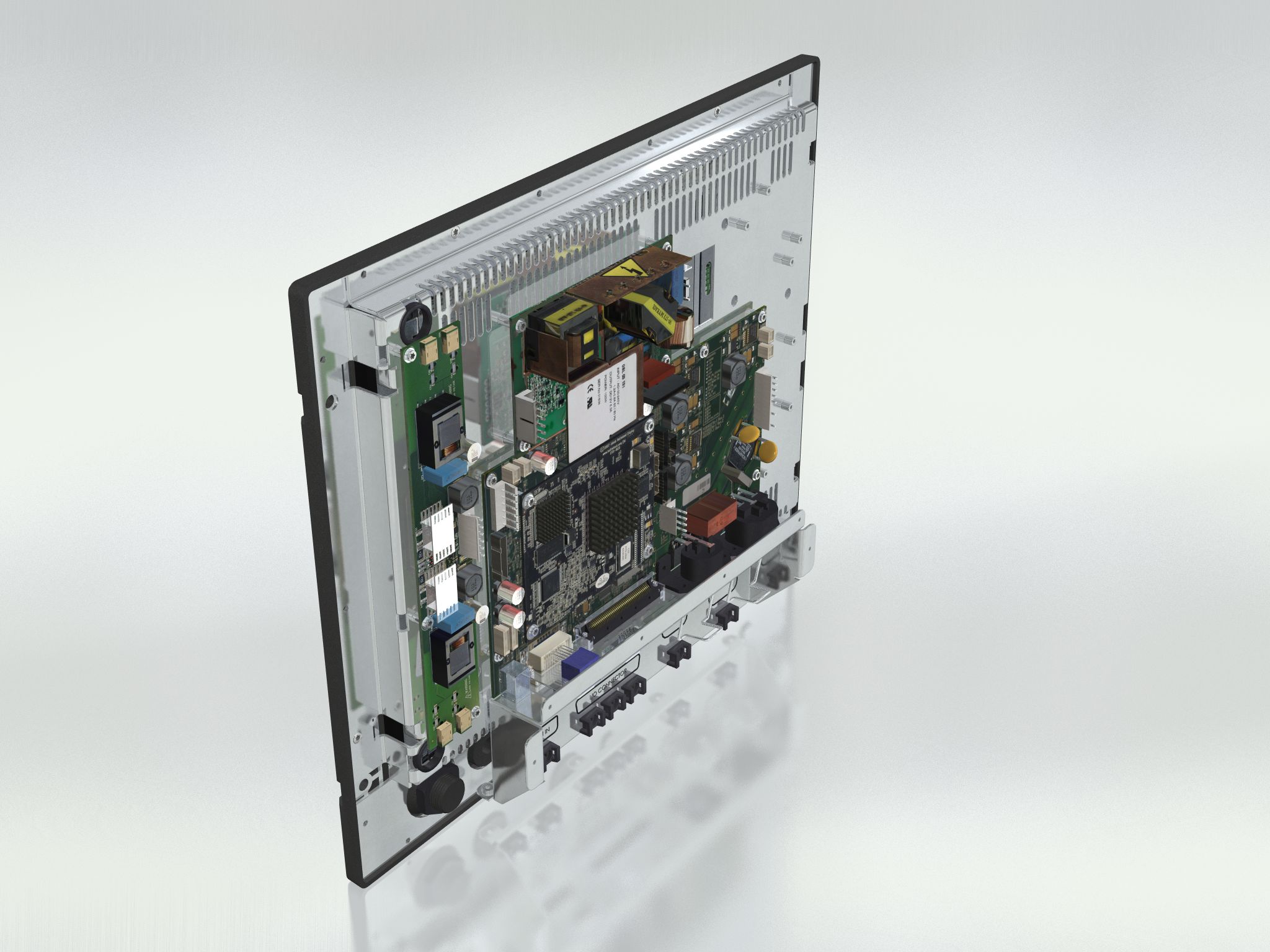

Connectors: • DVI-I Signal IN: 1 x 29p DVI Female (or as RGB IN with adapter)
• RGB Signal IN: 1 x 15p HD D-SUB (female)
• RGB Signal OUT: 1 x 15p HD D-SUB (female) - Clone of RGB IN**

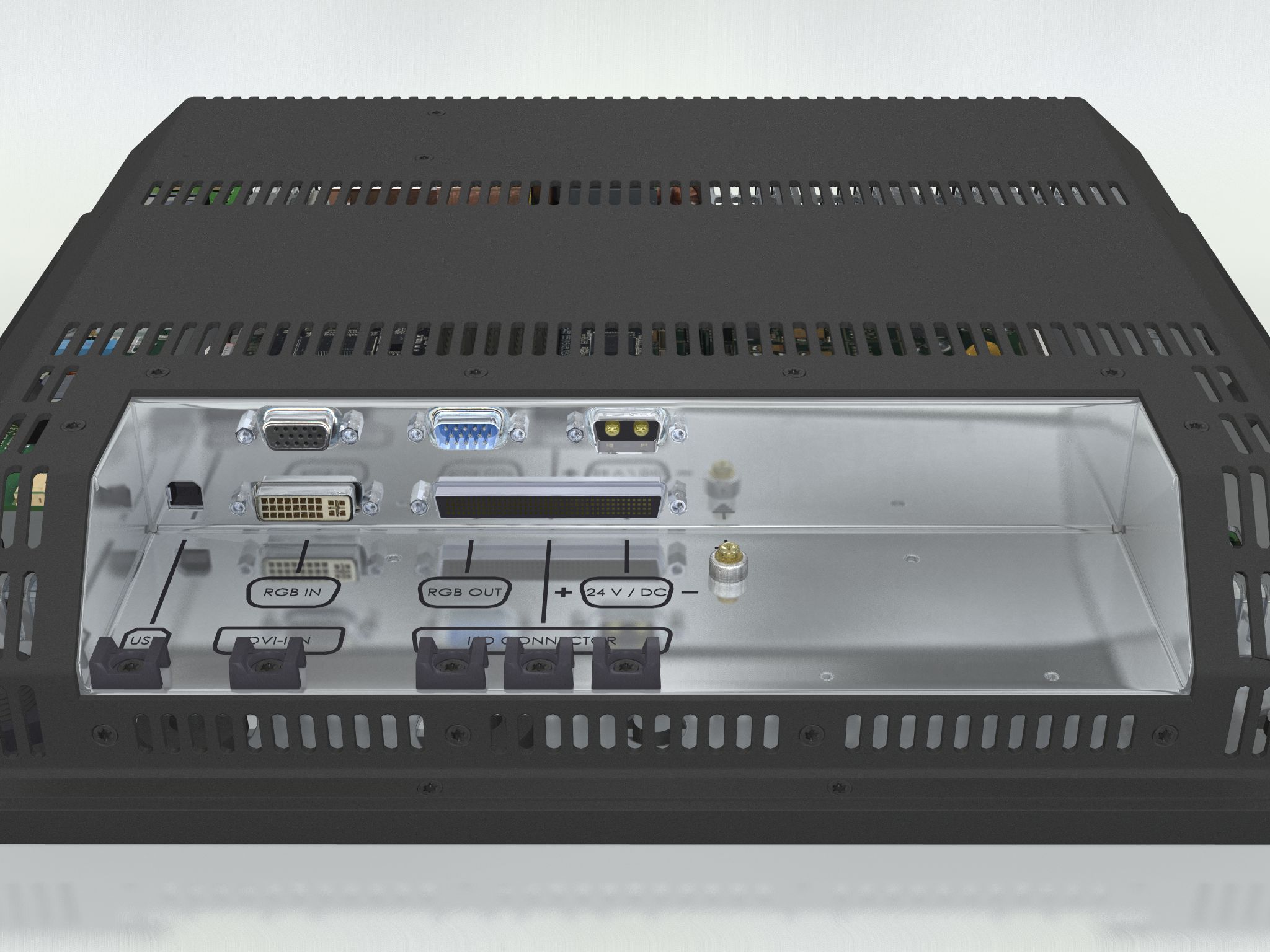

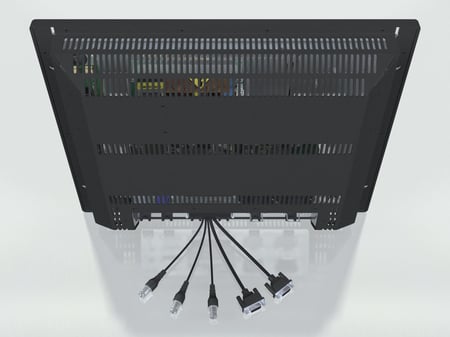

• Multifunction: 1 x 160p D-SUB (female) - Also see table below
• USB I/O: 1 x TYPE B Conn. (female) Reserved for future use
• AC Power IN: 1 x Std IEC Inlet
• AC Power OUT: 1 x Std IEC Outlet
• If DC Power IN: 1 x 2p D-SUB Connector (male) - Amphenol FCC17

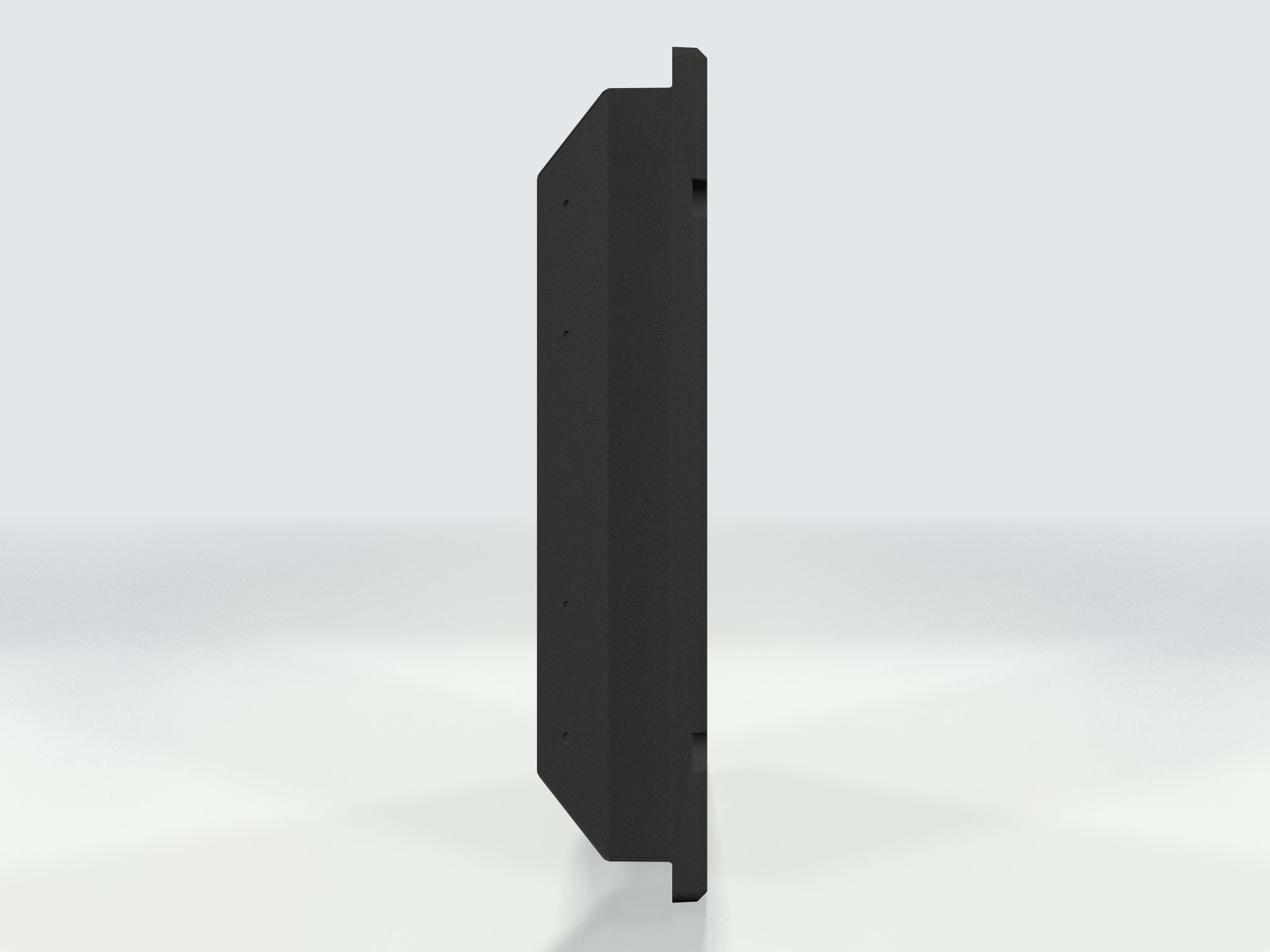

Product Dimensions and Weight: W:412.00 [16.22"] x H:345.00 [13.58"] x D:73 [2.87"] mm [inch]
Weight: 7 kg (approx)
Product Carton Size and Weight: L:545.00 [21.46"] x W:205.00 [8.07"] x H:505.00 [19.88"] mm [inch]
8.0kg / 17.6lbs
Factory Options: • AC or DC model
• Resistive or Capacitive Touchscreen
• Optical Bonding Technology

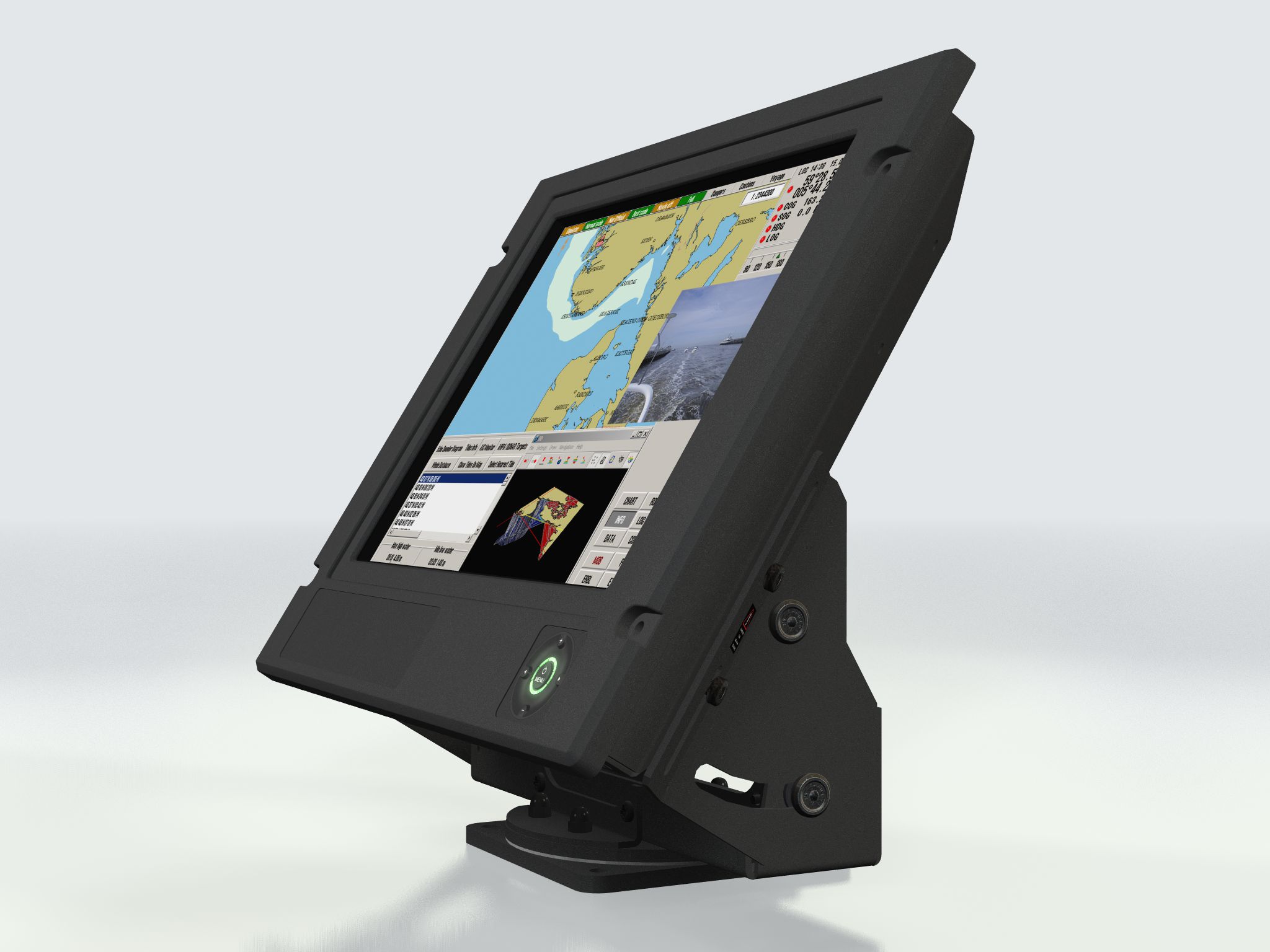

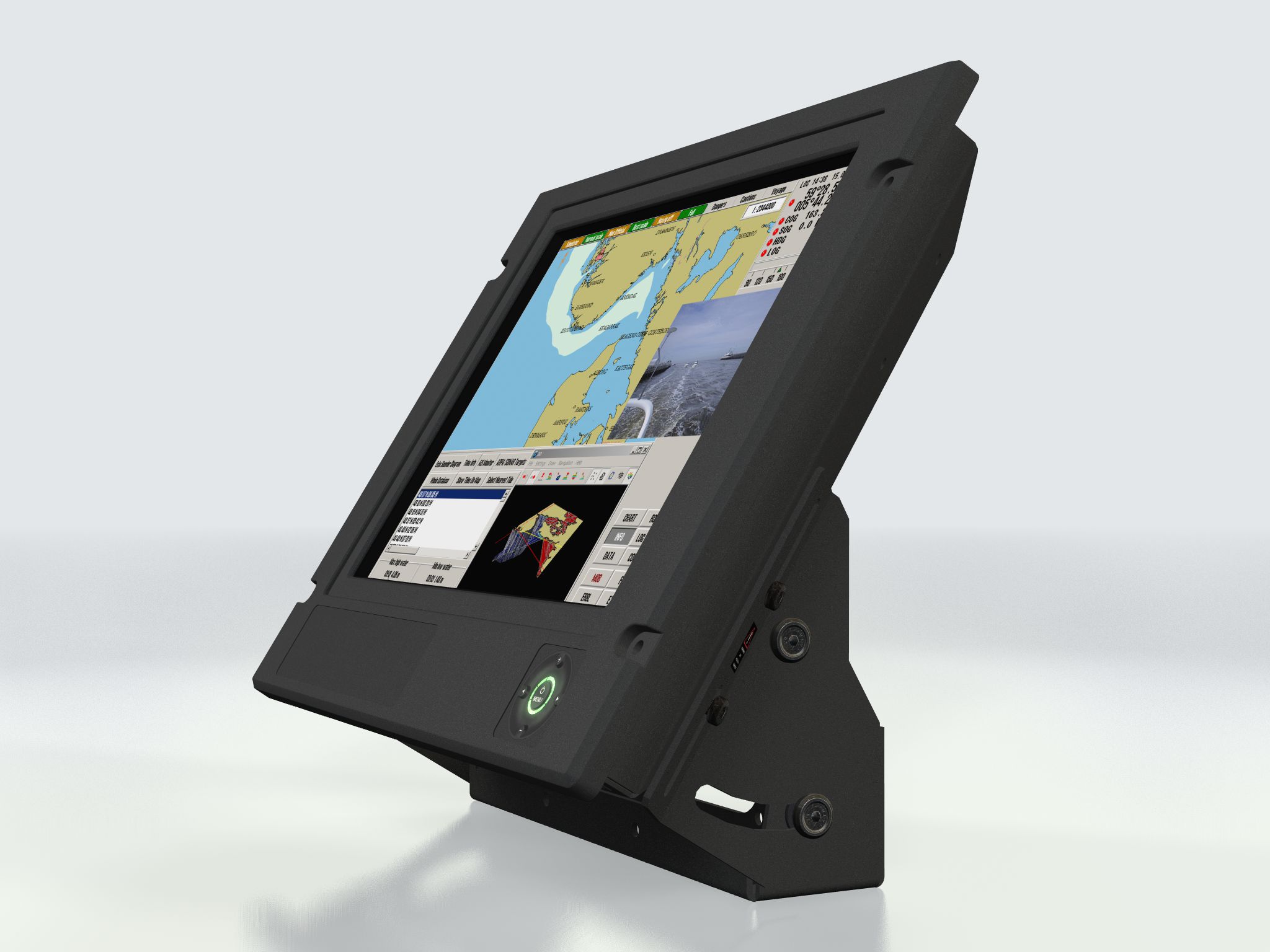

Accessories: • JH 15TBR STD-B1 = Mounting Bracket
• JH 15TRO STD-A1 = Rotary Bracket

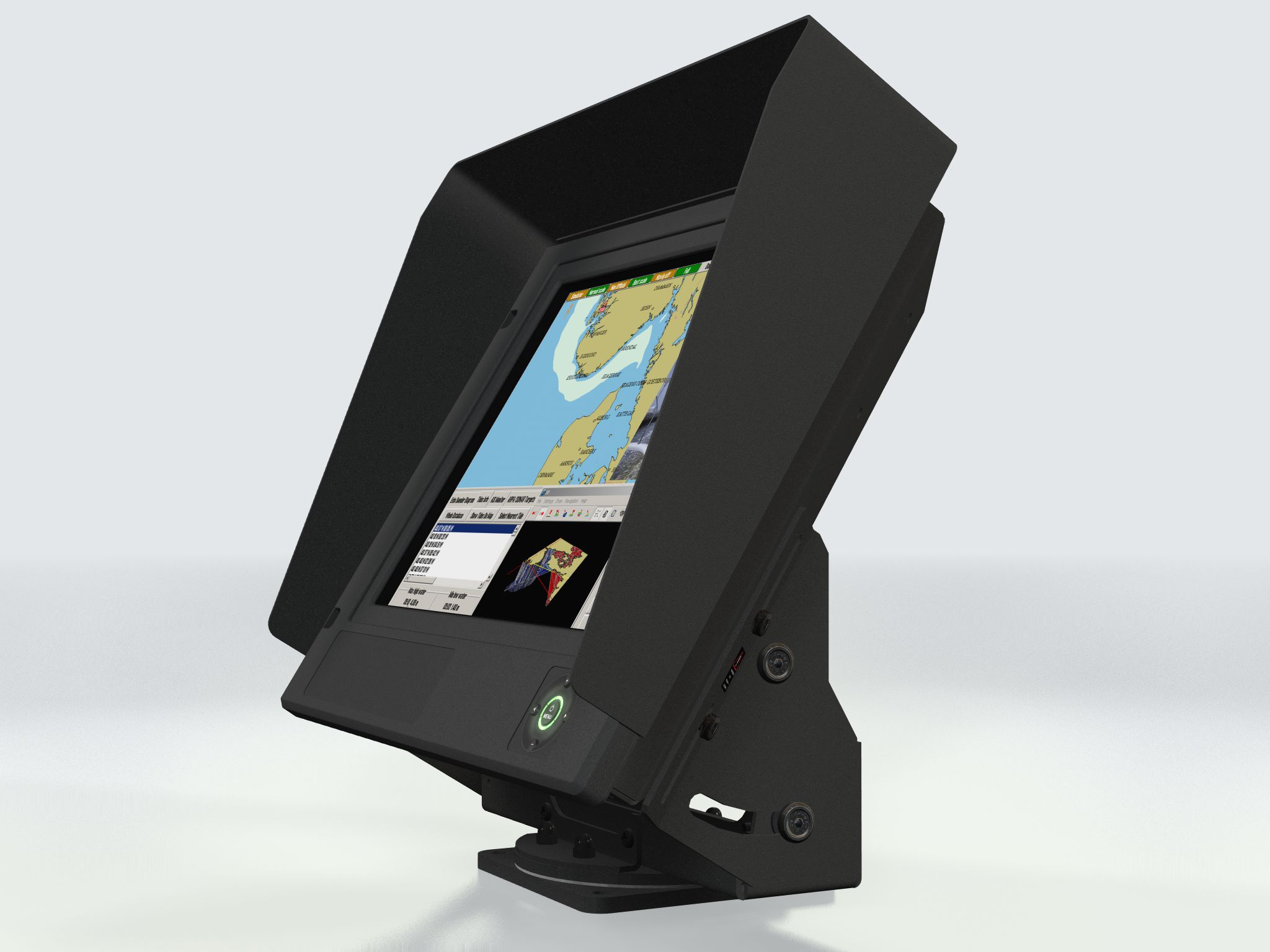

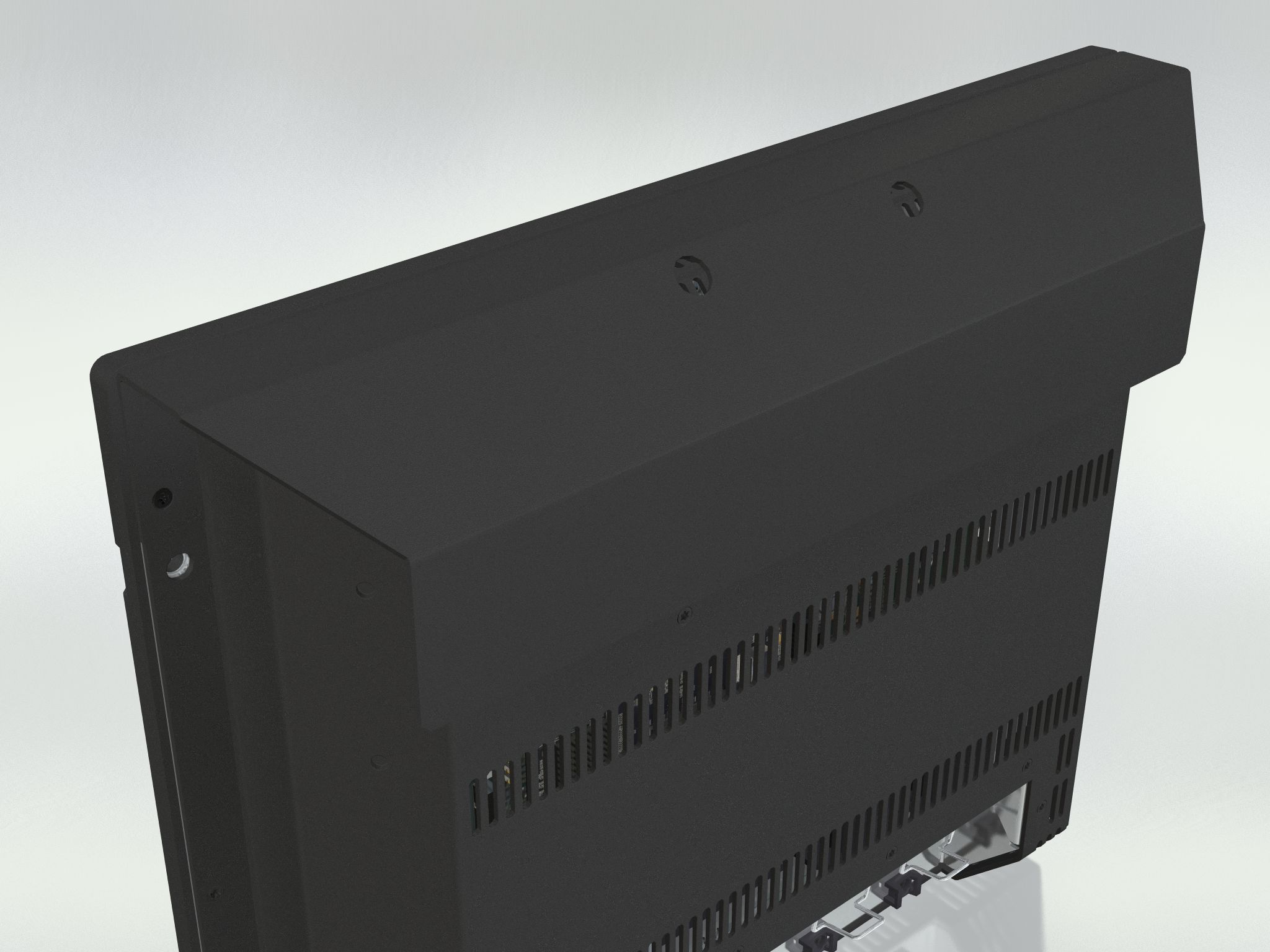

• JH 15TSV STD-A1 = Sun Visor
• JH VESA 15T03-A1= Vesa Bracket
• JH 15TAP STD-A1 = 15" Adapter Frame to 19" Rack
• JH 15TAP STD-B1 = 15" Adapter Frame to 17" CRT monitor
• JH 15TWC STD-A1= Water Cover

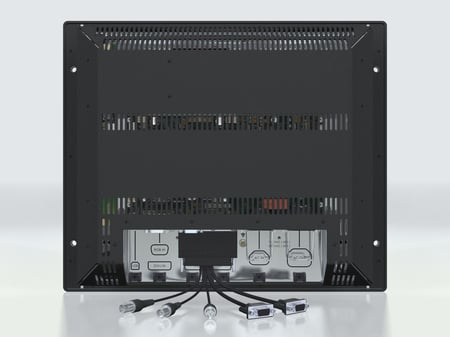

Multifunction Cable Options:

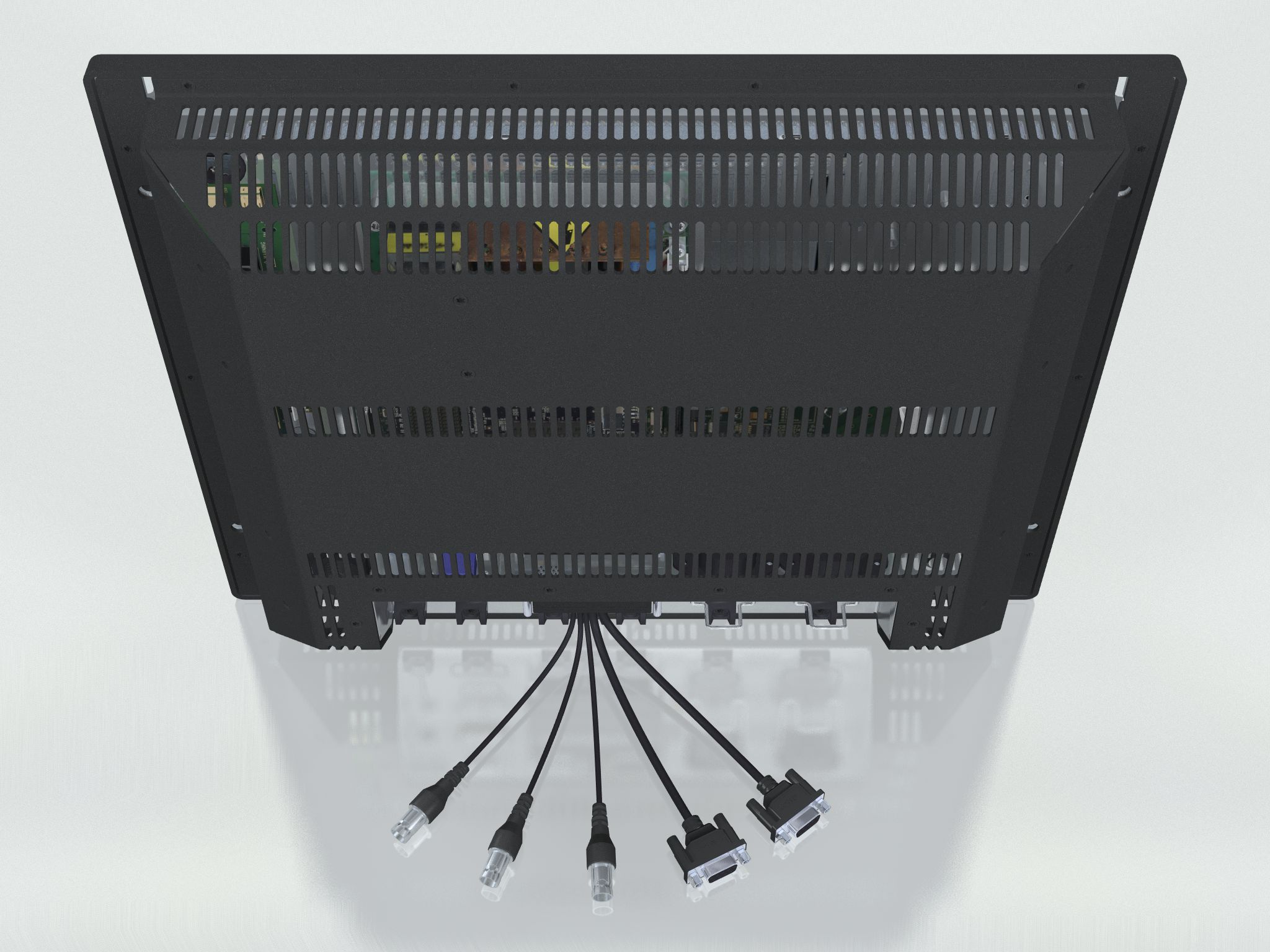

1 x RS-232 COM or 1 x RS-232 COM + 3 x BNC Video In or
1 x RS-232 COM + 3 x BNC Video In + 1 x COM Touch
Capabilities - Prepared for: N/A
Operating Temperature: -15.0°C / 5.0°F to +55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature: -20.0°C / -4.0°F to +60.0°C / 140.0°F, Humidity up to 95%
IP Rating: EN60529 (IP66) (Applies for flush mount)
Compass Safe Distance: Standard: 130.00 [51.18"] - Steering: 100.00 [39.37"] cm [inch]
Type Approval, Testing and Certificates: EN60945 4th (IEC945 4th), ClassNK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, LRS - Lloyd's Register of Shipping, BV - Bureau Veritas, CCS - China Classification Society
Specifications last updated: July 7, 2025 @ 10:01
