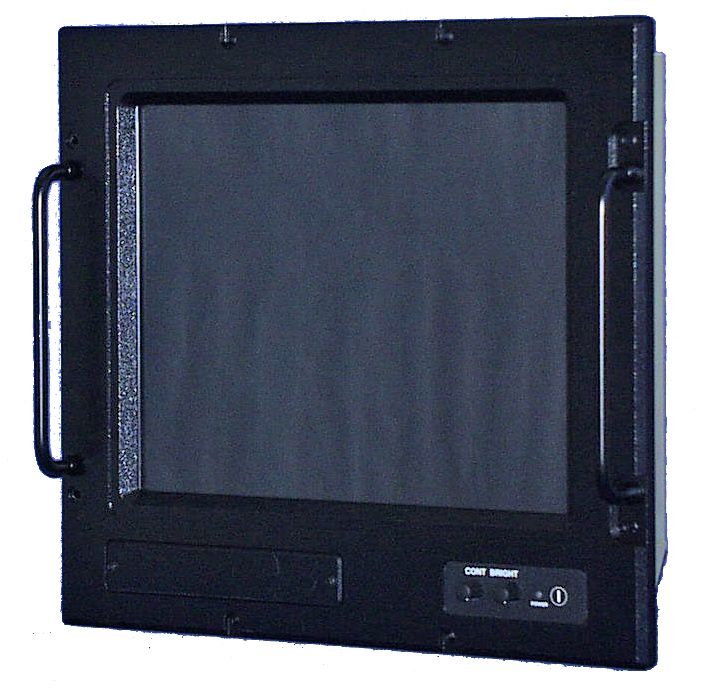

JH 18T01 M31

Overview

Monitor - CCFL - HATTELAND® Series 0 - 18.1 inch

JH 18T01 M31

The color display described in this Data Sheet is an industrialized version of a high quality (NEC TFT) based display with XtraView technology. The display allows you to display professional applications with clarity and enhanced color and image quality.

icon
CCFL-backlit
Send Request
Description

Monitor - HATTELAND® Series 0

The display provides you with automatic compatibility withmultiple upgrading platforms and a vast array of graphics standards allowing resolution upgrades without upgrading the display. The MultiSync controller and the high light adjustment control allow the product to be used in many environments.
Specifications
Typenumber (Long): JH 18T01 M31
TFT Technology: a-Si active matrix, thin film transistor (Super-TFT), XtraView technology, RGB vertical stripe color filter arrangement
Viewable Size and Active Area: 18.1 inch - 359.04 [14.14"] (H) x 287.232 [11.31"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1280 x 1024 (SXGA) - 0.2805 (H) x 0.2805 (V) mm
Aspect Ratio and Response Time: 5:4 - 130 ms (max.), "black" to "white"
Light Intensity and Contrast Ratio: 200 cd/m² (typ) (8 x Cold Cathode Fluorescent Tube) - 150:1 (typ)
View Angle and Max Colors: 85 deg. (up/down/left/right) - Full-color (depending on the graphics board)
Optimal Resolution and Hz: 1280 x 1024 @ 60 Hz

Sync Signal: Separate sync. Composite sync., Composite sync on green
Video Frequency: 21.1 to 78.8 MHz
Video Signal: Analog RGB 0.7Vp-p, Input impedance 75 Ohm

Synchronisation Range:
Horizontal: 24.0 kHz to 80.0 kHz
Vertical: 56 Hz to 76 Hz*
*60 Hz recommended for optimum picture quality
Detectable Resolutions: 640 x 480 / 720 x 400 / / 800 x 600 / 832 x 624 / 1024 x 768 / 1280 x 960 / 1280 x 1024
Composite Video Input(s): None
Supported Video Signals: None
Product Features: MultiSync
Power Specifications and Consumption: 100/220 VAC
Operating: max 60W
User Controls and Activity: Outside front frame:
Power Switch
Brightness Control
Contrast Control
Mode Status LED

Inside front frame:
On Screen Manager Control
LED Intensity
Connectors: VGA signal:
1 x HD/DSUB 15P connector (female)
5 x BNC connectors

Power: Screw terminal
If Touch screen: 1 x D-SUB 9P connector (female)
Product Dimensions and Weight: Rack version: 483 (W) x 443.7 (H) x 104.4 (D) mm
Weight: 8 kg

Cabinet version: 483 (W) x 443.7 (H) x 110 (D) mm
Weight, cabinet: 2 kg
Product Carton Size and Weight: N/A
Factory Options: • Touch Screen
Accessories: Front
Cabinet
Suspension Bracket
Table Stand
Capabilities - Prepared for: N/A
Operating Temperature: -15.0°C / 5.0°F to +55.0°C / 131.0°F
Humidity 30% to 90% (non condensing)
Storage Temperature: -20.0°C / -4.0°F to +60.0°C / 140.0°F
Humidity 10% to 90% (non condensing)
IP Rating: N/A
Compass Safe Distance: N/A
Type Approval, Testing and Certificates: Based on IEC945 3rd ed., E10, CE and classification society aprovement:

LLOYD's - Lloyds Register of Shipping
DNV - Det Norske Veritas
GL - Germanischer Lloyd
NIPPON - Nippon Kaiji Kyokai
ABS - American Bureau of Shipping
Specifications last updated: August 18, 2025 @ 08:00
