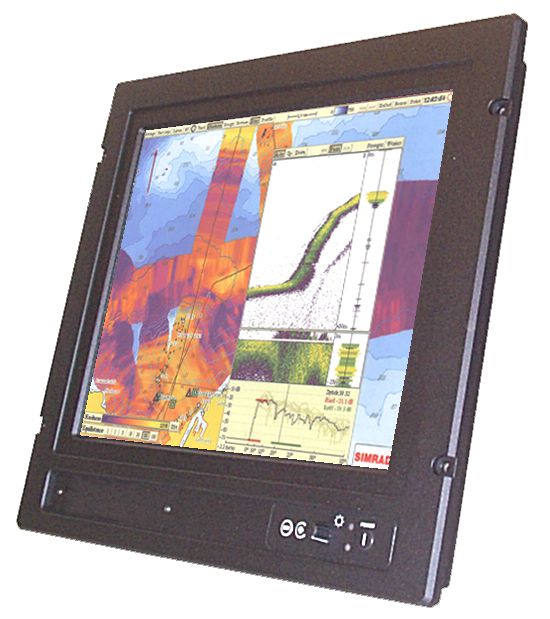

Monitor - CCFL - HATTELAND® Series 0 - 18.1 inch

JH 18T04 MMD

The color display described in this Data Sheet is an industrialized version of a high quality (NEC TFT) based display with XtraView technology. The display allows you to display professional applications with clarity and enhanced color and image quality.

CCFL-backlit

Send Request

Description

Specifications

Typenumber (Long):	JH 18T04 MMD
TFT Technology:	Thin Film Transistor (TFT), a-Si TFT Active Matrix
Viewable Size and Active Area:	18.1 inch - 359.04 [14.14"] (H) x 287.232 [11.31"] (V) mm [inch]
Native Resolution and Pixel Pitch:	1280 x 1024 (SXGA) - 0.2805 (H) x 0.2805 (V) mm
Aspect Ratio and Response Time:	5:4 - 40 ms (typical), "black" to "white"
Light Intensity and Contrast Ratio:	200 cd/m² (typ) - 300:1 (typ)
View Angle and Max Colors:	85 deg. (up/down/left/right) - 16.7 millions
Optimal Resolution and Hz:	1280 x 1024 @ 60 Hz Sync Signal: • Digital separate synchronisation • Composite synchronisation • Synchronisation on green. • Auto detects VGA -> SXGA, interlaced and non interlaced Synchronisation Range: • Horizontal: 31,5 kHz to 91,1 kHz • Vertical: 60 Hz to 85 Hz
Detectable Resolutions:	640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024
Composite Video Input(s):	1 x RCA Phono plug 1 x S-Video (SVHS) plug
Supported Video Signals:	Video Signals: • Interlaced NTSC and PAL/SECAM video • Composite video • S-Video
Product Features:	PIP (Picture In Picture), Video Input (Composite/SVHS) inputs, Hotkey Functionality, Dimmable 0-100%, ECDIS Compliant
Power Specifications and Consumption:	Power Supply Options: • 115VAC/60Hz or 230VAC/50Hz: Model JH 18T04 MMD-A1 • 24 VDC: Model JH 18T04 MMD-A2 Power Consumption: • Operating: 75W (typ)
User Controls and Activity:	On front bezel: • Power On/Off (push button) • Brightness Control • 2 x hotkeys • Mode Status LED Behind hatch: • On Screen Display control (OSD/OSM)
Connectors:	• RGB (PC) signal: 15pin mini D-SUB (female - Input) • Composite Video: RCA Phono plug • S-Video signal: S-Video (SVHS) plug • AC Power signal: Std IEC Inlet Model JH 18T04 MMD-A1 • DC Power signal: Screw terminal Model JH 18T04 MMD-A2 • If Touchscreen: 1 x D-SUB 9P Connector (female) • If Remote Control: 2 x D-SUB 9P Connectors (female)
Product Dimensions and Weight:	483 (W) x 444 (H) x 75.57 (D) mm - 19.02" (W) x 17.48" (H) x 2.98" (D) Weight: 11.50 kg (approx w/bracket)
Product Carton Size and Weight:	N/A
Factory Options:	• Color Calibrated models (ECDIS) • AC or DC model • Resistive or Capacitive Touch Screen • Video Buffer (JH VBUF)

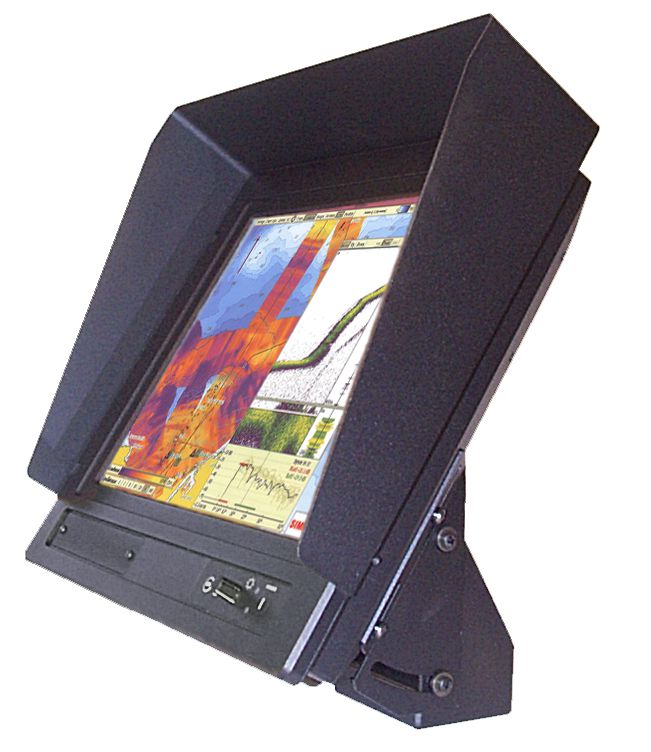

Accessories:	• JH MMD BR = Bracket • JH MMDRO = Rotary Bracket • JH 18TSV = Sun Visor • JH VESA 18T04 = Vesa Bracket • JH SCOM = Remote Control • JH XPR-A1 = External Power Relay
Capabilities - Prepared for:	N/A
Operating Temperature:	-15.0°C / 5.0°F to +55.0°C / 131.0°F Humidity 30% to 93% (non condensing)
Storage Temperature:	-20.0°C / -4.0°F to +60.0°C / 140.0°F Humidity 10% to 90% (non condensing)
IP Rating:	EN60529 (IP66) (Applies for flush mounting)
Compass Safe Distance:	N/A
Type Approval, Testing and Certificates:	EN60945 3rd (IEC945 3rd), LRS - Lloyd's Register of Shipping, EN61174 (IEC1174) - Bundesamt für Seeschiffahrt und Hydrographie (BSH), ClassNK - Nippon Kaiji Kyokai, ABS - American Bureau of Shipping, GL - Germanischer Lloyd, DNV - Det Norske Veritas, BV - Bureau Veritas, EN60529 (IP66) (Applies only for flush mounting)

Specifications last updated: August 18, 2025 @ 08:00
