JH 19T02 MEX

Overview

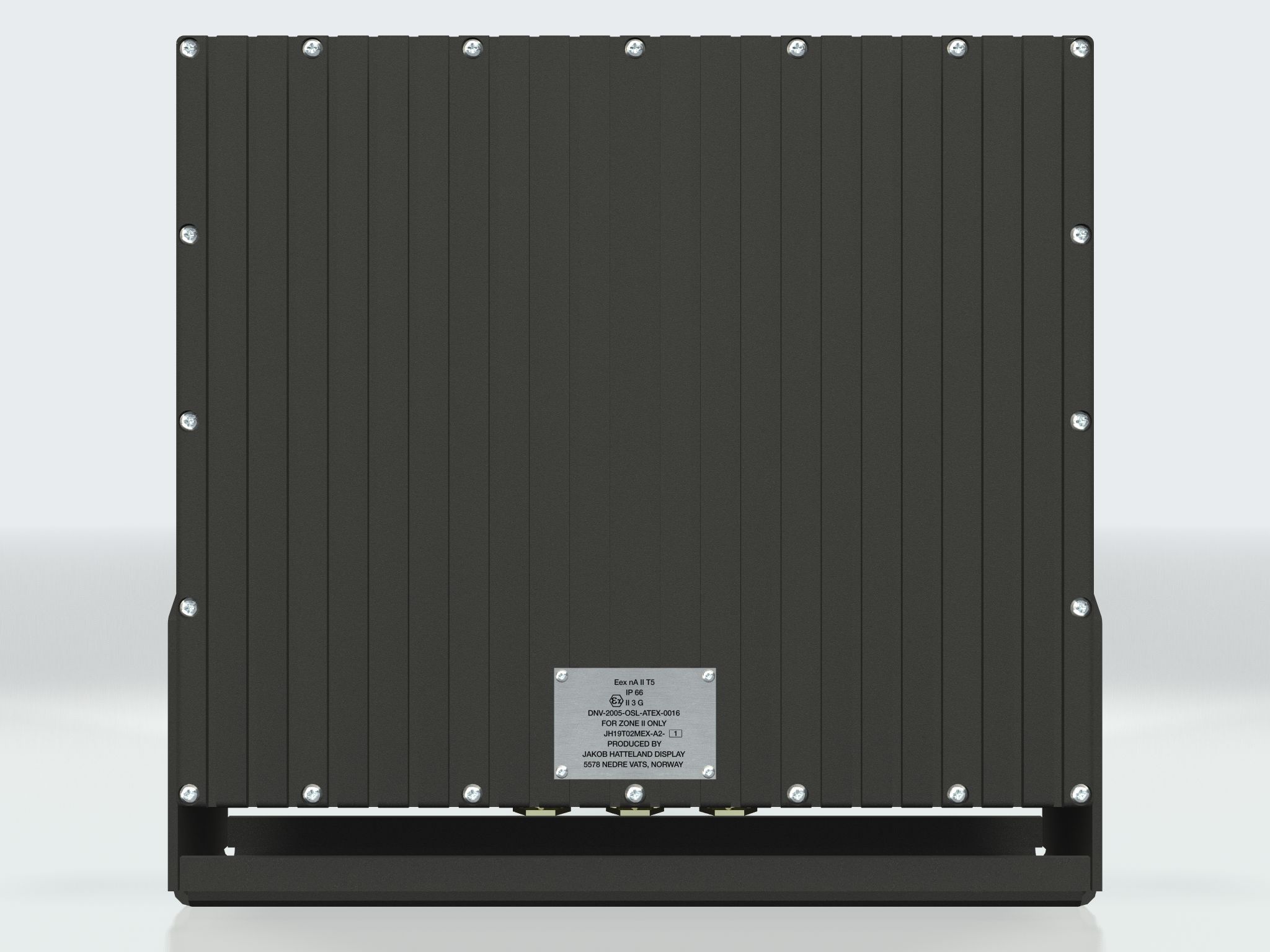

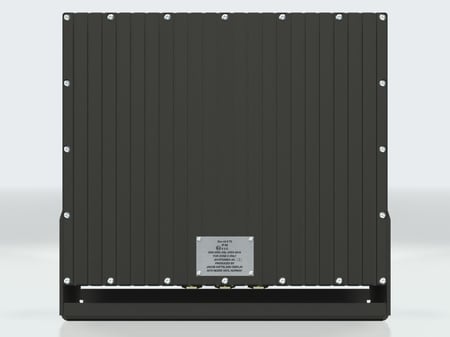

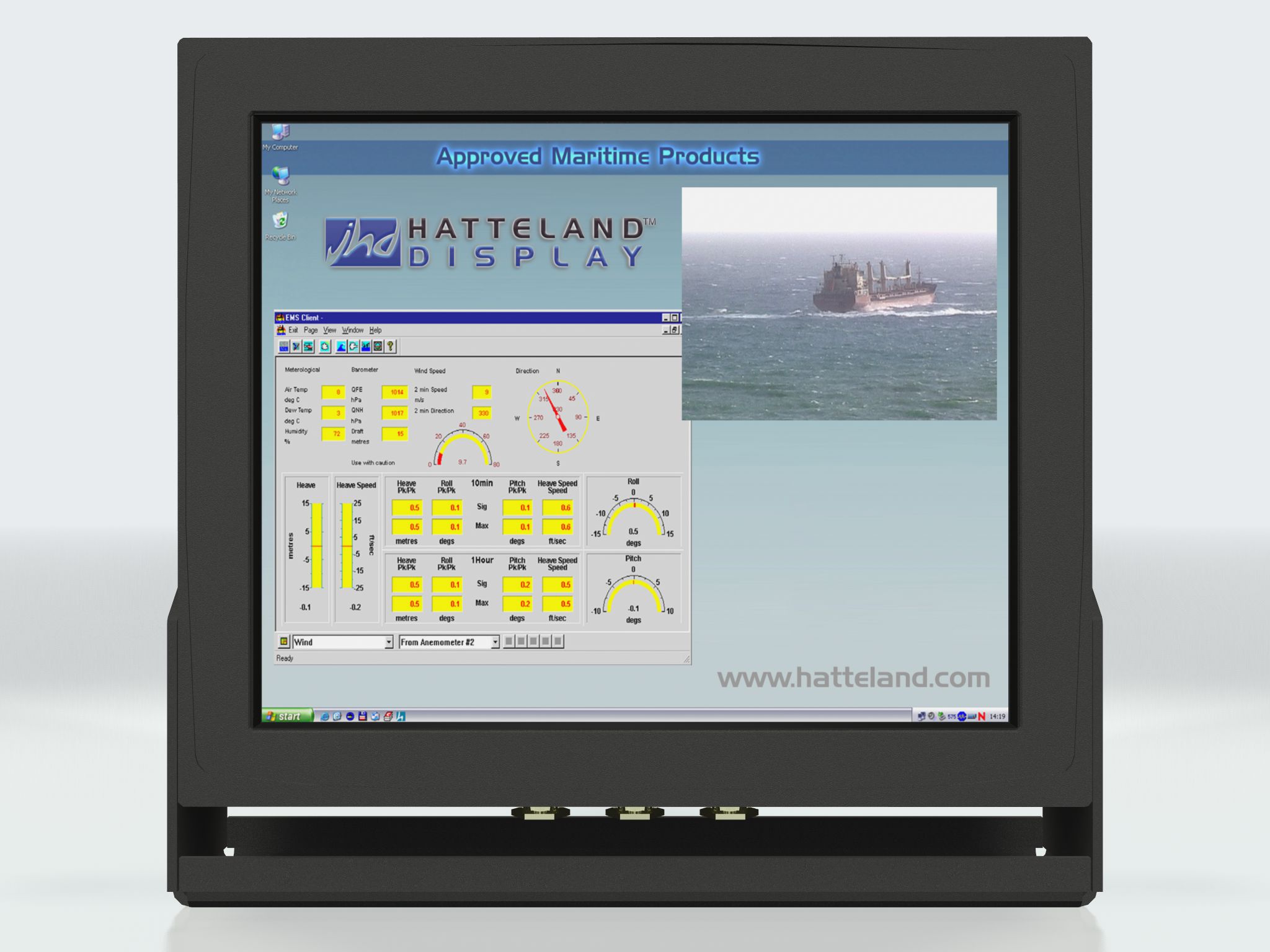

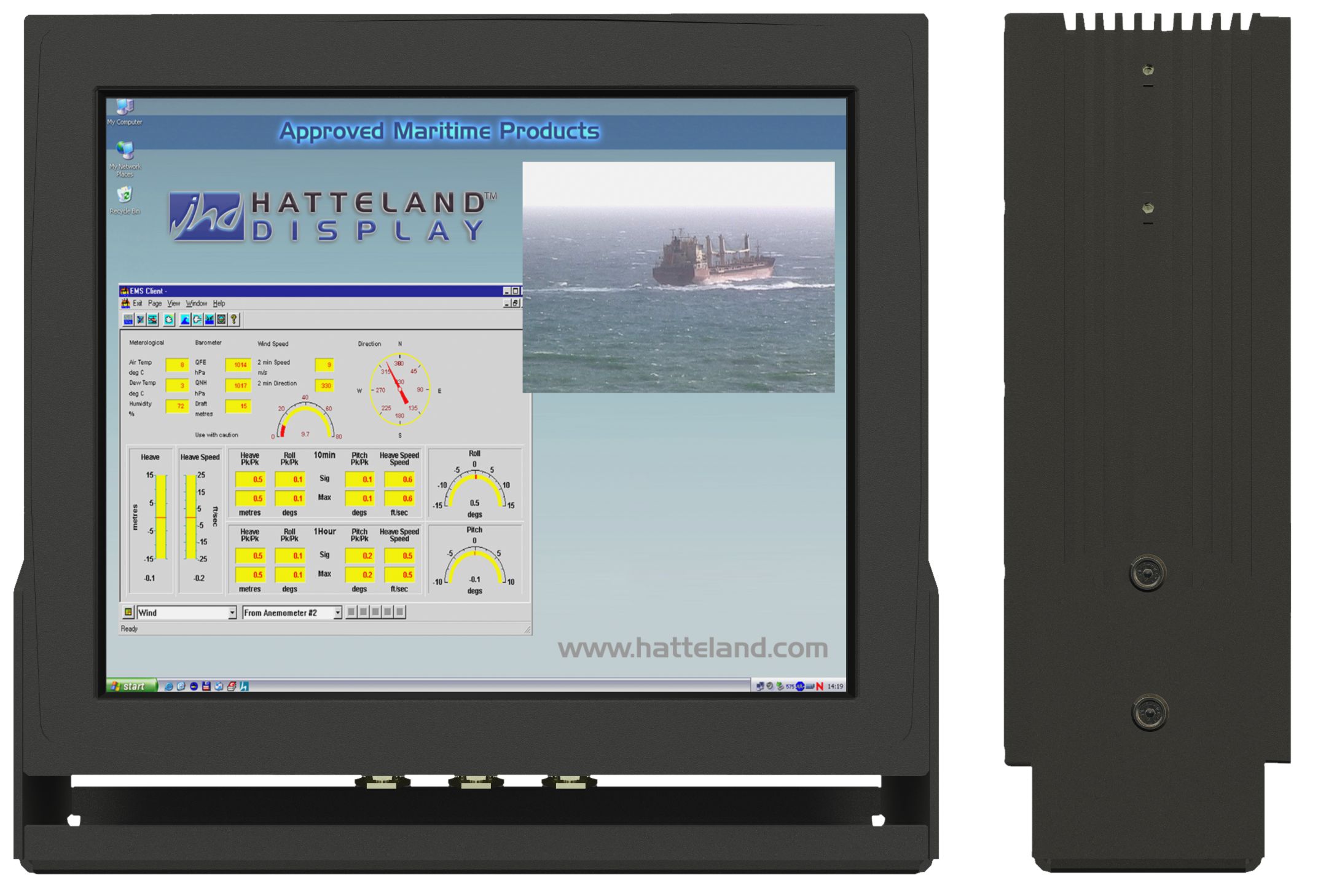

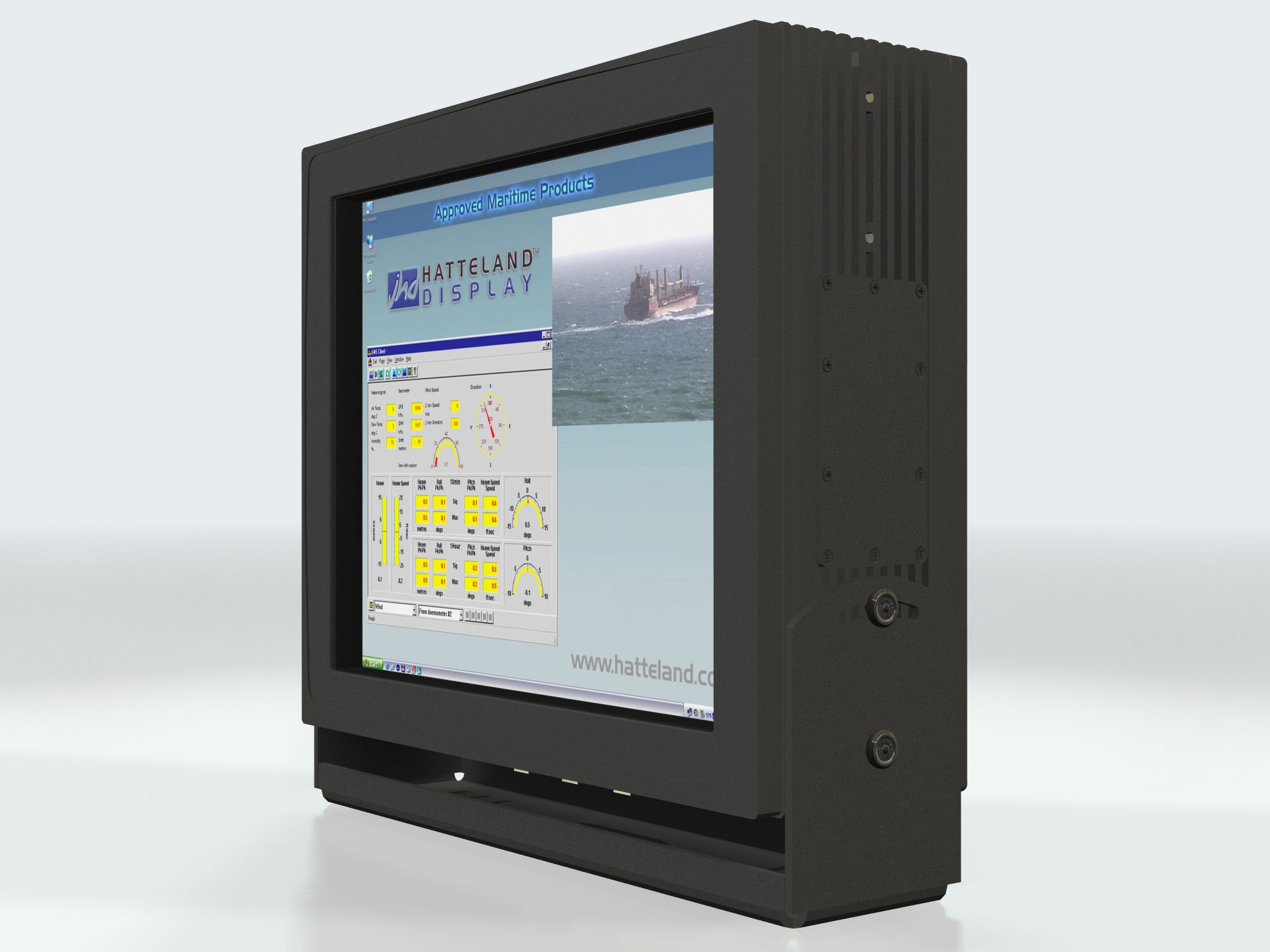

Monitor - CCFL - Multi Display EX - 19.0 inch

JH 19T02 MEX

The EXn monitor described in this Data Sheet is an industrialized version of a high quality SHARP TFT based display with MVA Premium™ Technology. It is intended for use in potentially explosive atmospheres.Directive 94/9/EC, Explosion protection EEx nA II T5.

icon
CCFL-backlit
Send Request
Description

Monitor - Multi Display EX

The monitor allows you to display professional applications with clarity and enhanced color and image quality. The monitor have DVI-D Input, RGB Input, Video Input (Composite/SVHS) and PiP (Picture in Picture) functions.
Specifications
Typenumber (Long): JH 19T02 MEX
TFT Technology: Active Matrix, Thin Film Transistor (TFT), MVA Premium™ Technology
Viewable Size and Active Area: 19.0 inch - 376.32 [14.82"] (H) x 301.056 [11.85"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1280 x 1024 (SXGA) - 0.294 (H) x 0.294 (V) mm
Aspect Ratio and Response Time: 5:4 - 15 ms (typical), "black" to "white"
Light Intensity and Contrast Ratio: 300 cd/m² (typ) - 700:1 (typ)
View Angle and Max Colors: 85 deg. (up/down/left/right) - 16.7 millions
Optimal Resolution and Hz: 1280 x 1024 @ 60 Hz

Sync Signal:
• Digital separate synchronisation
• Composite synchronisation
• Synchronisation on green.
• Auto detects VGA -> SXGA, interlaced and non interlaced
• Video Signal: Analog RGB 0,7Vp-p, Input Impedance 75 Ohm

Synchronisation Range:
• Horizontal: 31,5 kHz to 91,1 kHz
• Vertical: 60 Hz to 85 Hz
Detectable Resolutions: 640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024
Composite Video Input(s): 1 x RCA Phono plug
1 x S-Video (SVHS) plug
Supported Video Signals: Video Signals:
• Interlaced NTSC and PAL/SECAM video
• Composite video
• S-Video
Product Features: PIP (Picture In Picture), Video Input (Composite/SVHS) inputs, Hotkey Functionality, Dimmable 0-100%, Directive 94/9/EC, Explosion protection EEx nA II T5.
Power Specifications and Consumption: 24 VDC
Operating: 100W (max

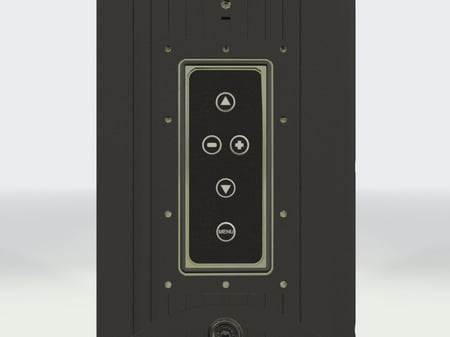

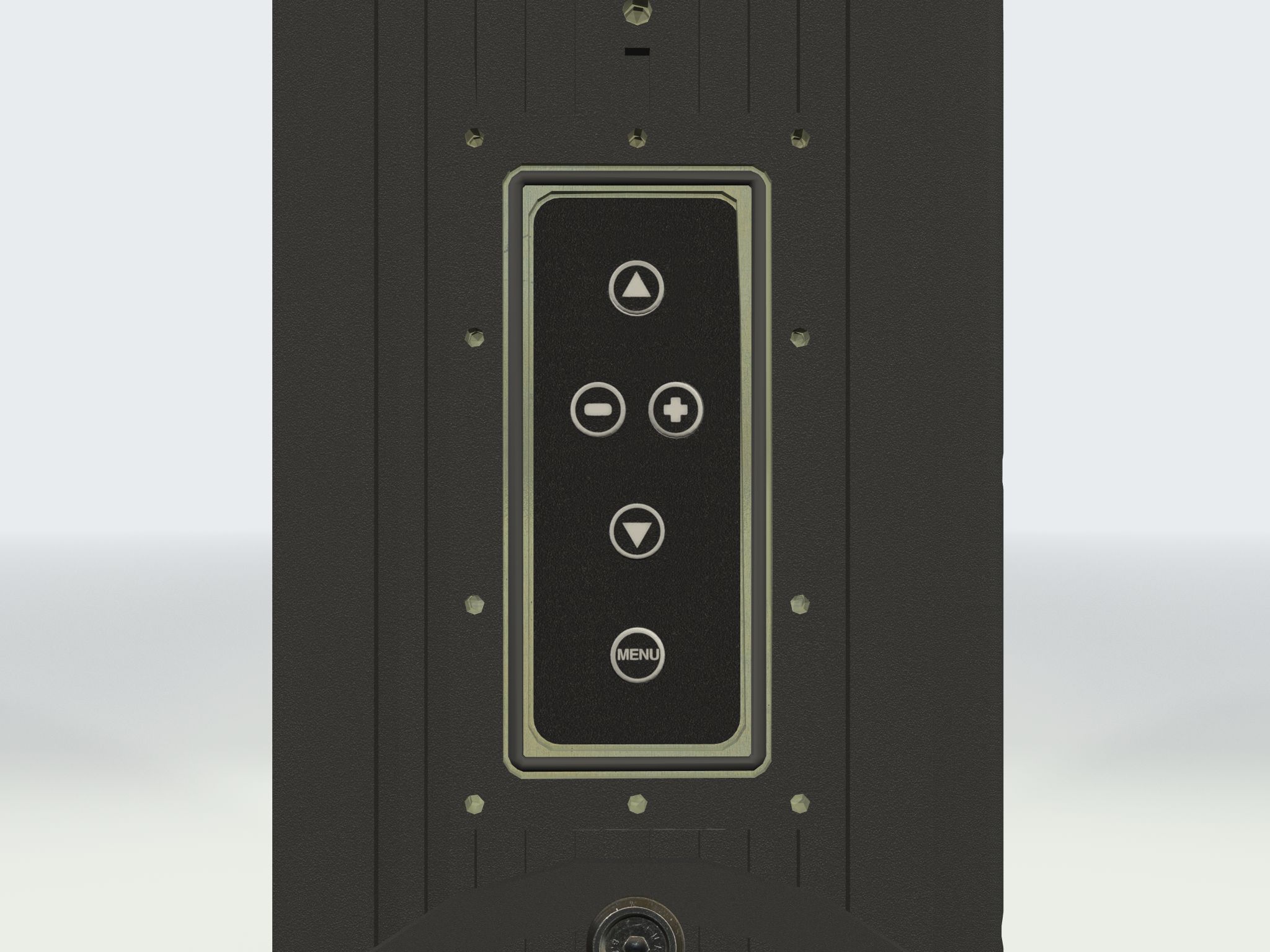

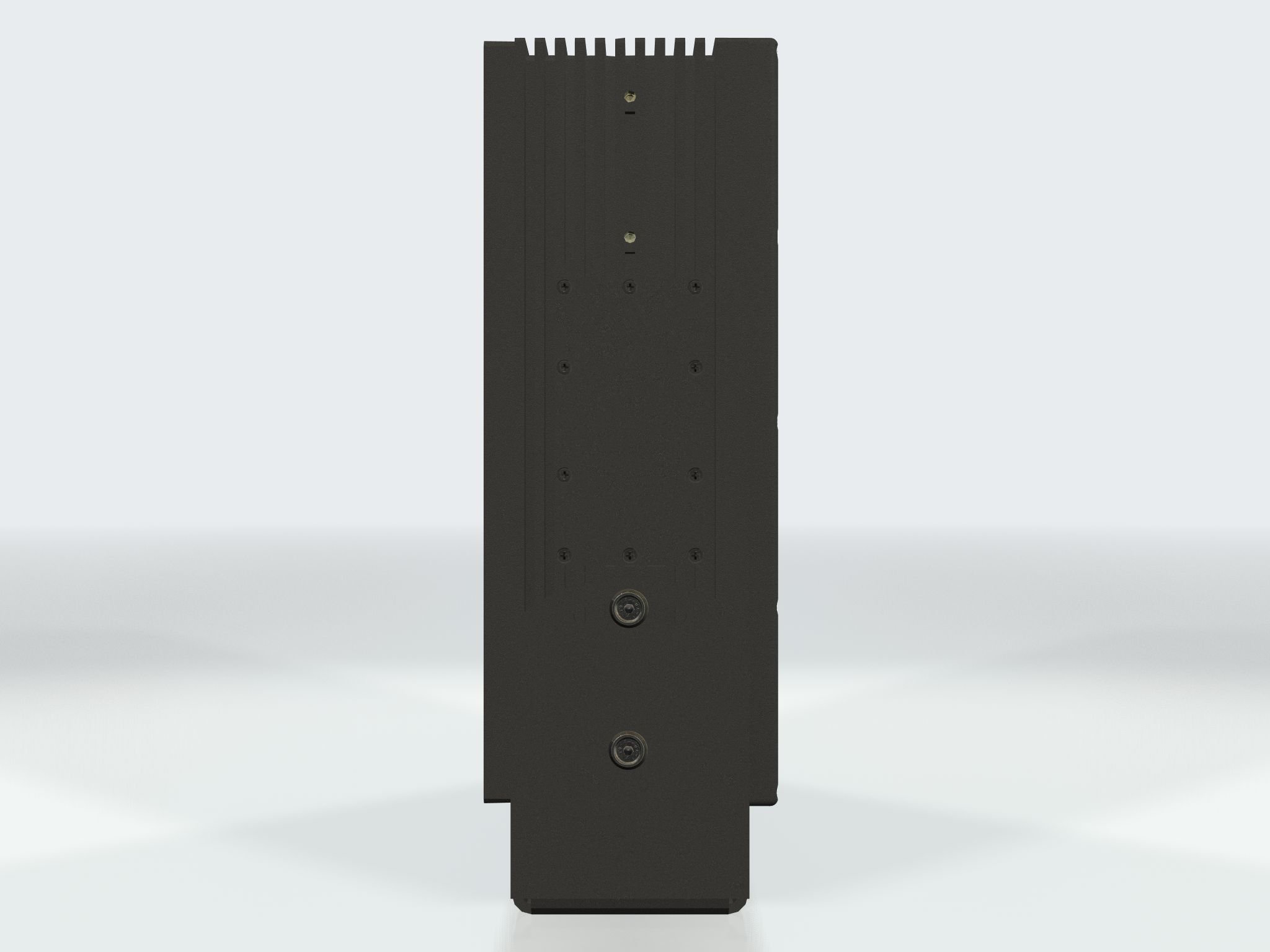

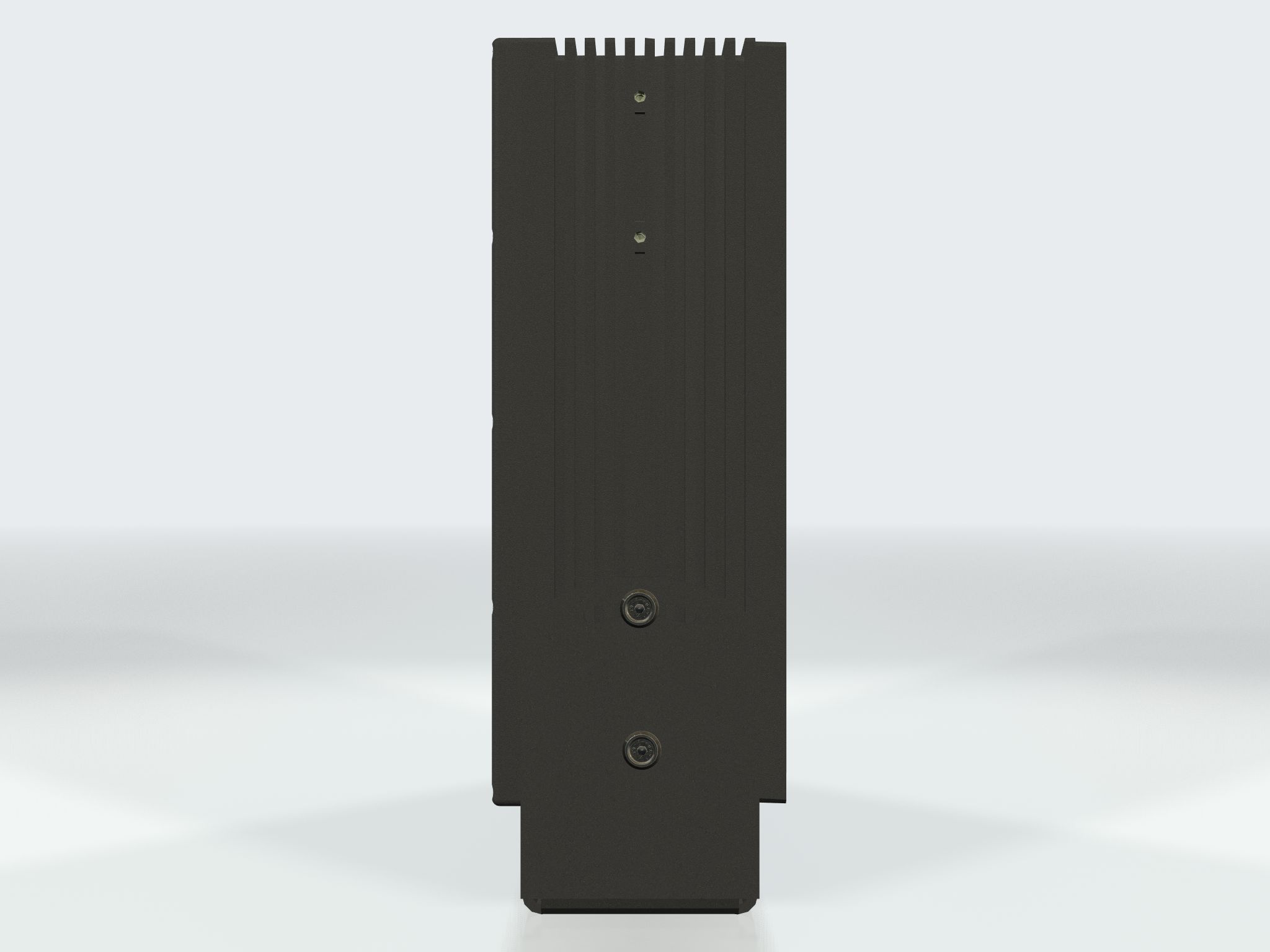

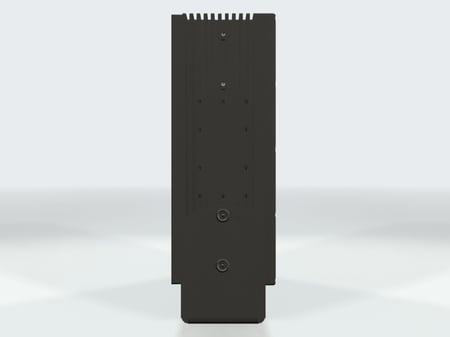

User Controls and Activity: On side bezel behind hatch:
• +/- buttons (Hotkey set 1)
• Up/Down buttons (Hotkey set 2)
• On Screen Display control (OSD/OSM)

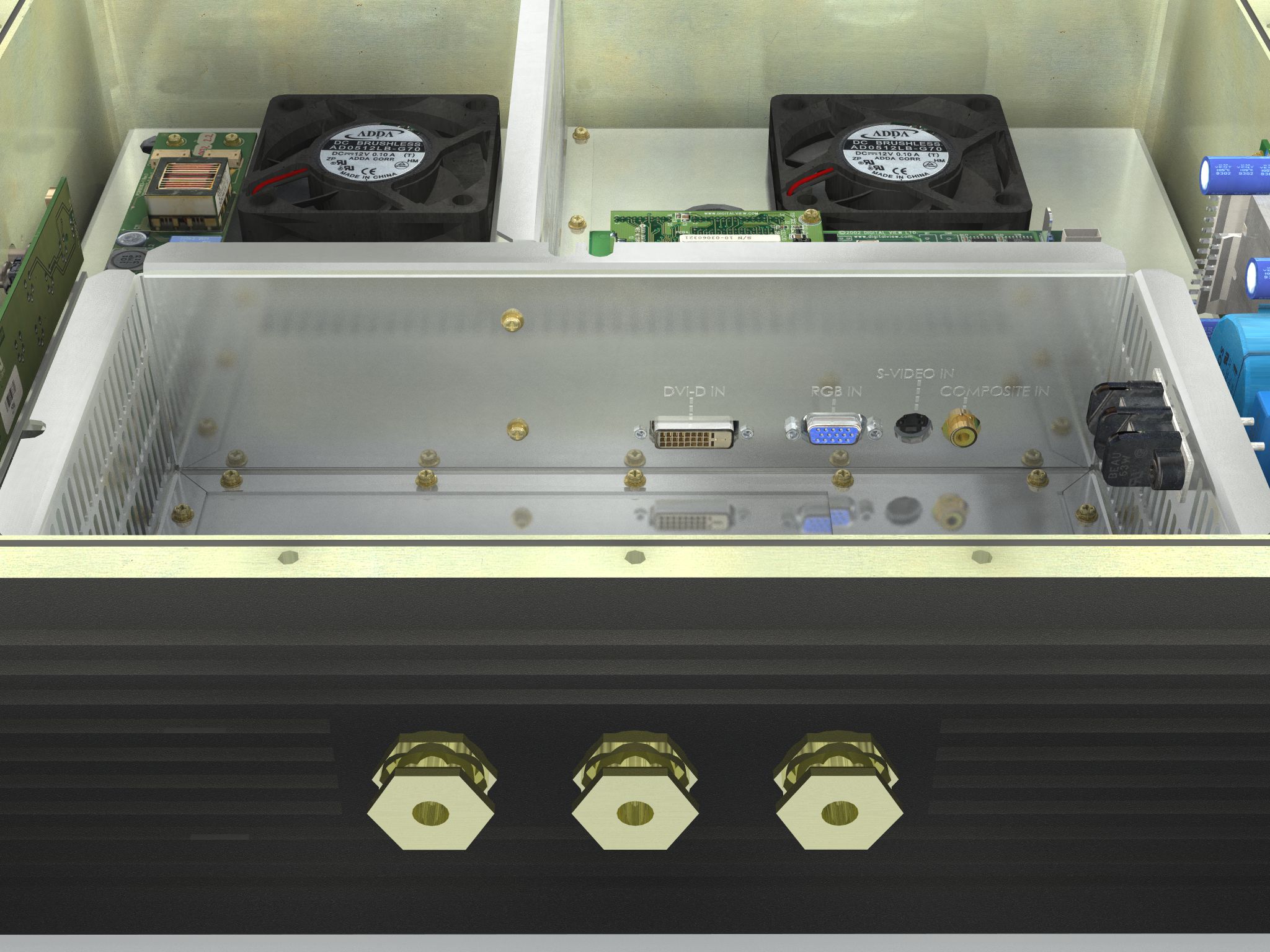

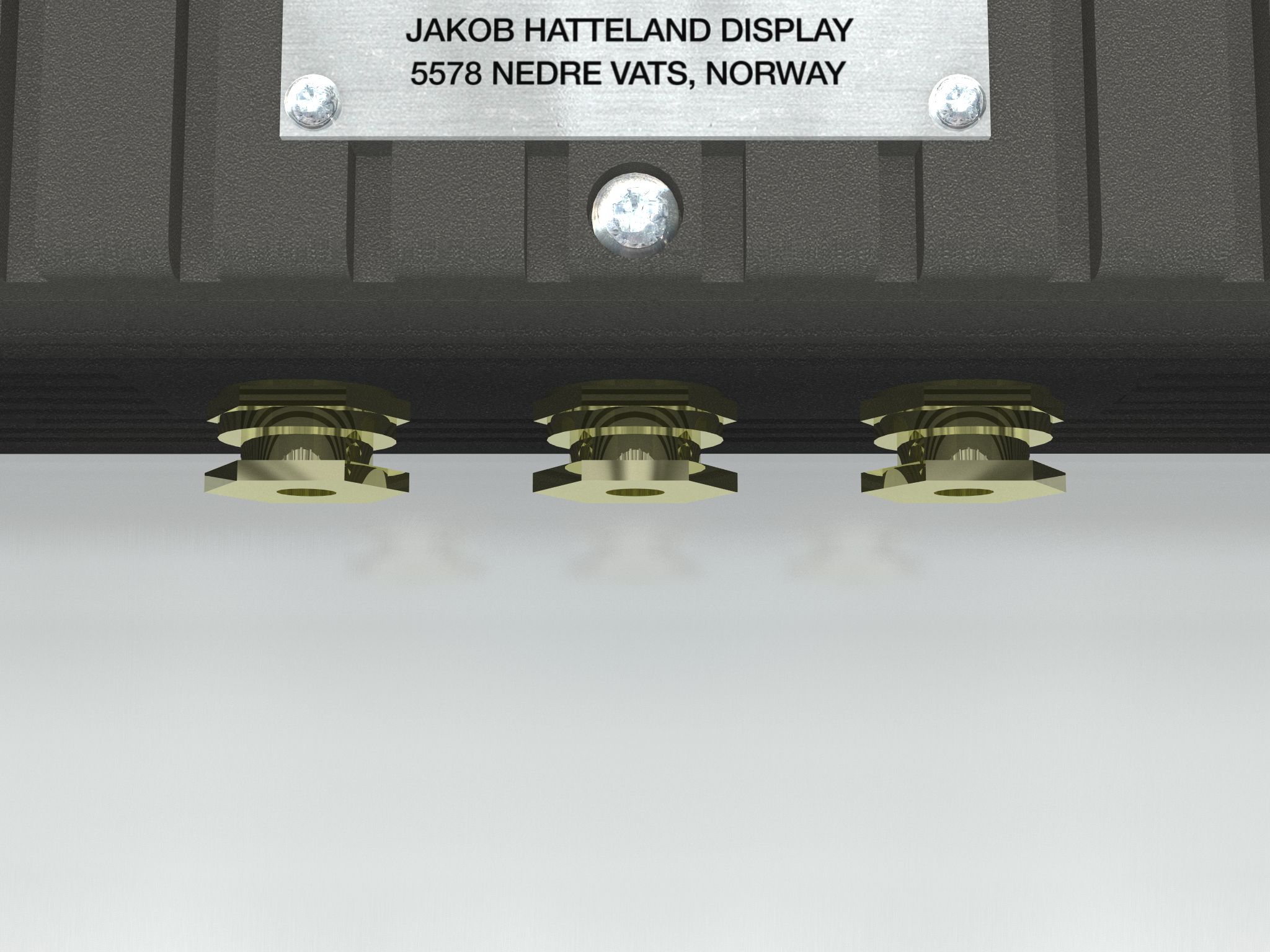

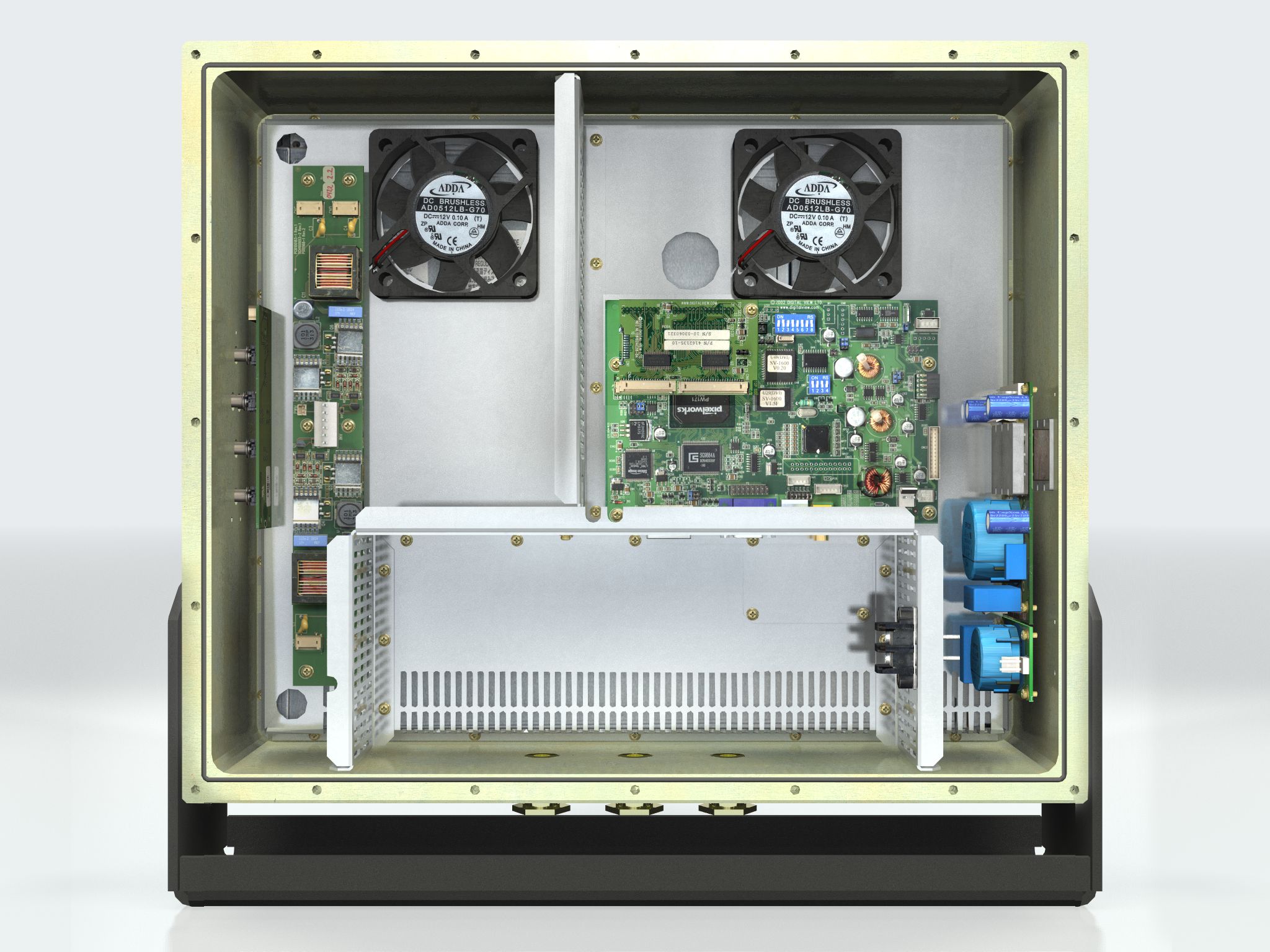

Connectors: • DVI-D (PC) signal: DVI-D Input 24pin Connector
• RGB (PC) signal: 15pin mini D-SUB (female - Input)
• Composite Video: RCA Phono plug
• S-Video signal: S-Video (SVHS) plug
• DC Power signal: Screw terminal Model JH 19T02 MEX-A2
Product Dimensions and Weight: 456 (W) x 384 (H) x 147 (D) mm - 17.95" (W) x 15.12" (H) x 5.79" (D)
Weight: 24 kg (approx w/bracket)
Product Carton Size and Weight: N/A
Factory Options: None
Accessories: None
Capabilities - Prepared for: N/A
Operating Temperature: -20.0°C / 4.0°F to +40.0°C / 104.0°F, Apparatus Grouping EEx nA II T5
Storage Temperature: -20.0°C / -4.0°F to +55.0°C / 131.0°F, Apparatus Grouping EEx nA II T5
IP Rating: EN60529 (IP66) (Applies for flush mounting)
Compass Safe Distance: N/A
Type Approval, Testing and Certificates: ATEX 94/9/EC: EN 50021
EMC Directive 89/336/EC: EN 55022 Class A - Emission
EMC Directive 89/336/EC: EN 55024 - Immunity
EN60529: IP 66
DNV Certificate: DNV-2005-OSL-ATEX-0016
RS Type Approval: Russian Maritime Register of Shipping
Specifications last updated: August 18, 2025 @ 08:00
