JH 19T12 MMD

Overview

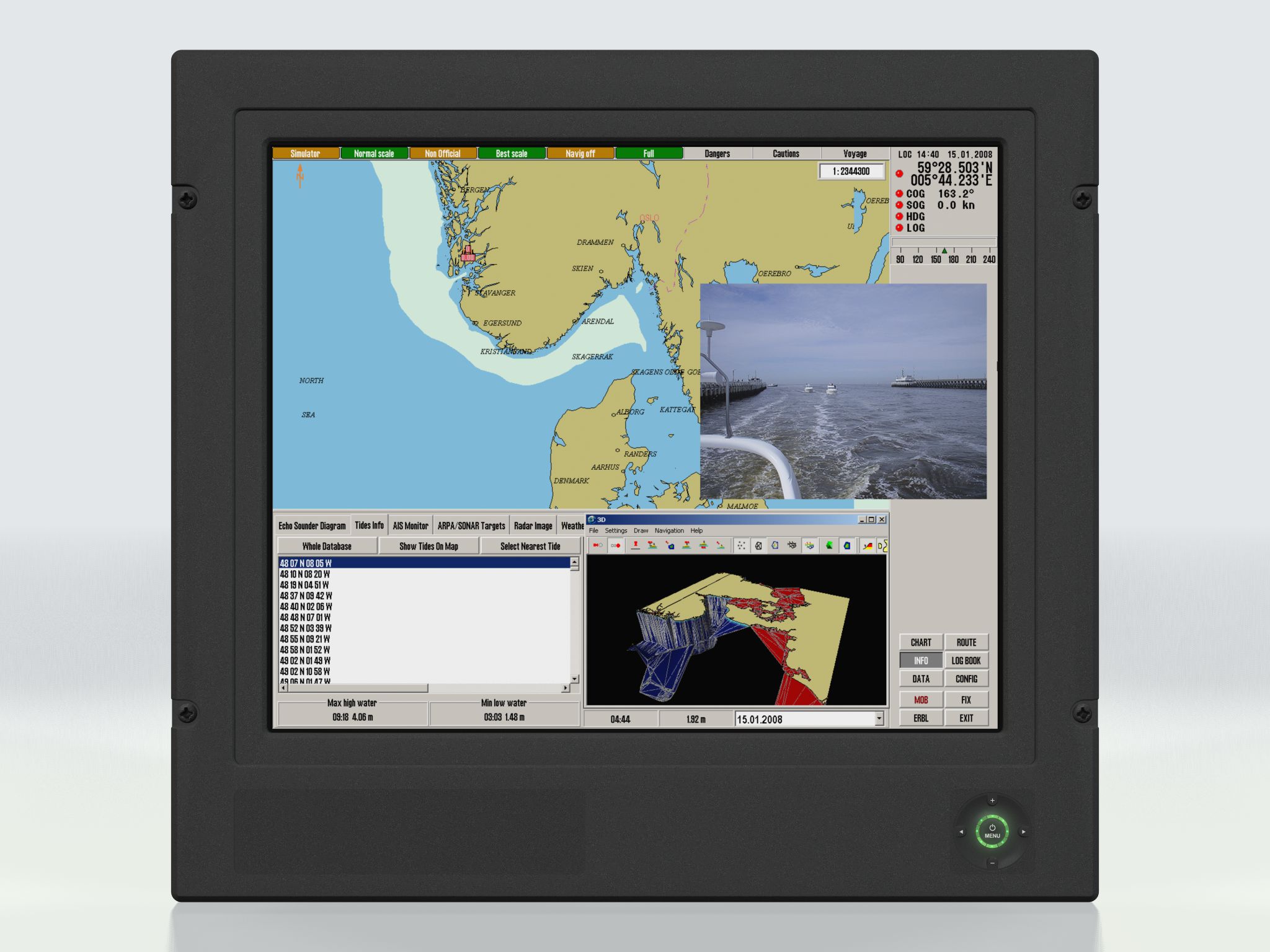

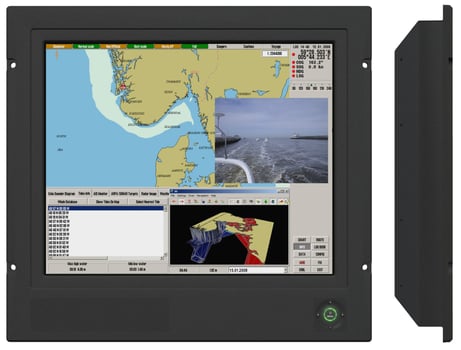

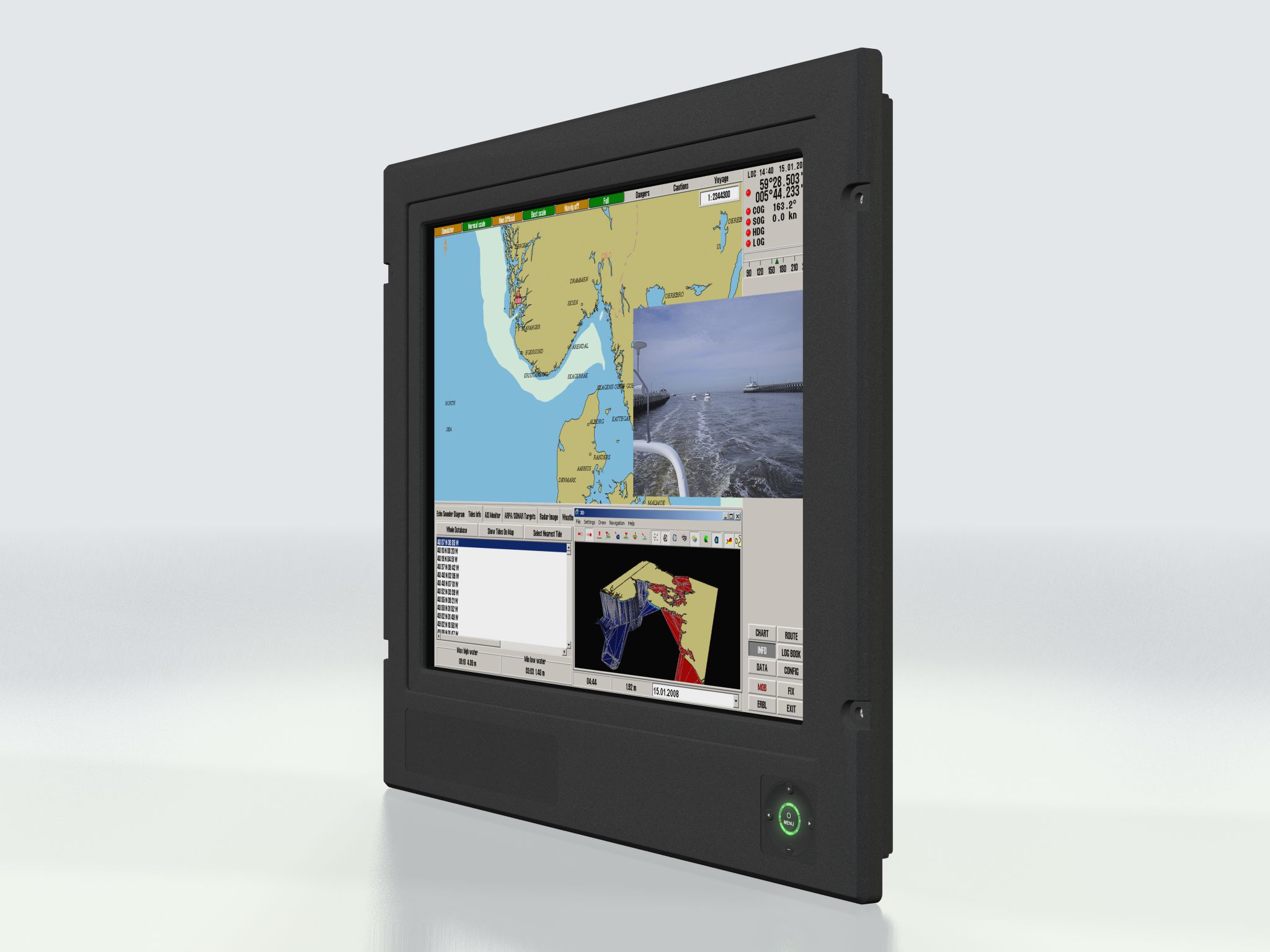

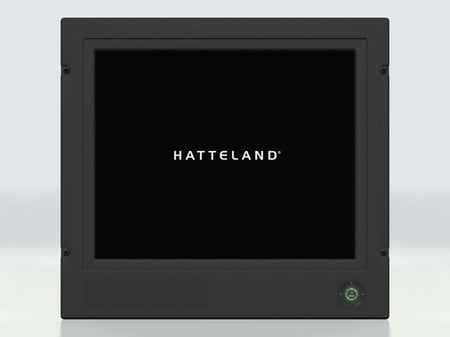

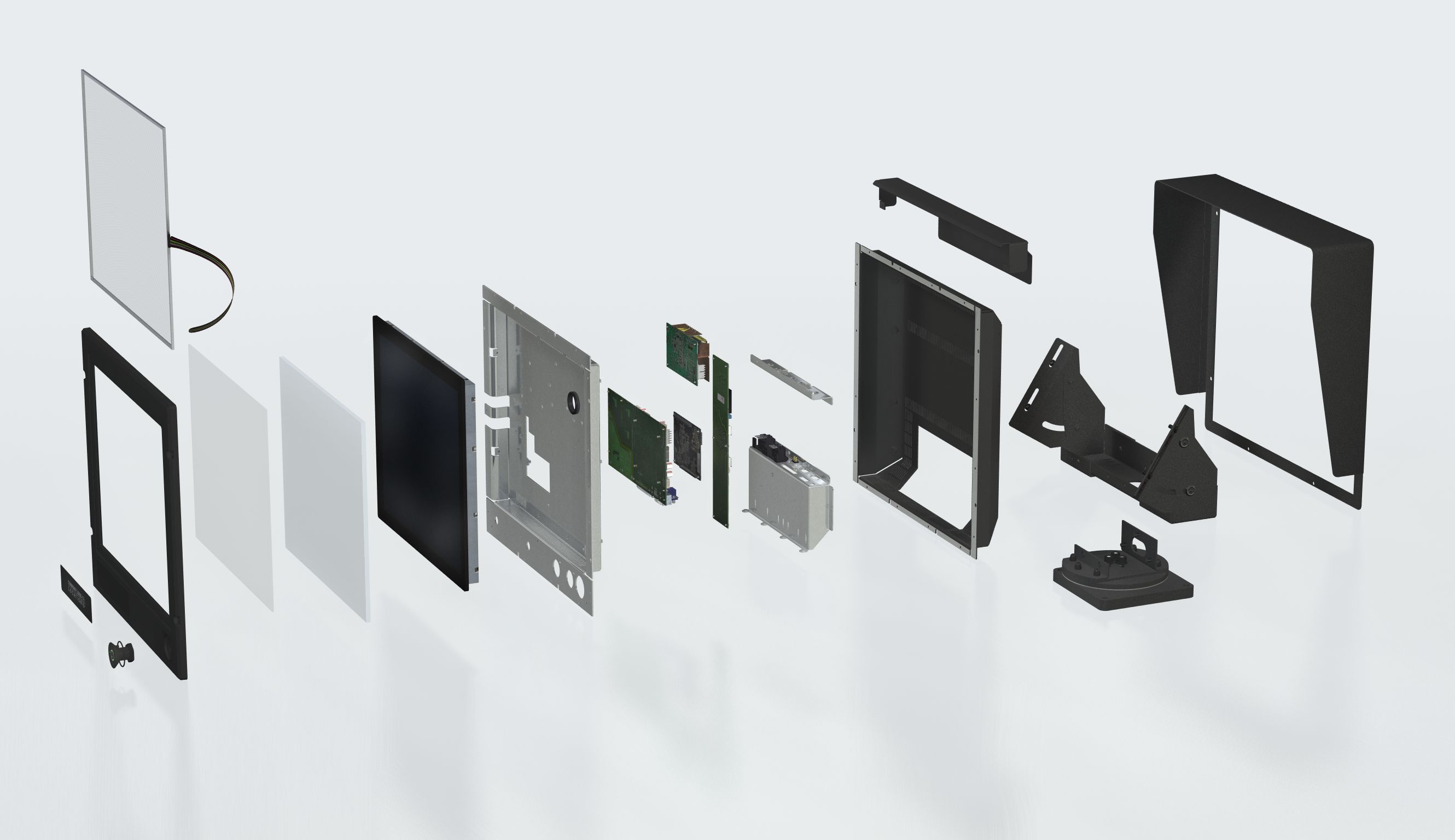

Monitor - CCFL - HATTELAND® Series 1 G1 - 19.0 inch

JH 19T12 MMD

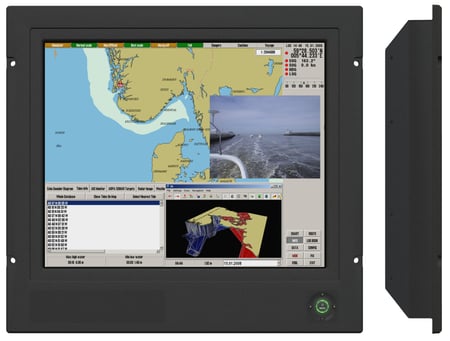

The Series 1 Maritime Multi Display (MMD) uses fewer cable connections than the previous generation, which increases reliability whilst reducing component costs. All models can be delivered with either AC or DC input as standard and connections include DVI-I in, RGB out, RGB in, IEC inlet, IEC outlet and USB I/O.

icon
CCFL-backlit
Send Request
Description

Monitor - HATTELAND® Series 1 G1

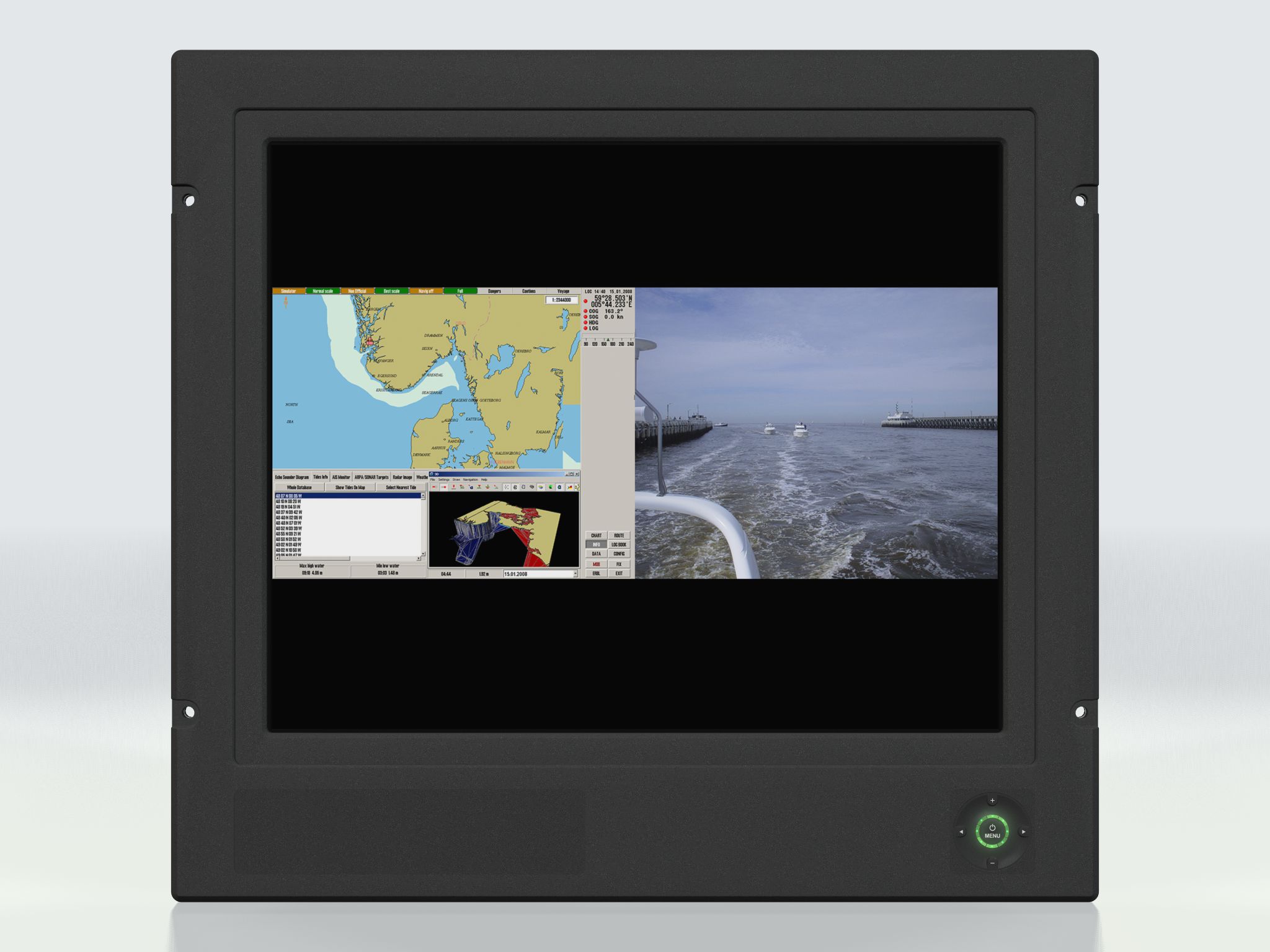

Signal input/output options can be increased upon request by using the HATTELAND® Multifunction Connector, which allows the connection of many common signal types through a single cable connection, for common signals such as; Composite Video Input, Touch Screen and Serial Communication. The models provide Picture-By-Picture (PBP) and Picture-In-Picture (PIP) functionality.

ECDIS Compliant models are also available. Further, all models and variations can be offered with Optical Technology bonding that mitigates screen misting.
Specifications
Typenumber (Long): JH 19T12 MMD-xxx-Axxx
TFT Technology: High Quality SHARP TFT, Active Matrix, Thin Film Transistor (TFT), MVA Premium™ Technology
Viewable Size and Active Area: 19.0 inch - 376.32 [14.82"] (H) x 301.056 [11.85"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1280 x 1024 (SXGA) - 0.294 (H) x 0.294 (V) mm
Aspect Ratio and Response Time: 5:4 - 15 ms (typical), "black" to "white"
Light Intensity and Contrast Ratio: 300 cd/m² (typ) - 700:1 (typ)
View Angle and Max Colors: 85 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz: 1280 x 1024 @ 60 Hz
Detectable Resolutions: 640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x1200
Composite Video Input(s): With Multifunction Cable
Supported Video Signals: Interlaced NTSC and PAL/SECAM video, Composite video
Product Features: PBP (Picture By Picture), PIP (Picture In Picture), Multifunction Connector, Multi-power AC&DC, Hotkey Functionality, Dimmable 0-100%, ECDIS Compliant
Power Specifications and Consumption: Power Supply Options:
• 115& 230VAC - 50 / 60Hz - JH 19T12 MMD-Axx-xxxx
• 24 VDC - JH 19T12 MMD-Dxx-xxxx

Power Consumption:
100W (max)

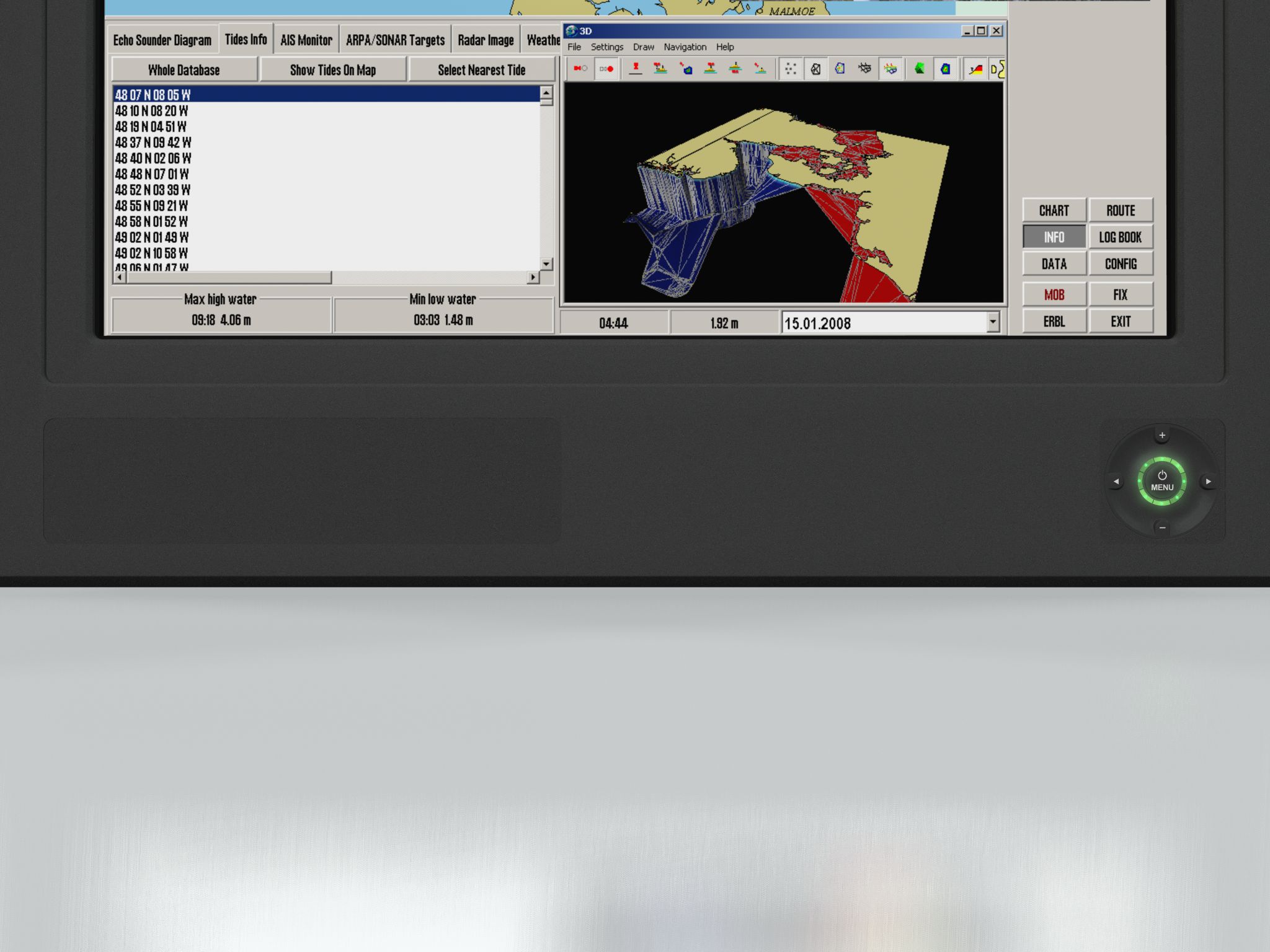

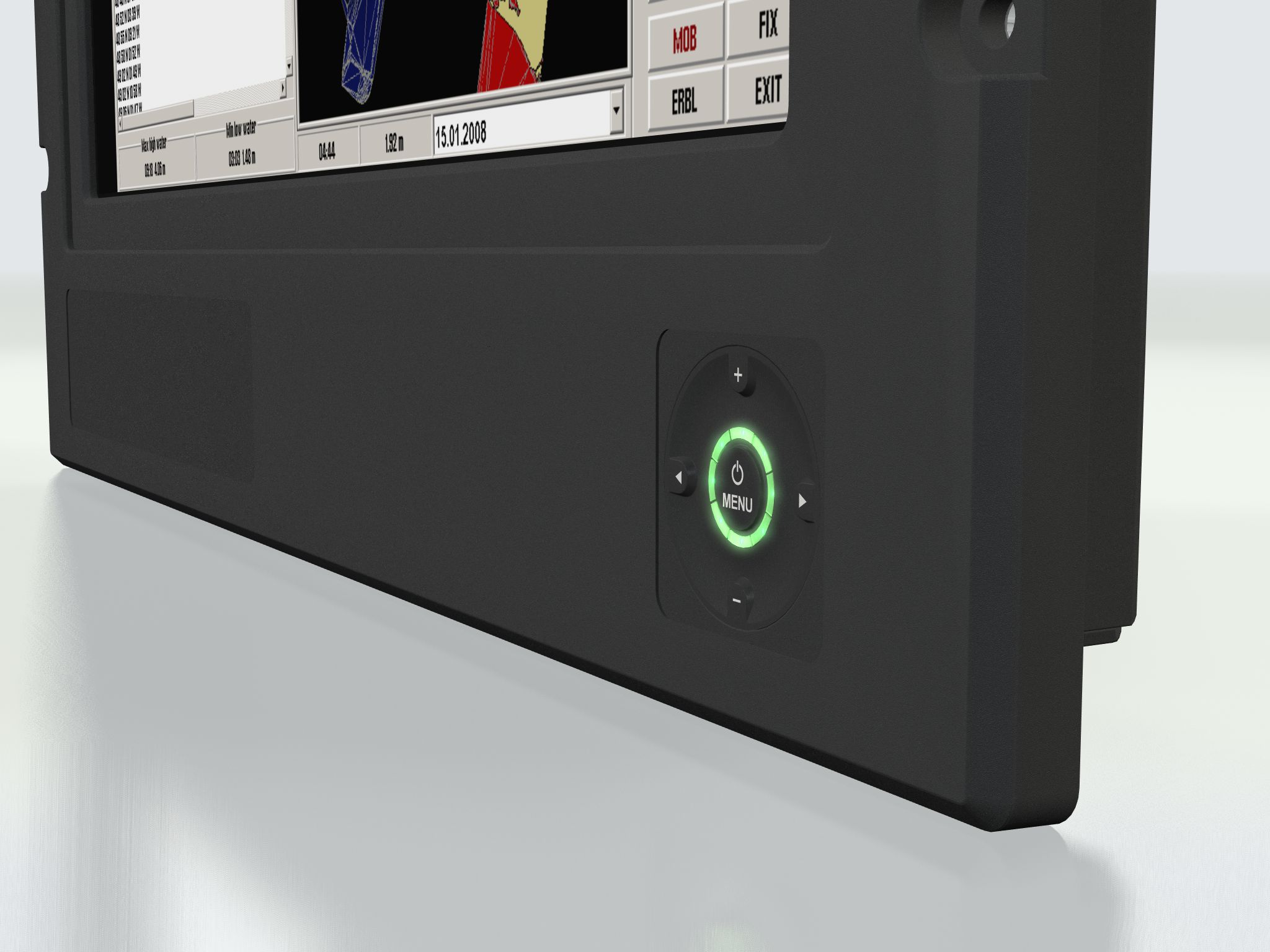

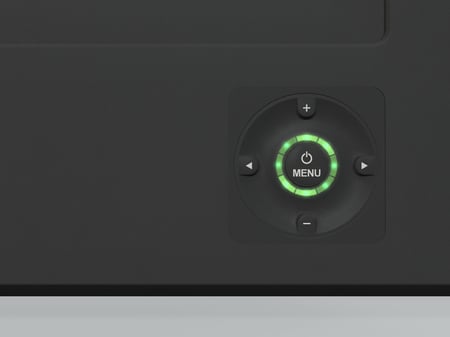

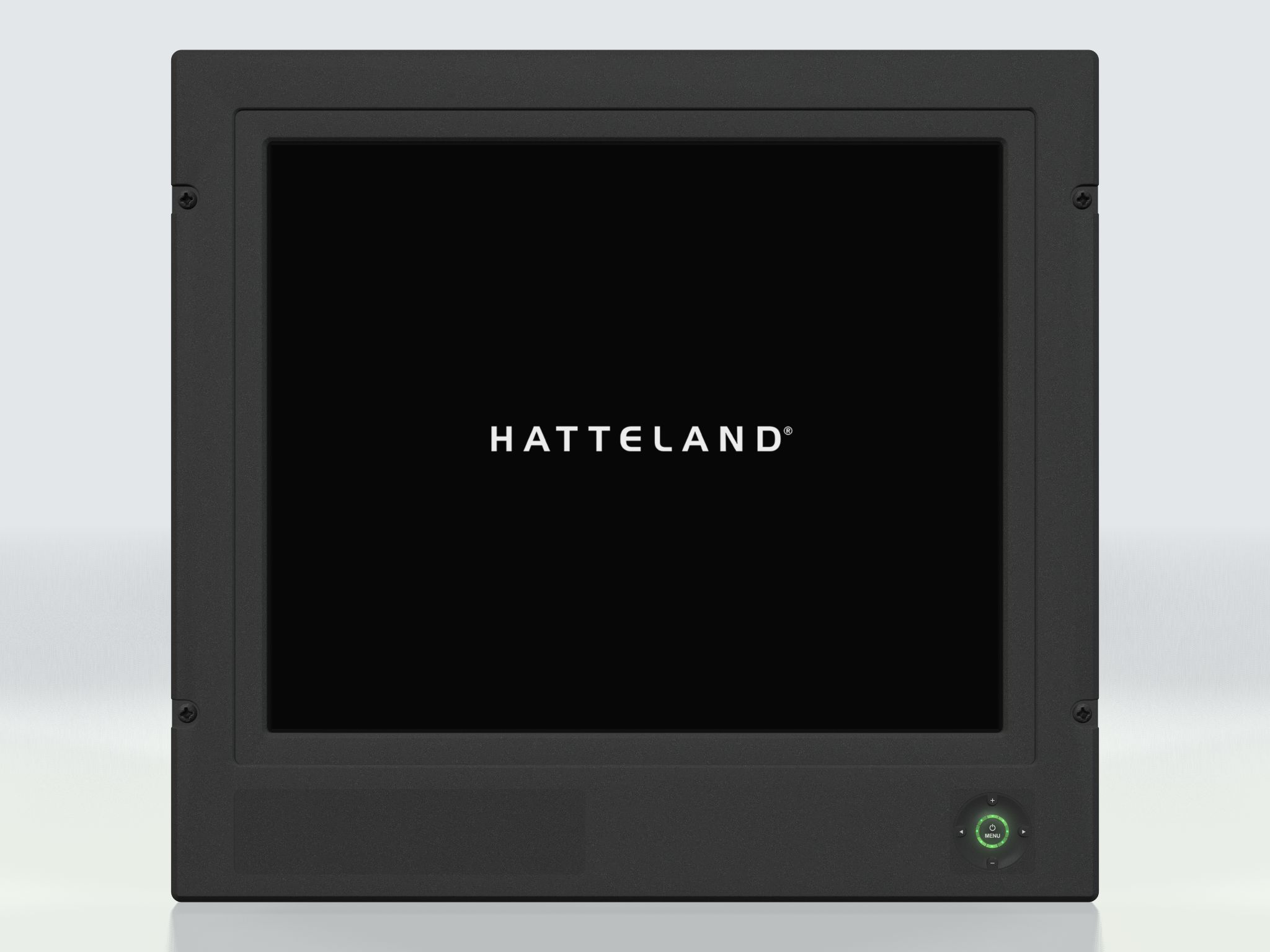

User Controls and Activity: On front bezel - Keypad control (IP66) xxx-xxAx models:
• Power On/Off and On Screen Display Menu (push button)
• Brightness Control (up/down - push buttons)
• Hotkeys (left/right - push buttons)
• Mode Status Red/Green Illuminated LED-Ring Indicator

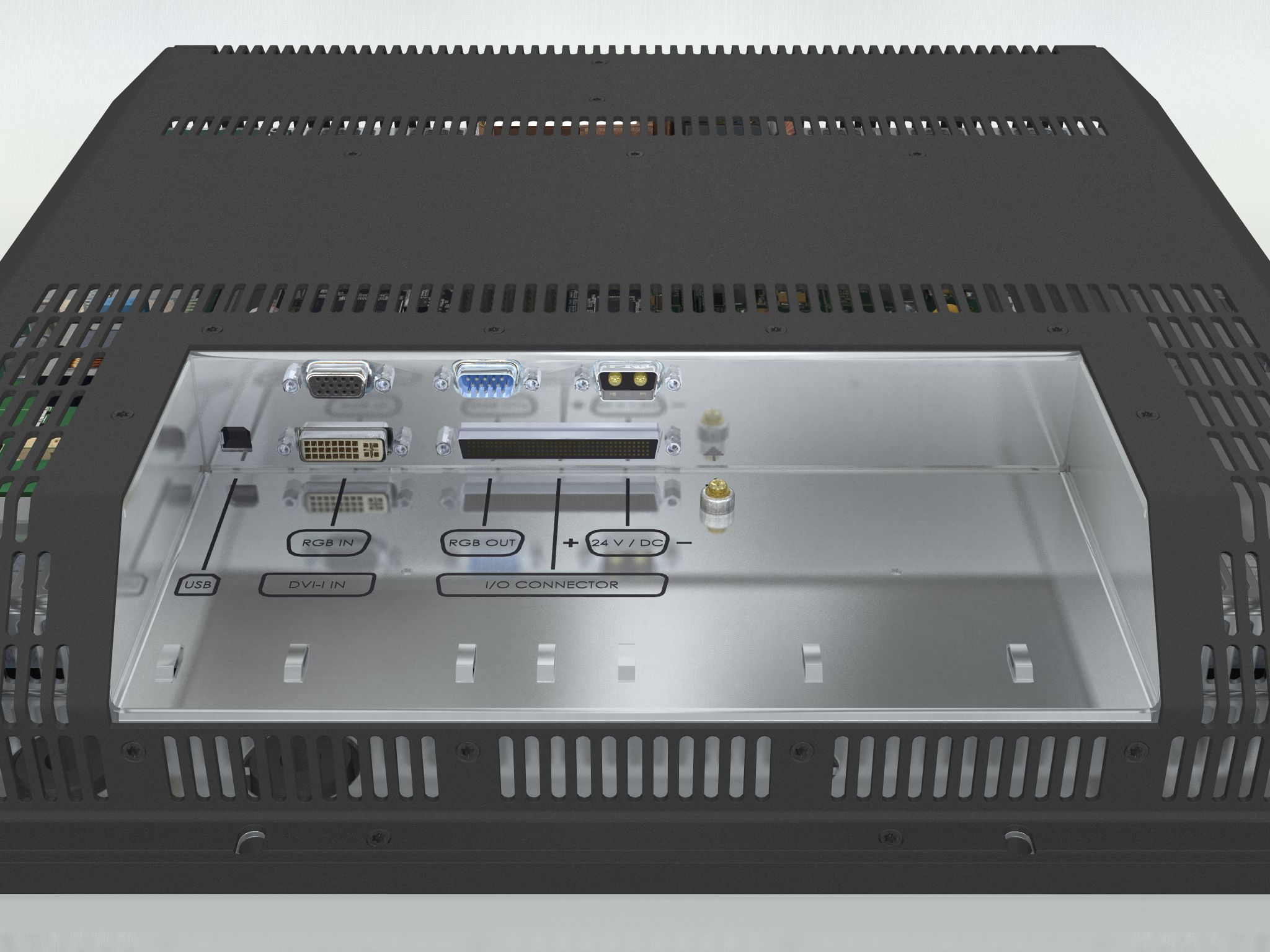

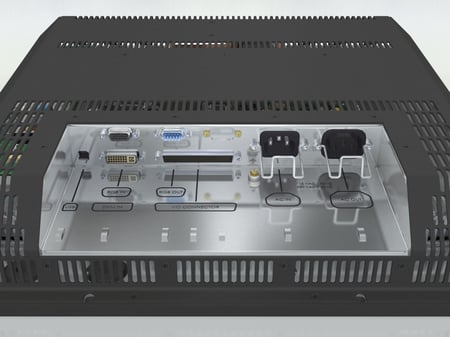

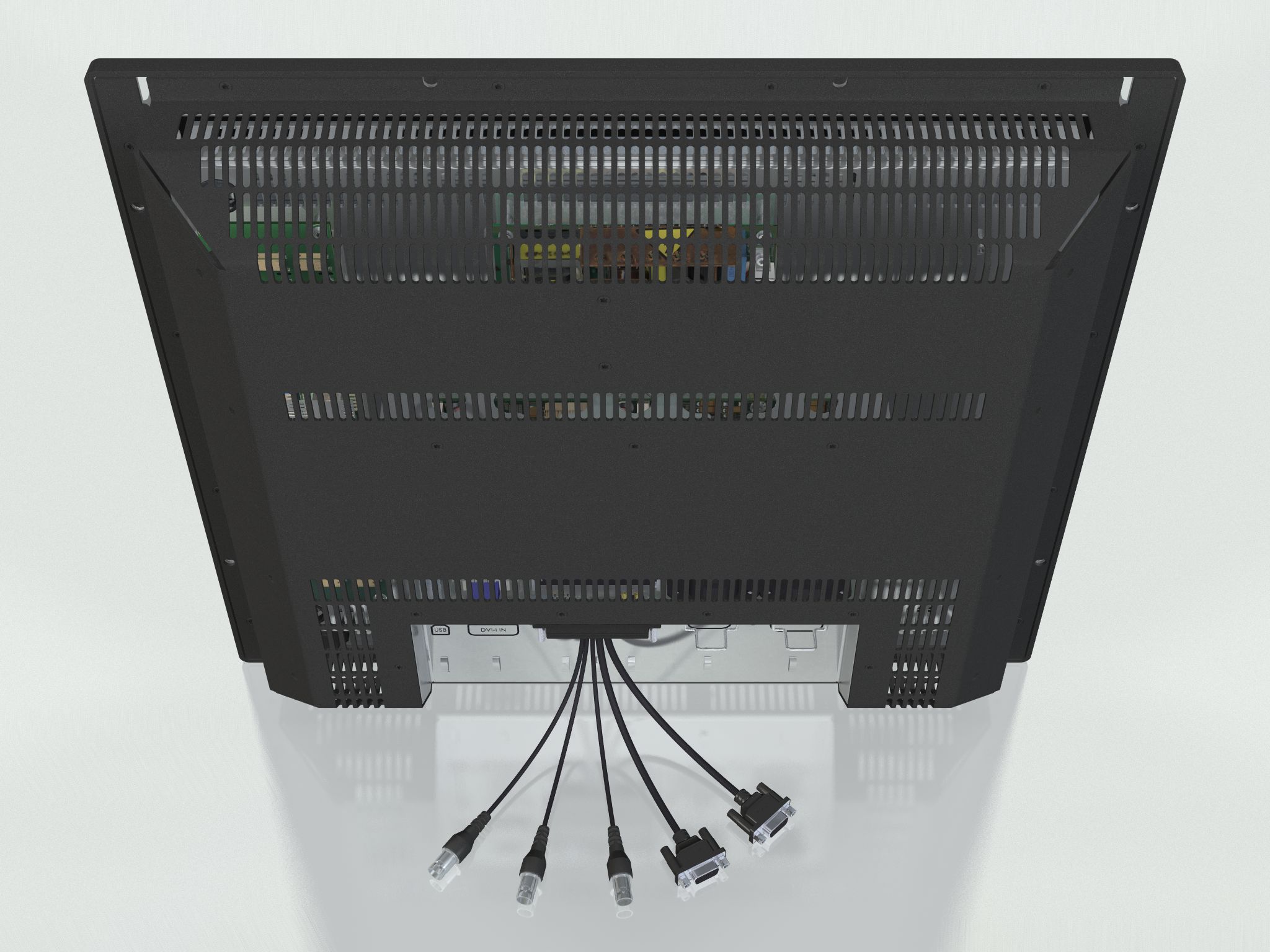

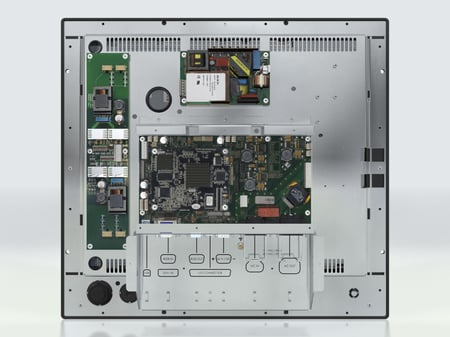

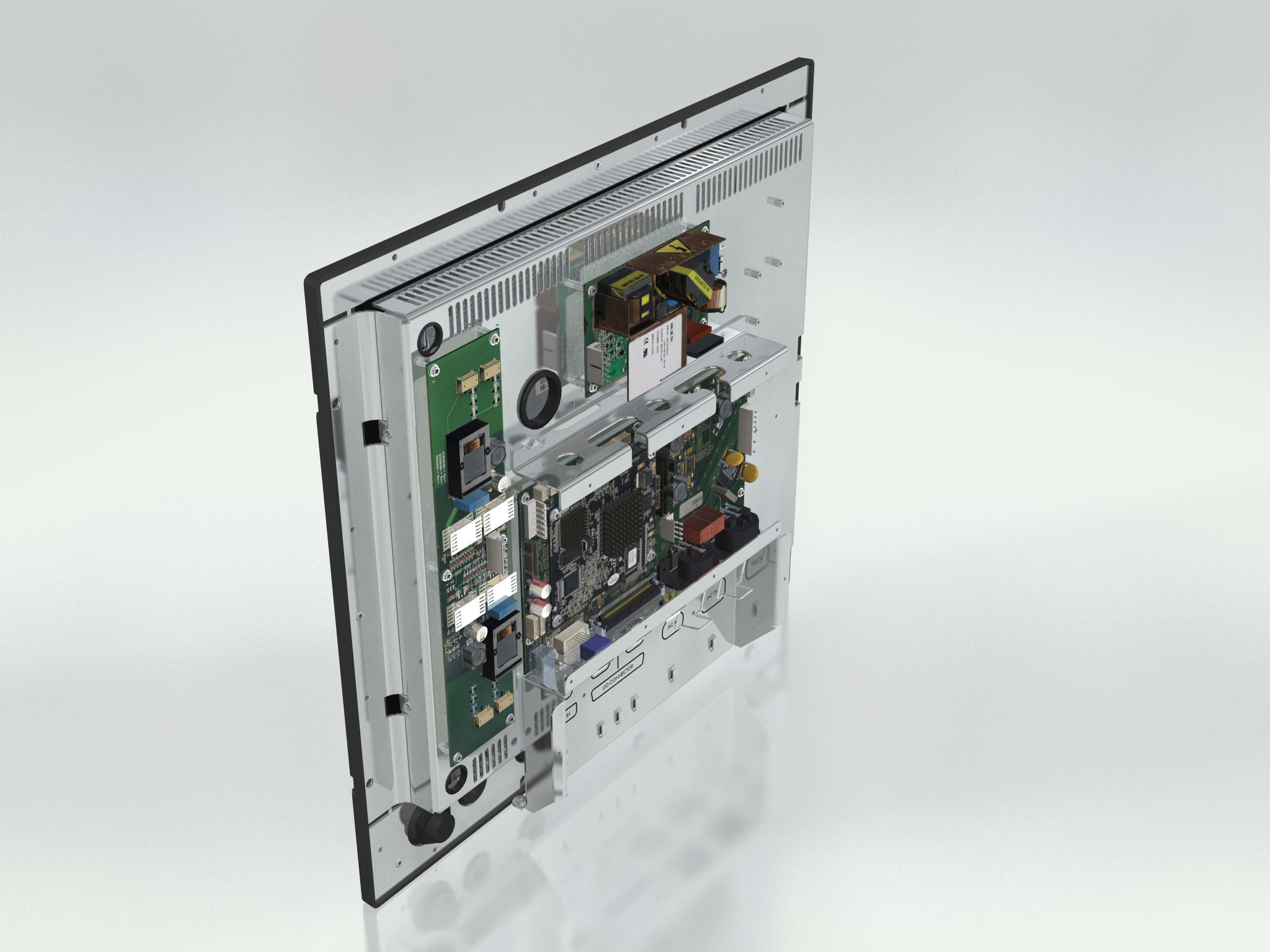

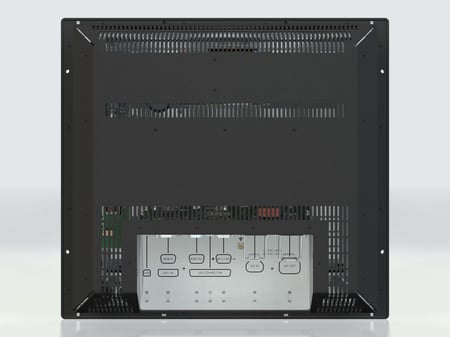

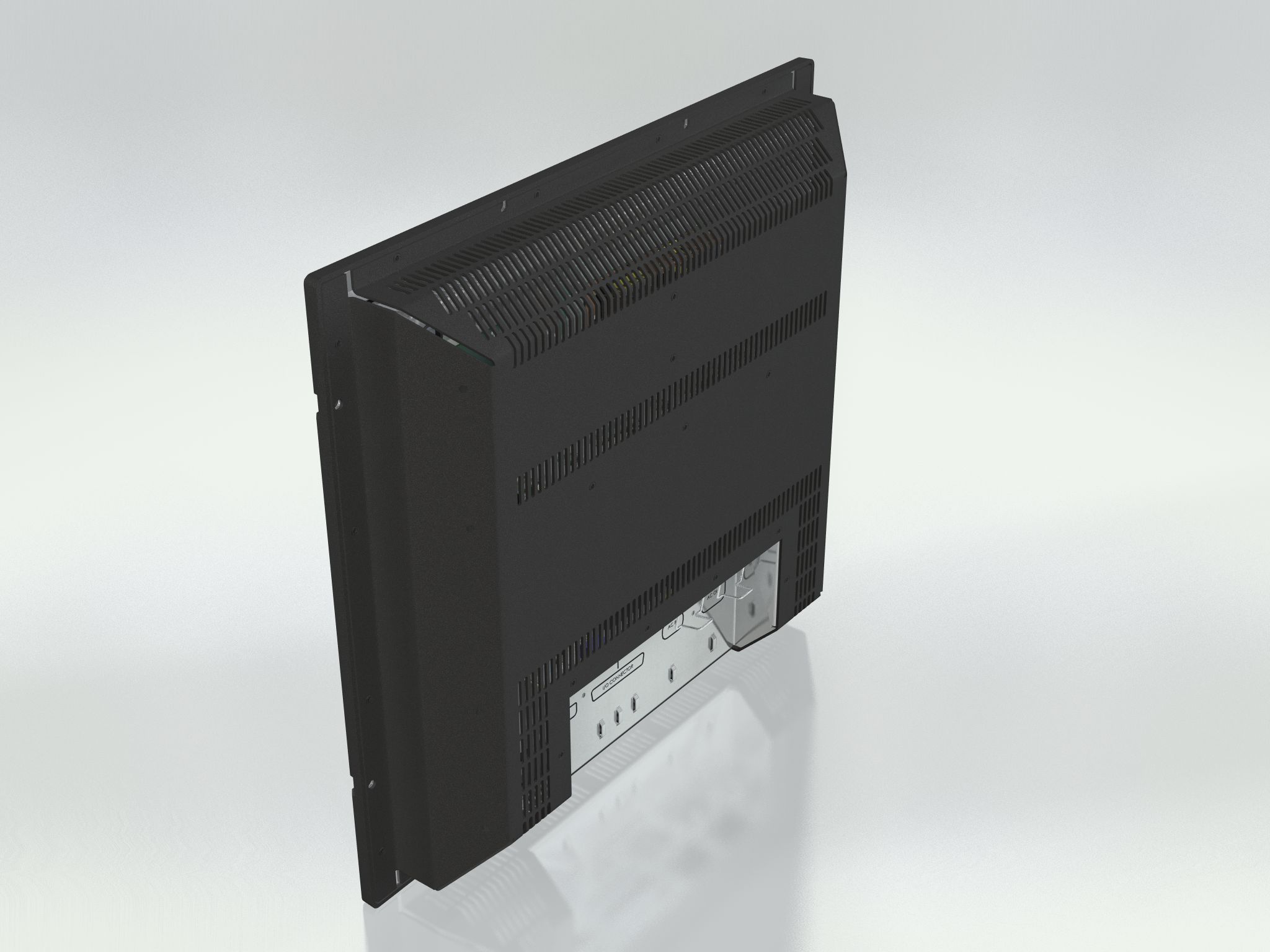

Connectors: • DVI IN: 1 x DVI-I 29P (female)
• VGA IN: 1 x HD D-SUB 15P (female)
• VGA OUT: 1 x HD D-SUB 15P (female)
• Multifunction: 1 x D-SUB 160P (female)
• USB: 1 x Type B (female)
• AC Power IN: 1 x Std. IEC inlet
• If AC Power OUT: 1 x Std. IEC outlet (5A max)
• If DC Power IN: 1 x 2P D-SUB (male) Amphenol FCC17

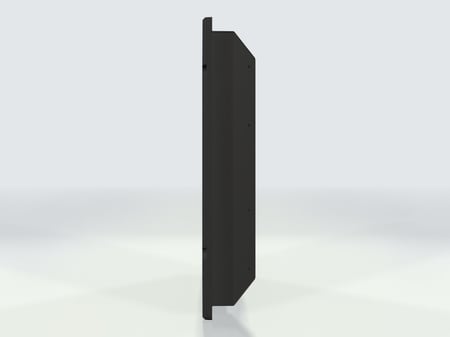

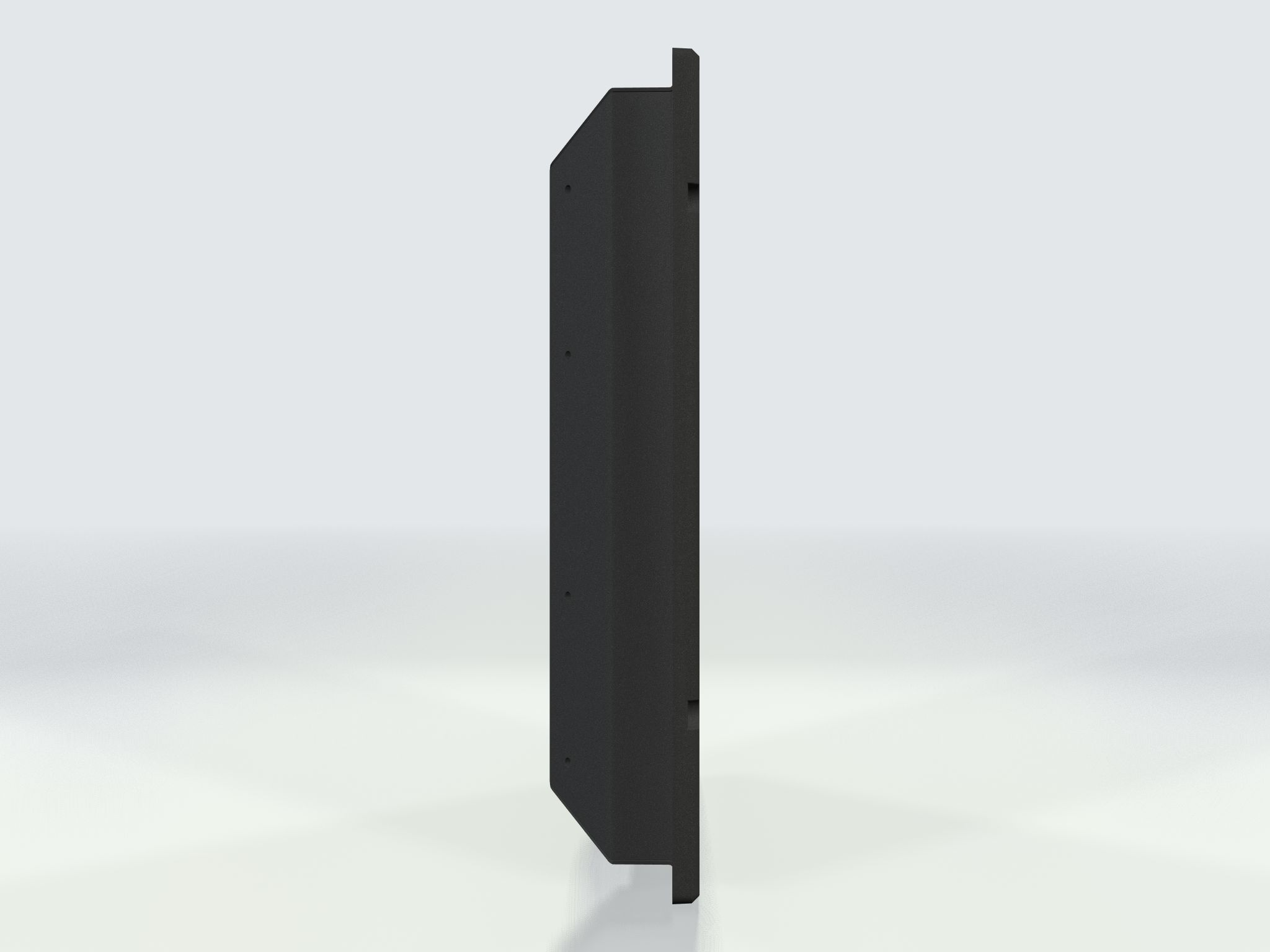

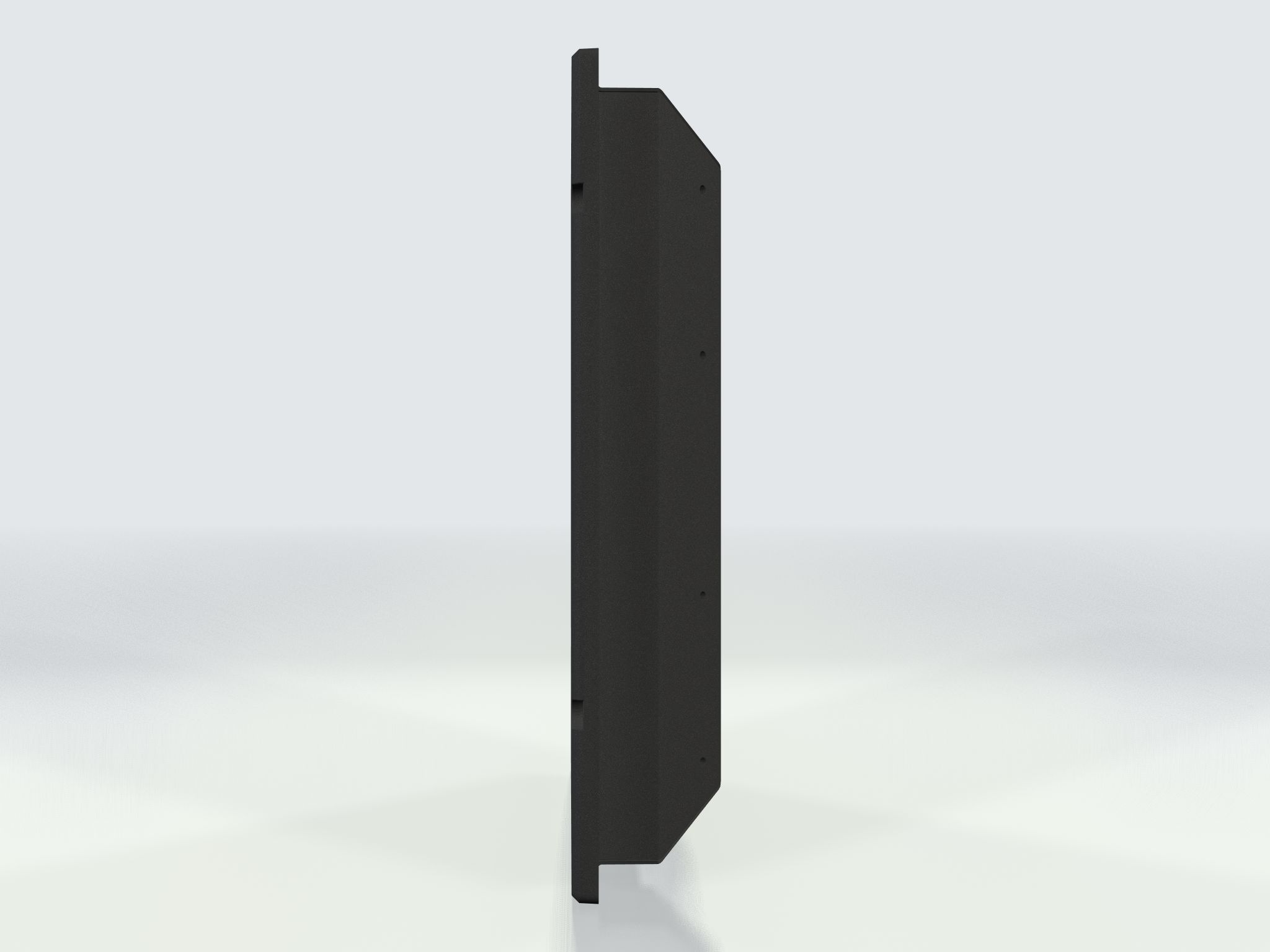

Product Dimensions and Weight: W:483.00 [19.02"] x H:444.00 [17.48"] x D:82.00 [3.23"] mm [inch]
Weight: 11.50 kg (approx)
Product Carton Size and Weight: L:690.00 [27.17"] x W:240.00 [9.45"] x H:655.00 [25.79"] mm [inch]
Weight: TBD
Factory Options: • Resistive or Capacitive Touchscreen
• Keypad only or Keypad+Potmeter+Buzzer controls
• Optical Bonding Technology
• Speaker / Buzzer

Color Calibrated models (ECDIS)

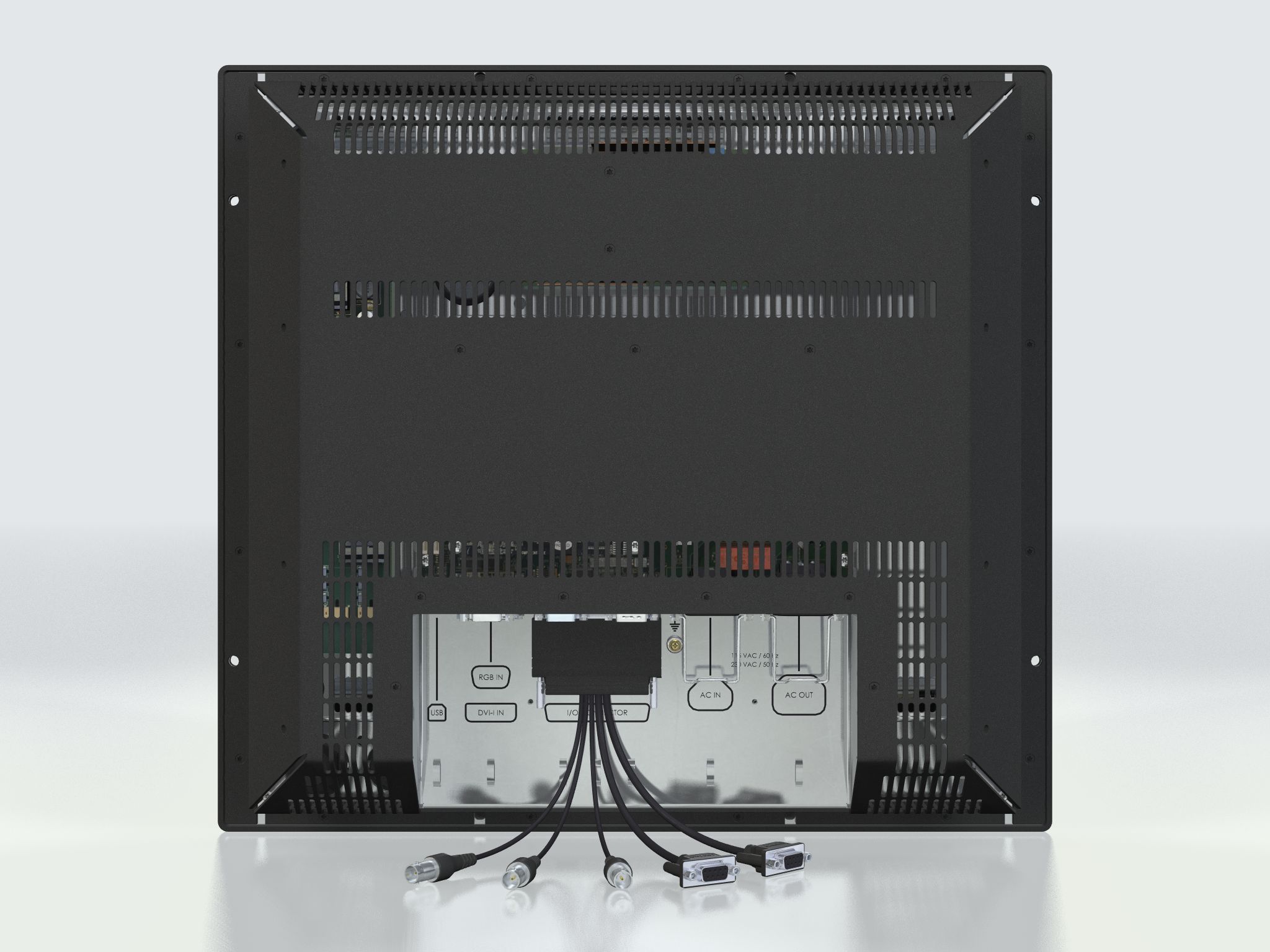

Accessories: • Cables = Custom Multifunction Cable to support more signals

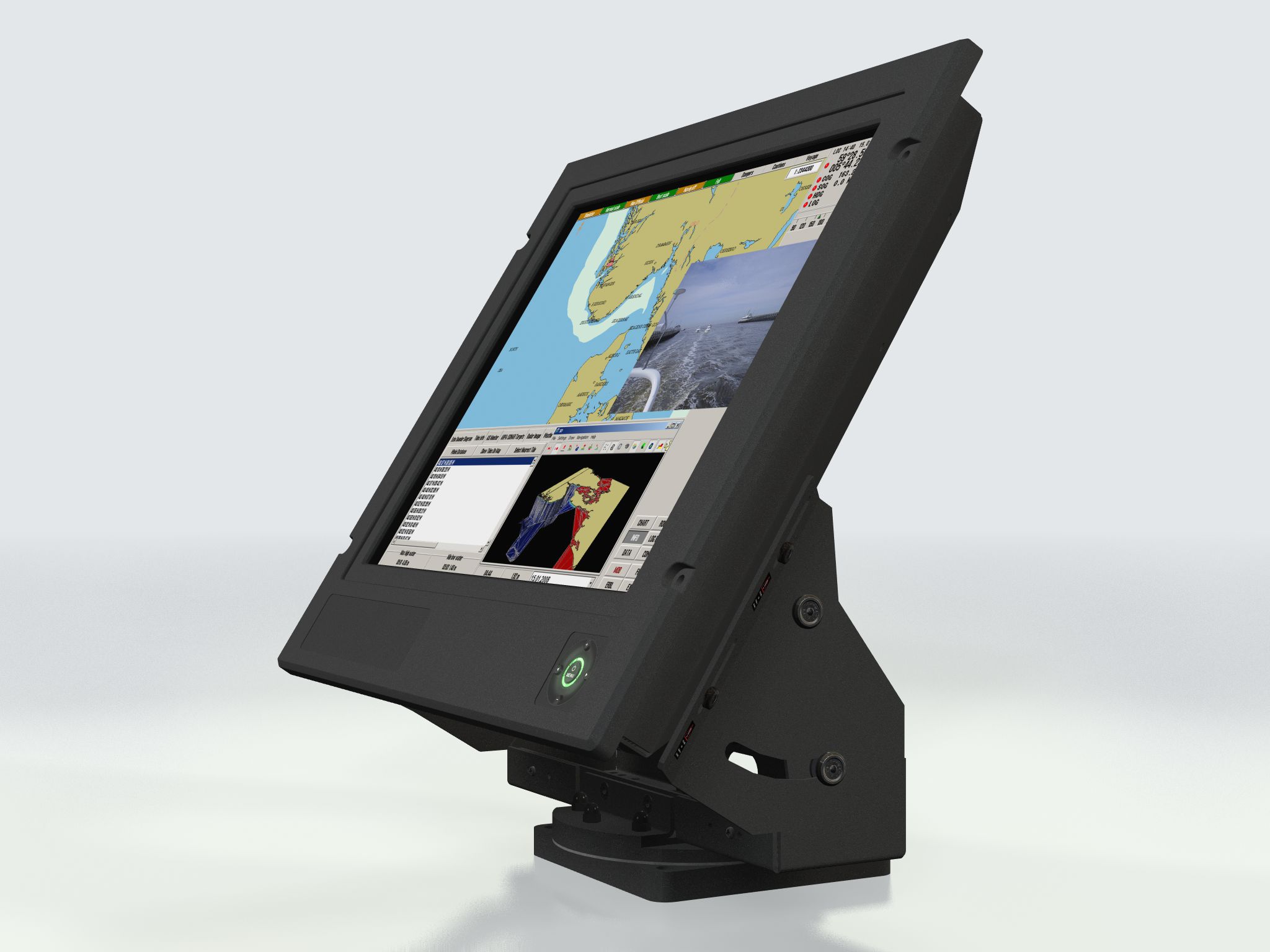

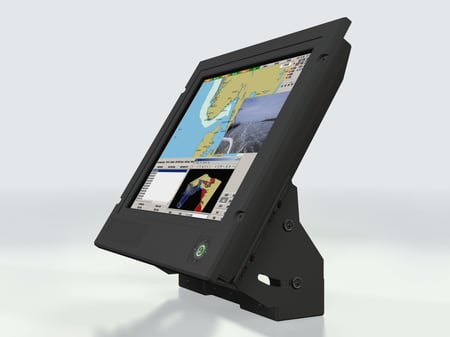

• JH MMD BR = Bracket (Review bracket datasheet/user manual)
• JH 19BRD STD-A1 = Mounting Bracket EN60945 Tested
• JH MMDROSTD-A1= Rotary Bracket (Review bracket datasheet/manual)

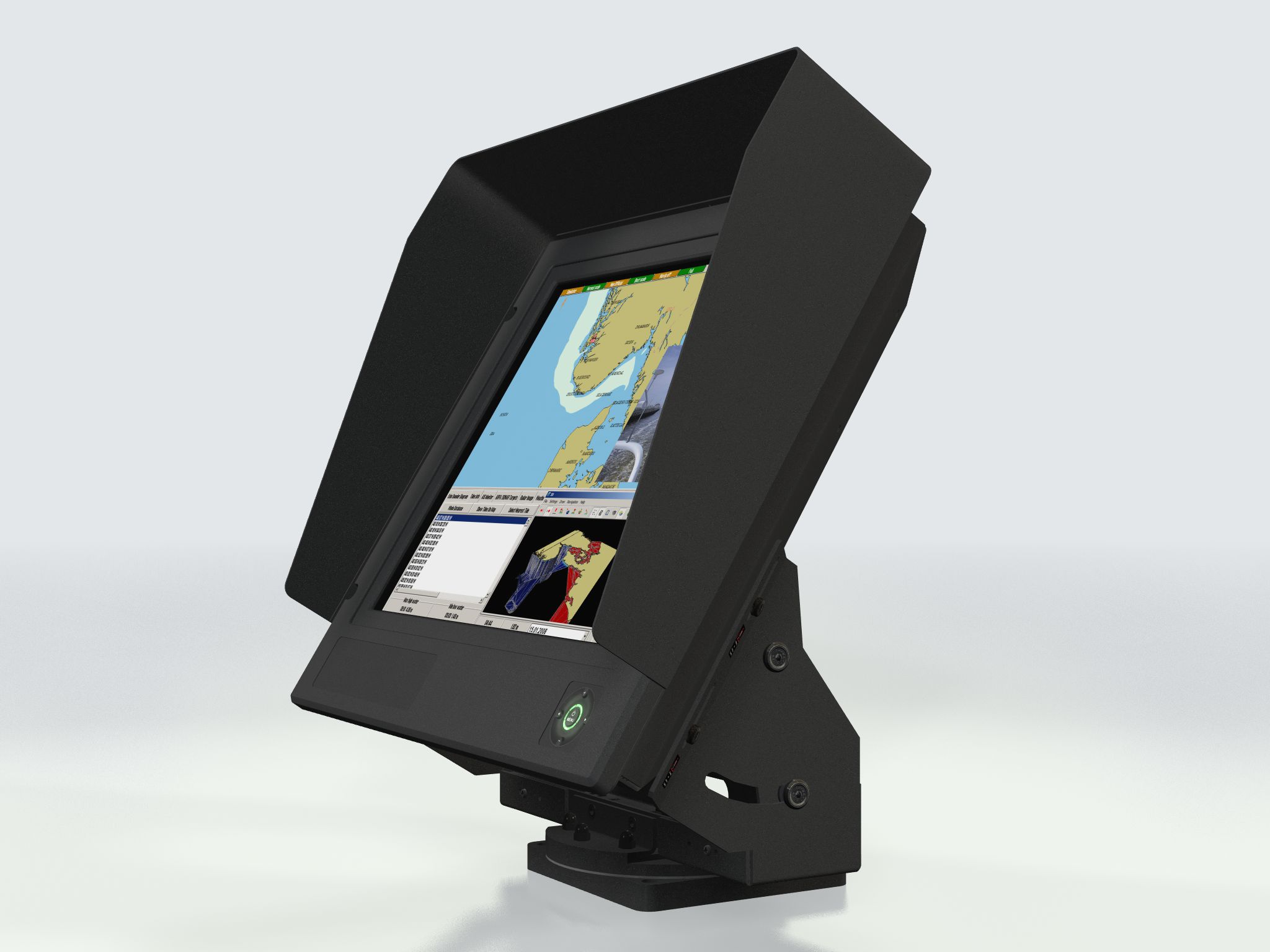

• JH 19TSV STD-A1 = Sun Visor (Review user manual)
• JH VESA 18T04 = Vesa Bracket (Review user manual)
• JH 19TAP STD-A1 = 19" to 21" CRT Adapter frame (Review user manual)

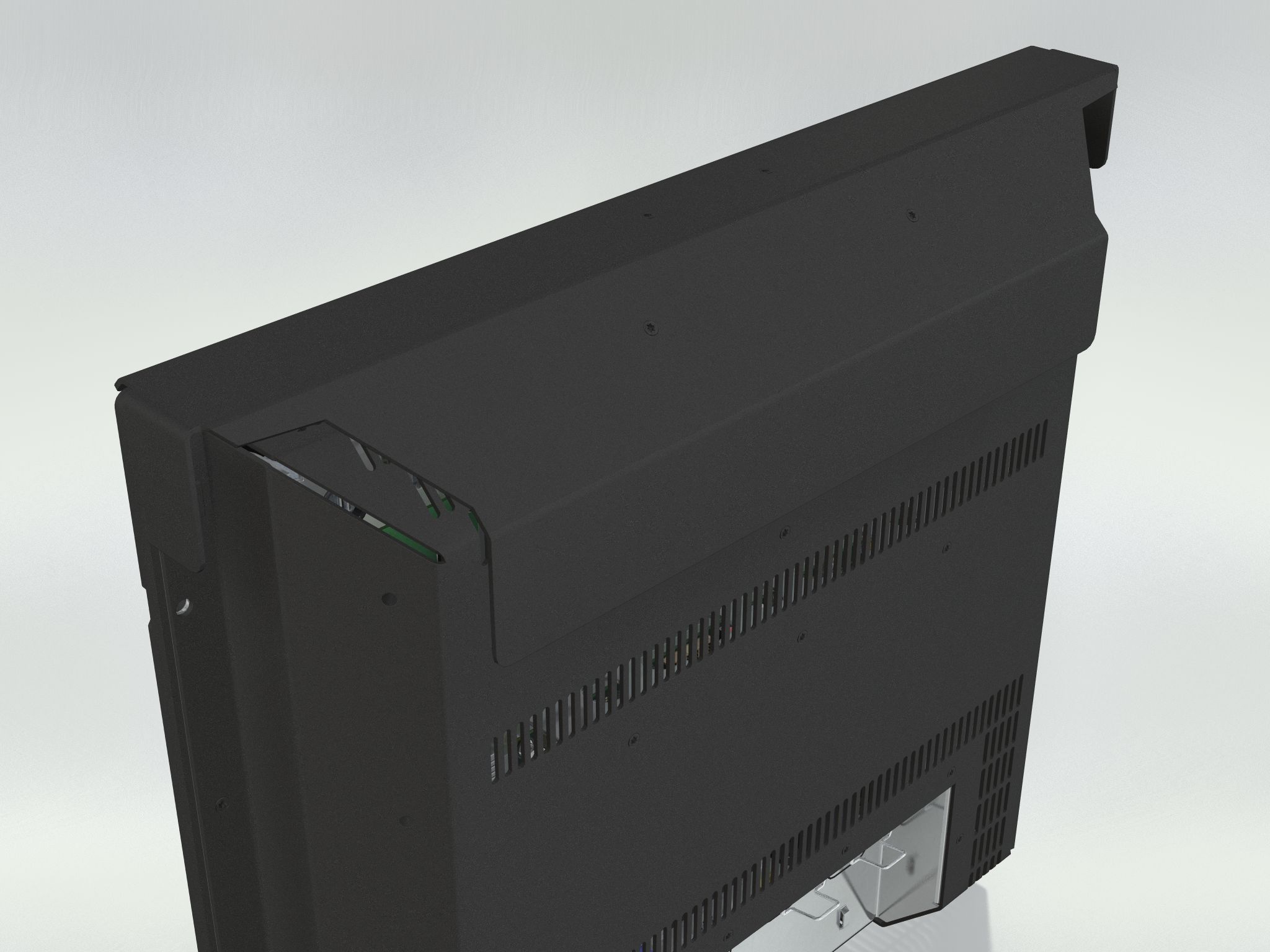

• JH 19TWC STD-B1= Water Cover (Review user manual)
Capabilities - Prepared for: N/A
Operating Temperature: -15.0°C / 5.0°F to +5.0°C / 131.0°F, Humidity up to 95%
Storage Temperature: -20.0°C / -4.0°F to +0.0°C / 140.0°F, Humidity up to 95%
IP Rating: EN60529 (IP66) (Applies for flush mount)
Compass Safe Distance: Standard: 160.00 [62.99"] - Steering: 105.00 [41.34"] cm [inch]
Type Approval, Testing and Certificates: EN60945 4th (IEC945 4th),ClassNK - Nippon Kaiji Kyokai,GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, LRS - Lloyd's Register of Shipping, BV - Bureau Veritas, CCS - China Classification Society
Specifications last updated: August 18, 2025 @ 08:00
