 Marine & Offshore  / Monitor  / HATTELAND® Series 0  / JH 20T02 M20

JH 20T02 M20

Overview

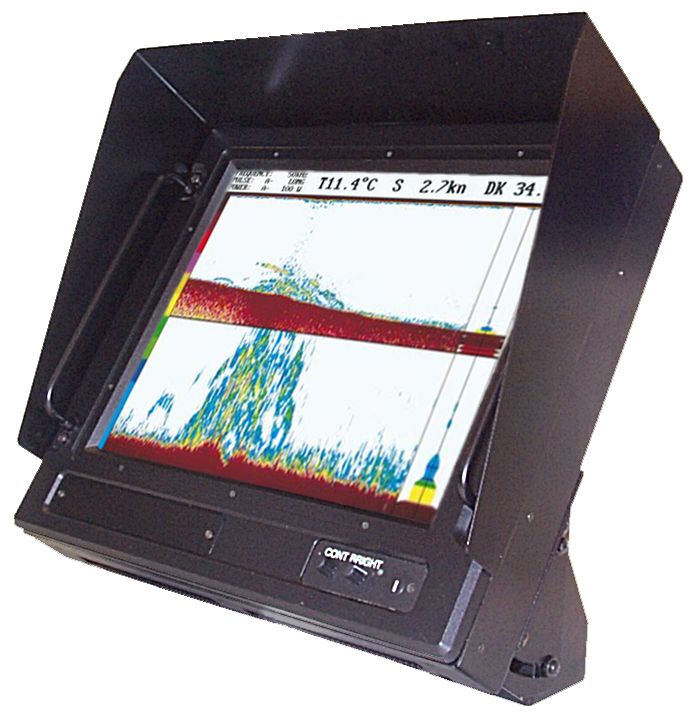

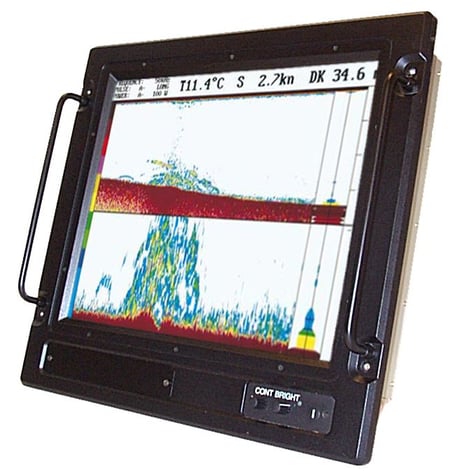

Monitor - CCFL - HATTELAND® Series 0 - 20.1 inch

JH 20T02 M20

The color display described in this Data Sheet is an industrialized version of a high quality (NEC TFT) based display with XtraView technology. The display allows you to display professional applications with clarity and enhanced color and image quality.

icon
CCFL-backlit
Send Request
Description

Monitor - HATTELAND® Series 0

The display provides you with automatic compatibility with multiple upgrading platforms and a vast array of graphics standards allowing resolution upgrades without upgrading the display. The VGA controller and the high light intensity in combination with the high contrast and wide backlight adjustment control, allow the product to be used in many environments. Brightness is adjustable from 0 to 100%.
Specifications
Typenumber (Long): JH 20T02 M20
TFT Technology: a-Si active matrix, thin film transistor (Super-TFT), XtraView technology, RGB vertical stripe color filter arrangement
Viewable Size and Active Area: 20.1 inch - 399.50 [15.73"] (H) x 319.50 [12.58"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1280 x 1024 (SXGA) - 0.312 (H) x 0.312 (V) mm
Aspect Ratio and Response Time: 5:4 - 130 ms (max), "black" to "white"
Light Intensity and Contrast Ratio: Max: 150 cd/m² (typical) - 150:1 (typical)
View Angle and Max Colors: 80 deg. (up/down/left/right) - Full-color (Depending on the graphics board)
Optimal Resolution and Hz: 1280 x 1024 @ 60 Hz

Synchronisation:
Separate sync, Composite sync, Composite sync on green
Video Signal: Analog RGB 0,7Vp-p, Input Impedance 75 Ohm
Video Frequency: 21,1 to 78,8 MHz

Synchronisation Range:
Horizontal: 31,0 kHz to 80,0 kHz
Vertical: 56 Hz to 75 Hz
Lower horizontal singnals at some resolutions
Detectable Resolutions: 640 x 480, 720 x 400, 800 x 600, 832 x 624, 1024 x 768, 1280 x 1024
Composite Video Input(s): None
Supported Video Signals: None
Product Features: MultiSync
Power Specifications and Consumption: DC 24 V
To comply with EN60945-3 use 24 VDC input
Option: AC 110/220 auto adjust
Operating: Max 92 W
User Controls and Activity: On front bezel:
Power On/Off (push button)
Brightness Control
Contrast Control
Mode Status LED

Behind hatch:
On Screen Manager Control
LED intensity
Connectors: VGA signal:
5 x BNC connectors

Power:
Screw terminal

Touch Screen:
1 x D-SUB 9P Connector (Female)
Product Dimensions and Weight: Rack Version:
W:533.8 [21.02"] x H:480.5 [18.92"] x D:107.0 [4.21"] mm [inch]
10.5 kg

Cabinet Version:
W:533.0 [20.98"] x H:480.0 [18.90"] x D:128.0 [5.04"] mm [inch]
13.0 kg
Product Carton Size and Weight: N/A
Factory Options: • Touchscreen
Accessories: Front
Cabinet
Suspension Bracket
Table Stand
Capabilities - Prepared for: N/A
Operating Temperature: -15.0°C / 5.0°F to +55.0°C / 131.0°F
Humidity 30% to 90% (non condensing)
Storage Temperature: -20.0°C / -4.0°F to +60.0°C / 140.0°F
Humidity 10% to 90% (non condensing)
IP Rating: N/A
Compass Safe Distance: N/A
Type Approval, Testing and Certificates: Tested according to EN60945 3rd (IEC945 3rd) and type approved by the following classification societies:

LLOYD'S - Lloyds Register of Shipping
DNV - Det Norske Veritas
GL - Germanischer Lloyds
NIPPON - Nippon Kaiji Kyokai
ABS - American Bureau of Shipping
Specifications last updated: August 18, 2025 @ 08:00
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

End of Life Notifications (EOL):
1 Jul 2001
JH 20T01 M20-A1 and JH 20T02 M20-A1 now obsolete, repla...

Obsolete
