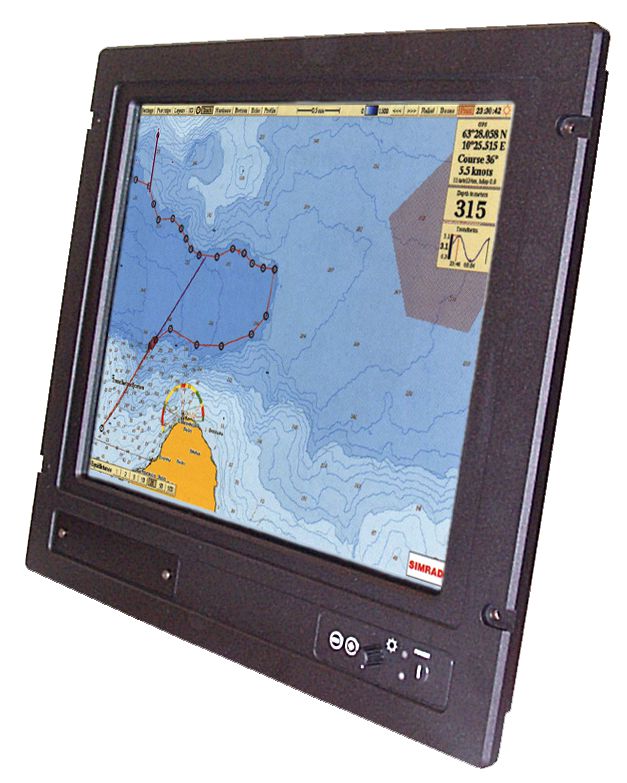

Monitor - CCFL - HATTELAND® Series 0 - 20.1 inch

JH 20T03 MMD (HW00)

Connections include DVI-D IN, RGB IN, Video IN (Composite/SVHS) and PiP (Picture in Picture) functionality.

CCFL-backlit

Send Request

Description

Specifications

Typenumber (Long):	JH 20T03 MMD
TFT Technology:	Active Matrix, Thin Film Transistor (Super-TFT)
Viewable Size and Active Area:	20.1 inch - 399.36 [15.72"] (H) x 319.49 [12.58"] (V) mm [inch]
Native Resolution and Pixel Pitch:	1280 x 1024 (SXGA) - 0.312 (H) x 0.312 (V) mm
Aspect Ratio and Response Time:	5:4 - 25 ms (typical), "black" to "white"
Light Intensity and Contrast Ratio:	250 cd/m² (typ) - 300:1 (typ)
View Angle and Max Colors:	85 deg. (up/down/left/right) - 16.7 millions
Optimal Resolution and Hz:	1280 x 1024 @ 60 Hz Sync Signal: • Digital separate synchronisation • Composite synchronisation • Synchronisation on green. • Auto detects VGA -> SXGA, interlaced and non interlaced • Video Signal: Analog RGB 0,7Vp-p, Input Impedance 75 Ohm Synchronisation Range: • Horizontal: 31,5 kHz to 91,1 kHz • Vertical: 60 Hz to 85 Hz
Detectable Resolutions:	640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024
Composite Video Input(s):	1 x RCA Phono plug 1 x S-Video (SVHS) plug
Supported Video Signals:	Video Signals: • Interlaced NTSC and PAL/SECAM video • Composite video • S-Video
Product Features:	PIP (Picture In Picture), Video Input (Composite/SVHS) inputs, Hotkey Functionality, Dimmable 0-100%, ECDIS Compliant
Power Specifications and Consumption:	• 115&230VAC - 50 / 60Hz Power Consumption: • Operating: 75W (typ) - Measured at 230Vrms • Operating: 100W (max)
User Controls and Activity:	On front bezel: • Power On/Off (push button), Brightness Control Knob • 2 x hotkeys (up/down and -/+) and Mode Status LED Behind hatch: • On Screen Display control (OSD/OSM)
Connectors:	• DVI-I Signal IN: 1 x 29p DVI Female (or as RGB IN with adapter) • RGB Signal IN: 1 x 15p HD D-SUB female • Comp. Video IN: 1 x 1p RCA Phono • S-Video IN: 1 x 5p S-Video (SVHS) • COM1 MMD I/O: 1 x 9p D-SUB (Consult user manual) • If RGB Signal OUT: 1 x 15p HD D-SUB female (JH VBUF)* • If COM2 Feature: 1 x 9p D-SUB for factory options: - Touch Screen, Serial Remote Control (SCOM), - Buzzer or customized solutions. • If AC Power IN: 1 x Std IEC Inlet (female)
Product Dimensions and Weight:	534 (W) x 481 (H) x 94 (D) mm - 21.02" (W) x 18.94" (H) x 3.70" (D) • Weight: 14 kg (approx)
Product Carton Size and Weight:	N/A
Factory Options:	• Capacitive or Resistive Touch Screen • Color Calibrated models (ECDIS) • Video Buffer (JH VBUF) • JH SCOM-A1/C1 = Serial Remote Control • AC model

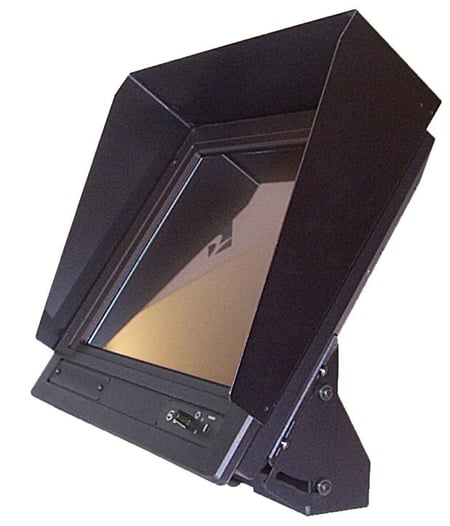

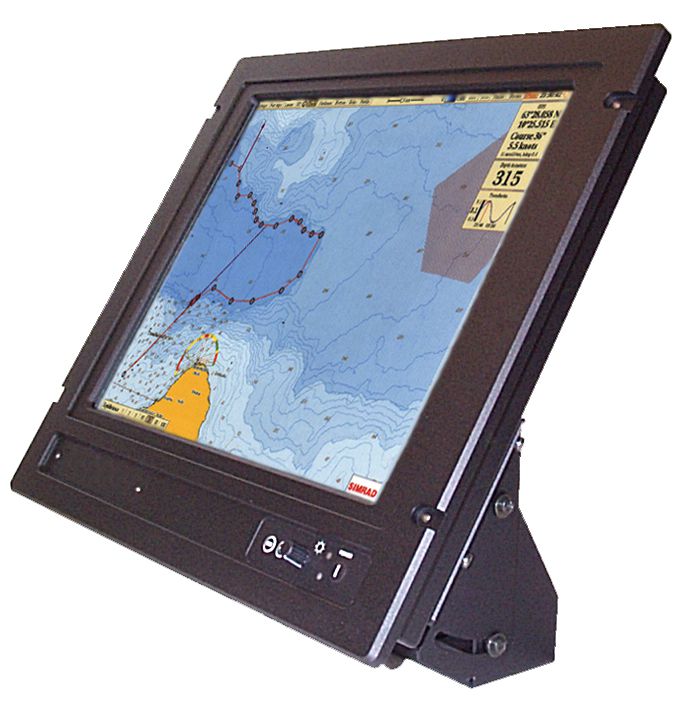

Accessories:	• JH MMDBR STD-A1 = Bracket • JH MMDRO STD-A1 = Rotary Bracket • JH 20TSV STD-B1 = Sun Visor • JH VESA 20T06-A1 = Vesa Bracket • JH 20TWC STD-B1 = Water Cover • JH XPR-A1 = External Power Relay
Capabilities - Prepared for:	N/A
Operating Temperature:	-15.0°C / 5.0°F to +55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to +60.0°C / 140.0°F, Humidity up to 95%
IP Rating:	EN60529 (IP66) (Applies for flush mount)
Compass Safe Distance:	Standard: 200.00 [78.74"] - Steering: 135.00 [53.15"] cm [inch]
Type Approval, Testing and Certificates:	EN60945 3rd (IEC945 3rd), LRS - Lloyd's Register of Shipping, ClassNK - Nippon Kaiji Kyokai, ABS - American Bureau of Shipping, GL - Germanischer Lloyd, DNV - Det Norske Veritas, BV - Bureau Veritas, EN61174 (IEC1174) - Bundesamt für Seeschiffahrt und Hydrographie (BSH) (AC model), RS - Russian Maritime Register of Shipping

Specifications last updated: August 18, 2025 @ 08:00
