JH 23T01 MMD

Overview

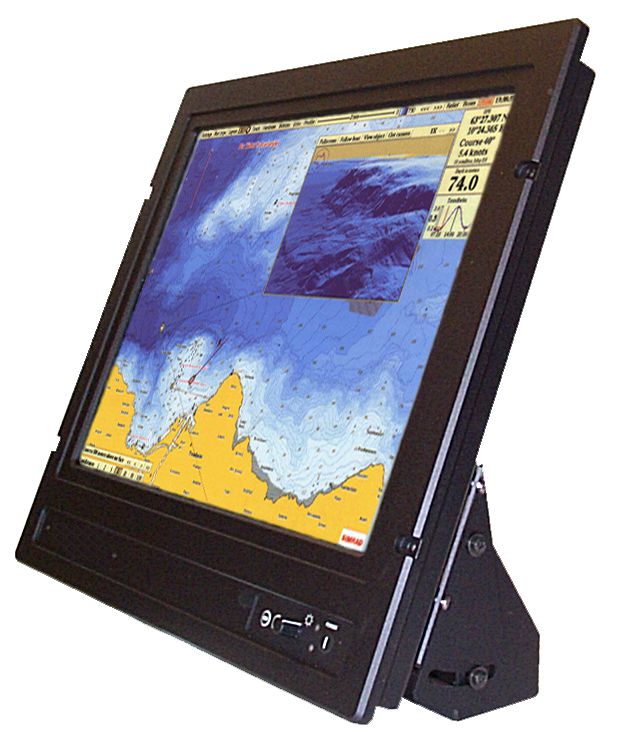

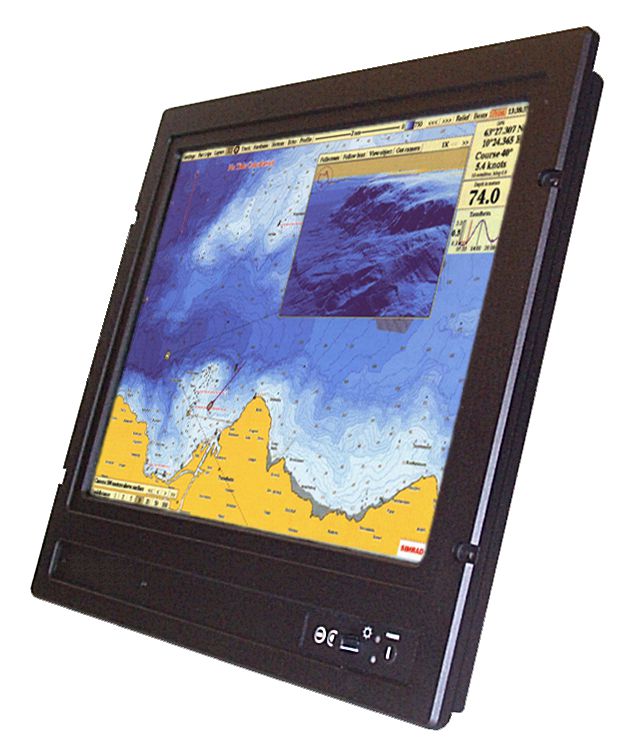

Monitor - CCFL - HATTELAND® Series 0 - 23.1 inch

JH 23T01 MMD

The color display described in this Data Sheet is an industrialized version of a high quality Fujitsu TFT based display with MVA technology. The MMD allows you to display professional applications with clarity and enhanced color and image quality, VGA std input, Video input and PiP (Picture in Picture) functions.

icon
CCFL-backlit
Send Request
Description

Monitor - HATTELAND® Series 0

The display provides you with automatic compatibility with multiple upgrading platforms and a vast array of graphics standards allowing resolution upgrades without upgrading the display. The controller and the high light intensity in combination with the high contrast and wide backlight adjustment control, allow the product to be used in many environments. Brightness is adjustable from 0 to 100%.
Specifications
Typenumber (Long): JH 23T01 MMD
TFT Technology: Thin Film Transistor (TFT), MVA technology
Viewable Size and Active Area: 23.1 inch - 470.4 [18.52"] (H) x 352.8 [13.89"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1600 x 1200 (UXGA) - 0.294 (H) x 0.294 (V) mm
Aspect Ratio and Response Time: 4:3 - 25 ms (typ)
Light Intensity and Contrast Ratio: 250 cd/m² (typ) - 400:1 (typ)
View Angle and Max Colors: 85 deg. (up/down/left/right) (@ CR > 10) - 16.777.216 colors (8-bit color)
Optimal Resolution and Hz: 1600 x 1200 @ 60 Hz

Sync Signal:
• Digital separate synchronisation
• Composite synchronisation
• Synchronisation on green.
• Auto detects VGA -> UXGA, interlaced and non interlaced
• Video Signal: Analog RGB 0,7Vp-p, Input Impedance 75 Ohm

Synchronisation Range:
• Horizontal: 31.5 kHz to 106.259 kHz
• Vertical: 60 Hz to 85 Hz
Detectable Resolutions: 640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200
Composite Video Input(s): 1 x RCA Phono plug
1 x S-Video (SVHS) plug
Supported Video Signals: Video Signals:
• Interlaced NTSC and PAL/SECAM video
• Composite video
• S-Video
Product Features: PIP (Picture In Picture), Video Input (Composite/SVHS) inputs, Hotkey Functionality, Dimmable 0-100%, ECDIS Compliant
Power Specifications and Consumption: Power Supply Options:
• 110/220 VAC (JH 23T01 MMD-A1)
• 24 VDC (JH 23T01 MMD-A2)

Power Consumption:
Operating: Max 100W (max)
User Controls and Activity: On front bezel:
• Power On/Off (push button)
• Brightness Control
• 2 x hotkeys
• Mode Status LED

Behind hatch:
• On Screen Display Control

Rear side:
• Auto LED intensity adjust
Connectors: • RGB (PC) signal: 15pin mini D-SUB (female - Input)
• Composite Video: RCA Phono plug
• S-Video signal: S-Video (SVHS) plug
• AC Power signal: Std IEC Inlet Model JH 20T06 MMD-A1
• DC Power signal: Screw terminal Model JH 20T06 MMD-A2
• If Touchscreen: 1 x D-SUB 9P Connector (female)
Product Dimensions and Weight: 584 (W) x 534 (H) x 77.77 (D) mm - 22.99" (W) x 21.02" (H) x 2.83" (D)
Weight: 17 kg (w/bracket)
Product Carton Size and Weight: N/A
Factory Options: • Color Calibrated models (ECDIS)
• AC or DC model
• Resistive or Capacitive Touch Screen
Accessories: • Bracket
• Sun Visor
Capabilities - Prepared for: N/A
Operating Temperature: -15.0°C / 5.0°F to +55.0°C / 131.0°F
Humidity 30% to 90% (non condensing)
Storage Temperature: -20.0°C / -4.0°F to +60.0°C / 140.0°F.
Humidity 10% to 90% (non condensing)
IP Rating: EN60529 (IP66) (Applies for flush mounting)
Compass Safe Distance: N/A
Type Approval, Testing and Certificates: EN60945 3rd (IEC945 3rd), DNV - Det Norske Veritas, LRS - Lloyd's Register of Shipping, ClassNK - Nippon Kaiji Kyokai, ABS - American Bureau of Shipping, GL - Germanischer Lloyd, EN61174 (IEC1174) - Bundesamt für Seeschiffahrt und Hydrographie (BSH)
Specifications last updated: August 18, 2025 @ 08:00
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

End of Life Notifications (EOL):
13 Sep 2002
Product Obsolete

News Stories:
24 Apr 2002
ECDIS Compliant Maritime Multi Display

Obsolete
