Monitor - CCFL - HATTELAND® Series 0 - 23.1 inch

JH 23T02 MMD

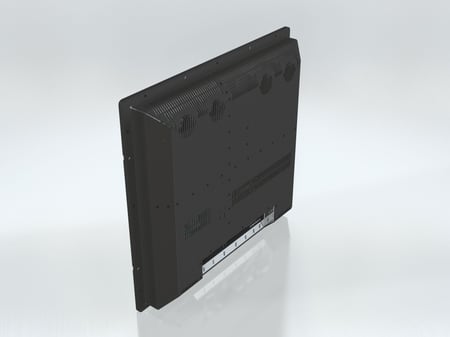

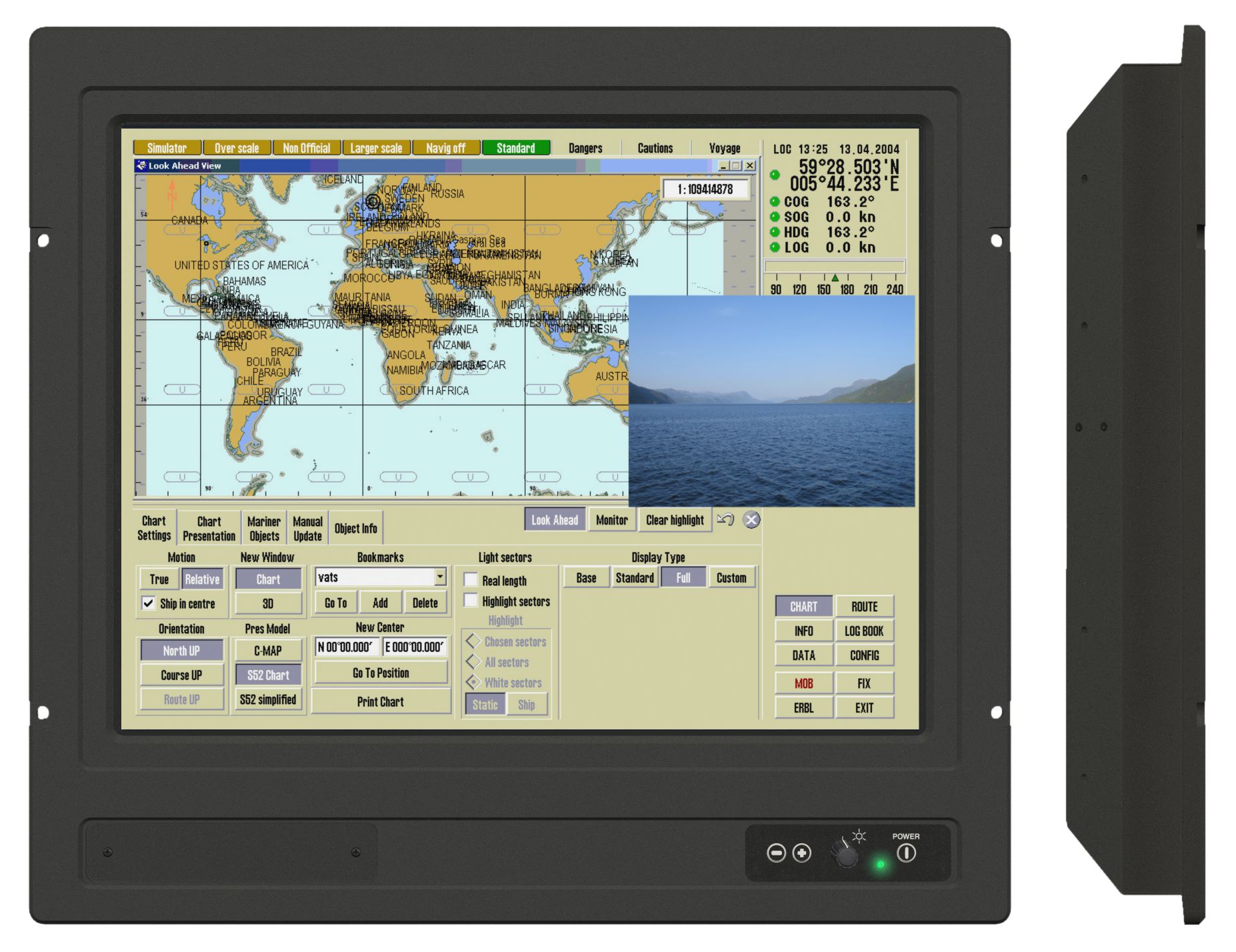

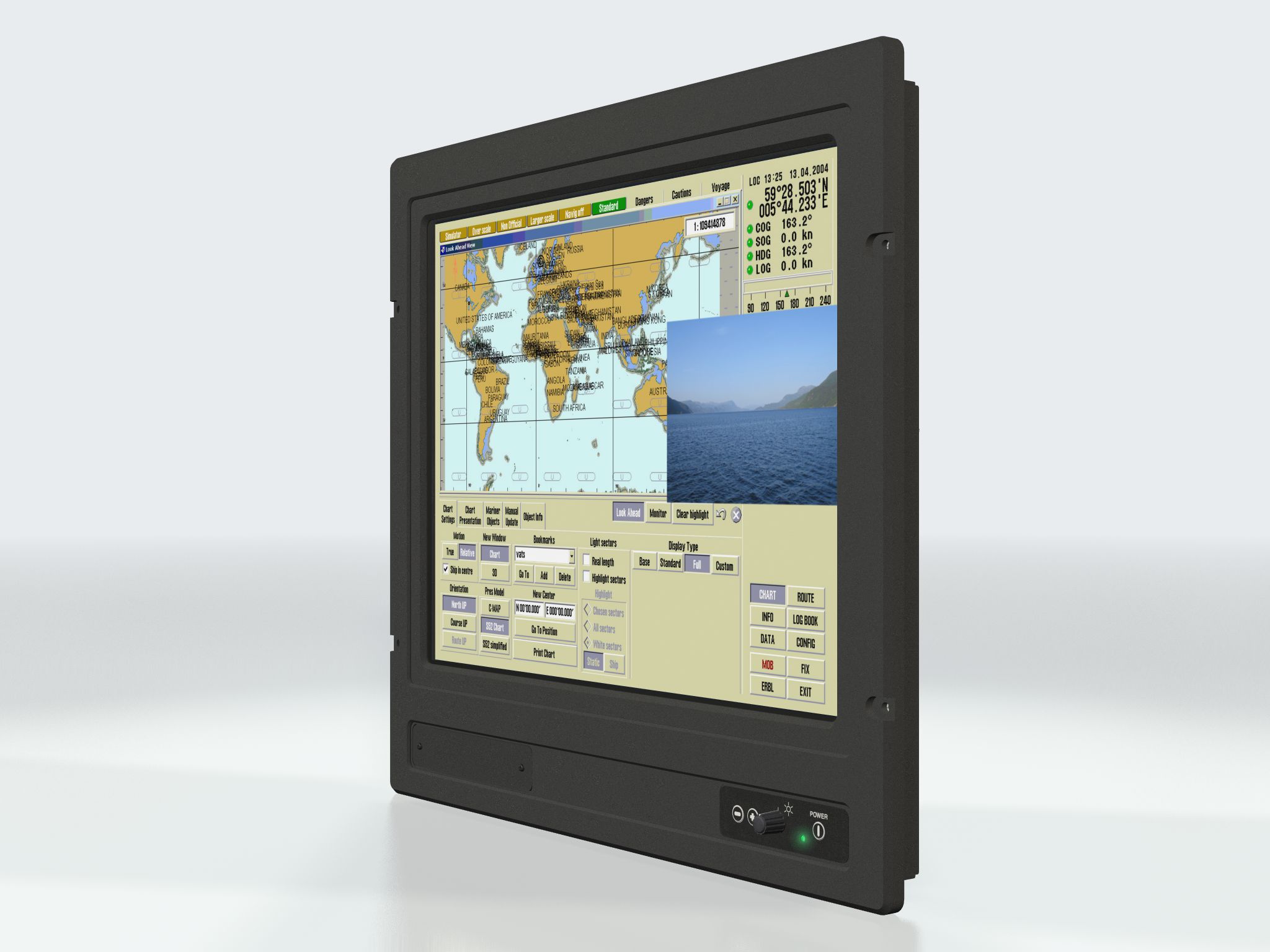

The color display described in this Data Sheet is an industrialized version of a high quality SHARP TFT based display with MVA Premium™ technology. The MMD allows you to display professional applications with clarity and enhanced color and image quality.

CCFL-backlit

Send Request

Description

Specifications

Typenumber (Long):	JH 23T02 MMD
TFT Technology:	Thin Film Transistor (TFT), MVA Premium™ technology
Viewable Size and Active Area:	23.1 inch - 470.4 [18.52"] (H) x 352.8 [13.89"] (V) mm [inch]
Native Resolution and Pixel Pitch:	1600 x 1200 (UXGA) - 0.294 (H) x 0.294 (V) mm
Aspect Ratio and Response Time:	4:3 - 20 ms (typical), "black" to "white"
Light Intensity and Contrast Ratio:	250 cd/m² (typ) - 600:1 (typ)
View Angle and Max Colors:	85 deg. (up/down/left/right) (@ CR > 10) - 16.7 millions
Optimal Resolution and Hz:	1600 x 1200 @ 60 Hz Sync Signal: • Digital separate synchronisation • Composite synchronisation • Synchronisation on green. • Auto detects VGA -> UXGA, interlaced and non interlaced • Video Signal: Analog RGB 0,7Vp-p, Input Impedance 75 Ohm Synchronisation Range: • Horizontal: 31.5 kHz to 75 kHz • Vertical: 56 Hz to 75 Hz
Detectable Resolutions:	640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200
Composite Video Input(s):	1 x RCA Phono plug 1 x S-Video (SVHS) plug
Supported Video Signals:	Video Signals: • Interlaced NTSC and PAL/SECAM video • Composite video • S-Video
Product Features:	PIP (Picture In Picture), Video Input (Composite/SVHS) inputs, Hotkey Functionality, Dimmable 0-100%, ECDIS Compliant

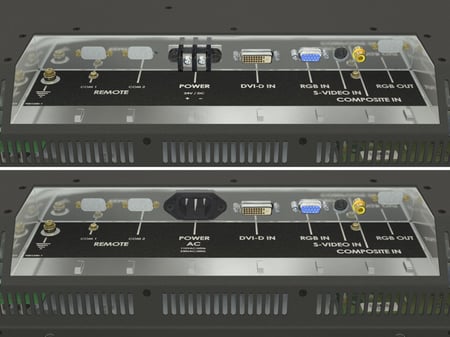

Power Specifications and Consumption:	Power Supply Options: • 115&230VAC - 50 / 60Hz: Model JH 23T02 MMD-A1 • 24 VDC: Model JH 23T02 MMD-A2 Power Consumption: • Operating: 89W (typ) - Measured at 230Vrms • Operating: TBD (typ) - Measured at 24VDC • Operating: 100W (max)

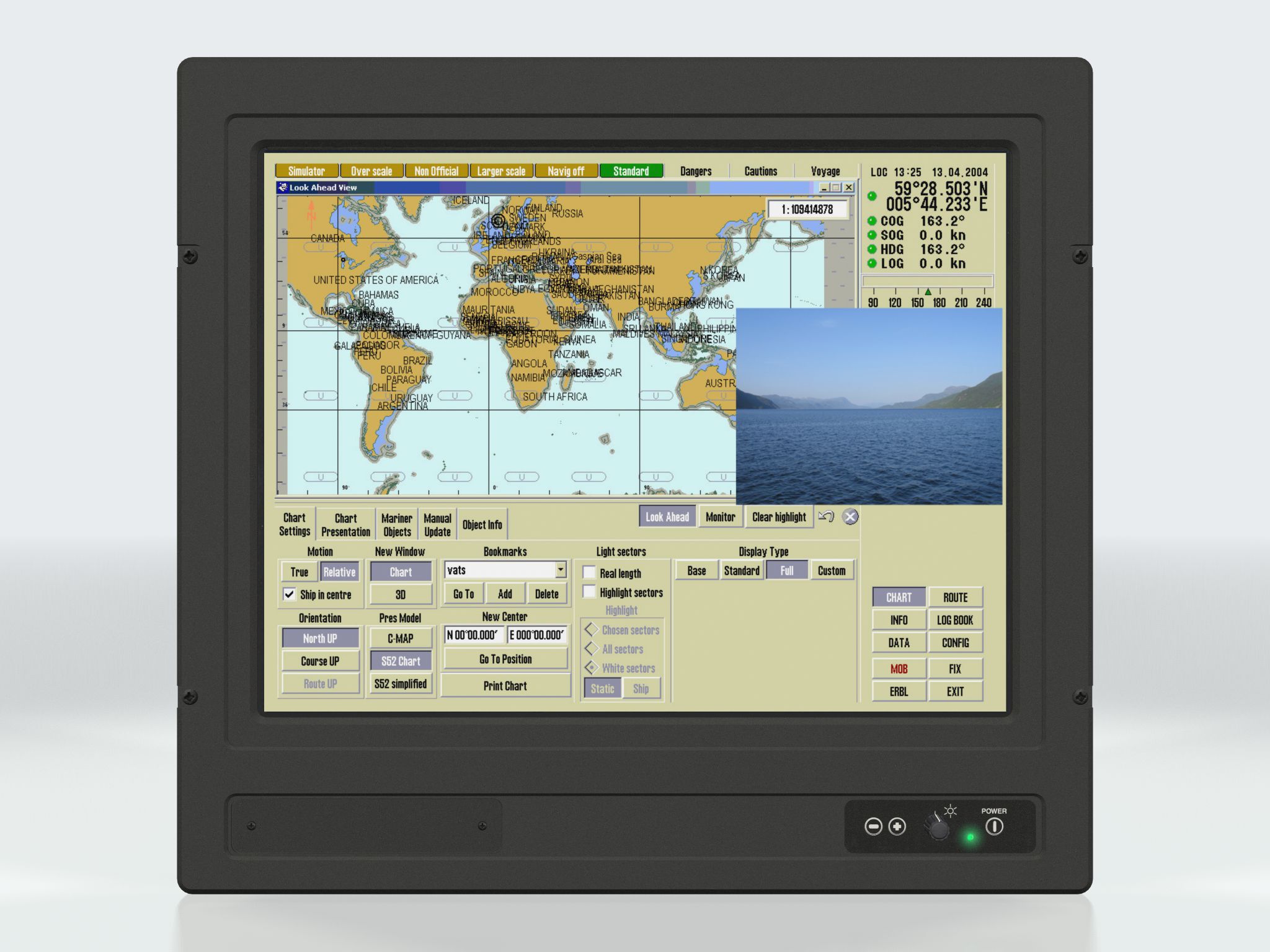

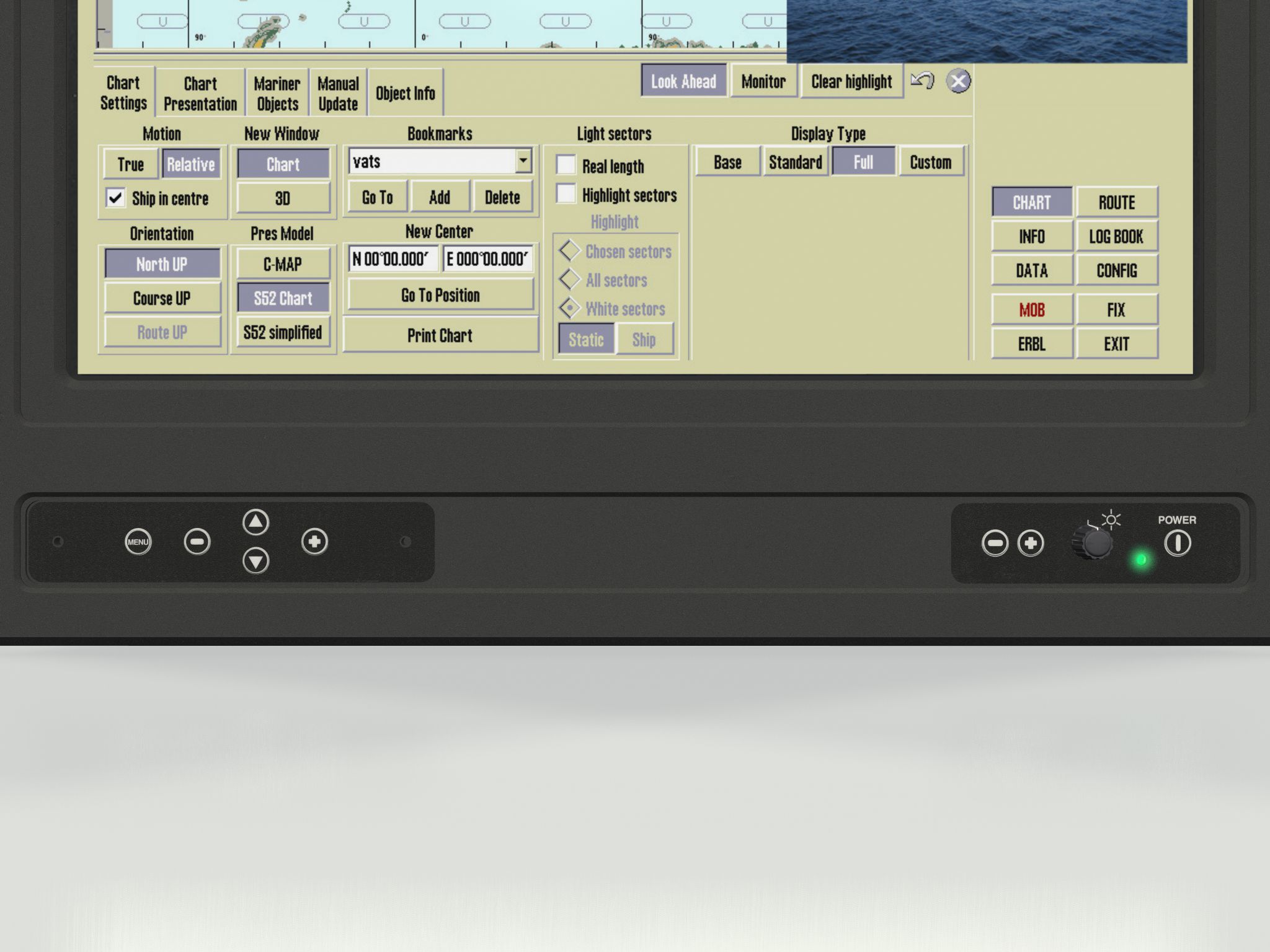

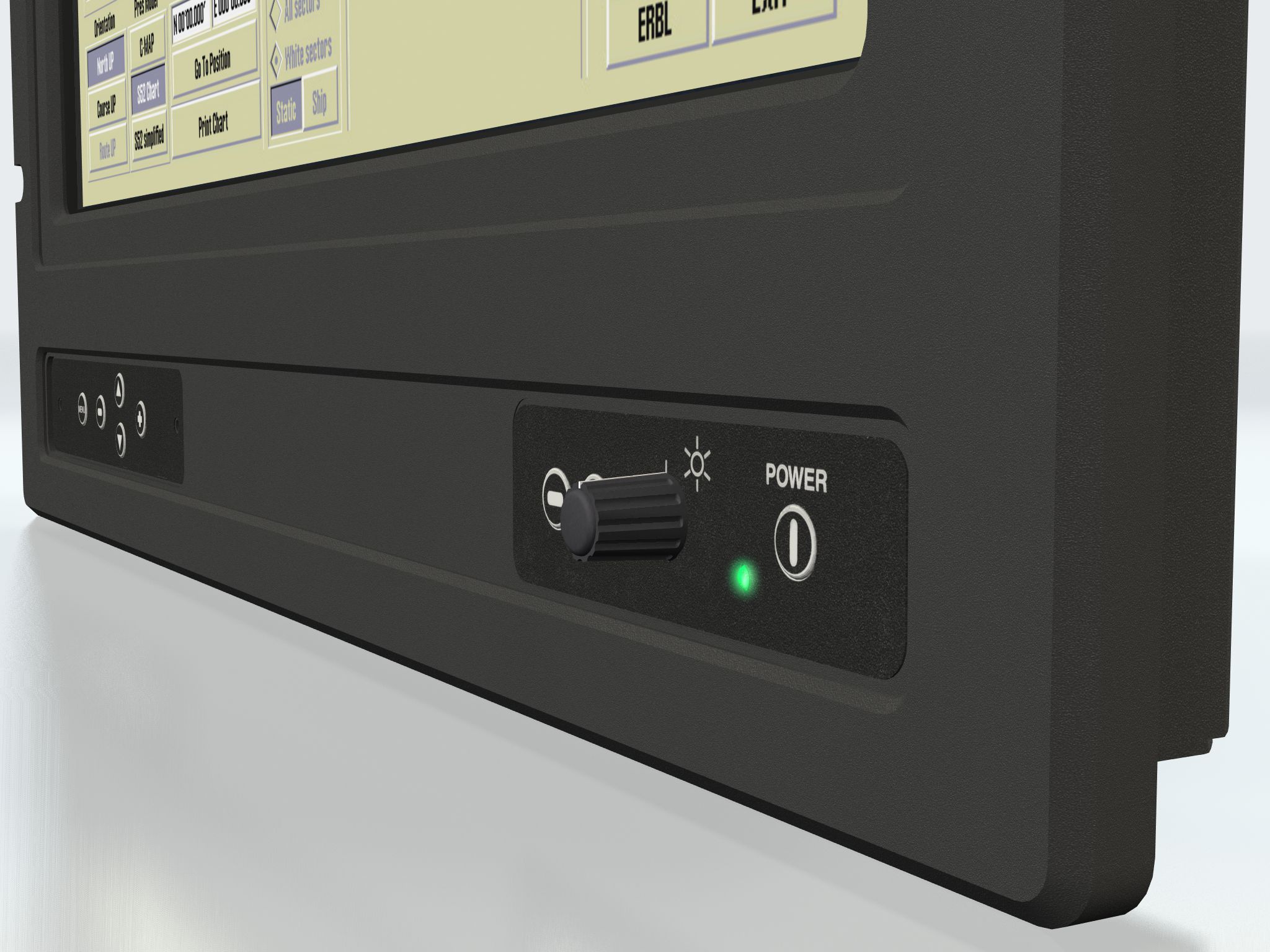

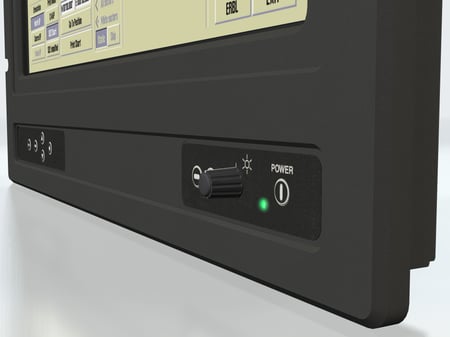

User Controls and Activity:	On front bezel: • Power On/Off (push button) • Brightness Control • 2 x hotkeys • Mode Status LED Behind hatch: • On Screen Display Control

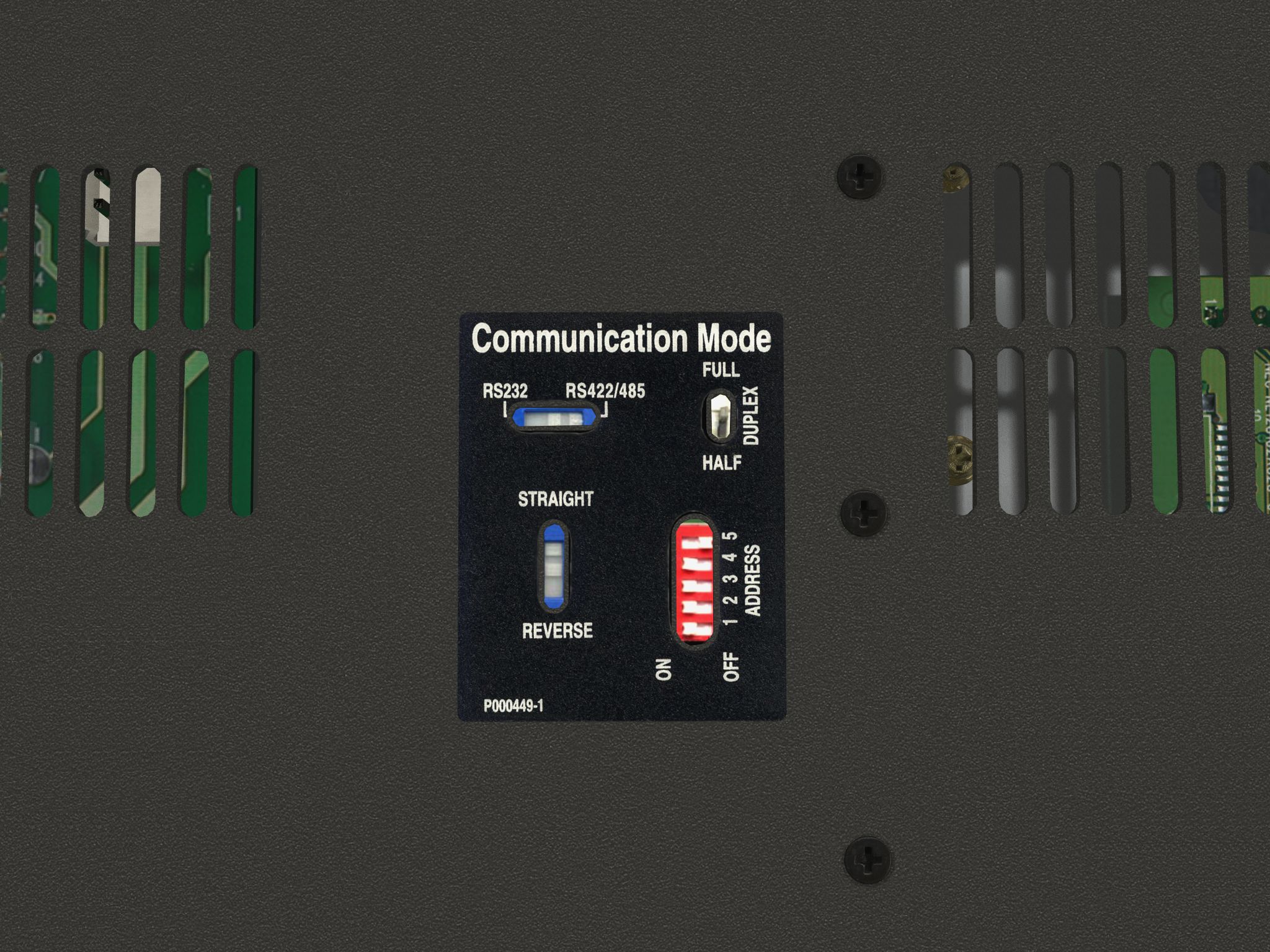

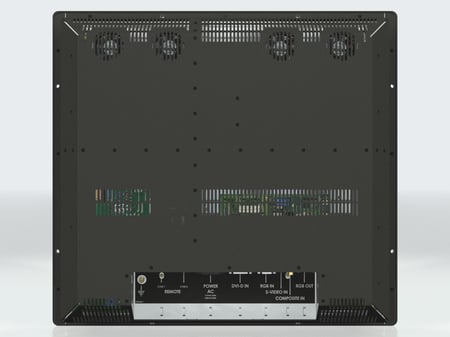

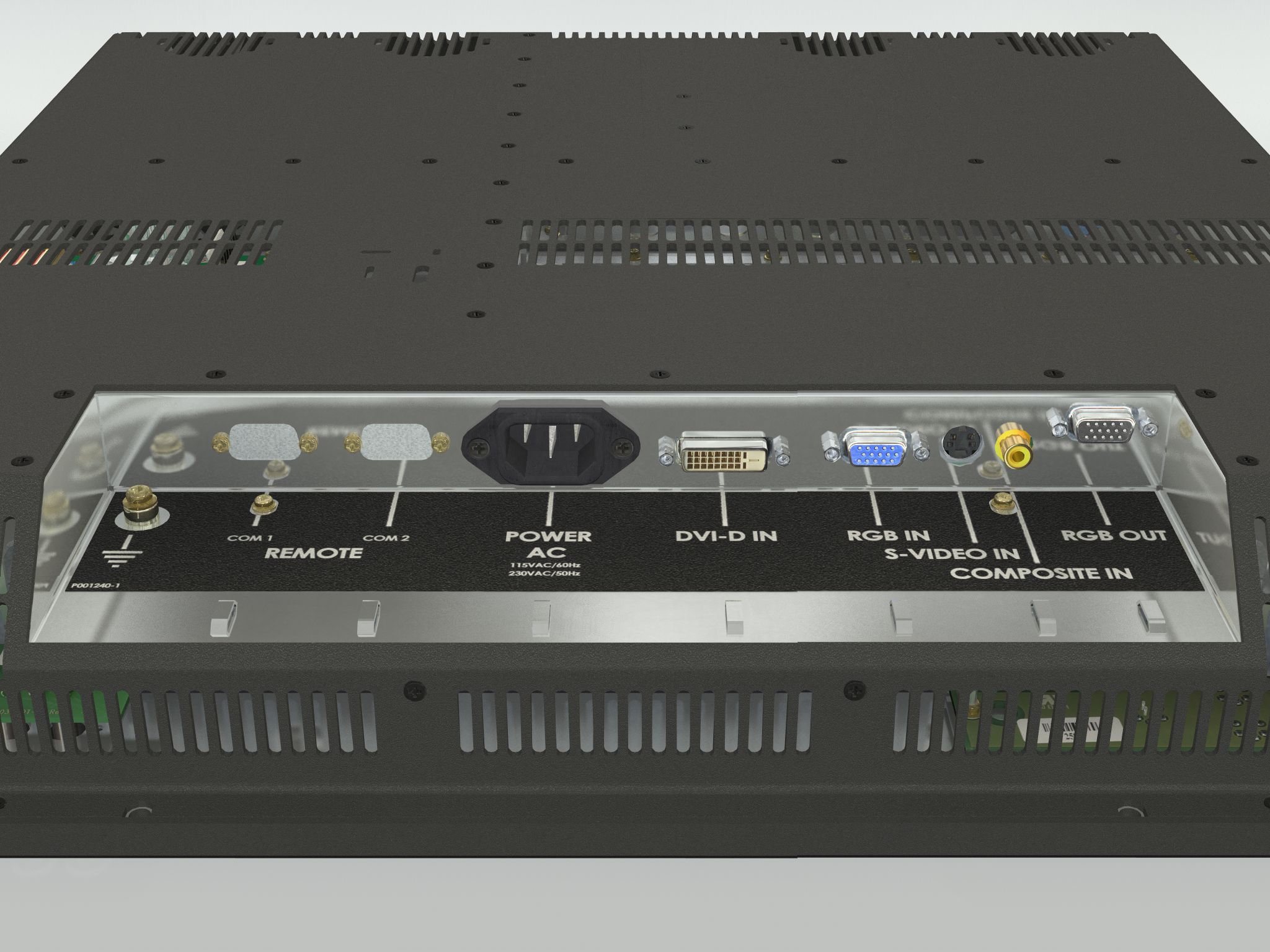

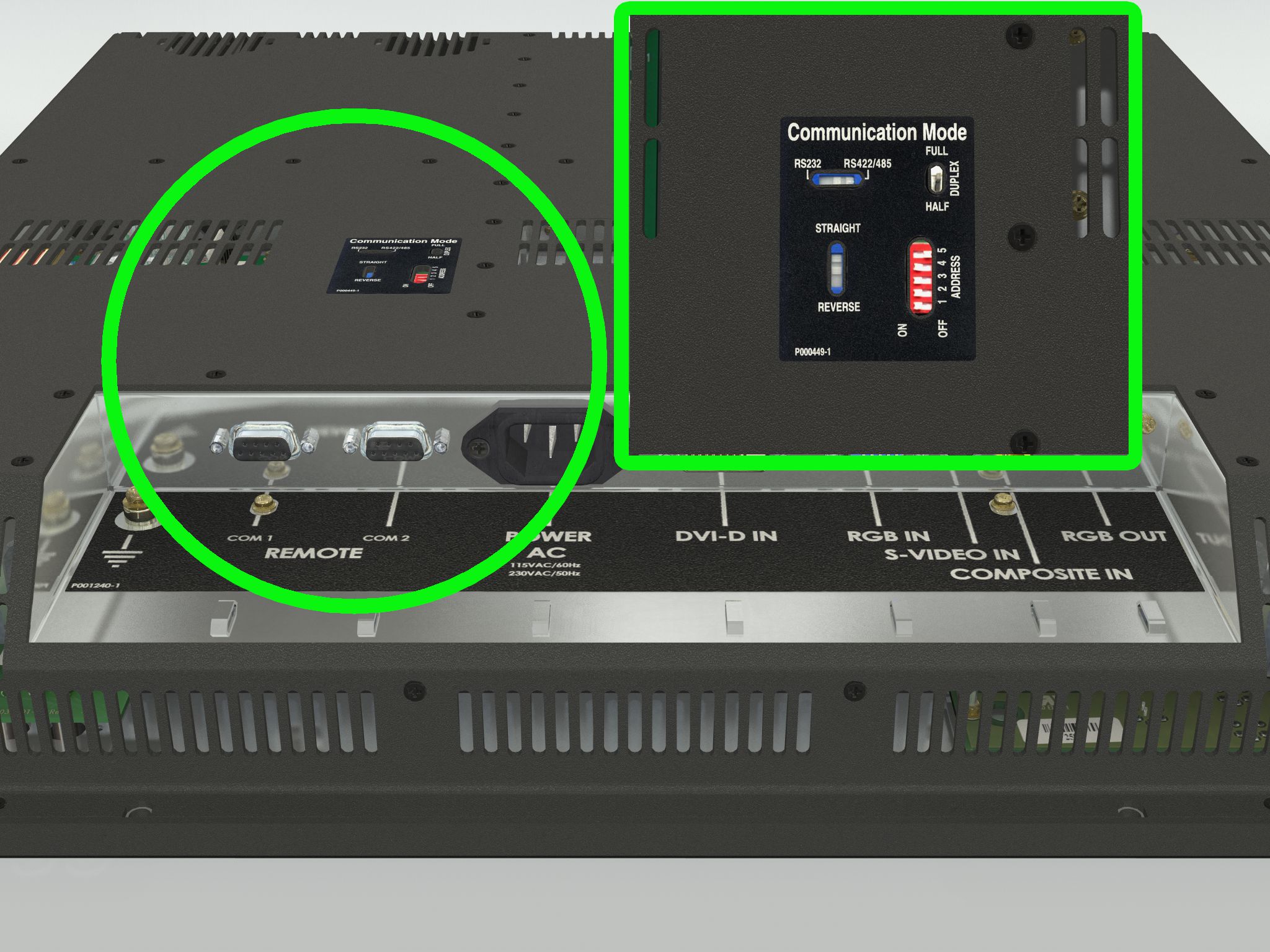

Connectors:	• DVI-D (PC) signal: DVI-D Input 24pin Connector • RGB (PC) signal: 15pin mini D-SUB (female - Input) • Composite Video: RCA Phono plug • S-Video signal: S-Video (SVHS) plug • If AC Power signal: Std IEC Inlet Model JH 23T02 MMD-A1 • If DC Power signal: Screw terminal Model JH 23T02 MMD-A2 • If Touchscreen: 1 x D-SUB 9P Connector (female) • If Remote Control: 2 x D-SUB 9P Connectors (female)

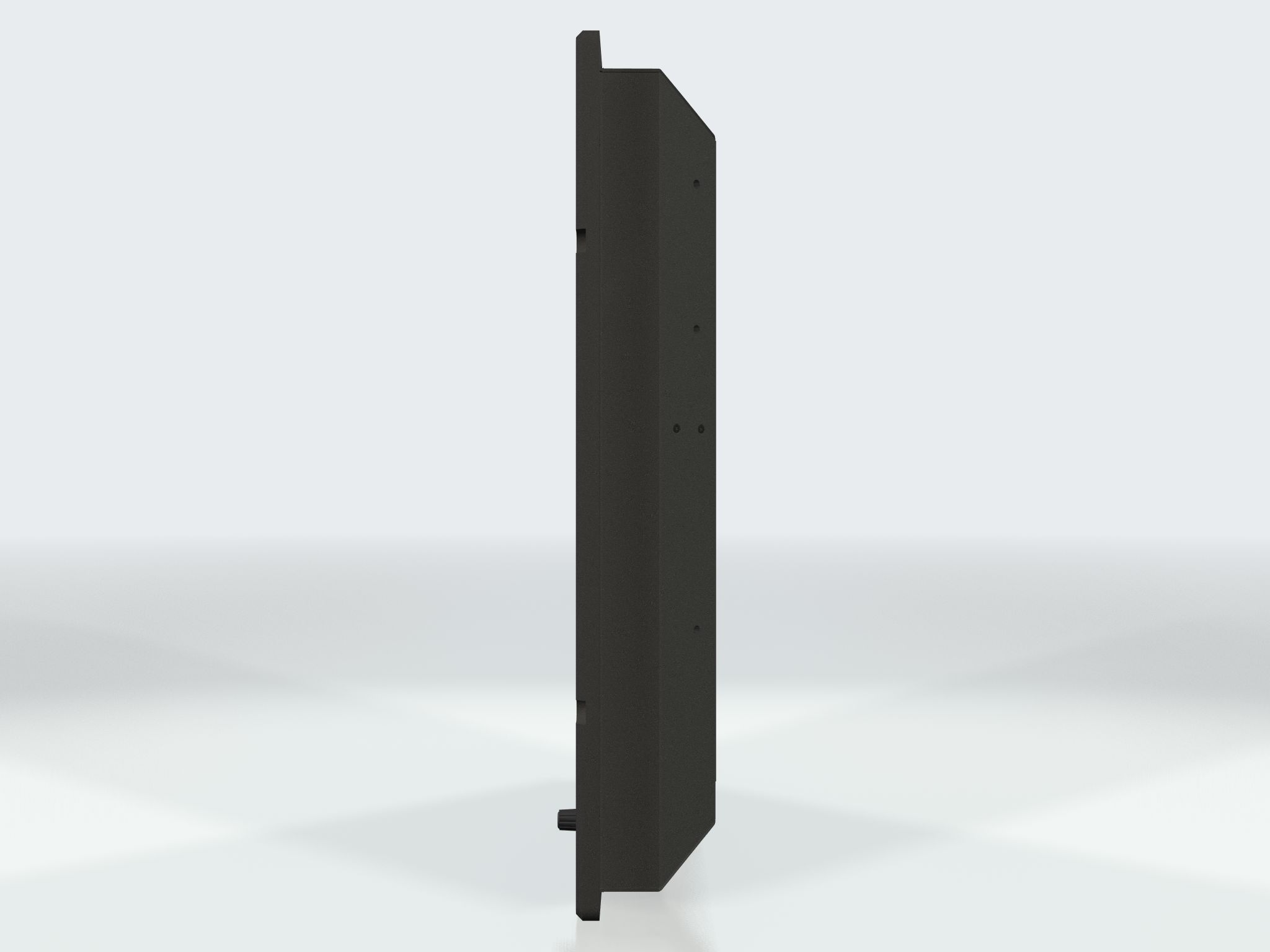

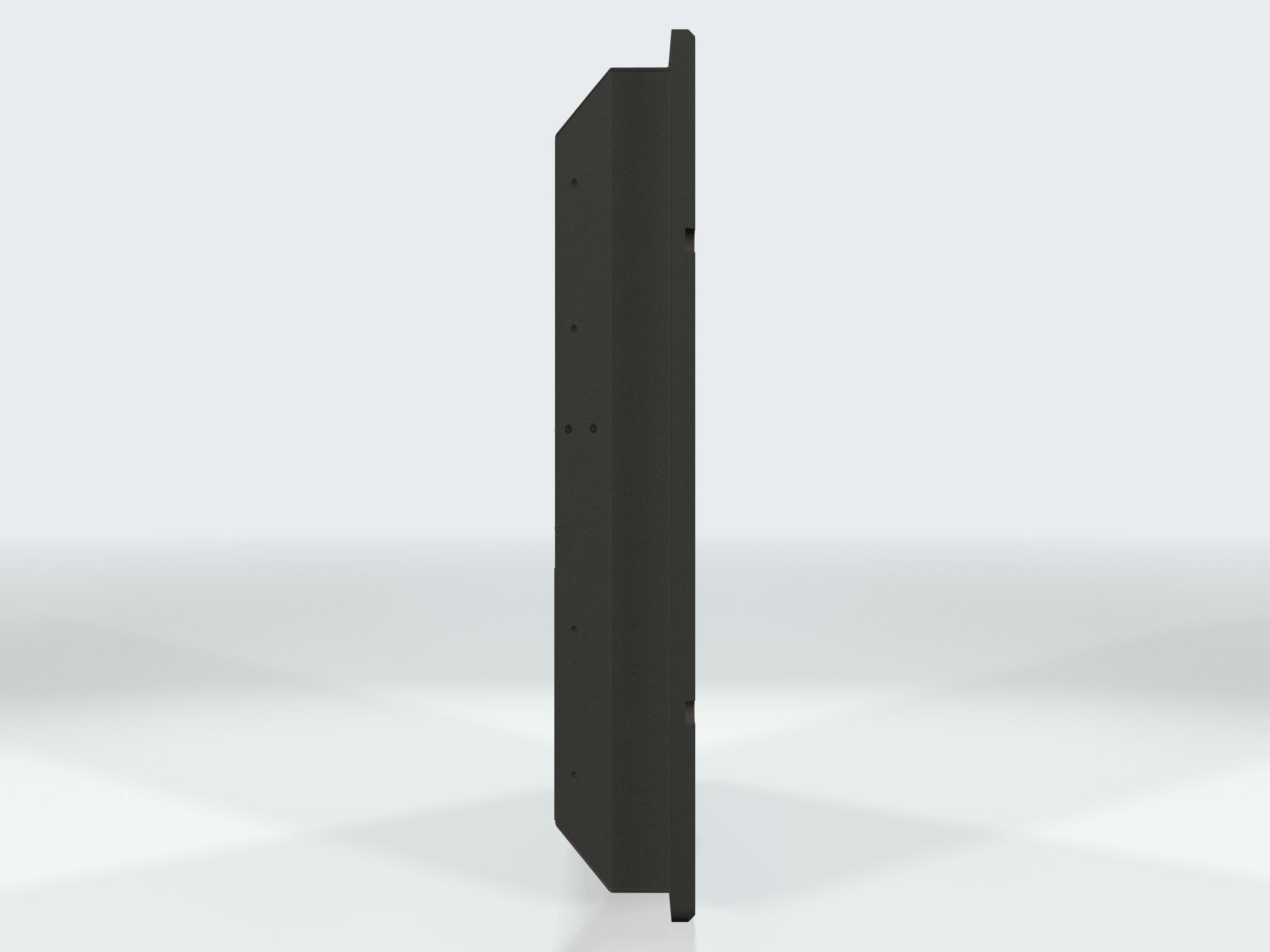

Product Dimensions and Weight:	584 (W) x 534 (H) x 86 (D) mm - 22.99" (W) x 21.02" (H) x 3.39" (D) Weight: 17 kg (approx w/bracket)
Product Carton Size and Weight:	N/A
Factory Options:	• Color Calibrated models (ECDIS) • Buzzer • AC or DC model • Resistive or Capacitive Touch Screen • Video Buffer (JH VBUF)

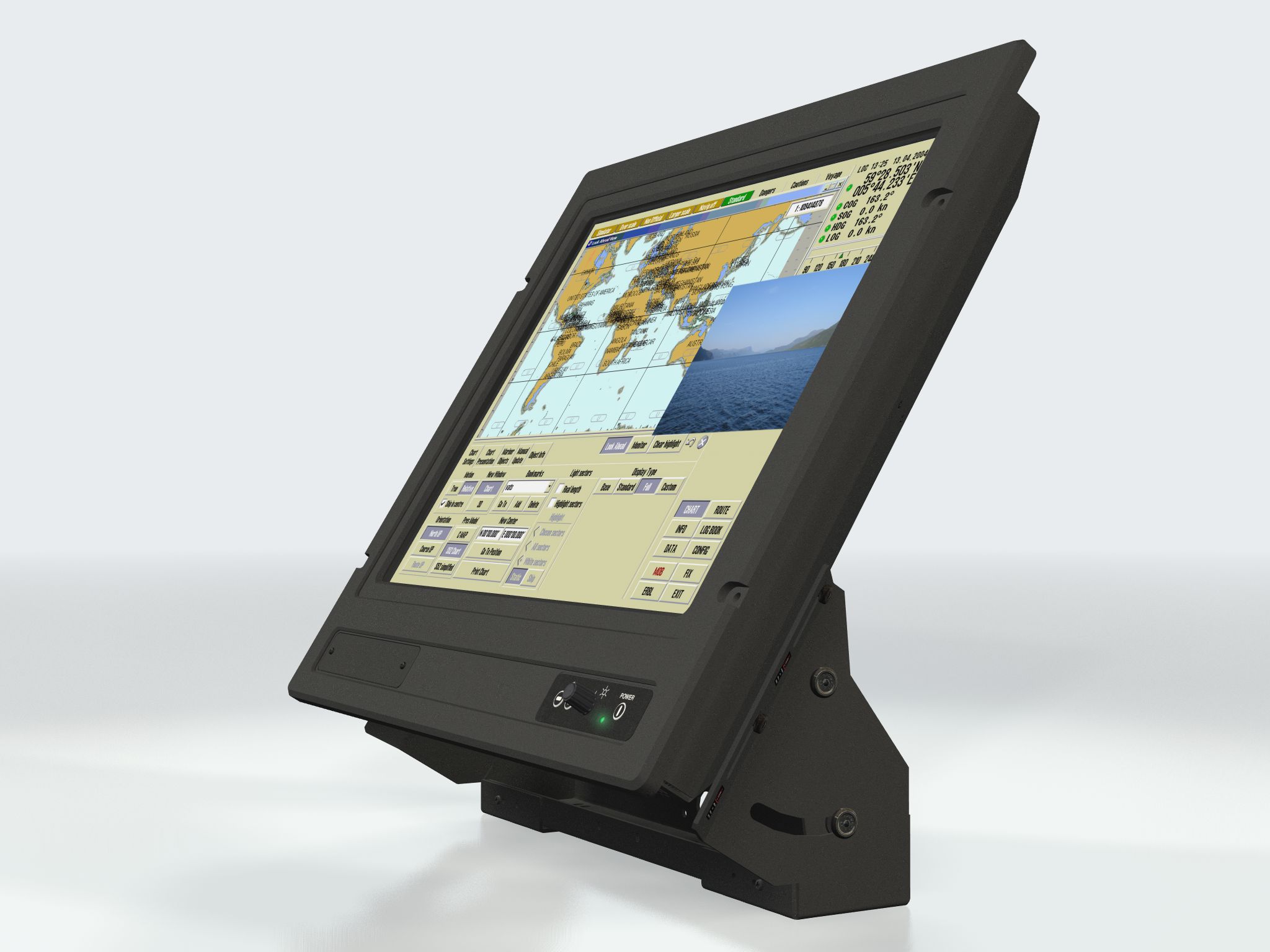

Accessories:	• JH 23TBRT01A1 = Bracket • JH MMDRO = Rotary Bracket • JH 23TSV = Sun Visor • JH VESA 23T01 = Vesa Bracket • JH SCOM = Remote Control • JH XPR-A1 = External Power Relay
Capabilities - Prepared for:	N/A
Operating Temperature:	-15.0°C / 5.0°F to +55.0°C / 131.0°F. Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to +60.0°C / 140.0°F. Humidity up to 95%
IP Rating:	EN60529 (IP66) (Applies for flush mounting)
Compass Safe Distance:	Standard: 260.00 [102.36"] - Steering: 160.00 [62.99"] cm [inch]
Type Approval, Testing and Certificates:	EN60945 3rd (IEC945 3rd), LRS - Lloyd's Register of Shipping, ClassNK - Nippon Kaiji Kyokai, ABS - American Bureau of Shipping, DNV - Det Norske Veritas, GL - Germanischer Lloyd, BV - Bureau Veritas, KR - Korean Shipping (for ECDIS versions), RS - Russian Maritime Register of Shipping, EN61174 (IEC1174) - Bundesamt für Seeschiffahrt und Hydrographie (BSH) (1) (1=AC Version, 2=DC Version)

Specifications last updated: August 18, 2025 @ 08:00

Type Approvals

Downloads

Accessories

Engineering Change Notifications (ECN):

28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

2 Mar 2007
The Chipsets on the Video Controller (for MMD Series 1)...

End of Life Notifications (EOL):

26 May 2003
HW00 models obsoleted, re-engineering to HW01 models (w...
