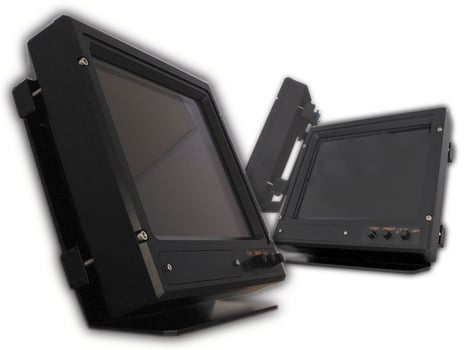

JH 14T01 MIL

Overview

Monitor - CCFL - MIL Qualified - 14.1 inch

JH 14T01 MIL

The color display described in this Data Sheet is an industrialized version of a high quality (NEC Super TFT, ExtraView) based display. The display will allow you to display professional applications with clarity and enhanced color and image quality.

icon
CCFL-backlit
Send Request
Description

Monitor - MIL Qualified

The display provides you with automatic compatibility with multiple upgrading platforms and a vast array of graphics standards allowing resolution upgrades without upgrading the display. The MultiSync controller and the high light intensity in combination with the high contrast and wide back light adjustment control allow the product to be used in many environments.
Specifications
Typenumber (Long): JH 14T01 MIL
TFT Technology: Active matrix, thin film transistor (TFT), Super TFT XtraView technology, RGB vertical stripe color filter arrangement
Viewable Size and Active Area: 14.1 inch - 285.69 [11.25"] (H) x 214.27 [8.44"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1024 x 768 (SXGA) - 0.093 (H) x 0.279 (V) mm
Aspect Ratio and Response Time: 4:3 - 120 ms
Light Intensity and Contrast Ratio: 180 cd/m² (2 x Cold Cathode Fluorescent Tube) - 100:1 (typical)
View Angle and Max Colors: 80 deg. (up/down/left/right) - Unlimited colors (Depending on the graphics board)
Optimal Resolution and Hz: 1024 x 768 @ 60 Hz

Video Frequency: 21.1 to 78.8 MHz

Video Signal:
Analog RGB 0.7Vp-p, Input impedance 75 ohm

Sync signal:
Separate sync, Composite sync, Composite sync on green

Synchronisation Range:
Horizontal: 24.8 kHz to 60.0 kHz
Vertical: 53.7 Hz to 85,1 Hz
(75 Hz max @ 1024 x 768)
Detectable Resolutions: 640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768
Composite Video Input(s): None
Supported Video Signals: None
Product Features: MultiSync
Power Specifications and Consumption: DC 12 - 36 V, 50/60 Hz

Power Consumption:
Operating: 40W
Power saving: 8W
IPM (Intelligent Power Manager) system
User Controls and Activity: External: Power Switch, Brightness Control, Mode Status LED
Internal: On Screen Manager Control, Adjustable LED intensity
Connectors: VGA signal: 1 x HD/DSUB 15P Connector (Female)
Power: Std. Screw termination
Product Dimensions and Weight: 360 (W) x 325 (H) x 84.6 (D) mm - 14.17" (W) x 12.80" (H) x 3.33" (D)
Weight: 7.26 kg
Product Carton Size and Weight: N/A
Factory Options: Color and logo
Suspension bracket
Touch screen
Accessories: N/A
Capabilities - Prepared for: N/A
Operating Temperature: -15.0°C / 5.0°F to +55.0°C / 131.0°F
Humidity 30% to 90% (non condensing)
Storage Temperature: -20.0°C / -4.0°F to +60.0°C / 140.0°F
Humidity 10% to 90% (non condensing)
IP Rating: N/A
Compass Safe Distance: N/A
Type Approval, Testing and Certificates: CE Classified&Tested according to IEC945 3rd* (EN 60945-3)
* Use 24VDC - 36VDC&tested without bracket
Specifications last updated: September 8, 2025 @ 08:32
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

End of Life Notifications (EOL):
23 Oct 2000
Product Obsolete

Obsolete
loading
arrow-left
arrow-right

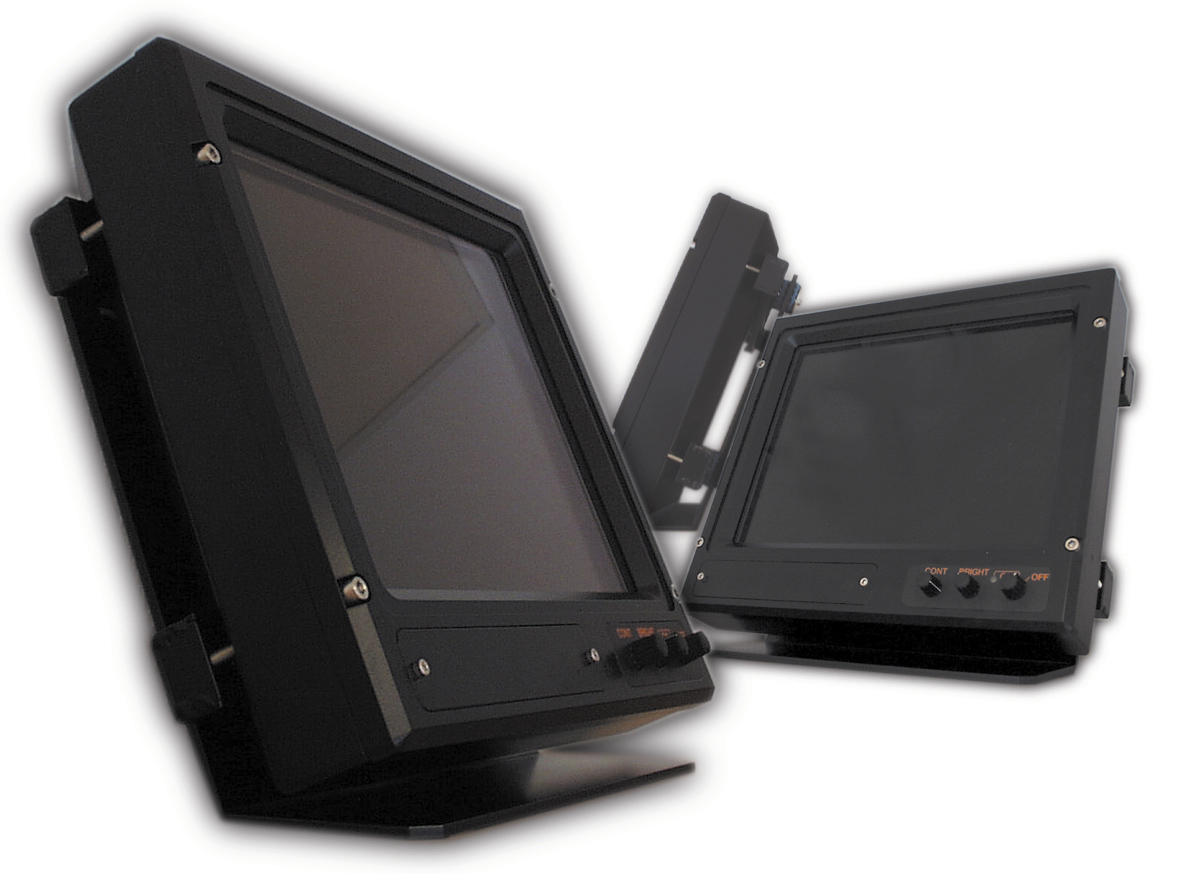

JH 14T01 MIL
