JH 19T01 MIL

Overview

Monitor - CCFL - MIL Qualified - 19.0 inch

JH 19T01 MIL

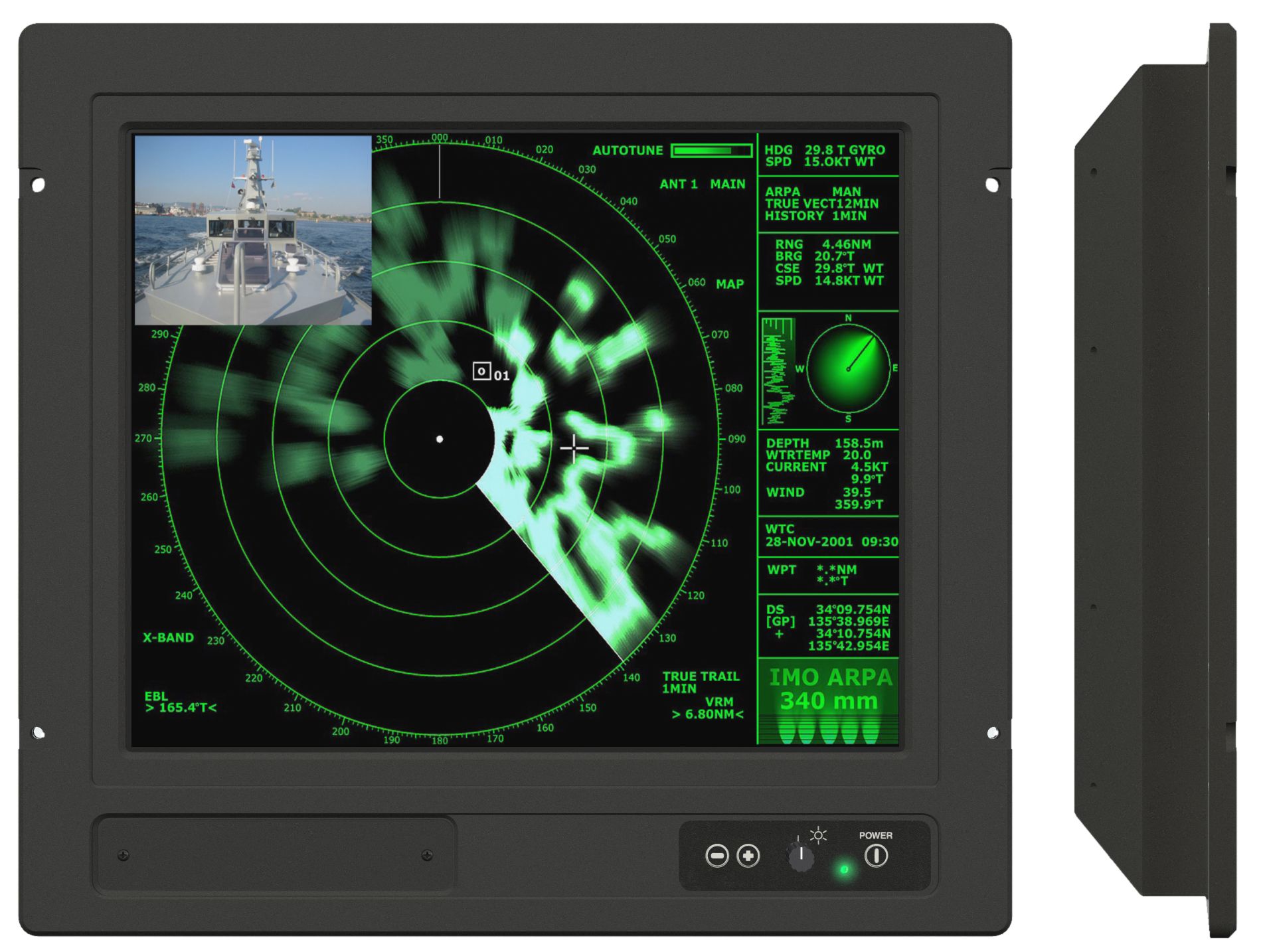

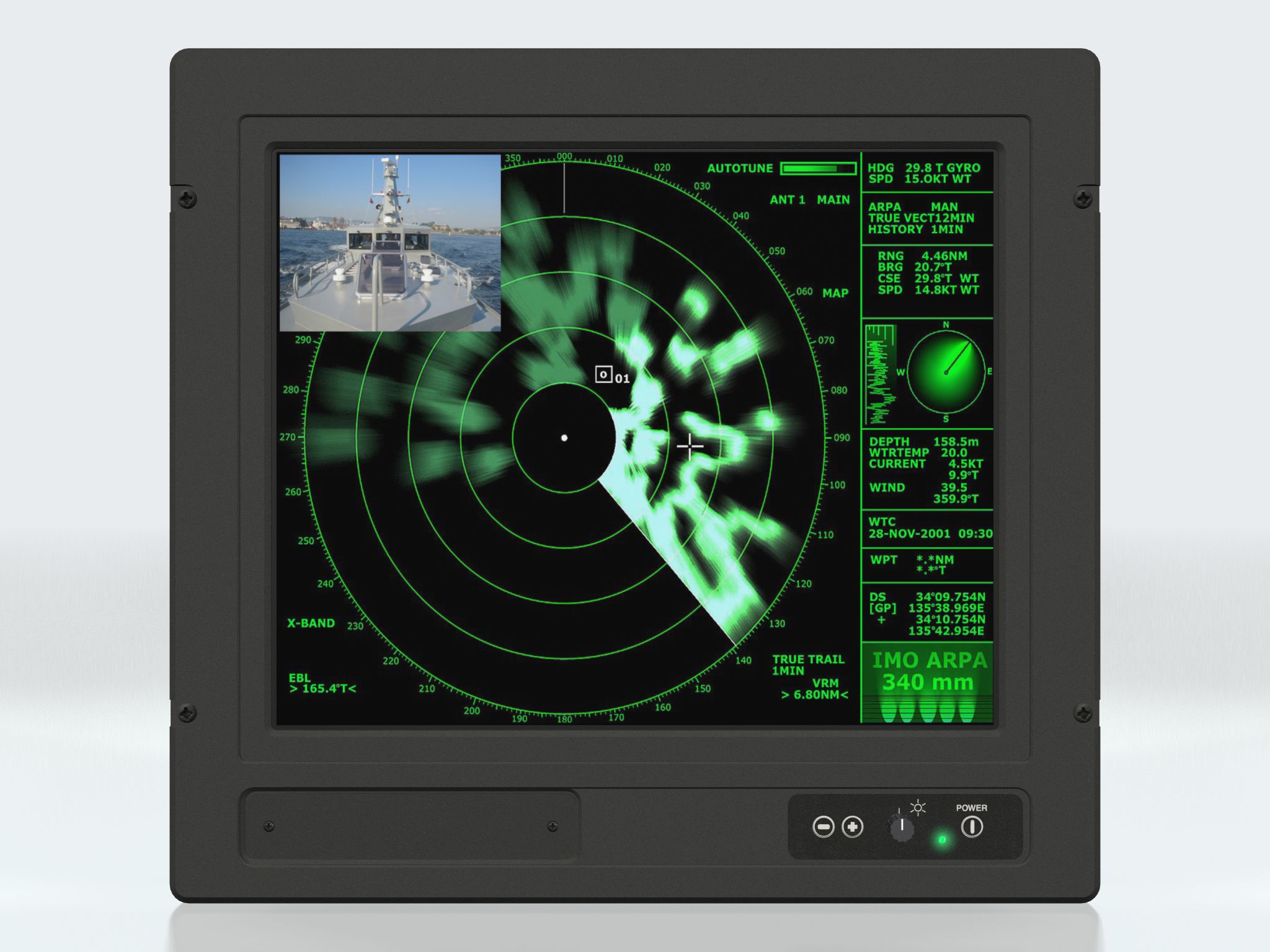

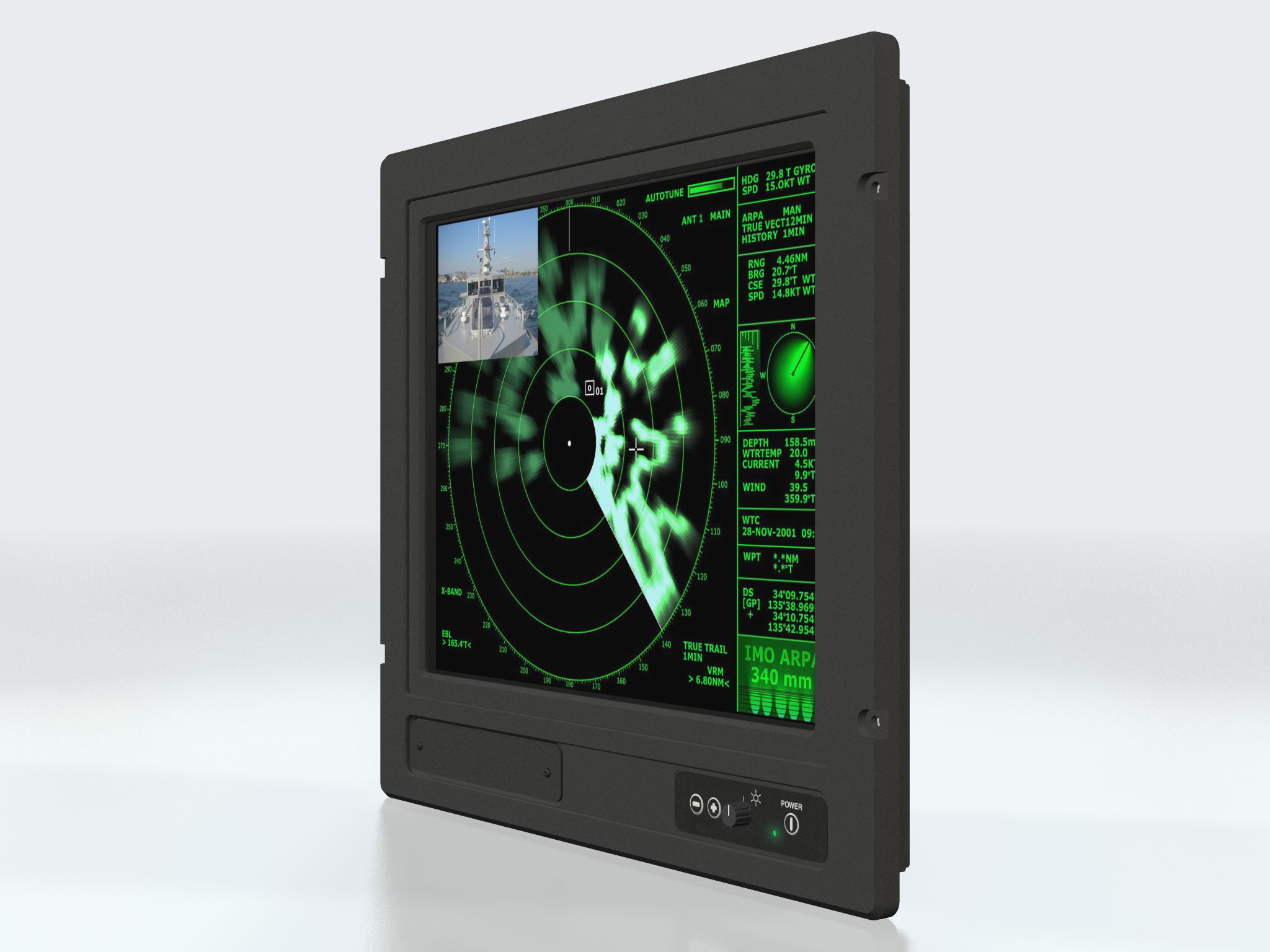

The color display described in this Data Sheet is an industrialized version of a high quality SHARP TFT based display with MVA Premium™ technology. The MIL allows you to display professional applications with clarity and enhanced color and image quality, BNC RGB input, BNC Video input and PiP (Picture in Picture) functions.

icon
CCFL-backlit
Send Request
Description

Monitor - MIL Qualified

The display provides you with automatic compatibility with multiple upgrading platforms and a vast array of graphics standards allowing resolution upgrades without upgrading the display.

The controller and the high light intensity in combination with the high contrast and wide backlight adjustment control, allow the product to be used in many environments. The brightness is adjustable from 0 to 100%.
Specifications
Typenumber (Long): JH 19T01 MIL
TFT Technology: Active Matrix, Thin Film Transistor (TFT), MVA Premium™ technology
Viewable Size and Active Area: 19.0 inch - 376.32 [14.82"] (H) x 301.056 [11.85"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1280 x 1024 (SXGA) - 0.294 (H) x 0.294 (V) mm
Aspect Ratio and Response Time: 5:4 - 15 ms (typical), "black" to "white"
Light Intensity and Contrast Ratio: 250 cd/m² (typ) - 600:1 (typ)
View Angle and Max Colors: 85 deg. (up/down/left/right) - 16.7 millions (depending on graphics card)
Optimal Resolution and Hz: 1280 x 1024 @ 60 Hz

Synchronisation:
• Digital separate synchronisation
• Composite synchronisation
• Synchronisation on green
• Auto detects VGA -> SXGA, interlaced and non interlaced
• Video Signal: Analog RGB 0,7Vp-p, Input Impedance 75 Ohm

Synchronisation Range:
• Horizontal: 31,5 kHz to 91,1 kHz
• Vertical: 60 Hz to 85 Hz
Detectable Resolutions: 640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024
Composite Video Input(s): 1 x BNC Connector
Supported Video Signals: Composite video (Interlaced NTSC and PAL/SECAM video)
Product Features: PIP (Picture In Picture), BNC Signal and Video inputs, Hotkey Functionality, Dimmable 0-100%, ECDIS Compliant
Power Specifications and Consumption: Power supply options:
• 115&230VAC - 50 / 60Hz: Model JH 19T01 MIL-A1
• 24 VDC: Model JH 19T01 MIL-A2

Power Consumption:
• Operating: 100 W (max)

• Transient immunity, 100 ns risetime, 10 us duration, 325 VPEAK
• Supply voltage variation test, 98 -> 276 VAC, 47 -> 63.6 Hz
• Measurements of power consumption = 42W
• Measurements of inrush current = 4 APEAK

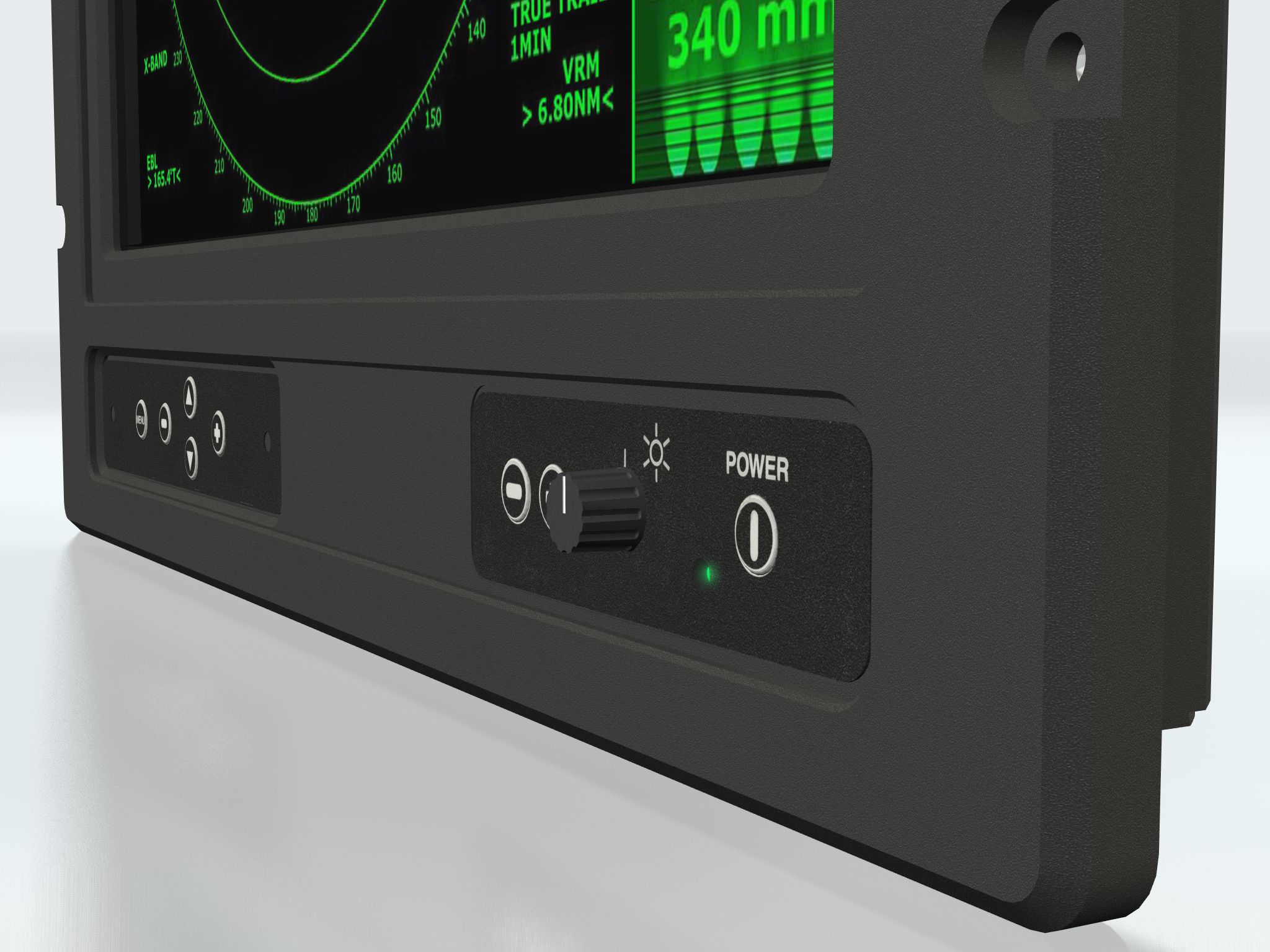

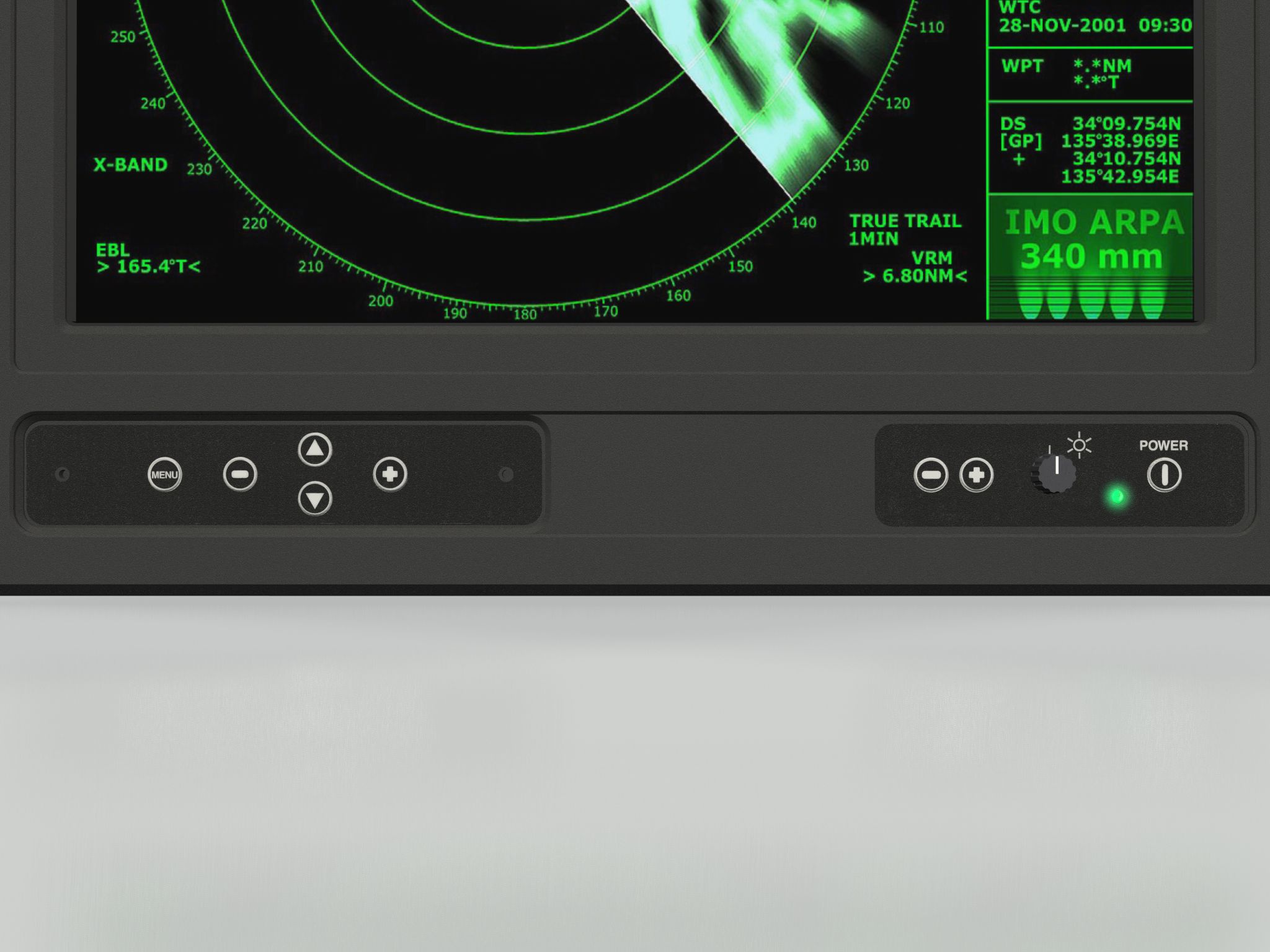

User Controls and Activity: User Controls / On front bezel:
• Power On/Off (push button)
• Brightness Control
• 2 x hotkeys
• Mode Status LED

User Controls / Behind hatch:
• On Screen Display control (OSD/OSM)

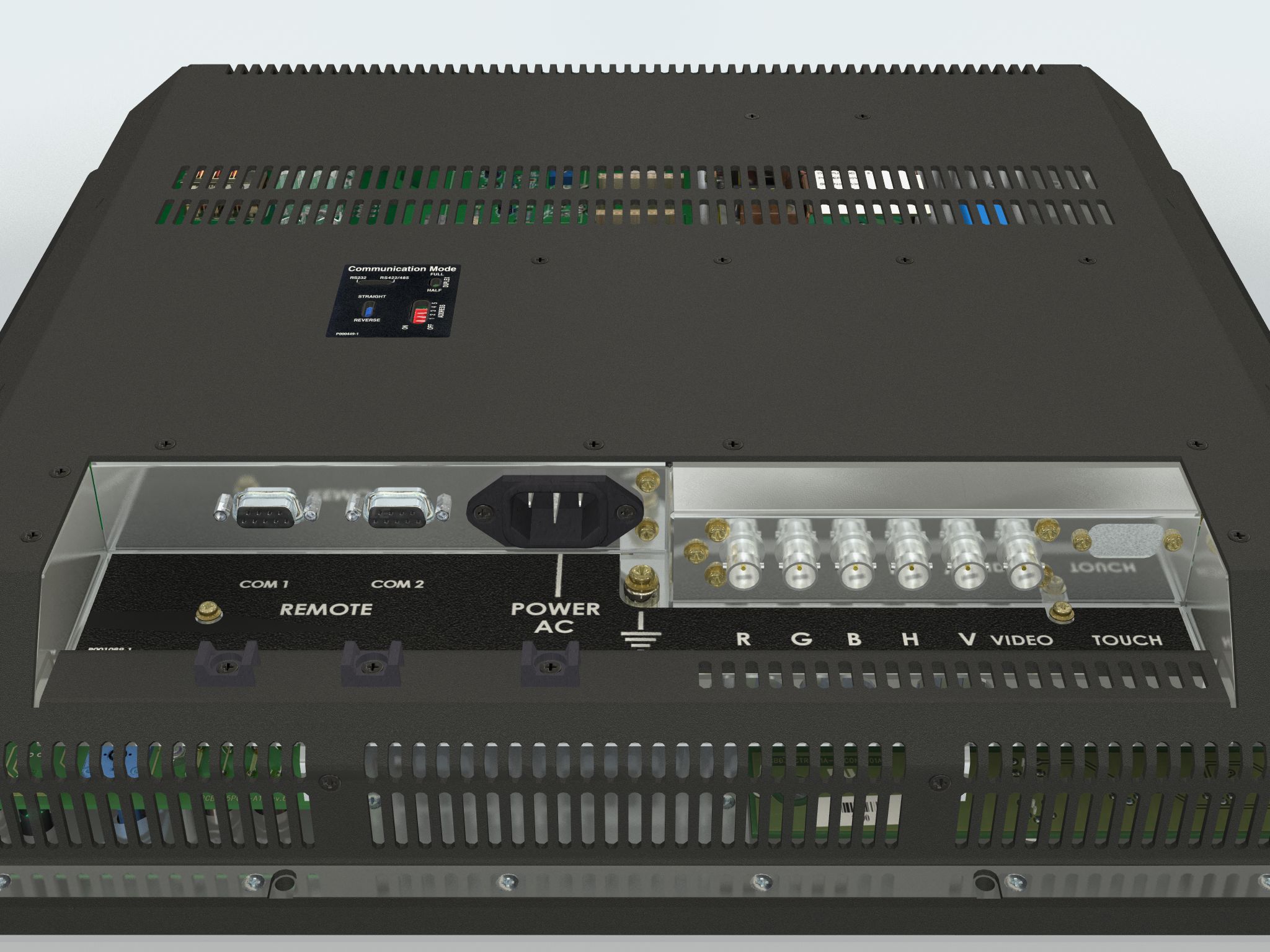

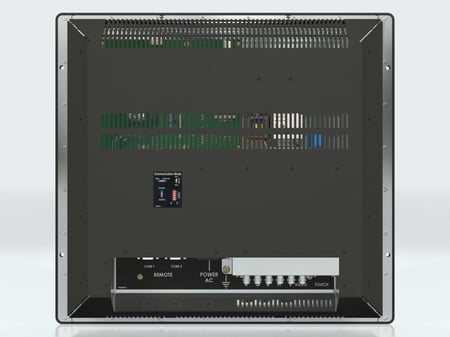

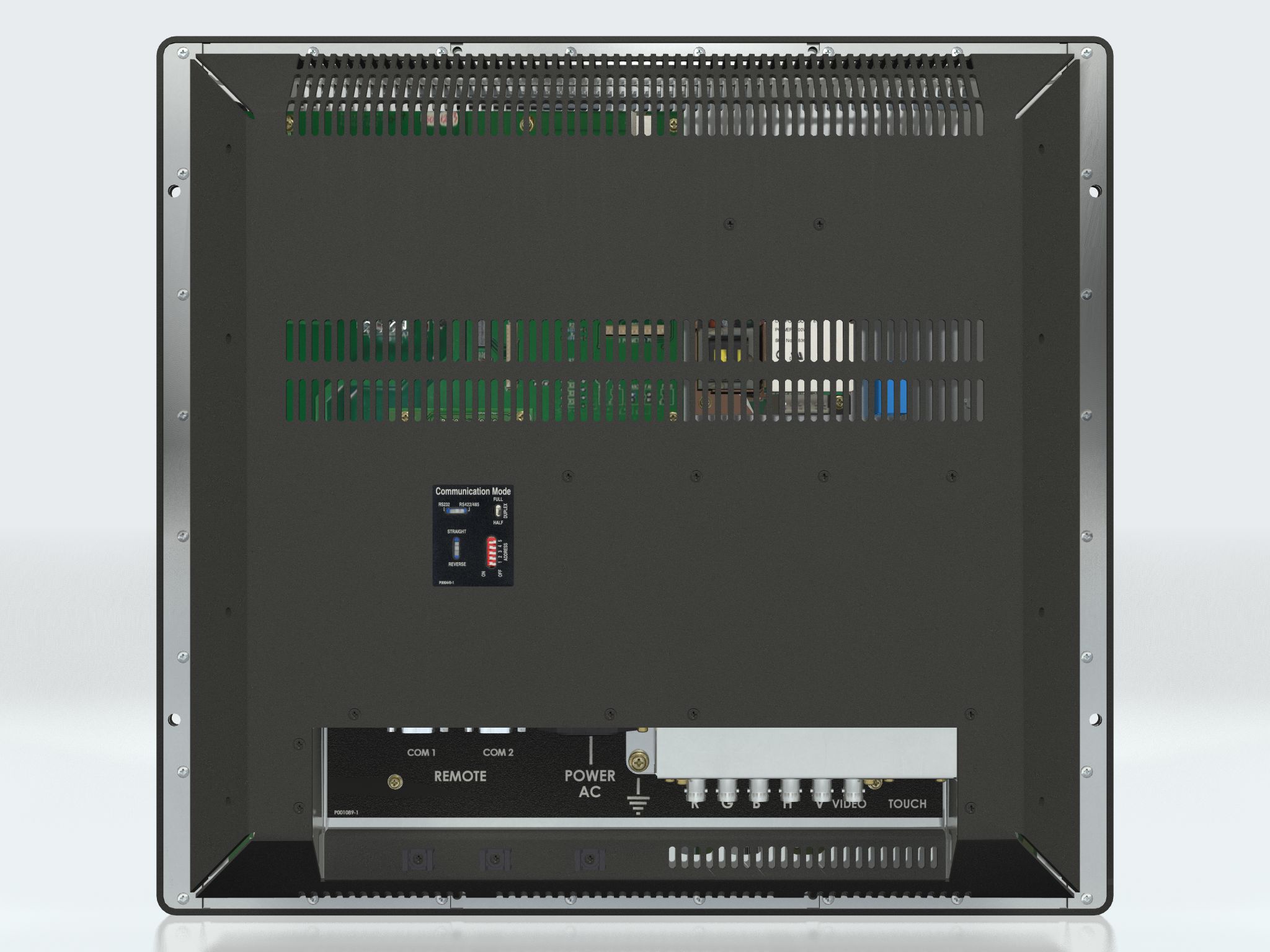

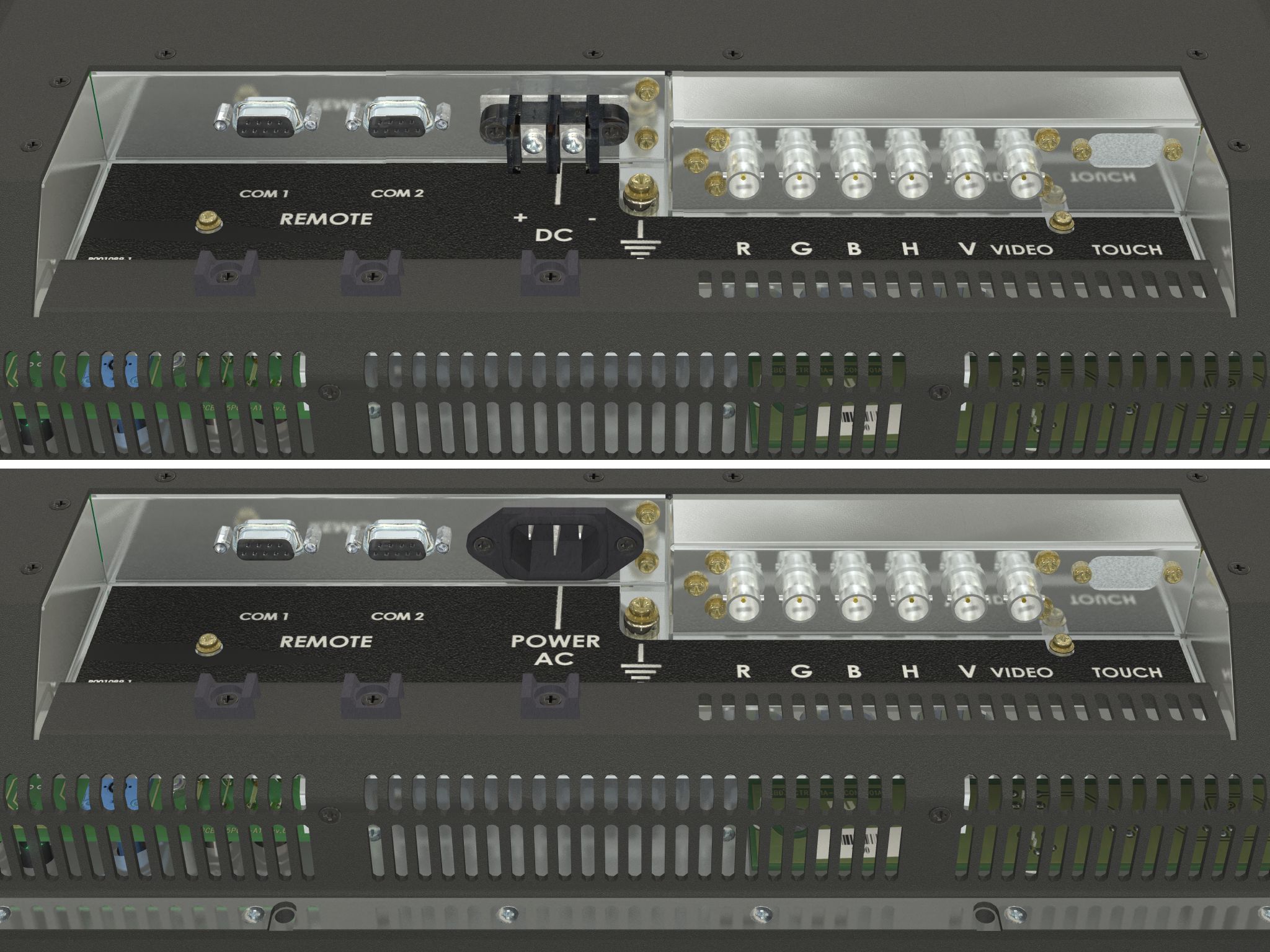

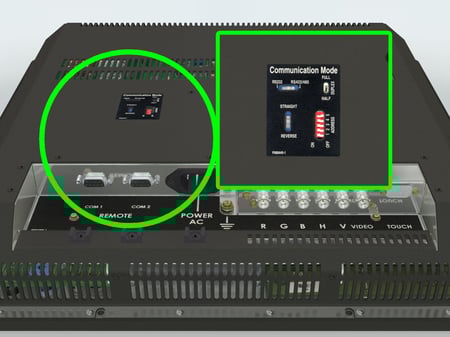

Connectors: • RGB (PC) signal: 5 x BNC Connectors (RGBHV)
• Composite Video: 1 x BNC Connector
• AC Power signal: Std IEC Inlet - Model JH 19T01 MIL-A1
• If DC Power signal: Screw Terminal - Model JH 19T01 MIL-A2
• If Touchscreen: 1 x D-SUB 9P Connector (female)

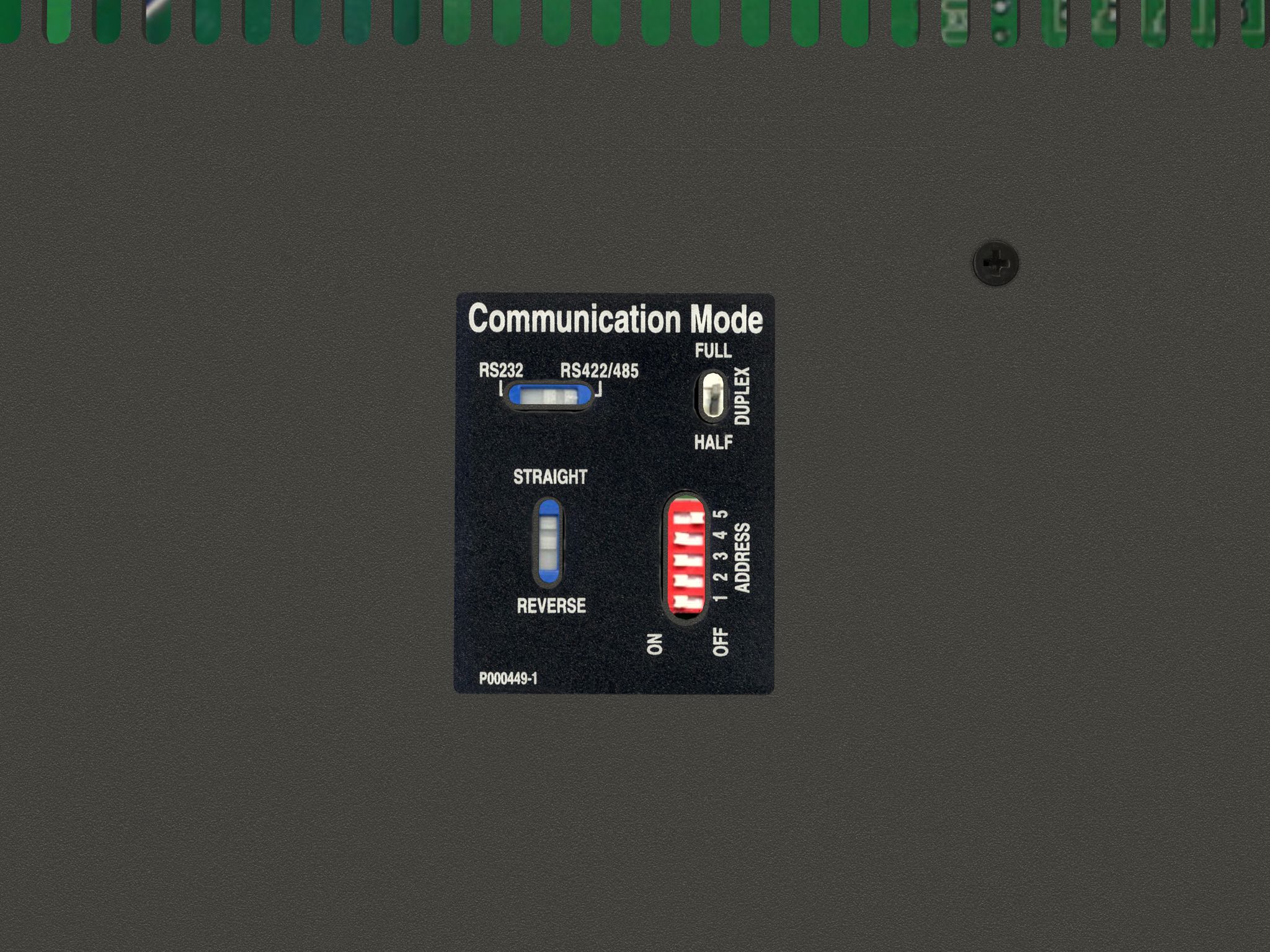

• If Remote Control: 2 x D-SUB 9P Connectors (female)

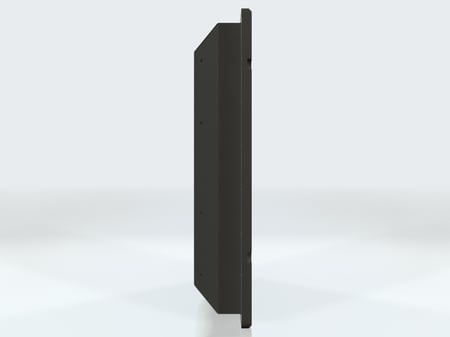

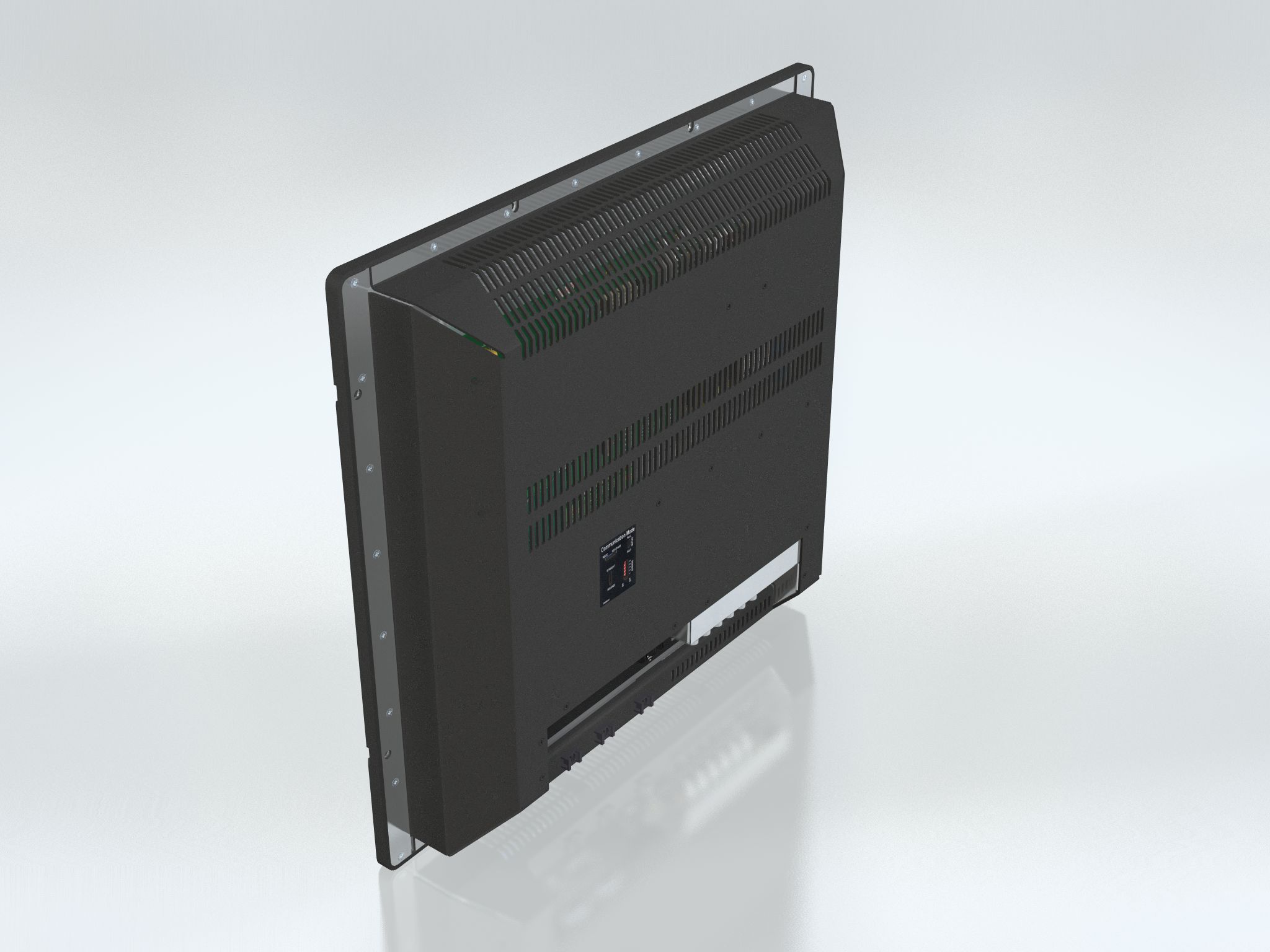

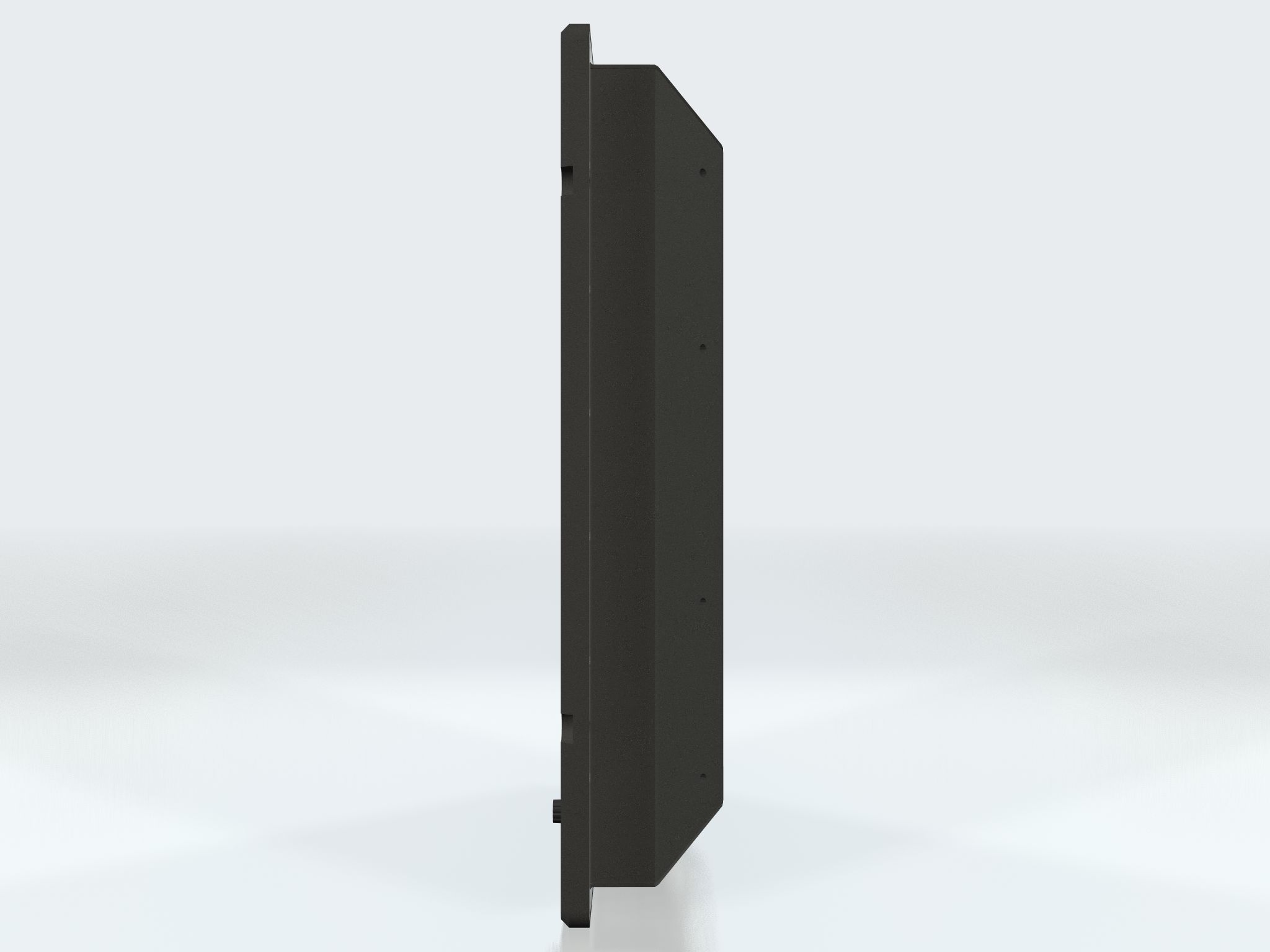

Product Dimensions and Weight: W:483.00 [19.02"] x H:444.00 [17.48"] x D:82.00 [3.23"] mm [inch]
14 kg (approx)
Product Carton Size and Weight: L:700.00 [27.56"] x W:660.00 [25.98"] x H:220.00 [8.66"] mm [inch]
16.0kg / 35.2lbs
Factory Options: • Resistive or Capacitive Touchscreen
• Color Calibrated models (ECDIS)

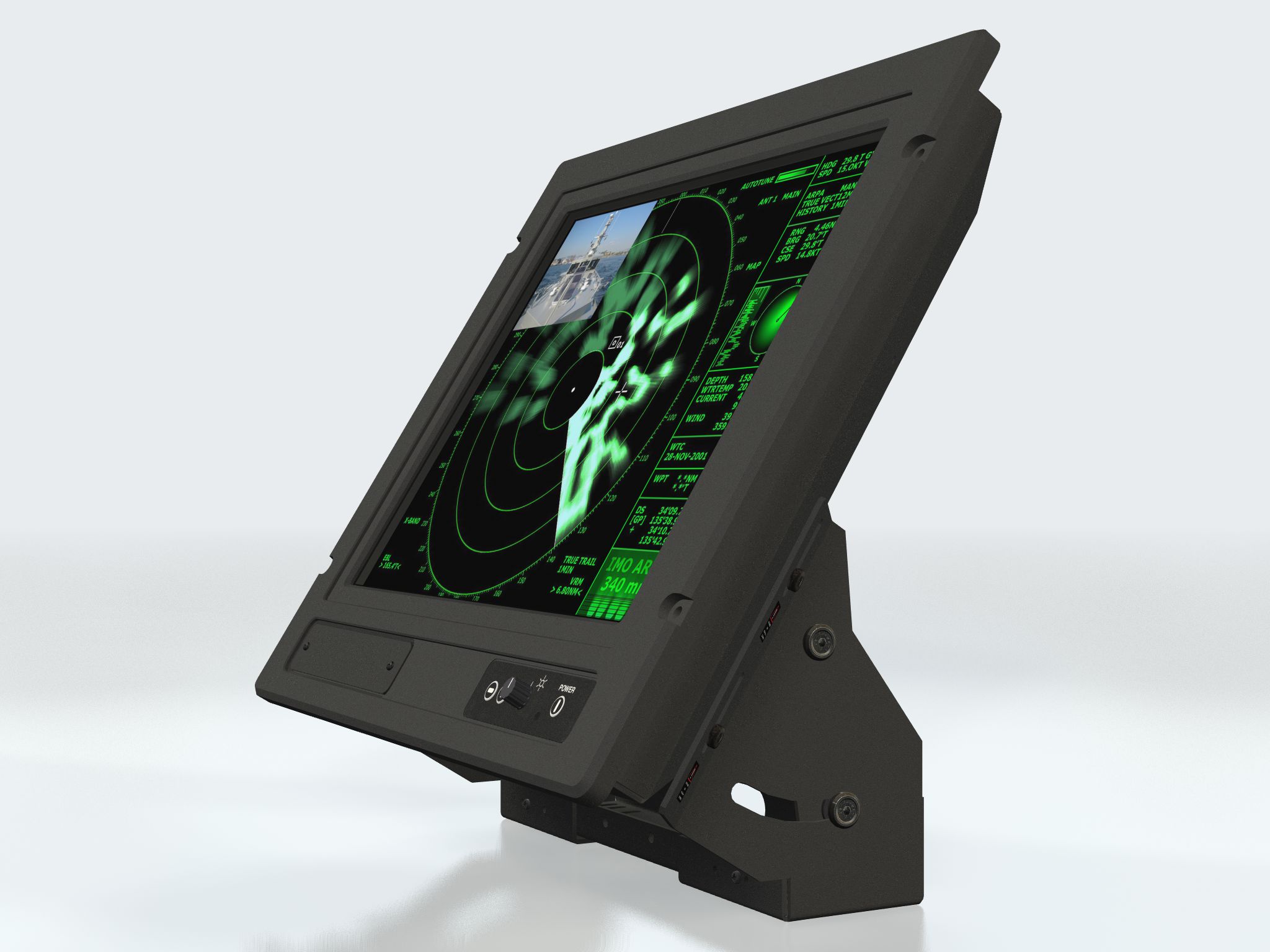

Accessories: • JH MMD BR = Bracket
• JH MMDRO = Rotary Bracket

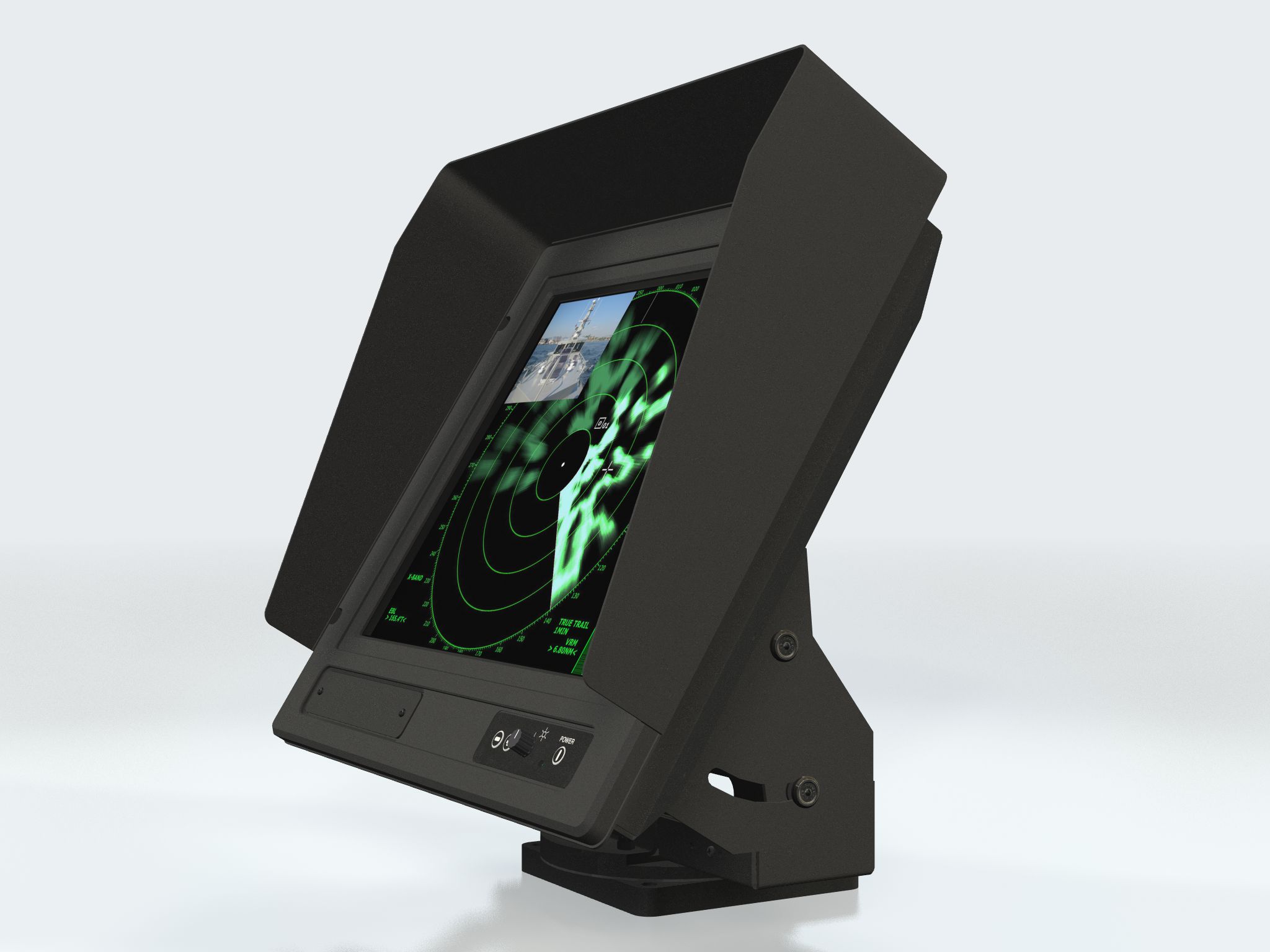

• JH 19TSV = Sun Visor
• JH VESA 18T04 = Vesa Bracket
Capabilities - Prepared for: N/A
Operating Temperature: -15.0°C / 5.0°F to +55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature: -40.0°C / -40.0°F to +70.0°C / 158.0°F, Humidity up to 95%
IEC 60068-2-2 (1974), Test Bd
IP Rating: N/A
Compass Safe Distance: N/A
Type Approval, Testing and Certificates: EN60945 3rd (IEC945 3rd), MIL-STD 461E, 1999
Specifications last updated: August 18, 2025 @ 08:00
