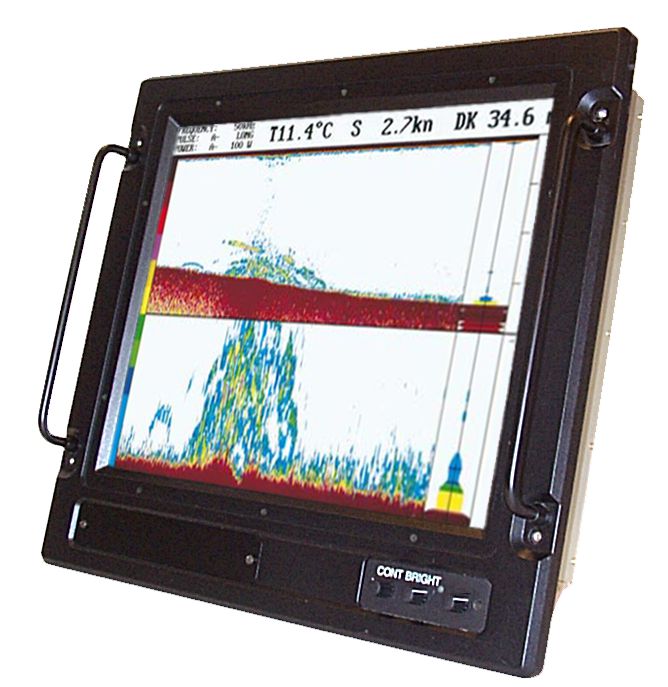

JH 20T01 MIL

Overview

Monitor - CCFL - MIL Qualified - 20.1 inch

JH 20T01 MIL

The color display described in this Data Sheet is an industrialized version of a high quality (NEC TFT) based display with XtraView technology. The display allows you to display professional applications with clarity and enhanced color and image quality.

icon
CCFL-backlit
Send Request
Description

Monitor - MIL Qualified

The display provides you with automatic compatibility with multiple upgrading platforms and a vast array of graphics standards allowing resolution upgrades without upgrading the display. The MultiSync controller and the high light intensity in combination with the high contrast and wide back light adjustment control allow the product to be used in many environments.
Specifications
Typenumber (Long): JH 20T01 MIL
TFT Technology: a-Si active matrix, thin film transistor (Super-TFT), XtraView technology, RGB vertical stripe color filter arrangement
Viewable Size and Active Area: 20.1 inch - 399.36 [15.72"] (H) x 319.5 [12.58"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1280 x 1024 (SXGA) - 0.312 (H) x 0.312 (V) mm
Aspect Ratio and Response Time: 5:4 - 130 ms (max), "black" to "white"
Light Intensity and Contrast Ratio: 150 cd/m² (typical) (10 x Cold Cathode Flourescent Tube) - 150:1 (typical)
View Angle and Max Colors: 80 deg. (up/down/left/right) - Full-color (Depending on the graphics board)
Optimal Resolution and Hz: 1280 x 1024 @ 60 Hz

Synchronisation:
• Separate synchronisation
• Composite synchronisation
• Synchronisation on green
• Auto detects VGA -> SXGA, interlaced and non interlaced
• Video Signal: Analog RGB 0,7Vp-p, Input Impedance 75 Ohm
• Video Frequency: 21,1 to 78,8 MHz

Synchronisation Range:
Horizontal: 31,0 kHz to 80,0 kHz
Vertical: 56 Hz to 75 Hz
Lower horizontal singnals at some resolutions
Detectable Resolutions: 640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024
Composite Video Input(s): None
Supported Video Signals: None
Product Features: MultiSync
Power Specifications and Consumption: DC 12 - 24 V +/- 10 %
Operating: Max 80 W
User Controls and Activity: Controls: RCU
(Power Switch) *)
Brightness Control
Contrast Control
(Mode Status LED) *)

Inside front frame:
On Screen Manager Control
LED intensity
*) Omitted
Connectors: VGA signal:
1 x HD/DSUB 15P Connector (Female)
5 x BNC connectors

Power:
Screw terminal

Touch Screen:
1 x D-SUB 9P Connector (Female)
Product Dimensions and Weight: W:516.8 [20.35"] x H:411.1 [16.19"] x D:95.0 [3.74"] mm [inch]
8.5 kg
Product Carton Size and Weight: N/A
Factory Options: • Touchscreen
Accessories: N/A
Capabilities - Prepared for: N/A
Operating Temperature: -15.0°C / 5.0°F to +55.0°C / 131.0°F
Humidity 30% to 90% (non condensing)
Storage Temperature: -20.0°C / -4.0°F to +60.0°C / 140.0°F
Humidity 10% to 90% (non condensing)
IP Rating: N/A
Compass Safe Distance: N/A
Type Approval, Testing and Certificates: Based on CE, E10, IEC945 3 rd, VG95373, MIL-STD-167-1&shock and classification society approvements: ABS - American Bureau of Shipping, CE Std. CE approval
Specifications last updated: August 18, 2025 @ 08:00
Type Approvals
Downloads
Accessories
