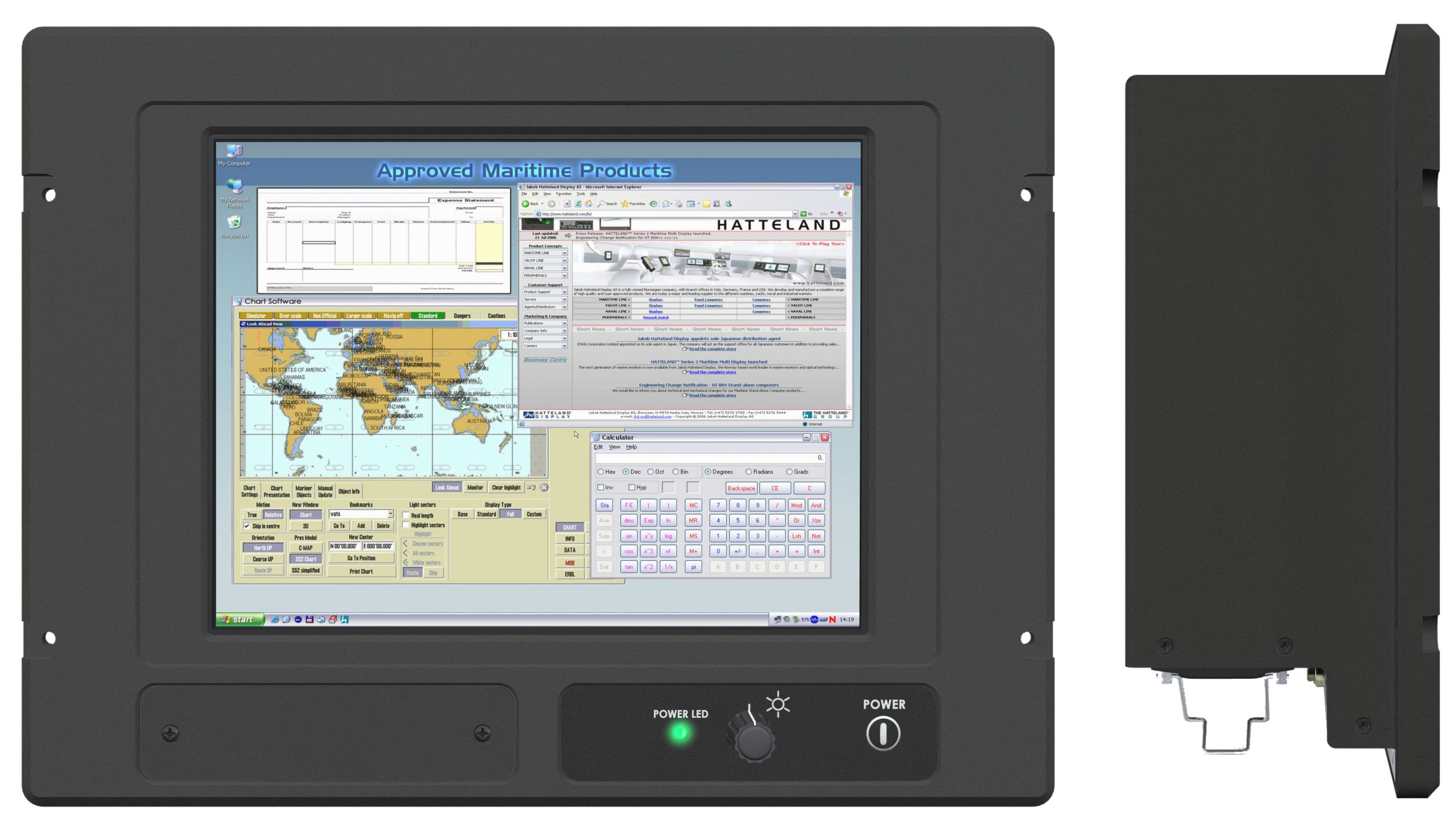

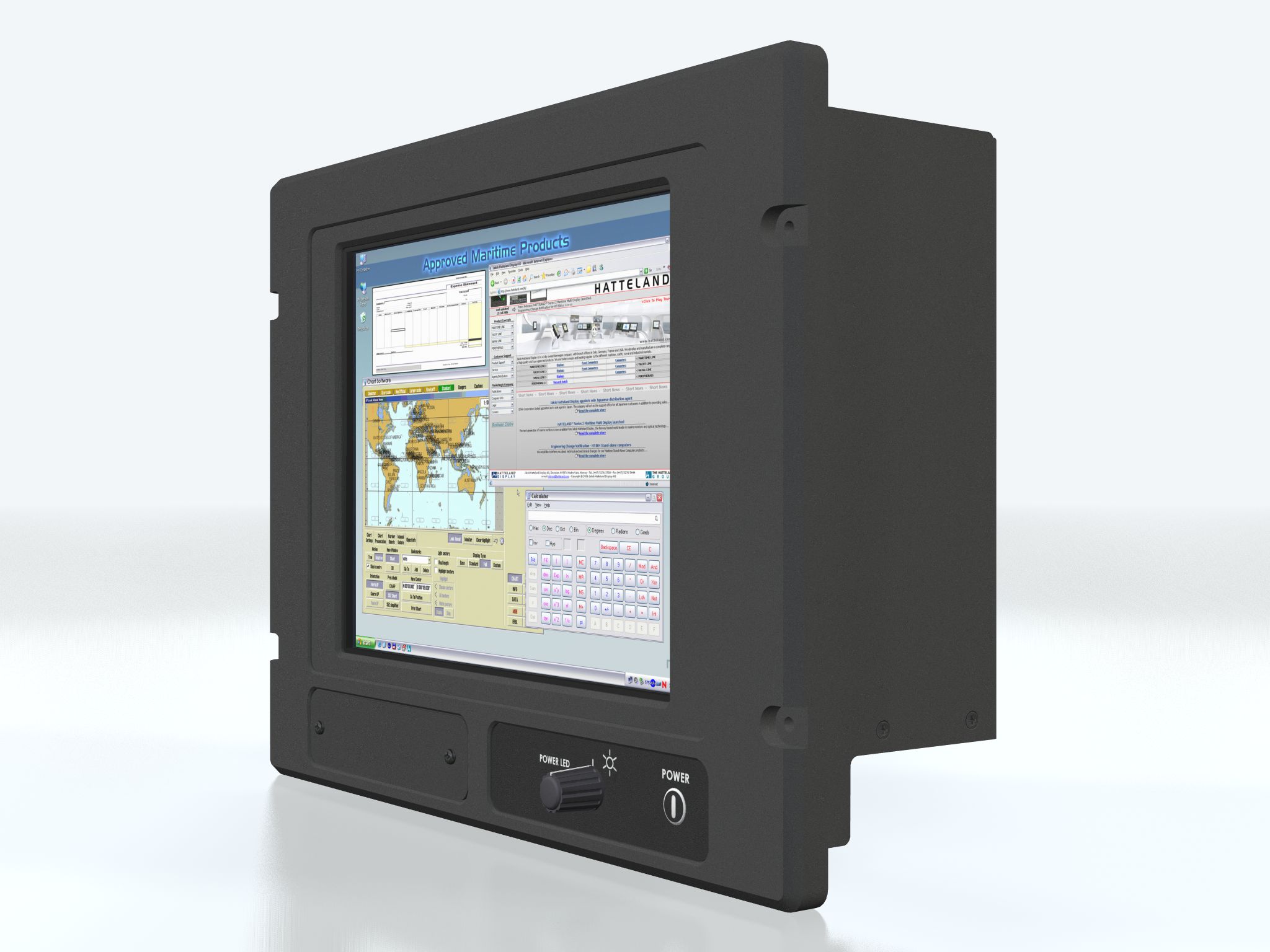

Panel Computer - CCFL - HATTELAND® Series 0 - 10.4 inch

JH 10T08 MMC

The combination of the reliable design of the marine TFT-LCD modules, together with industrial computer boards make this product suitable for customer applications where space is critical, and full function is desired in a single unit.

CCFL-backlit

Send Request

Description

Specifications

Typenumber (Long):	JH 10T08 MMC
TFT Technology:	Active Matrix, Thin Film Transistor (TFT), RGB vertical stripe
Viewable Size and Active Area:	10.4 inch - 211.2 [8.31"] (H) x 158.4 [6.24"] (V) mm [inch]
Native Resolution and Pixel Pitch:	800 x 600 (SVGA) - 0.297 (H) x 0.297 (V) mm
Aspect Ratio and Response Time:	4:3 - 10 ms (typical), "black" to "white"
Light Intensity and Contrast Ratio:	400 cd/m² (typ) - 500:1 (typ)
View Angle and Max Colors:	40 deg. (up), 60 deg. (down/left/right) (typ) @ CR > 10 - 262,144 (6-bit max)
Optimal Resolution and Hz:	800 x 600 @ 60 Hz (If resolution is above/below 1:1, desktop scrolling mode will be used)
Detectable Resolutions:	• Supported TFT Res.: From 640 x 480 up to 2048 x 1536 • RGB OUT Res: From 640 x 480 up to 1600 x 1200
Power Specifications and Consumption:	Power Supply Options: • 115&230VAC - 50/60Hz: Model JH 10T08 MMC-A1 • 24 VDC: Model JH 10T08 MMC-A2 Power Consumption - Operating: 100W (max) (Configuration depending) 65W (typ) (Max backlight&high CPU load)
Product Features:	Dimmable 0-100%, AC or DC model, PC/104 with ISA Support, Audio AC97 Compliant
Installed Operating System (OS):	None, please specify when ordering
Storage Options:	1 x Automotive 40GB, 2.5" HDD IDE, 4200 RPM installed 1 x IDE Ports, Ultra DMA33/66/100
CPU / Processor Options:	Intel® Pentium® M 1.1GHz, Low Voltage, 1MB Level 2 Cache / 400 MHz BUS
Memory Options:	1 x SODIMM with ECC, from 256MB->1GB
System Chipset / Graphics Chipset:	Intel® 855GME / Intel® 82855GME (Integrated/250MHz)
BIOS / Buzzer:	Phoenix 2Mbit Flash, Supports ACPI / Buzzer: None
Power Manager and Monitoring:	N/A

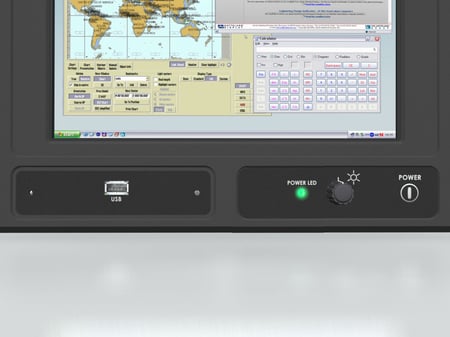

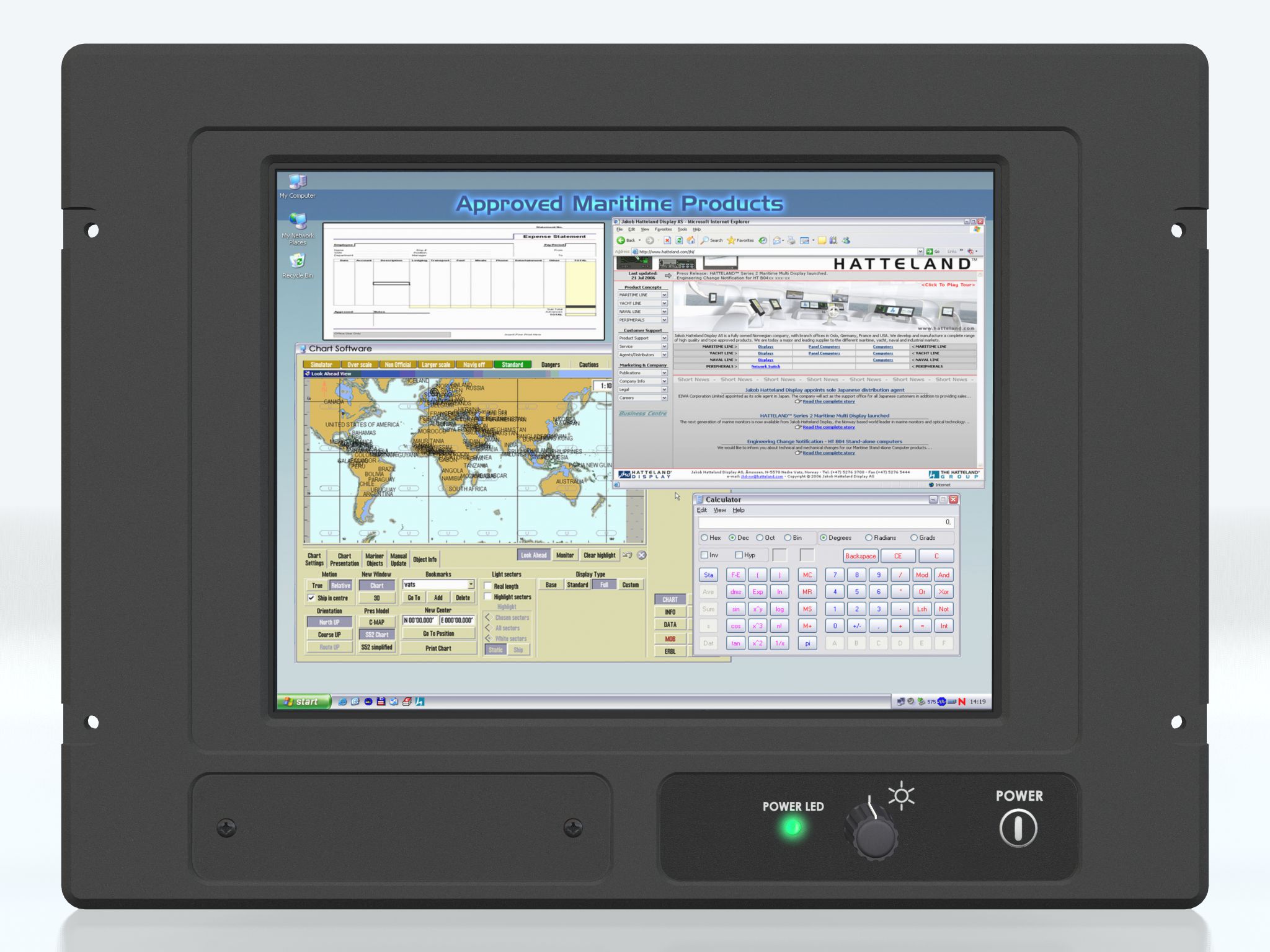

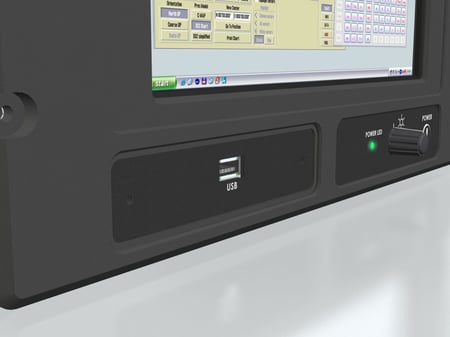

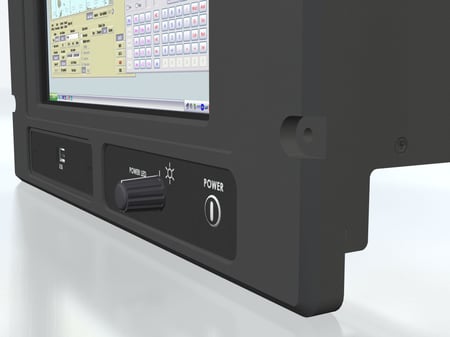

User Controls and Activity:	On front bezel: • Power On/Off (push button) • Brightness Control • Power LED Behind IP66 rated hatch: • USB 2.0 connector

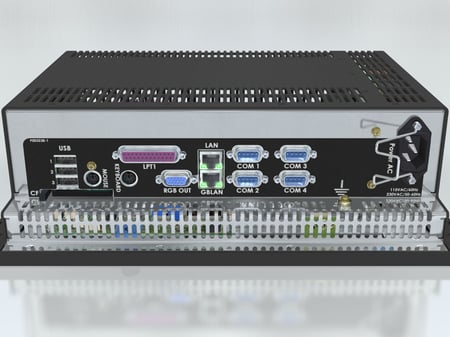

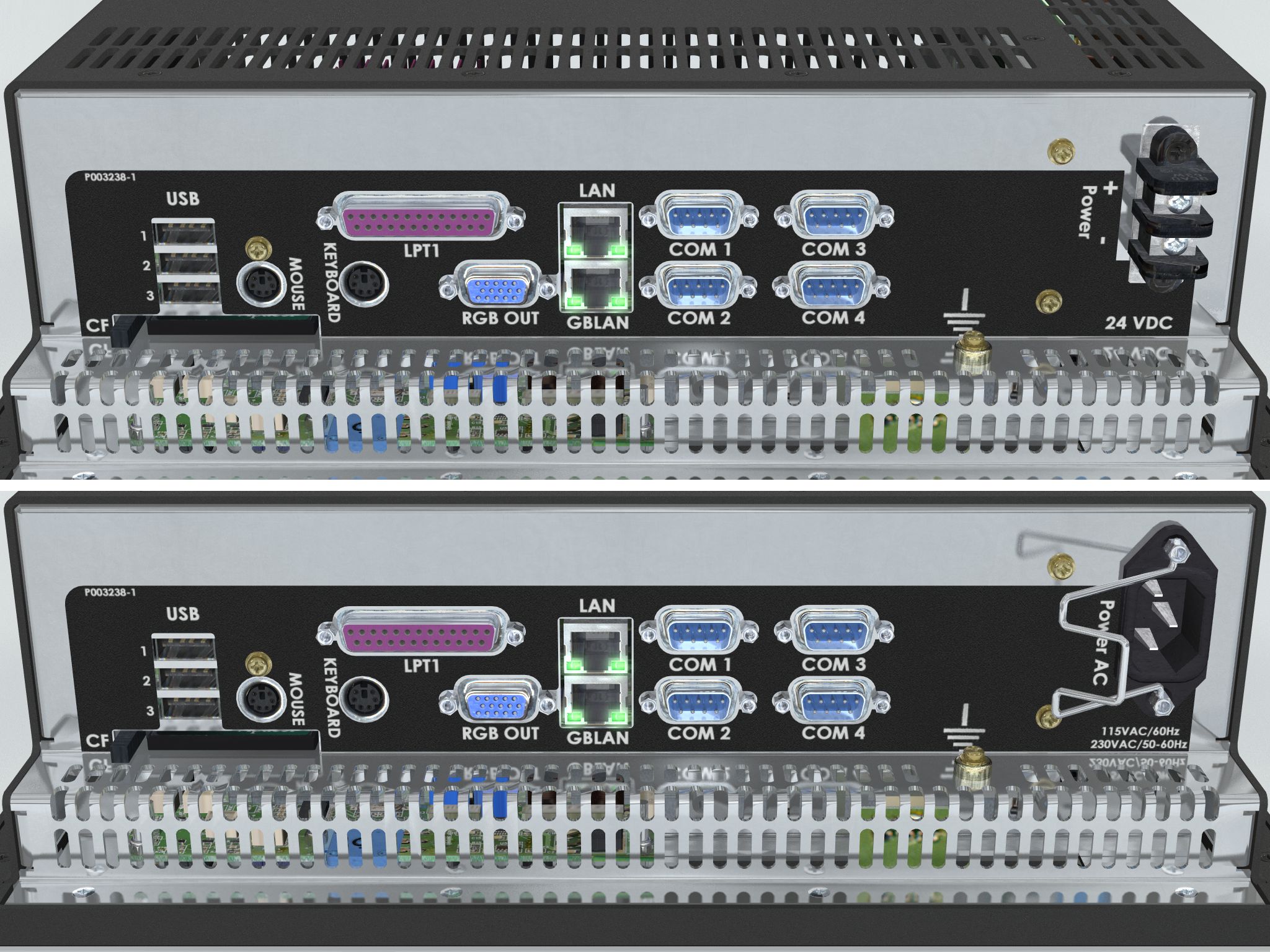

Connectors:	• Ethernet GBLAN 10/100/1000Mbps: 2 x RJ45 • PC/104 Slot: 1 x internal • Keyboard: 1 x PS/2 • Mouse: 1 x PS/2 • COM: 4 x DB9 (RS-232/422/485, fully isolated in RS422/485 mode) • LPT/Parallel: 1 x DB25 Bi-Directional/ECP/EPP • USB 2.0: 4 x Std. USB Type A (1 in front IP66, 4 in rear) • VGA OUT: 1 x HD-15F • Compact Flash: 1 x Type 1&II Compatible w/Eject • If AC Power IN: 1 x Std. IEC inlet • If DC Power IN: DC Screw terminal • Line In/Out: 1 x 3.5mm mini jack (depends on model) • Mic In: 1 x 3.5mm mini jack (depends on model)

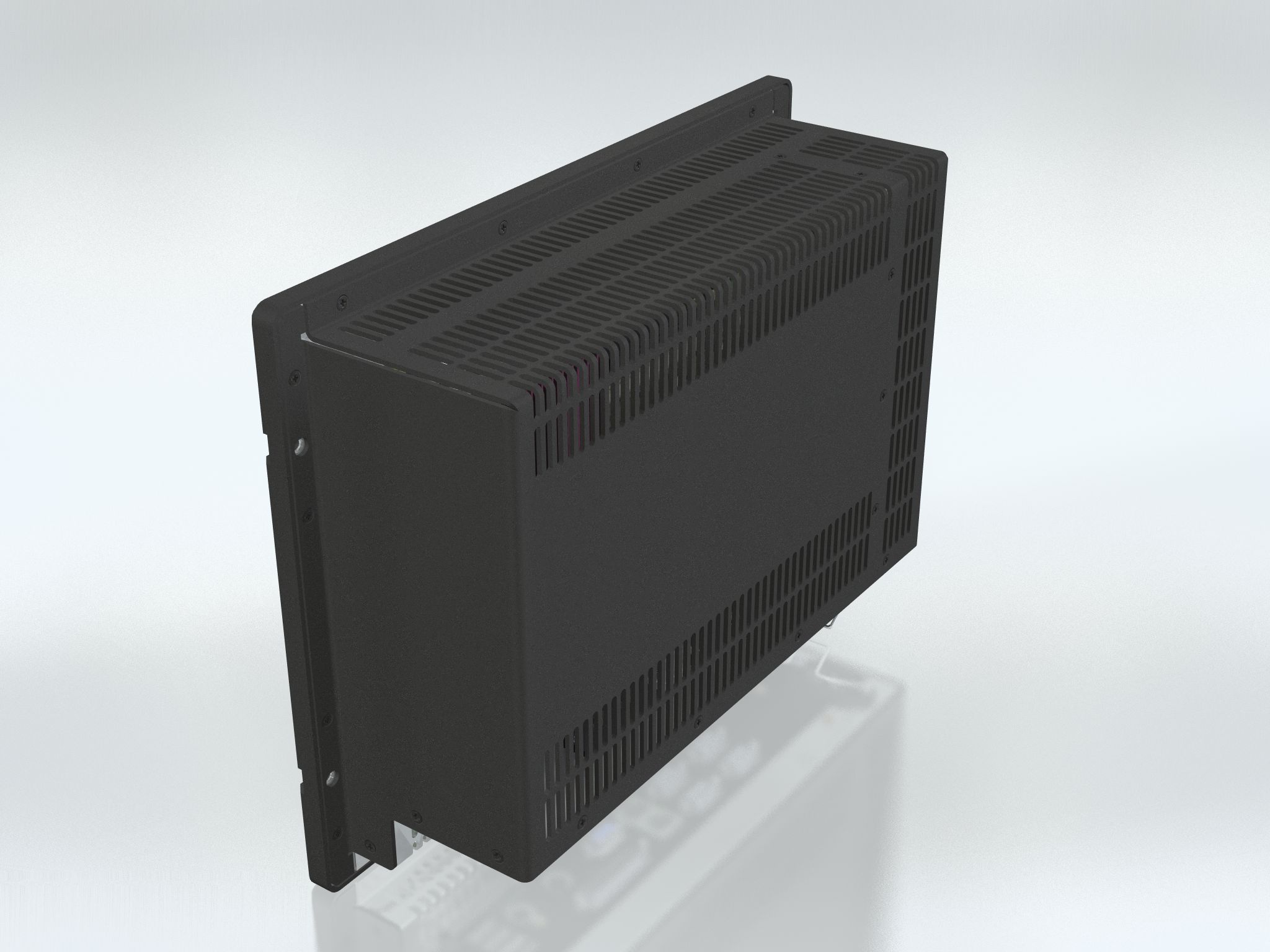

Product Dimensions and Weight:	W:339.00 [13.35"] x H:256.00 [10.08"] x D:105.00 [4.13"] mm [inch] Approx 7kg (approx)
Product Carton Size and Weight:	N/A
Factory Options:	• Touch Screen • Audio AC97 Compliant: Line In/Out, Mic In, Speaker Out • Processor: Up to 1.8 GHz • Memory: Up to 1GB

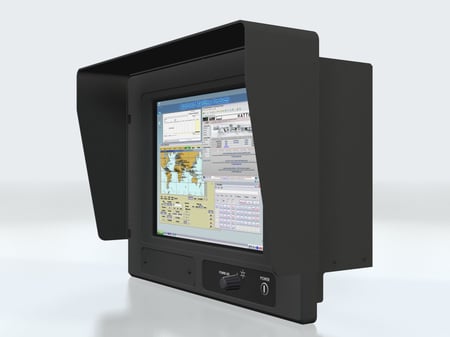

Accessories:	• JH 10TSV: Sun visor • P005335-1: Front Label with HDD LED and Reset Button Aperture
Capabilities / Prepared for:	None
Operating Temperature:	-15.0°C / 5.0°F to +55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to +70.0°C / 158.0°F, Humidity up to 95%
IP Rating:	IP66
Compass Safe Distance:	Standard: 55.00 [21.65"] - Steering: 40.00 [15.75"] cm [inch]
Type Approval, Testing and Certificates:	EN60945 4th (IEC945 4th), DNV - Det Norske Veritas, BV - Bureau Veritas, IACS E10, ABS - American Bureau of Shipping, ClassNK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, LRS - Lloyd's Register of Shipping

Specifications last updated: August 21, 2025 @ 10:14

Type Approvals

Downloads

Accessories

Engineering Change Notifications (ECN):

28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

8 Jan 2010
CF update

2 Oct 2008
HDD LED, Reset Button Aperture and IP66 - MMC Panel Com...

11 Dec 2006
Minor change of components regarding the fan control an...

End of Life Notifications (EOL):

2 Jun 2009
JH 10T08 MMC and JH 23T02 MMC Maritime Multi Computers,...
