JH 12T01 MMC

Overview

Panel Computer - CCFL - HATTELAND® Series 0 - 12.1 inch

JH 12T01 MMC

The Maritime Multi Computer is based on a all-in-one true multimedia processor based single board computer. This unit is equipped with a 300Mhz National Geode GX1 processor, 128MB RAM (Max 256MB), RGB OUT and Compact Flash including more.

icon
CCFL-backlit
Send Request
Description

Panel Computer - HATTELAND® Series 0

The color display is an industrialized version of a high quality NEC TFT based display with a-SI TFT Active Matrix and allows you to display professional applications with clearity and enhanced color and image quality. Brightness is adjustable from 0 to 100%. VESA Mounting is possible.
Specifications
Typenumber (Long): JH 12T01 MMC
TFT Technology: Thin Film Transistor (TFT), a-Si TFT Active Matrix
Viewable Size and Active Area: 12.1 inch - 246.0 [9.09"] (H) x 184.5 [7.26"] (V) mm [inch]
Native Resolution and Pixel Pitch: 800 x 600 (SVGA) - 0.3075 (H) x 0.3075 (V) mm
Aspect Ratio and Response Time: 4:3 - 25 ms (typical), "black" to "white"
Light Intensity and Contrast Ratio: 400 cd/m² (typ) - 600:1 (typ)
View Angle and Max Colors: Up: 45°, Down: 55°, Right: 70°, Left: 70° - 262,144 colors
Optimal Resolution and Hz: 800 x 600 @ 60 Hz (If resolution is above/below 1:1, desktop scrolling mode will be used)
Detectable Resolutions: 800 x 600 @ 60 Hz
Power Specifications and Consumption: 24 VDC
Operating: 31W (typ)
Product Features: Dimmable 0-100%, Buzzer
Installed Operating System (OS): None, please specify when ordering
Storage Options: 1 x Fujitsu Automotive 20 GB internal, 2.5" IDE HDD, 5400 RPM
2 x IDE Ports, Ultra DMA33
CPU / Processor Options: National Geode GX1 300Mhz with MMX, 16KB Cache Level 1 / 33 MHz BUS
Memory Options: 1 x 128MB (MAX 256MB) PC133 SDRAM
System Chipset / Graphics Chipset: National CS5530A / XPRESS Graphics National CS5530A with 4MB RAM
BIOS / Buzzer: Phoenix + Kontron Technology / Buzzer: Build in Buzzer (controlled by parallel port)
Power Manager and Monitoring: N/A
User Controls and Activity: On front bezel:
• Power On/Off (push button with internal LED)
• Brightness Knob Wheel

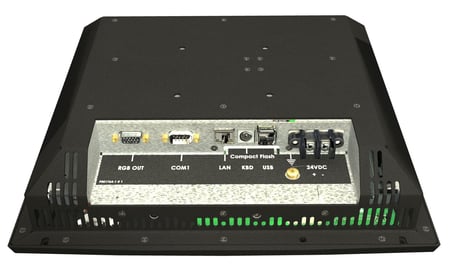

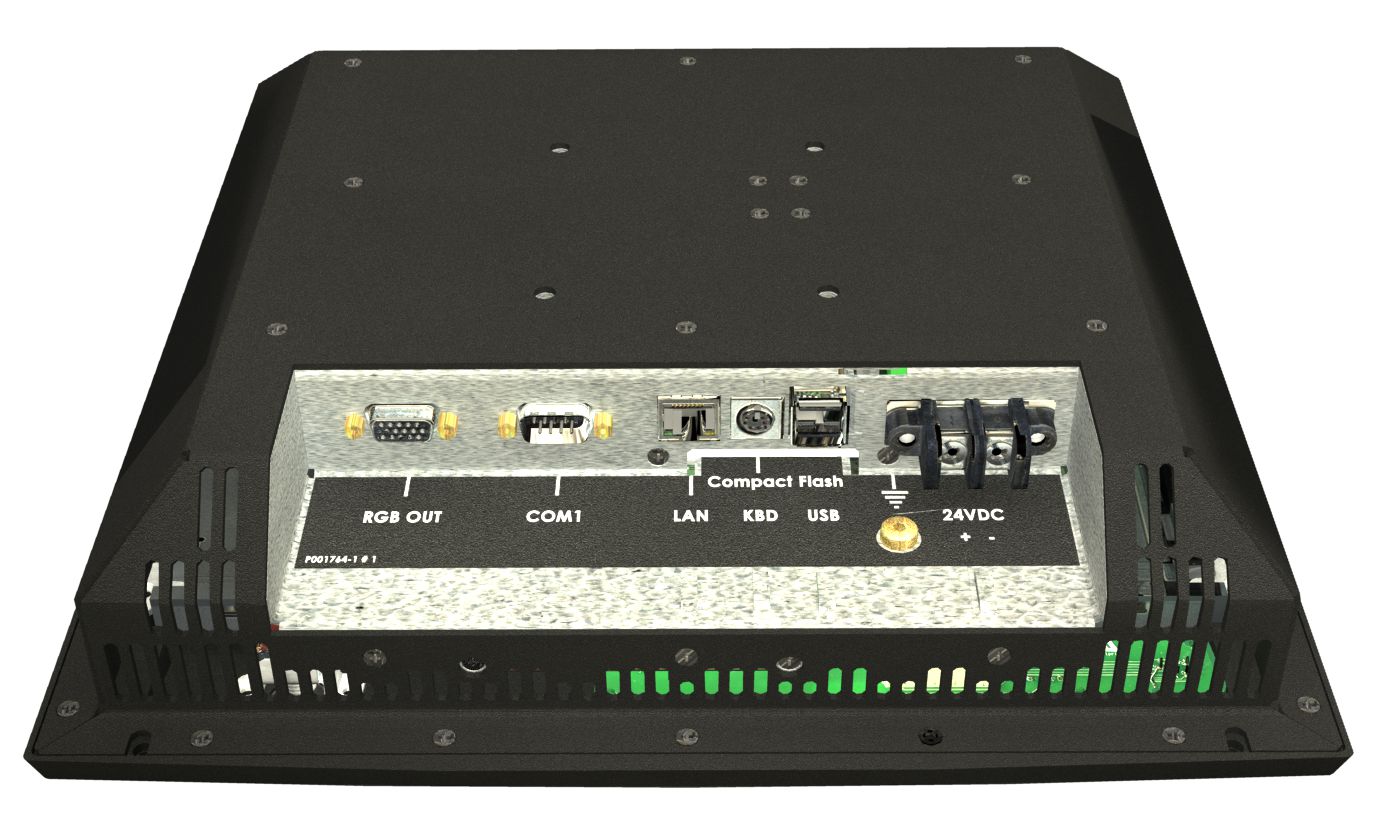

Connectors: • Ethernet LAN 10/100Mbps (Realtek 8139C): 1 x RJ45
• Keyboard: 1 x PS/2
• Mouse: 1 x PS/2
• COM: 2 x DB9 (RS-232/422/485 (NS16550 UART)
• USB: 2 x USB (USB 1.1 compliant, 12 MBit) (USB Legacy not supported)
• VGA OUT: 1 x HDDB15F
• Compact Flash: 1 x Type 1 & II Compatible w/Eject
• DC Power IN: DC Screw terminal
Product Dimensions and Weight: W:320.00 [12.60"] x H:288.00 [11.34"] x D:62.00 [2.44"] mm [inch]
Approx 4.4kg
Product Carton Size and Weight: N/A
Factory Options: • Touch Screen
• Memory: Up to 256MB
Accessories: None
Capabilities / Prepared for: None
Operating Temperature: -15.0°C / 5.0°F to +70.0°C / 158.0°F
Humidity 30% to 90% (non condensing)
Storage Temperature: -20.0°C / -4.0°F to +70.0°C / 158.0°F
Humidity 10% to 90% (non condensing)
IP Rating: N/A
Compass Safe Distance: N/A
Type Approval, Testing and Certificates: EN60945 4th (IEC945 4th), ClassNK - Nippon Kaiji Kyokai, ABS - American Bureau of Shipping, IACS E10, GL - Germanischer Lloyd, LRS - Lloyd's Register of Shipping, DNV - Det Norske Veritas, BV - Bureau Veritas
Specifications last updated: August 21, 2025 @ 10:14
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

End of Life Notifications (EOL):
24 Apr 2006
Product Obsolete

17 Oct 2005
Windows® 2000 retirement

Obsolete
