PRODUCT DETAILS

✕

✕
Marine & Offshore  /  Panel Computer /  HATTELAND® Series 0  /  JH 15T04 MMC

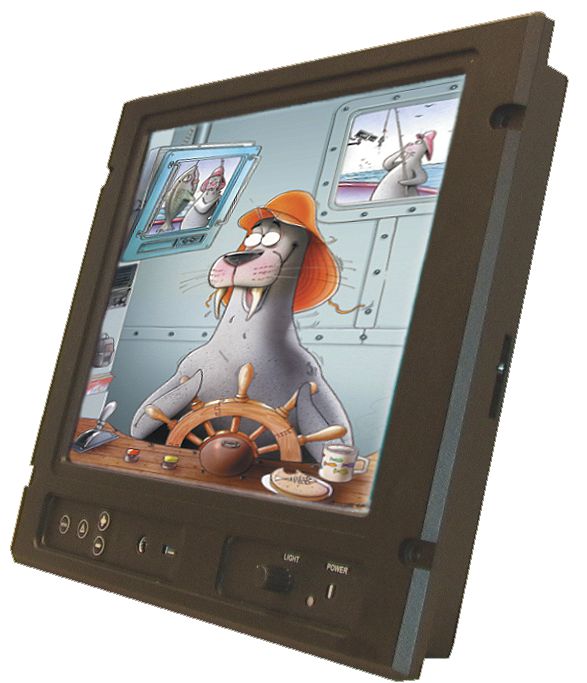

JH 15T04 MMC

Overview

Panel Computer - CCFL - HATTELAND® Series 0 - 15.0 inch

JH 15T04 MMC

The Maritime Multi Computer is based on a all-in-one-true multimedia processor-based single board computer. This unit is equipped with a 850MHz PentiumIII processor, and accepts up to 256 MB RAM. Solid State Disk solutions are available, and can be customized.

icon
CCFL
Send Request
Description

Panel Computer - HATTELAND® Series 0

The color display is an industrialized version of a high quality Fujitsu TFT based display with MVA technology and allows you to display professional applications with clearity and enhanced color and image quality. Brightness is adjustable from 0 to 100%. This unit is designed to work well in environments up to 55 degrees Celsius.
Specifications
Typenumber (Long): JH 15T04 MMC
TFT Technology: Active Matrix, Thin Film Transistor (TFT), MVA Technology
Viewable Size and Active Area: 15.0 inch - 304.10 [11.97"] (H) x 228.10 [8.98"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1024 x 768 (XGA) - 0.297 (H) x 0.297 (V) mm
Aspect Ratio and Response Time: 4:3 - 25ms (typical)
Light Intensity and Contrast Ratio: 250 cd/m² (typ) - 400:1 (typ)
View Angle and Max Colors: 80 deg. (up/down/left/right) (typ) (@ CR > 10) - 262,144 colors (6-bit per color)
Optimal Resolution and Hz: 1024 x 768 @ 60 Hz (If resolution is above/below 1:1, desktop scrolling mode will be used)
Detectable Resolutions: 640 x 480, 800 x 600, 1024 x 768
Power Specifications and Consumption: 24 VDC
Operating: 100 W (max)
Product Features: Dimmable 0-100%, DC Model, Internal PC/104 Interface
Installed Operating System (OS): None
Storage Options: 10 GB internal HDD (standard)
CPU / Processor Options: Intel® Pentium® III 850Mhz/100Mhz System Bus
Memory Options: Max 256MB (SO-DIMM)
System Chipset / Graphics Chipset: Intel® 440BX / SMI Lynx 721 with 4 MB on chip, AGP 2x
BIOS / Buzzer: Award 256 KB Flash BIOS / Buzzer: None
Power Manager and Monitoring: N/A
User Controls and Activity: On front bezel:
• Power On/Off (push button)
• Brightness Control
• Power LED

Behind hatch:
• PS/2 Mouse or Keyboard connector
Connectors: • Ethernet LAN 10/100Mbps (Intel 82559ER): 2 x RJ45
• PC/104 Slot: 1 x internal
• Keyboard: 1 x PS/2
• Mouse: 1 x PS/2
• COM: 3 x DB9 (RS-232/422/485)
• LPT/Parallel: 1 x DB25 Bi-Directional/ECP/EPP
• USB: 2 x USB (1 x front, 1 x backcover)
• Floppy: 1 x DB37 for external (1.4 MB HD)
• DC Power IN: DC Screw terminal
Product Dimensions and Weight: W:412.00 [16.22"] x H:345.00 [13.58"] x D:111.00 [4.37"] mm [inch]
Approx 9kg
Product Carton Size and Weight: N/A
Factory Options: • JH 15TBR: Bracket
• JH MMDRO: Rotary bracket
• JH 15TSV: Sun visor
Accessories: • JH 15TBR: Bracket
• JH MMDRO: Rotary bracket
• JH 15TSV: Sun visor
Capabilities / Prepared for: None
Operating Temperature: -15.0°C / 5.0°F to +55.0°C / 131.0°F (+70 deg. C non functional))
Humidity 30% to 90% (non condensing)
Storage Temperature: -20.0°C / -4.0°F to +70.0°C / 158.0°F
Humidity 10% to 90% (non condensing)
IP Rating: N/A
Compass Safe Distance: N/A
Type Approval, Testing and Certificates: N/A
Specifications last updated: December 18, 2025 @ 13:54
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

End of Life Notifications (EOL):
14 Sep 2006
Product Obsolete

17 Oct 2005
Windows® 2000 retirement

Obsolete
