JH 15T05 MMC

Overview

Panel Computer - CCFL - HATTELAND® Series 0 - 15.0 inch

JH 15T05 MMC

The combination of the reliable design of the marine TFT-LCD modules, together with industrial computer boards make this product suitable for customer applications where space is critical, and full function is desired in a single unit.

icon
CCFL-backlit
Send Request
Description

Panel Computer - HATTELAND® Series 0

In particular, the mainboard allows full flexibility when it comes to processor choice. With multiple useful standard components this is an highly attractive commercial package. This unit is equipped with a 1.1GHz Intel® Pentium®M processor as standard and accepts up to 1 GB RAM and features RGB OUT. Brightness is adjustable from 0 to 100%.
Specifications
Typenumber (Long): JH 15T05 MMC
TFT Technology: Color Active Matrix LCD Module, a-Si Thin Film Transistor (TFT)
Viewable Size and Active Area: 15.0 inch - 304.10 [11.97"] (H) x 228.10 [8.98"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1024 x 768 (XGA) - 0.297 (H) x 0.297 (V) mm
Aspect Ratio and Response Time: 4:3 - 25 ms (typical), black to white to black
Light Intensity and Contrast Ratio: 250 cd/m² (typ) - 400:1 (typ)
View Angle and Max Colors: +/- 85 deg. (up/down/left/right) (typ) (@ CR > 10) - 16.7 millions
Optimal Resolution and Hz: 1024 x 768 @ 60 Hz (If resolution is above/below 1:1, desktop scrolling mode will be used)
Detectable Resolutions: • Supported TFT Res.: From 640 x 480 up to 2048 x 1536
• RGB OUT Res: From 640 x 480 up to 1600 x 1200
Power Specifications and Consumption: Power Supply Options:
• 115&230VAC - 50 / 60Hz: Model JH 15T05 MMC-A1
• 24 VDC: Model JH 15T05 MMC-A2

Power Consumption - Operating:
100W (max) (Configuration depending)
65W (typ AC) (Max backlight&high CPU load)
44,2W (typ DC) (Max backlight&high CPU load)
Product Features: Dimmable 0-100%, AC or DC Model, PC/104 with ISA Support, TV-Out (Composite)
Installed Operating System (OS): None, please specify when ordering
Storage Options: 1 x Automotive 40GB, 2.5" HDD IDE, 4200 RPM
CPU / Processor Options: Intel® Pentium® M 1.1GHz, Low Voltage, 1MB Level 2 Cache / 400 MHz BUS
Memory Options: 1 x SODIMM with ECC, from 256MB->1GB
System Chipset / Graphics Chipset: Intel® 855GME / Intel® 82855GME (Integrated/250MHz)
BIOS / Buzzer: Phoenix 2Mbit Flash, Supports ACPI / Buzzer: None
Power Manager and Monitoring: N/A

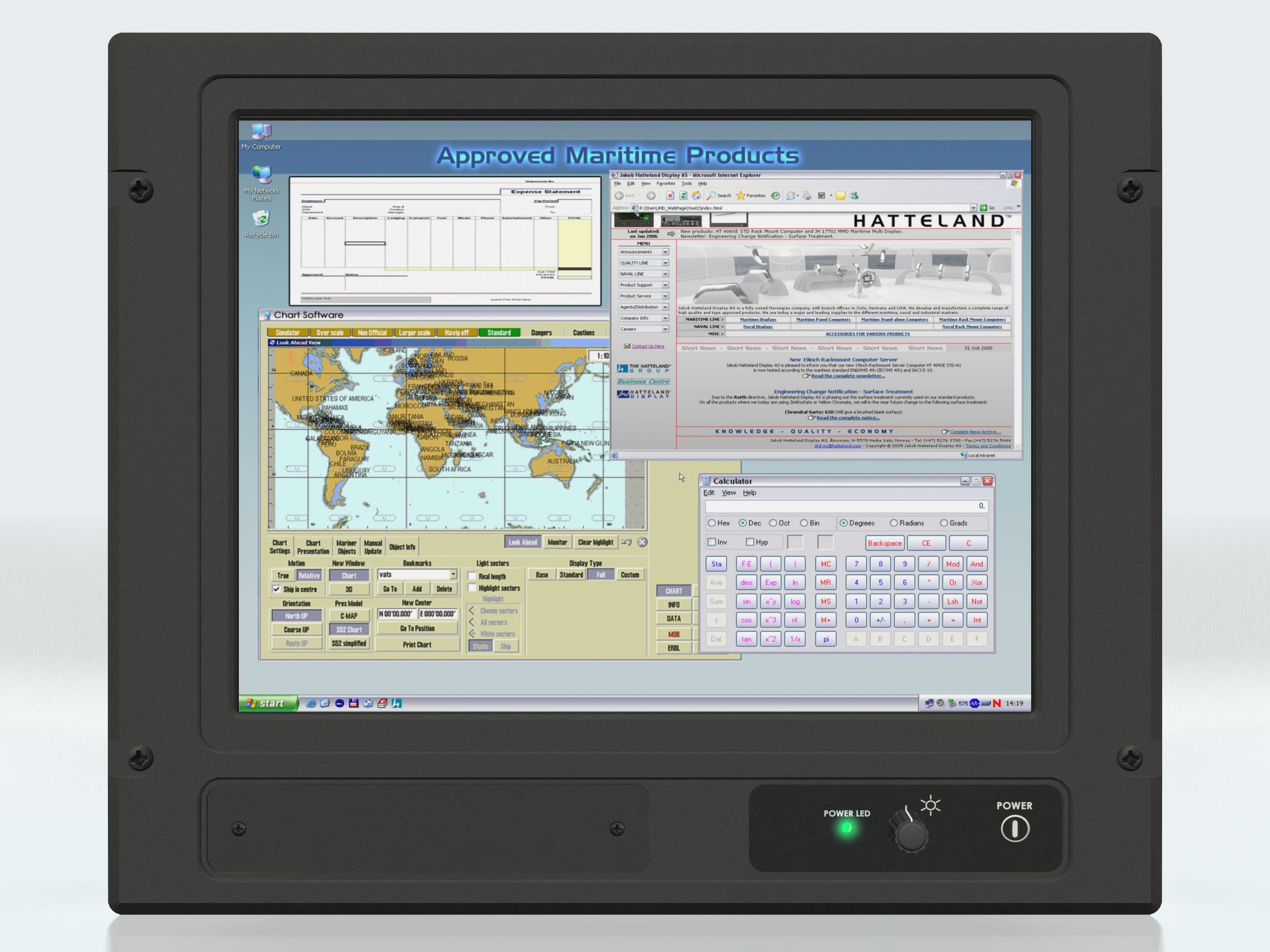

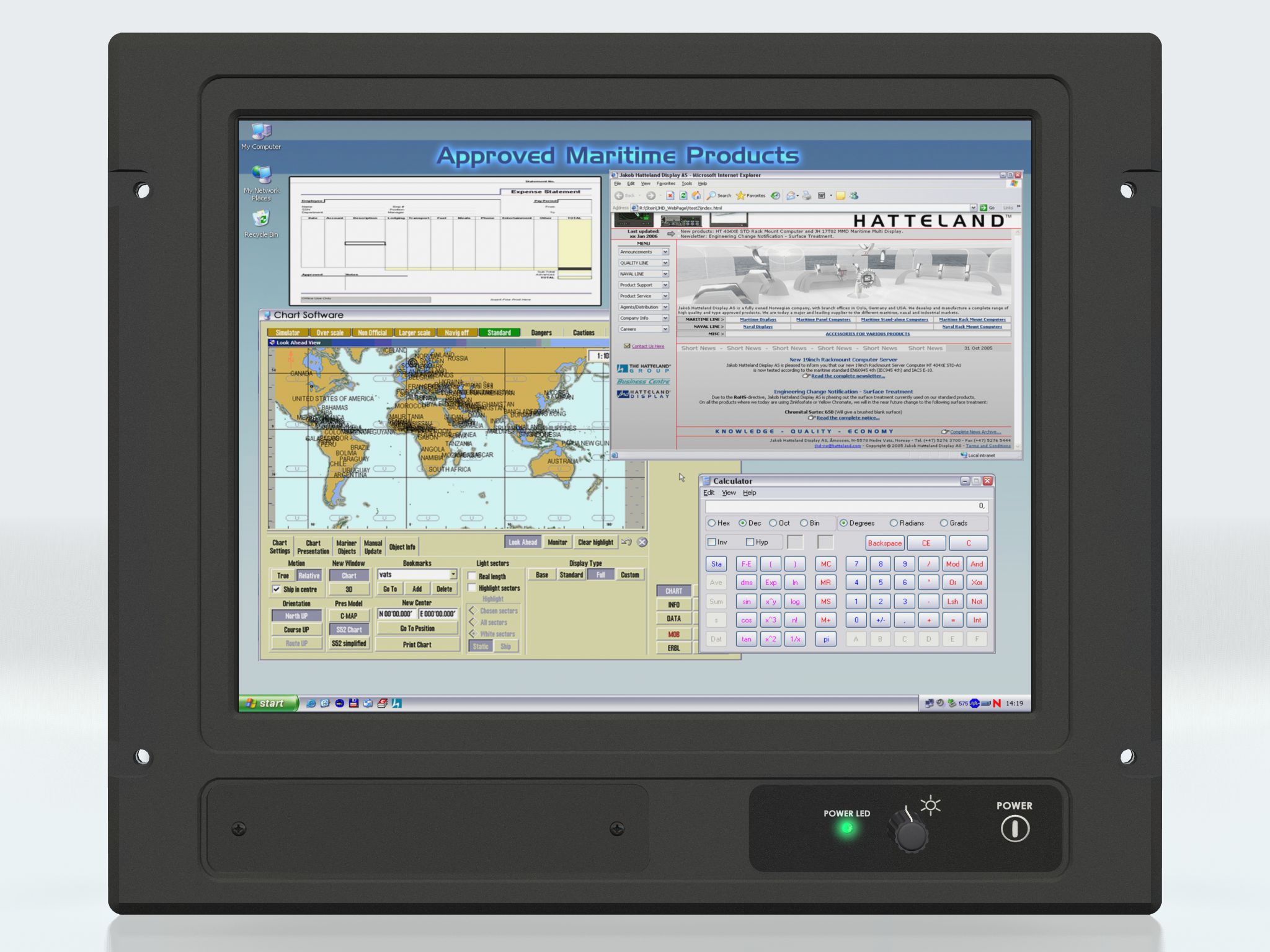

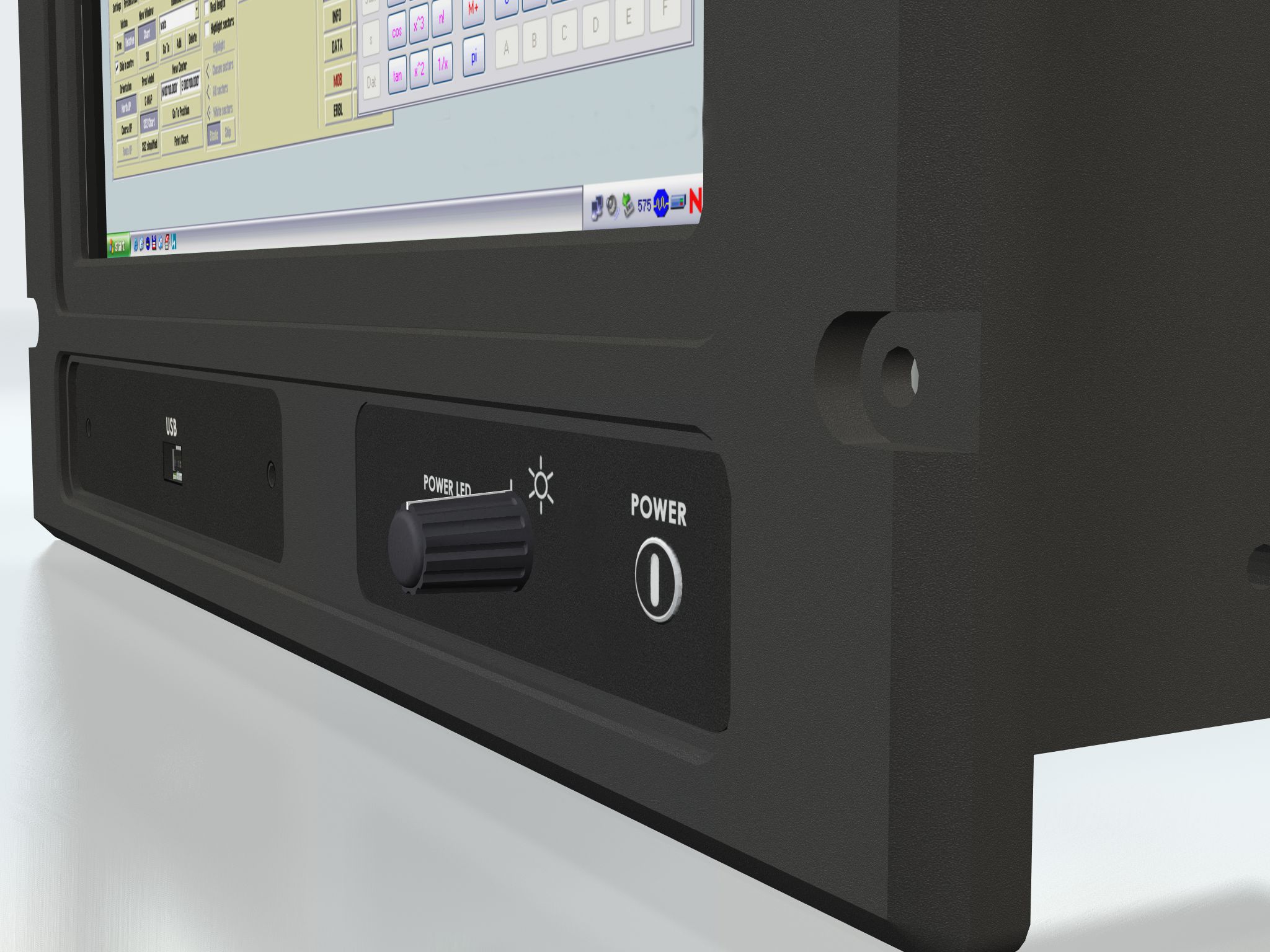

User Controls and Activity: On front bezel:
• Power On/Off (push button)
• Brightness Control
• Power LED

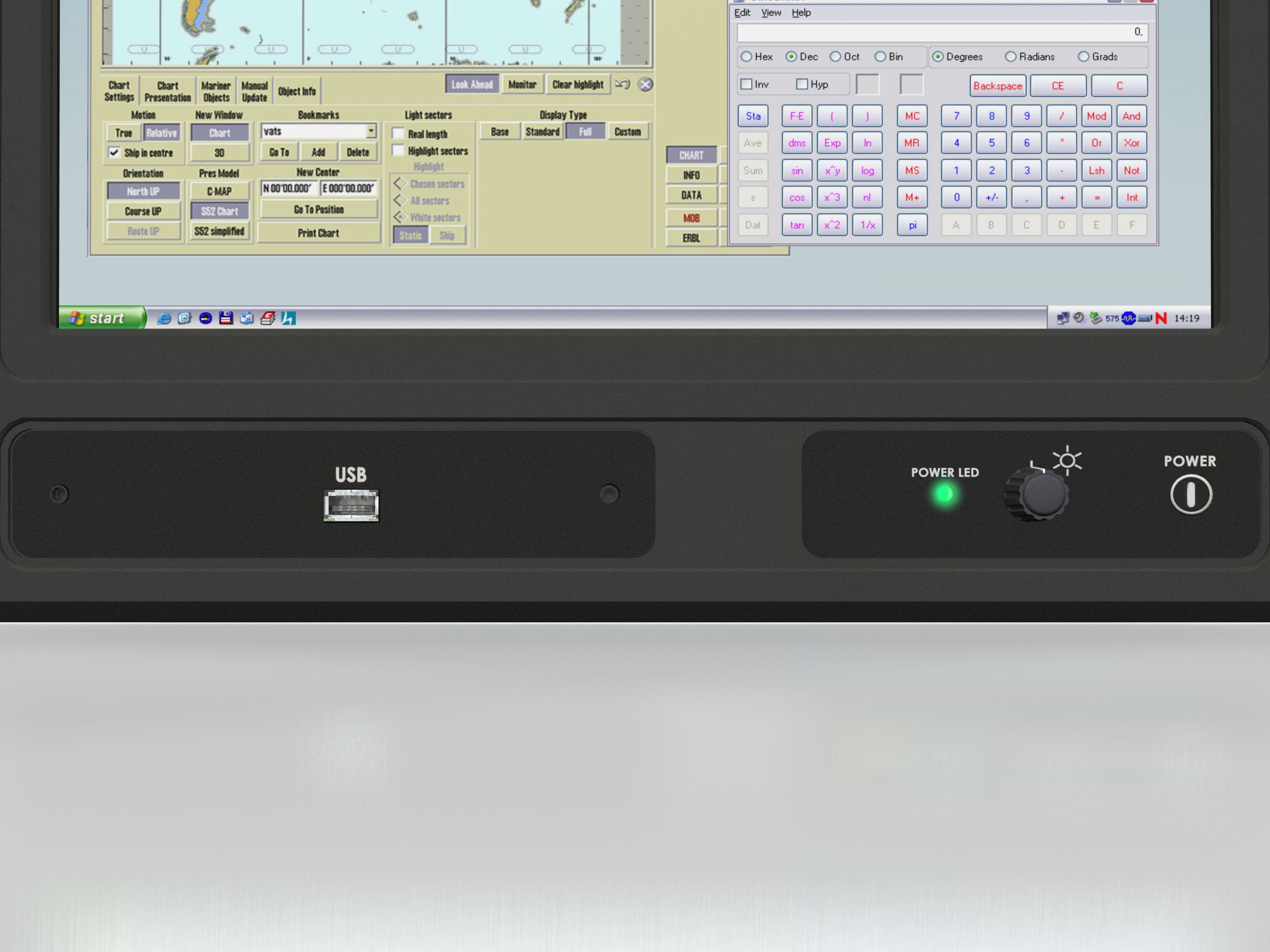

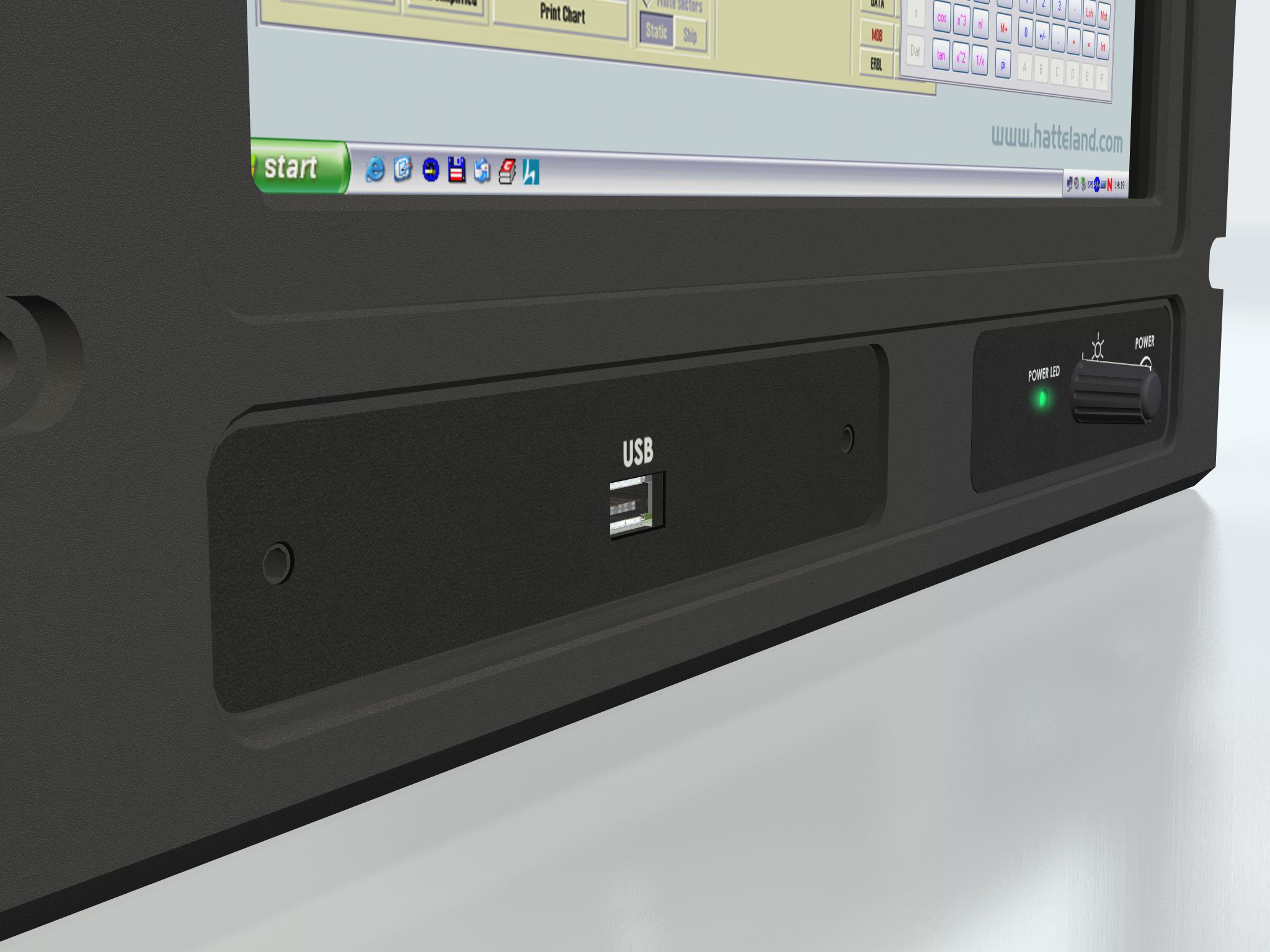

Behind IP66 rated hatch:
• USB 2.0 connector(s)

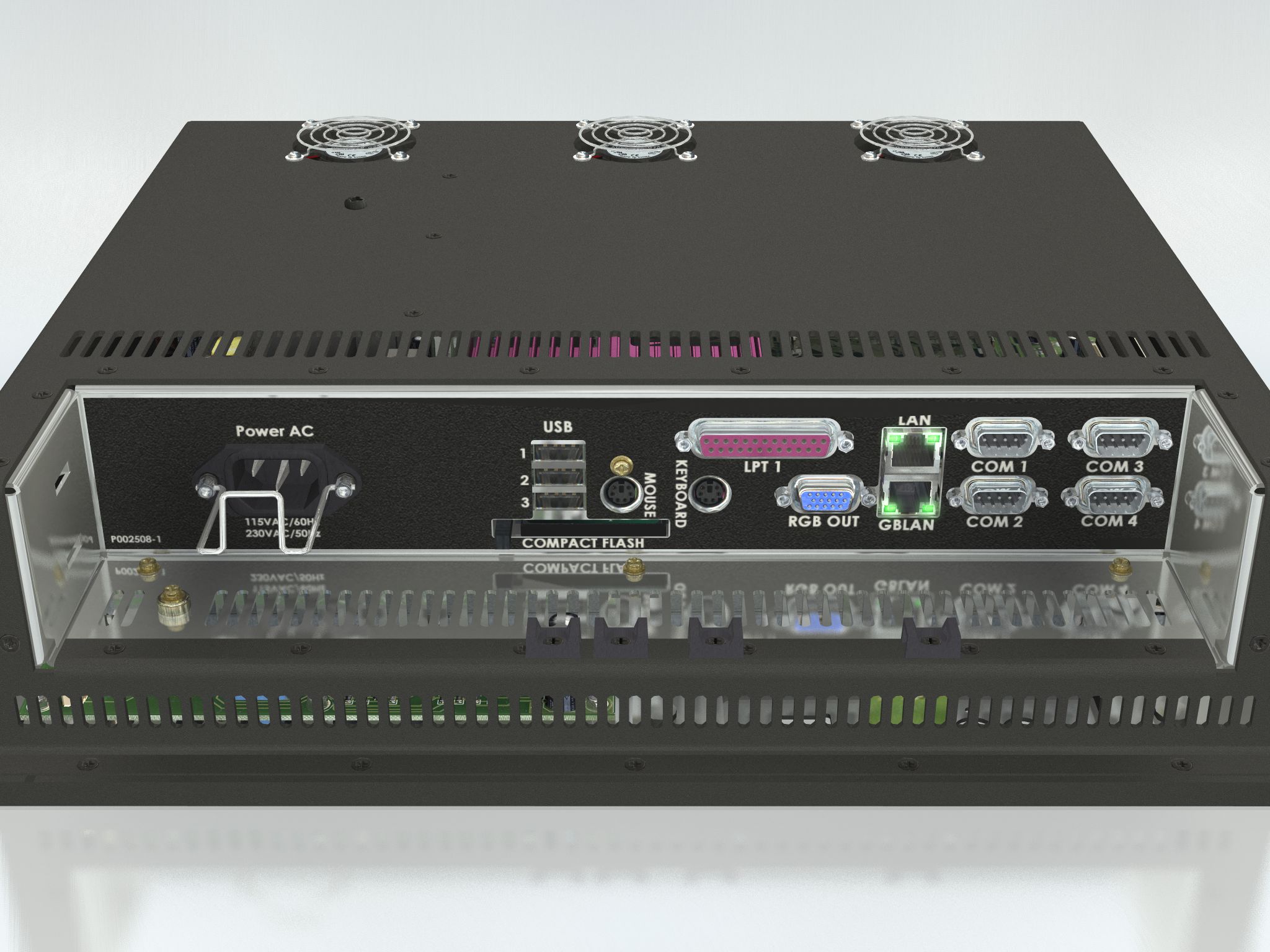

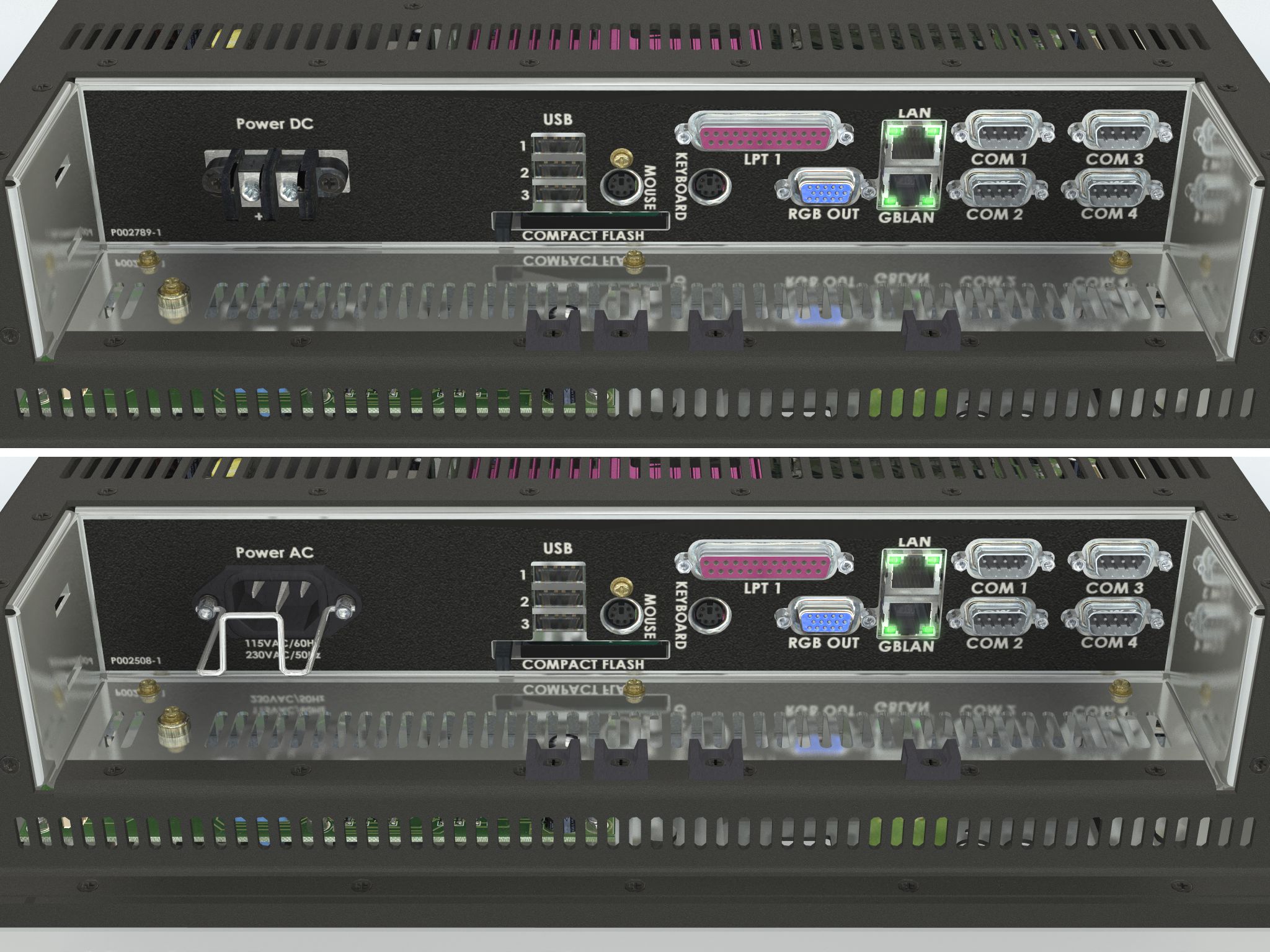

Connectors: • Ethernet GBLAN 10/100Mbps: 2 x RJ45
• PC/104 Slot: 1 x internal
• Keyboard: 1 x PS/2
• Mouse: 1 x PS/2
• Compact Flash: 1 x CF Socket with Eject (Type I&II)
• COM: 4 x DB9 (RS-232/422/485) - Fully isolated is RS422/485 mode
• LPT/Parallel: 1 x DB25F Bi-Directional/ECP/EPP
• USB: 4 x USB2.0 compliant (1 x front, 3 x back)
• If AC Power IN: Std IEC inlet
• If DC Power IN: DC Screw terminal
• RGB Out: 1 x HD-15F
• TV Out: Composite RCA (depends on model)
• Line In/Out: 3.5mm mini jack (depends on model)
• Mic In: 3.5mm mini jack (depends on model)
Product Dimensions and Weight: W:412.00 [16.22"] x H:345.00 [13.58"] x D:97.5 [3.84"] mm [inch]
Approx 8 kg (approx)
Product Carton Size and Weight: N/A
Factory Options: • Audio AC97 Compliant: Line In/Out, Mic In, Speaker Out
• TV-Out: 1 x Composite (Depends on model)
• Processor: Up to 1.8 GHz
• Memory: Up to 1GB
• Touch Screen
• Internal Serial Remote Control (SCOM) - JH 15T05 MMC-Ex models

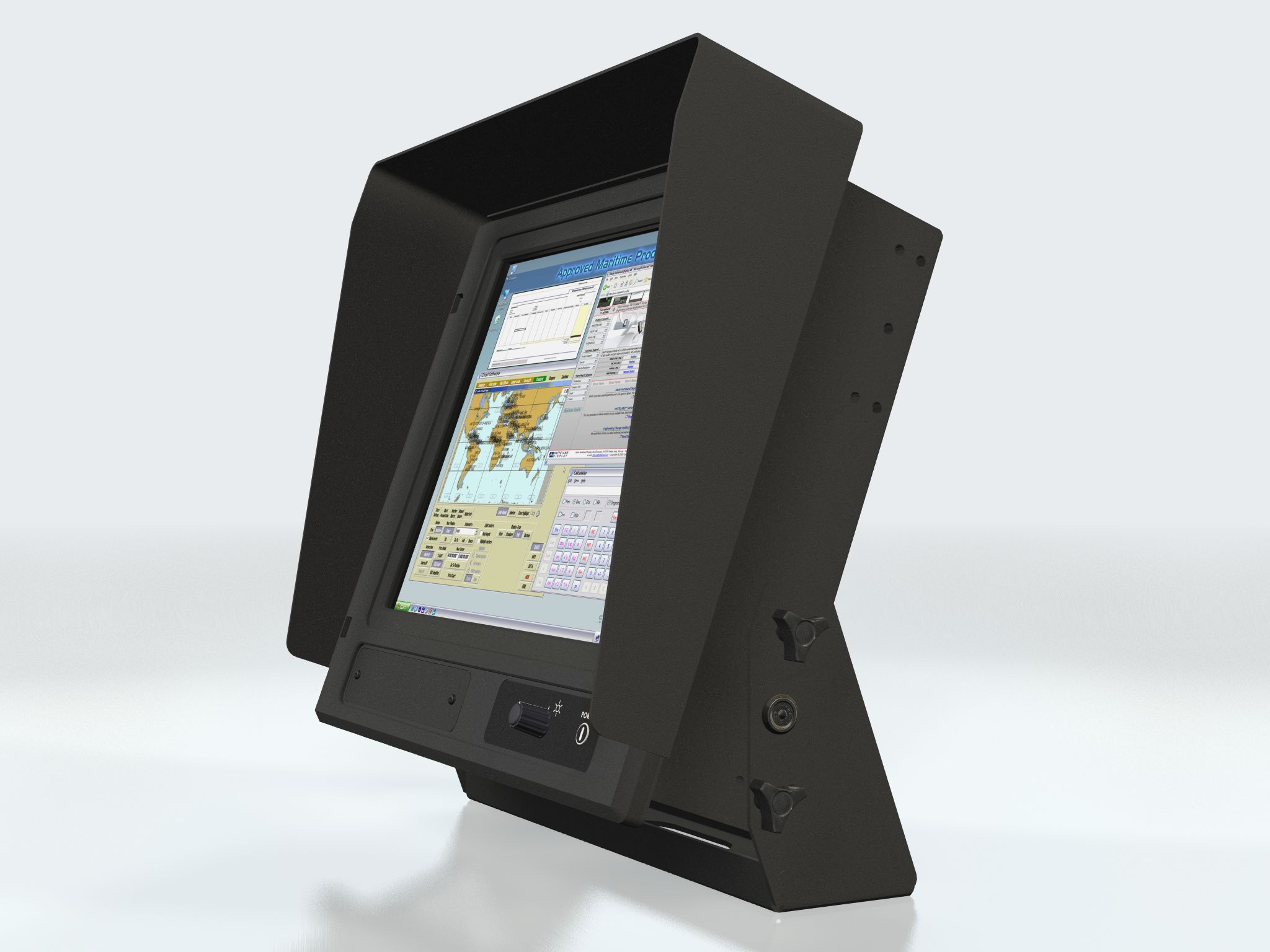

Accessories: • JH 15TSV: Sun visor
• JH 15TBRMMC: Bracket
• JH 15TAP STD: 15" Adapter Plate/Frame to 19" Rack
• P005335-1: Front Label with HDD LED and Reset Button Aperture
Capabilities / Prepared for: None
Operating Temperature: -15.0°C / 5.0°F to +55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature: -20.0°C / -4.0°F to +70.0°C / 158.0°F, Humidity up to 95%
IP Rating: IP66
Compass Safe Distance: Standard: 125.00 [49.21"] - Steering: 80.00 [31.50"] cm [inch]
Type Approval, Testing and Certificates: EN60945 4th (IEC945 4th), ClassNK - Nippon Kaiji Kyokai, DNV - Det Norske Veritas, IACS E10, GL - Germanischer Lloyd, BV - Bureau Veritas, ABS - American Bureau of Shipping, LRS - Lloyd's Register of Shipping, RS - Russian Maritime Register of Shipping
Specifications last updated: August 21, 2025 @ 10:14
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

2 Oct 2008
HDD LED, Reset Button Aperture and IP66 - MMC Panel Com...

11 Dec 2006
Minor change of components regarding the fan control an...

End of Life Notifications (EOL):
2 Jun 2009
JH 15T05 MMC and JH 19T02 MMC Maritime Multi Computers,...

17 Oct 2005
Windows® 2000 retirement

Obsolete
