PRODUCT DETAILS

✕

✕
 Marine & Offshore  / Panel Computer  / HATTELAND® Series 0  / JH 19T01 MMC

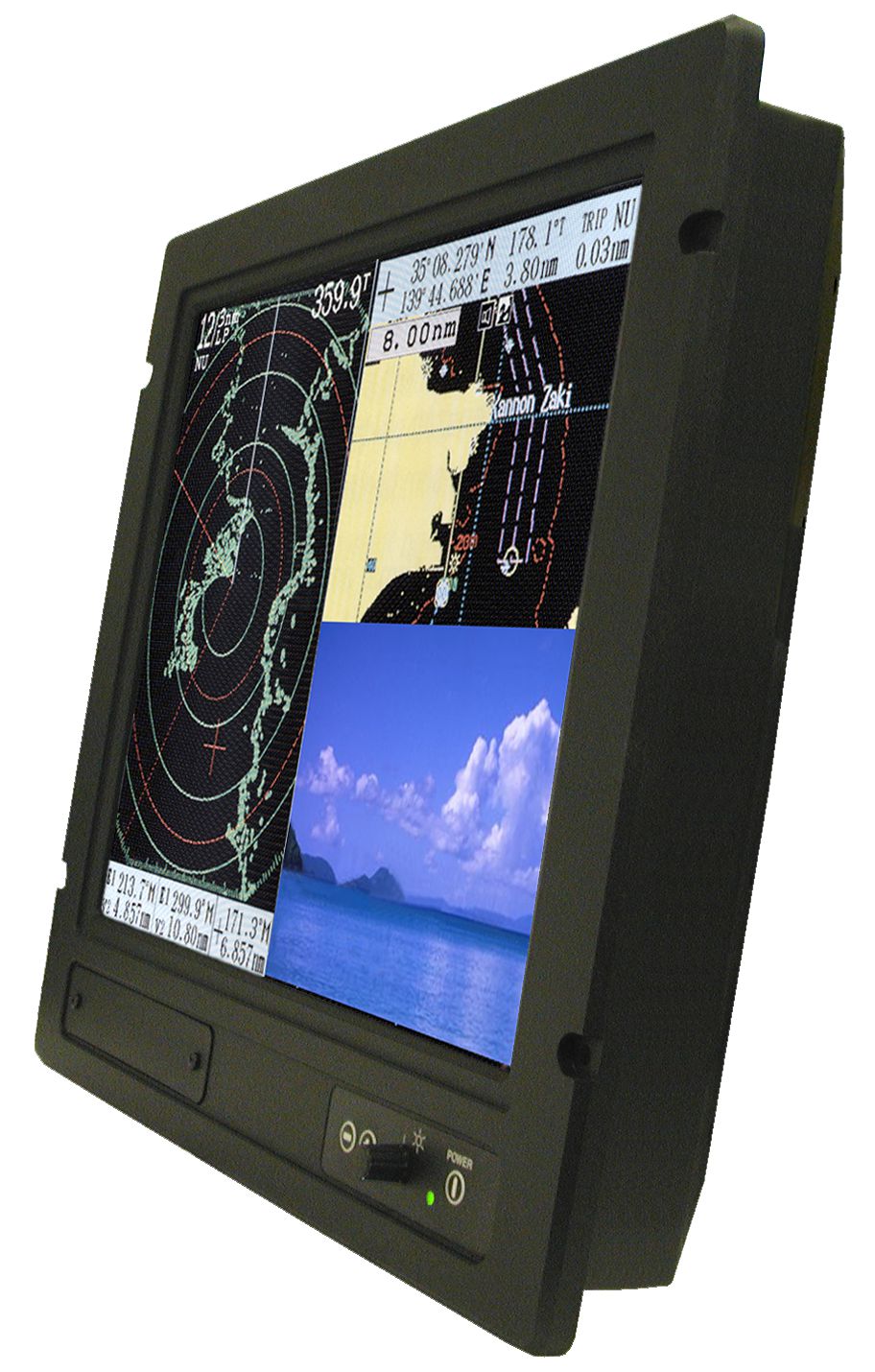

JH 19T01 MMC

Overview

Panel Computer - CCFL - HATTELAND® Series 0 - 19.0 inch

JH 19T01 MMC

The Maritime Multi Computer is based on a all-in-one true multimedia processor based single board computer. This unit is equipped with a 2.0GHz Pentium4 processor, and accepts up to 2 GB RAM. Solid State Disk solutions are available, and can be customized.

icon
CCFL-backlit
Send Request
Description

Panel Computer - HATTELAND® Series 0

The color display is an industrialized version of a high quality Fujitsu TFT based display with MVA Premium™ technology and allows you to display professional applications with clearity and enhanced color and image quality. Brightness is adjustable from 0 to 100%.
Specifications
Typenumber (Long): JH 19T01 MMC
TFT Technology: Active Matrix, Thin Film Transistor (TFT), MVA Premium™ Technology
Viewable Size and Active Area: 19.0 inch - 376.32 [14.82"] (H) x 301.056 [11.85"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1280 x 1024 (SXGA) - 0.294 (H) x 0.294 (V) mm
Aspect Ratio and Response Time: 5:4 - 15 ms (typical), "black" to "white"
Light Intensity and Contrast Ratio: 250 cd/m² (typ) - 600:1 (typ)
View Angle and Max Colors: +/- 85 deg. (up/down/left/right) (typ) (@ CR > 10) - 16.7 millions
Optimal Resolution and Hz: 1280 x 1024 @ 60 Hz (If resolution is above/below 1:1, desktop scrolling mode will be used)
Detectable Resolutions: 1280 x 1024
Power Specifications and Consumption: Power Supply Options:
• 110/220 VAC: Model JH 19T01 MMC-A1
• 24 VDC: Model JH 19T01 MMC-A2

Power Consumption - Operating:
• 24 VDC: 100W (max) (Configuration depending)
Product Features: Dimmable 0-100%, AC or DC Model, Standard Profile PCI Support
Installed Operating System (OS): None, please specify when ordering
Storage Options: 20 GB HDD internal (standard)
CPU / Processor Options: Intel® Pentium® 4 at 2.0GHz / 400MHz System Bus
Memory Options: 512 MB (DDR SDRAM) (Max 2GB)
System Chipset / Graphics Chipset: Intel® 845GV / Intel® 82845G with AGP 4x support, shared Video Memory, Max 64MB
BIOS / Buzzer: Award Flash BIOS (Supports ACPI) / Buzzer: None
Power Manager and Monitoring: N/A
User Controls and Activity: On front bezel:
• Power On/Off (push button)
• Brightness Control
• Power LED

Behind hatch:
• PS/2 Mouse and Keyboard connector, Lan/Ethernet connector
• USB 2.0 connector, HD Led and Reset button
Connectors: • Ethernet GBLAN 10/100/1000Mbps (Intel 82540EM): 1 x RJ45
• Ethernet LAN 10/100Mbps (ICH4 intergrated): 1 x RJ45
• Keyboard: 1 x PS/2
• Mouse: 1 x PS/2
• COM: 2 x RS232 + 1 x RS232/RS422/RS485
• LPT/Parallel: 1 x DB25F Bi-Directional/ECP/EPP
• USB: 4 x USB2.0 compliant (1 x front, 3 x back)
• If AC Power IN: Std IEC inlet
• If DC Power IN: DC Screw terminal
• RGB Out: 1 x DB15
• Line In/Out: 3.5mm mini jack
• Mic In: 3.5mm mini jack
• PCI Slot: 2 x Short length, Standard Profile
Product Dimensions and Weight: W:483.00 [19.02"] x H:444.00 [17.48"] x D:98 [3.86"] mm [inch]
Approx 11 kg (approx)
Product Carton Size and Weight: N/A
Factory Options: • Touch Screen
Accessories: • JH MMD BR: Bracket
• JH MMDRO: Rotary bracket
• JH 19TSV: Sun visor
Capabilities / Prepared for: None
Operating Temperature: -15.0°C / 5.0°F to +55.0°C / 131.0°F (+70 deg. C non functional)
Humidity 30% to 90% (non condensing)
Storage Temperature: -20.0°C / -4.0°F to +70.0°C / 158.0°F, Humidity 10% to 90% (non condensing)
IP Rating: N/A
Compass Safe Distance: N/A
Type Approval, Testing and Certificates: N/A
Specifications last updated: August 21, 2025 @ 10:14
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

10 Jan 2023
Updated, JH 19BRD STD-A1 is replaced by the HD TMB STD-...

End of Life Notifications (EOL):
17 Oct 2005
Windows® 2000 retirement

24 Sep 2004
Product Obsolete
