JH 19T02 MMC

Overview

Panel Computer - CCFL - HATTELAND® Series 0 - 19.0 inch

JH 19T02 MMC

The combination of the reliable design of the marine TFT-LCD modules, together with industrial computer boards make this product suitable for customer applications where space is critical, and full function is desired in a single unit.

icon
CCFL-backlit
Send Request
Description

Panel Computer - HATTELAND® Series 0

In particular, the mainboard allows full flexibility when it comes to processor choice. With multiple useful standard components this is an highly attractive commercial package. This unit is equipped with a 1.1GHz Intel® Pentium®M processor as standard and accepts up to 1 GB RAM and features RGB OUT. Brightness is adjustable from 0 to 100%.
Specifications
Typenumber (Long): JH 19T02 MMC
TFT Technology: Active Matrix, Thin Film Transistor (TFT), MVA Premium™ Technology
Viewable Size and Active Area: 19.0 inch - 376.32 [14.82"] (H) x 301.056 [11.85"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1280 x 1024 (SXGA) - 0.294 (H) x 0.294 (V) mm
Aspect Ratio and Response Time: 5:4 - 15 ms (typical), "black" to "white"
Light Intensity and Contrast Ratio: 300 cd/m² (typ) - 700:1 (typ)
View Angle and Max Colors: +/- 85 deg. (up/down/left/right) (typ) (@ CR > 10) - 16.7 millions
Optimal Resolution and Hz: 1280 x 1024 @ 60 Hz (If resolution is above/below 1:1, desktop scrolling mode will be used)
Detectable Resolutions: • Supported TFT Res.: From 640 x 480 up to 2048 x 1536
• RGB OUT Res: From 640 x 480 up to 1600 x 1200
Power Specifications and Consumption: Power Supply Options:
• 115&230VAC - 50 / 60Hz: Model JH 19T02 MMC-A1/A3/A6/C1
• 24 VDC: Model JH 19T02 MMC-A2/C2

Power Consumption - Operating:
100W (max) (Configuration depending)
75W (typ) (Max backlight&high CPU load)
Product Features: Dimmable 0-100%, AC or DC Model, Standard Profile PCI Support, Internal PC/104 support
Installed Operating System (OS): None, please specify when ordering
Storage Options: 1 x Automotive HDD, see "Common Type Numbers"
CPU / Processor Options: Intel® Pentium® M 1.1GHz, Low Voltage, 1MB Level 2 Cache / 400 MHz BUS
Memory Options: 1 x SODIMM with ECC, Max 1GB
System Chipset / Graphics Chipset: Intel® 855GME / Intel® 82855GME (Integrated/250MHz)
BIOS / Buzzer: Phoenix 2Mbit Flash, Supports ACPI / Buzzer: None
Power Manager and Monitoring: N/A

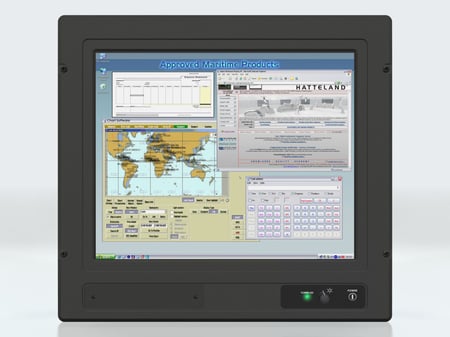

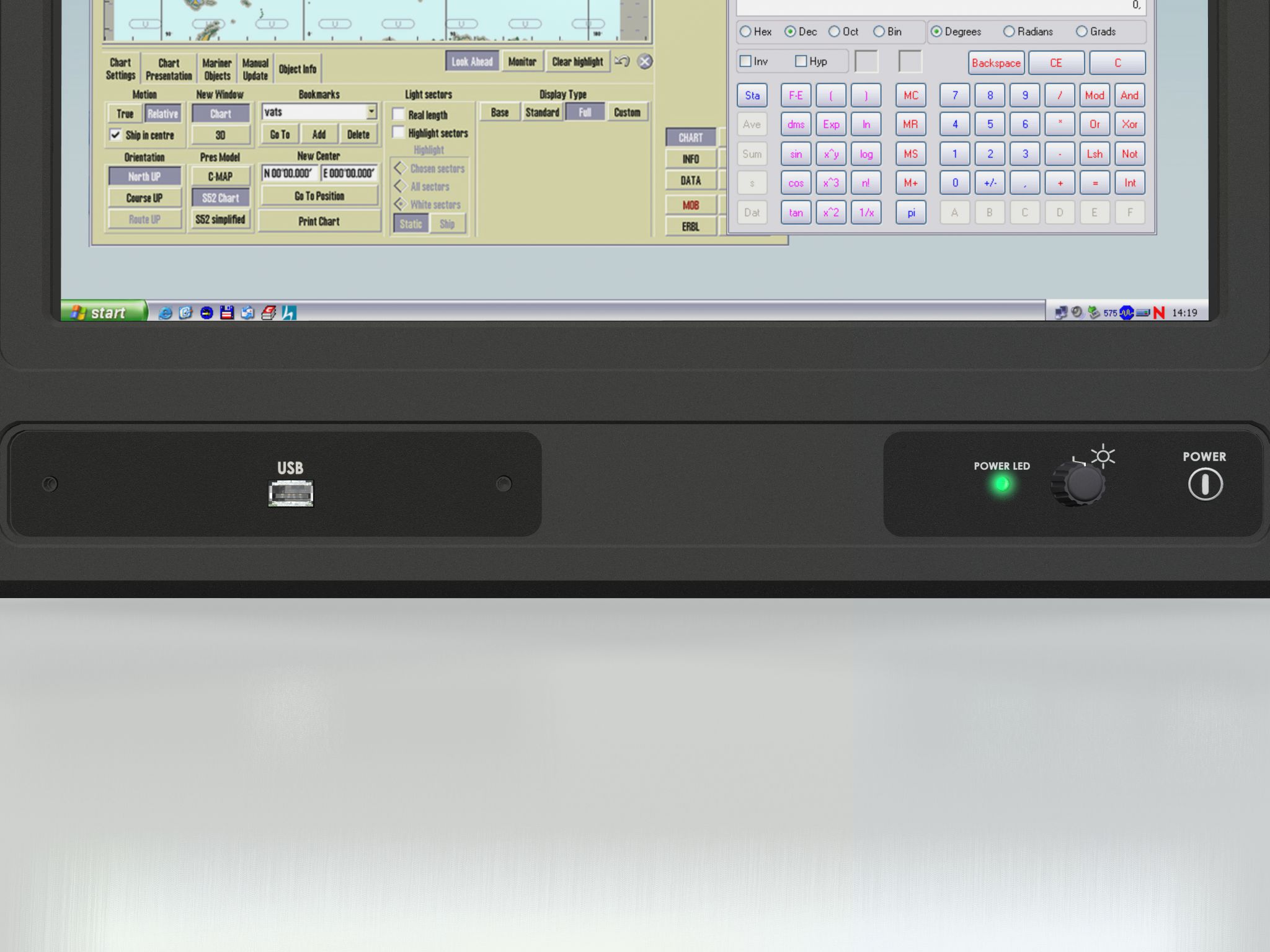

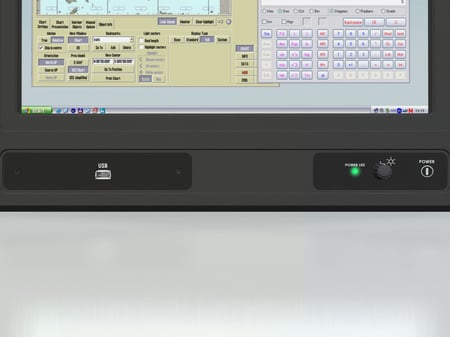

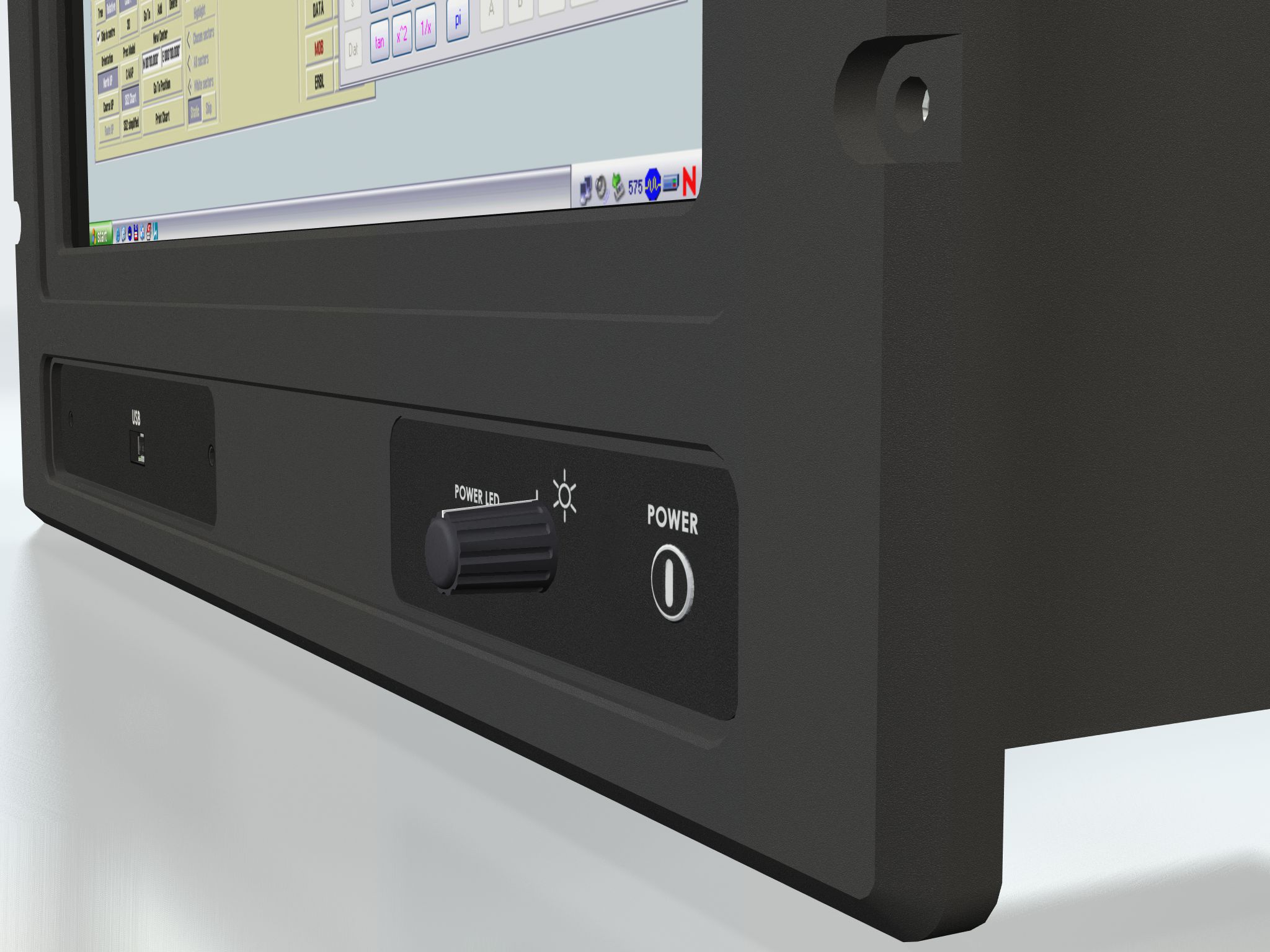

User Controls and Activity: On front bezel:
• Power On/Off (push button), Brightness Control&Power LED

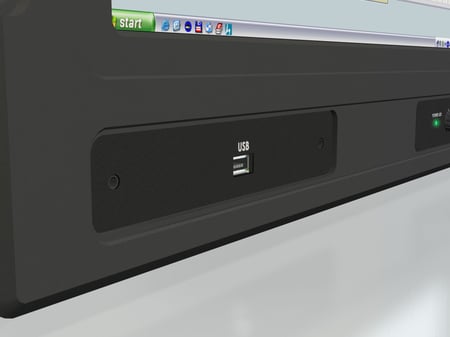

Behind IP66 rated hatch:
• USB 2.0 connector

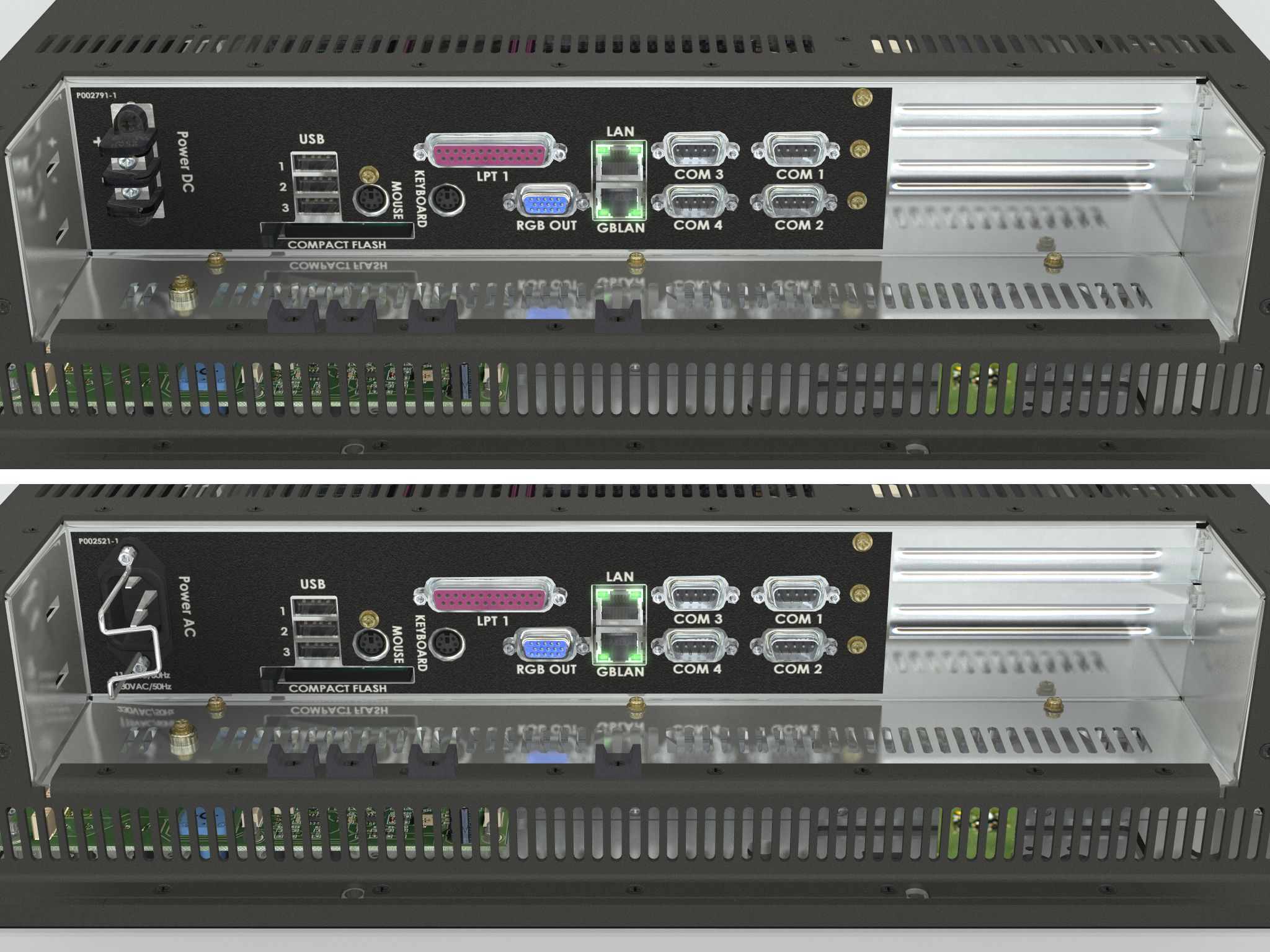

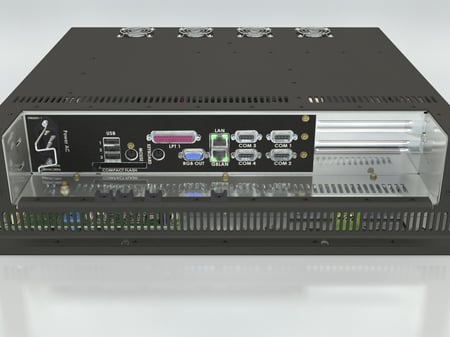

Connectors: • Ethernet GBLAN 10/100/1000Mbps: 1 x RJ45
• Ethernet LAN 10/100Mbps: 1 x RJ45
• Keyboard: 1 x PS/2
• Mouse: 1 x PS/2
• COM: 4 x RS232/RS422/RS485 (fully isolated in RS422/485 mode)
• LPT/Parallel: 1 x DB25F Bi-Directional/ECP/EPP
• USB: 4 x USB2.0 compliant (1 x front, 3 x back)
• If AC Power IN: Std IEC inlet
• If DC Power IN: DC Screw terminal
• RGB Out: 1 x DB15
• Line In/Out: 3.5mm mini jack
• Mic In: 3.5mm mini jack
• TV Out: 1 x Composite RCA (depends on model)

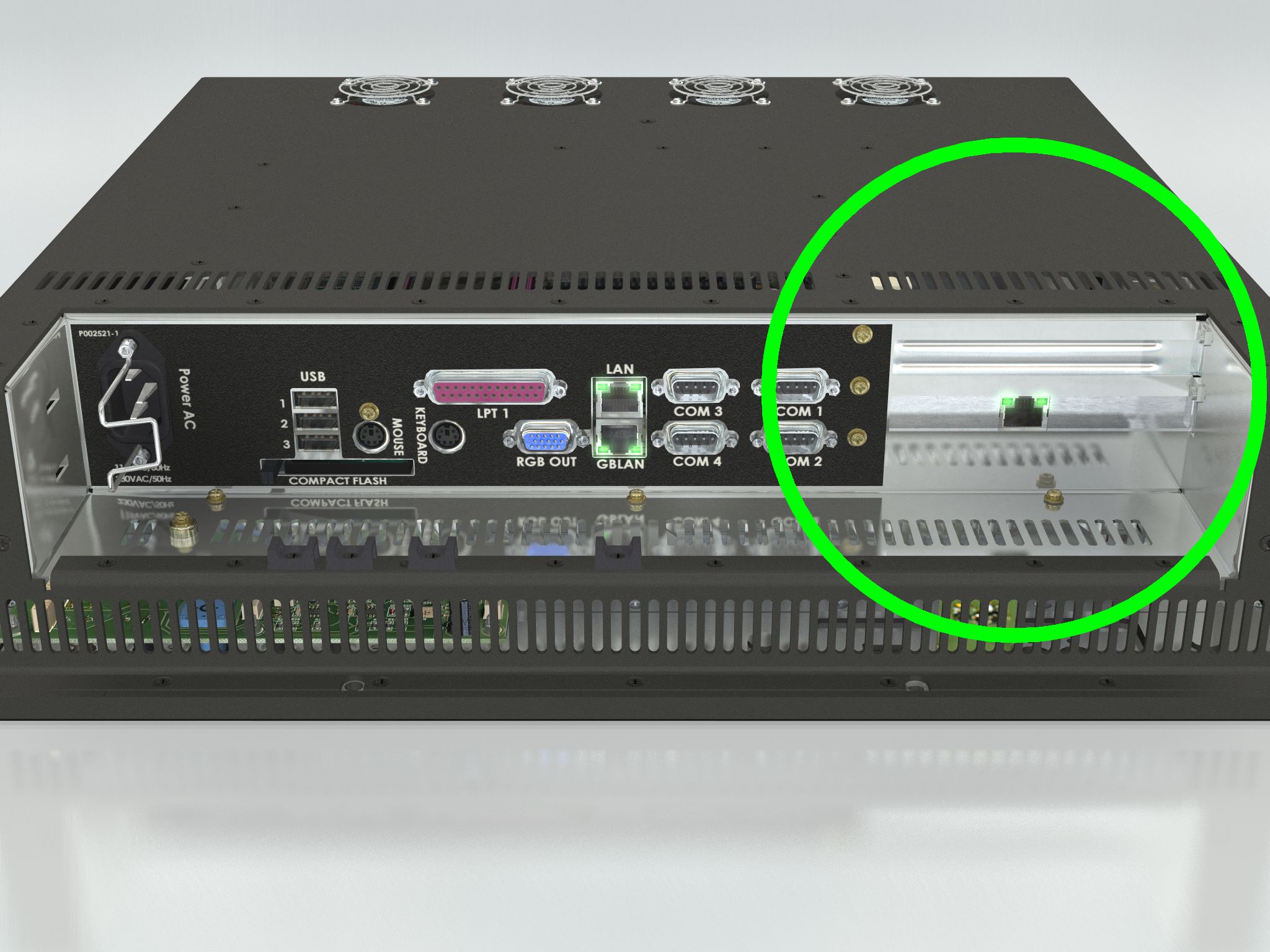

• PCI Slot: 2 x Short length, Standard Profile, Limited height
• PC/104 Slot: 1 x PC/104 with ISA Support
Product Dimensions and Weight: W:483.00 [19.02"] x H:444.00 [17.48"] x D:114 [4.39"] mm [inch]
Approx 11 kg (approx)
Product Carton Size and Weight: N/A
Factory Options: • Touch Screen
• Audio AC97 Compliant: Line In/Out, Mic In, Speaker Out
• TV-Out: 1 x Composite (Depends on model)
• Processor: Up to 1.8 GHz
• Memory: Up to 1GB

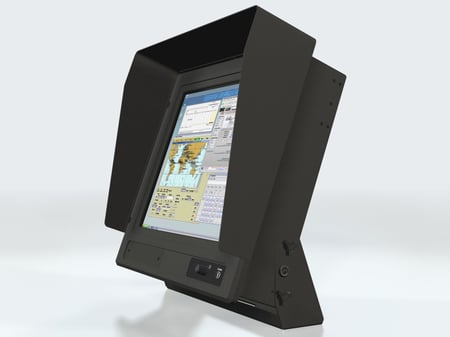

Accessories: • JH 19TSV: Sun visor

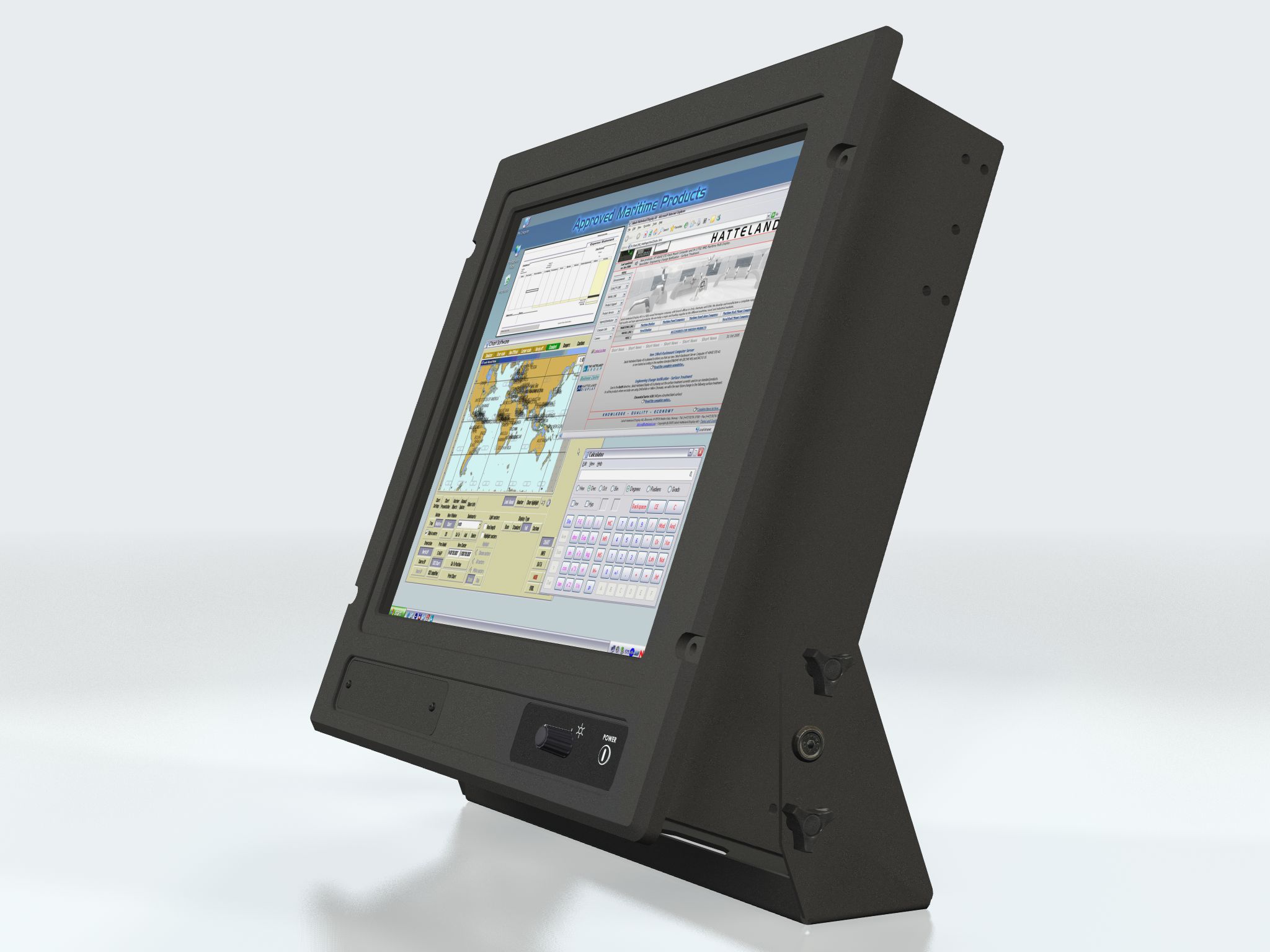

• JH 19TBRMMC-B1: Bracket
• JH 19TAP STD: 19" adapter frame/plate to 21" CRT
• P005335-1: Front Label with HDD LED and Reset Button Aperture
Capabilities / Prepared for: None
Operating Temperature: -15.0°C / 5.0°F to +55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature: -20.0°C / -4.0°F to +70.0°C / 158.0°F, Humidity up to 95%
IP Rating: IP66
Compass Safe Distance: Standard: 75.00 [29.53"] - Steering: 55.00 [21.65'] cm [inch]
Type Approval, Testing and Certificates: EN60945 4th (IEC945 4th), EN61174 (IEC1174) - Bundesamt für Seeschiffahrt und Hydrographie (BSH) (Only AC models), IACS E10, GL - Germanischer Lloyd, BV - Bureau Veritas, ABS - American Bureau of Shipping, LRS - Lloyd's Register of Shipping, ClassNK - Nippon Kaiji Kyokai, DNV - Det Norske Veritas, RS - Russian Maritime Register of Shipping
Specifications last updated: August 21, 2025 @ 10:14
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

10 Jan 2023
Updated, JH 19BRD STD-A1 is replaced by the HD TMB STD-...

27 Mar 2009
JH 19T02 MMC - New version of LCD panel

2 Oct 2008
HDD LED, Reset Button Aperture and IP66 - MMC Panel Com...

11 Dec 2006
Minor change of components regarding the fan control an...

End of Life Notifications (EOL):
2 Jun 2009
JH 15T05 MMC and JH 19T02 MMC Maritime Multi Computers,...

17 Oct 2005
Windows® 2000 retirement

Obsolete
