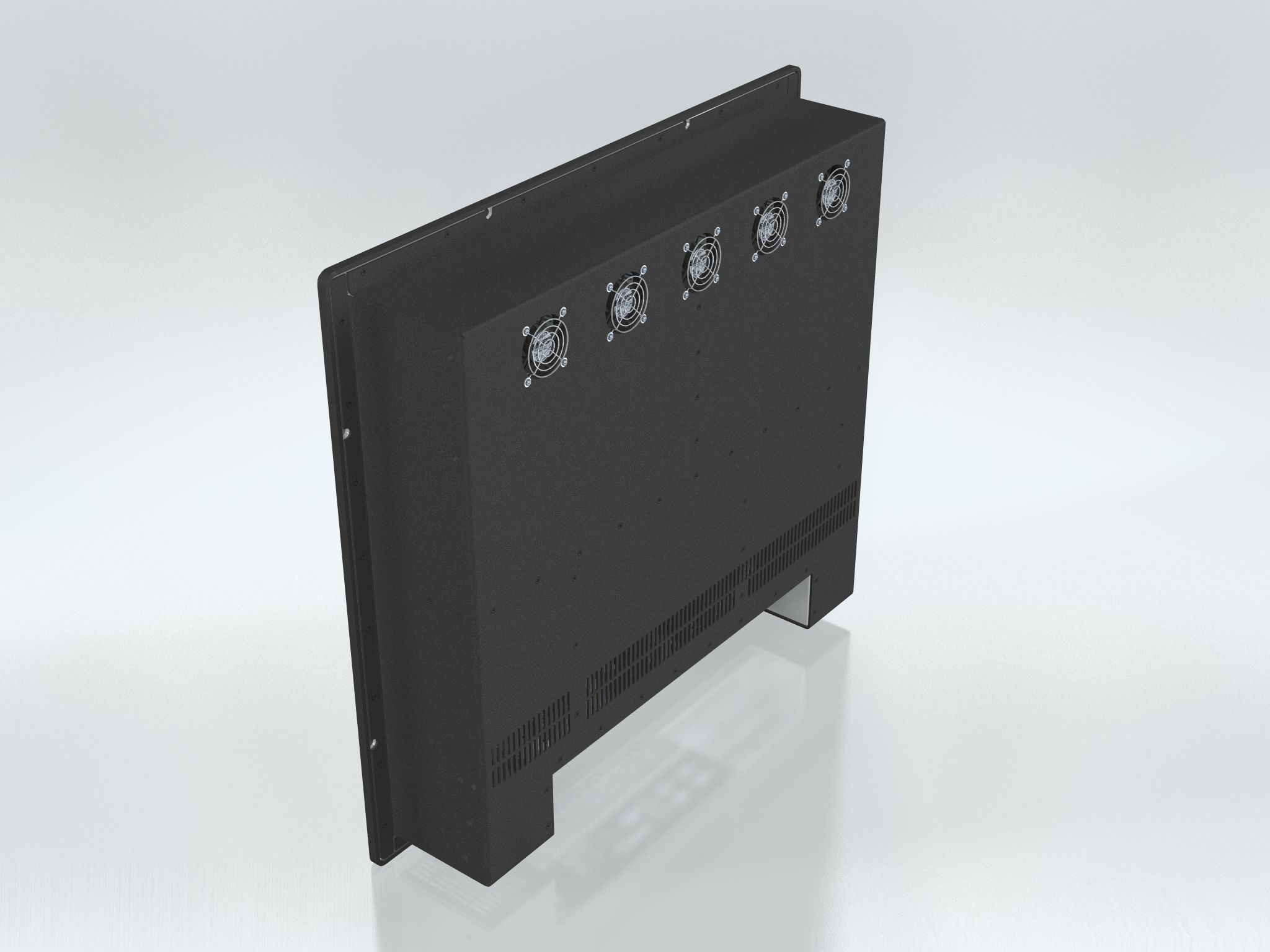

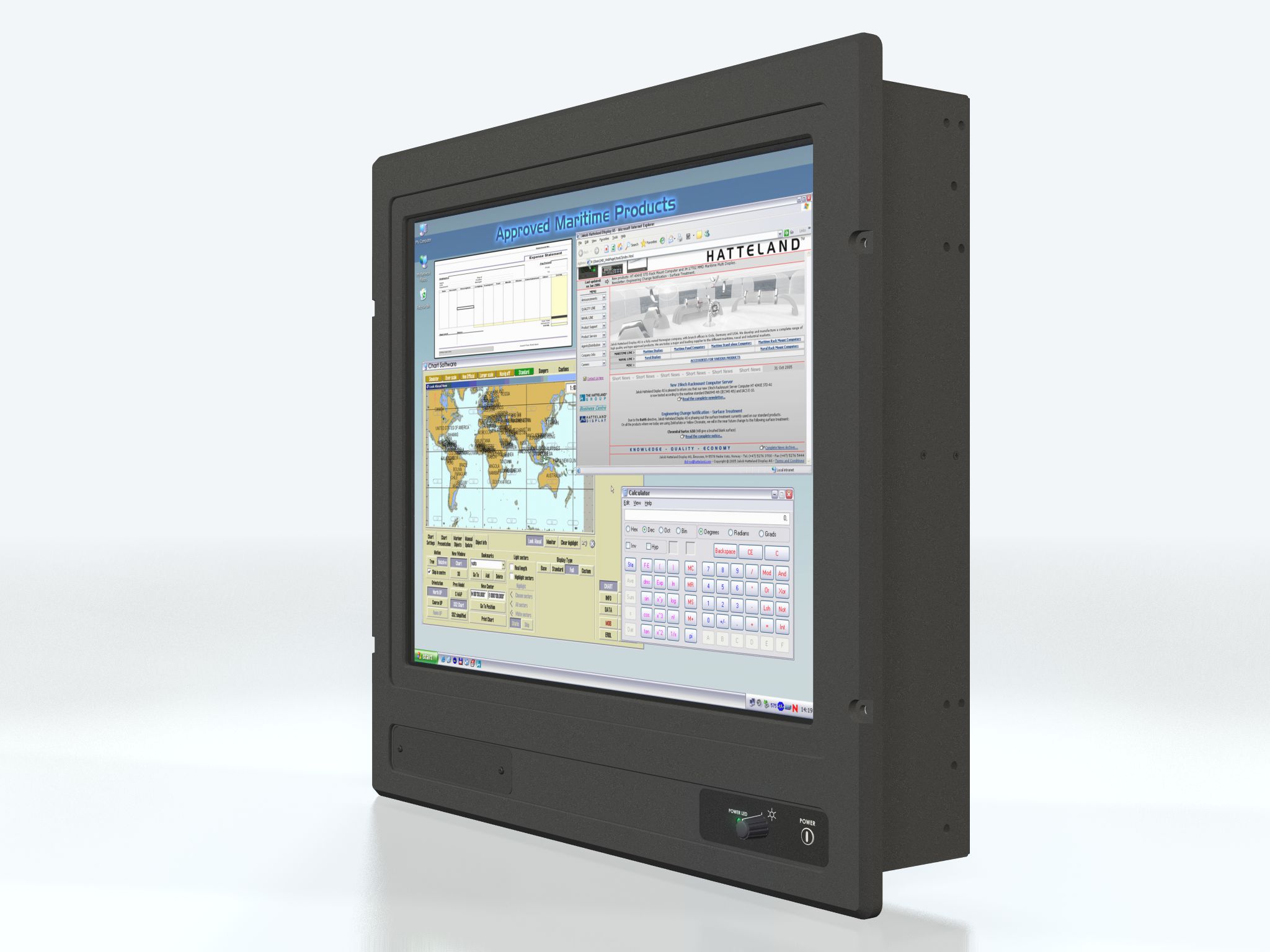

JH 23T02 MMC

Overview

Panel Computer - CCFL - HATTELAND® Series 0 - 23.1 inch

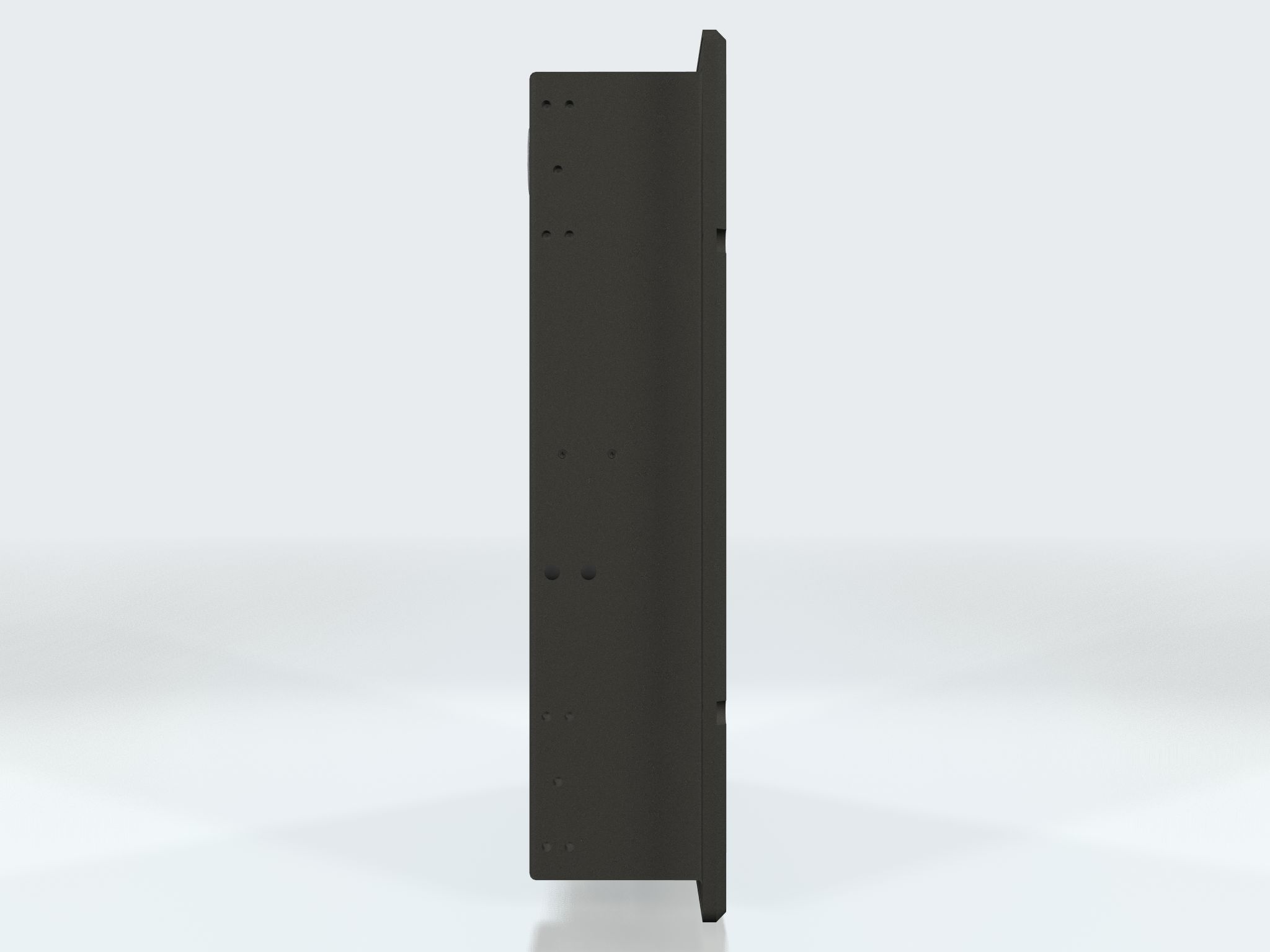

JH 23T02 MMC

The combination of the reliable design of the marine TFT-LCD modules, together with industrial computer boards make this product suitable for customer applications where space is critical, and full function is desired in a single unit.

icon
CCFL-backlit
Send Request
Description

Panel Computer - HATTELAND® Series 0

In particular, the mainboard allows full flexibility when it comes to processor choice. With multiple useful standard components this is an highly attractive commercial package. This unit is equipped with a 1.1GHz Intel® Pentium®M processor as standard and accepts up to 1 GB RAM and features RGB OUT. Brightness is adjustable from 0 to 100%.
Specifications
Typenumber (Long): JH 23T02 MMC
TFT Technology: High Quality SHARP TFT, TFT active-matrix liquid crystal panel, MVA (Multi-domain Vertical Alignment) LCD Technology
Viewable Size and Active Area: 23.1 inch - 470.04 [18.52"] (H) x 352.8 [13.89"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1280 x 1024 (SXGA) - 0.294 (H) x 0.294 (V) mm
Aspect Ratio and Response Time: 4:3 - 20 ms (typical), "black" to "white"
Light Intensity and Contrast Ratio: 250 cd/m² (typ) - 500:1 (typ)
View Angle and Max Colors: +/- 85 deg. (up/down/left/right) (typ) (@ CR > 10) - 16.7 millions
Optimal Resolution and Hz: 1600 x 1200 @ 60 Hz (If resolution is above/below 1:1, desktop scrolling mode will be used)
Detectable Resolutions: • Supported TFT Res.: From 640 x 480 up to 2048 x 1536
• RGB OUT Res: From 640 x 480 up to 1600 x 1200

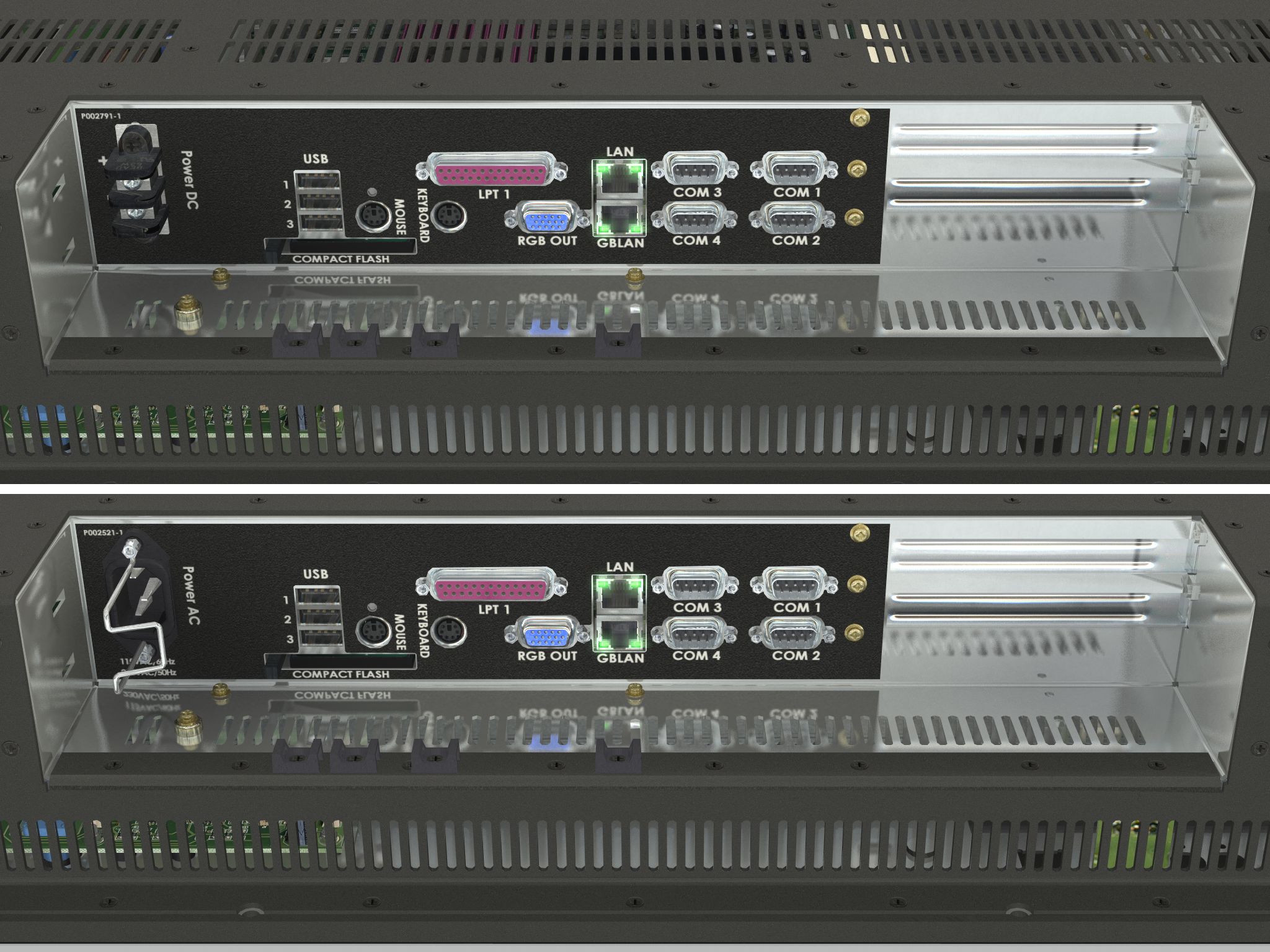

Power Specifications and Consumption: Power Supply Options:
• 115&230VAC - 50 / 60Hz: Model JH 23T02 MMC-A1
• 24 VDC: Model JH 23T02 MMC-A2*
*(tests pending)

Power Consumption - Operating:
100W (max) (Configuration depending)
75W (typ) (Max backlight&high CPU load)
Product Features: Dimmable 0-100%, AC or DC Model, Standard Profile PCI Support, Internal PC/104 support
Installed Operating System (OS): None, please specify when ordering
Storage Options: 1 x Automotive 40GB, 2.5" HDD IDE, 4200 RPM
CPU / Processor Options: Intel® Pentium® M 1.1GHz, Low Voltage, 1MB Level 2 Cache / 400 MHz BUS
Memory Options: 1 x SODIMM with ECC, from 256MB->1GB
System Chipset / Graphics Chipset: Intel® 855GME / Intel® 82855GME (Integrated/250MHz)
BIOS / Buzzer: Phoenix 2Mbit Flash, Supports ACPI / Buzzer: None
Power Manager and Monitoring: N/A

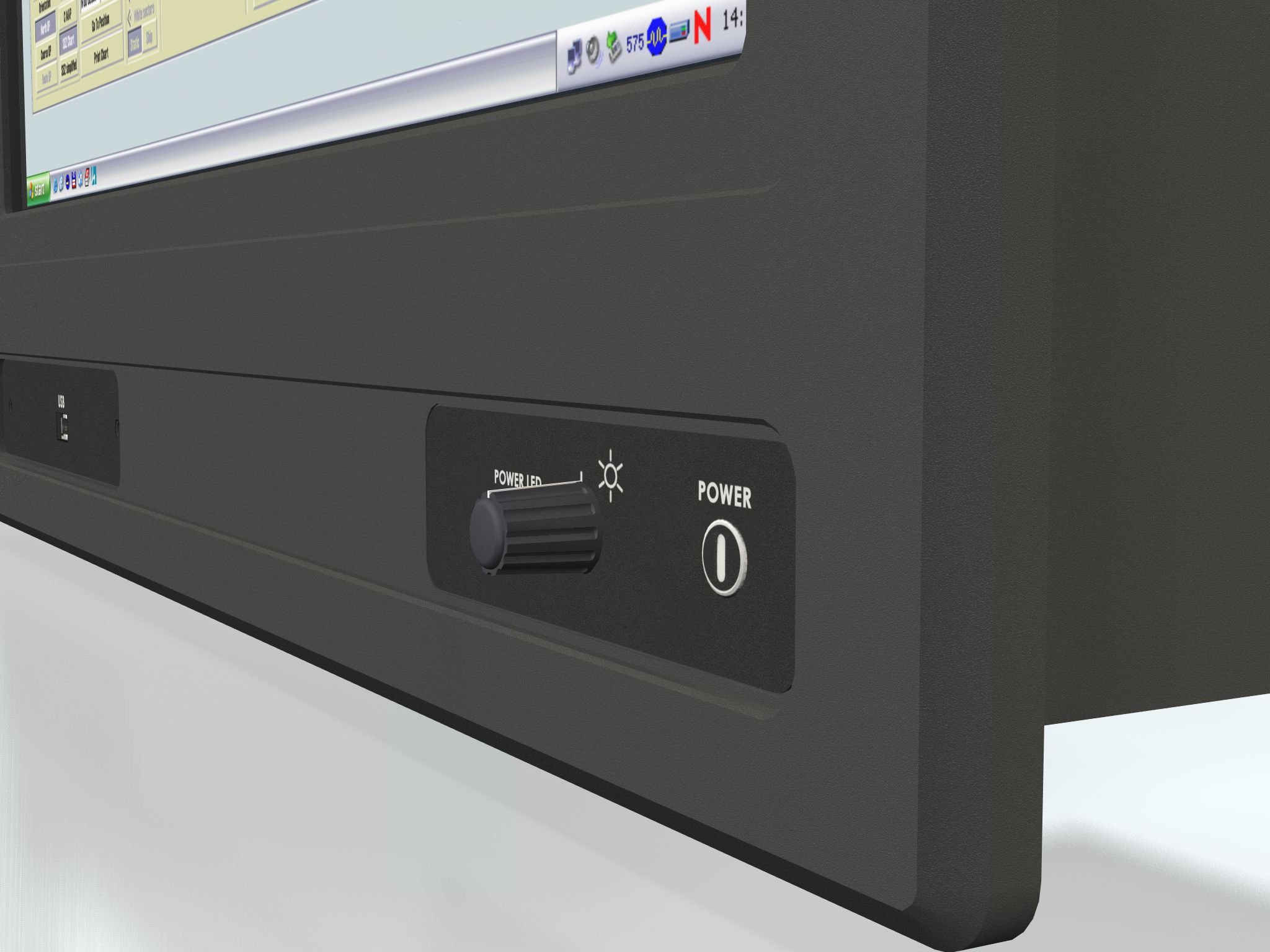

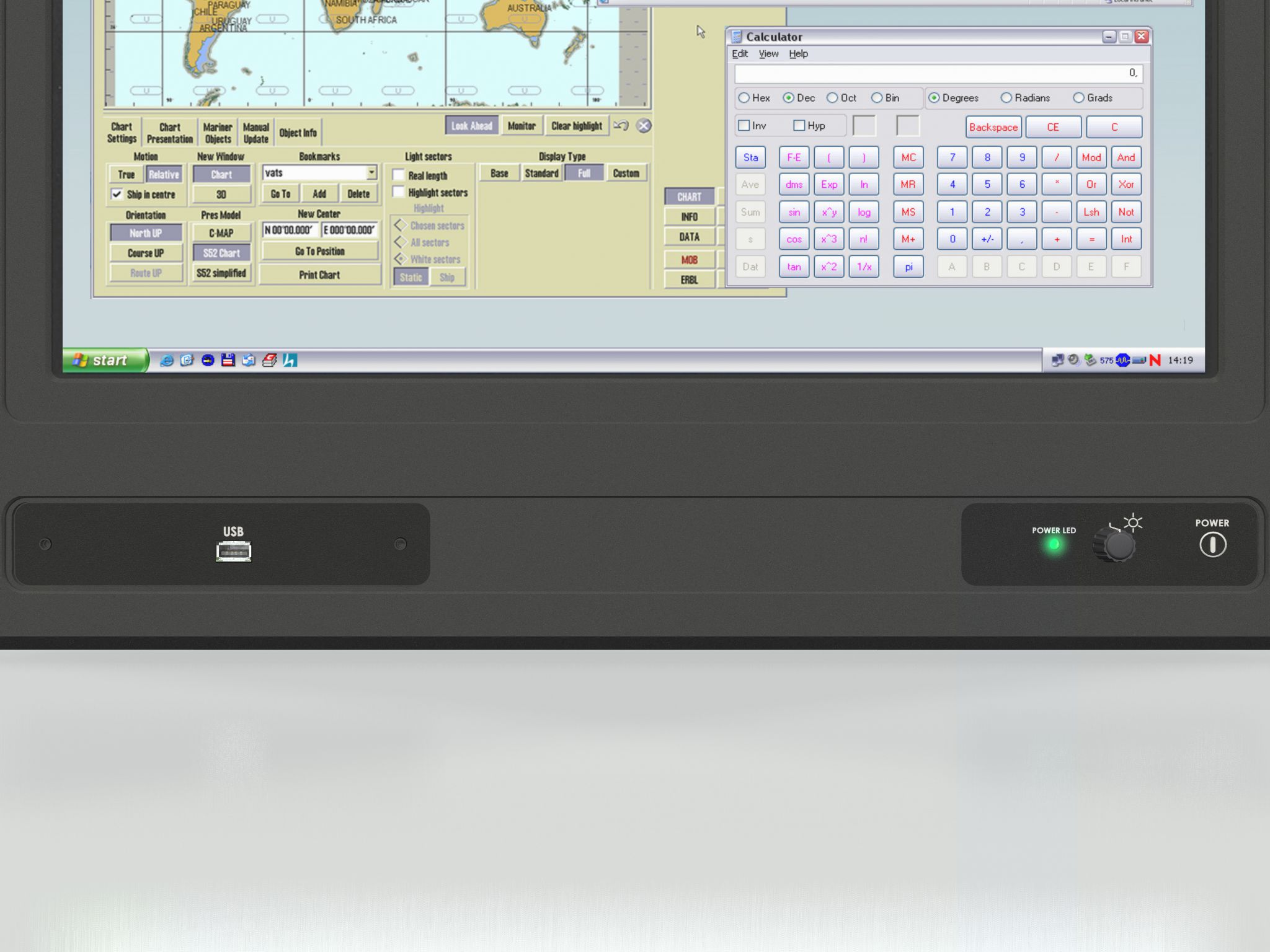

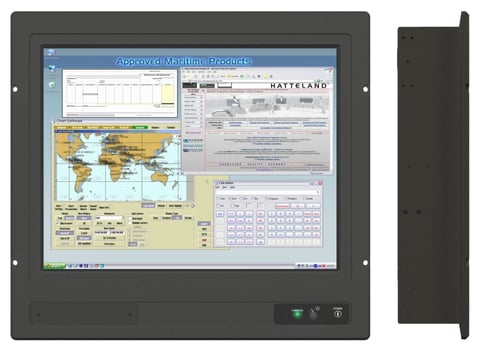

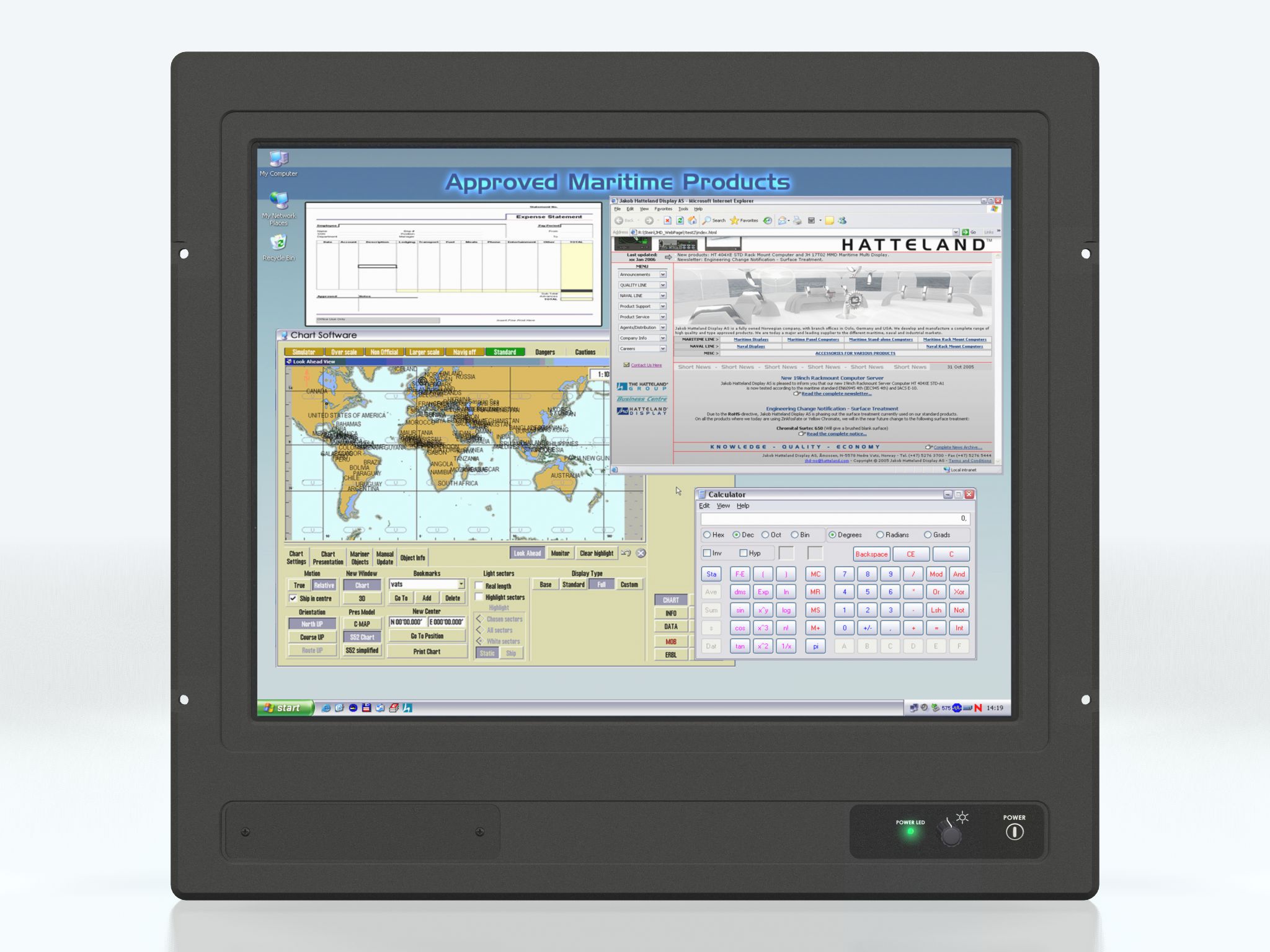

User Controls and Activity: On front bezel:
• Power On/Off (push button)
• Brightness Control
• Power LED

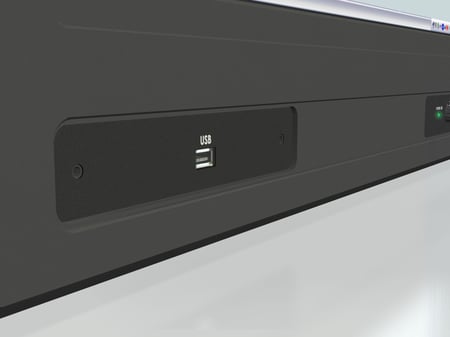

Behind IP66 rated hatch:

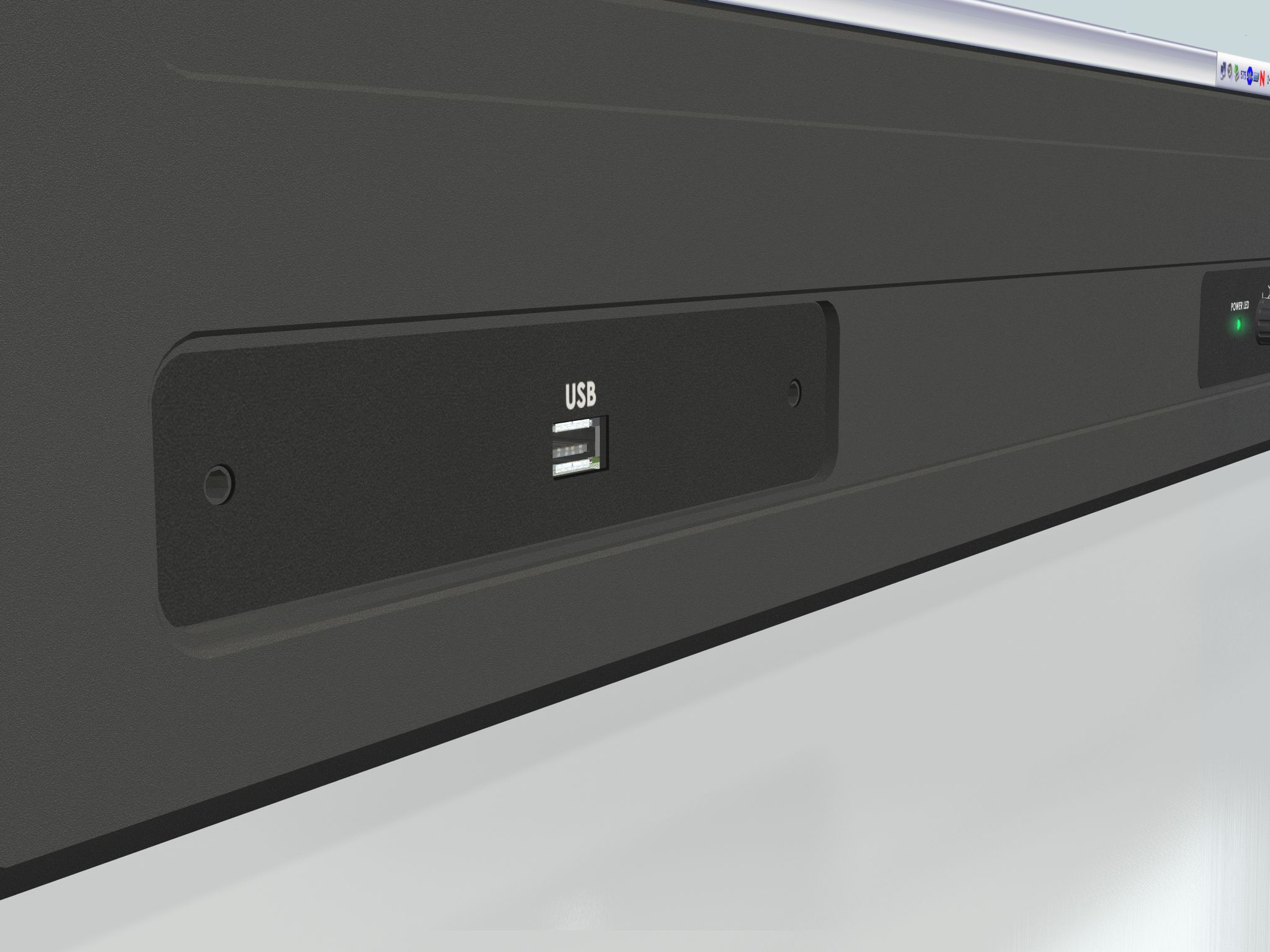

• USB 2.0 connector

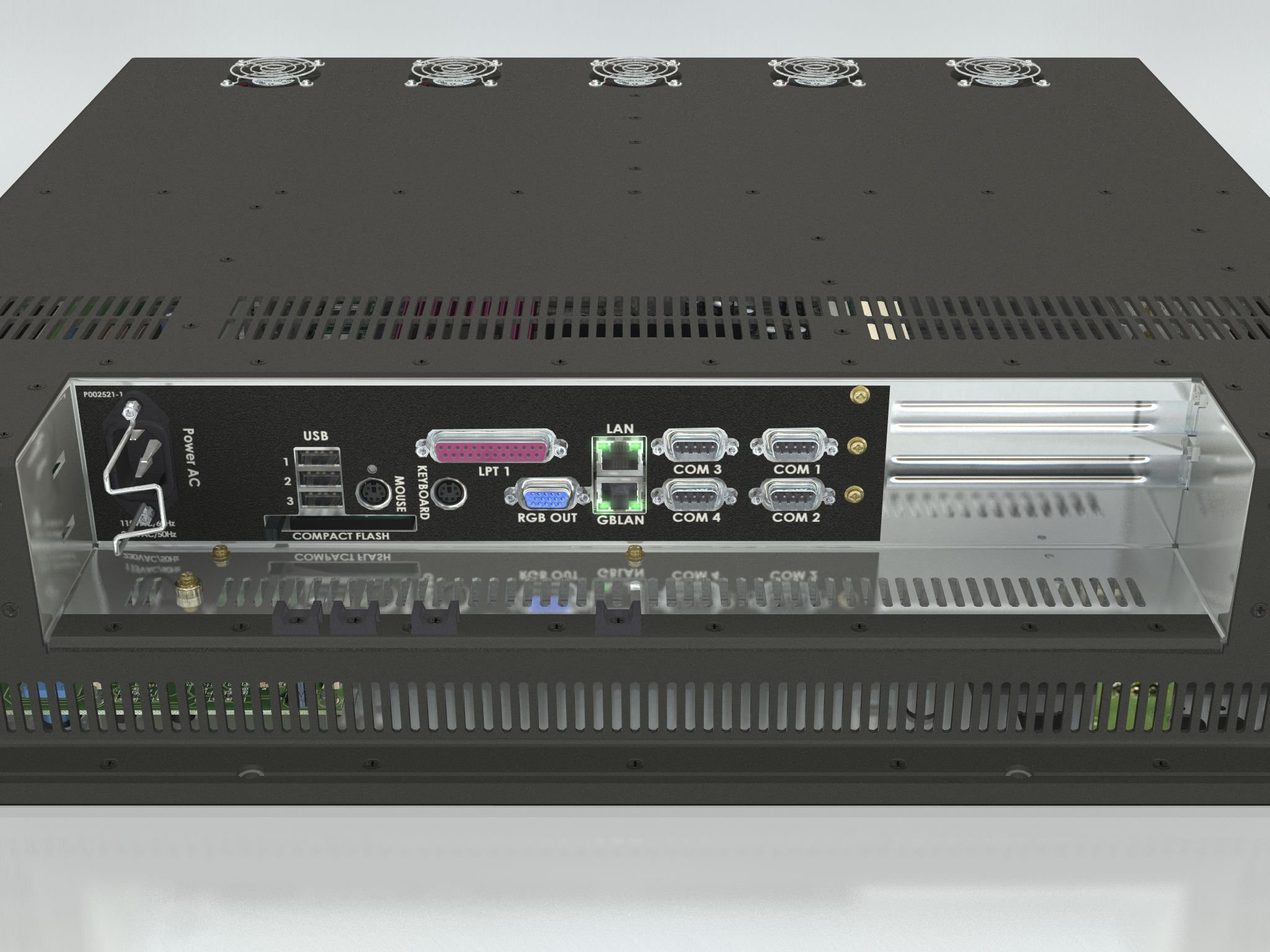

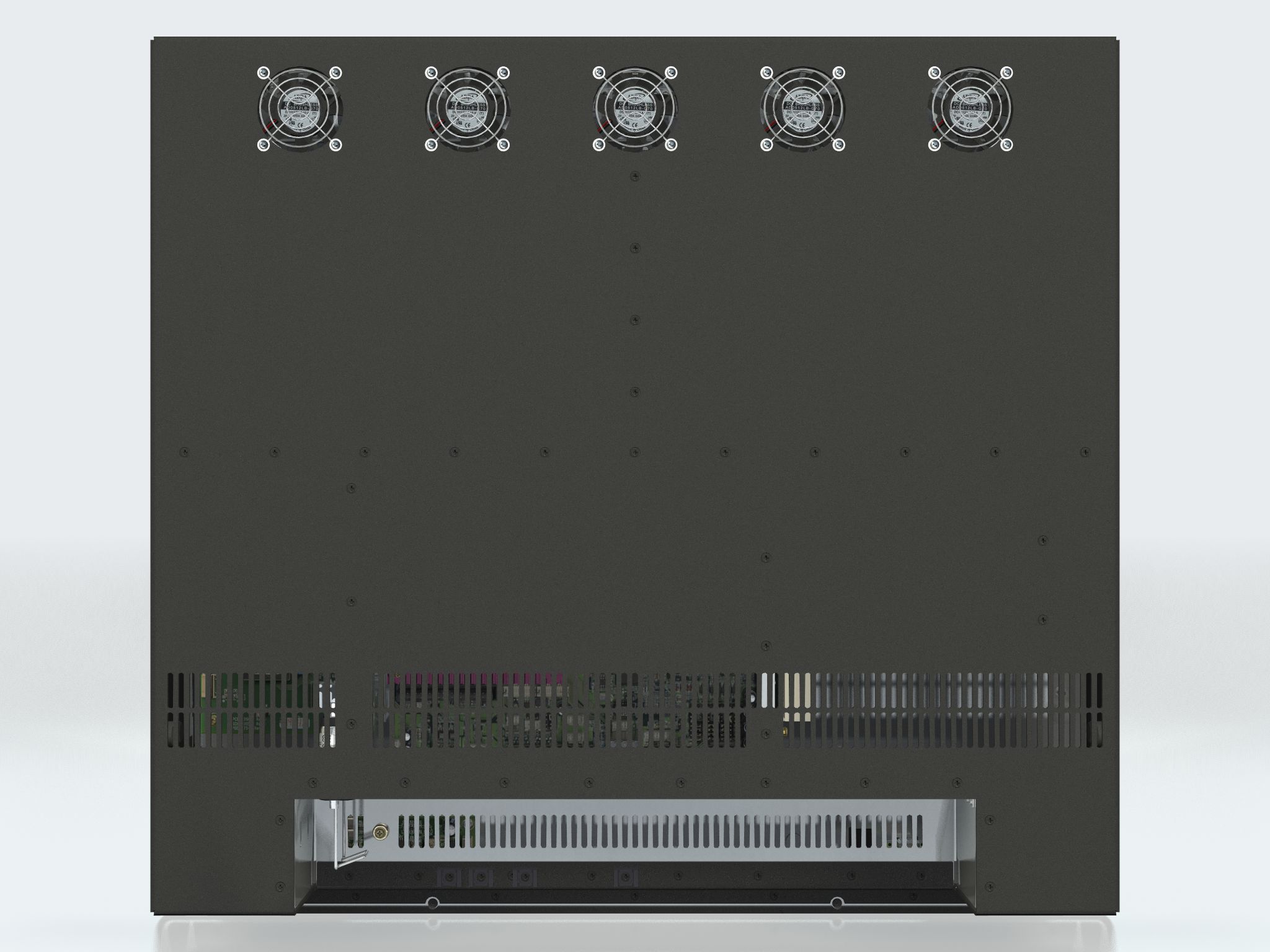

Connectors: • Ethernet GBLAN 10/100/1000Mbps: 1 x RJ45
• Ethernet LAN 10/100Mbps: 1 x RJ45
• Keyboard: 1 x PS/2
• Mouse: 1 x PS/2
• Compact Flash: 1 x CF Socket with Eject (Type I&II)
• COM: 4 x RS232/RS422/RS485 (fully isolated in RS422/485 mode)
• LPT/Parallel: 1 x DB25F Bi-Directional/ECP/EPP
• USB: 4 x USB2.0 compliant (1 x front, 3 x back)
• If AC Power IN: Std IEC inlet
• If DC Power IN: DC Screw terminal
• RGB Out: 1 x HD-15F
• Line In/Out: 3.5mm mini jack
• Mic In: 3.5mm mini jack
• TV Out: 1 x Composite RCA (depends on model)

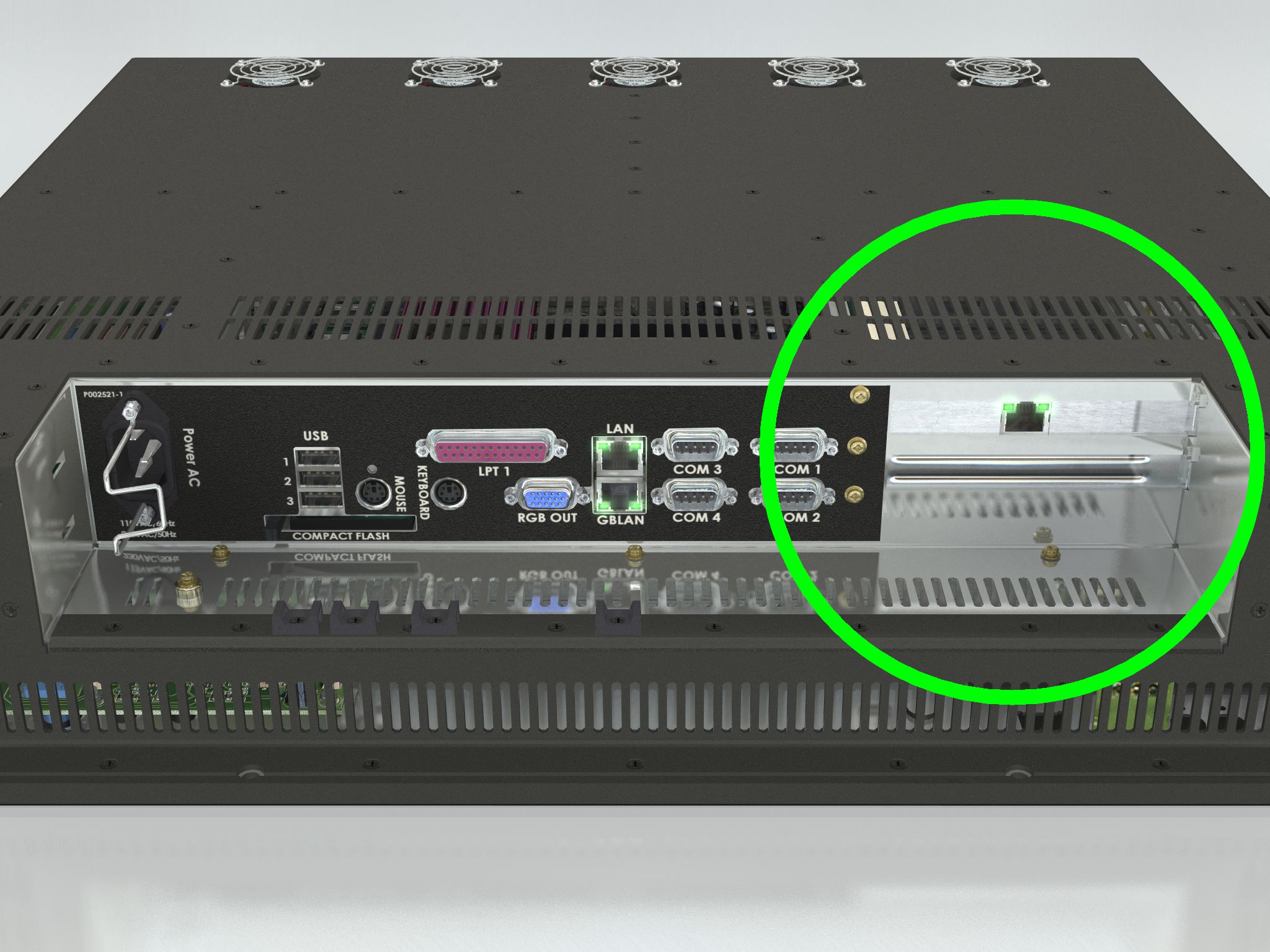

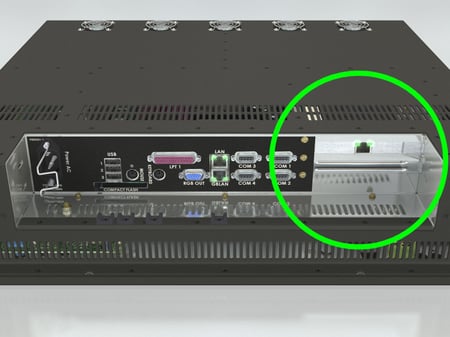

• PCI Slot: 2 x Short length, Standard Profile, Limited height
• PC/104 Slot: 1 x PC/104 with ISA Support

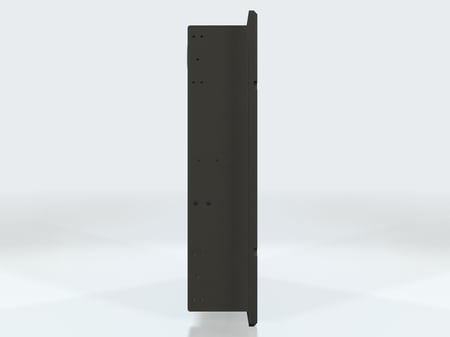

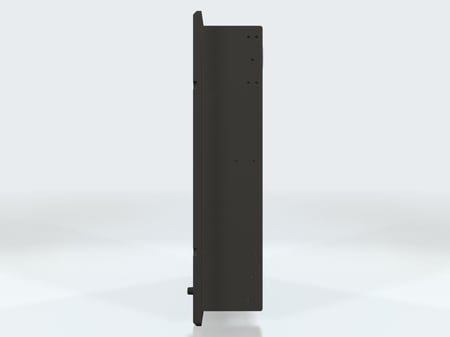

Product Dimensions and Weight: W:584.00 [22.99"] x H:534.00 [21.02"] x D:119 [4.69"] mm [inch]
Approx 18 kg (approx)
Product Carton Size and Weight: N/A
Factory Options: • Touch Screen
• Audio AC97 Compliant: Line In/Out, Mic In, Speaker Out
• TV-Out: 1 x Composite (Depends on model)
• Processor: Up to 1.8 GHz
• Memory: Up to 1GB

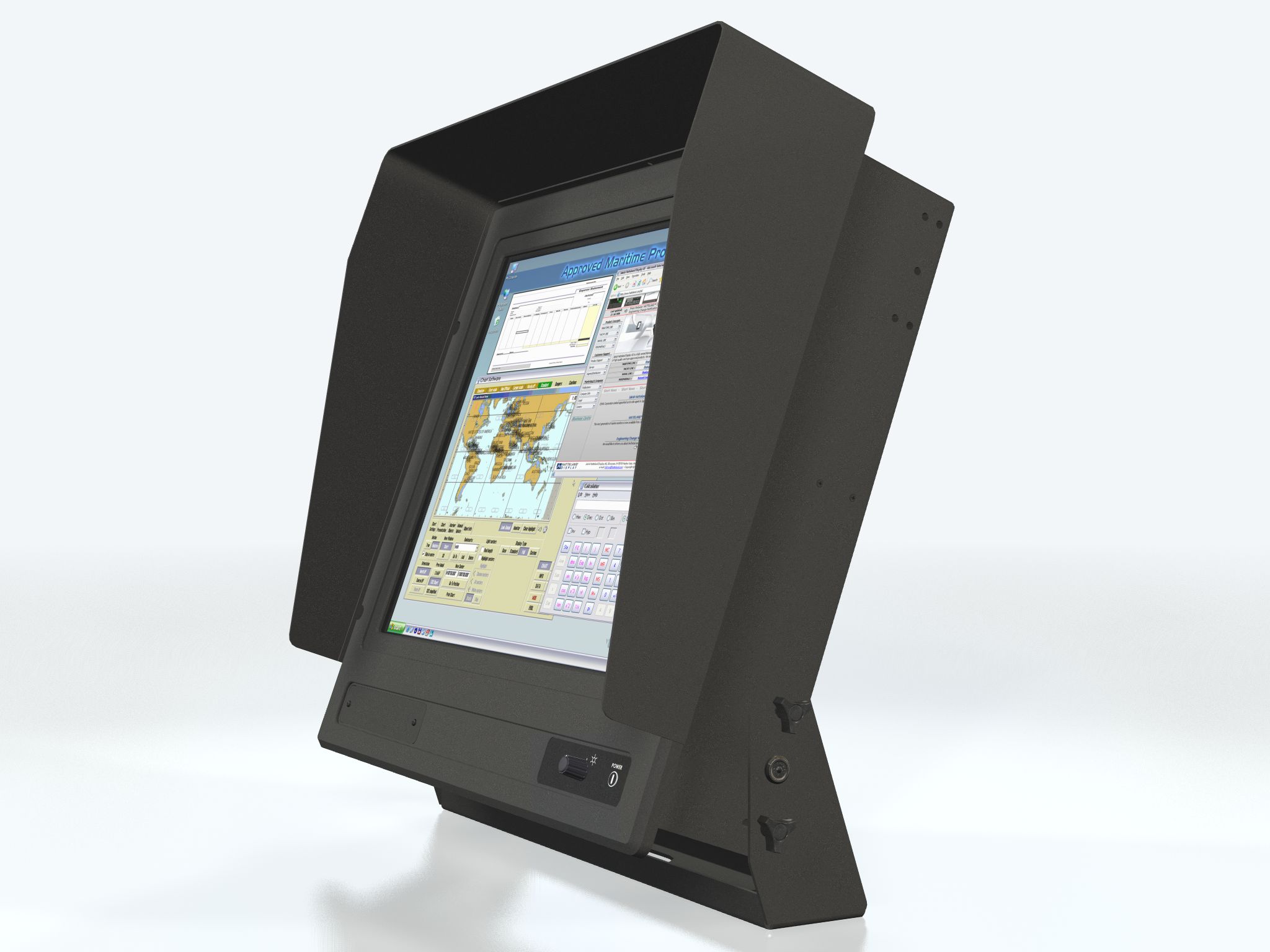

Accessories: • JH 23TSV: Sun visor
• JH 23TBRMMC-B1: Bracket
• P005335-1: Front Label with HDD LED and Reset Button Aperture
Capabilities / Prepared for: None
Operating Temperature: -15.0°C / 5.0°F to +55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature: -20.0°C / -4.0°F to +70.0°C / 158.0°F, Humidity up to 95%
IP Rating: IP66
Compass Safe Distance: Standard: 175.00 [68.90"] - Steering: 140.00 [55.12'] cm [inch]
Type Approval, Testing and Certificates: EN60945 4th (IEC945 4th), DNV - Det Norske Veritas (1), BV - Bureau Veritas (1,2), IACS E10, RS - Russian Maritime Register of Shipping (1,2), ABS - American Bureau of Shipping (1,2), ClassNK - Nippon Kaiji Kyokai (1,2), GL - Germanischer Lloyd (1,2), LRS - Lloyd's Register of Shipping (1,2)

(1=AC Version, 2=DC Version)
Specifications last updated: August 21, 2025 @ 10:14
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

2 Oct 2008
HDD LED, Reset Button Aperture and IP66 - MMC Panel Com...

11 Dec 2006
Minor change of components regarding the fan control an...

End of Life Notifications (EOL):
2 Sep 2009
JH 10T08 MMC and JH 23T02 MMC Maritime Multi Computers,...

17 Oct 2005
Windows® 2000 retirement

Obsolete
loading
arrow-left
arrow-right

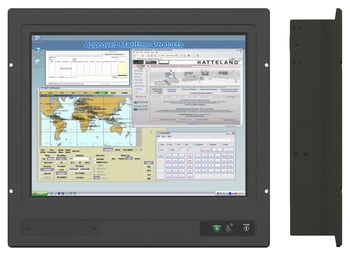

JH 23T02 MMC

Panel Computer - CCFL - HATTELAND® Series 0 - 23.1 inch

The combination of the reliable design of the marine TFT-LCD modules, together with industrial computer boards make this product suitable for customer applications where space is critical, and full function is desired in a single unit.

icon
CCFL-backlit
Send Request

HATTELAND® Series 0

Panel Computer - CCFL


In particular, the mainboard allows full flexibility when it comes to processor choice. With multiple useful standard components this is an highly attractive commercial package. This unit is equipped with a 1.1GHz Intel® Pentium®M processor as standard and accepts up to 1 GB RAM and features RGB OUT. Brightness is adjustable from 0 to 100%.
Typenumber (Long): JH 23T02 MMC
TFT Technology: High Quality SHARP TFT, TFT active-matrix liquid crystal panel, MVA (Multi-domain Vertical Alignment) LCD Technology
Viewable Size and Active Area: 23.1 inch - 470.04 [18.52"] (H) x 352.8 [13.89"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1280 x 1024 (SXGA) - 0.294 (H) x 0.294 (V) mm
Aspect Ratio and Response Time: 4:3 - 20 ms (typical), "black" to "white"
Light Intensity and Contrast Ratio: 250 cd/m² (typ) - 500:1 (typ)
View Angle and Max Colors: +/- 85 deg. (up/down/left/right) (typ) (@ CR > 10) - 16.7 millions
Optimal Resolution and Hz: 1600 x 1200 @ 60 Hz (If resolution is above/below 1:1, desktop scrolling mode will be used)
Detectable Resolutions: • Supported TFT Res.: From 640 x 480 up to 2048 x 1536
• RGB OUT Res: From 640 x 480 up to 1600 x 1200
Power Specifications and Consumption: Power Supply Options:
• 115&230VAC - 50 / 60Hz: Model JH 23T02 MMC-A1
• 24 VDC: Model JH 23T02 MMC-A2*
*(tests pending)

Power Consumption - Operating:
100W (max) (Configuration depending)
75W (typ) (Max backlight&high CPU load)
Product Features: Dimmable 0-100%, AC or DC Model, Standard Profile PCI Support, Internal PC/104 support
Installed Operating System (OS): None, please specify when ordering
Storage Options: 1 x Automotive 40GB, 2.5" HDD IDE, 4200 RPM
CPU / Processor Options: Intel® Pentium® M 1.1GHz, Low Voltage, 1MB Level 2 Cache / 400 MHz BUS
Memory Options: 1 x SODIMM with ECC, from 256MB->1GB
System Chipset / Graphics Chipset: Intel® 855GME / Intel® 82855GME (Integrated/250MHz)
BIOS / Buzzer: Phoenix 2Mbit Flash, Supports ACPI / Buzzer: None
Power Manager and Monitoring: N/A
User Controls and Activity: On front bezel:
• Power On/Off (push button)
• Brightness Control
• Power LED

Behind IP66 rated hatch:
• USB 2.0 connector
Connectors: • Ethernet GBLAN 10/100/1000Mbps: 1 x RJ45
• Ethernet LAN 10/100Mbps: 1 x RJ45
• Keyboard: 1 x PS/2
• Mouse: 1 x PS/2
• Compact Flash: 1 x CF Socket with Eject (Type I&II)
• COM: 4 x RS232/RS422/RS485 (fully isolated in RS422/485 mode)
• LPT/Parallel: 1 x DB25F Bi-Directional/ECP/EPP
• USB: 4 x USB2.0 compliant (1 x front, 3 x back)
• If AC Power IN: Std IEC inlet
• If DC Power IN: DC Screw terminal
• RGB Out: 1 x HD-15F
• Line In/Out: 3.5mm mini jack
• Mic In: 3.5mm mini jack
• TV Out: 1 x Composite RCA (depends on model)
• PCI Slot: 2 x Short length, Standard Profile, Limited height
• PC/104 Slot: 1 x PC/104 with ISA Support
Product Dimensions and Weight: W:584.00 [22.99"] x H:534.00 [21.02"] x D:119 [4.69"] mm [inch]
Approx 18 kg (approx)
Product Carton Size and Weight: N/A
Factory Options: • Touch Screen
• Audio AC97 Compliant: Line In/Out, Mic In, Speaker Out
• TV-Out: 1 x Composite (Depends on model)
• Processor: Up to 1.8 GHz
• Memory: Up to 1GB
Accessories: • JH 23TSV: Sun visor
• JH 23TBRMMC-B1: Bracket
• P005335-1: Front Label with HDD LED and Reset Button Aperture
Capabilities / Prepared for: None
Operating Temperature: -15.0°C / 5.0°F to +55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature: -20.0°C / -4.0°F to +70.0°C / 158.0°F, Humidity up to 95%
IP Rating: IP66
Compass Safe Distance: Standard: 175.00 [68.90"] - Steering: 140.00 [55.12'] cm [inch]
Type Approval, Testing and Certificates: EN60945 4th (IEC945 4th), DNV - Det Norske Veritas (1), BV - Bureau Veritas (1,2), IACS E10, RS - Russian Maritime Register of Shipping (1,2), ABS - American Bureau of Shipping (1,2), ClassNK - Nippon Kaiji Kyokai (1,2), GL - Germanischer Lloyd (1,2), LRS - Lloyd's Register of Shipping (1,2)

(1=AC Version, 2=DC Version)
Specifications last updated: August 21, 2025 @ 10:14
