PRODUCT DETAILS

✕

✕
 Marine & Offshore  / Peripheral  / HATTELAND® Joystick / Mouse  / ENX CST100N8-2048

ENX CST100N8-2048

Overview

Peripheral - HATTELAND® Joystick / Mouse - Marine Mouse / Joystick PTZ LED RED

ENX CST100N8-2048

This HATTELAND® dual function joystick unit provides a combined functionality into one single device. One modus enables the user to use the unit as a mouse pointer, the second modus will provide the user with a 3-axis joystick function.

icon
EN60945
Send Request
Description

Peripheral - HATTELAND® Joystick / Mouse

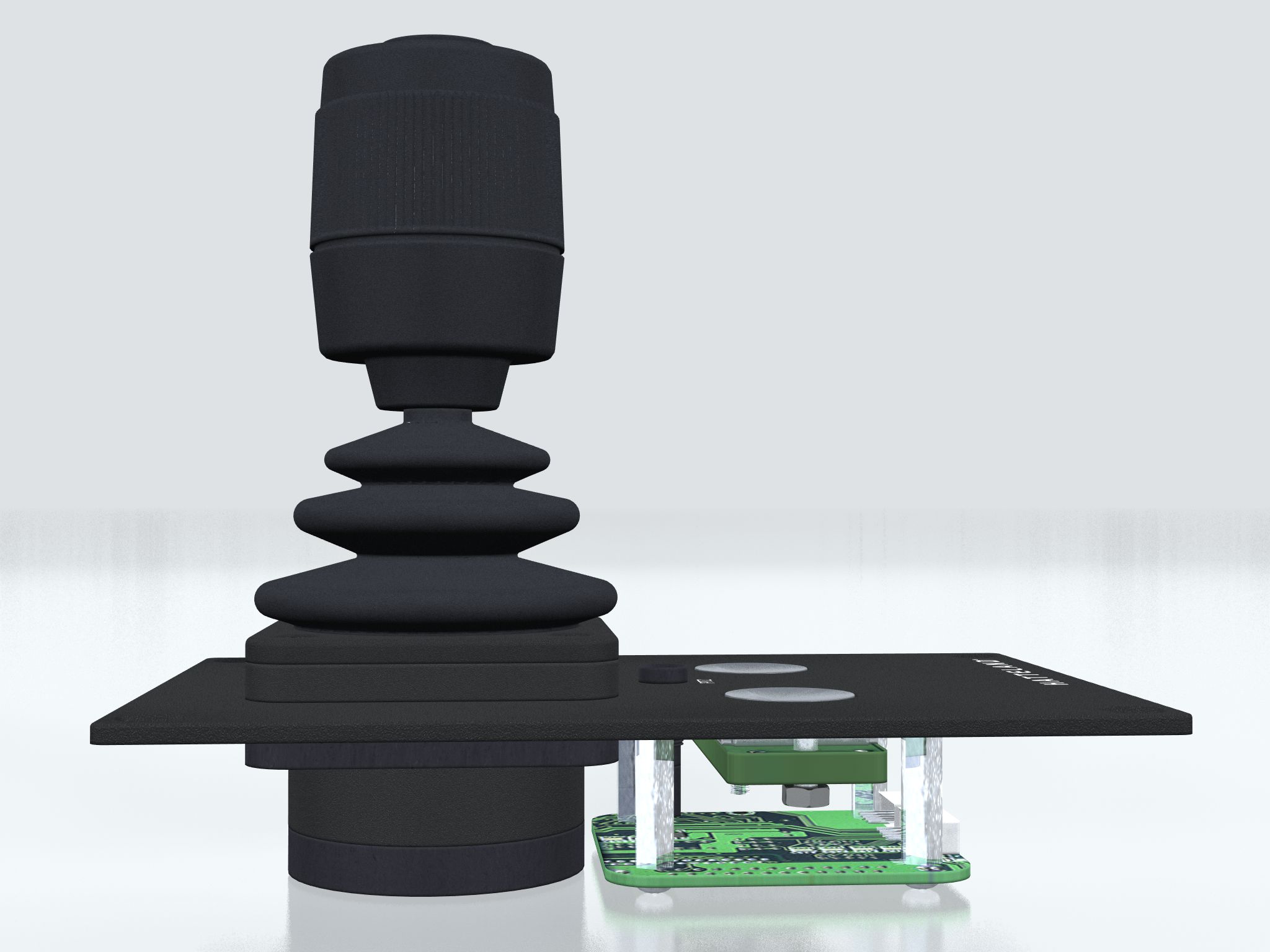

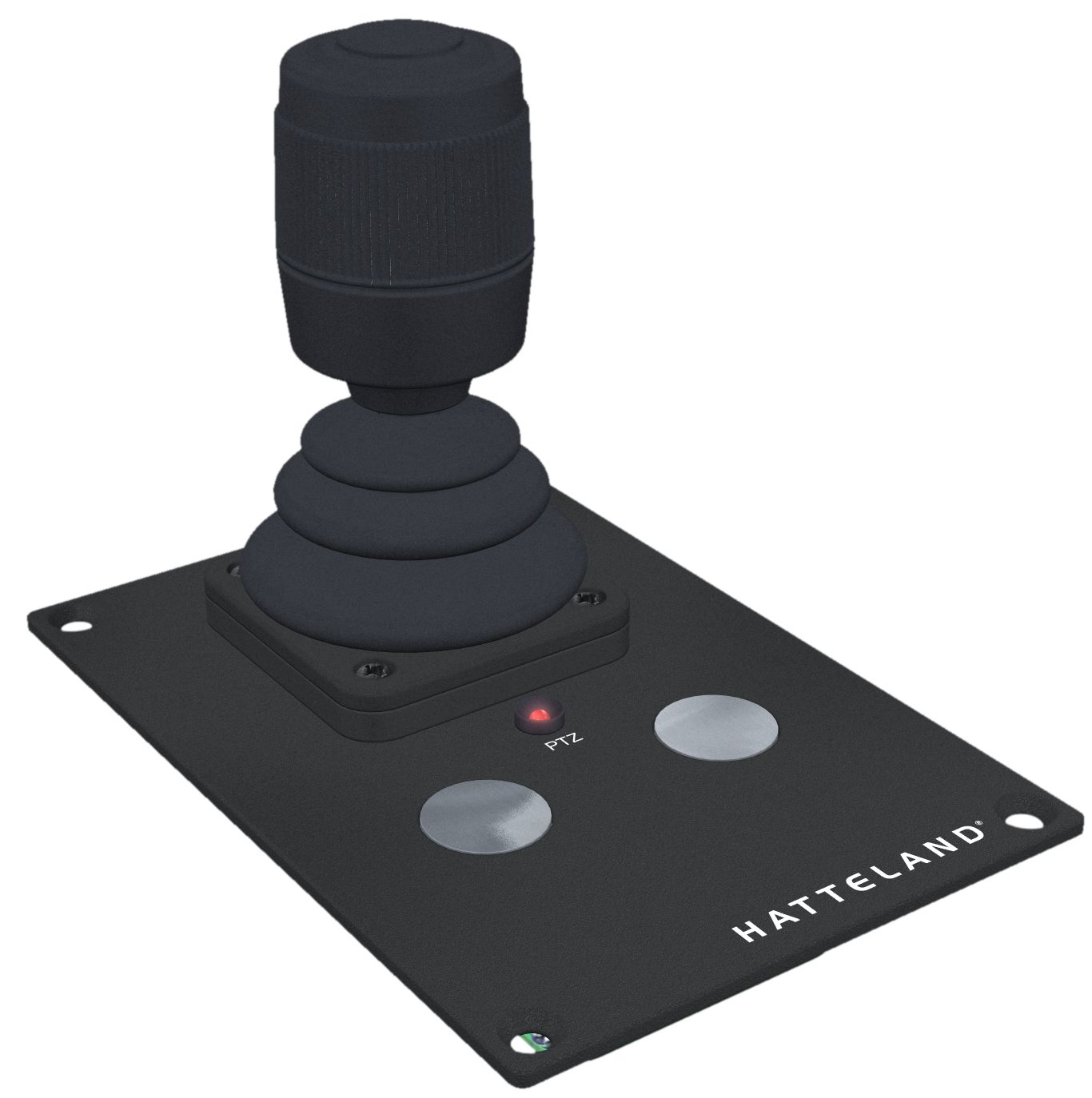

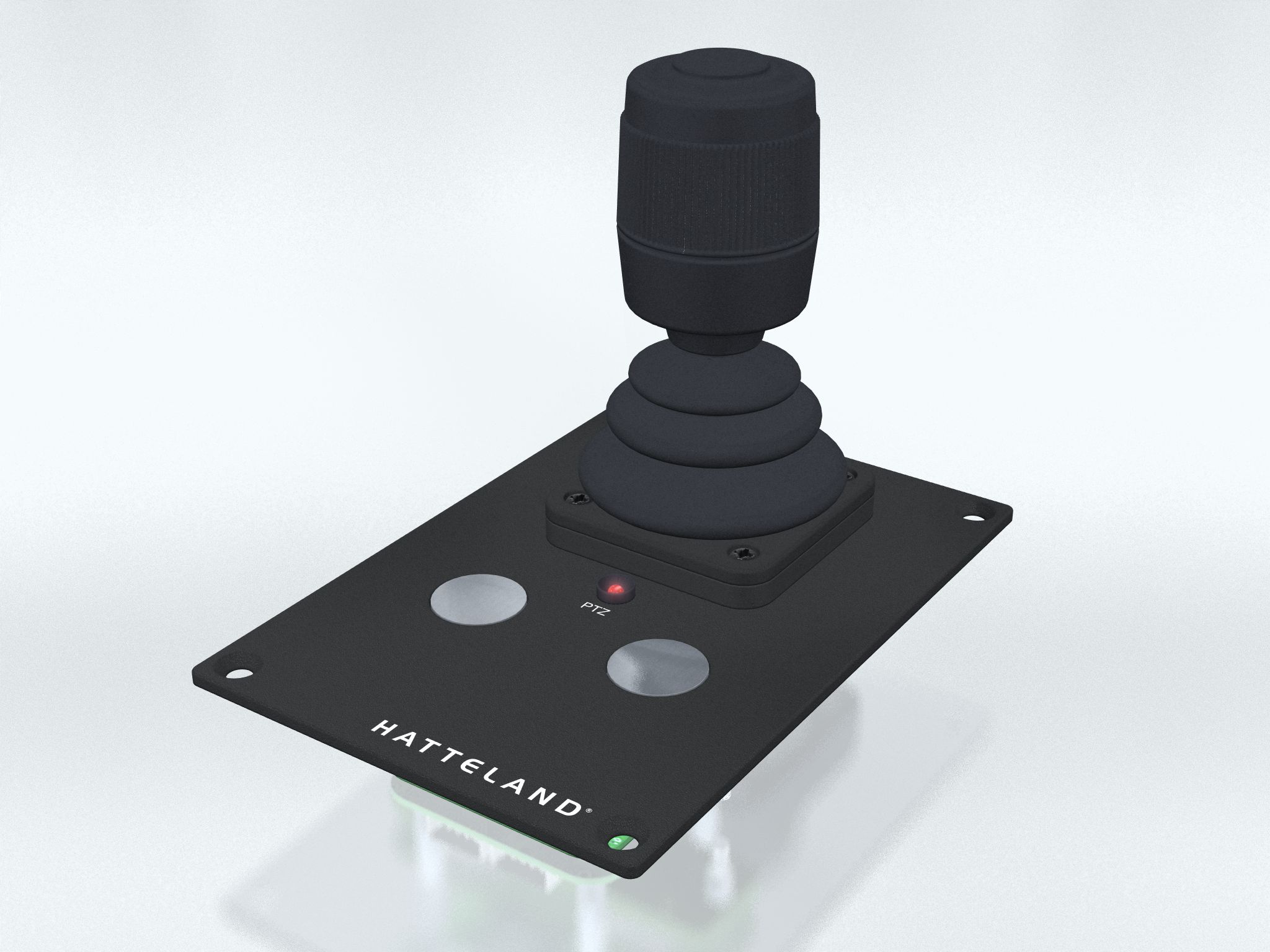

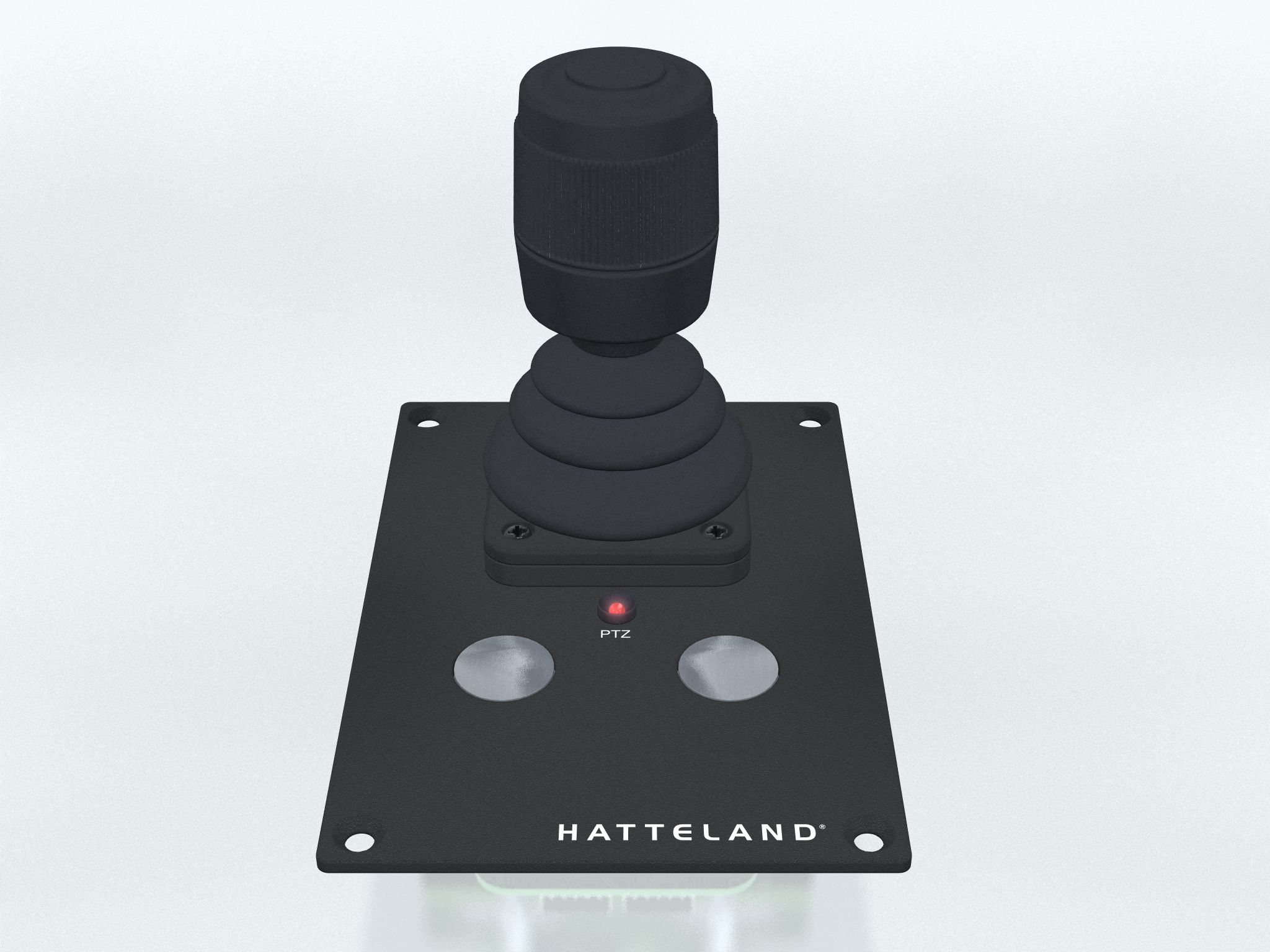

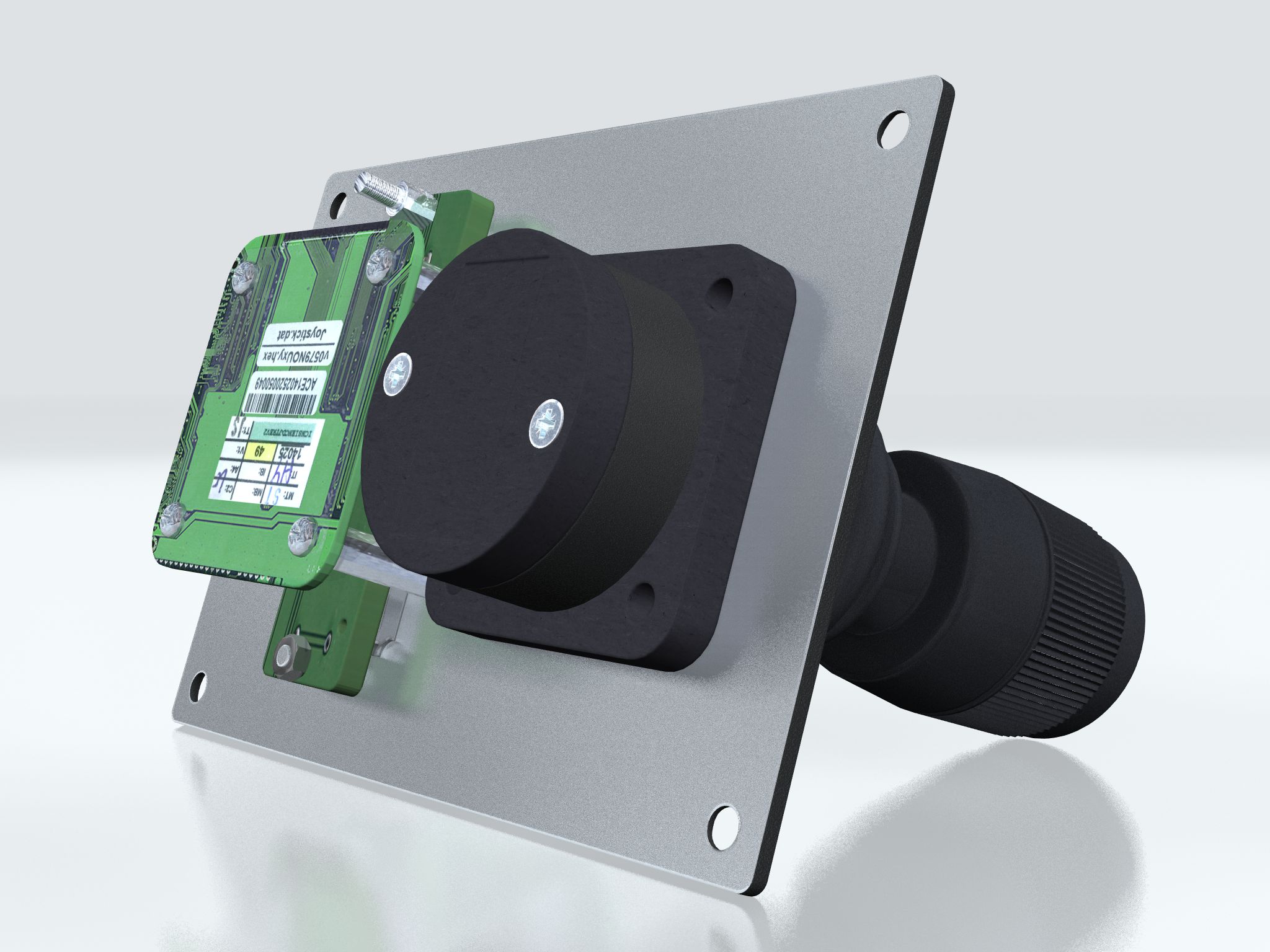

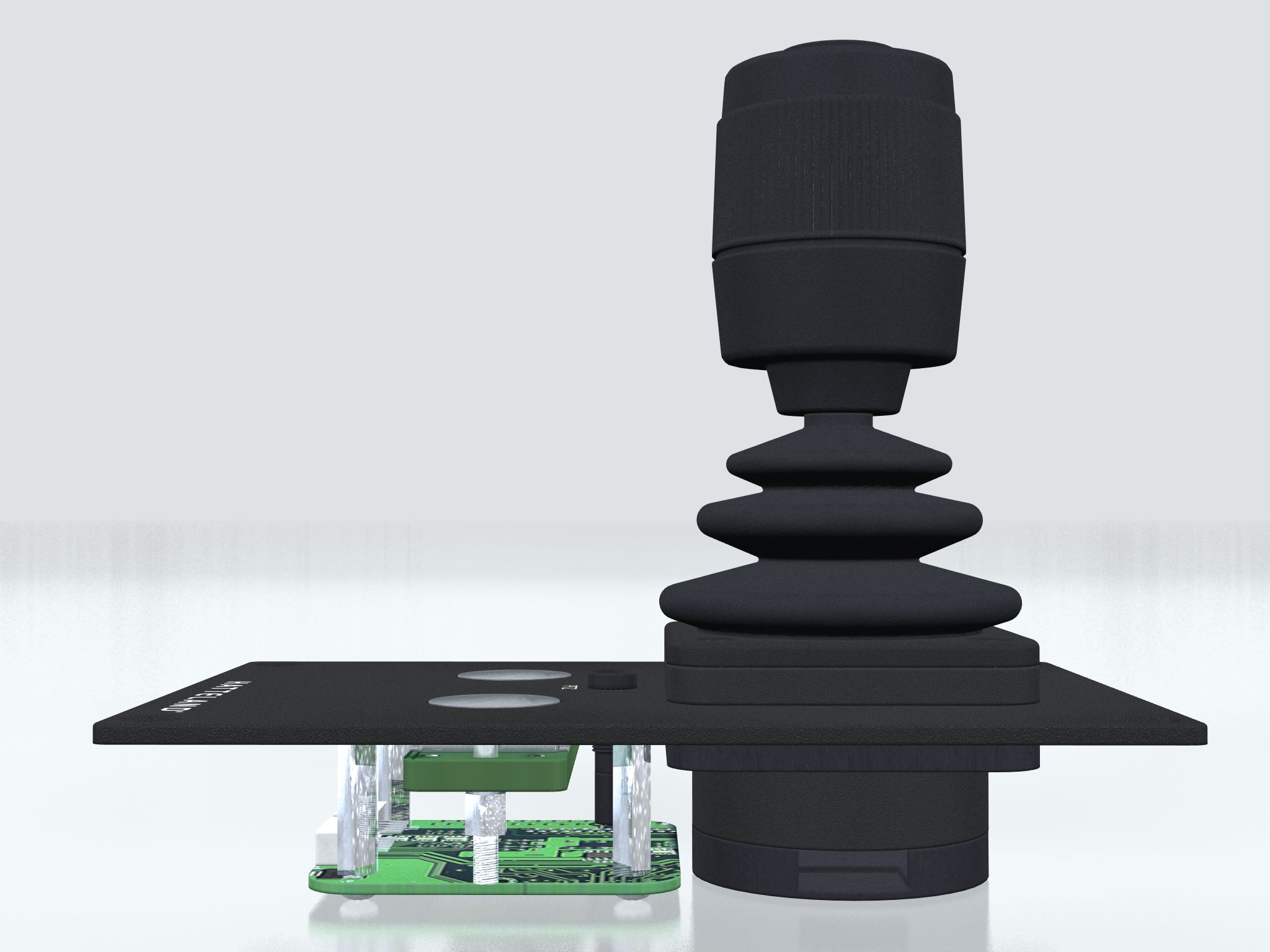

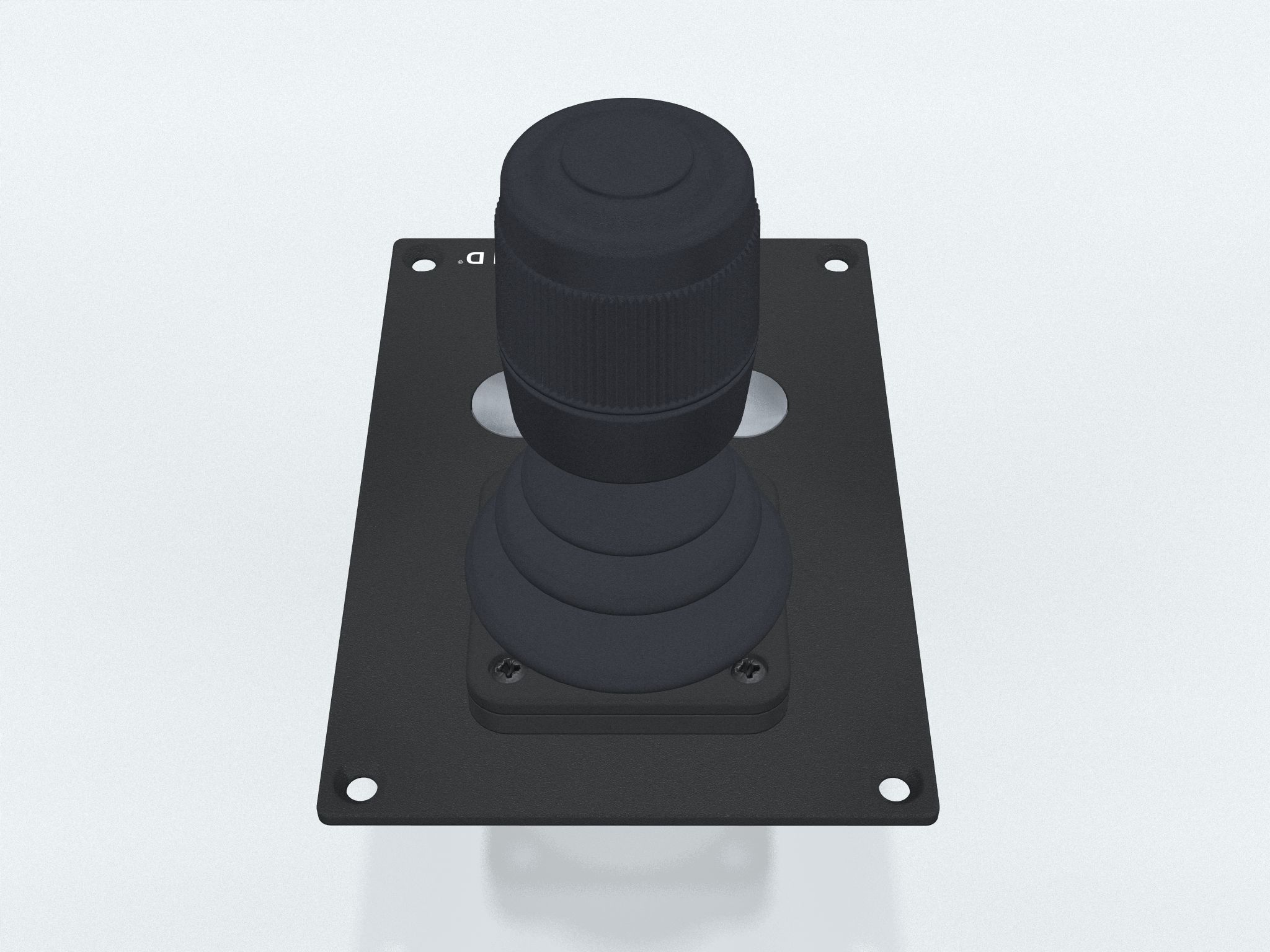

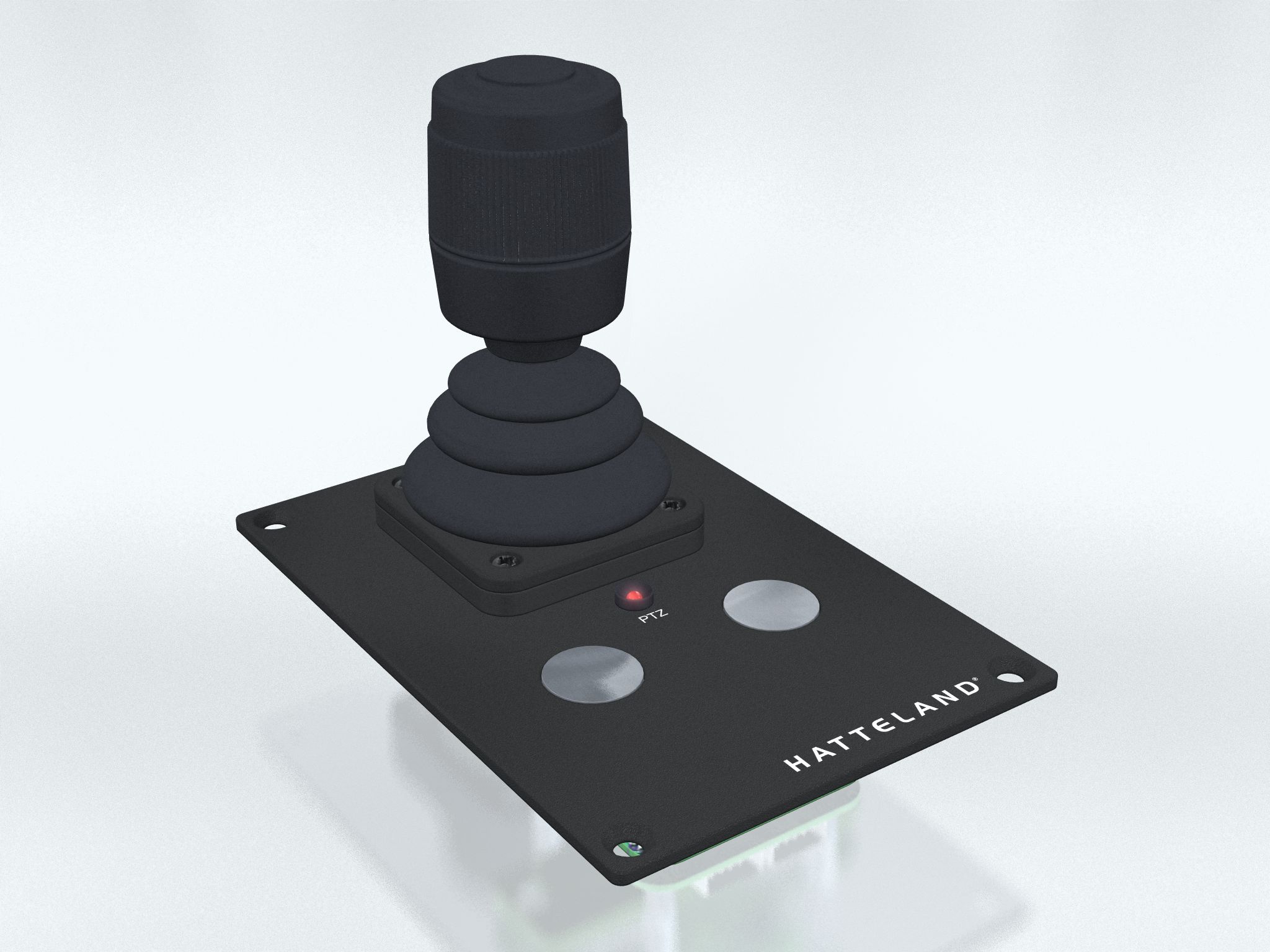

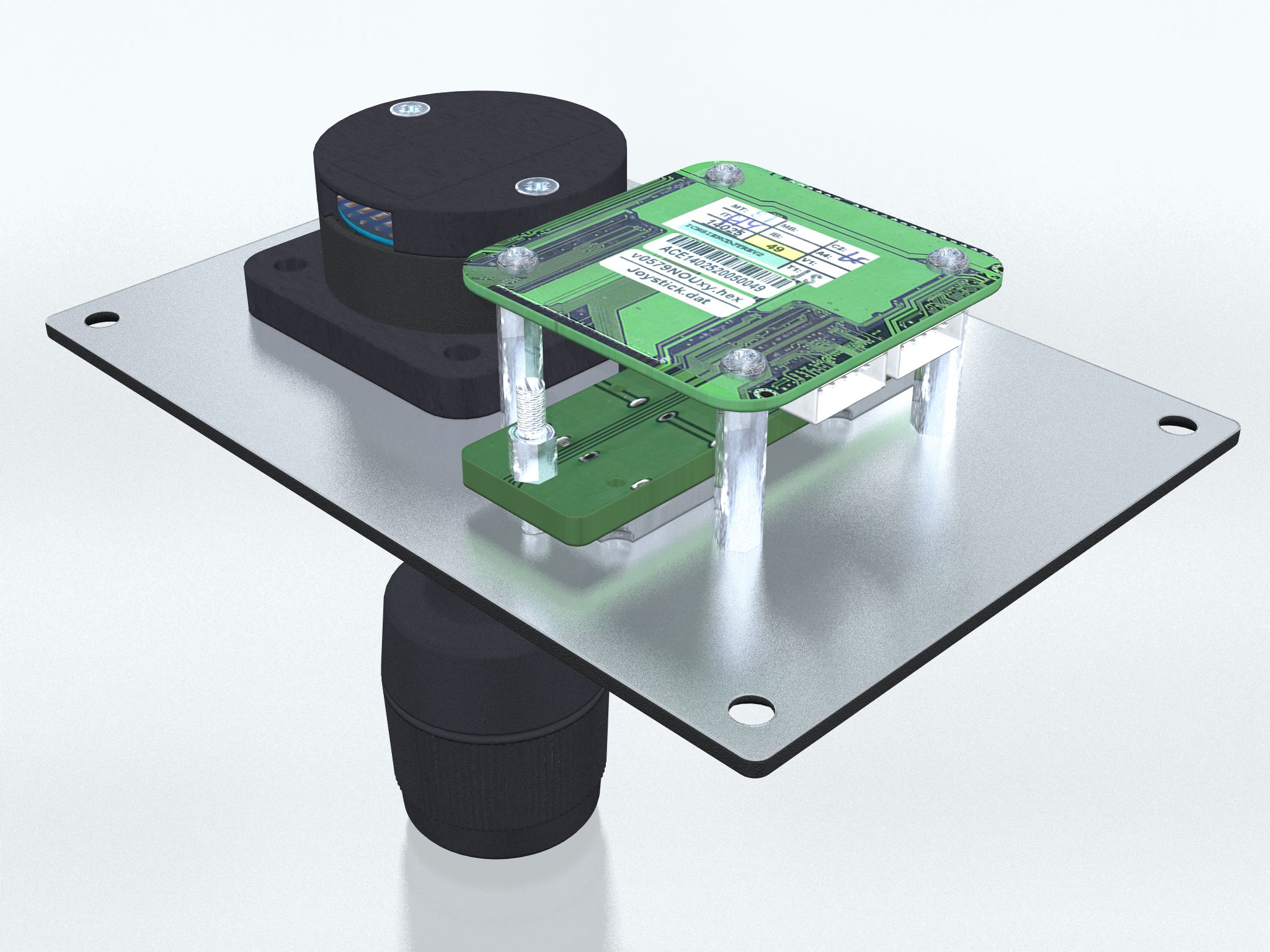

This HATTELAND® dual function joystick unit provides a combined functionality into one single device. One modus enables the user to use the unit as a mouse pointer, the second modus will provide the user with a 3-axis joystick function. Switching between the two functions is done by pressing the pushbutton that sits on top of the joystick. LED indicator (RED) shows the status of the unit. This 3-axis joystick unit has a robust and vandalproof construction. The carrier plate is made of brushed stainless steel and two antivandal stainless steel IP65 sealed switches. Highly ruggedized and designed for harsh industrial applications and navigation controls. The speed of the cursor movement can be adapted (OEM only). No special drivers required.
Specifications
Technical Specifications: Sealing: IP55
Carrier plate: Black coated stainless steel
Physical dimensions: W:90.00 [3.54] x L:130.00 [5.12] x H:114.22 [4.50] mm [inch]
Weight: Approx. 0.5 kg / 1.1lbs
Output: USB type A
Cable: 1 x Shielded, straight 1.6m USB type A
Operating temperature range: -10.0°C / 14.0°F to +60.0°C / 140.0°F
Storage temperature range: -25.0°C / -13.0°F to +70.0°C / 158.0°F
Test and certificate: Certificate of Conformity fully compliant with IEC60945
Compass Safe Distance: Standard: 125.00 [49.21] - Steering: 80.00 [31.50] cm [inch]
Button Specifications: Type: Push Button
Sealing: IP68
Material: Stainless steel, brushed
Mechanical life: 1 million cycles (min)
Contacts: Gold plated
Travel: 1.3 [0.051"] mm [inch]
Operating force: 4N (typ)
Specifications last updated: April 8, 2025 @ 07:50
Type Approvals
Downloads
Accessories

Latest Product Updates

News Stories:
1 Sep 2020
Product released to website
