HTS31470


Computer - 3U Size - Server - Rackmount

HTS31470

The HTS31470 3U series industrial & marine certified 19 rack computers are designed with latest 10th generation architecture. A huge variety of I/O such as NMEA 0183 ports, serial interface, USB, Gigabit Ethernet ports, PCIe slots for extensions, High end Nvidia graphics, will fulfill a wide range of industrial and maritime applications. Rugged and ready for most critical and harsh installations.

icon
3U Size
icon
Server
icon
TPM 2.0


Computer - Rackmount

  • High Performance Intel® 10 gen - i3-i5-i7 or i9 CPU

  • Wide range of approved options for:
    - Professional Nvidia Graphics Cards
    - Network
    - COM Ports (RS-422/485/232, CAN)
    - Digital I/O
    - Storage

  • Fully IEC 60945/IACS E10 tested, DNVGL-CG-0339,
    Type approvals ongoing
  • Typenumber (Long): HTS31470-xx-AC xxxxxxx
    Installed Operating System Options: None or Standard OS/Customized image, review datasheet for list.

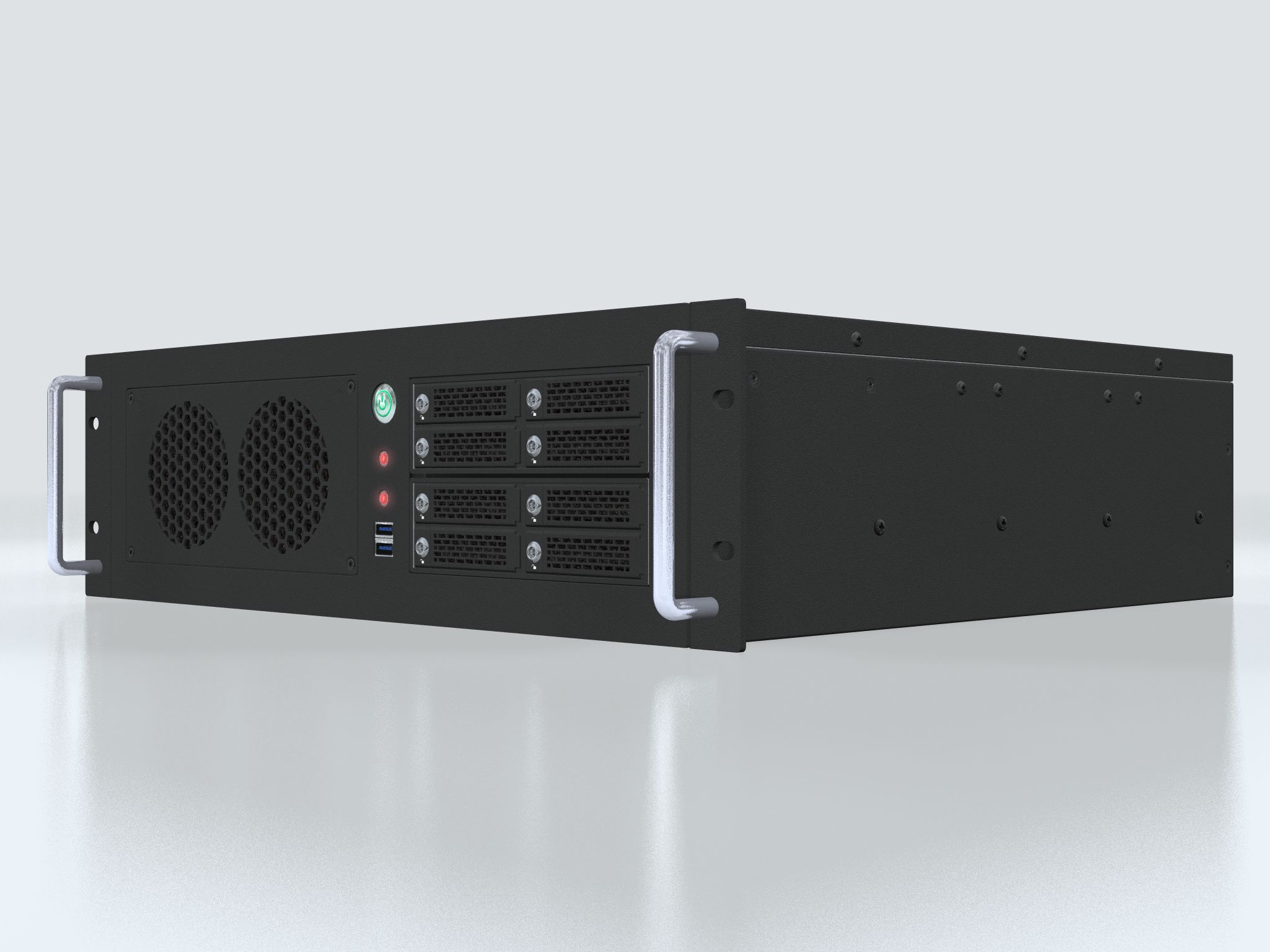

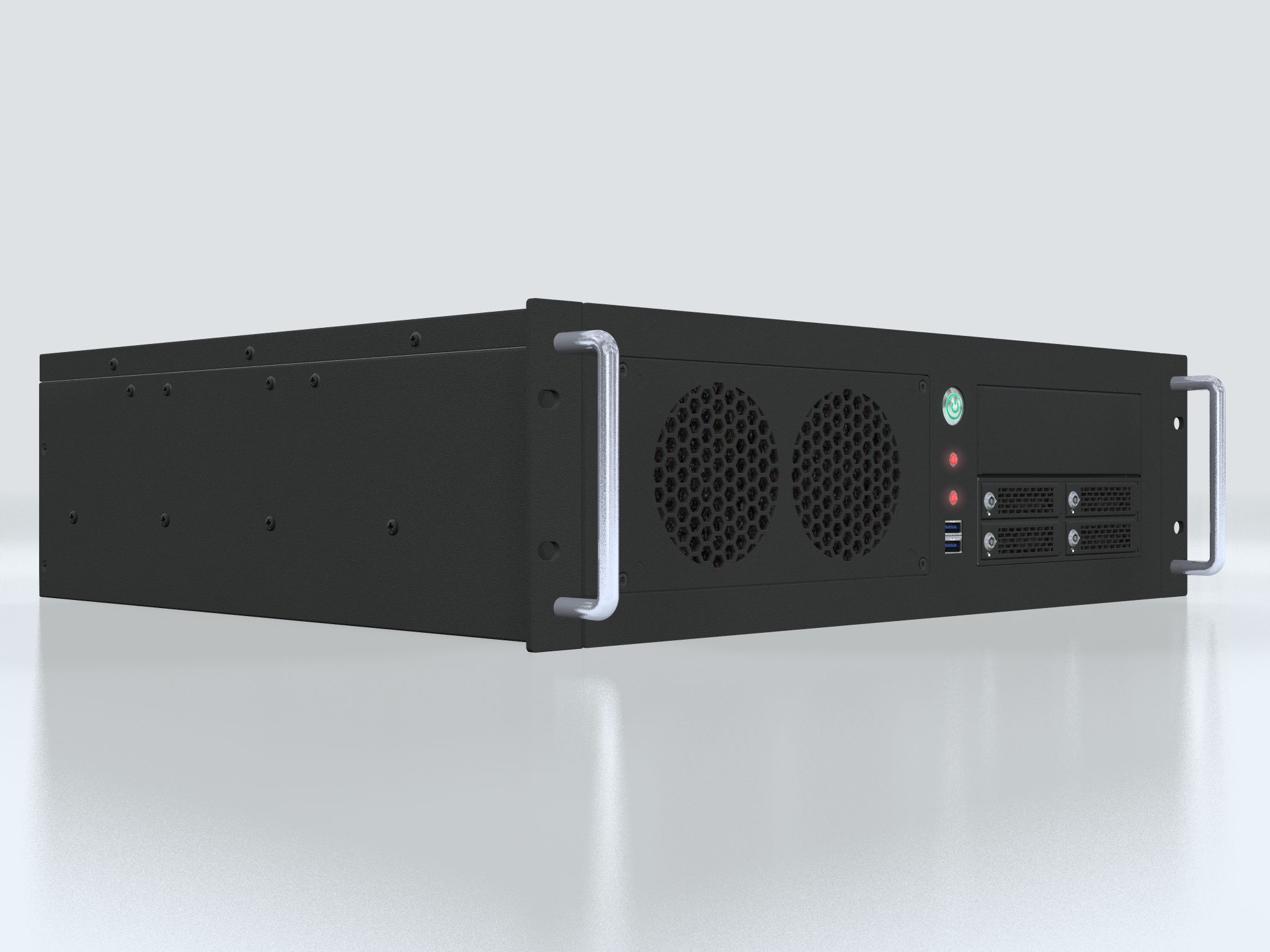

    Storage Options: 2.5" / M.2 SSD SATA Removable Front Tray options:
    4 or 8 x Devices in size:
    240GB (0.9PBW),480GB (1.2PBW),960GB (3.4PBW), 1.9TB (7.1PBW)
    Processor / CPU and FSB Speed Options: 1 x Intel® Core™ i3-10100E, 4-Core 3.20GHz - 3.80GHz, 6MB Cache
    or 1 x Intel® Core™ i5-10500E, 6-Core 3.10GHz - 4.20GHz, 12MB Cache
    or 1 x Intel® Core™ i7-10700E, 8-Core 2.90GHz - 4.50GHz, 16MB Cache
    or 1 x Intel® Core™ i9-10900E, 10-Core 2.80GHz - 4.70GHz, 20MB Cache
    Memory Options: DDR4 DIMM 260-pin, Max 128GB, 4 slots available
    2 x 16GB (32GB) or 4 x 16GB (64GB) or 4 x 32GB (128GB)
    System+Graphics Chipset / Connectors: Intel® Q470E
    Intel® UHD Graphics 630
    1 x DP1.2 + 1 x VGA, 1 x HDMI2.0a
    Max Resolution / Max Hz: TBD
    BIOS: AMI UEFI
    PCI Slots / PCIe Slots: 1 x PCIe 3.0 x16/x8/x4, 2 x PCIe 3.0 x4, 1 x PCIe 3.0 x8 (Shared PCIe with #1, when used #1 x8),
    Media Drive(s): None or via factory option (1 x DVD-RW/CD-RW Recorder/Player)
    LPT / Parallel Port: NA

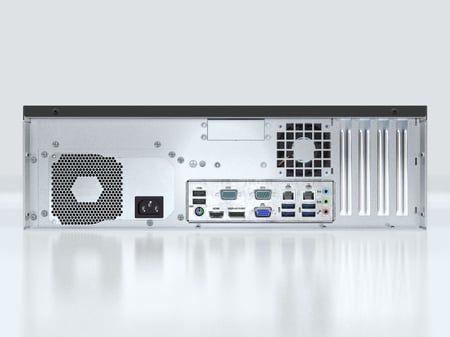

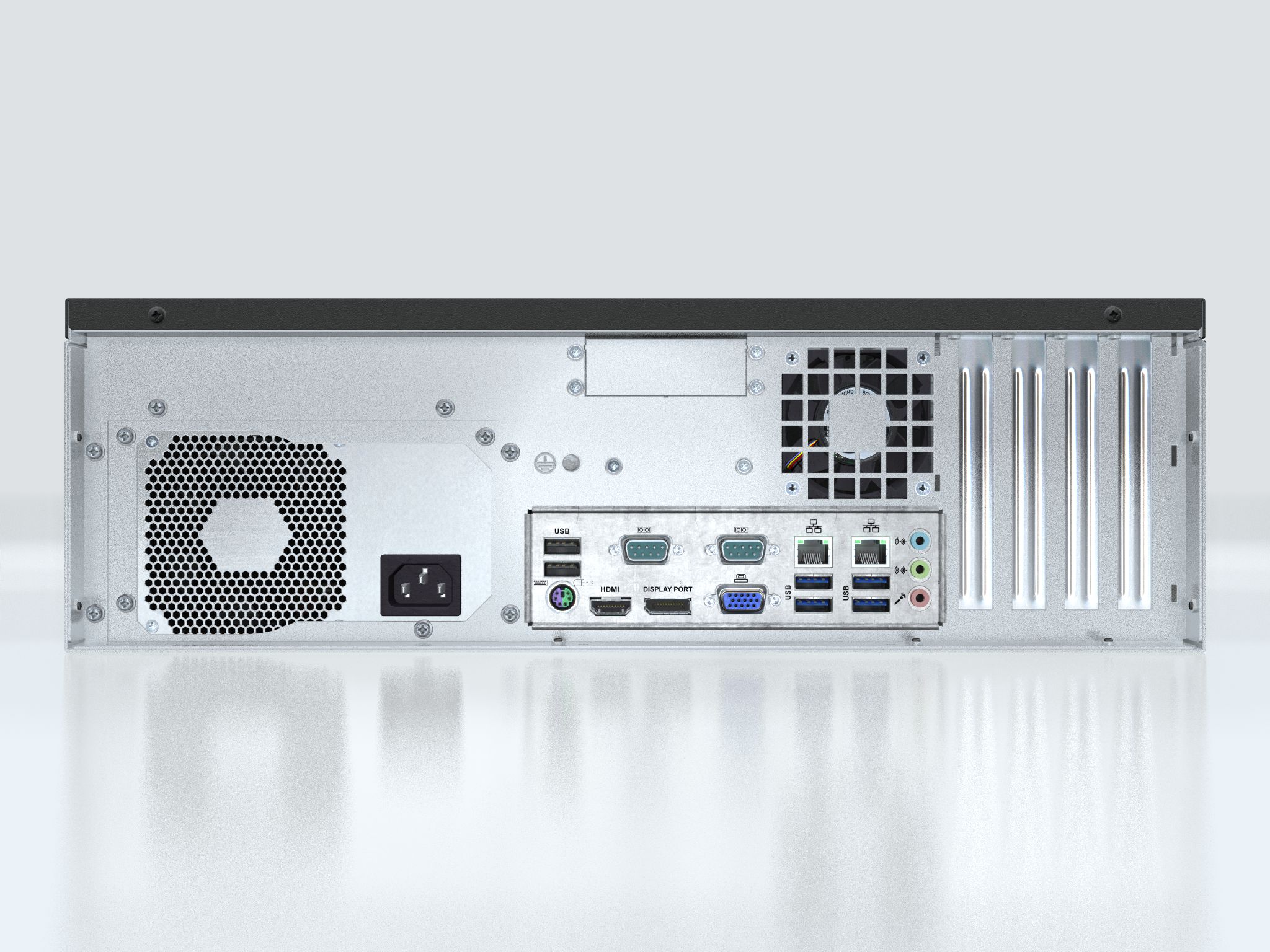

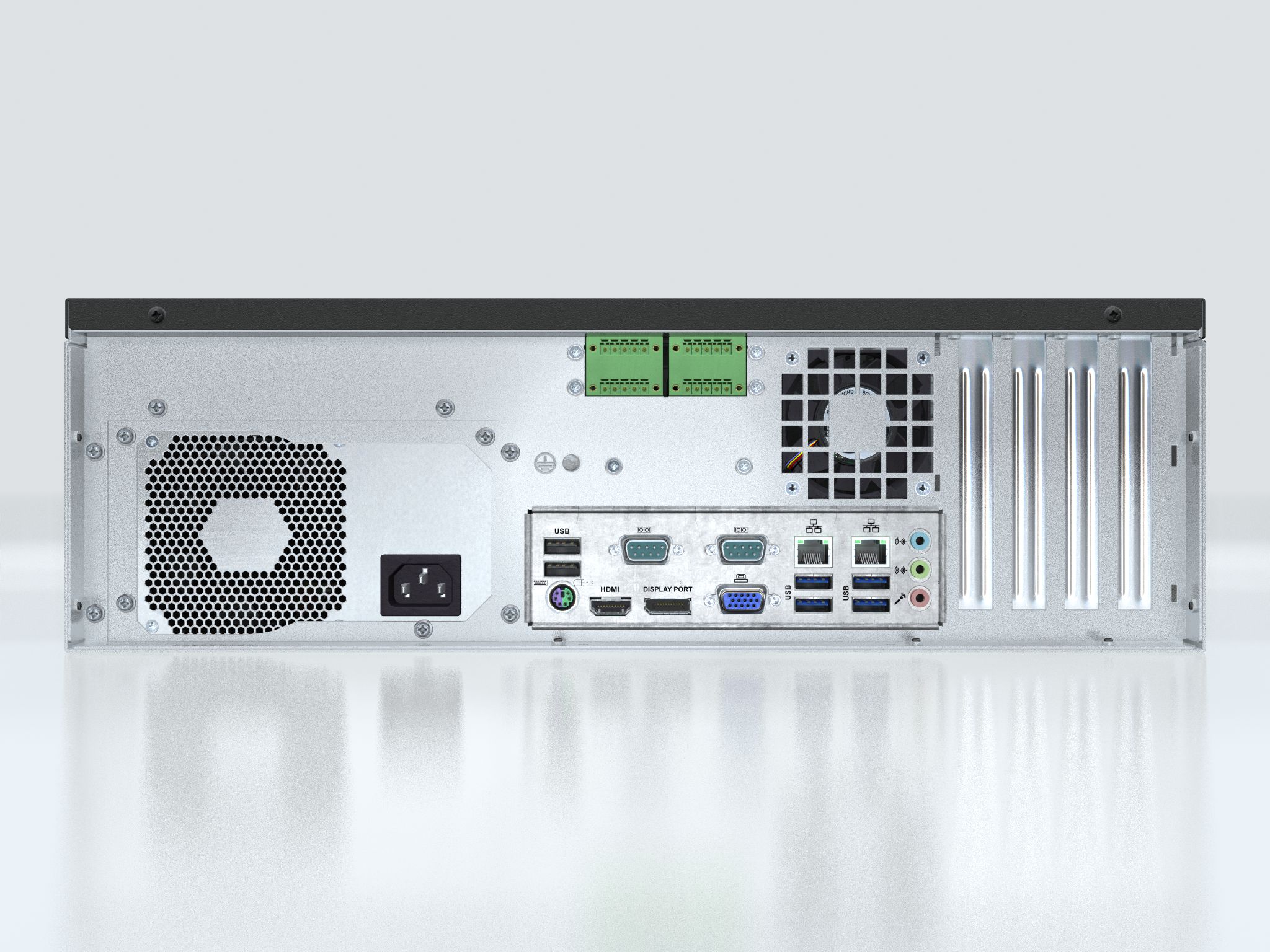

    Serial Port(s): 2 x COM (RS-232/422/485), DB9M
    Ethernet Port(s): LAN1: Intel® I225LM with 10/100/1000/2500 Mbps
    LAN2: Intel® I219LM with 10/100/1000 Mbps, support AMT/vPro
    USB Port(s): 6 x USB Rear: 4 x USB 3.2 (Gen2), 2 x USB2.0)
    2 x USB Front: 2 x USB 3.2 (Gen2)
    Keyboard and Mouse Ports: Yes, combined PS/2
    Audio Ports: Realtek ALC887 HD, High Definition Audio. Line-In/ Line-Out/ Mic-In
    Buzzer: None
    Power Manager and Monitoring: ACPI, Watchdog Timer: 256 Segments, 0, 1, 2...255 sec/min
    Power Specifications and Consumption: 1 x Std IEC inlet: 115/230VAC - 50/60Hz (700W Autorange)
    135.4W (typ) - 875W (max)

    MIL-STD-1399 (SECTION 300B) Type 1 (115VAC)
    Section 5.3.7, Current waveform (emission) test - Oblique wave currents over 3% of basic load current:
    - AH03: 26.31%
    - AH05: 5.22%
    Digital I/O Connectors: None

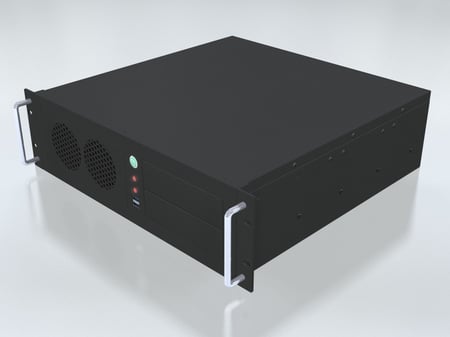

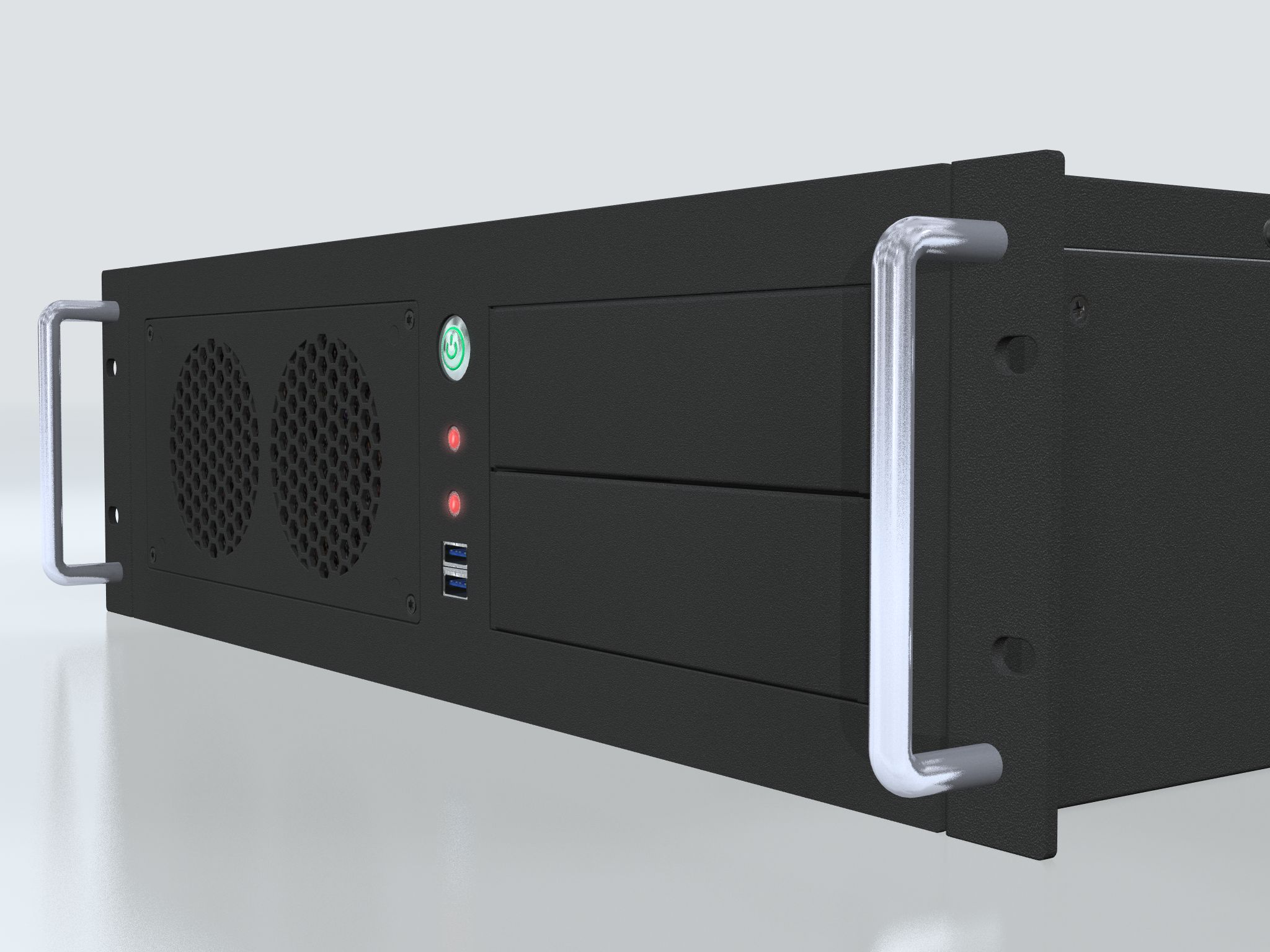

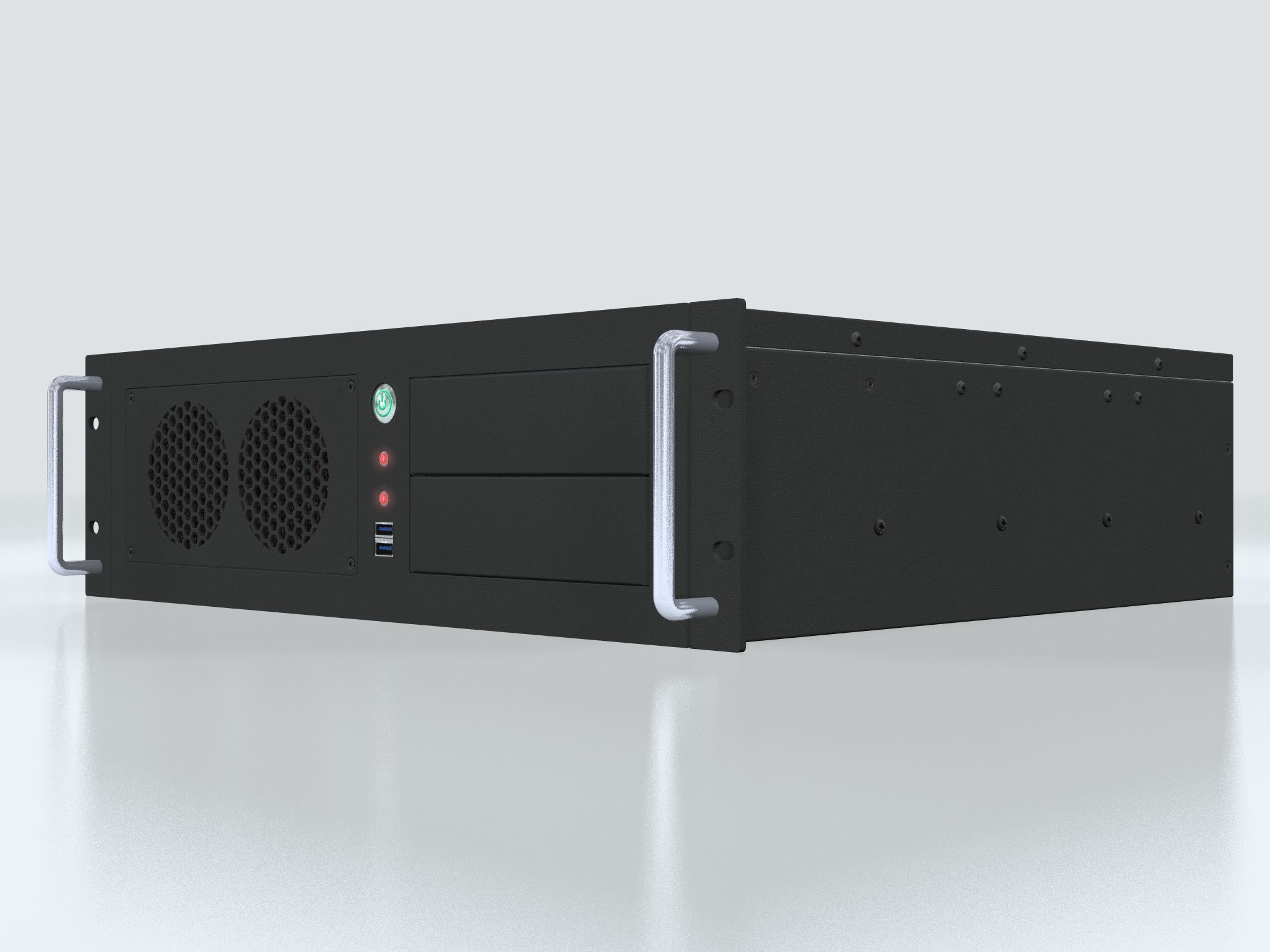

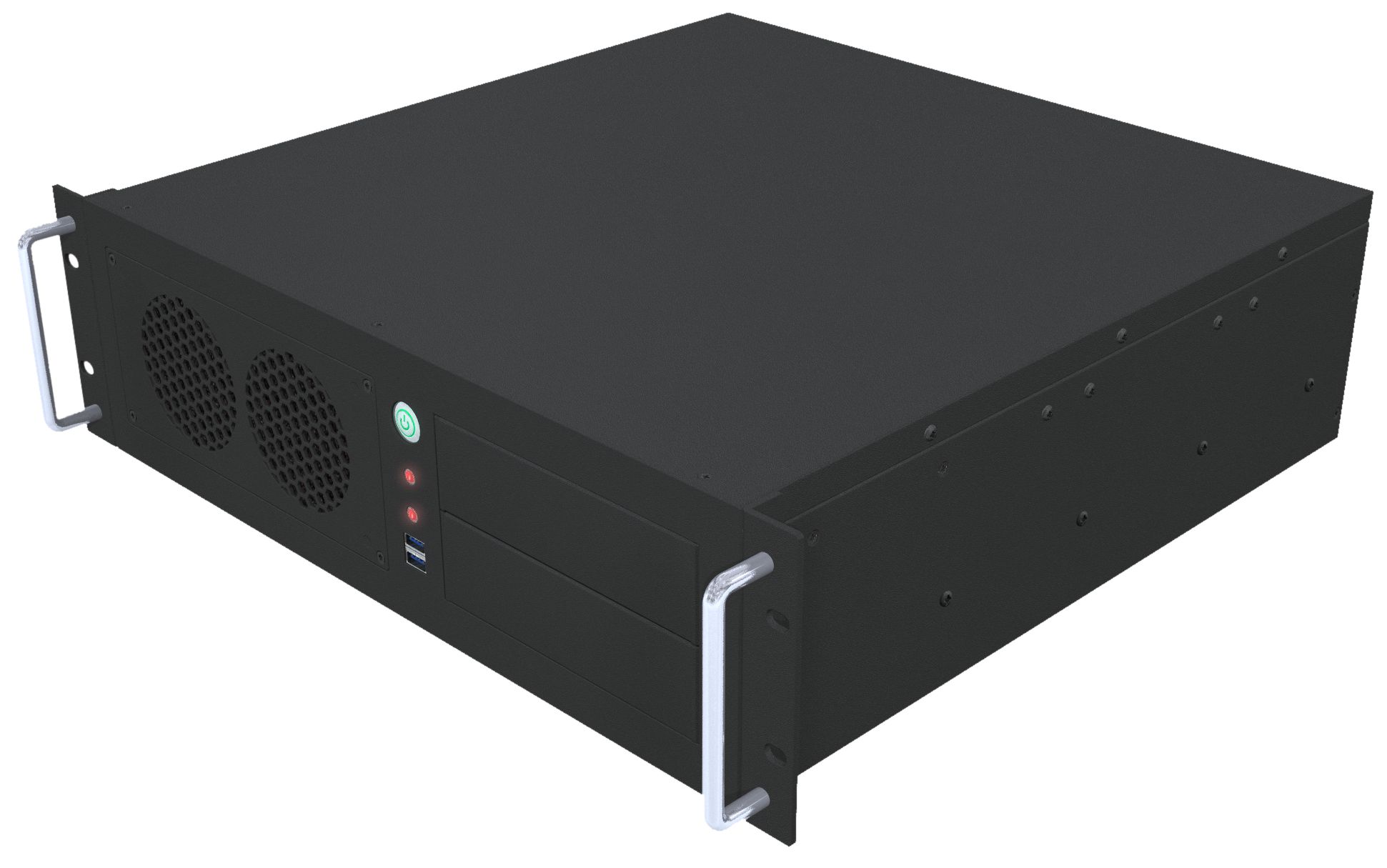

    Key Features: Black (EP0301-4040627) Heavy-duty steel 3U Rackmount chassis with
    handles, 2 x Internal Cooling fans in front (80x80mm), Easy Removable Front Air Filter (spare part accessory available), Firmware Raid

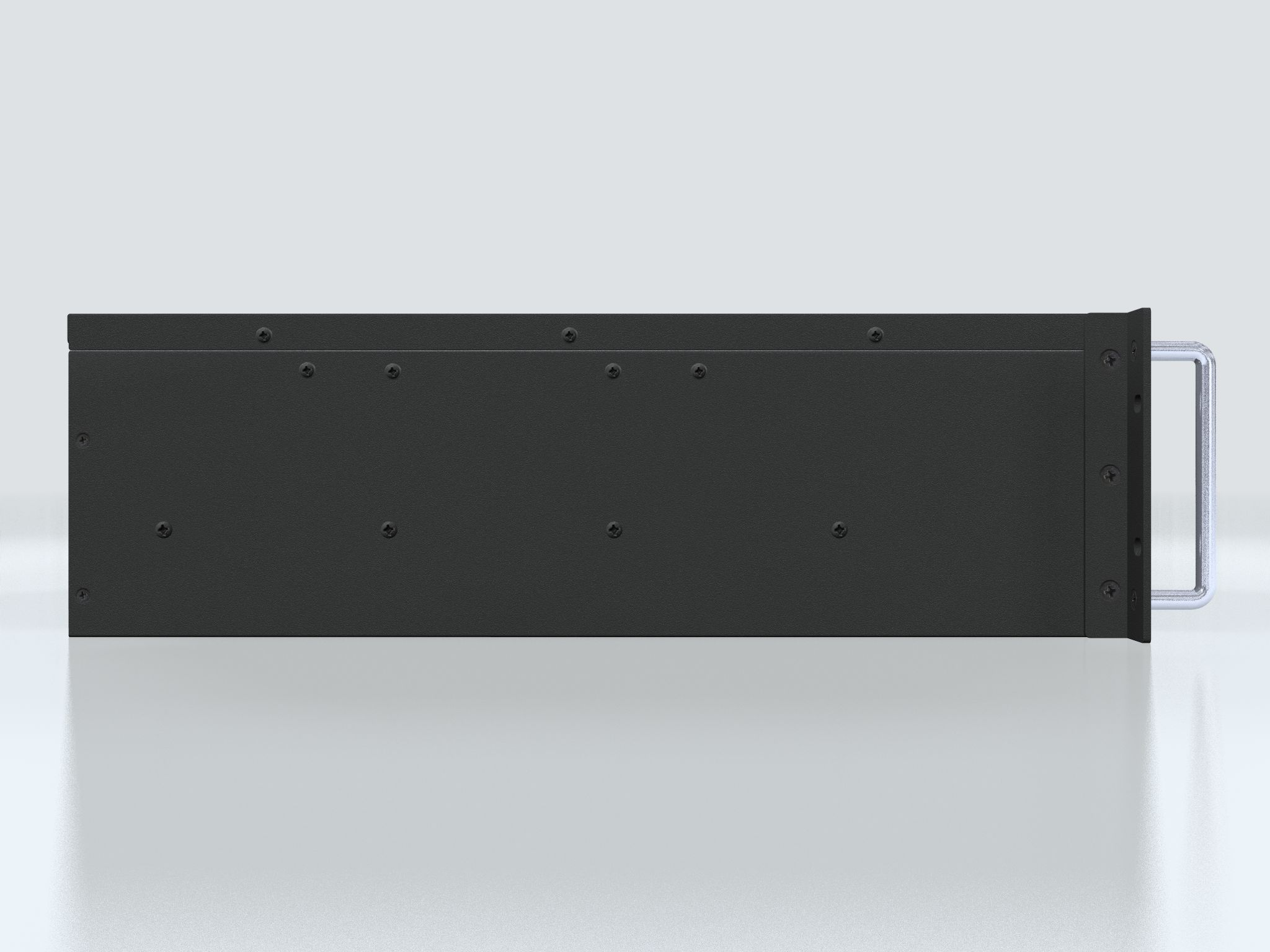

    Product Dimensions and Weight: W:465.70 [18.31"] x H:132.50 [5.22"] x D:436.00 [17.17] mm [inch]
    3U Rack size in height.
    Approx 13kg / 28lbs
    Product Carton Size and Weight: L:560.00 [22.05"] x W:240.00 [9.45"] x H:480.00 [18.90"] mm [inch]
    15.0kg / 33.0lbs

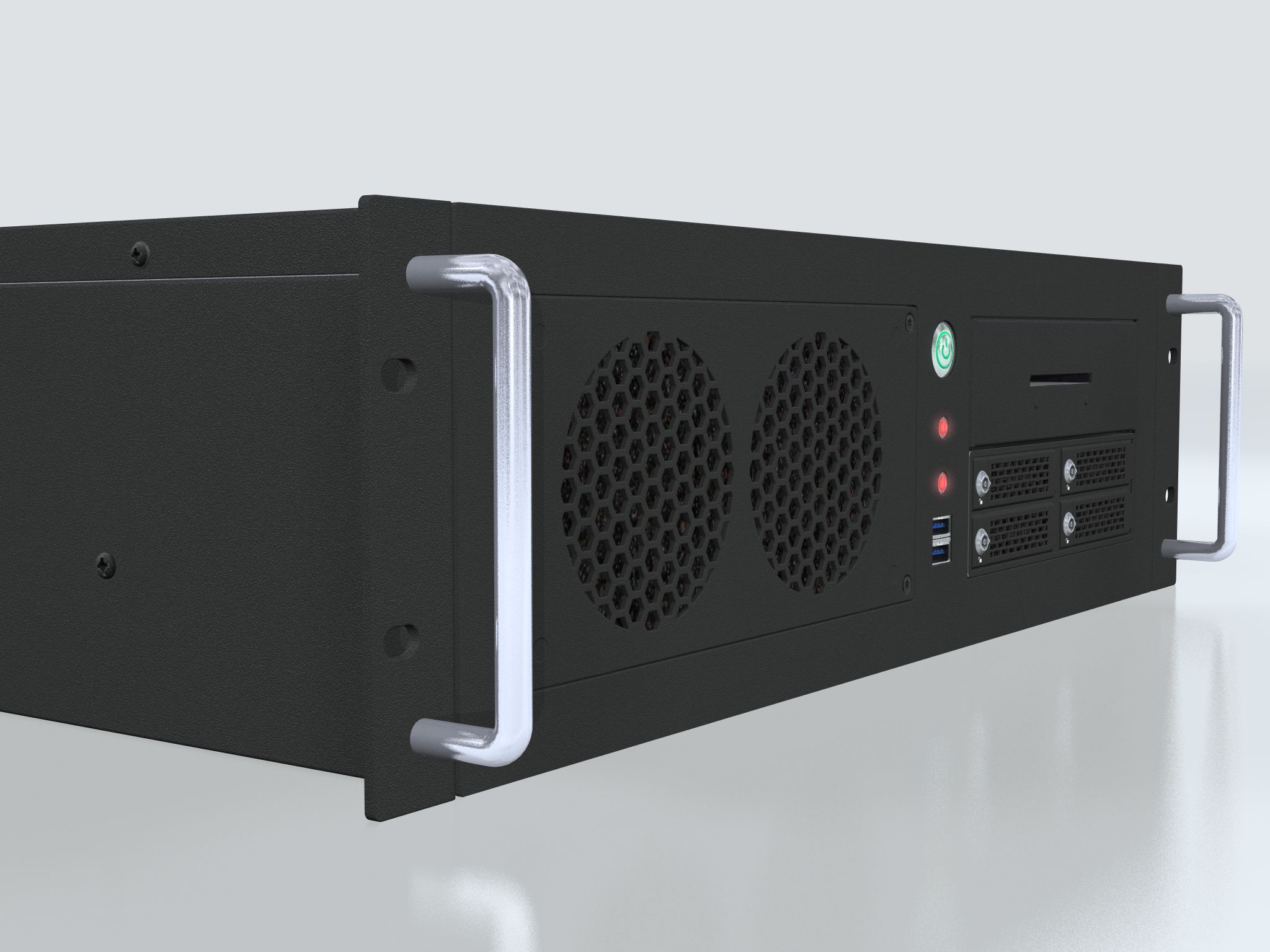

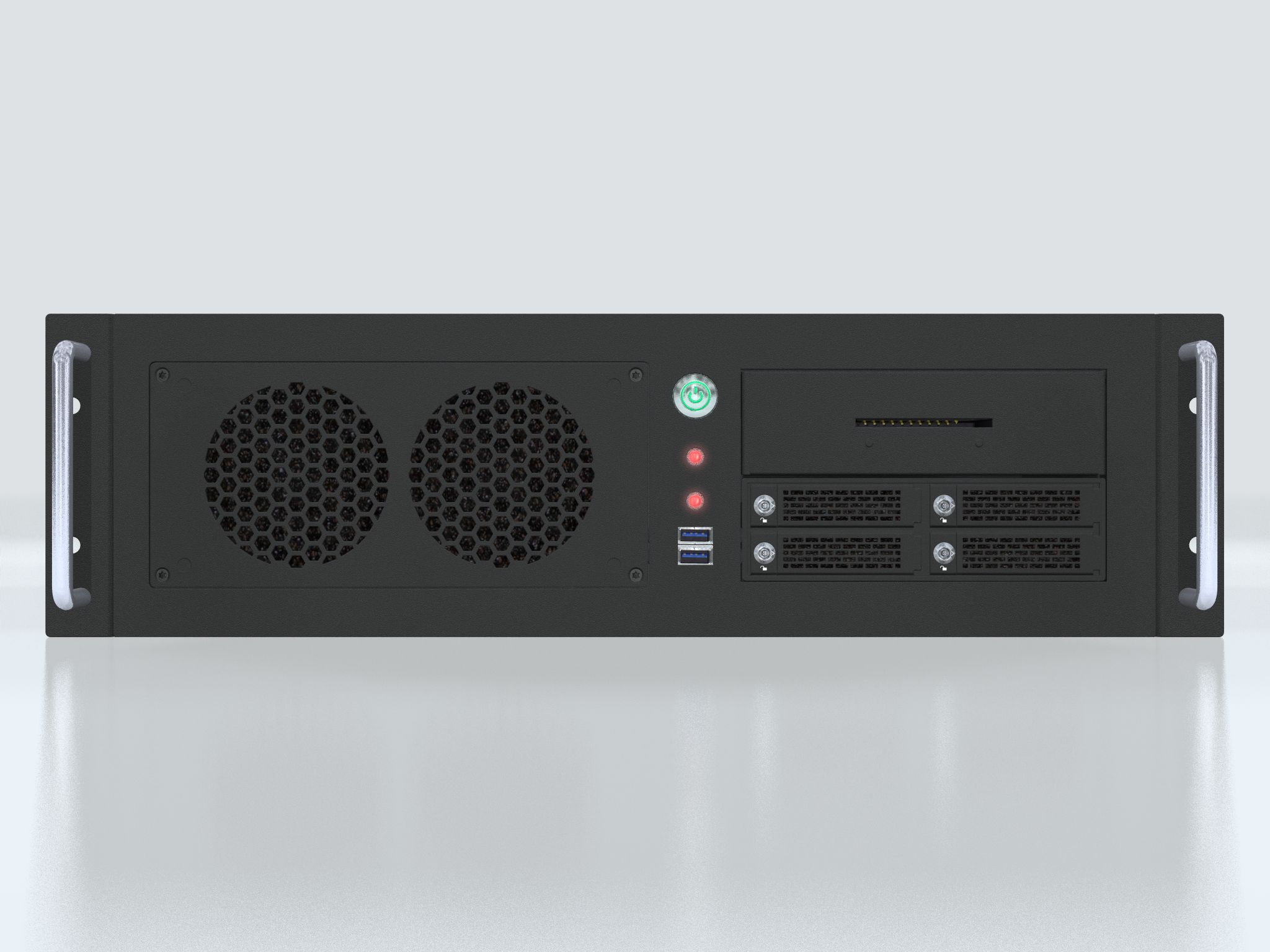

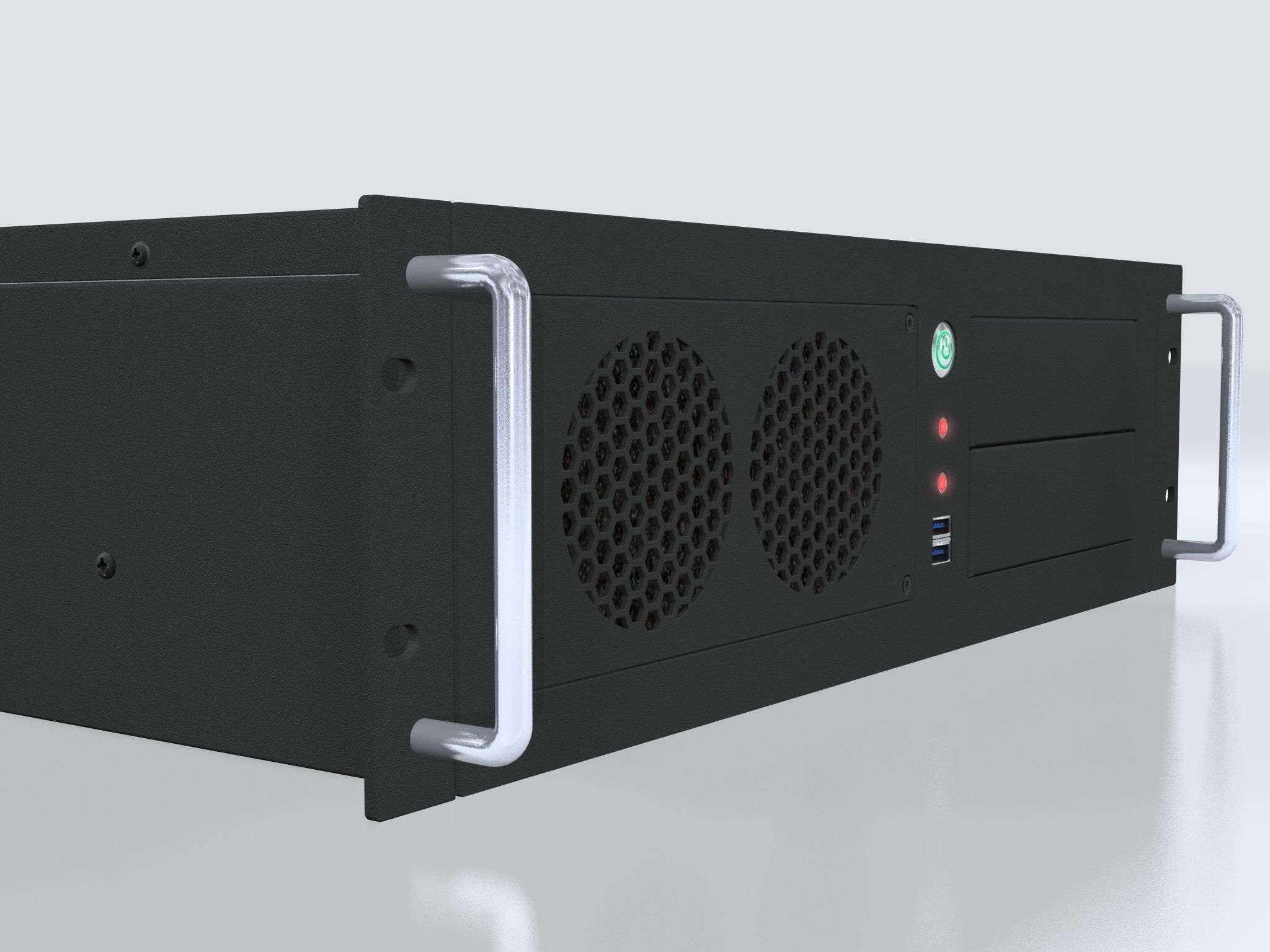

    User Controls / Activity: Front: Power Button, Power LED, Activity LEDs SSD
    Factory Options: • NVIDIA T400: PCIe 3.0 x16, 3x mini DP, 4 GB GDDR6
    • NVIDIA T1000: PCIe 3.0 x16, LowProfile, 8 GB GDDR6
    • NVIDIA RTX 4000 Ada: PCIe 4.0 x16, 4x DP 1.4a, 20 GB GDDR6 *Pending
    • X710T2L / X710T2LBLK: Intel® Network Adapter (10GbE), 2 x RJ45
    • I350T4V2 / I350T4V2BLK: Intel® Network Adapter (1GbE), 4 x RJ45
    • X710DA2 / X710DA2BLK: Intel® Fiber Network Adapter (10GbE), 2 x SFP+
    • X710DA4 / X710DA4BLK: Intel® Fiber Network Adapter (10GbE), 4 x SFP+
    • CP-114EL-I ELEK KIT: 4xCOM,PCIe x1,1xDB44F to 4xDB9M isolated, RS-232/422/485)
    • SX-118A: Parallel Port LPT, DB25F, Bi-Dir. ECP/EPP, PCIe x1 card

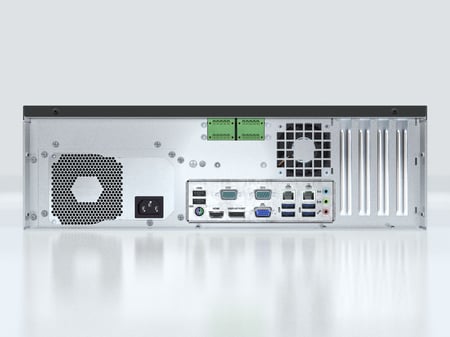

    • 1 x PCA100297-1: Digital IO Isolated, 4 IN + 4 OUT
    or 1 x PCA100298-1: LAN 10/100Mbps, 2 ports (RJ45) module
    or 1 x PCA100309-1: Dual Isolated RS-232, 2xDB9 module
    or 1 x HTA2020002-AD1033: CAN isolated, 2 channel module
    or 1 x HTA2020002-SLCAN: Socket CAN isolated, 2 channel module
    or 1 x PCA200828-1: COM RS-422/485 isolated NMEA 4 channel, 5-pin T. Block 3.81
    Accessories: • HT 00225 OPT-A1: 2 x 26" ball bearing sliding rail & mounting kit for 19" Rack
    • HT 00224 OPT-A1: 2 x 20" ball bearing sliding rail & mounting kit for 19" Rack
    • JH C01MF A-A: 1 x USB Cable 1m, Type A-Chassis mount receptacle
    • VSDDPVGA340 / HT DPM2VGAF-A1: 1 x DP to VGA adapter
    • RC3473 / HT DPM2DVI-DF-A1: 1 x DP to DVI adapter
    • HT RET STD-A3: 1 x Cable/Retainer Kit
    • HT 00300 MSOS: OS options -> www.hattelandtechnology.com/os
    • HT 00262 OPT-A1: 4 x RS-422/RS-485 isolated, USB ext. module
    • HT 00263 OPT-A1: 4 x RS-232 COM non-isolated, USB ext. module
    • HT PCI KIT-A1: L-shape bracket kit for PCIe card support - top
    • HT PCI KIT-A2: L-shape bracket kit for PCIe card support - back
    • HT 00264 OPT-A1: 1 x CAN isolated, 2 channel, USB ext. module
    • HT 00264 OPT-A2: 1 x SLCAN isolated, 2 channel, USB ext. module
    • HT 00274 OPT-A1: 2 x LAN 10/100Mbps, RJ45, USB ext. module
    • HT 00273 OPT-A1: 4 x Digital IN/OUT isolated, USB ext. module
    • HD 000TR SX1-A1: 1 x Removable Tray 2.5" Empty
    • HD 000TR SX2-A3: 1 x Removable Tray 2.5" w/4xM3x4mm Phillips Countersunk Screws
    • HD xxxyy SX1-z1: 1 x Removable Tray 2.5" w/Storage Device*
    • QSP-MINIDP/DPV3: DP adapter for Nvidia Graphics Card
    • ZA-A390: Mini DP to DVI(female)
    • ZA-A391: Mini DP to HDMI(female)

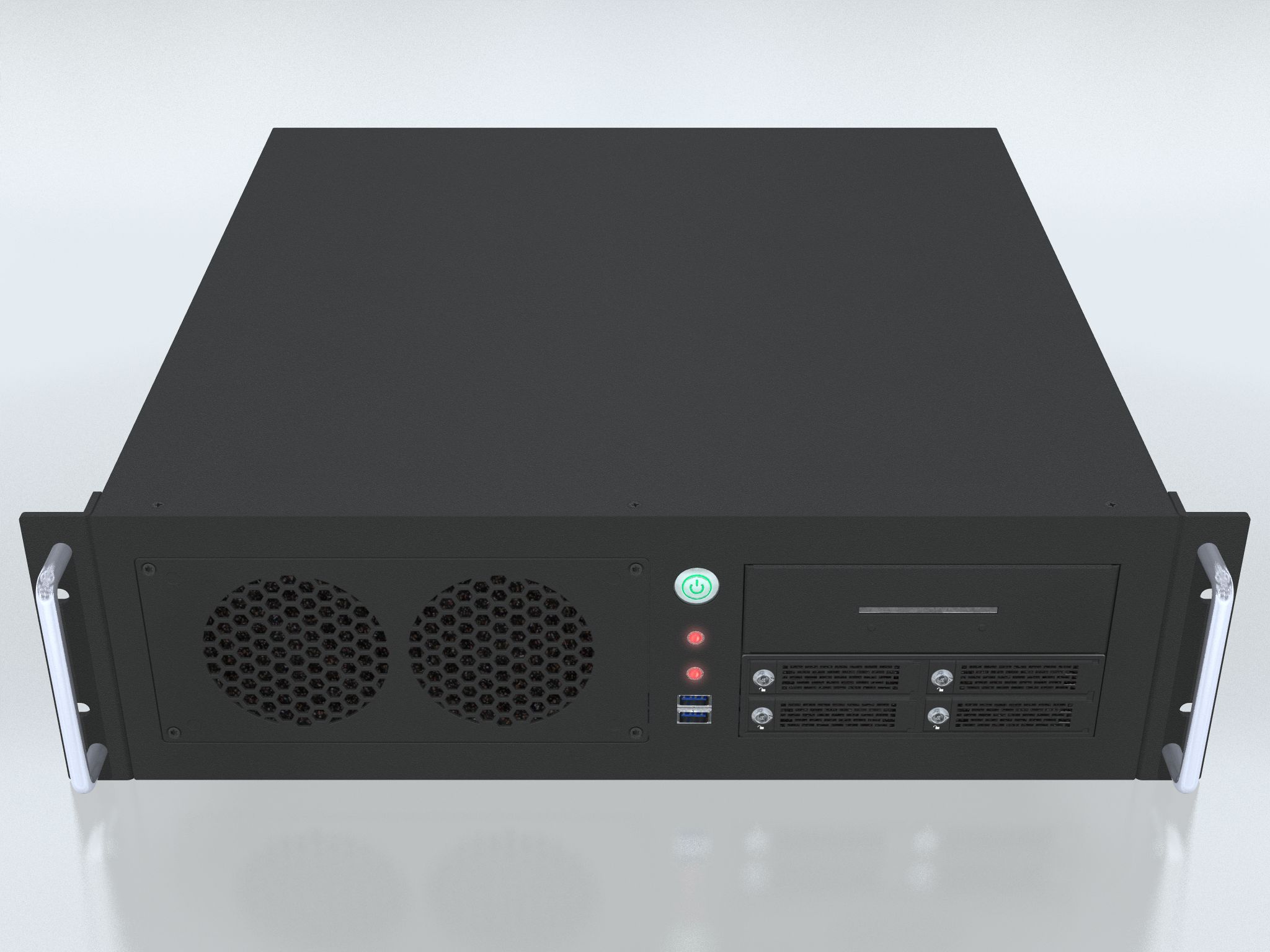

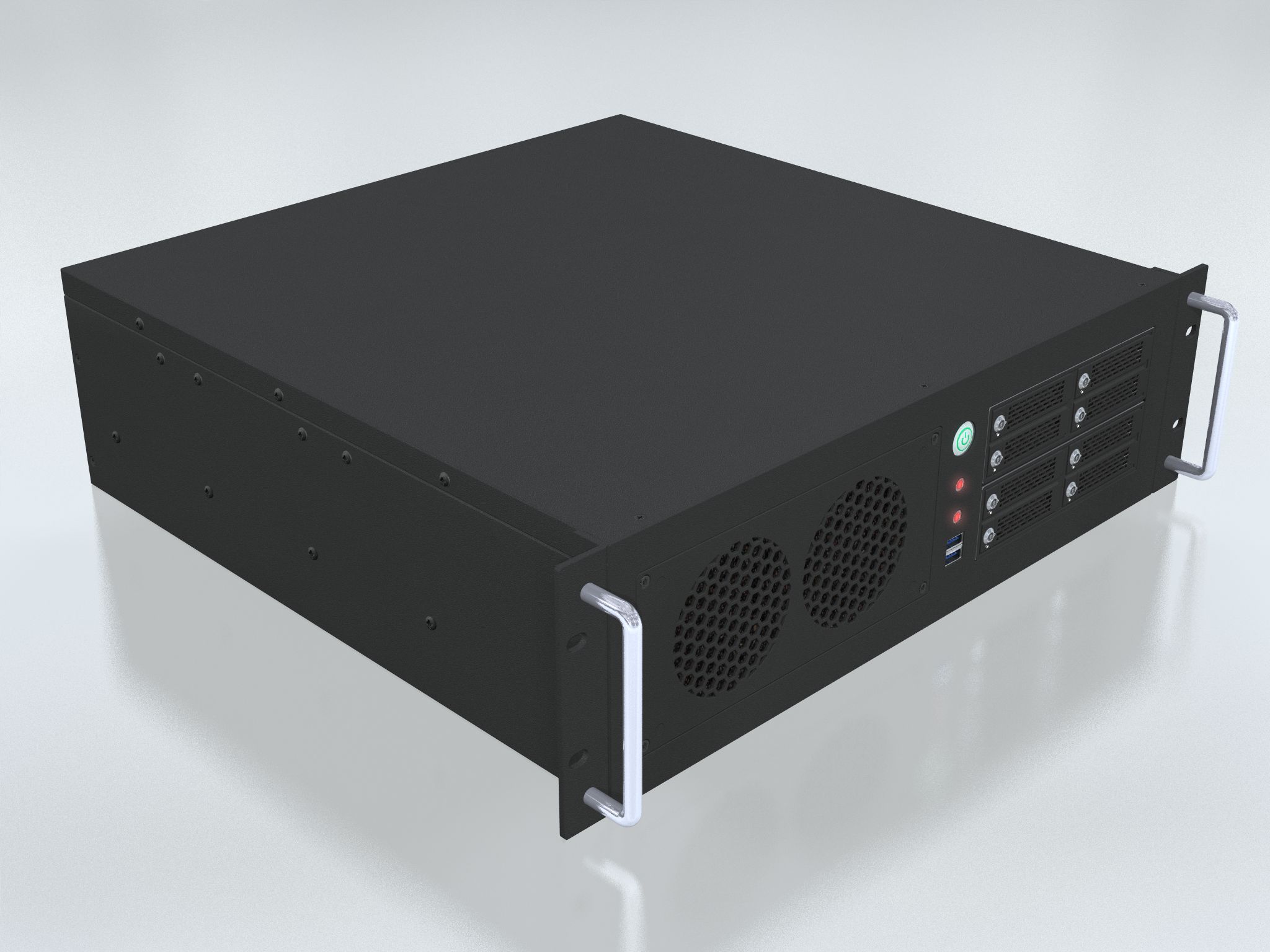

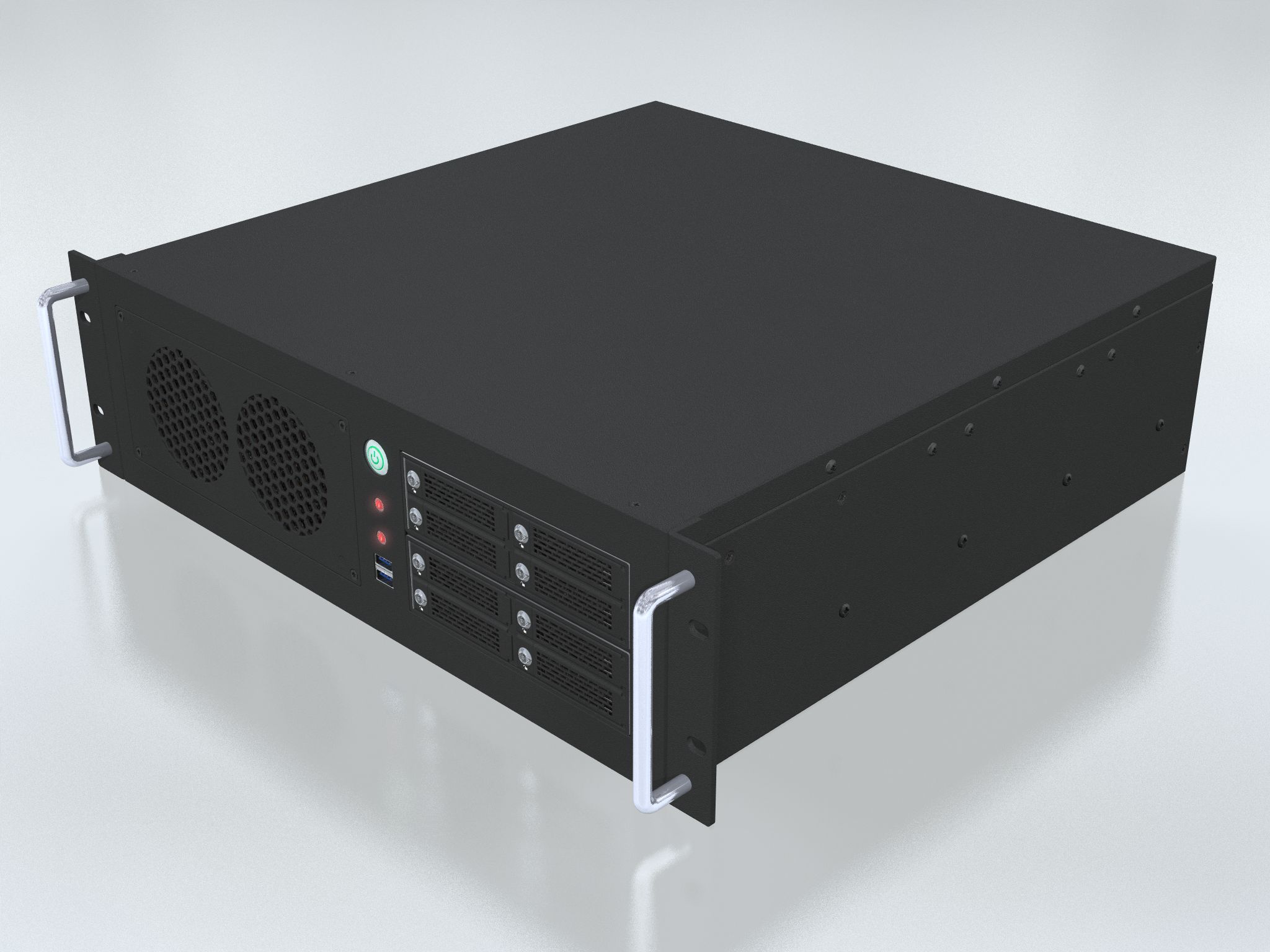

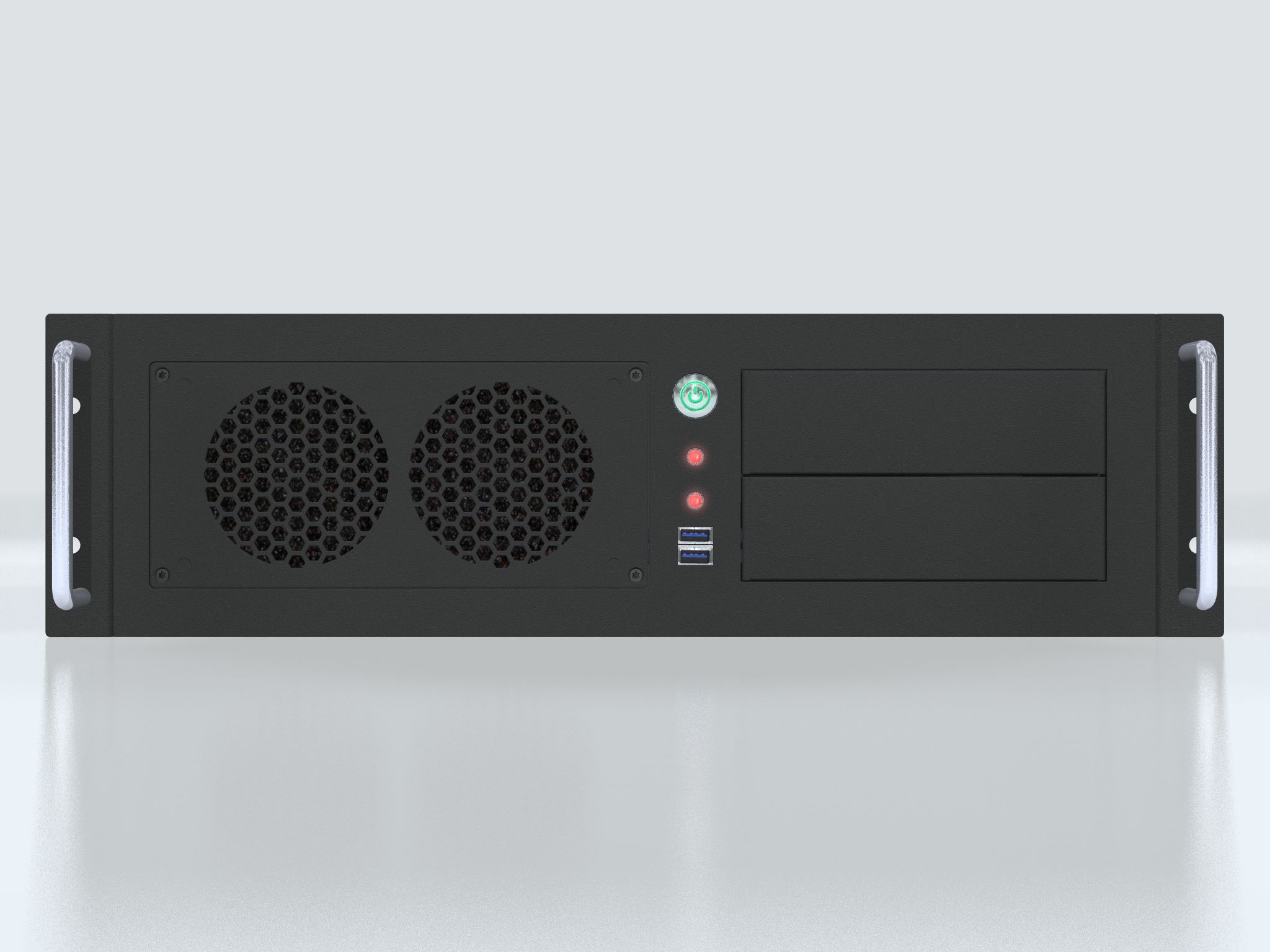

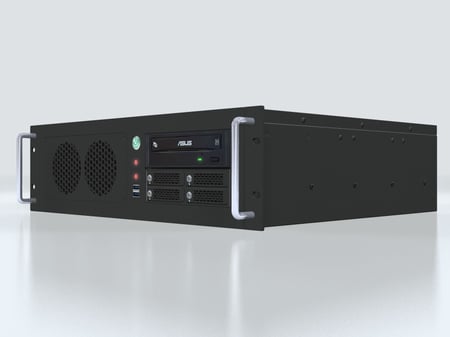

    Capabilities / Prepared for: Front configurations 2 x 5 1/4", tray Available options for each tray:
    • None, i.e. covered with blinds

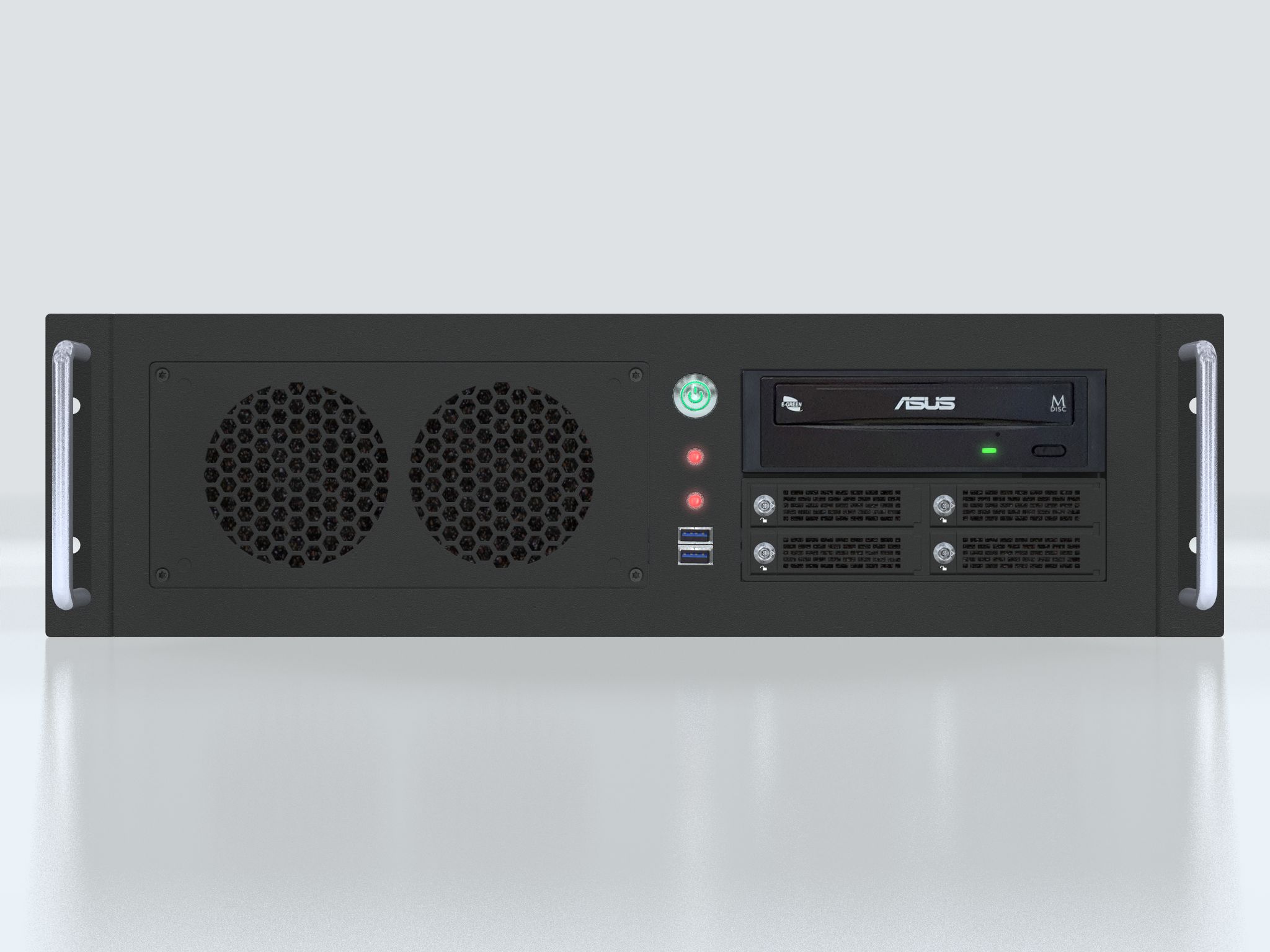

    • 90DD01Y0-B20010, DVD-RW/CD-RW

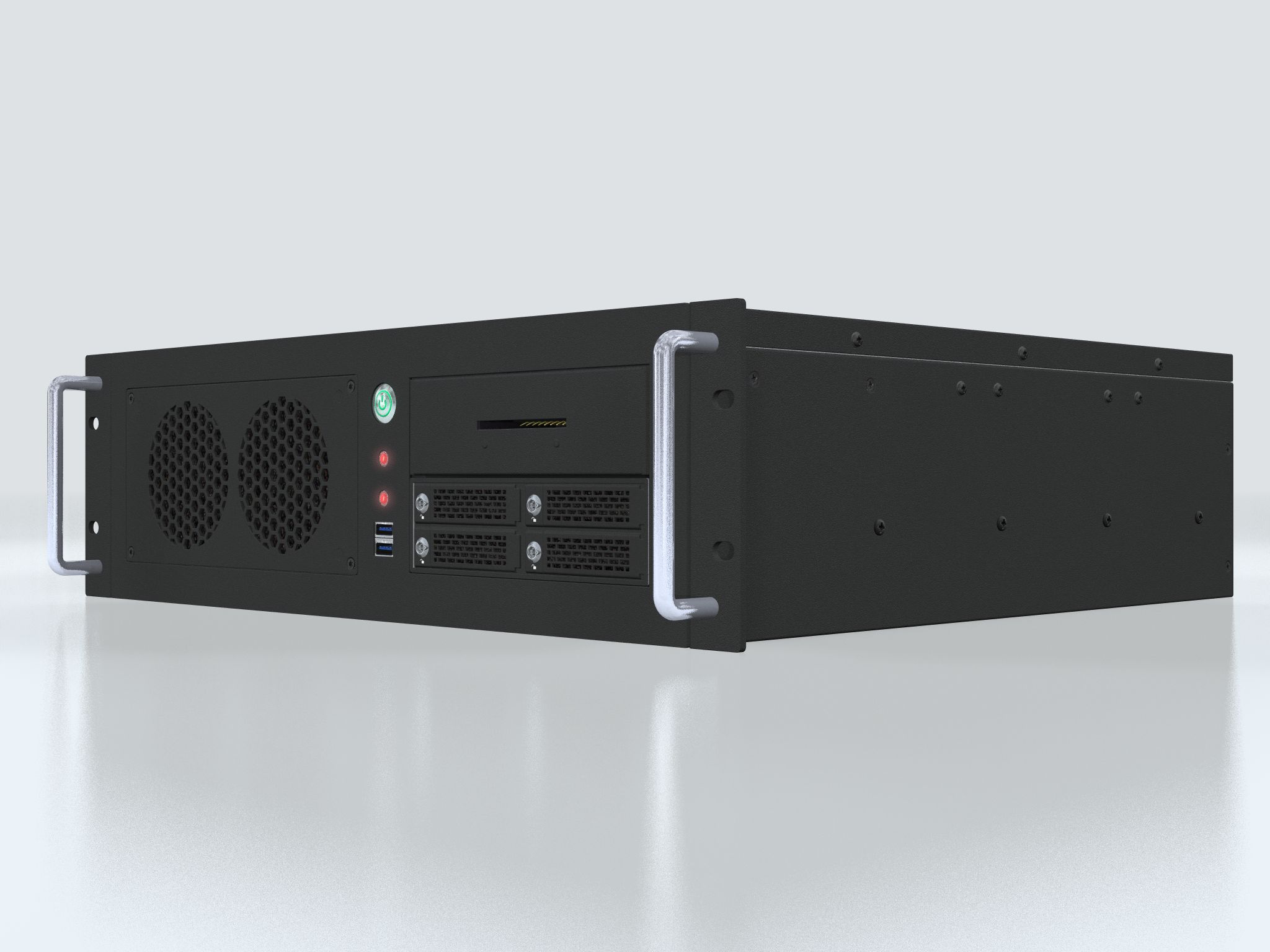

    • CST-US777AK9563, Smart card reader

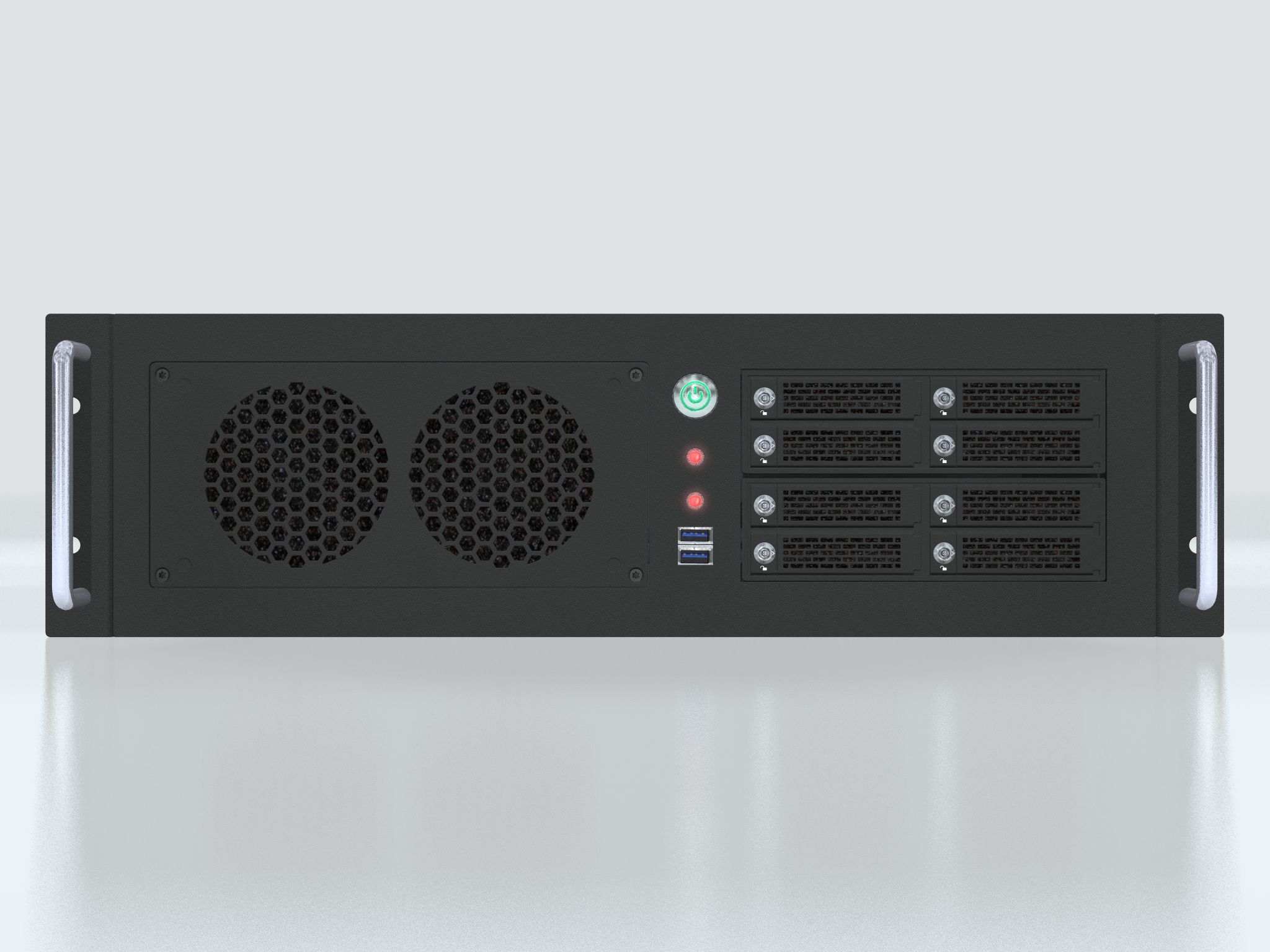

    • MB994SK-1B, 4x2.5" SATA drive bay
    Operating Temperature: -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
    Storage Temperature: -20.0°C / -4.0°F to 70.0°C / 158.0°F, Humidity up to 95%
    Compass Safe Distance: Standard: 285.00 [112.20"] - Steering: 180.00 [70.87"] cm [inch]
    Type Approval, Testing and Certificates: IEC 60945 4th (EN 60945:2002), IACS E10, ClassNK - Nippon Kaiji Kyokai, ABS - American Bureau of Shipping, CCS - China Classification Society, BV - Bureau Veritas, EU RO MR - Mutual Recognition by DNV, KR - Korean Register of Shipping, LRS - Lloyd's Register of Shipping, MIL-STD-1399, Section 300B


    Shock: 5g/11ms
    Vibration: 0.7g (IEC 60945 / IACS E10)
    Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m
    Specifications last updated: June 3, 2025 @ 10:21
